20W/m Low Temperature Self-regulating Heating Tape Snow Melting Drain Water Pipe Freeze Protection Heat Cable
4.8 (107 votes) | 532 orders
Price:
US $13.14 - 88.09
/ piece
Discount Price:
US $
9.95 -
65.20
/ piece
-24%
- Ships From

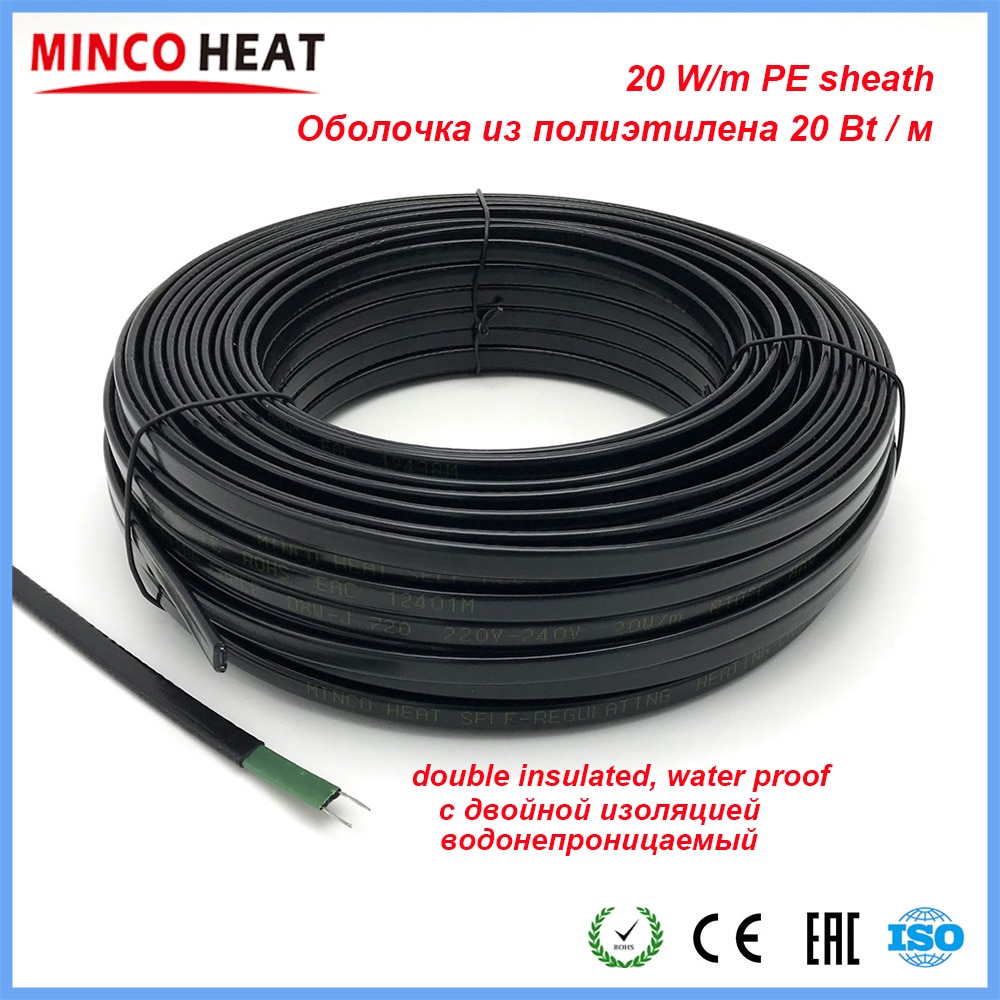

20W/m Self-regulating Heating Tape Snow Melting Drain Water Pipe Freeze Protection Heat Cable

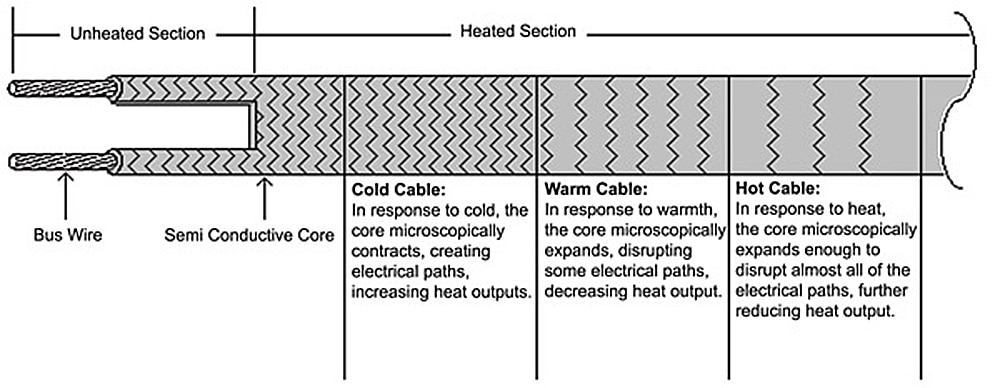

Self-regulating Working Principle:
>> This cable is suitable for household drinking water pipe, drain pipe freeze protection in winter and other heating applications.
>> The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary.
>> The cable is with high quality PE jacket, and inner has the PE composite insulation layer, better water-proof and good quality.
Technical Datas:
Cable type: self-regulating heating cable
1. Working voltage: 200~240V AC
2. Rated power: 20W/m (at 10C degrees)
3. Max maintain temperature: 65C degrees
4. Max enduring temperature: 135C degrees
5. Width * Thickness: 8.1mm * 3mm
6. Min bend radius: 15mm
7. Conductor: tinned copper wire
8. Jacket: PE
9. Max circuit length: 30m

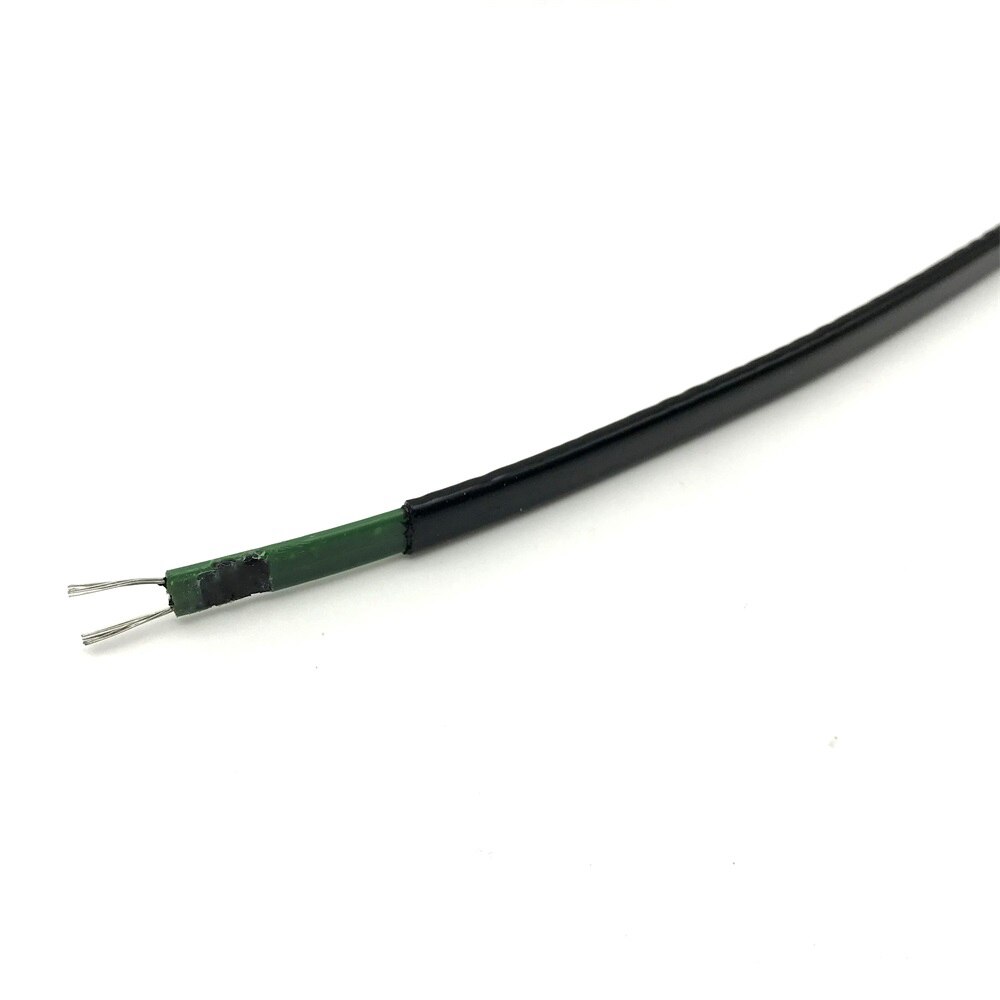

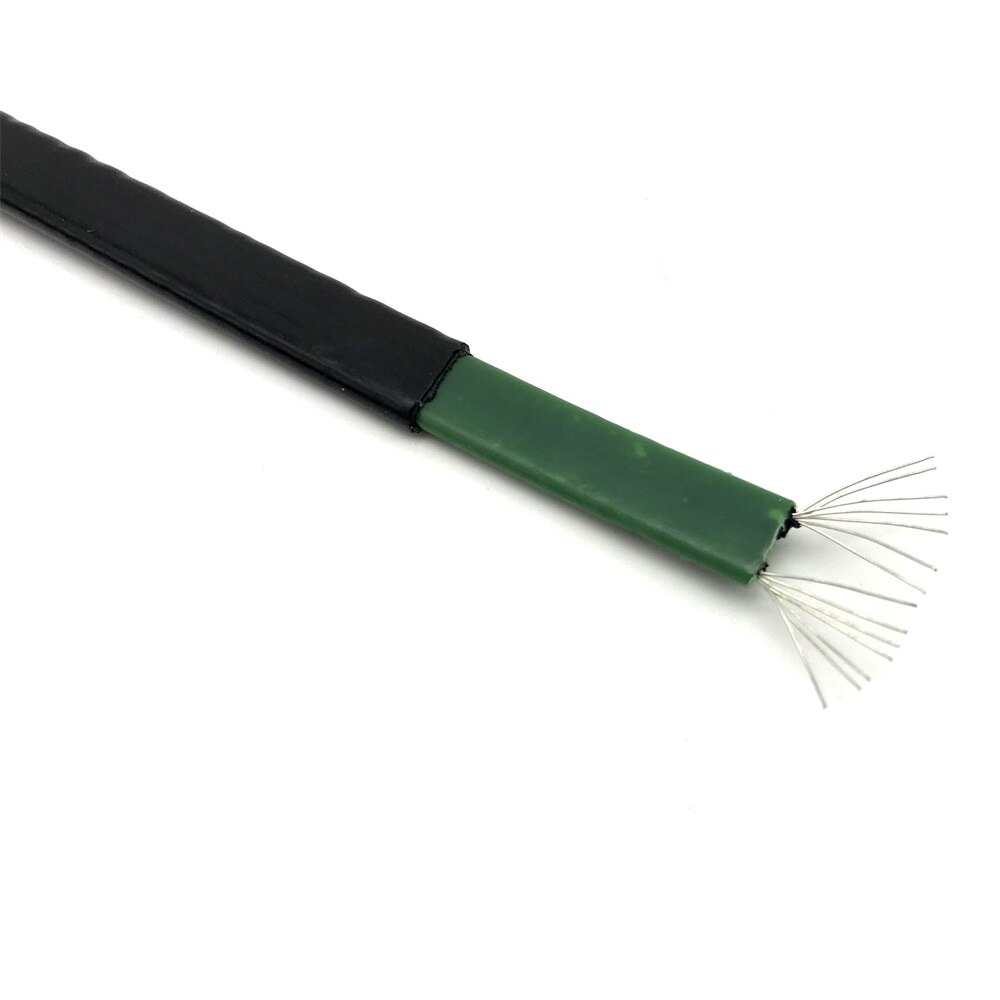

Structure:
1. Copper conductor
2. Conductive heating element
3. I nsideextra insulation
2. Conductive heating element
3. I nsideextra insulation
4. PE outer sheath

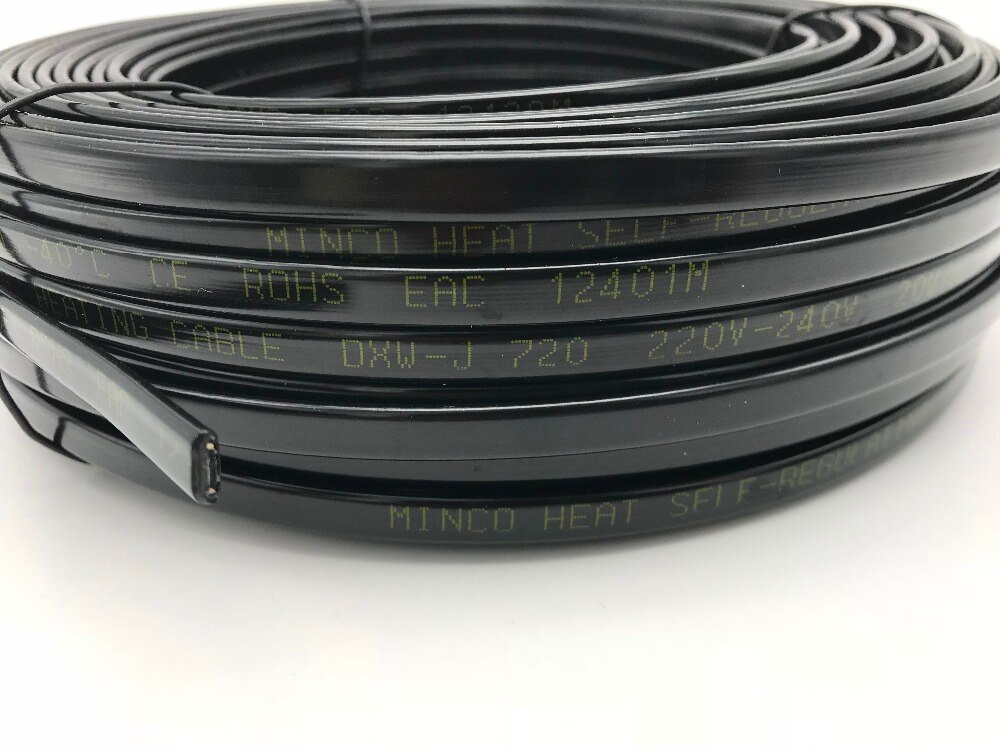

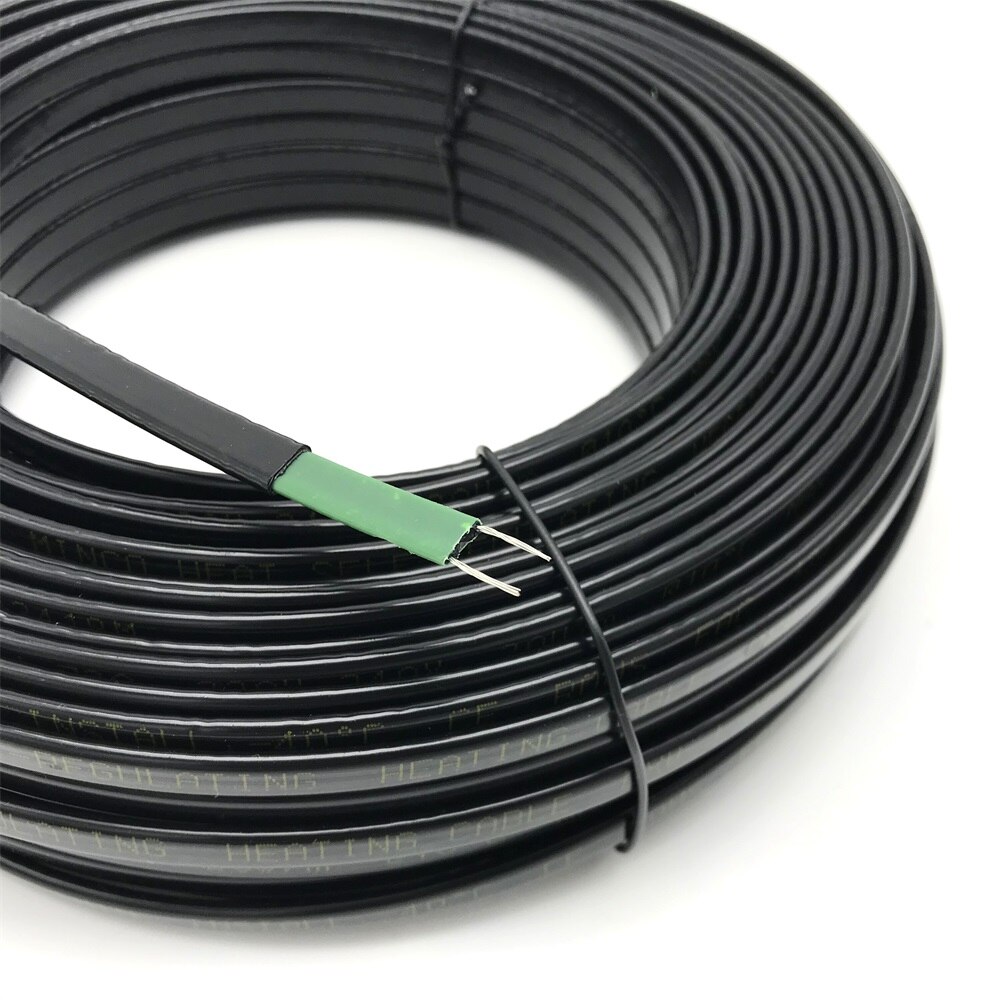

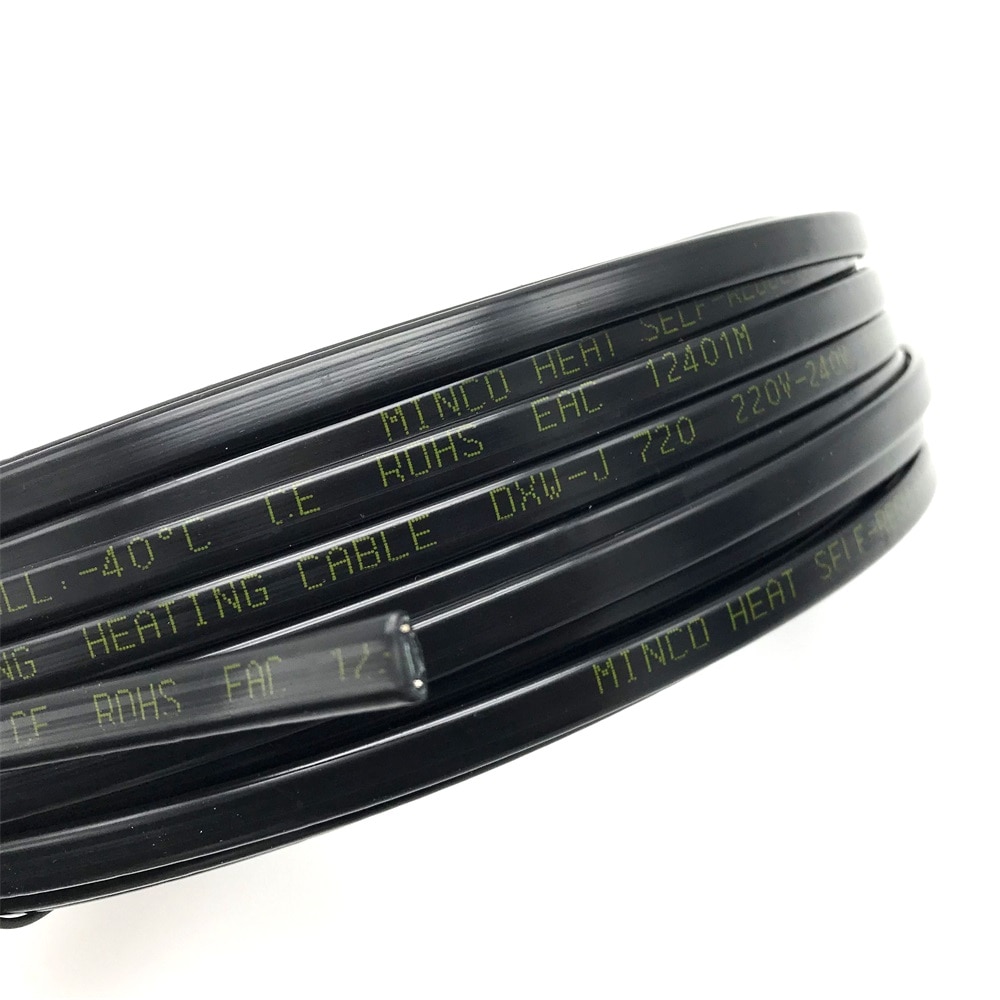

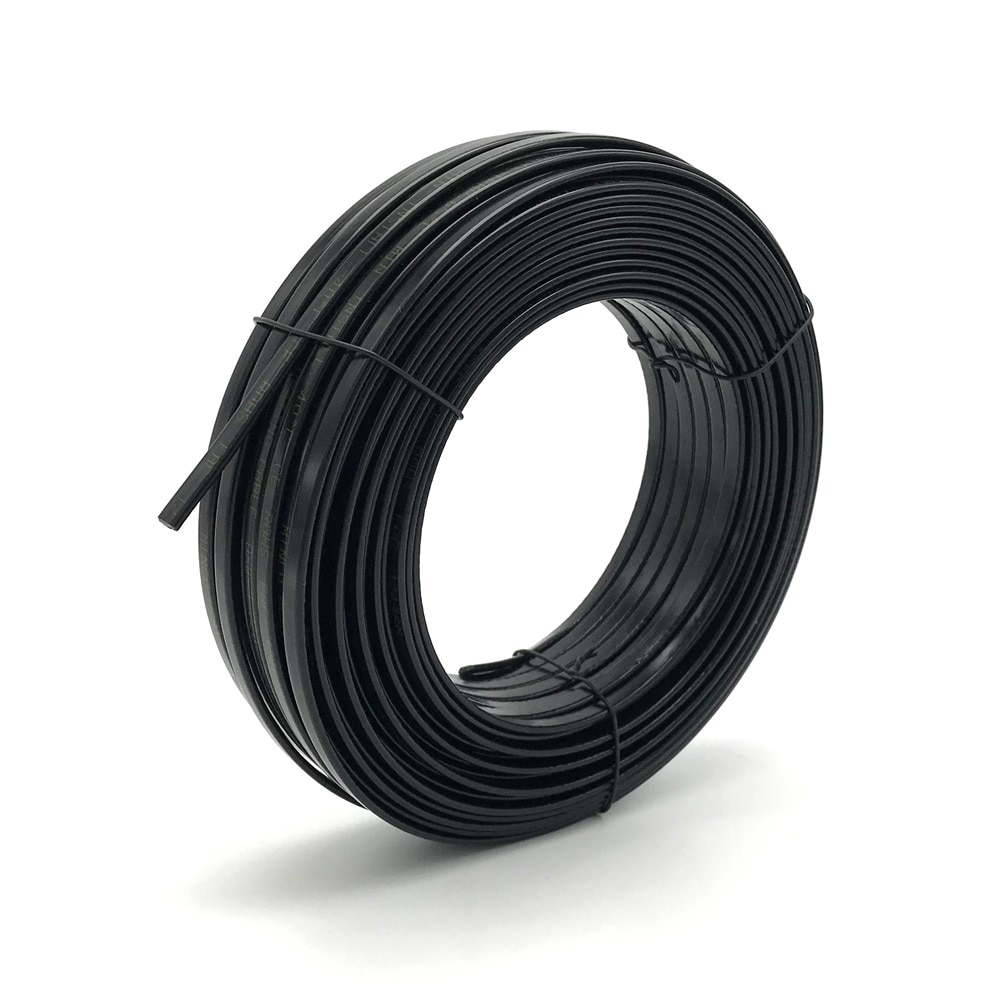

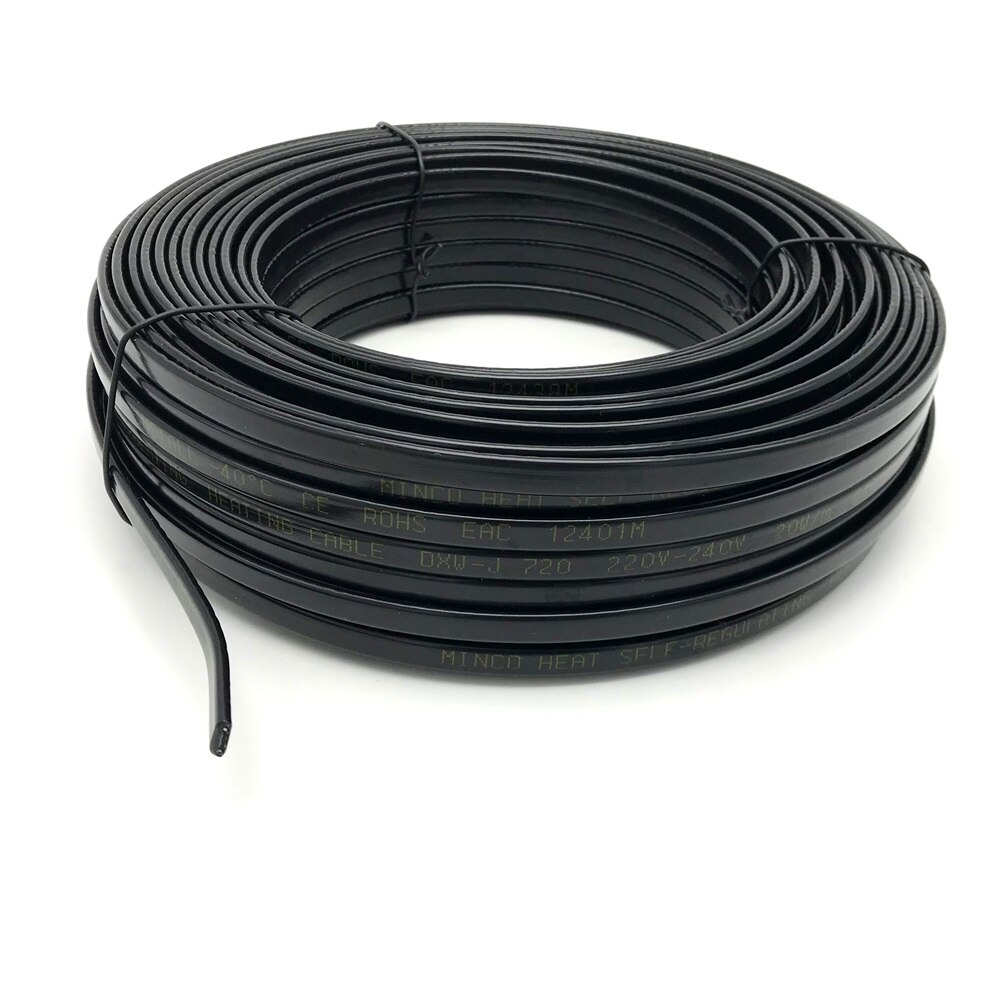

Real Photos:
Installation Steps:
1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape.DO NOT connect the two conductors together!
2) Connect the other end with cold wire or plug (for connecting to the power supply).
3) Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).
4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.
5) Connect or plug into 220~240V. The heat trace system is finished.
Tips: max circuit length ~ 30 meters.
--->We have the rubber caps for easily making the connections, if need, please click the following picture to buy : ))

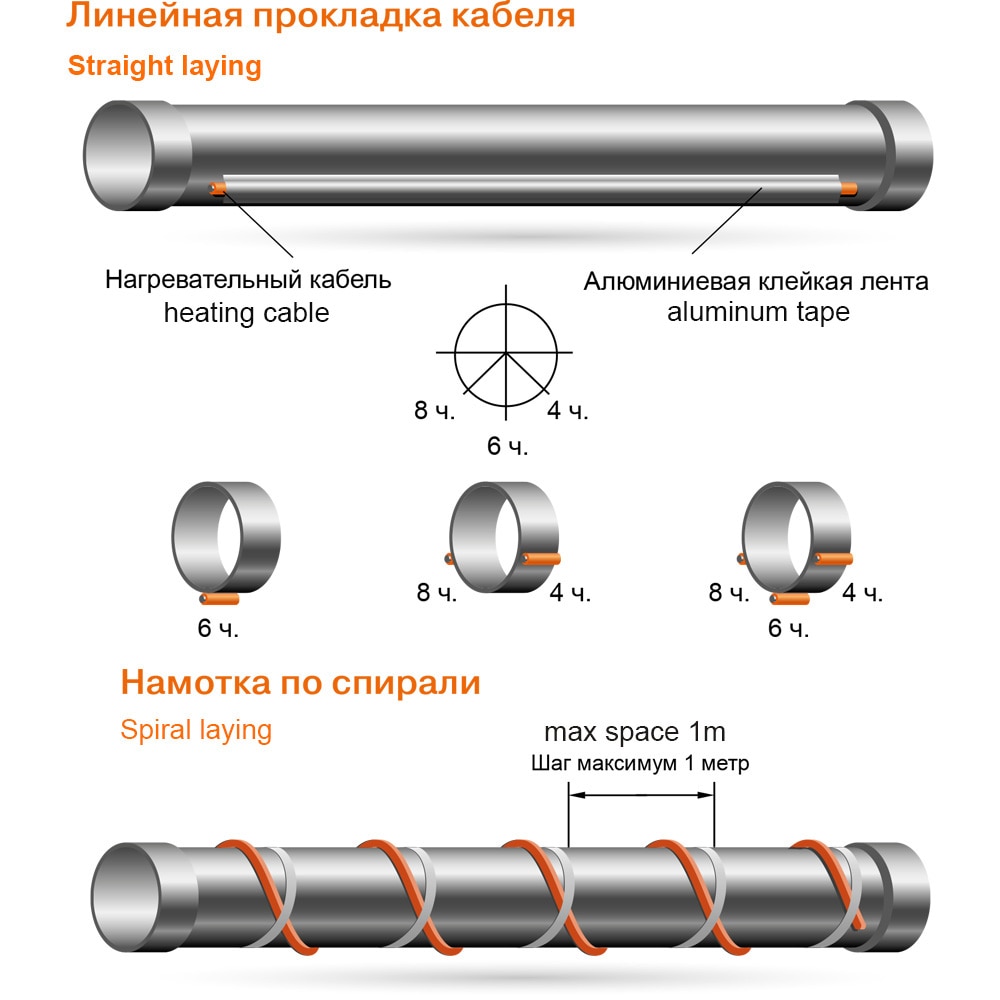

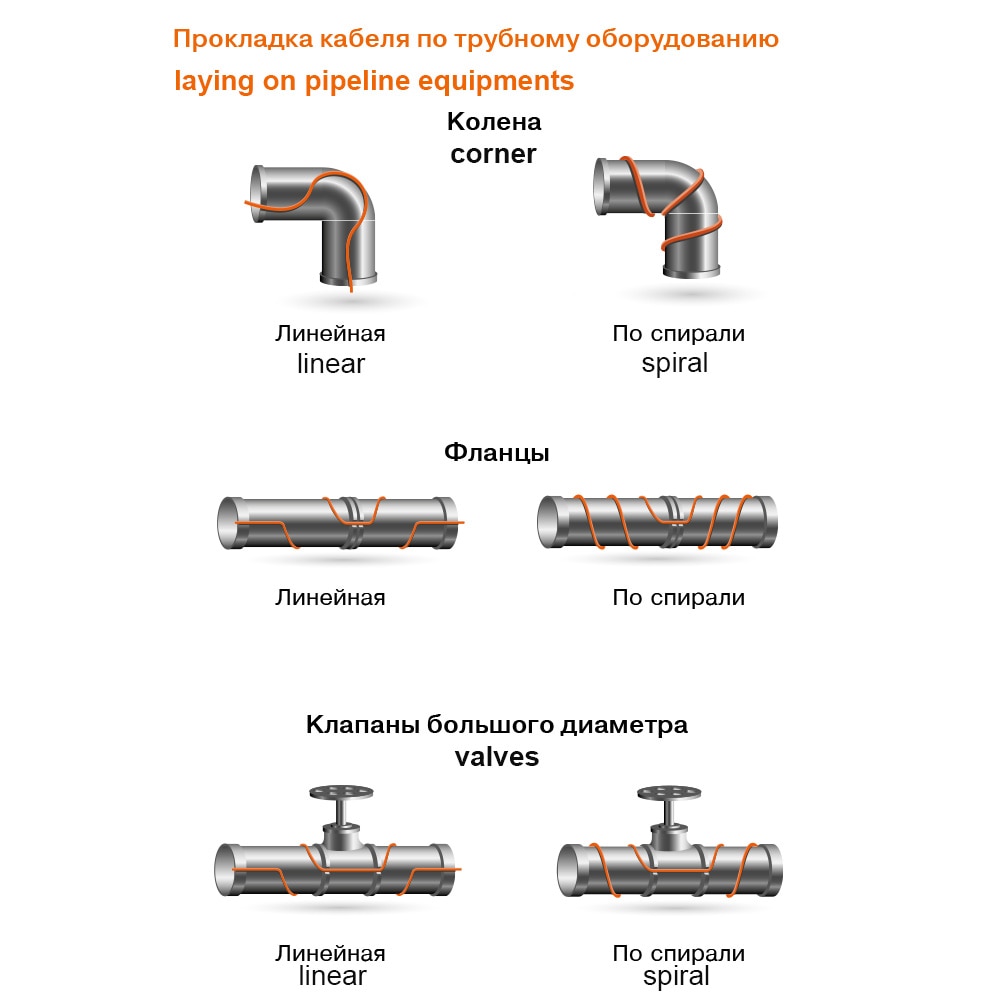

Installation on Pipes:
Company Information
Hefei Minco Heating Cable Company is specilized in manufacturing heating cables, heating mat for many years. MINCO HEAT brand products are certificated by CE and RoHS authority.
FAQ
Q:Self Regulating Heating? Best Choice Or Not?
-------Self regulating heating cable controls the temperature is not too high nor too low compared to other heating devices, because the temperature is automatically adjusted. With explosion-proof, all-weather performance, high reliability and long service life. It can solve other difficult issues, such as: long-distance pipeline heat tracing, narrow space heating and so on. May be self regulating heating cable one-time investment is higher,but it is the most economical heating measures in long running.
Notice of the shipping:Because of the differences between all the countries, we will choose a most appropriate shipping way to send your order.
- is_customized: Yes
- Insulation Material: PE
- Conductor Type: Stranded
- Conductor Material: Copper
- Application: Heating
- Type: Insulated
- Model Number: DXW-J 720
- Brand Name: MINCO HEAT
- Origin: Mainland China
- Certification: CE,RoHS
- Certification: CE,RoHS,EAC
- Voltage: 220v,230v,240v
- Power: 20w/m
- Thickness: 3mm
- Width: 8.1mm
- Application: defrost, snow melting, heat trace, other heating applications
- Max length: 30 meters
- Warranty: 2 years
