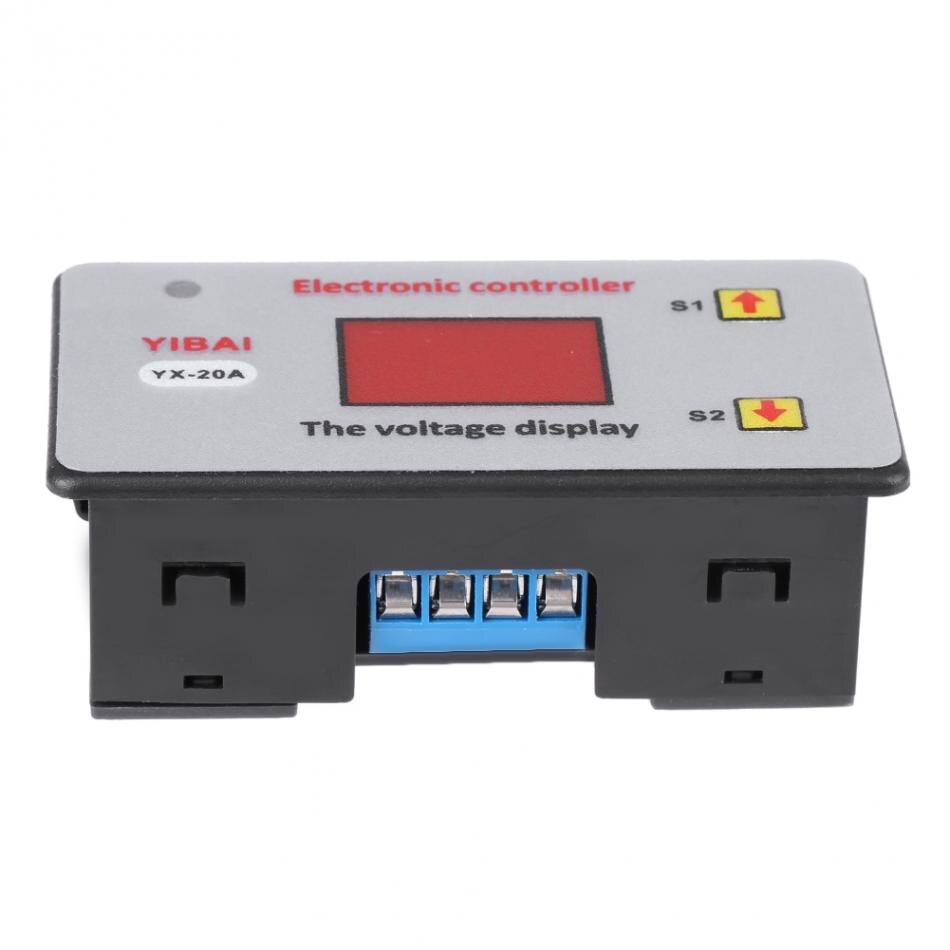

20A Battery Protection Undervoltage Controller Low Voltage Cut off Automatic Control Switch for 12V Storage Lithium Battery

0.0 (1 votes) | 3 orders
Price: US $1426.02 / piece
Discount Price:
US $ 1369.02 / piece
-4%
Quantity



Battery Low Voltage Cut off Automatic Switch On Protection Undervoltage Controller


Features:

  • This is a under-voltage switch controller used to turn off the power of load in the event of the voltage dropping below a set value.

  • When the battery voltage increases to a set value, the module will automatically turn on load again.

  • Designed with a LED indicator to show if battery is under-voltage.

  • Both turn-off and turn-on voltage value can be adjusted by simply pressing buttons.

  • This controller will help you to protect battery from over-discharging and prolong battery life.

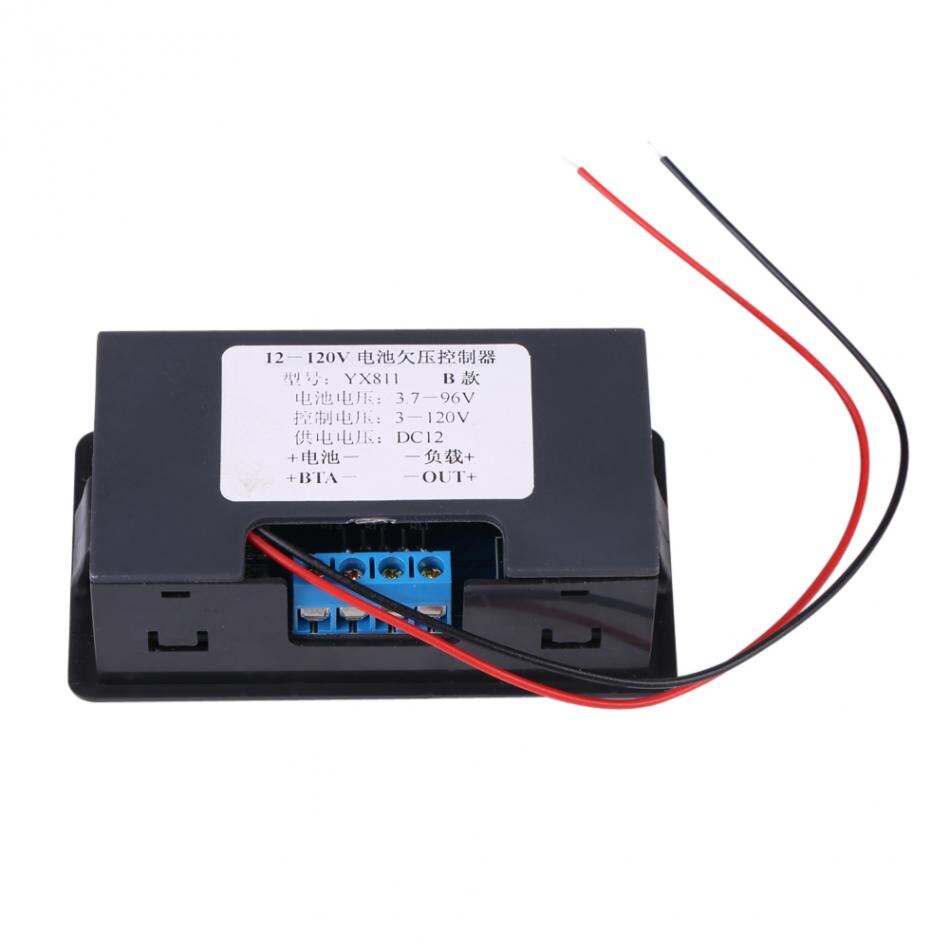

Specifications:

Suitable Battery: Storage/lithium battery

Power Supply Voltage: DC12V

Battery Voltage: 3.7V~96V

Control Voltage: 3V~120V

Control Current: 20A
Control : 0.1V
Voltage Error: ±0.1V

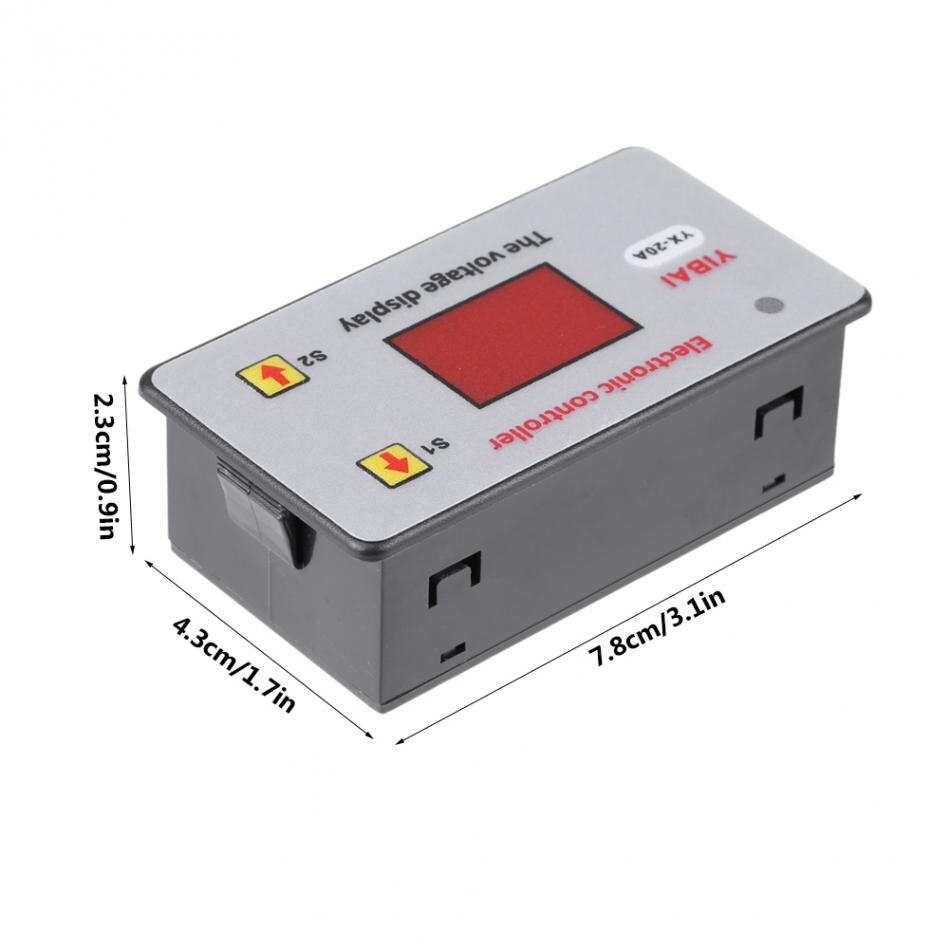

Size: 7.8*4.3*2.3cm/3.1*1.7*0.9in

Weight: 42g(approx.)

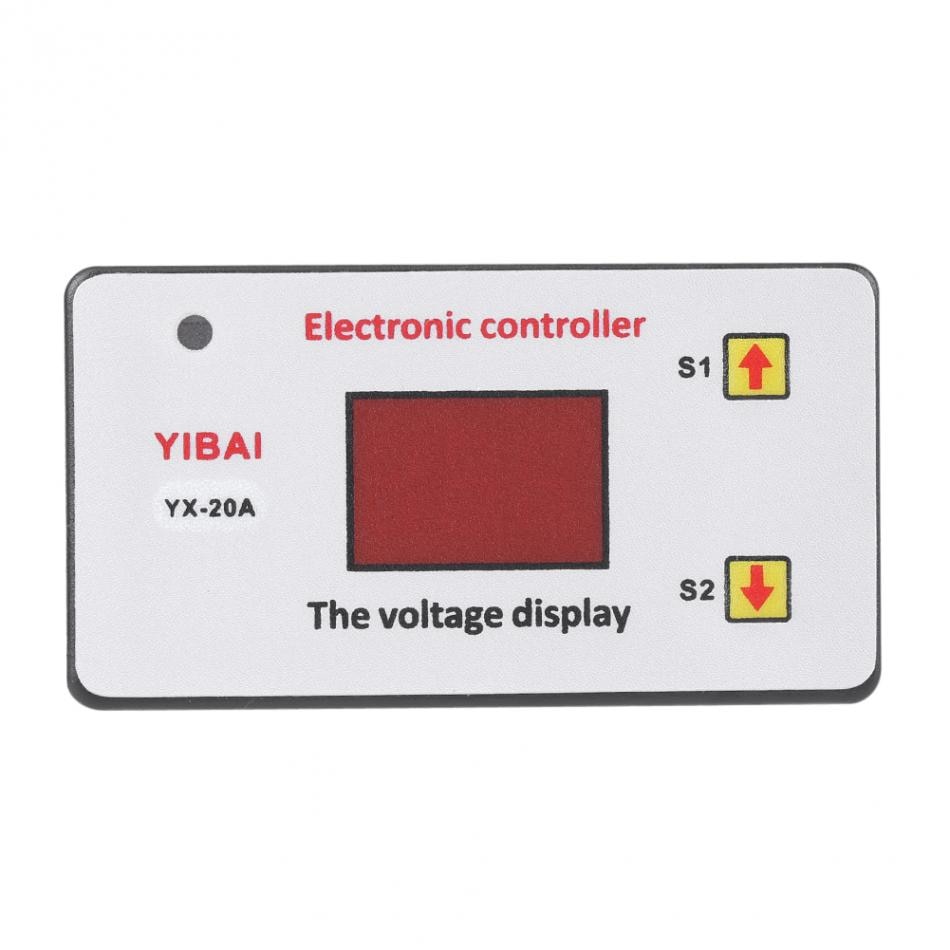

Voltage Setting Method:

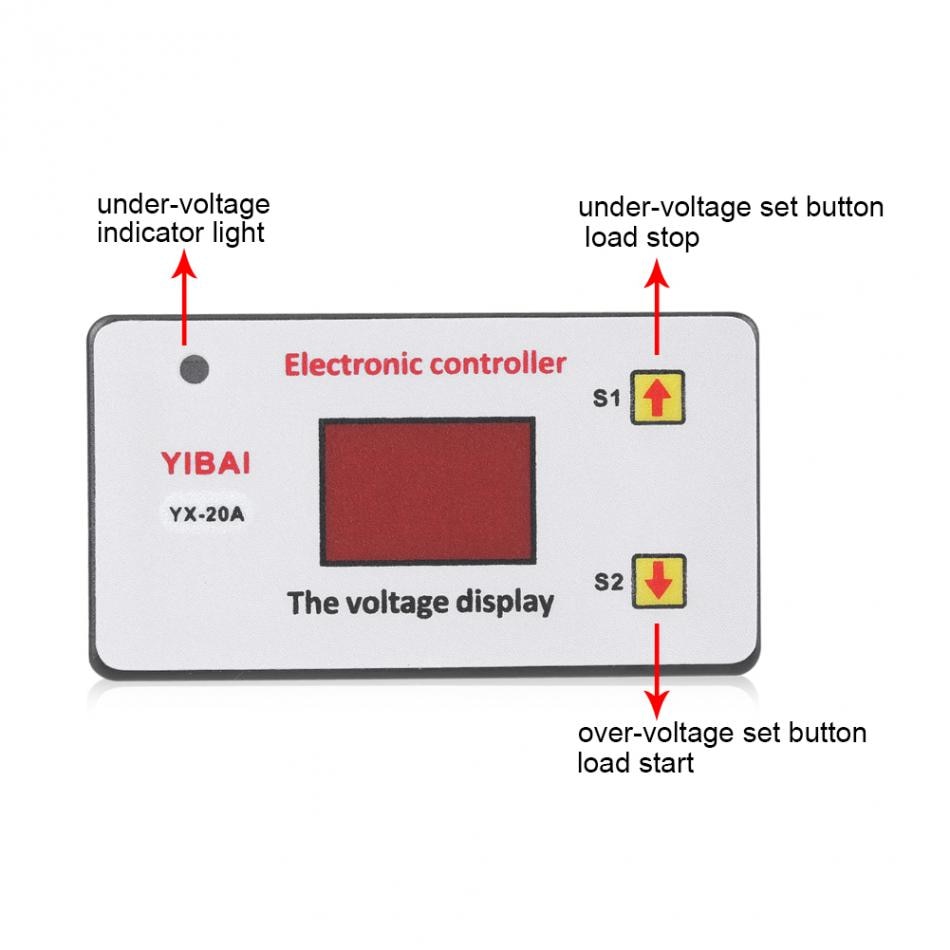

At setting mode(when display flashes), S1 button increases voltage value(add), button reduces voltage value(minus).
S1 Under-voltage Setting(load stop):
At normal mode, press S1 button to show under-voltage value. Press and hold S1 button till display flashes, then adjust under-voltage value by pressing S1 and button.
Over-voltage Setting(load start):
At normal mode, press button to show over-voltage value. Press and hold button till display flashes, then adjust over-voltage value by pressing S1 and button.
Restore to Factory Setting:
At normal state, press and hold S1 and buttons together, till display shows 888, to restore to factory setting
Note: If S1 cannot be used to add voltage, set first;  if cannot be used to minus voltage, set S1 first.


Package Includes:

1 x Battery Under-voltage Controller




1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.

2) Payment must be made within 3 days of order.

3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.


About shipping

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within the period,  please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

8. We seller are not in charge of import duty, buyer is responsible for that. Any dispute caused by this is unreasonable.

9. BR buyer please provide the cpf or cnpj, it will be better for you to get it more quickly. thanks


Return and Refund

1. You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT.
2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.
3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from Hogaki. OR, you may choose to have a replacement.


About feedback

We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
It is impossible to address issues if we do not know about them!




  • Rated Current: 20A
  • Rated Voltage: 3V~120V
  • Brand Name: Hilitand
  • Origin: Mainland China
  • Certification: NONE
  • Battery Voltage:: 3.7V~96V
  • Power Supply Voltage:: DC12V
  • type: Undervoltage Protection Controller
  • type 1: Storage Battery Module
  • type 2: Storage Battery Module
