200W10MM flat disc permanent magnet three-phase brushless DC motor motor with sensor with Hall
0.0 ( votes)
Price:
US $523.01 - 584.40
Discount Price:
US $
496.92 -
552.16
-5%
- Color

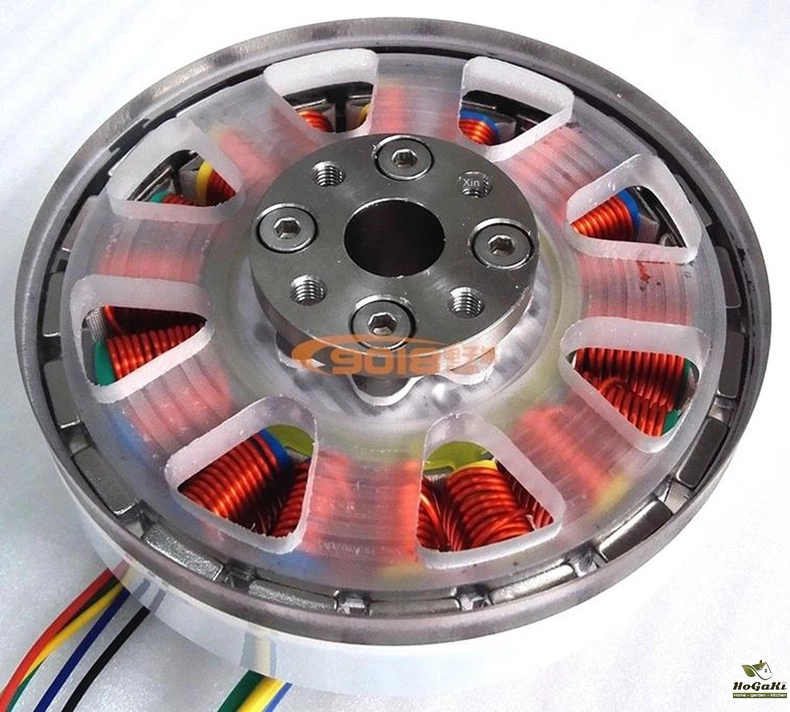

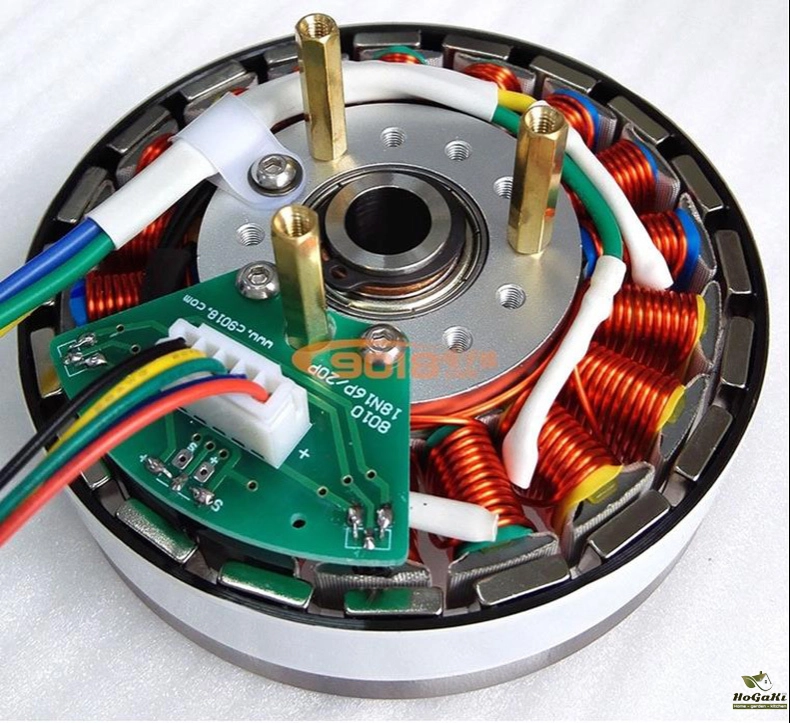

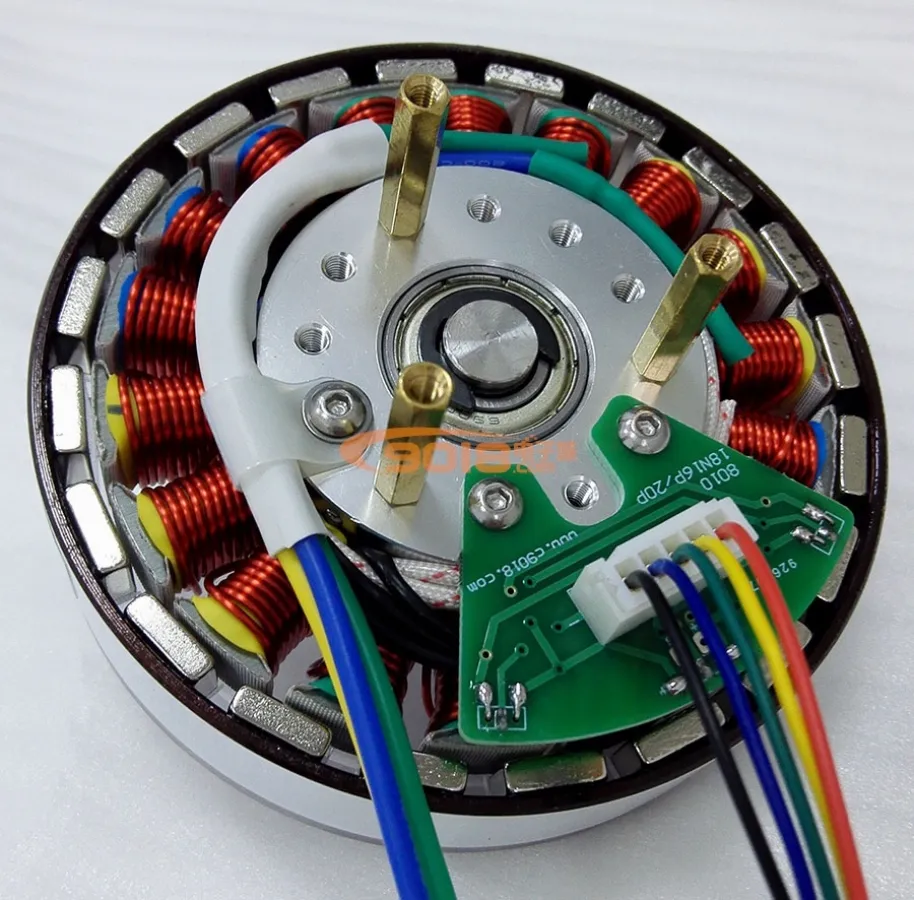

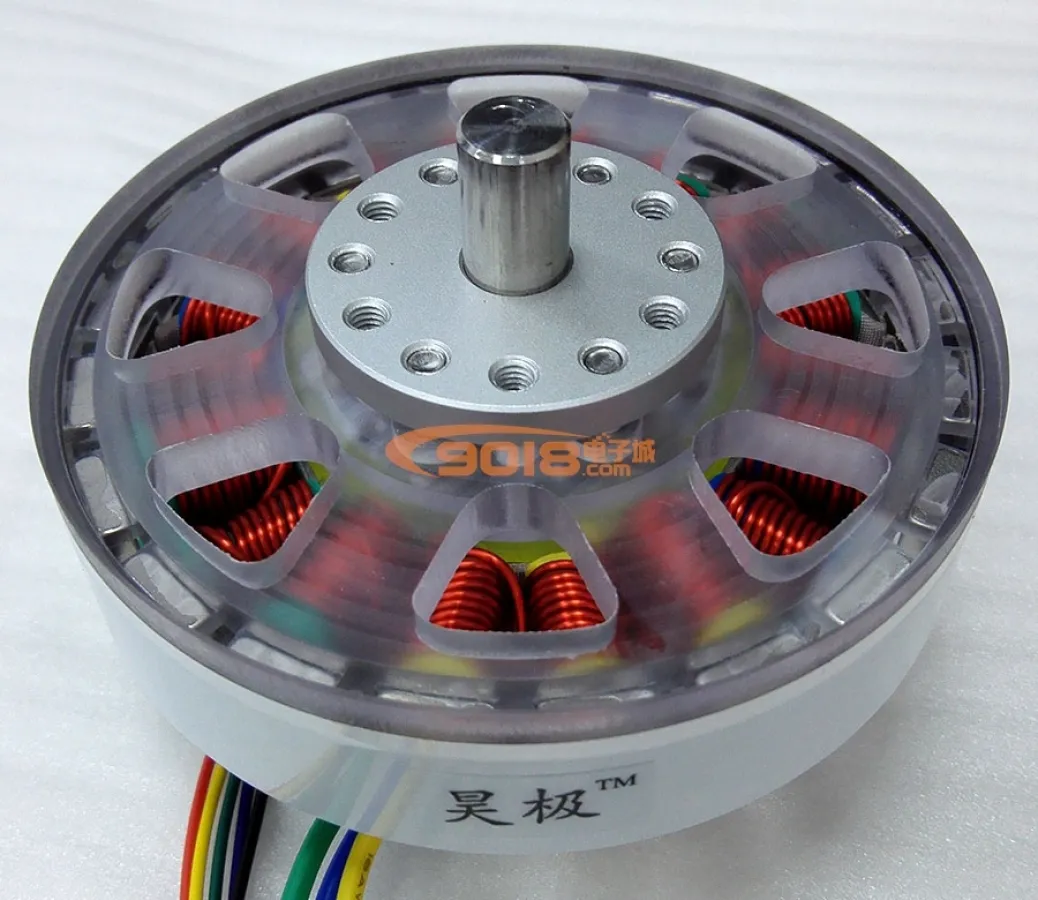

This motor is an experimental prototype product with a diameter of about 92mm, large torque and smooth speed regulation. It can be used as a general power direct drive without the reduction gear to improve efficiency. The core components are supported by metal, and the rotor bracket is CNC processed with engineering plastics (non-acrylic) , It can meet the occasions with low requirements and small demand for power, or as a teaching model for demonstration. It can also customize the all-metal frame and increase the power according to the application intensity. Please contact our customer service for this need. This motor is a permanent magnet three-phase DC brushless motor, and an adapted brushless motor driver must be purchased for use. At the same time, this is also a generator. It can output three-phase AC power when it receives external power transmission (such as water power, wind power, hand crank, treadmill, Stirling engine, etc.). It can be converted into DC by adding a three-phase rectifier bridge. Charging the battery. Because of the simple structure of the motor, easy disassembly and assembly, flexible installation and fixation methods, multiple coaxial cables can be connected in parallel to obtain multiple power output, and the rotating shaft can be changed to any length by itself. It is a pre-product development, DIY production of various model toys, small The best choice for generators.
Specifications:
Overall diameter: 92.3mm
Rotor thickness: 24mm
Overall thickness: 36mm (without shaft)
Rotating shaft: diameter 10, available shaft length 15mm
Stator: diameter 80*thickness 10mm
Number of slots/poles: 18N20P, star connection
Hall phase angle: 120 degrees
Lead length: about 20~30cm
Lead phase sequence: green = A (U), yellow = B (V), blue = C (W)
Product net weight: about 530g
Electrical parameters:
No-load speed: 2970RPM@24V
Working voltage: DC12-24V
Rated voltage: 24V
Rated current: 10.9A
Rated speed: 2509RPM
Rated torque: 0.8Nm
Rated power: 210W
Torque constant (KA): 0.08Nm*A
Speed constant (KV): 124RPM*V
Specifications:
Overall diameter: 92.3mm
Rotor thickness: 24mm
Overall thickness: 36mm (without shaft)
Rotating shaft: diameter 10, available shaft length 15mm
Stator: diameter 80*thickness 10mm
Number of slots/poles: 18N20P, star connection
Hall phase angle: 120 degrees
Lead length: about 20~30cm
Lead phase sequence: green = A (U), yellow = B (V), blue = C (W)
Product net weight: about 530g
Electrical parameters:
No-load speed: 2970RPM@24V
Working voltage: DC12-24V
Rated voltage: 24V
Rated current: 10.9A
Rated speed: 2509RPM
Rated torque: 0.8Nm
Rated power: 210W
Torque constant (KA): 0.08Nm*A
Speed constant (KV): 124RPM*V
