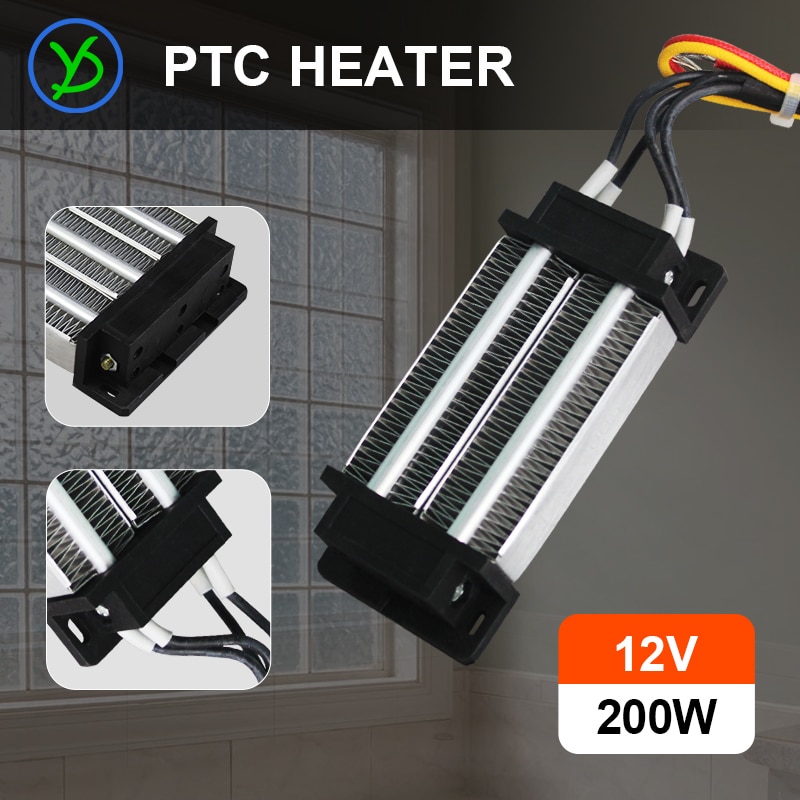

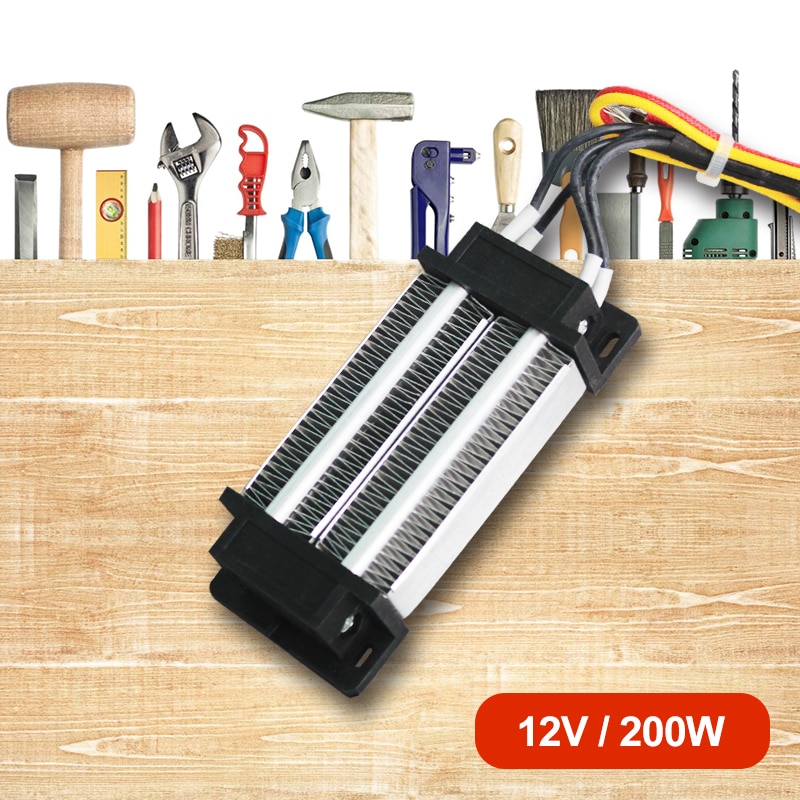

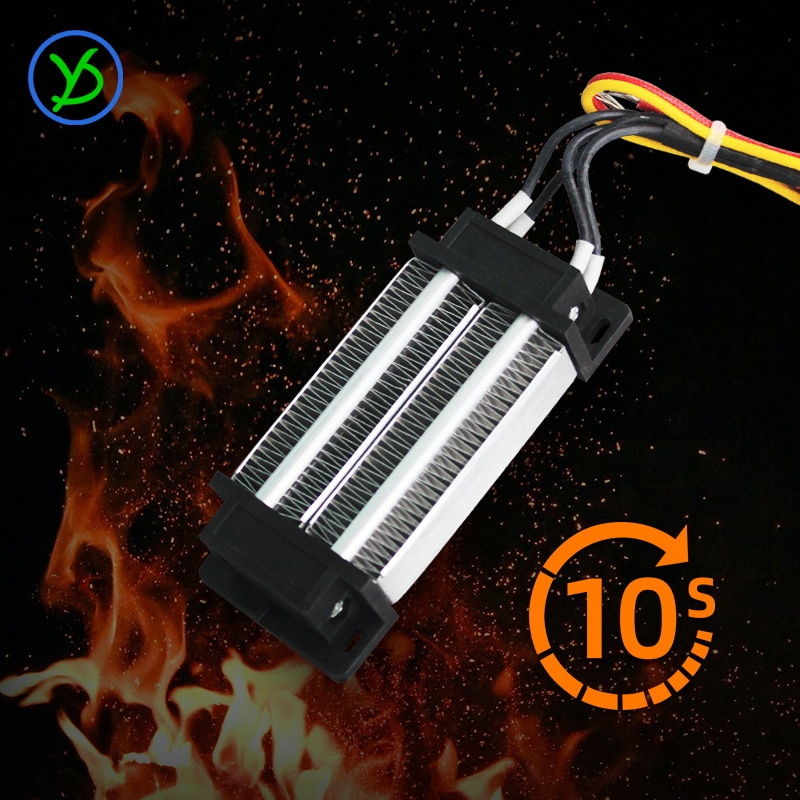

200W 12V AC/DC Heating element Insulated-Thermos PTC ceramic air heater incubator heater electric heater 120*50mm
SALE
ID: 8104

200W 12V AC/DC Heating element Insulated-Thermos PTC ceramic air heater incubator heater electric heater 120*50mm

5.0 (3 votes) | 16 orders
Price: US $23.38 / piece
Discount Price:
US $17.30 / piece
-26%
Quantity

100% Brand new and high quality

Product Description

Rated Power:200W

Rated Voltage:12V

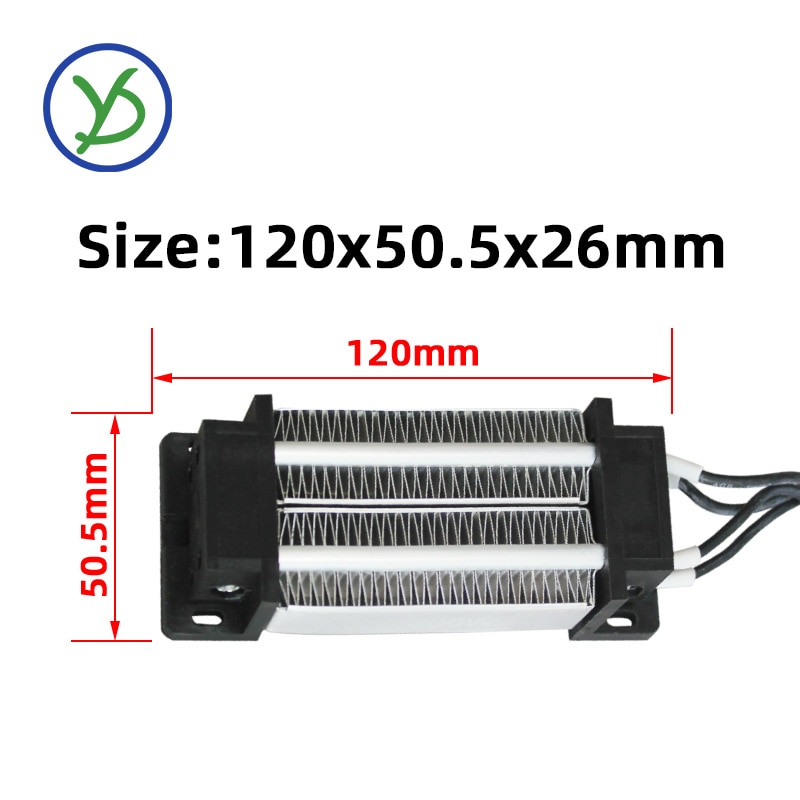

Size:120*50*26mm

Mounting Pitch:100 x 43mm

Mounting Hole Size:8 x 4mm

heat material: PTC Thermistor

heat methods:heat radiation by air flow

lead wire: silicone high temperature line

the length of lead wires : 200mm

the length of bare wires : 10mm

main usded in:Electric Heater /Air Conditioner/equipment/Humidifier/Air Purifier/Clothes Dryer/Dehumidifier

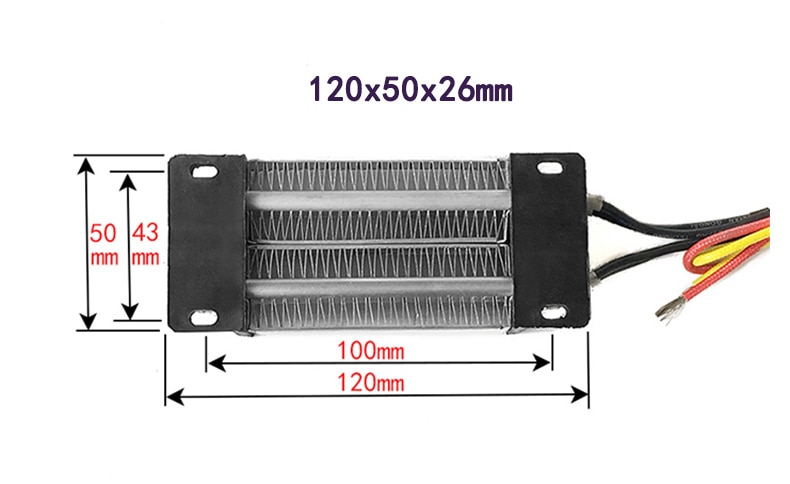

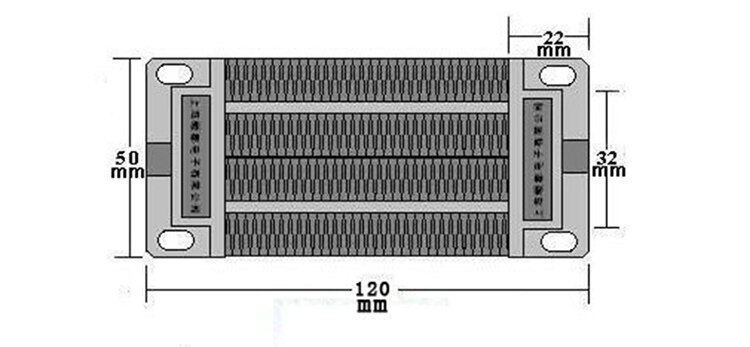

  Item Size
749775271_1678

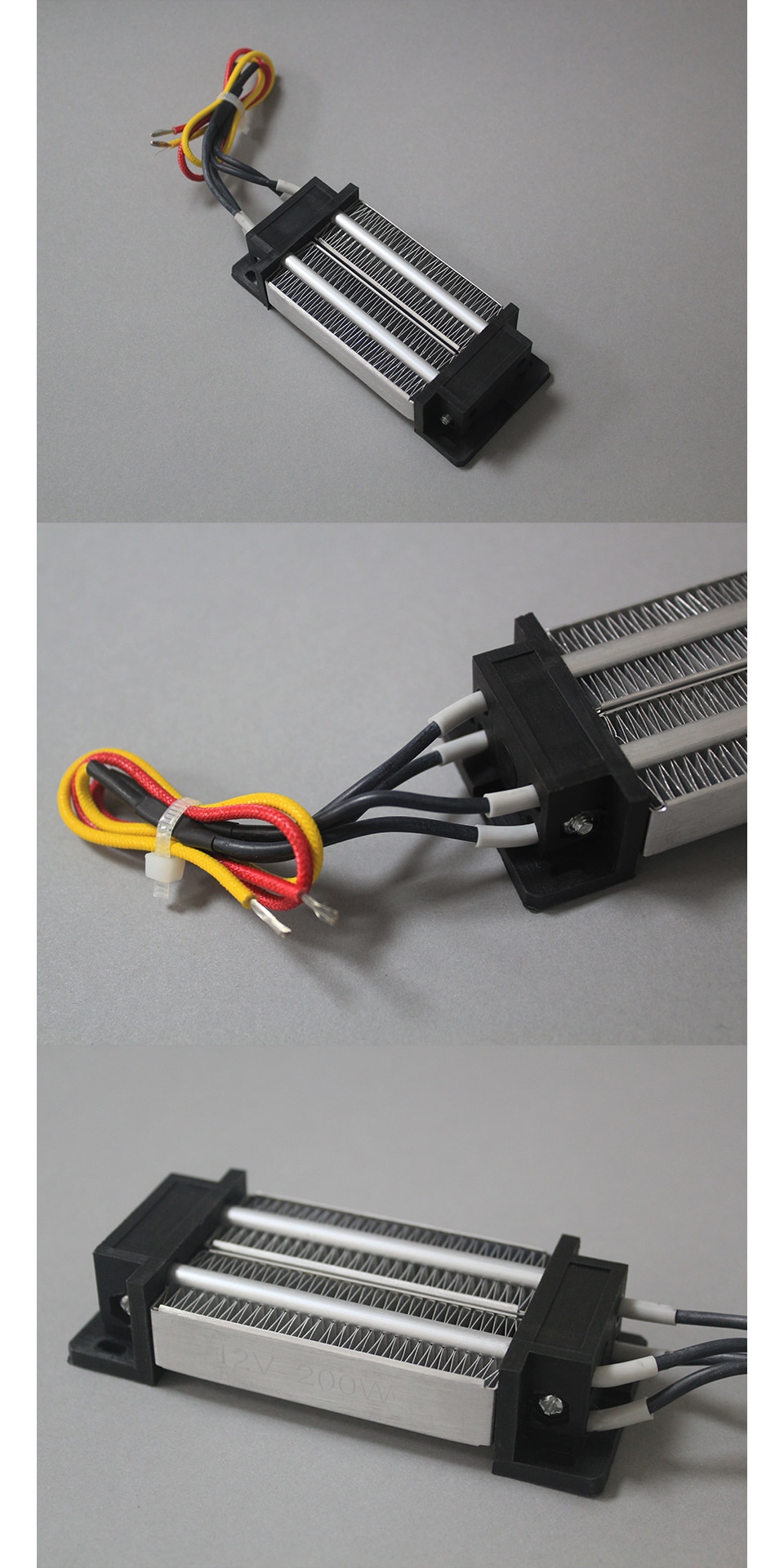

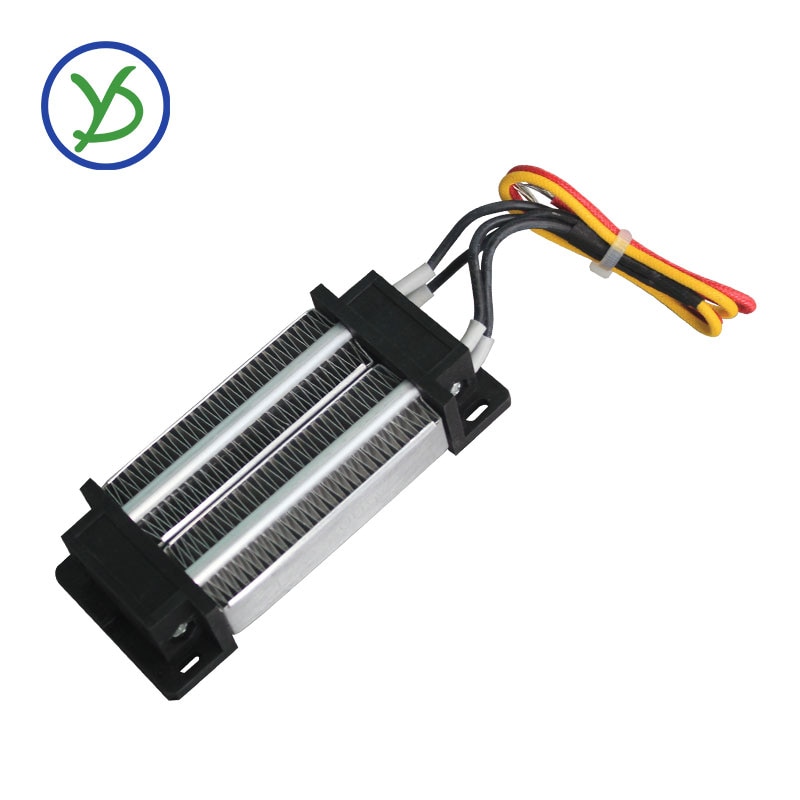

  Item Show
微信图片_20190917114510i7120-50
Advantage:
  • Safety, surface insulation.
  • Heat up quickly, long service life.
  • self-control temperature
  • small sound



Specifications:

1, the power line does not distinguish between positive and negative, you can freely link power 12V.
2, when the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3, can be placed under a wet environment, but can not be placed in water.
4, for the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5, built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.
6, both ends of the product wearing bracket (PA66 high temperature nylon)
7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.
8, under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
9, Life: about: 3--5 years.
we  have more power to choose

 Application
HTB1EVx0SpXXXXctapXXq6xXFXXX9

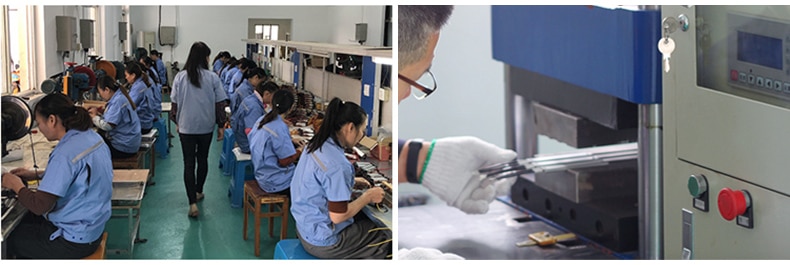

 Our Company



Shanghai Yidu Electronic Co., Ltd is the professional manufacturer of PTC products. We are specializing in the production of PTC air heaters, PTC fan heaters and PTC liquid heaters.Our most popular products are the insulated air heaters.Widely used in new air conditioners, air conditioners, incubators, car assisted heating, ticket collection systems, beauty salons and all kinds of household appliances.

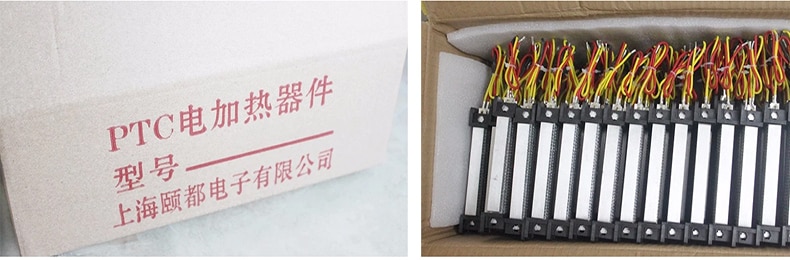

 Packing & Delivery



Packing Details : Packing, 50pcs/carton

Delivery Details : 1-3 days after order

 FAQ

Q: Are you trading company or manufacturer ?

A: We are professional PTC factory.

Q: Can you customize different requirements products?

A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.
If you have another question, please send us your RFQ.







Packaging Details

  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 10cm x 5cm x 5cm (3.94in x 1.97in x 1.97in)

  • Brand Name: OLOEY
  • Origin: CN(Origin)
  • Model Number: JQ-76A2-12V-200W
  • Type: Electric Heater Parts
