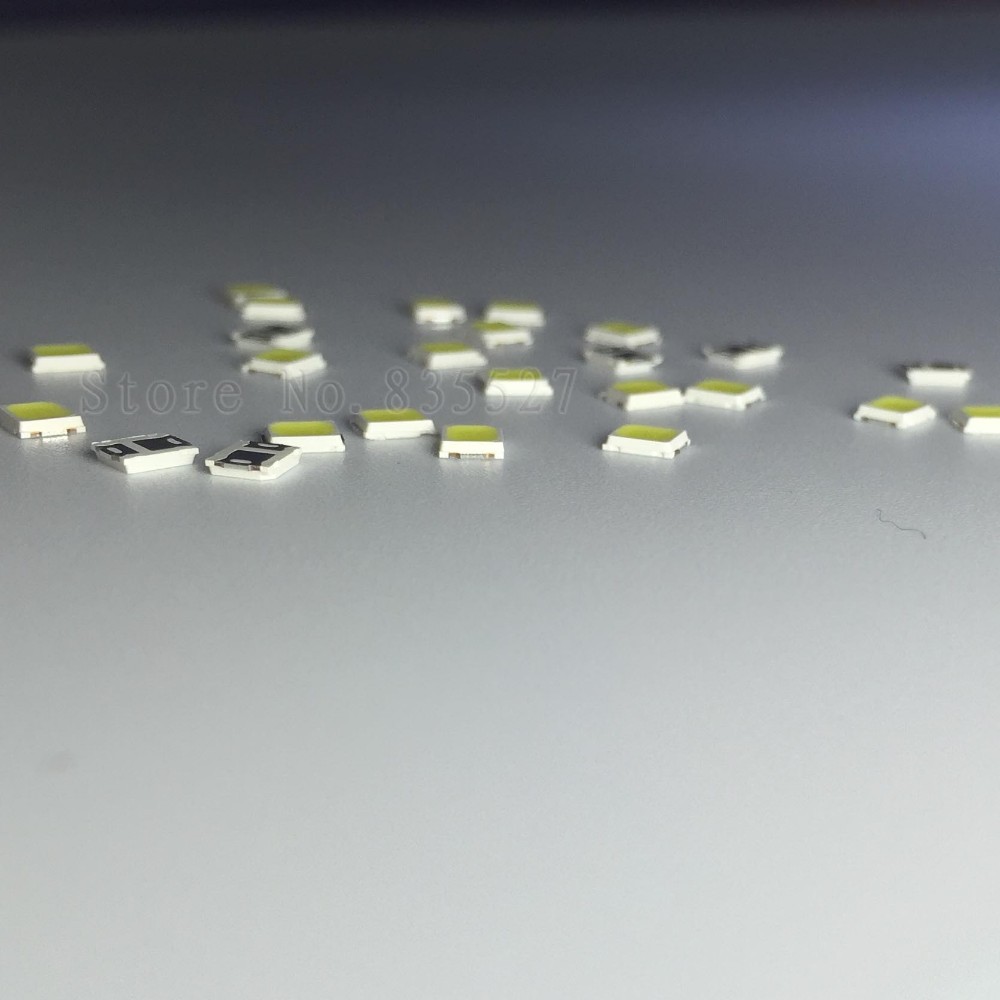

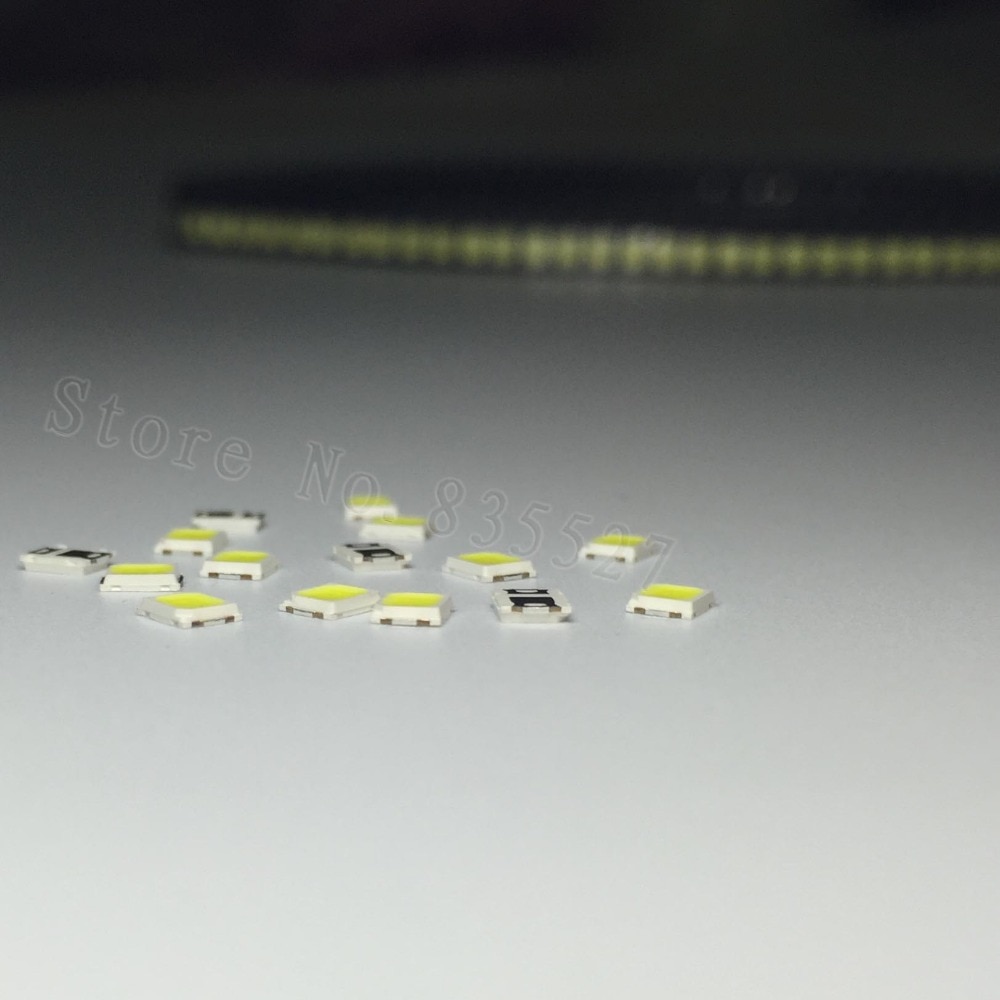

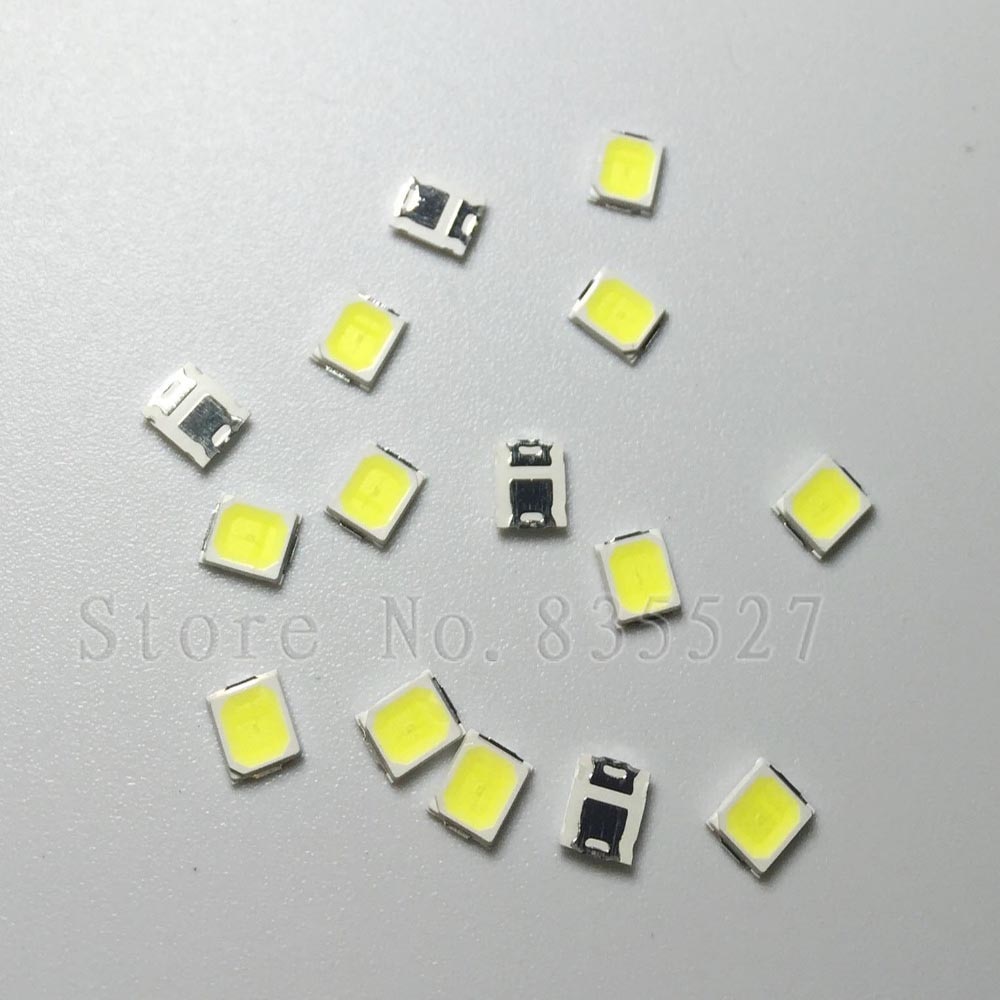

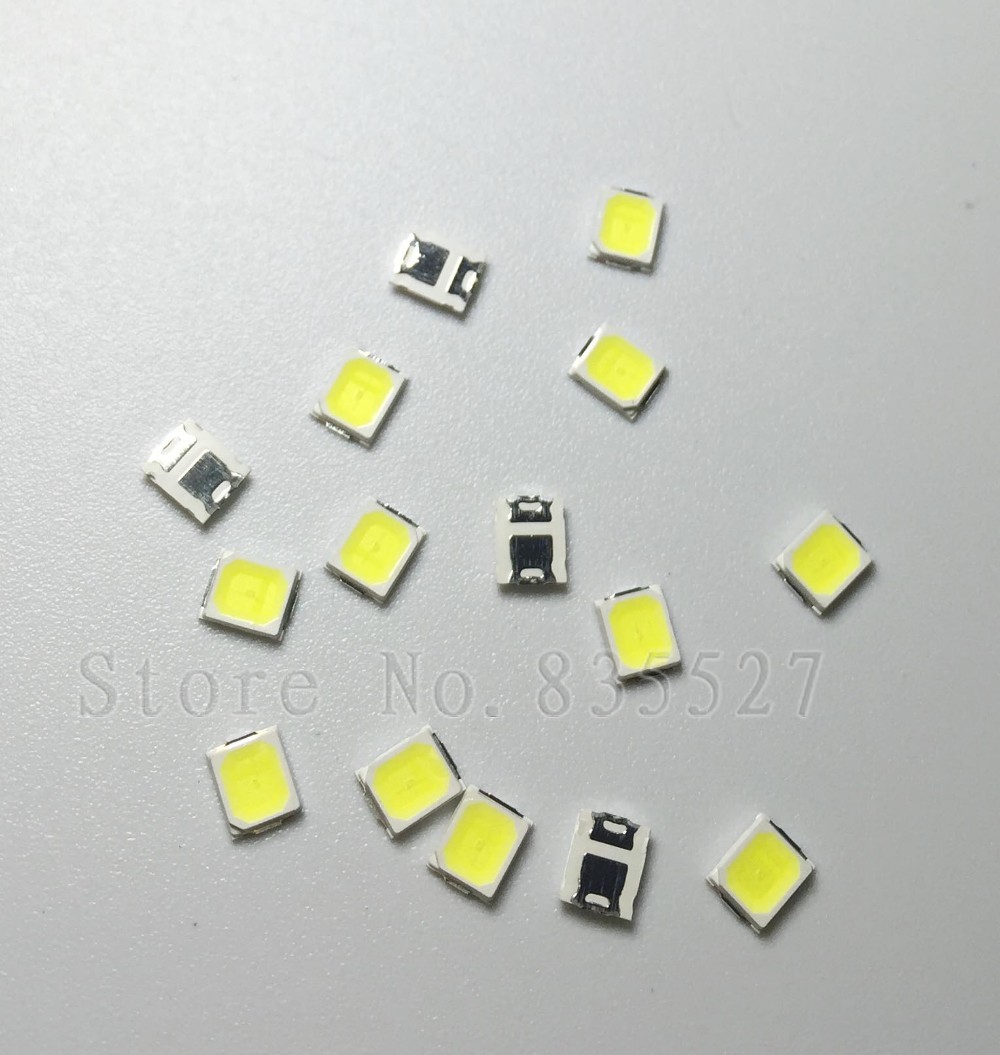

200PCS/LOT 2835 SMD pure white / natural white / warm white / cool white LED 23-25LM bright lamp beads Light emitting diode
4.6 (47 votes) | 116 orders
Price:
US $11.44
/ 200 Pieces
Discount Price:
US $
9.95
/ 200 Pieces
-13%
- Emitting Color
The company will wholeheartedly for the general customers to provide electronic components. You can send to me a list of electronic components and I can prepare goods for quote and delivery according to an order
The company's main: SMD/DIP electronic components, resistors, capacitors,diodes, leds, insurance tube, crystals, tantalum capacitor, thermal,varistor, aluminum electrolytic capacitor, magnetic beads, inductors,potentiometer, adjustable resistance, adjustable capacitance, discharge tube,TVS diode, schottky, power supply IC series of electronic components.
Features:
◆Super high flux output and high luminance
◆Extremely wide viewing angle
◆Suitable for all SMT assembly and solder process

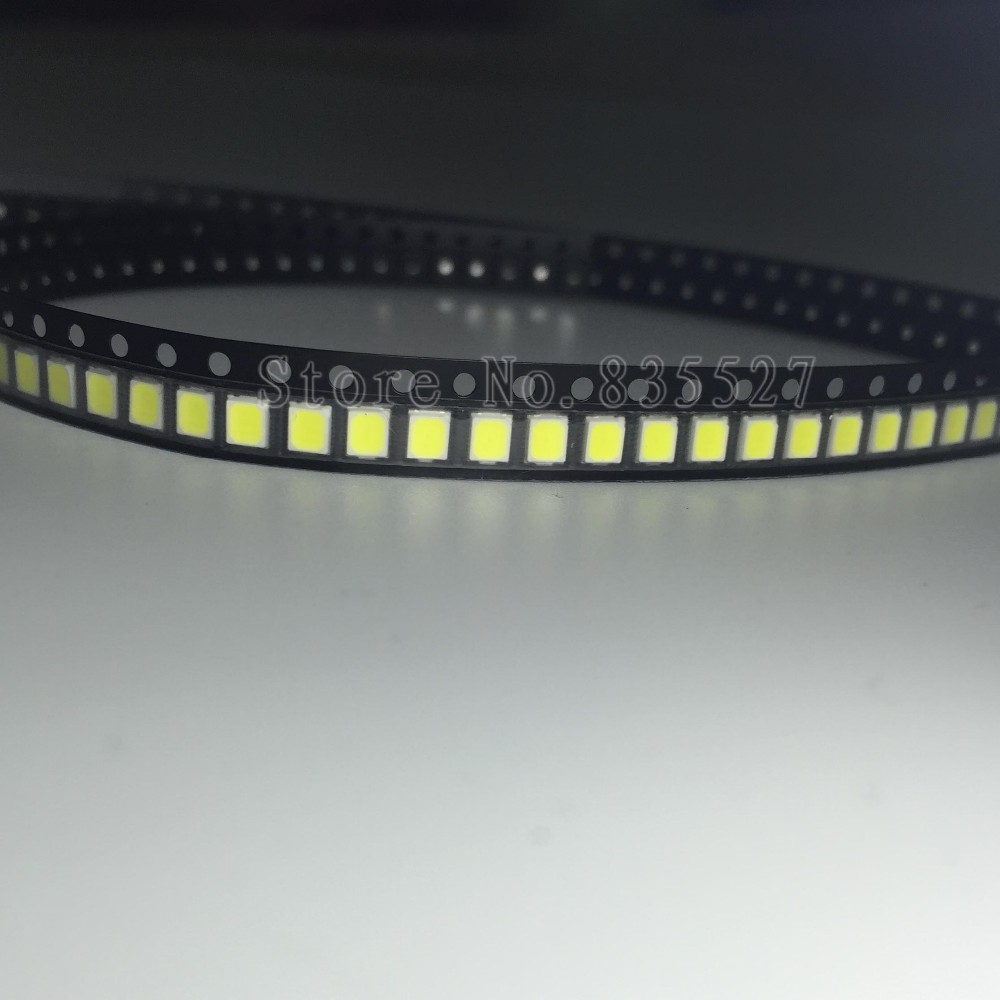

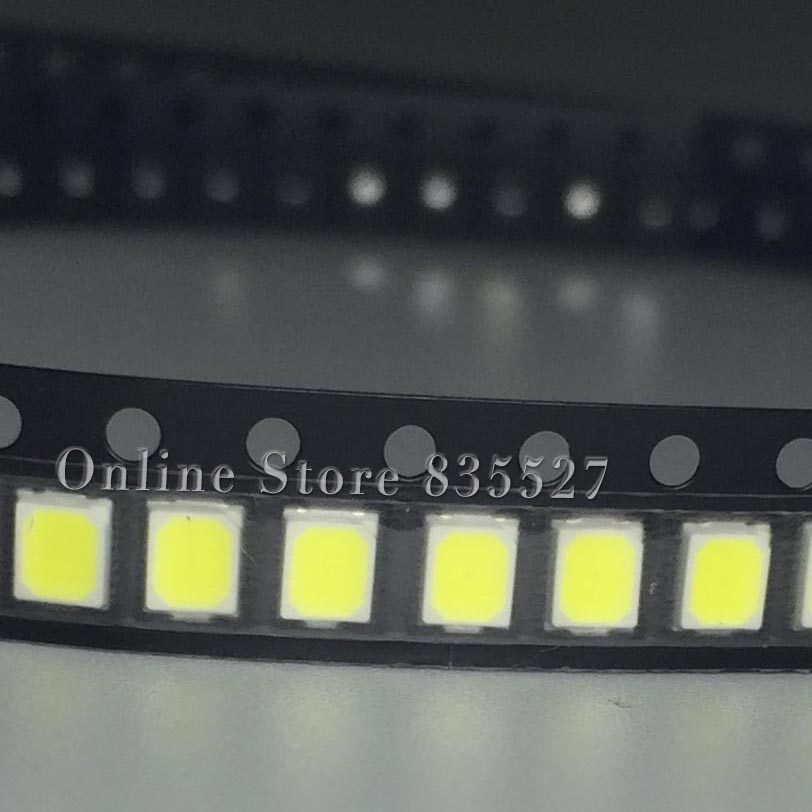

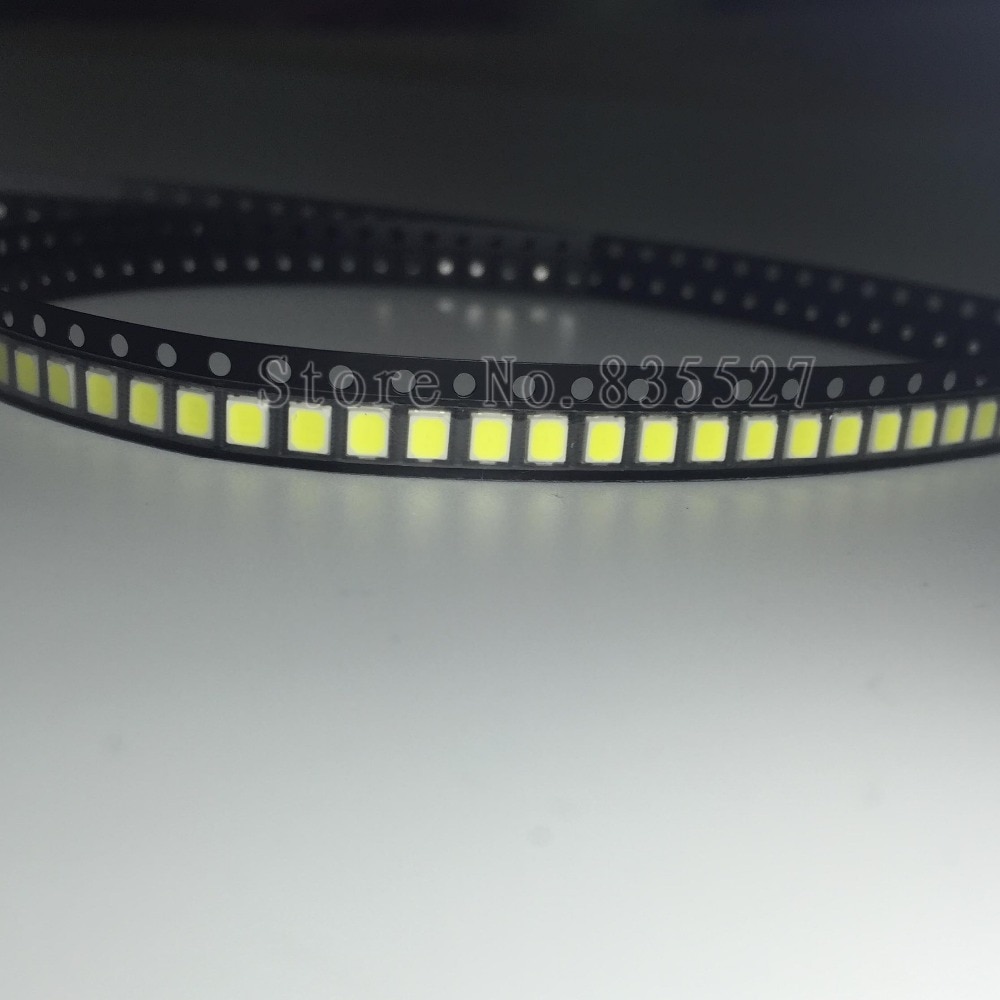

◆Available on tape and reel

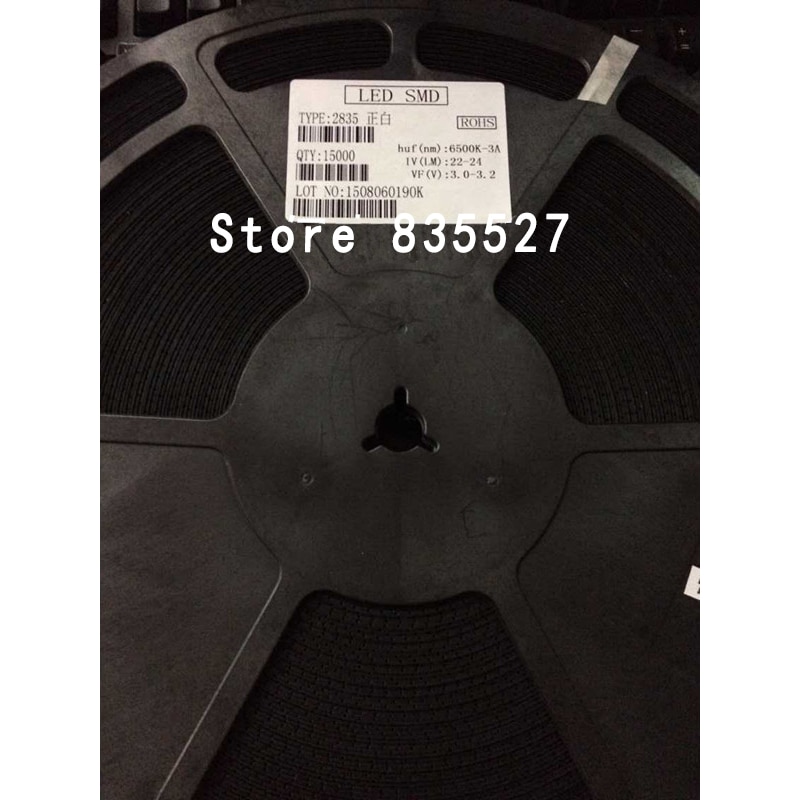

◆Package:15000pcs/reel
◆ROHS compliant
◆ABSOLUTE MAXIMUM RATING （Ta=25℃）
|
Item |
Symbol |
Value |
Unit |
|
Peak Forward Current |
IFp |
150 |
mA |
|
Reverse Voltage |
VR |
5.0 |
V |
|
Continuous Forward Current |
IF |
60 |
mA |
|
Recommend Operating Current |
IF |
55 |
mA |
|
Operating Temperature |
Topr |
-40 to 85 |
℃ |
|
Storage Temperature |
Tstg |
-40 to 100 |
℃ |
|
Lead Soldering Temperature |
Tsol |
260℃ For 3 Seconds |
|
◆CHARACTERISTICS (Ta=25℃)
|
Parameter |
Condition |
Symbol |
Min |
Typ |
Max |
Units |
|
Power Dissipation |
IF=60mA |
Pd |
- |
200 |
- |
mw |
|
Correlated Color Temperature |
IF=60mA |
CCT |
2750 |
/ |
12000 |
K |
|

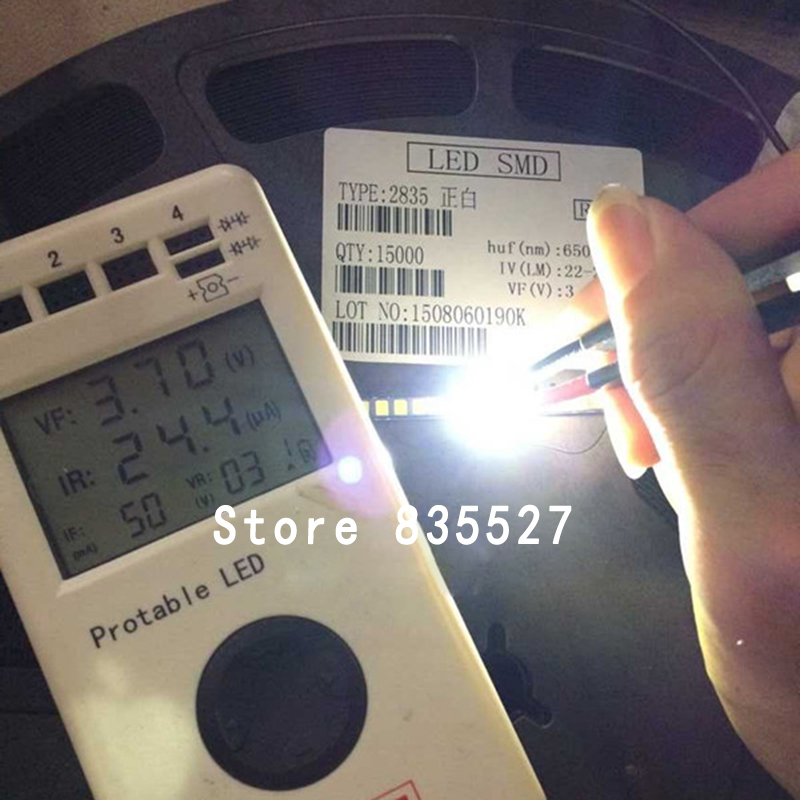

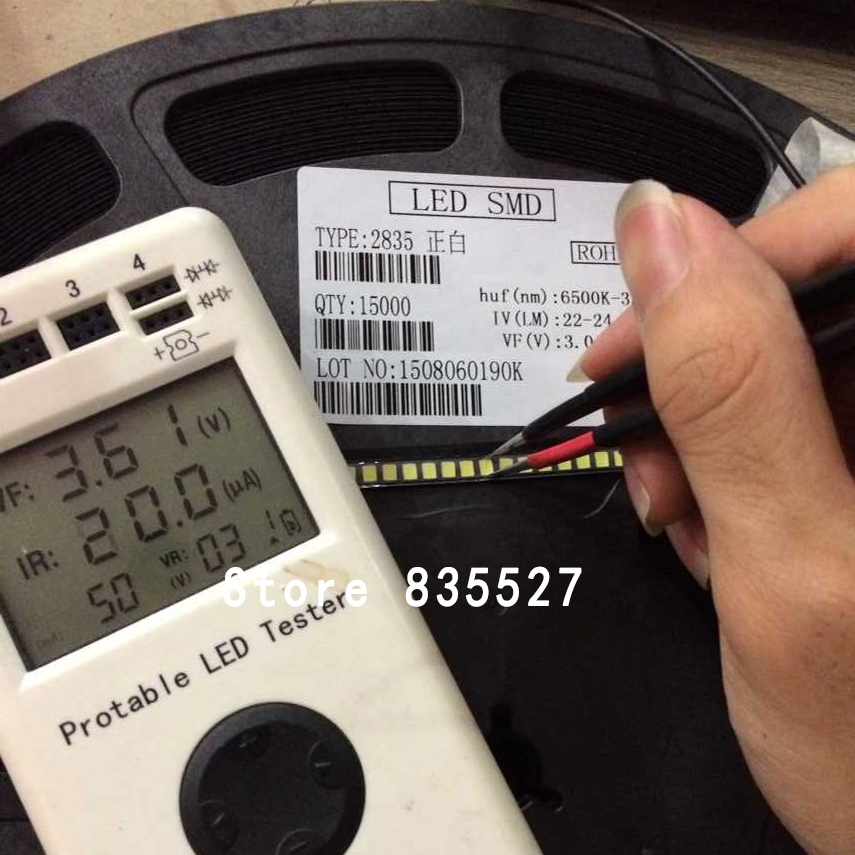

Forward Voltage |
IF=60mA |
VF |
2.8 |
3.1 |
3.8 |
v |
|
Reverse Current |
VR=5V |
IR |
/ |
/ |
10 |
μA |
|
Chromaticity Coordinates |
IF=60mA |
X |
/ |
0.31 |
/ |
|
|
IF=60mA |
Y |
/ |
0.327 |
/ |
|
|
|
Luminous Flux |
IF=60mA |
φv |
21 |
23 |
26 |
LM |
|
Luminous Intensity |
IF=60mA |
IV |
5000 |
/ |
8000 |
mcd |
|
Color Rending Index |
IF =60mA |
CRI |
/ |
70 |
/ |
Ra |
|
Full Viewing Angle |
IF=60mA |
2θ1/2 |
/ |
120 |
/ |
deg |
REMARK：1:1
|
Date |
2012-10-15 |
Page |
1/1 |
Model No. |
SD2835WN |
CHECKED |
汪友刚 |
|
REV No. |
A0 |
Document No. |
190283500 |
CUSTOMER |
|
APPROVED |
袁玉成 |
NOTE： Testing tolerance: VF±0.1V, IV(Φv) ±10%, 2θ1/2 ±10% ，CCT（λD）±15%;
- Current: 20ma
- Voltage: 3V
- Model Number: 2835 SMD pure white / natural / warm / cool white LED
- Brand Name: EziUsin
- Origin: Mainland China
- Item Type: BALL
