200pcs FOR LCD TV repair L-G led TV backlight strip lights with light-emitting diode 3535 SMD LED beads 6V L-G 2W
5.0 (18 votes) | 33 orders
Price:
US $123.62
/ 200 Pieces
Discount Price:
US $
122.25
/ 200 Pieces
-1%
Buyers need to know before buying:

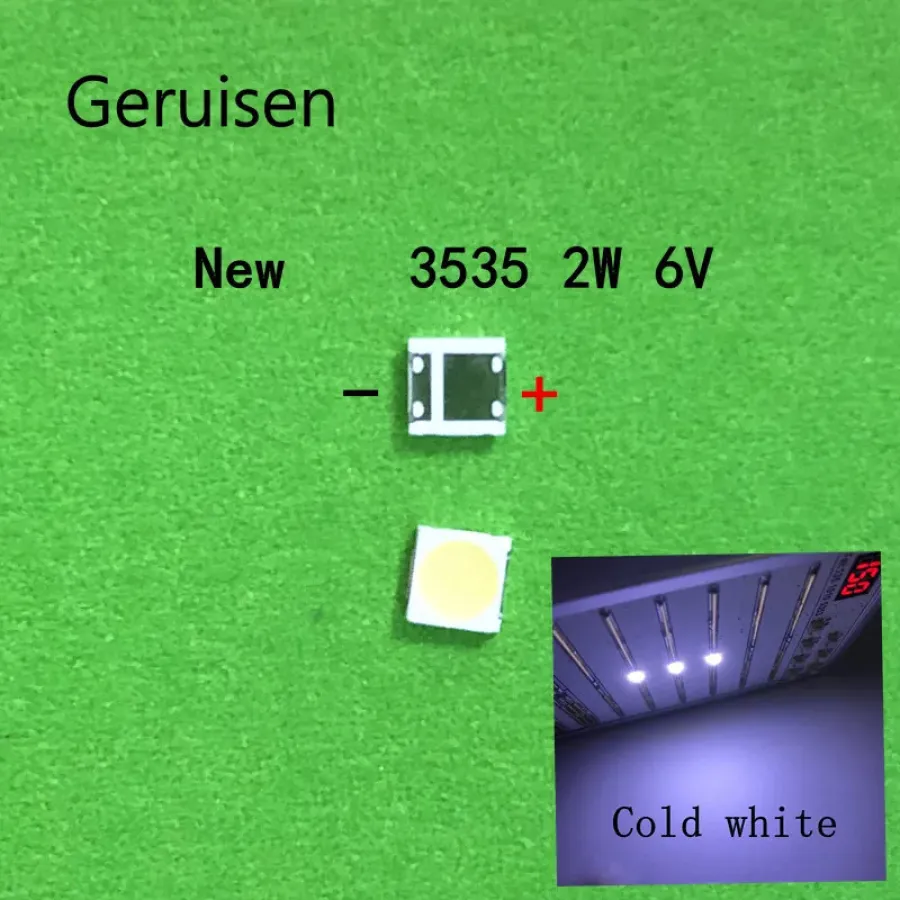

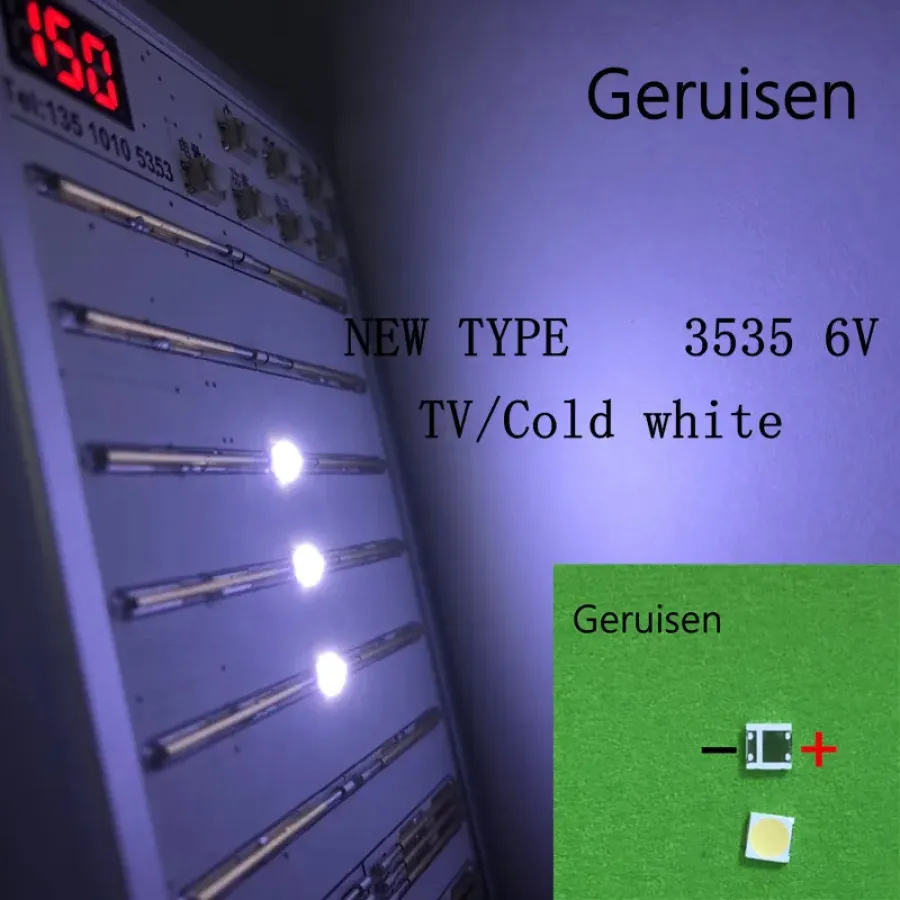

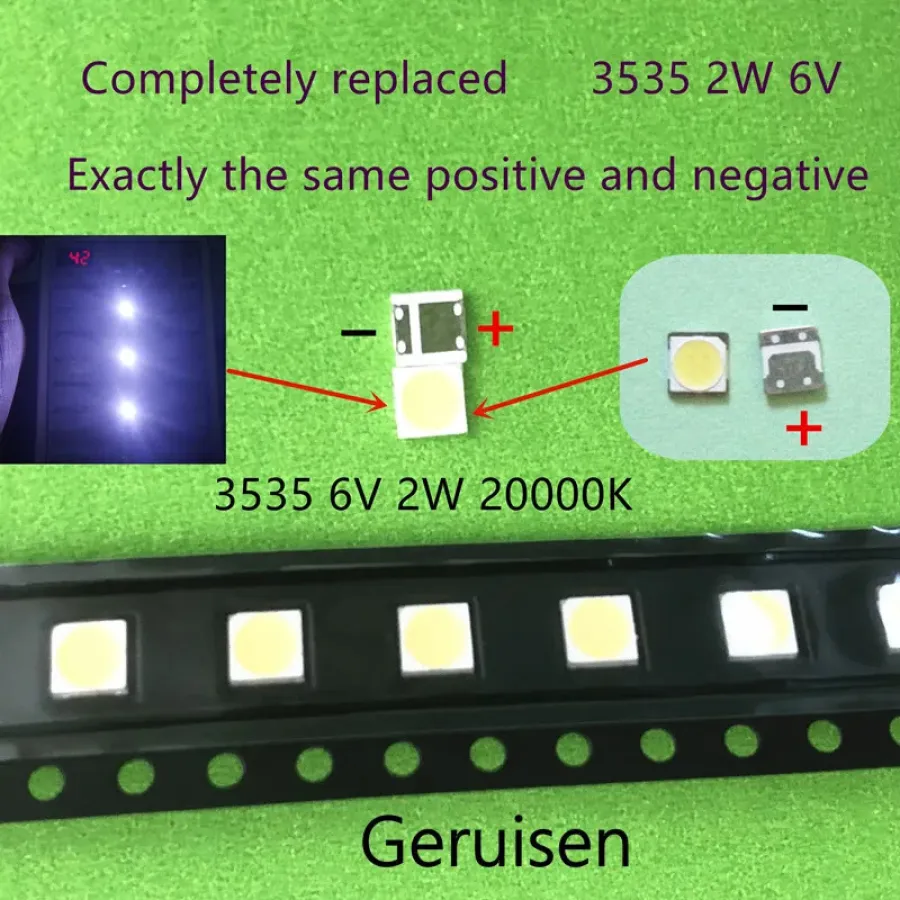

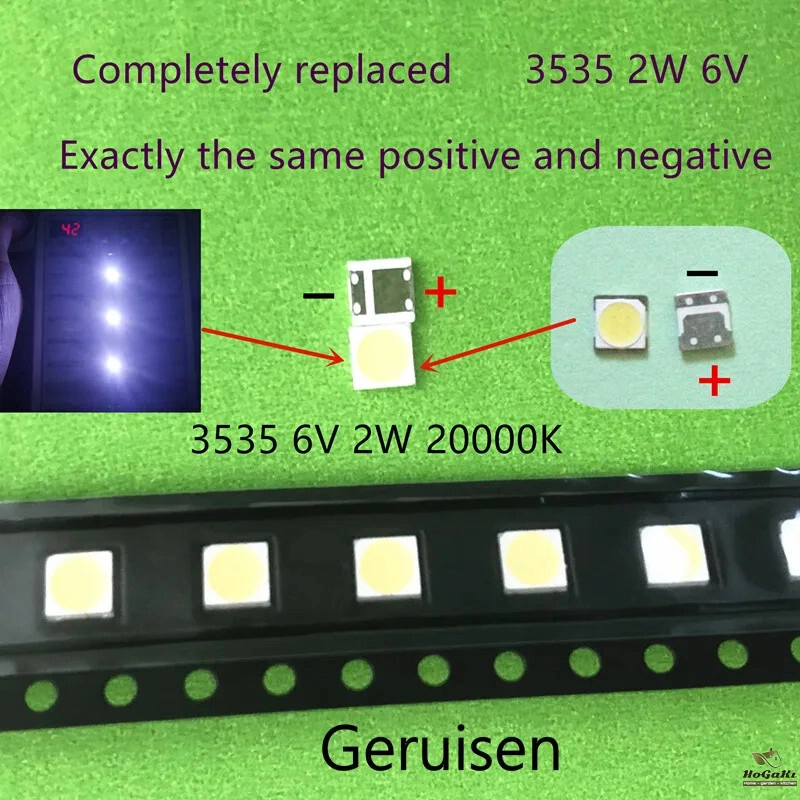

Hello, friend, because the original L-G's 3535 6v temporary supply of goods is
tight, so the product is temporarily out of stock. Product pictures can be seen, we
are now shipping with the second product of the product image, please rest
assured, can completely replace 3535 L-G, positive and negative are the same.
Cold white temperature. thank you for understanding. If you care about the
difference in appearance, please do not place an order. If the 3535 L-G 6V goods
are normally supplied, we will take a picture of the replacement product in the
product picture. Thank you!
MODEL NAME : LATWT391RZLZK
Manufacturer : 1G Innotek LED
Origin : Korea
Package Model:Loaded Quantity : 1900PCS Per Reel
Forward Current (IF ): 500mA
Pulse Forward Curren t1 (IFp): 800mA
Reverse Current (IR): 50mA
Reverse Voltage (VR): V (mA)
Power Dissipation (PD): 2W
Operatin Tgemperature (Topr): -40 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs
Hand Soldering:350 °C
for 3secs
Junctio Tnemperature (Tj ): 162°C
Forward Voltage (VF): 6.0-6.8V (250mA)
Luminous Flux (LM): 150lm (250mA)
Luminous Intensity ( IV ) : cd (250mA)
Wavelength (nm) : -nm mA
CIE : x=0.255 y=0.223 (250mA)
Color Correlated Temperature (CCT):
CRI :
Viewing angle : 120°
Lead Frame Type LED Package: 3.5×3.5×0.65 mm L×W×H d=mm
Packaging Details
- Unit Type: 200 Pieces
- Package Weight: 0.020
- Package Size: 8x6x8
- Brand Name: MUXINZILIGHT
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: LATWT391RZLZK
- Voltage: 6 V
- Current: 250MA
- Item Type: BALL
