200(N.m)/59kg Two Shaft Magnetic Powder Clutch & Brakes ZKB-20BN Magnetic Powder Clutch For Printing Machine
0.0 ( votes)
Price:
US $
4216.98
/ piece
- Color
-
-
- Rated Torque
Welcome to Lixinsheng Packaging Equipment Store

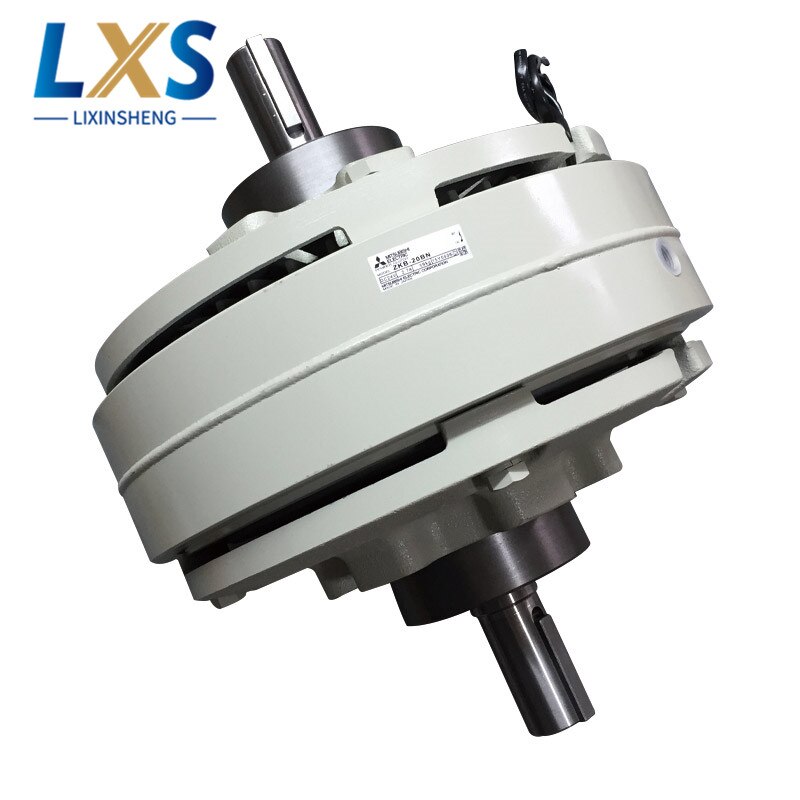

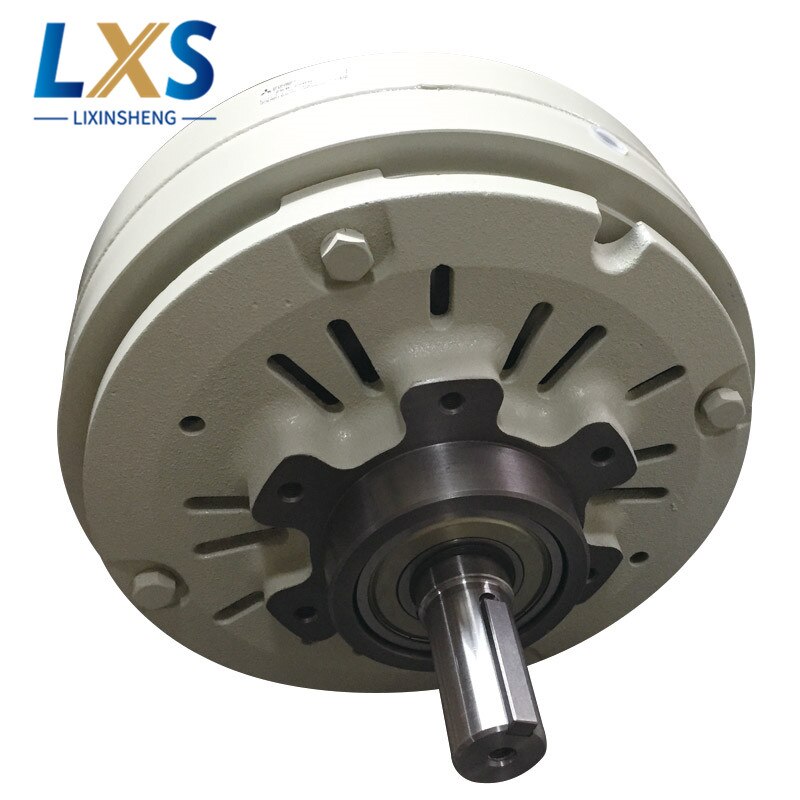

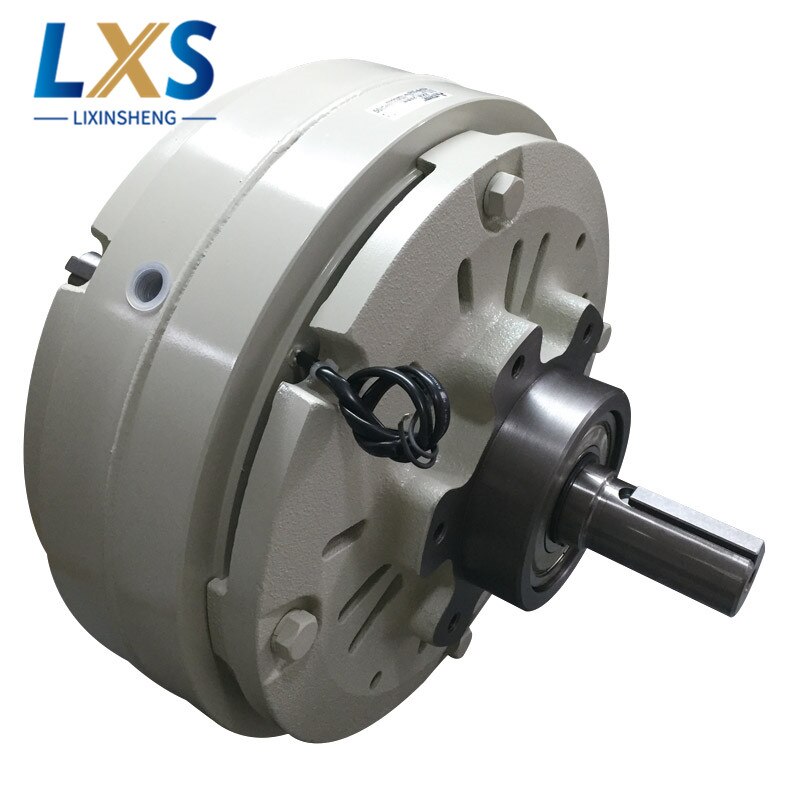

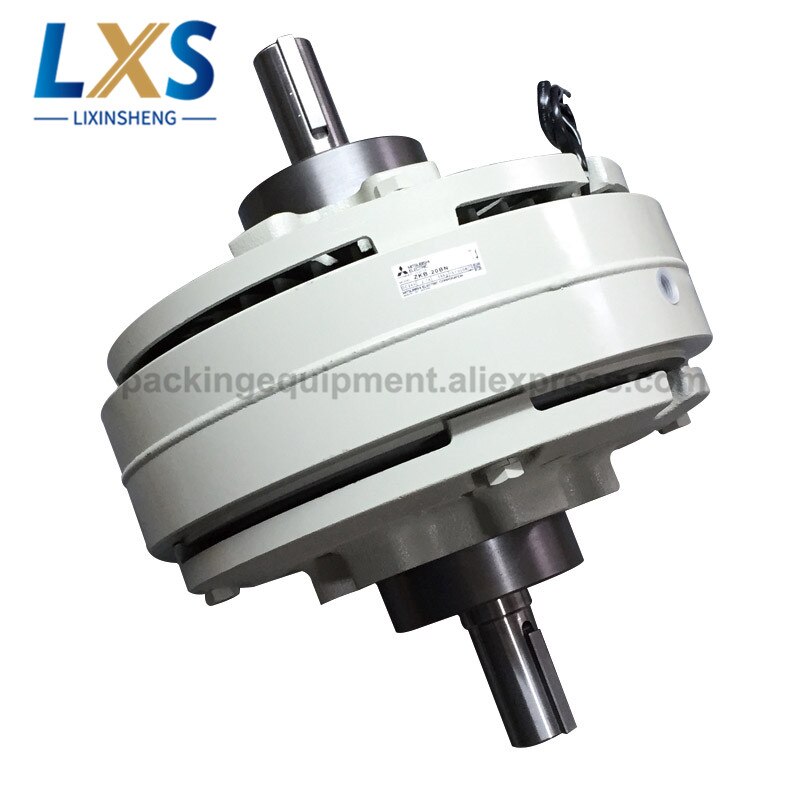

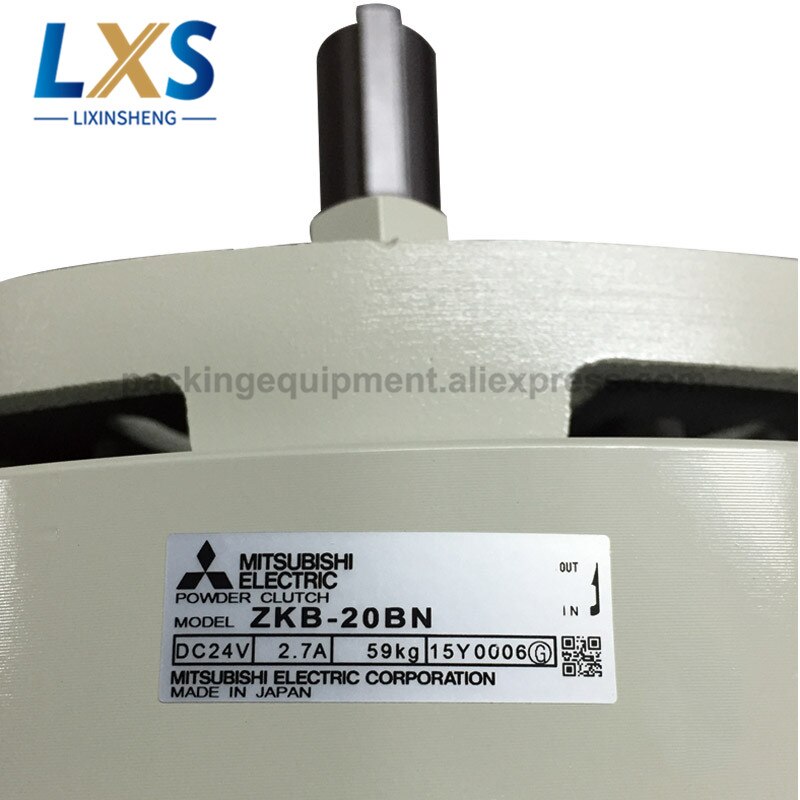

200(N.m)/59kg Two Shaft Magnetic Powder Clutch & Brakes ZKB-20BN Magnetic Powder Clutch For Printing Machine
ZKB-BN-type magnetic powder clutch
>>>Feature
Rated torque: 12 to 400 (N · m)
Spontaneous cooling/force-air cooling solid shaft type.
1.Operable from 5 r / min
2,.Increase the heat capability by air being blown into the air gap
>>>Description
Magnetic clutch is based on electromagnetic theory and the use of magnetic torque transmission. Its exciting current and transmission of torque with a linear relationship between the basic features. Has nothing to do with the slip case to pass a certain torque, with fast response, simple structure, no pollution, no noise, no shock and vibration energy-saving advantages. It is a multi-purpose, superior performance, the automatic control devices. Magnetic clutch is widely used for buffer starting, overload protector, speed governing, tension control in the winding system.
>>> Specification
|
Model |
Rated torque （N·m） |
Coil（75℃） |
(kgm⊃2;) |
Wind pressure (Pa) |
Air volume (m⊃2;/min) |
Power (W) |
Weight (kg) |
Max. allowable speed （r/min） |
Magnetic Particle weight（g) |
|||
|
|
|
Current (A) |
Power (W) |
Time constant （s） |
Input shaft |
Output shaft |
|
|
|
|
|
|
|
ZKB-1.2BN |
12 |
0.94 |
22.5 |
0.10 |
1.34×10^（-3） |
4.90×10^（-4） |
3×10^（4） |
0.2 |
250 |
5.5 |
1,800 |
20 |
|
ZKB-2.5BN |
20 |
1.24 |
30.0 |
0.12 |
3.80×10^（-3） |
1.49×10^（-3） |
5×10^（4） |
0.4 |
380 |
10 |
1,800 |
33 |
|
ZKB-5BN |
50 |
2.15 |
51.5 |
0.13 |
9.50×10^（-3） |
4.80×10^（-3） |
1×10^（5） |
0.6 |
700 |
16 |
1,800 |
60 |
|
ZKB-10BN |
100 |
2.40 |
57.6 |
0.25 |
3.50×10^（-2） |
2.50×10^（-2） |
6×10^（4） |
1.1 |
1100 |
37 |
1,800 |
140 |
|
ZKB-20BN |
200 |
2.70 |
64.8 |
0.37 |
9.15×10^（-2） |
6.89×10^（-2） |
5×10^（4） |
1.6 |
1900 |
59 |
1,800 |
225 |
|
ZKB-40BN |
400 |
3.5 |
84.0 |
0.40 |
2.40×10^（-1） |
2.20×10^（-1） |
2×10^（5） |
2.0 |
2800 |
108 |
1,800 |
370 |
>>>Application:
Printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire machinery,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, test equipment, analog load use, the kinds of mechanical precision tension controlling,general industrial equipment, other general industrial machinery.
More products pls kindly click here : Lixinsheng Packing Equipment Co.,Ltd Store
As the following is a table of other spec. , pls choose the perfect match standard you need.
- Voltage: 64.8W
- Material: Aluminium-copper Alloy
- Model Number: ZKB-20BN magnetic powder clutch
- Advantag: By blowing compressed air into the voids to cooling, improve the ther
- Magnetic powder clutch used in: tension control, overload protector, torque loader, etc
- The magnetic powder weight: 225g
- Available Speed: 1800 r/min
- Name: Japan Mitsubishi Clutch 200(N.m)/59kg
- Type: Spontaneous cooling/force-air cooling solid shaft type.
- Time constant: 0.37S
- Current: 2.70A
- Suitable machine: Printing machine, paper making machine, re-reeling machine,wire draw
- Widely used for: Buffer starting, overload protector, speed governing, tension control
- Air volume: 1.6
- Item Type: ZKB-20BN Magnetic Powder Clutch For Printing Machine
- Feature: Two Shaft Magnetic Powder Clutch & Brakes
