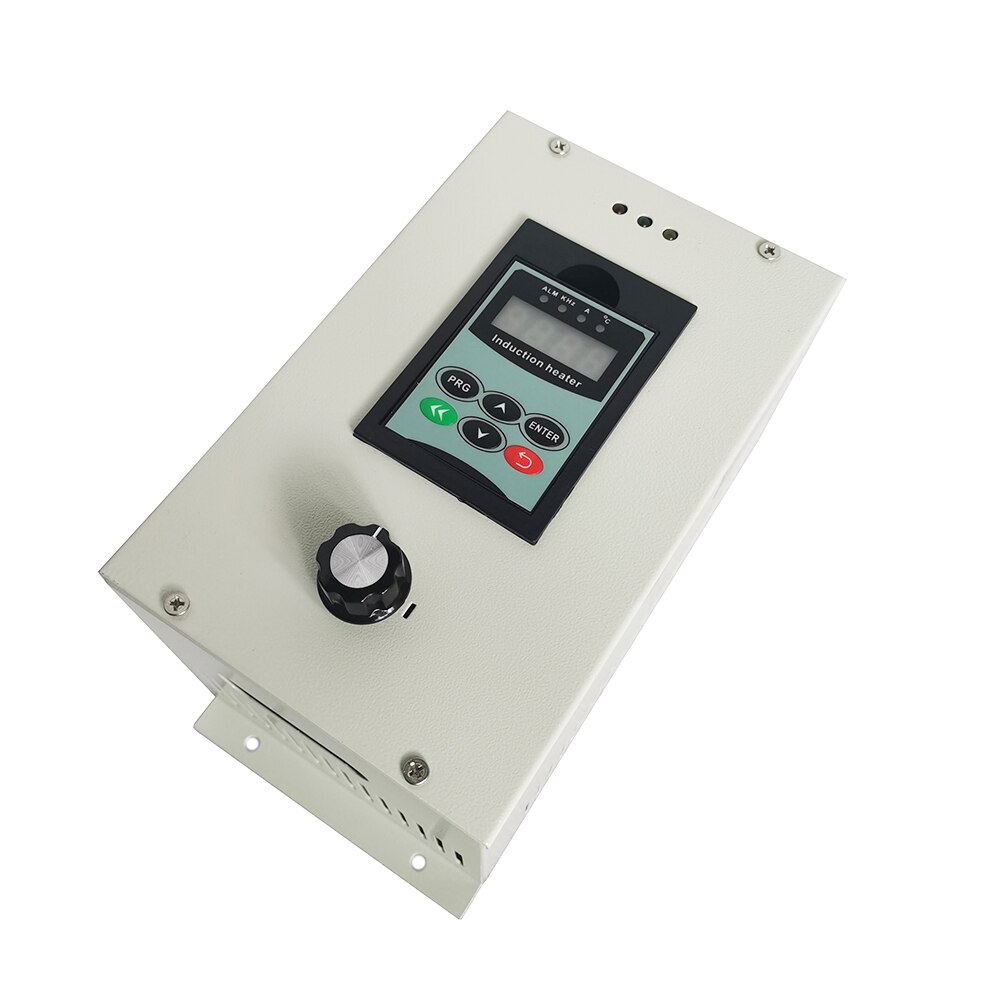

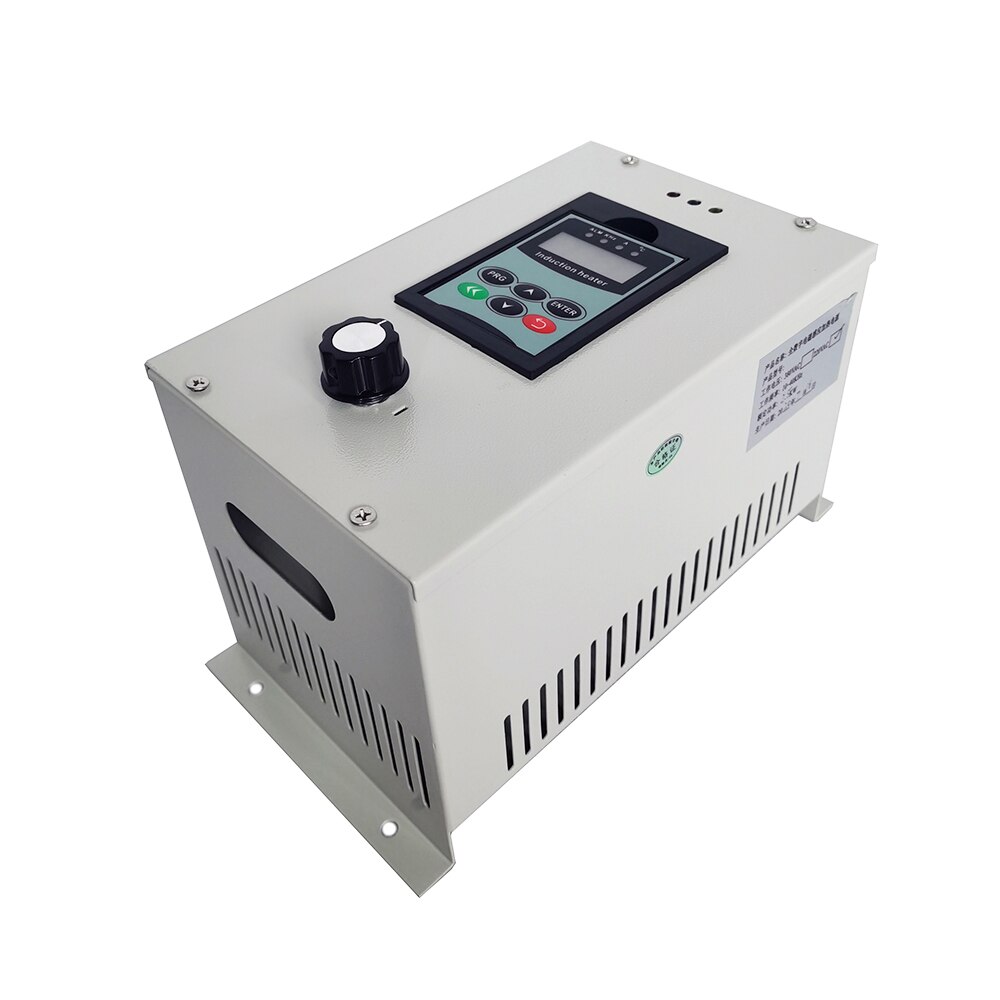

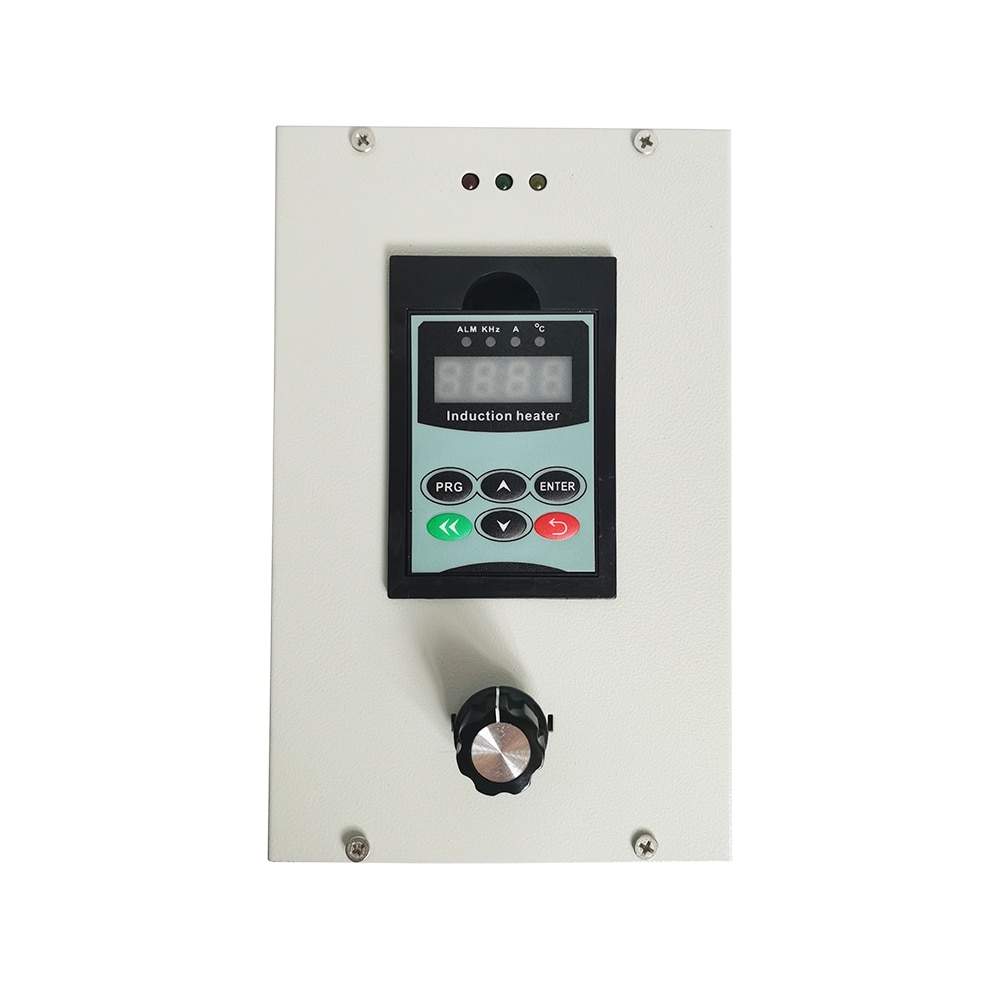

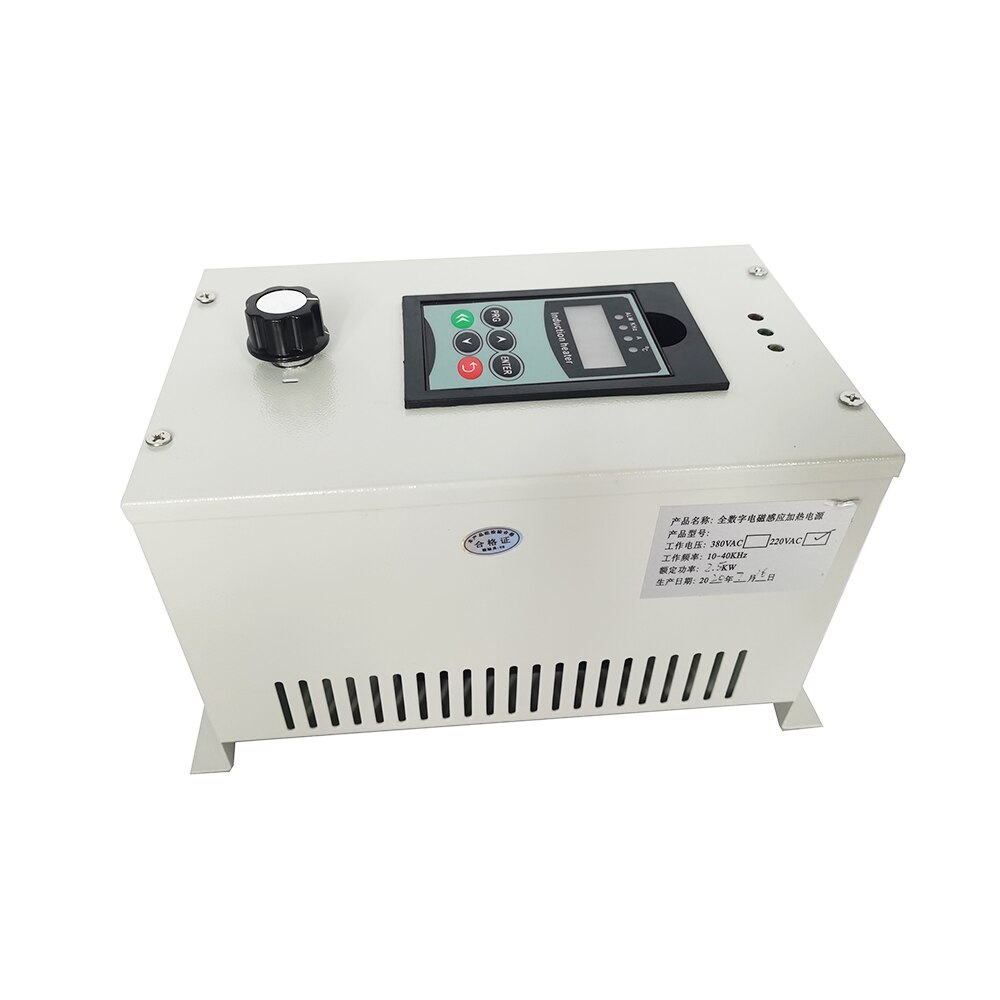

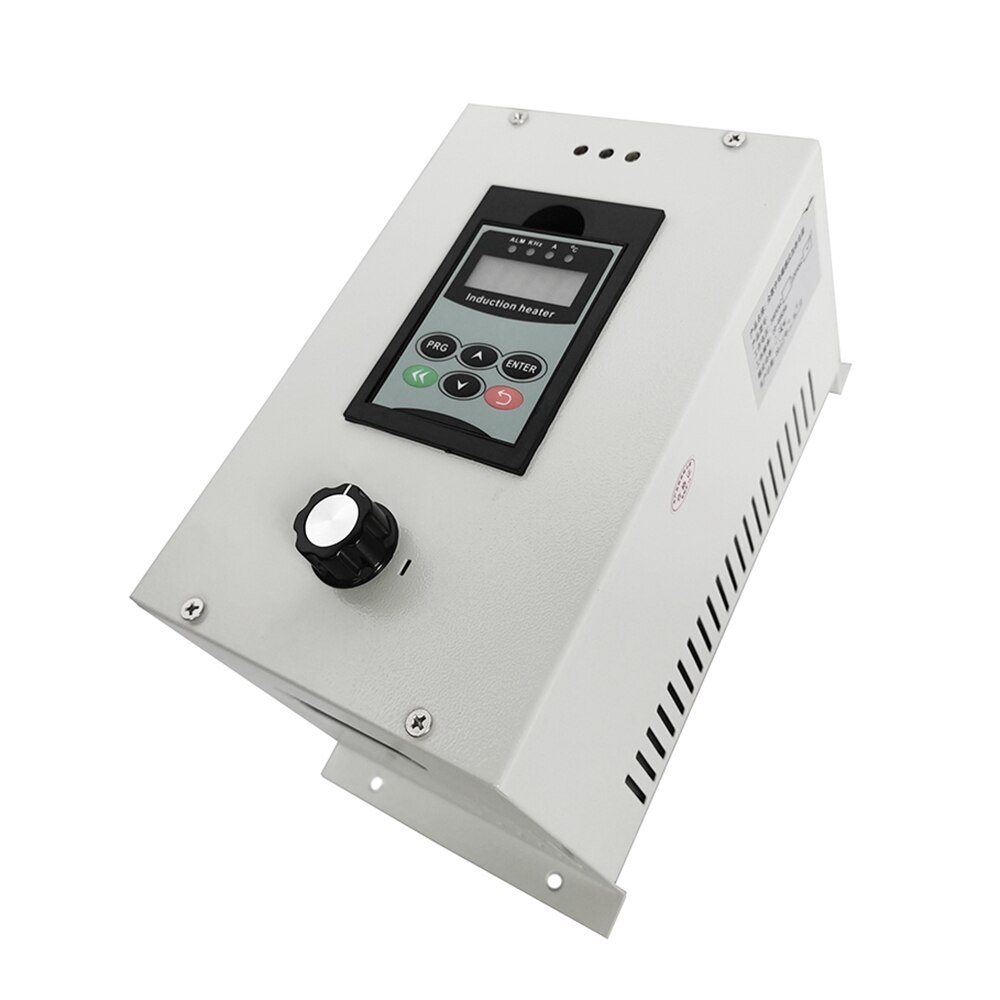

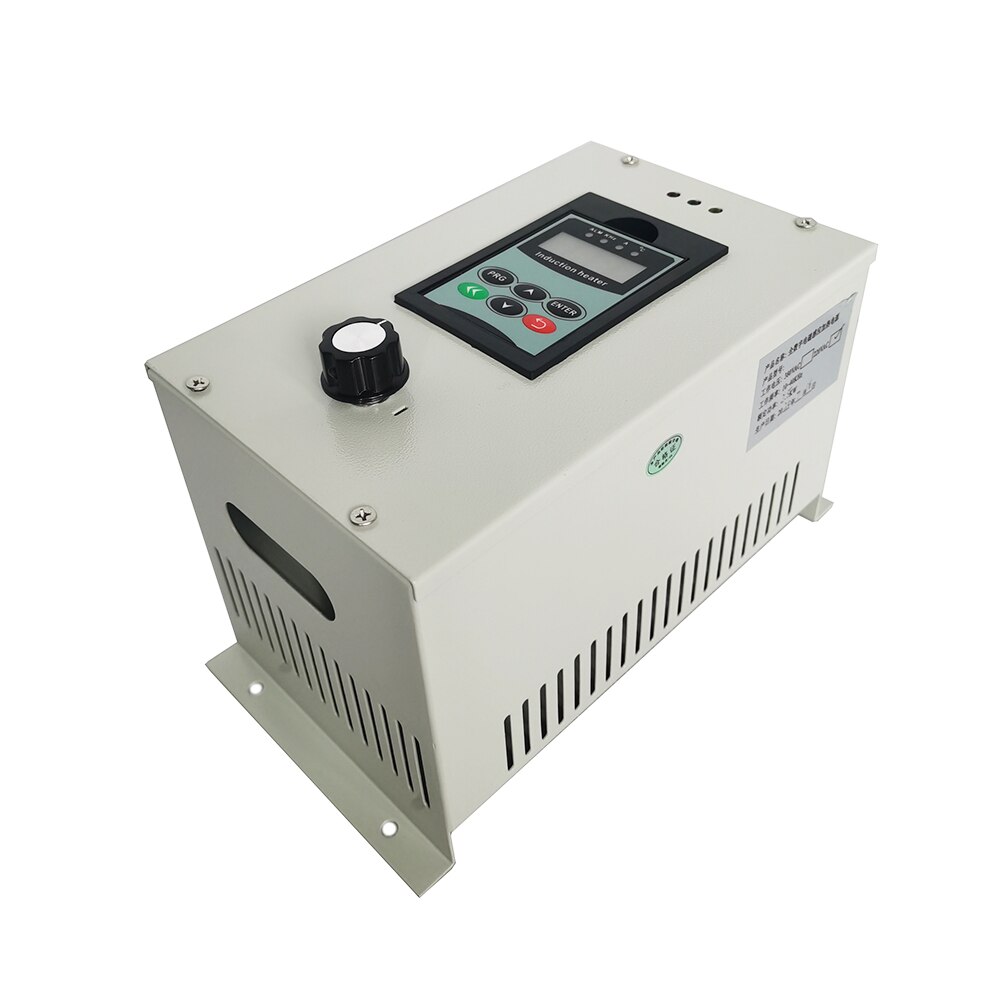

2.5KW High Frequency Heating DIY Induction Heater Kit Induction Heating Unit with 1 cable

0.0 ( votes)
Price: US $349.28 / piece
Discount Price:
US $ 265.45 / piece
-24%
Quantity


2.5KW High Frequency Electromagnetic Induction Heating Machine Used Induction Heaters






item




specification




Rated power




2.5KW




Rated voltage




AC 220V/50hZ




Input voltage range




100-260V,210-260V constant power input




Work environment temperature




-20-50℃




Work environment humidity




≤95%




Power adjust




20%-100%




Thermal transfer efficient




≥95%




Work frequency




5-40KHZ




Main circuit structure




Half-bridge series resonance




Control system




Digital phase-looking automatic tracking Control based on AVR micro control




Application mode




Open application platform




display




Programmable digital display




Start time




<1s




Instantaneous over current protection time




≤2us




Power overload protection




130% instant protection




Soft start mode




1. with full electrical isolation soft start heating/stop mode



2.With 12V and 24V input enable/stop mode




Supports PID regulation power




Identify 0-5V input voltage




Support 0-150℃ load temperature detection




Accuracy of ±1℃







Adapted coil parameters: 4mm², length 20-23m, inductance: 100-150uH,

Coil and load distance (thickness of thermal insulation cotton): 20-25mm when round,

15-20mm when flat, 10-15mm when oval, and within 10mm when super oval



Wiring and purpose:

1: Connect FireWire

2: Connect the neutral wire

3, 4: Connect the coil

5: Half-bridge main circuit structure

6: CLC power filter structure, effectively suppress harmonic interference power

7: Connect a programmable digital display

8: Digital control system based on AVR microprocessor

9: External 12V working indicator, always on when working, flashing when not working

10: Load detection temperature interface, connected to thermistor, the maximum

detectiontemperature is 150 ℃

11: IGBT temperature sensor interface

12: Potentiometer, adjust power

13: External 0-5V control can realize PID adjustment power function

14: Fault indicator interface

15: work indicator interface

16: power indicator interface

17: Soft-start interface, normally closed to start, open to stop, secondary terminal

connected tothermostat output

one year warranty
We are not responsible for any custom duty or import tax, it is buyer’s responsibility.



  • Power: 2500W
  • Voltage: 220V
  • Model Number: 2.5KW
  • Certification: NONE
  • Origin: Mainland China
