2.4W 2400mW 808nm Infrared Focusable Laser Diode Module

0.0 ( votes)
Price: US $543.78 / piece
Discount Price:
US $ 440.35 / piece
-19%
Quantity

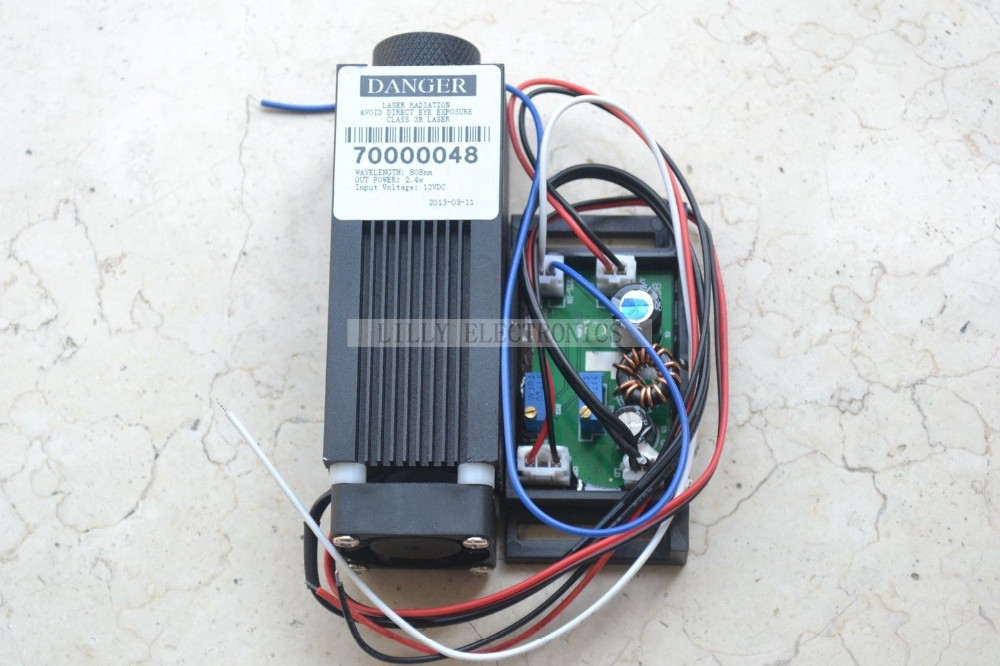

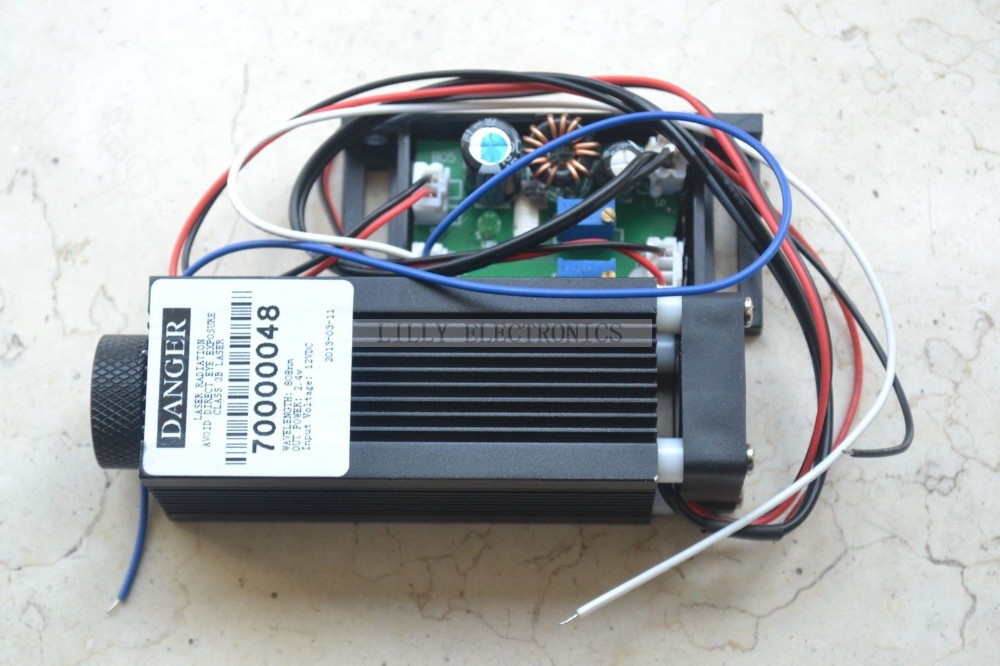

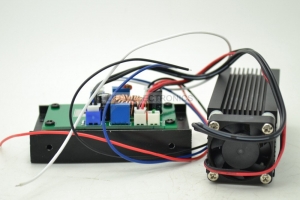

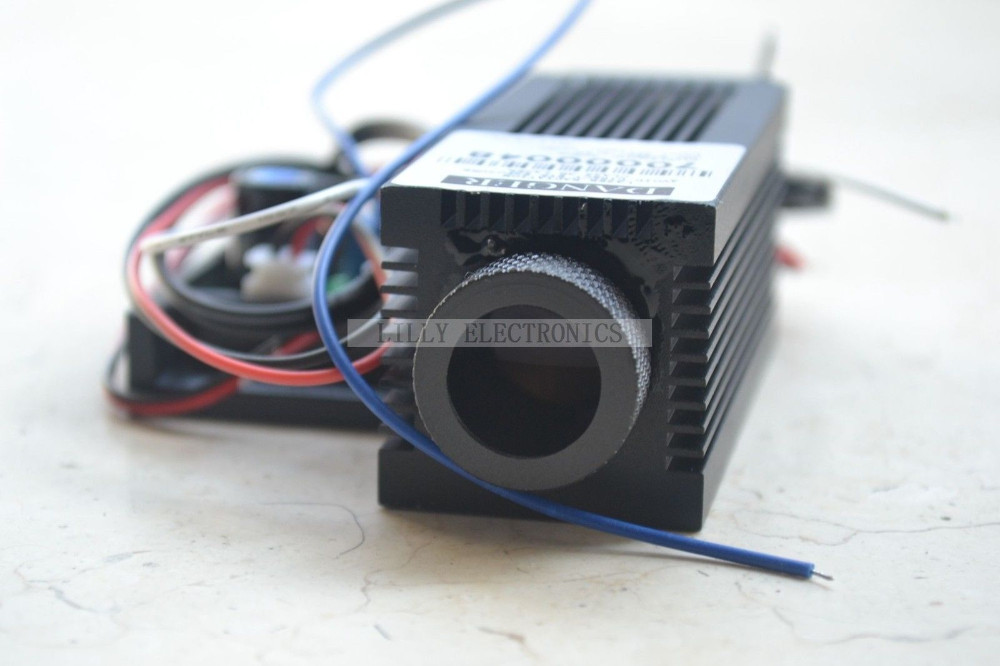

Focusable 2.4W 808nm Infrared Laser Diode Module

Features:                                                                        Output Power 2.4W

Wavelength 808nm
Working Voltage 5VDC
Working Current 1.35A +-15%
Working Temperature -10degrees- 30degrees
TTL >20KHz
Divergence 5mrad
Focusable YES
LD 808nm 3W

Laser Shape DOT(The spot can be adjusted from rectangle to oval)
Lens Glass
Dimensions 33*33*80mm
Working Life >5000 Hours

The Laser Shape is Rectangular Dot

Detail:

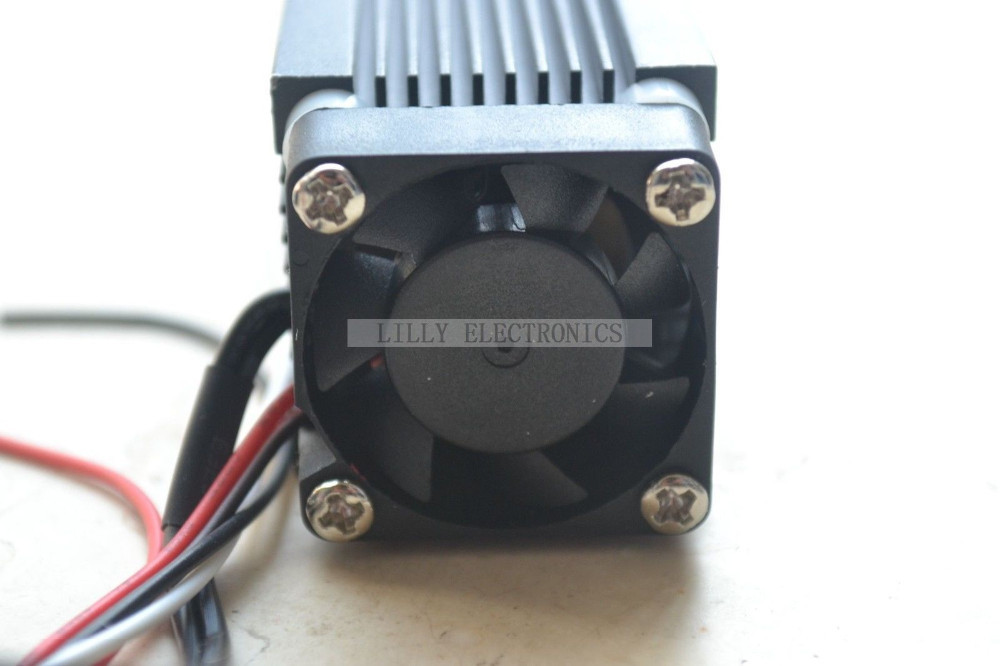

1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30degrees.
2. Please add a 5VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 3-5V on, 0V off. If you don't use TTL, please just leave the blue and white wire.

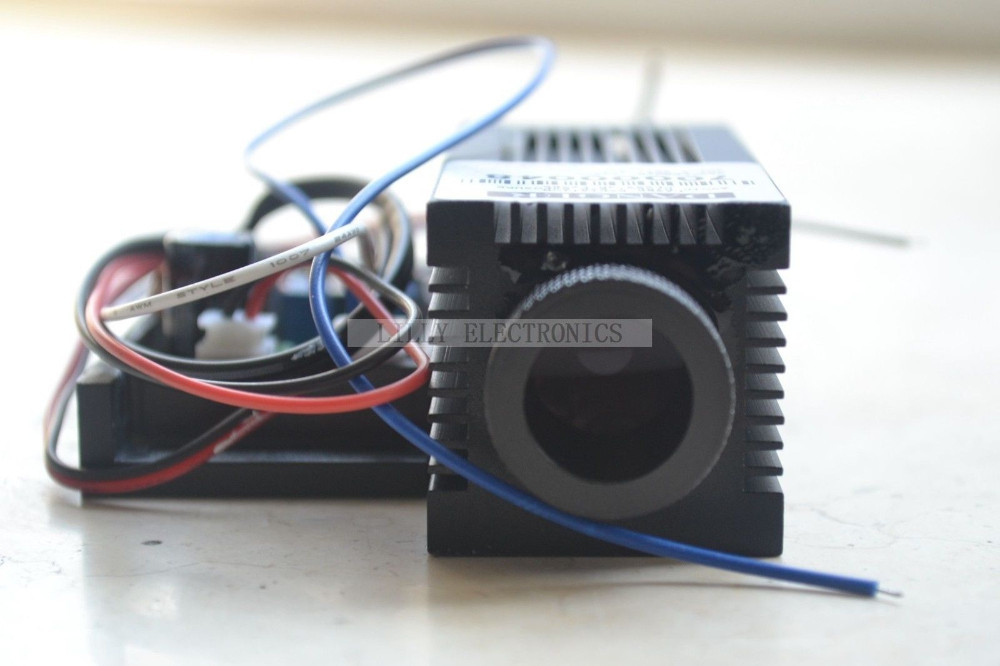

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

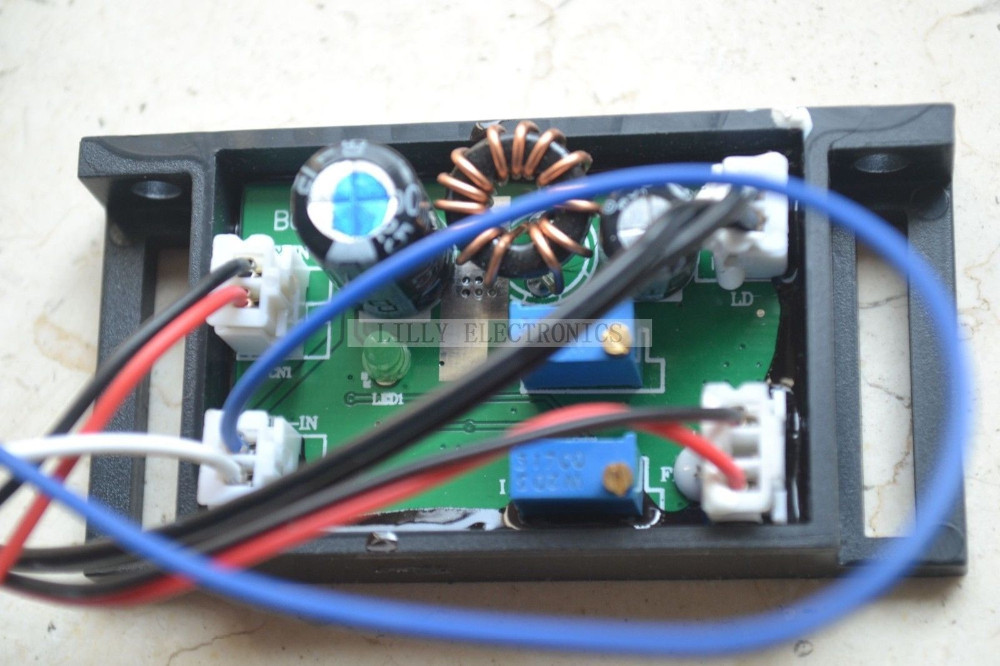

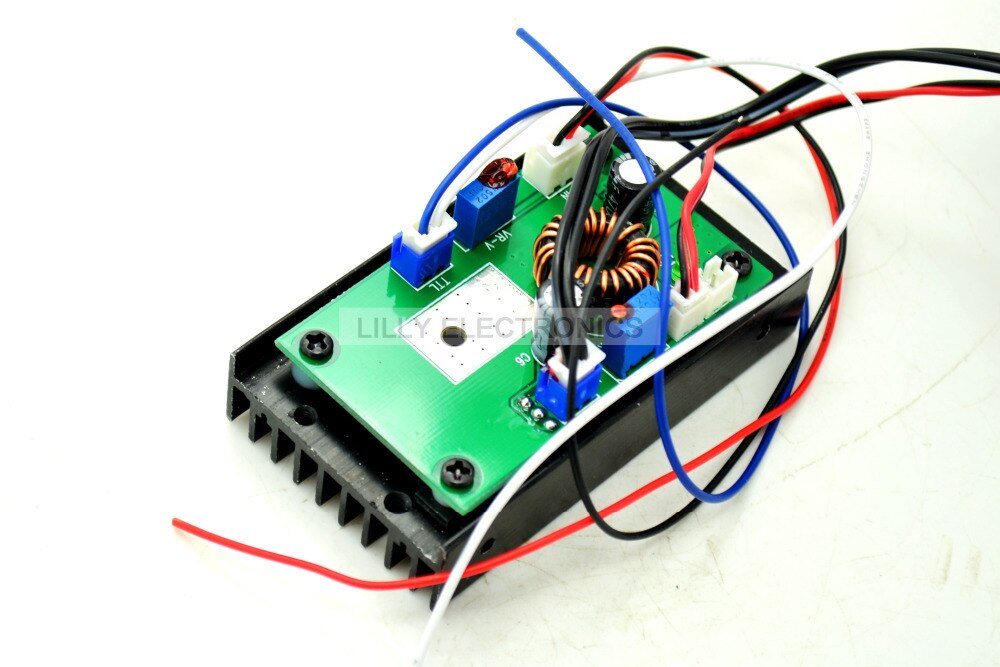

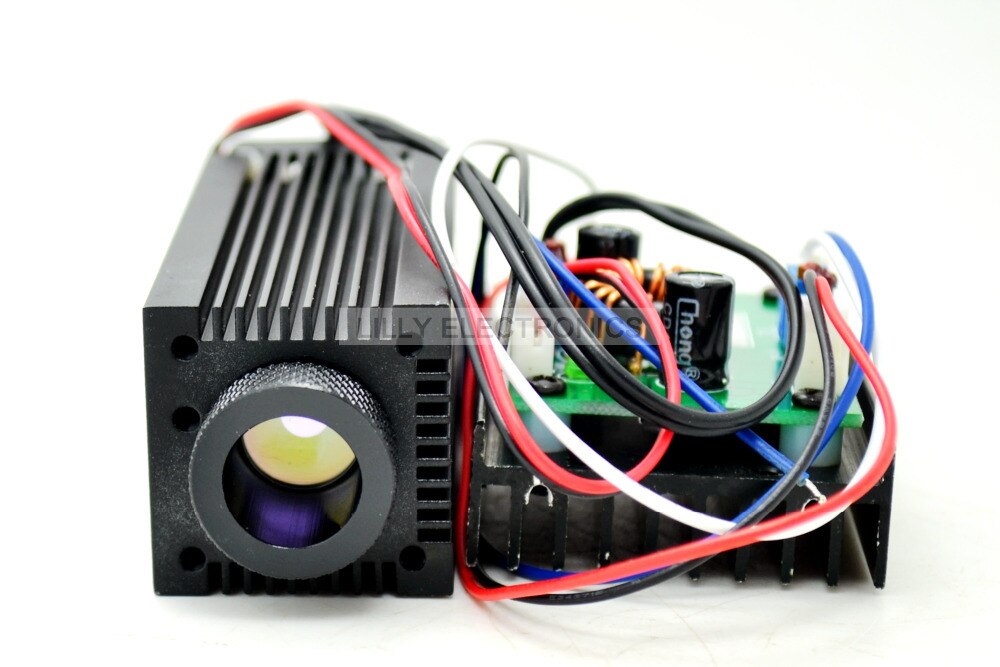

4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
5. Please wear 808nm laser protection goggles to protect your eyes when working on this module.

Package

1x Focusable 2.4W 808nm Infrared Laser Diode Module

$_5723456

Shipping & Delivery

We ship to international via China Post Airmail or Hong Kong Post Airmail, and every parcel will be registered with tracking number. We can also ship by UPS/EMS/DHL/FedEx for alternative shipping method for corresponding fees. Please email your postal code for shipping quote. International customers may experience delays by customs or national post providers. Review your duty-free limits. Please let us know before payment if you need split shipment.


Time of Delivery
The time to ship to international via China Post Airmail or Hong Kong Post Airmail quite depends on diffrent desination of the world, it is also subject to change due to the local weather conditions, postal policy and custom checking. Base on the postal Air mail rules and our experience, kindly please be noted that To United States / United Kingdom / Australia, it takes around 10-15 business days; To Canada, it takes around 12-18 business days; To Brazil / South America, it takes around 25-35 days. To Italy / France / Spain / Germany/ Eastern Europe, it takes aournd 15-20 business days.

Returns & Replacements & Repair
We accept returns & replacements within 7 days from the day the customer receive the products, please make first contact within 7 days from receiving the order. Products should be returned in original condition. As a benefit to our customers, we also provide repair within 3 months from the day when this item is shipped out, after repair is done, we will send you the item, but the customer should pay both shipping ways.

  • Model Number: 808MD-2400-12V
  • Item Type: Laser Flashlight
  • Brand Name: Q-BAIHE
