2/4pcs MG996R JR Steering Rotation Servo Motor 180 360 MG 996 High Speed Torque Metal Gear for RC Car Helicopter Arduino Robot
4.7 (82 votes)
Price:
US $25.29 - 45.51
/ piece
Discount Price:
US $
17.71 -
31.86
/ piece
-30%
Please click the photo below to buy!
Note:

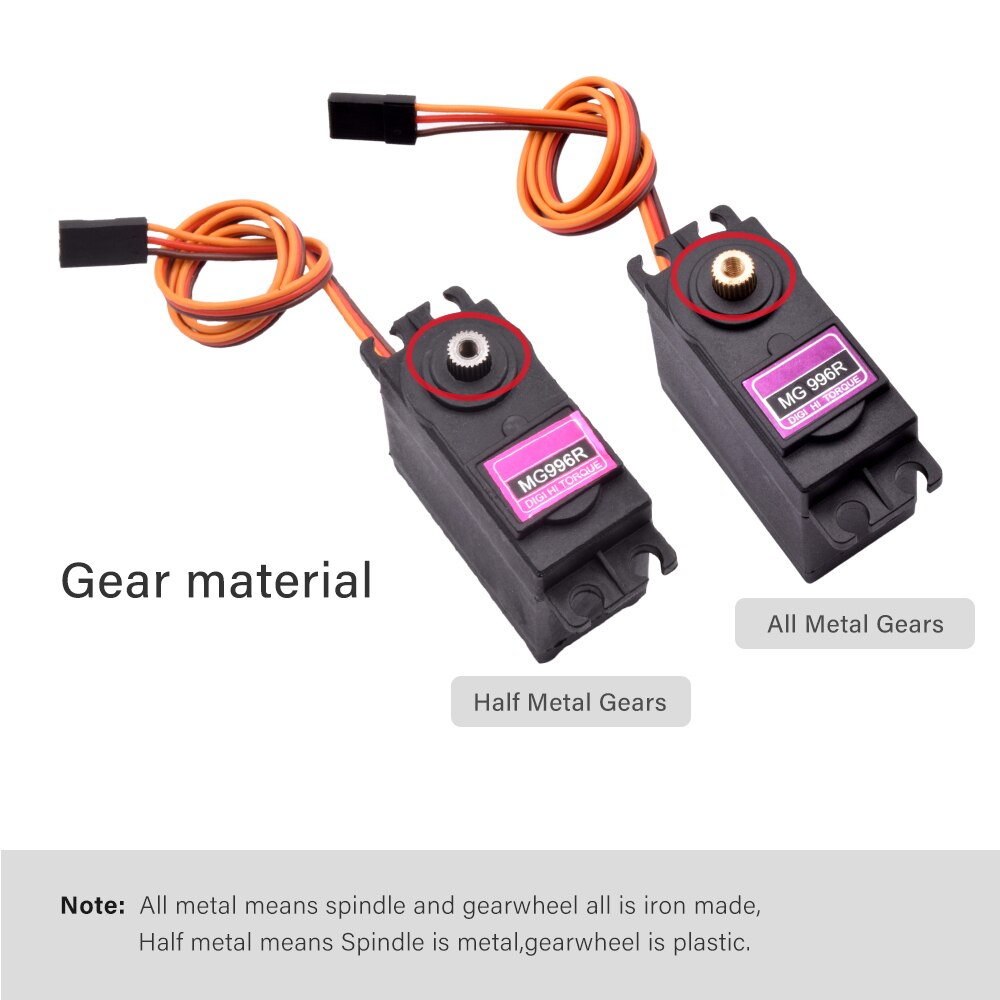

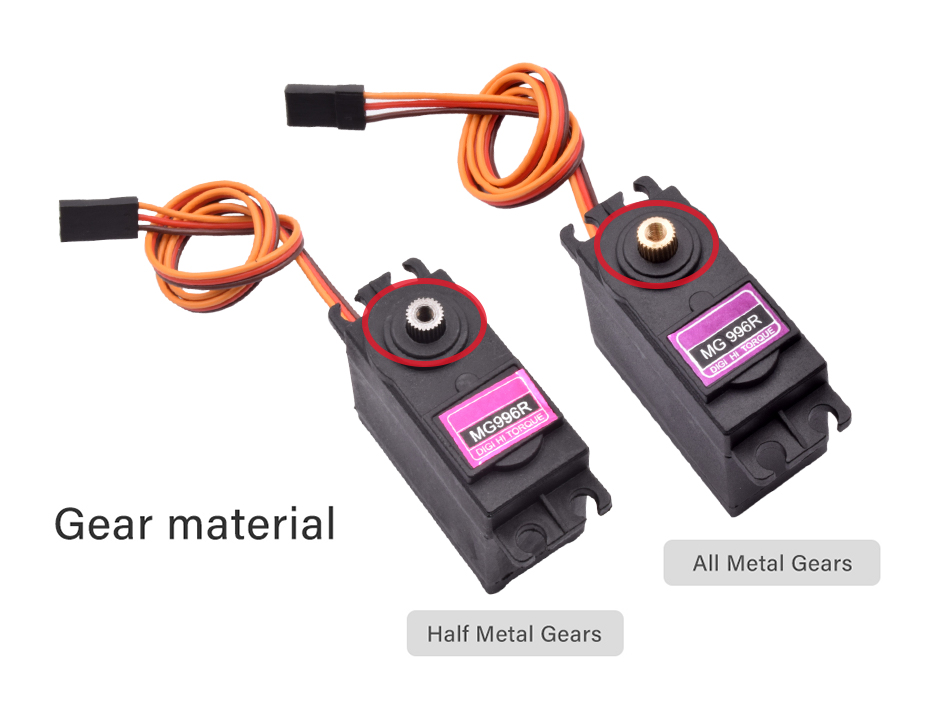

1. Servo half metal means gearwheel is Aluminium and Plastic made; all metal means gearwheel all is metal
2. 360 Degree Servo rotates continuously. If need to control the angle, plesae choose the option 180 Degree Servo
3. For 180 degree servo, some controllers can not control the angle accurately; please use a professional PWM Servo Controller to control the angle, as shown in the video: https://youtu.be/zv6vd7eud_o
YIDI 2/4pcs MG996R JR Steering Rotation Servo Motor 180 360 MG 996 High Speed Torque Metal Gear for RC Car Helicopter Arduino Robot
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 300mm
Specification:
Product Model: MG996R
Color: Black

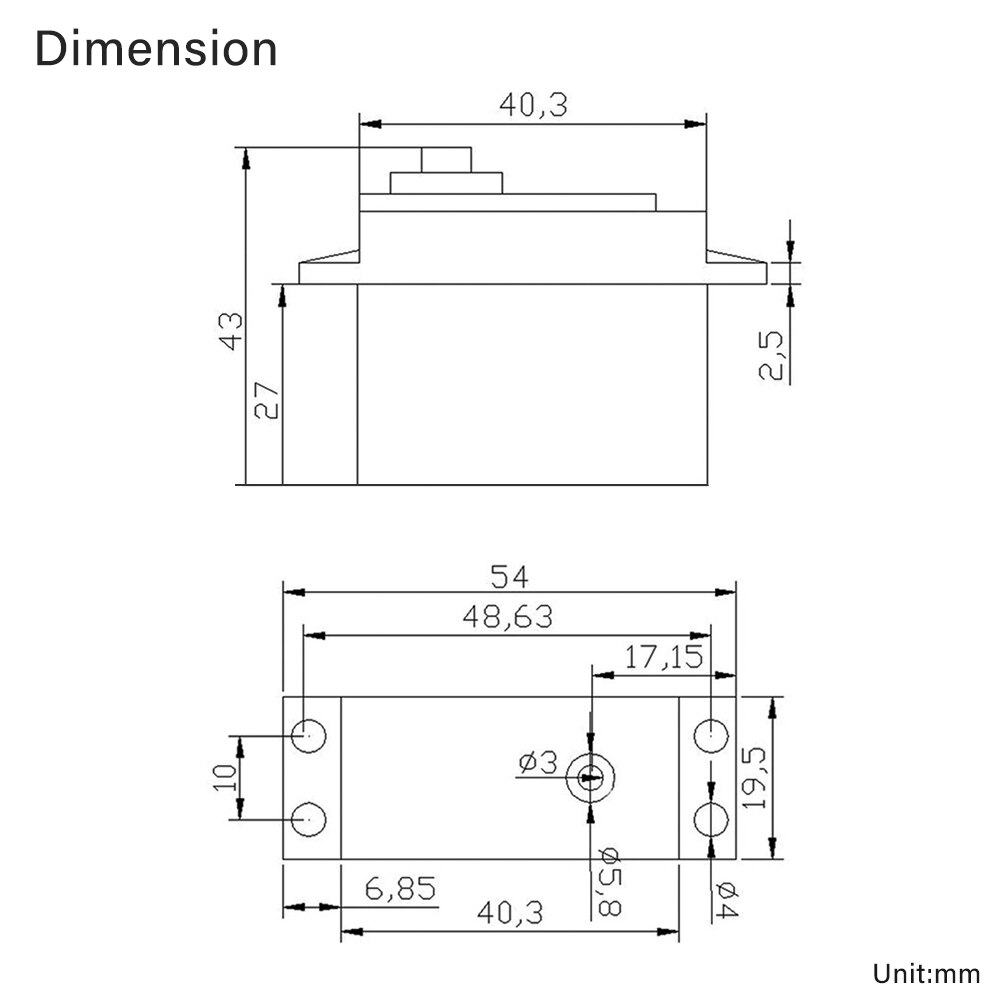

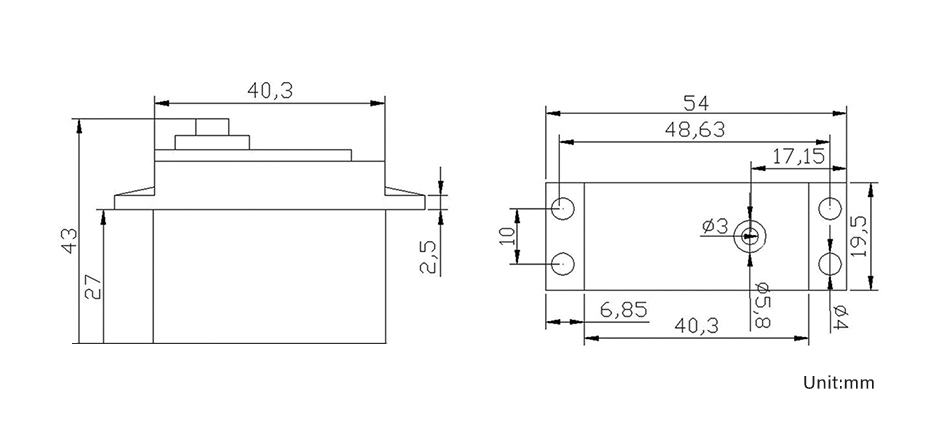

Dimension: 40mm x 19mm x 43mm
Rotation Angle:0-180°/360°(Continuous Rotation)
Operating Speed: 0.17sec/60 degrees (4.8V no load)
Operating Speed: 0.14sec/60 degrees (6.0V no load)
Stall Torque: 9.4kg/cm (4.8V)
Stall Torque: 11kg/cm (6V)
Operation Voltage: 4.8 - 7.2Volts
Operating Temperature: 0 ℃- 55 ℃
Gear Material: Half Metal/All Metal
Dead Band Width: 5msec
Operating Mode: Analog
Plug Type: JR, FUTABA General

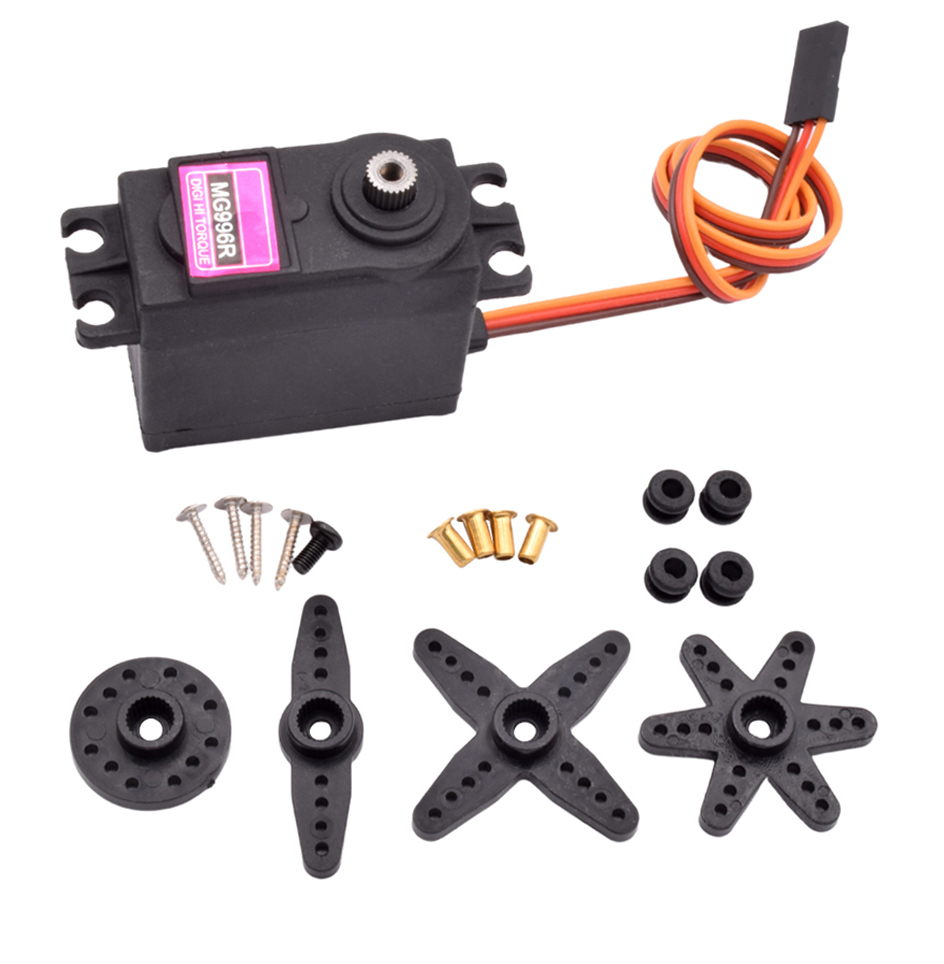

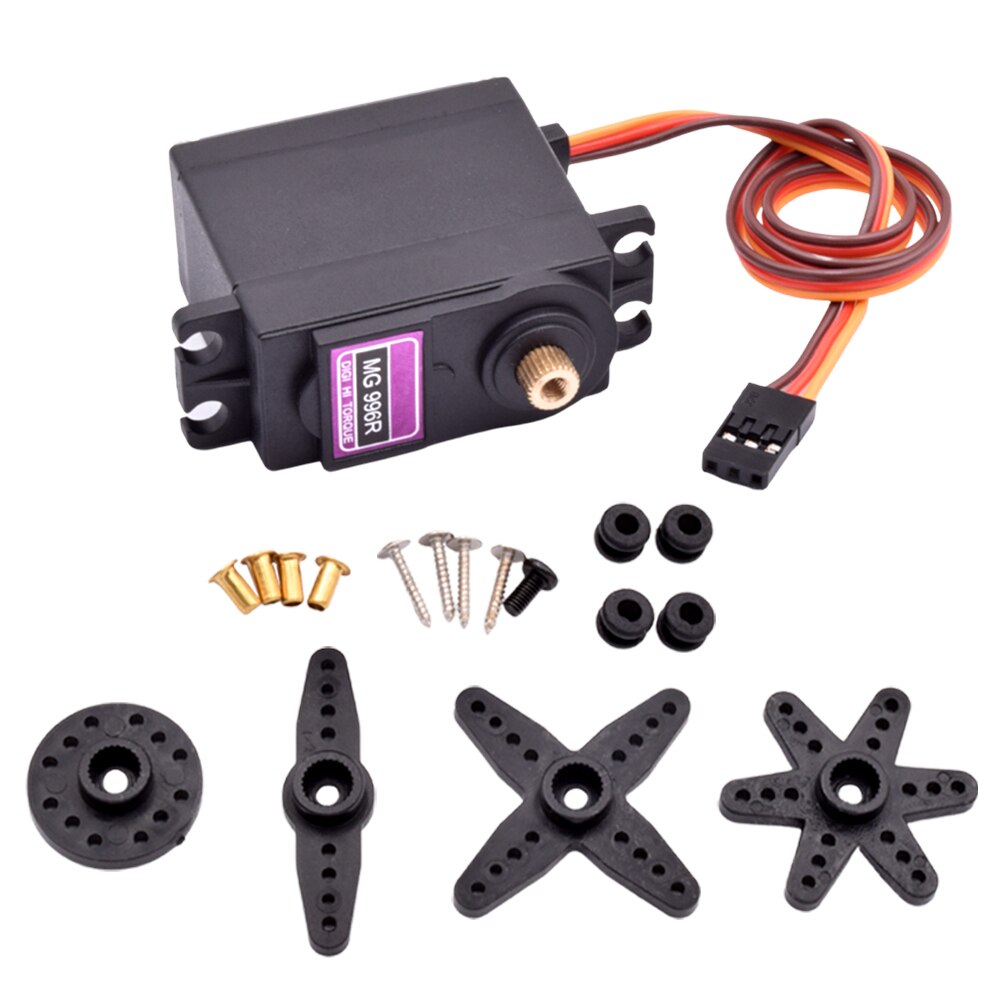

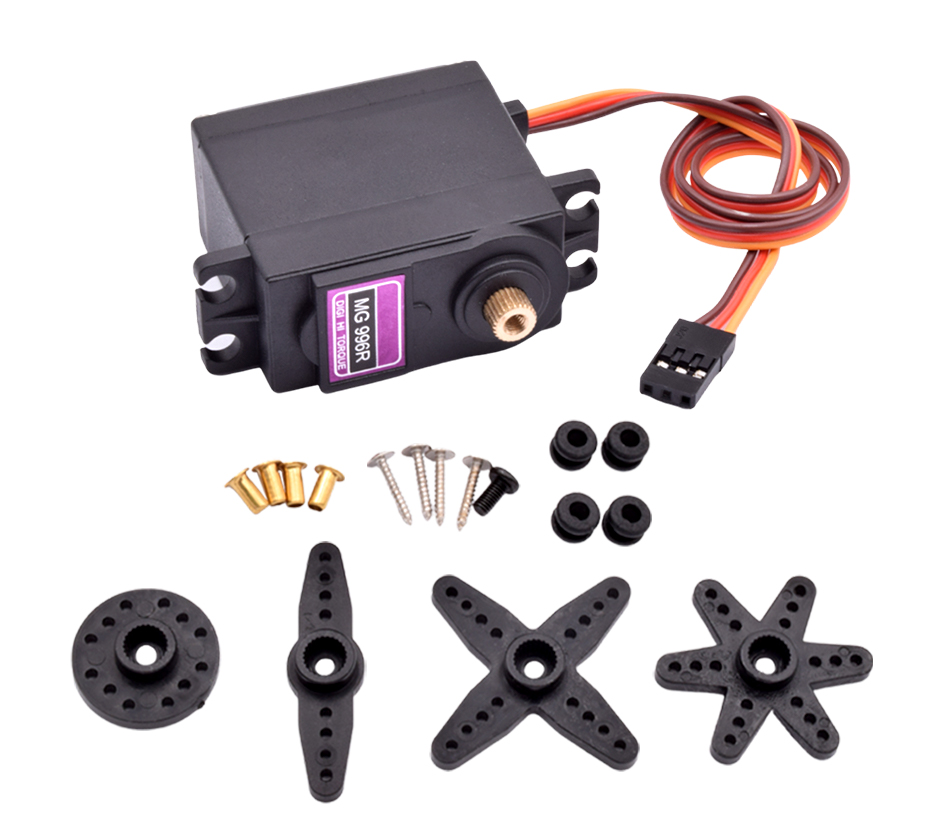

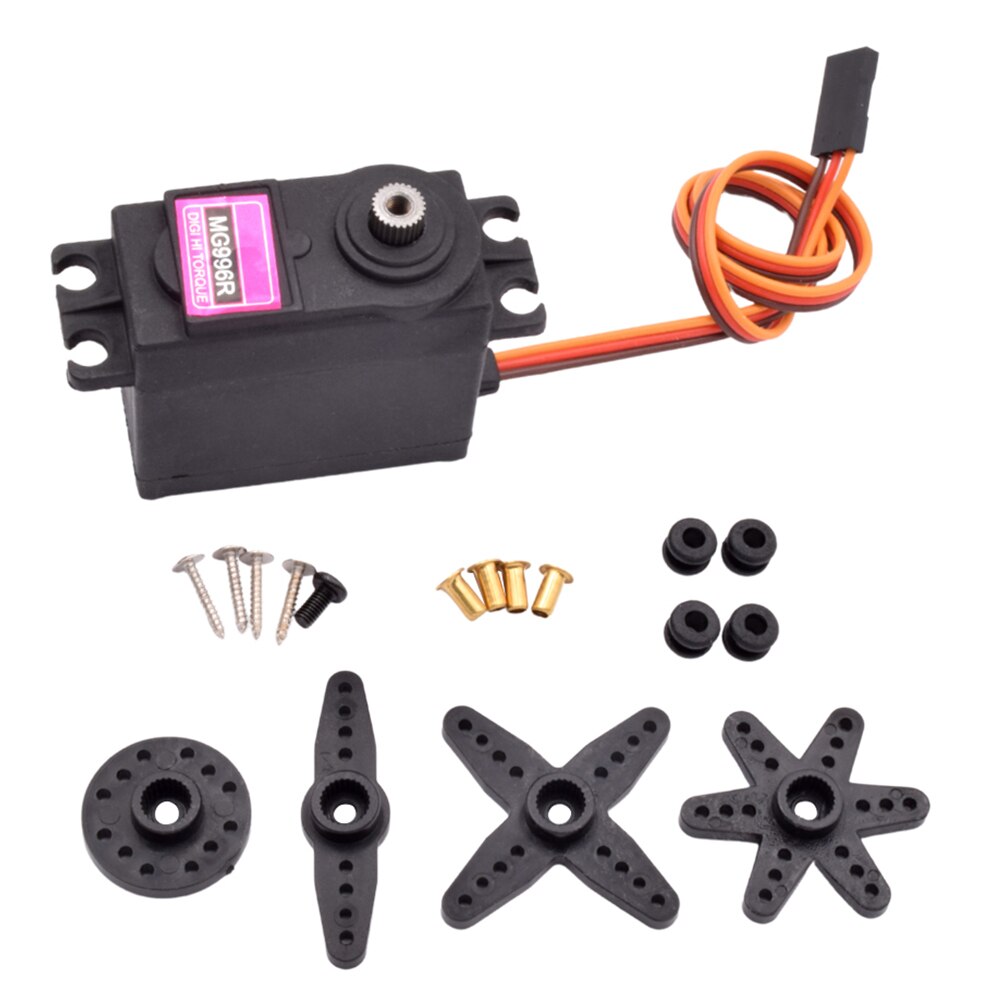

Accessories: Multi-arm, Fixing screws(AS the picture shows)
Connector Wire: 300mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.
1. Servo 0-180 Degree
The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees;
2.0ms--------------135 degrees;
2.5ms--------------180 degrees
For 180 degree servo, please use a professional PWM Servo Controller to control the angle
2. Servo 360 Degree
The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction of the rotation . There is no 0-360 degree angle control function.

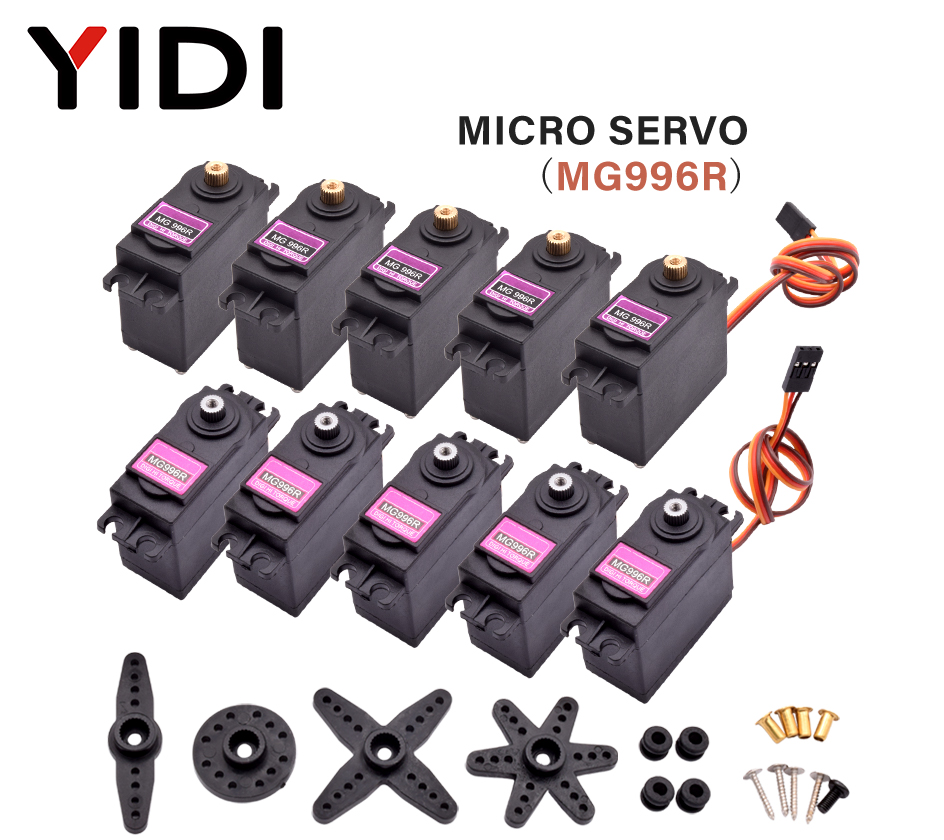

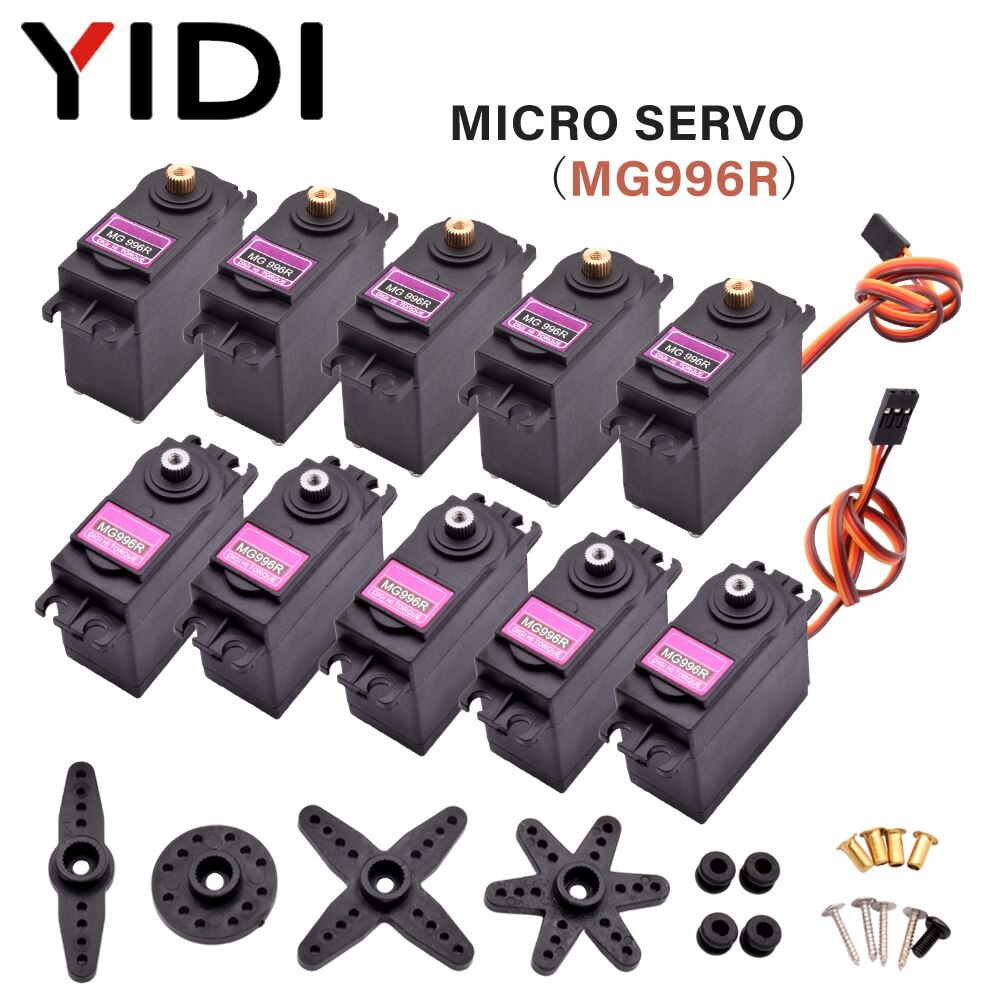

Packing: 2 x MG996R Servo or 4 x MG996R Servo fpr option(Including Accessories)
- Torque: 11kg/cm
- Model Number: MG996R
- Protect Feature: Totally Enclosed
- Type: Micro Motor
- Certification: CCC,ROHS,CE
- Brand Name: YIDI
- Origin: Mainland China
- Dimension: 40mm x 19mm x 43mm
- Rotation Angle: 0-180°/360°(Continuous Rotation)
- Operation Voltage: 4.8 - 7.2Volts
- Gear Material: Half Metal/All Metal
- Operating Mode: Analog
