2.2kw water cooled spindle Motor ER20 Milling Spindle Kit + 2.2kw Inverter / Vfd + 80mm Water Pump + 13pcs ER20 CNC
0.0 ( votes)
Price:
US $796.12
/ Set
Discount Price:
US $
759.62
/ Set
-5%
- Ships From
Package includes:
1 x 2.2KW CNC Water Cooled Spindle Motor
1 x 2.2KW/220V Inverter
1 x 80mm Spindle Clamp
1 x 80W 3.5M Water Pump
1set x ER20 (1mm,2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm)
1 x 5M Water Pipes
Features:
1. 2.2kw Water-cooled spindle motor
Size: 80x230mm(Middle body diameter:80mm x Length:230mm)
Power: 2.2Kw
Voltage: 220V AC
Frequency: 400Hz
Current：8.5A
Speed: 24000rpm
Water Cooling ER20 collet chunk
Runout off:less than 0.05mm
Germany SKS 4pcs bearing (C7005*2 & C7002*2)
Grease Lubrication
weight:4.8kg

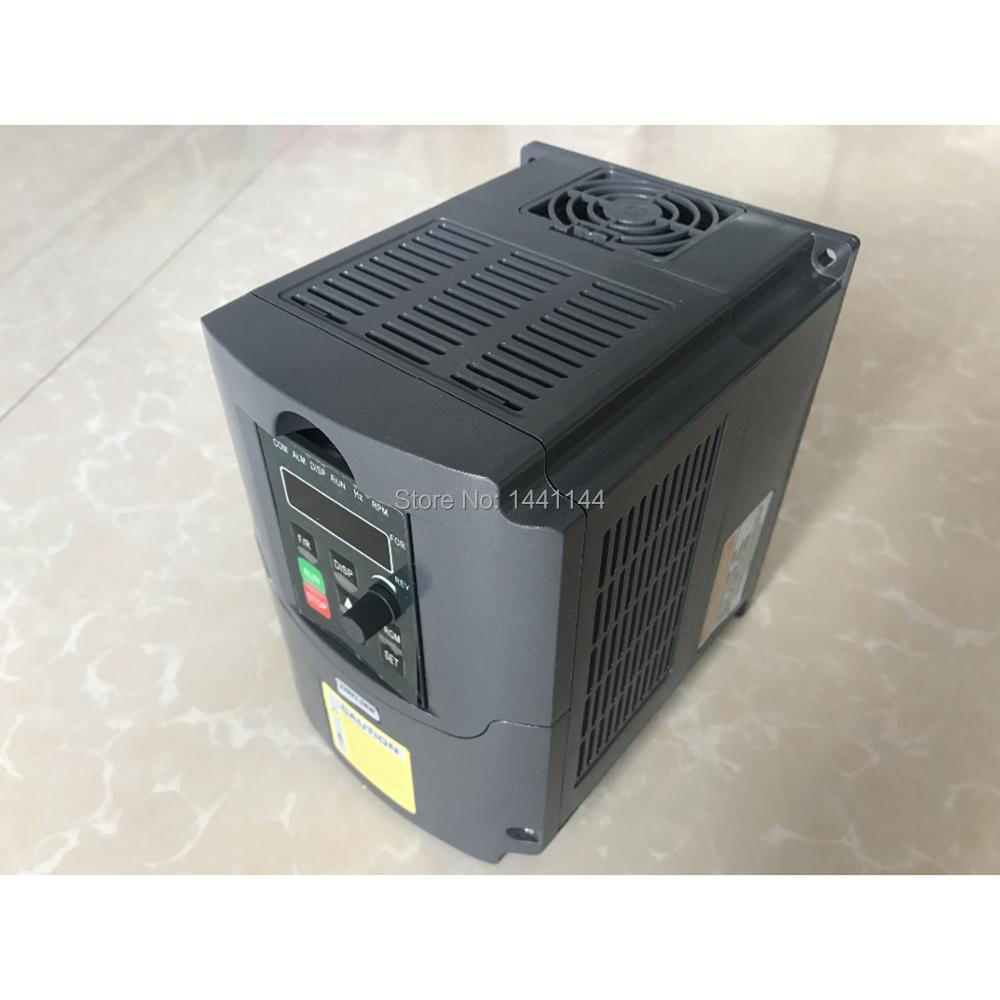

2. Variable Frequency Drive VFD Inverter 2.2KW 3HP 220VAC
1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port, adopting standard international MODBUS main circuit control;
4)With extremely strong anti-jamming capability
5)Low output ratting torque0.5HZ-150%, low speed running ability;
6)Carrier adjustable by 16KHZ, completely soundless working environment;
7)Broad voltage working area, normal running in 304V-456V;
8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;
Tech parameters:
1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us
for item stock.
2) Output Voltage 110V AC or 220V AC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
Note: When starting-up the spindle, reference frequency and maximum frequency must be set to 400Hz. Then it can be adjusted to a lower frequency slowly.

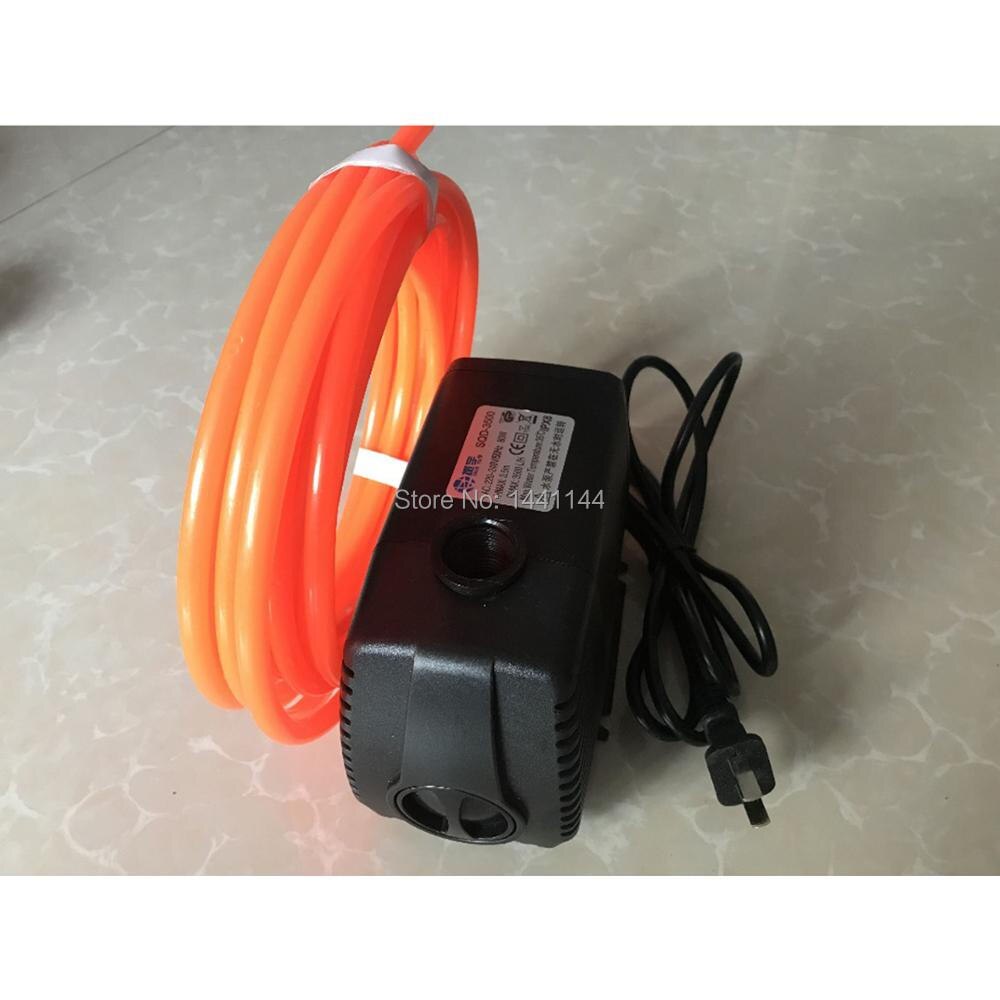

3.water pump
Special engraving machine spindle motor cooling water pump, 3.5 m, 80w high power!
Voltage: 220v (can be directly connected to the household power supply)
Head: 3.5m
Flow: 3000L / h
Power: 80w
Usage: placed directly after the pumps and pipes connected to the tank, the tank water level height should be more than 2.5 times the height of the pump of the best! Avoid dry dry!
4. 5M Water pipe: Size:5M 6mm (ID)*8mm (OD)

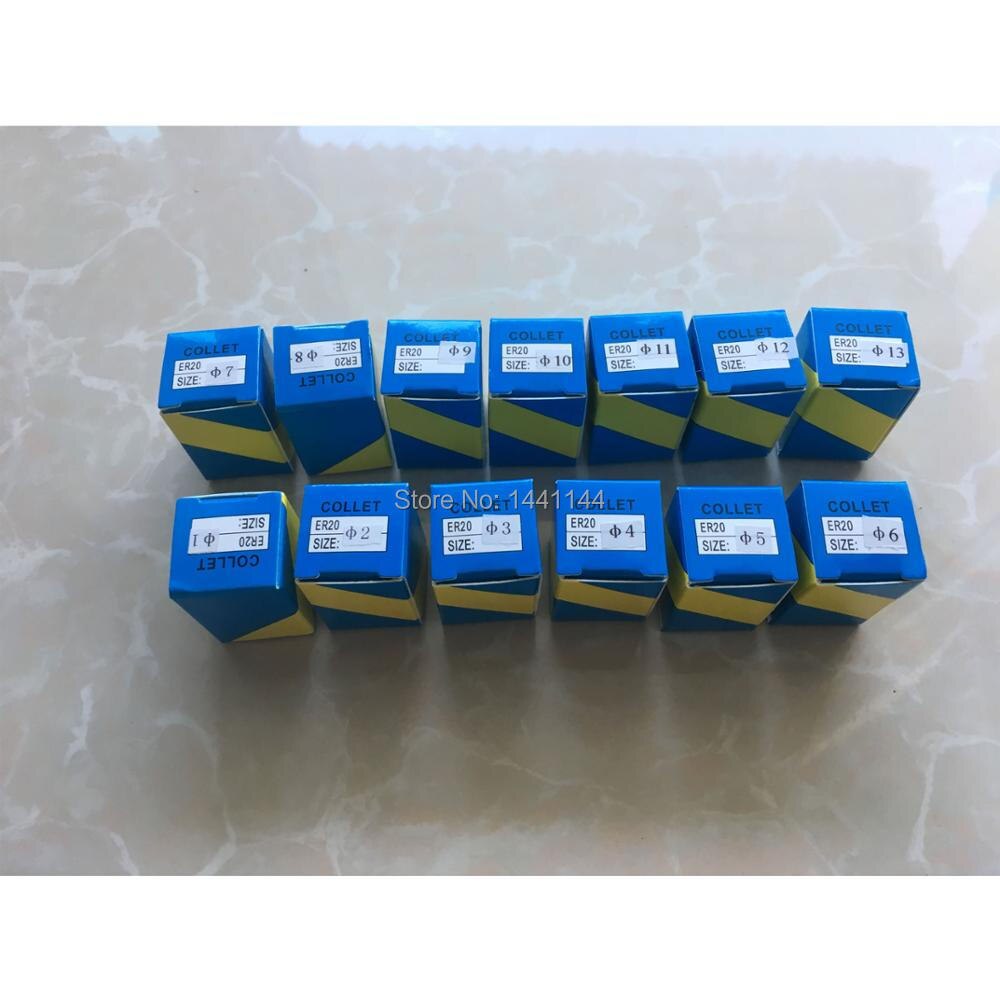

5.collet : 1set er20 13pcs

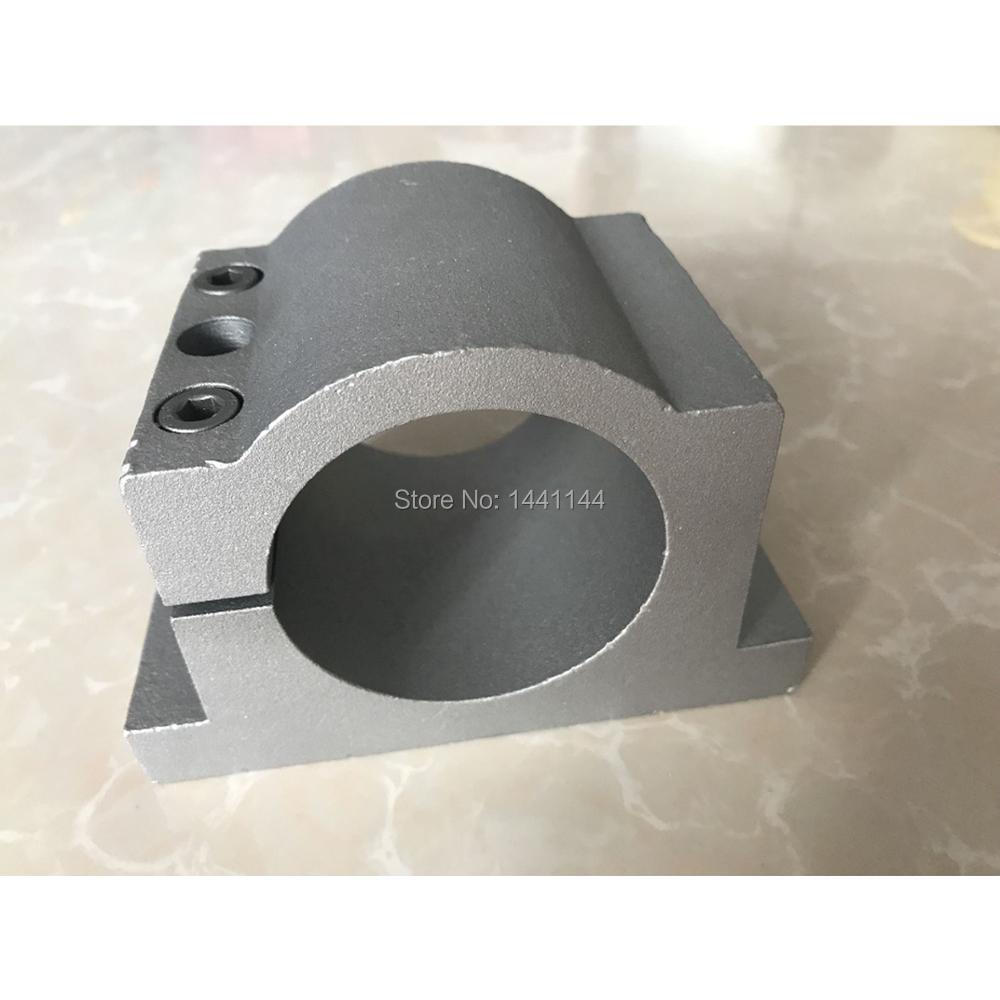

6.clamp: 80mm clamp
- Operating Speed: 10 - 24000RPM
- Maximum Torque: 0.6NM
- Application: Milling
- Model Number: 2.2kw Water Cooled Spindle Kit
- Drive: Motor
- Model Number: 2.2kw Water Cooled Spindle Kit
- Application: Milling
- Collet: ER20
- Inverter: 2.2KW /220V
- Runout off: less than 0.005
- Diameter: 80MM
- Operating Speed: 10 - 24000RPM
- Output: 0-220VAC 3-phase
- Input: 220VAC / 50Hz
