1X LOT WIFI DMX Receiver-2.4G XLR DMX512 Wireless Receiver Transmitter Signal Amplifier Stage Light Moving Head Light Controller
0.0 ( votes) | 2 orders
Price:
US $132.37
/ piece
Discount Price:
US $
130.28
/ piece
-2%
- Emitting Color
Welcome to visit our Professional Stage Lighting Store

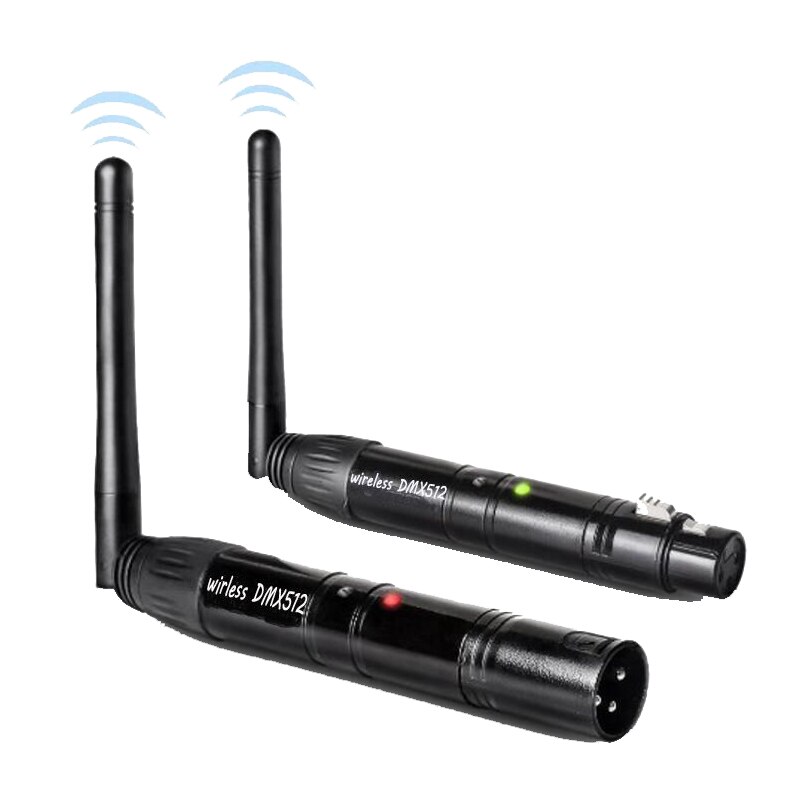

1X LOT WIFI DMX Receiver-2.4G XLR DMX512 Wireless Receiver Transmitter Signal Amplifier Stage Light Moving Head Light Controller
PACKING LIST:
1PC Wireless DMX Receiver Or Receiver With Adapter
Description

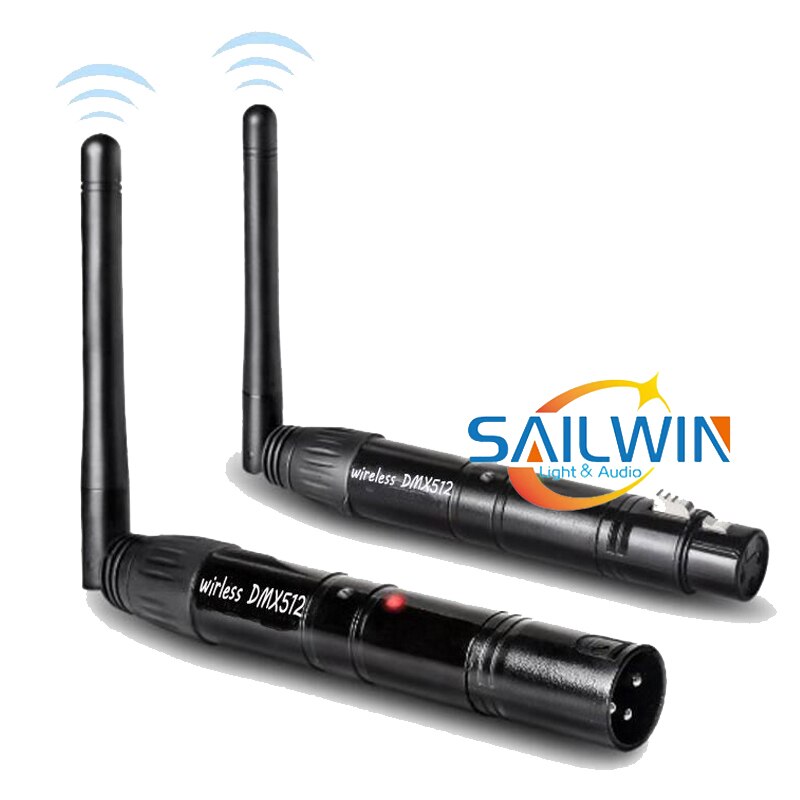

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console) by wireless way.No time delay when signal data is transmitting, signal data is real time and reliably.This product adopts a 2.4G ISM frequency section.High effective GFSK modulate,communication design; 126 channels jumping frequency automatically, high anti-jamming ability. Advantages of the products
-
Compact in size:Dimension only: 13.5cm x 2cm x 2cm
-
It can operate either as transmitter or receiver and they are convenient in operating.
-
It can be mixed to use with our other wireless dmx products.
-
Using global free license 2.4GHz frequency band, from 2400MHz to 2525MHz, 126 automatically jumping frequencies to ensure smooth communications among transmitters and receivers. The standard reliable and safe communication distance between our transmitter and receiver is 700 meters.
-
Capable of setting up different configurations to meet different needs, like point to point, point to multiple or multiple to multiple. The listed item supports up to 7 universes of DMX (512x7=3584 receivers).
Advantages
- No time delay during data transmission
- 7 groups ID code settable
- Portable and easy to handle
- Economical
- small size: 13.5cm x 2cm x 2cm only
- one transmitter can control many receiver
Technical Parameters:
- Tricolor LED displaying
- 126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.
- 7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.
- Input voltage: 5VDC 500mA MIN
- Communication distance: 700M
- Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
- Max transmitting power rate: 20dBm
- Receiver sensitive: -94dBm

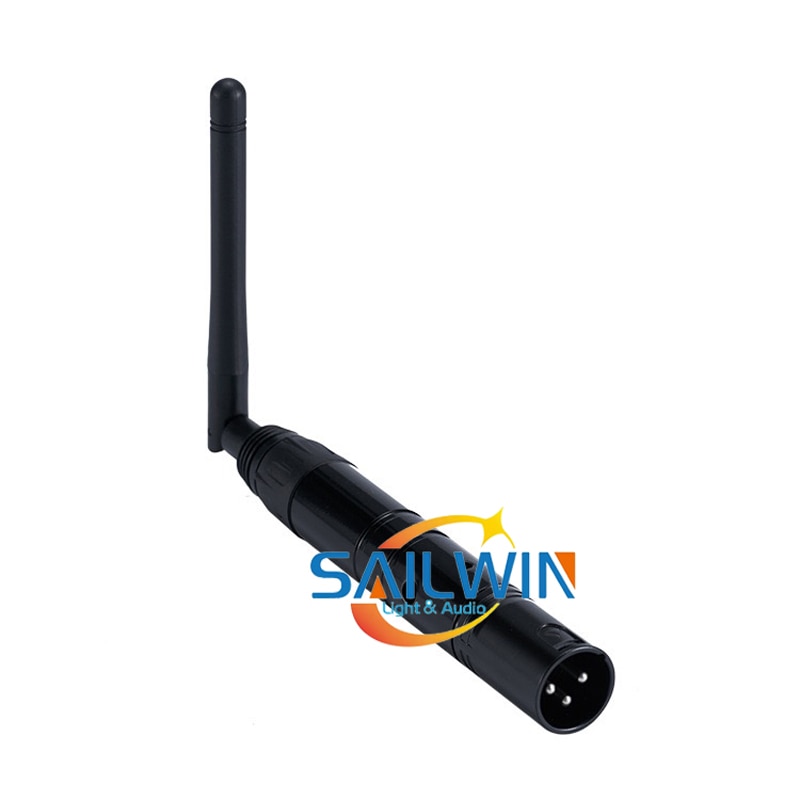

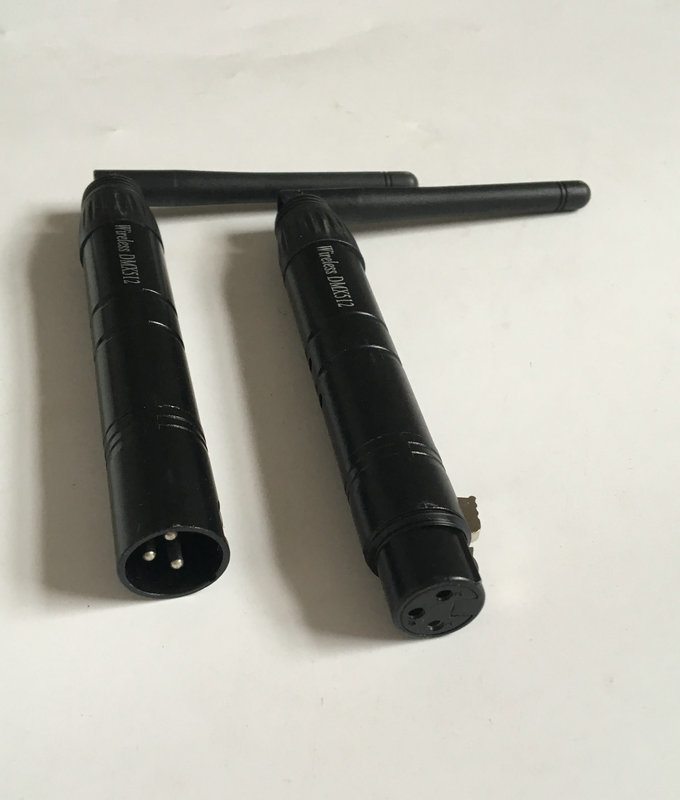

- Signal port: 3 pin male plug (for transmitter) & female plug (for receiver
Product Outline:
Operating manual:
ID code and LED color corresponding correlation:
1: RED
2: GREEN
3: RED+GREED = YELLOW
4: BLUE
5: RED+BLUE = PURPLE
6: GREEN+BLUE = CYAN
7: RED+GREED+BLUE = WHITE
Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.
Working condition:
LED constant lit up: no DMX or wireless signal
Red LED flash: transmitting
Green LED flash: Receiving
RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically.
ID Code------1-7 groups ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.
Establishing Communication:
1. Power on DMX512 wireless received board and transmitted board.
2. Press "Key" button to set same ID value of transmitted board and received board, please use different ID value if you need to use more than 1 group wireless system at the same time in the same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
4. Communication was established correctly then.
DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data(generated by console ) by wireless way, which solve lighting control issues of wireless transmitting completely between lighting controller and lighting, lighting and lighting and so on. It gets rid of relying on connecting cables completely.
And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliable. This product adopts global free 2.4GHz ISM frequency band. High effective GFSK modulation,communication design is 126 channels jumping frequency, high anti-jamming ability.
Application:
- Stage lighting,
- Disco hall,
- Large literature performance,
- Gymnasium lighting,
- Temporary stage performance,
- City lighting system,
- TV station,
- Conference center,
- Professional showplace,
- Theme parks,
- Bar lighting and so on.
Caution:
Indoor use only.
Two (2) year warranty, repair, free replacement except damaged artificially.
The manufacturer will not offer free service in warranty period if any repaired or uncapped had happened
It is better to return to manufacturer if repair is a must, do not do any repairing job unless qualified electrician.
The working condition should be under temperature -20~+45 degree, 10%~90%RH, no congelation, so as to ensure its lifetime.

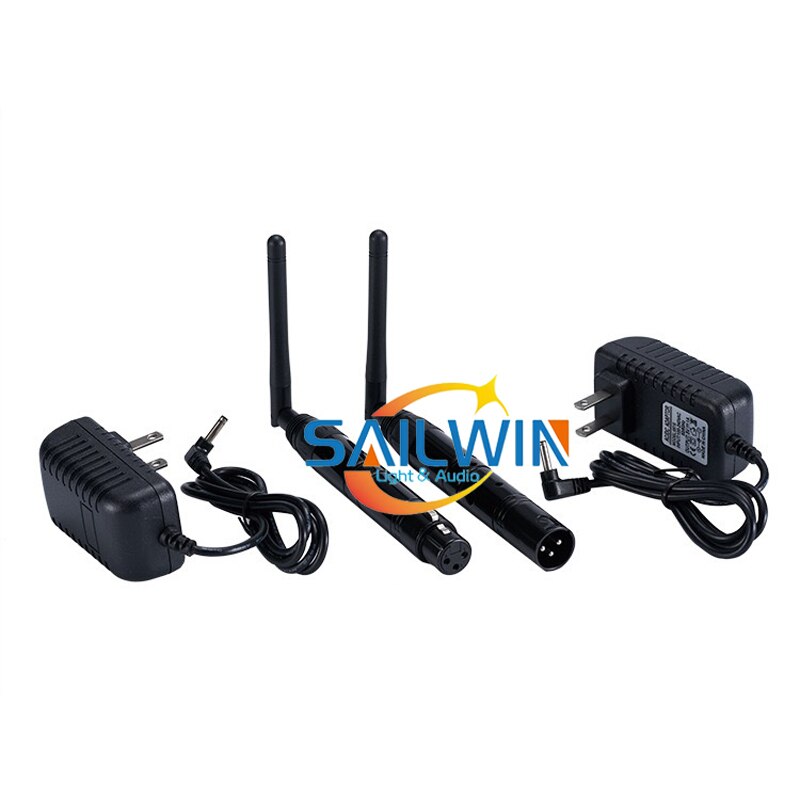

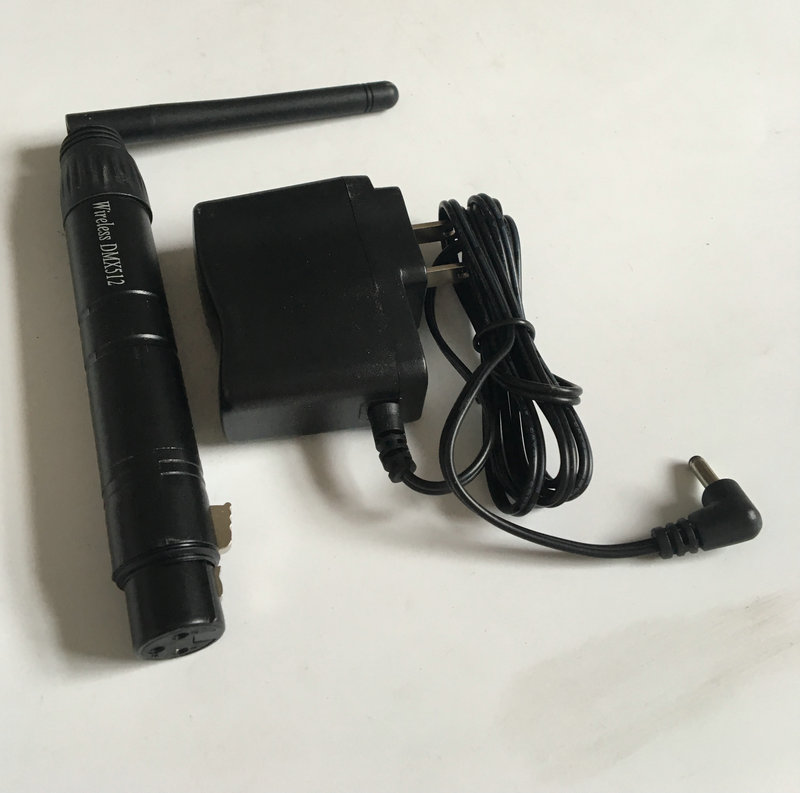

Package included:
-

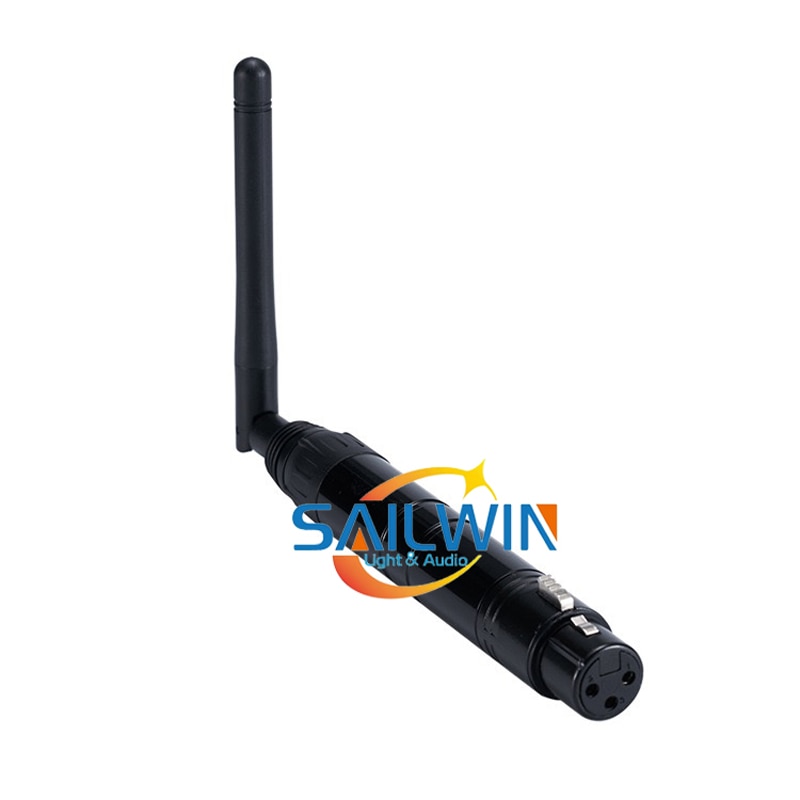

1 x DMX Receiver( female plug)
-
1 x Power Supply(please kindly inform us the power supply you need, or we will choose it all according to your country satndard
SAILWIN FAQ
Q: Do you have stock of stage light,moving head light,led par light?
A: Yes,we have enough stock of Battery LED Par Light,230W Moving Head Beam etc IN EU Country.
Q:Who will pay for custom-s duty?
A:It is buyer who should pay custom-s d-uty.
Q:LED Lighting use of the plug and voltage, is consistent with the normal use of my country standards?
A:Yes, we will be in accordance with the standards of electrical appliances in your country, to send you to meet the requirements of the plug, EU Plug, US plug, AU plug, UK Plug and so on.
Q:What if I'm dissatisfied with the product?
A:So sorry to hear that. We guarantee you will be 100% satisfied with the quality of your product. If you're unhappy with it, please contact our Customer Service who will be glad to help.
When contacting Customer Service Team, please give your order number, a short description and a photo of the problem, so we can prevent these problems in the future.
Q:May I get repair warranty?
A:We have one-year warranty in China, if you do not take the LED Lighting APART.
Q:How would you declare your product? How much tariff is declared?
A:We will declare LED Lighting according to our work experience.
Q:I want to customize the invoice?
A:Contact Customer Service Team, will help you.
Q:Can we customize Logo?
A:Yes we can. If you need to customize the Logo, please contact us.
Q:Can we customize Logo?
A:Yes we can. If you need to customize the Logo, please contact us.
Q: What can I do during the dispute?
A: Please contact our after-sales team. Please do not choose 'Return goods & refund' during dispute. We will do not provide any after-sales service if you choose it.
- Features: Wireless Transmitter/Receiver
- Model Number: RP-F2001
- Is Dimmable: Yes
- Finish: iron
- Switch Type: Knob switch
- Warranty: 1Year
- Install Style: Free standing
- Light Source: LED Bulbs
- Certification: ce,ROHS,LVD
- Voltage: 220V,230V,120V,110V,130V
- Power Source: AC
- Body Material: Aluminum
- Is Bulbs Included: Yes
- Professional Light Type: Stage Lights
- Brand Name: XIN MEI LIGHT
- Origin: Mainland China
- Usage: Professional
- Wireless Transmitter/Receiver: Stage lighting
- LED par light: stage effect light
- Place of Origin: Guangdong, China (Mainland)
