1W 2W 4W 6W 8W 11W LED Driver 300mA 12W 15W 18W 20W 25W 36W For LED Power Supply Unit Lighting Transformers For LED adapter
4.9 (632 votes) | 1000 orders
Price:
US $10.47 - 20.22
Discount Price:
US $
10.26 -
18.64
-2%
Tip 1: How to choose the right driver for the LED?
I met a lot of buyers and didn't know how to choose the right LED driver.
First, you need to determine the lamp's input voltage and input current by 100%, then select the matching voltage and current of the LED driver.
Example: We detected a bulb voltage of 40V and a current of 290mA.
So we should choose the 8-12W 280-300mA option.
Tip 2: Dear buyer, if you need a full power LED driver, please choose 280-300 current product, this is a full power LED driver.
Tip 3: The no-load test is forbidden. The voltage is too large and the data is inaccurate, so be sure to enter the bulb load test.
All Isolated Driver
Feature
The LED Driver will automatically lit by balancing the voltage according to the lamp performance.

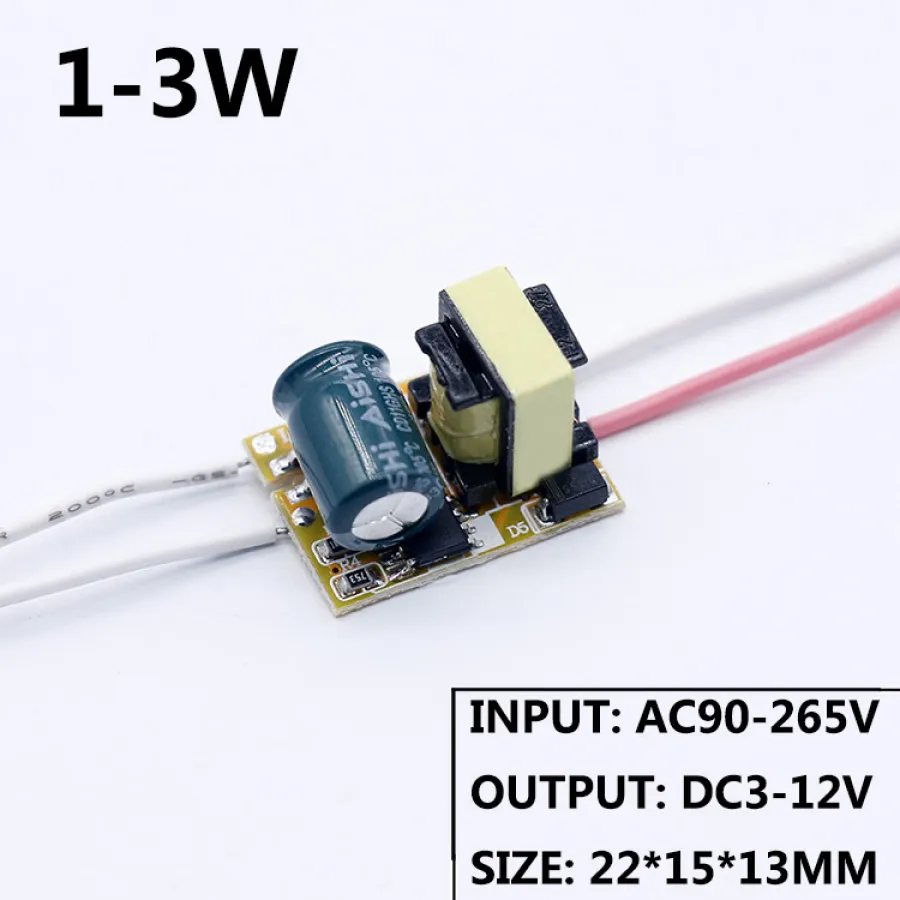

1-3W LED Driver（Use 3 years）
Input Voltage : 90-265V
Output Voltage : 3-12V
Output Current : 280-300mA

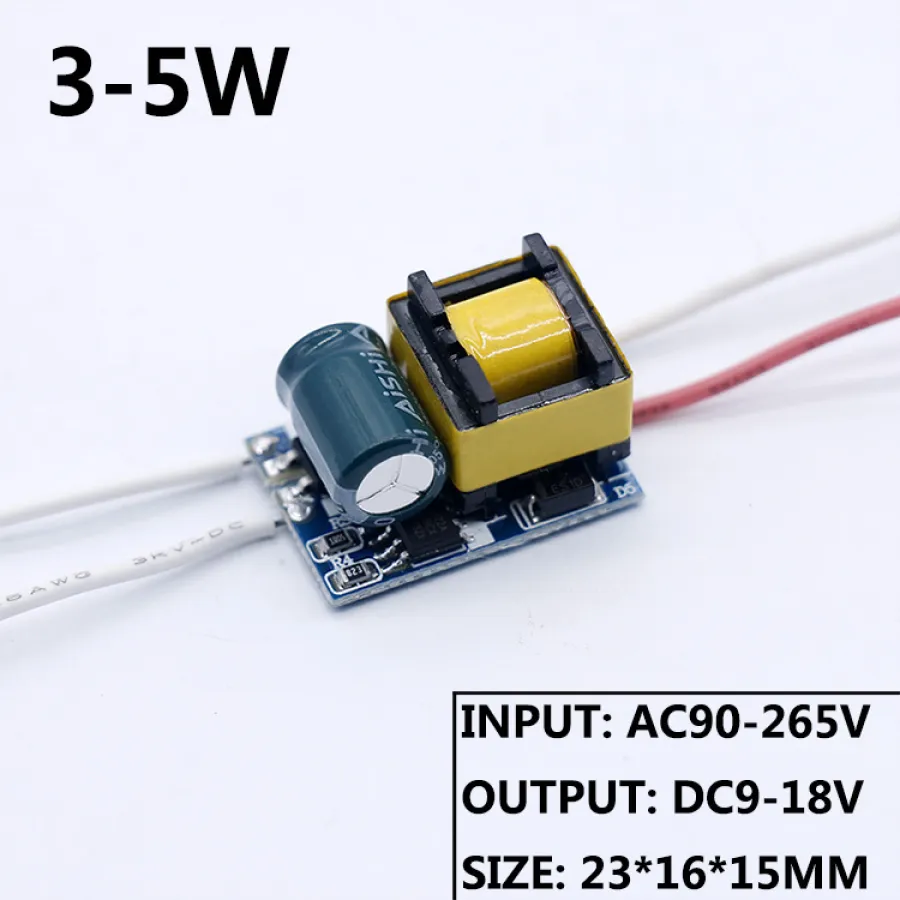

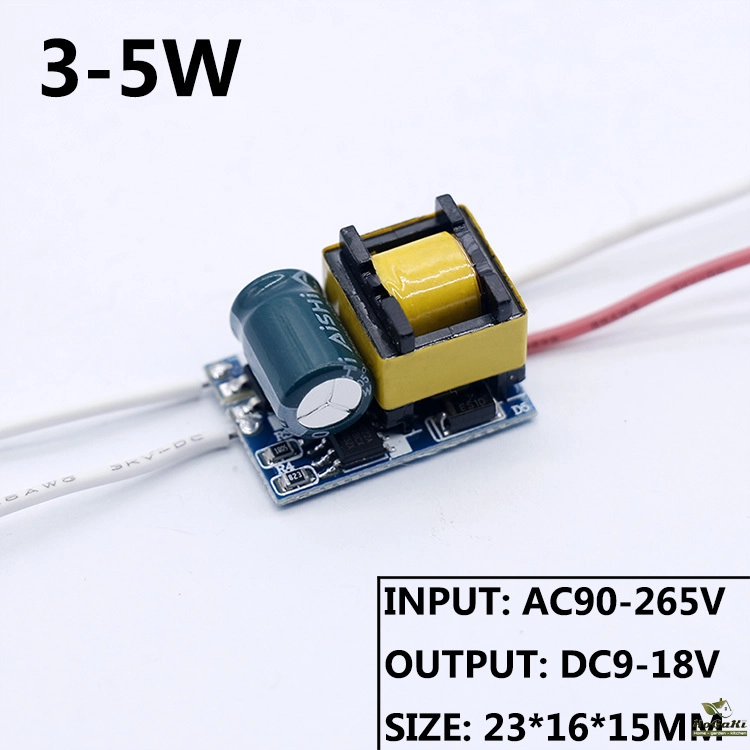

3-5W LED Driver（Use 3 years）
Input Voltage : 90-265V
Output Voltage :9-18V
Output Current : 280-300mA

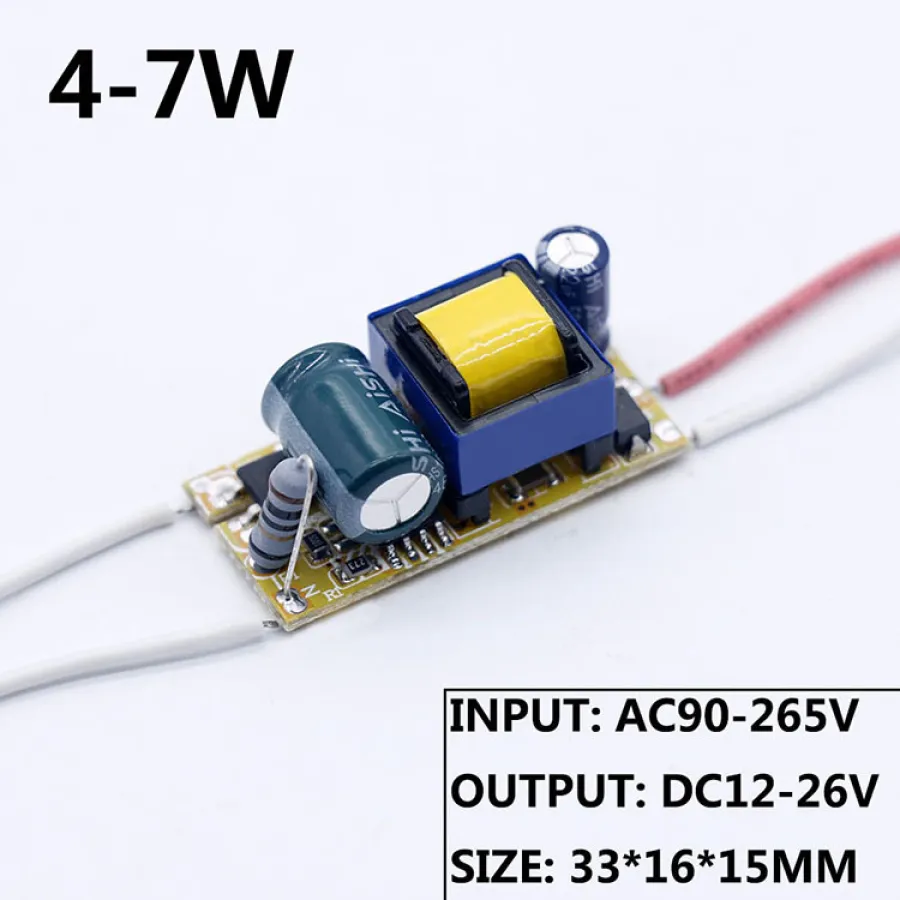

4-7W LED Driver（Use 3 years）
Input Voltage : 90-265V
Output Voltage : 12-26V
Output Current : 280-300mA

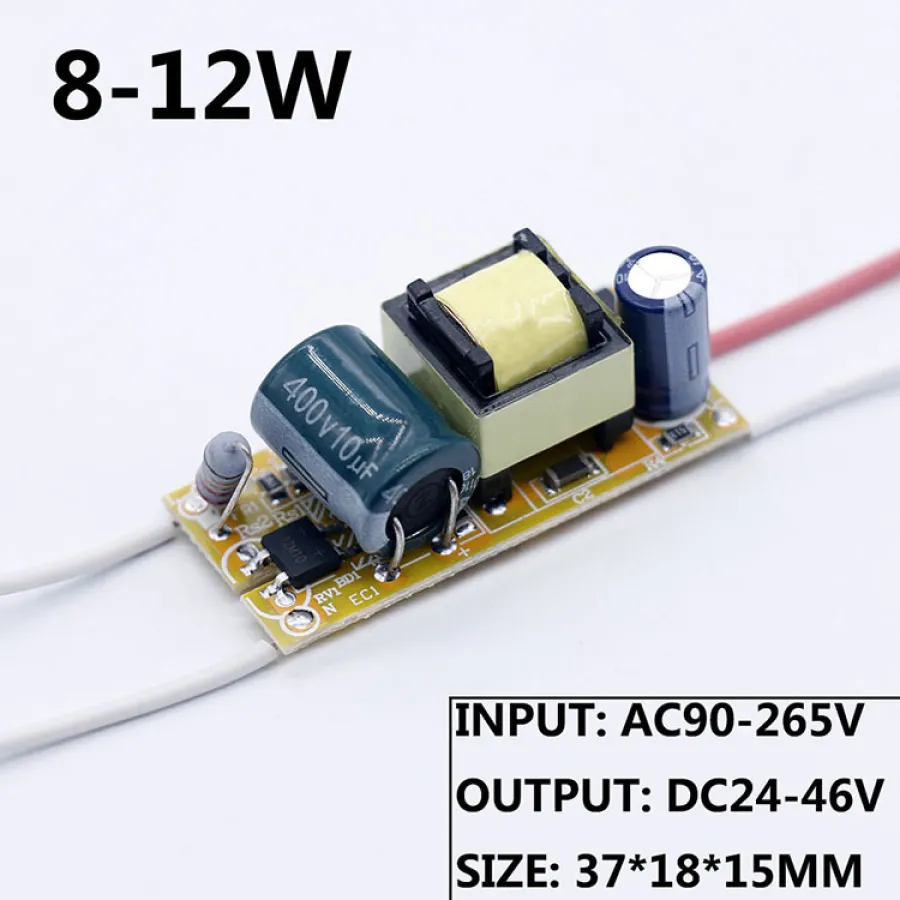

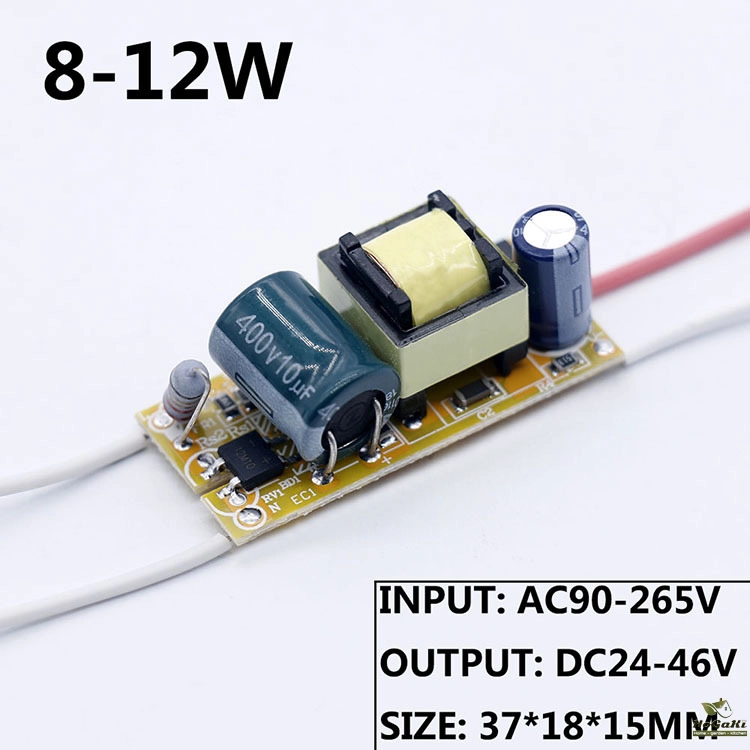

8-12W LED Driver（Use 3 years）
Input Voltage : 90-265V
Output Voltage : 24-46V
Output Current : 280-300mA

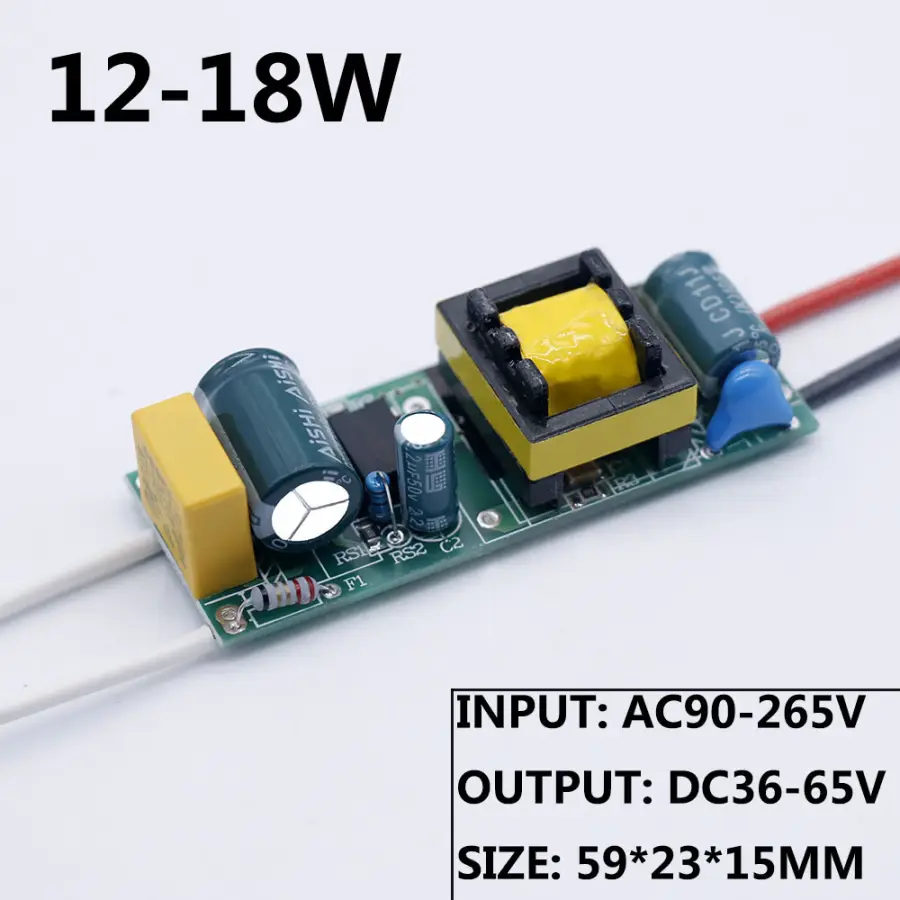

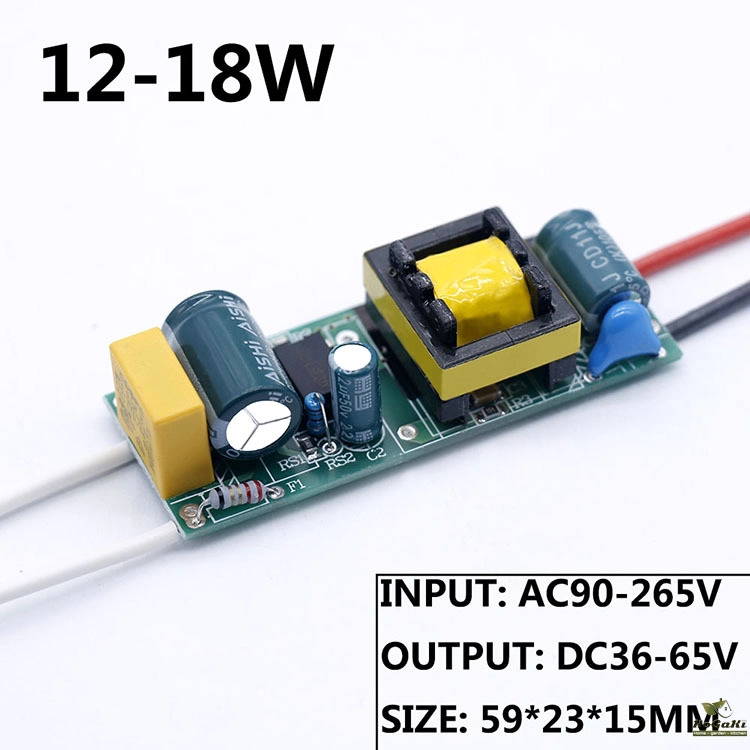

12-18W LED Driver（Use 3 years）
Input Voltage : 90-265V
Output Voltage : 36-65V
Output Current : 280-300mA

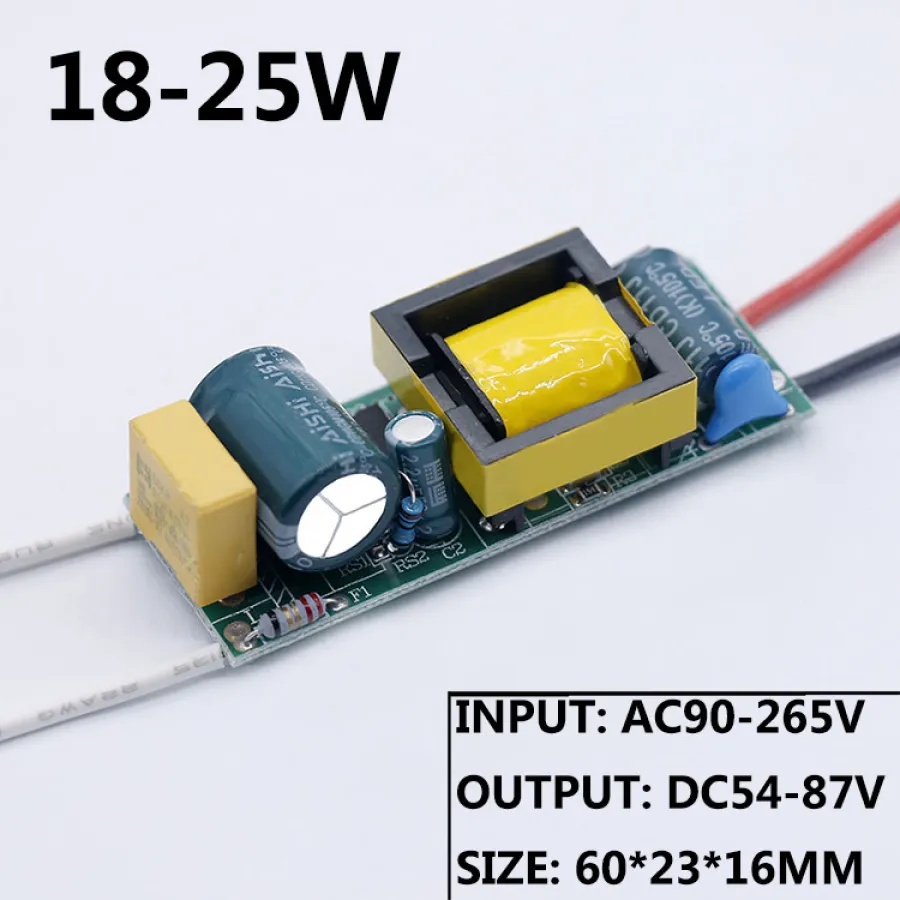

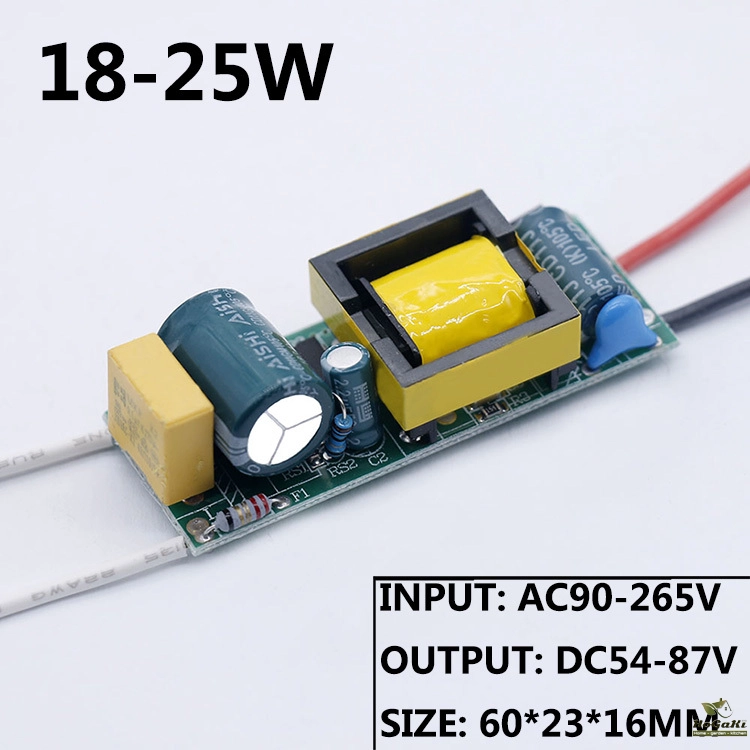

18-25W LED Driver（Use 3 years）
Input Voltage : 90-265V
Output Voltage : 54-87V
Output Current : 280-300mA

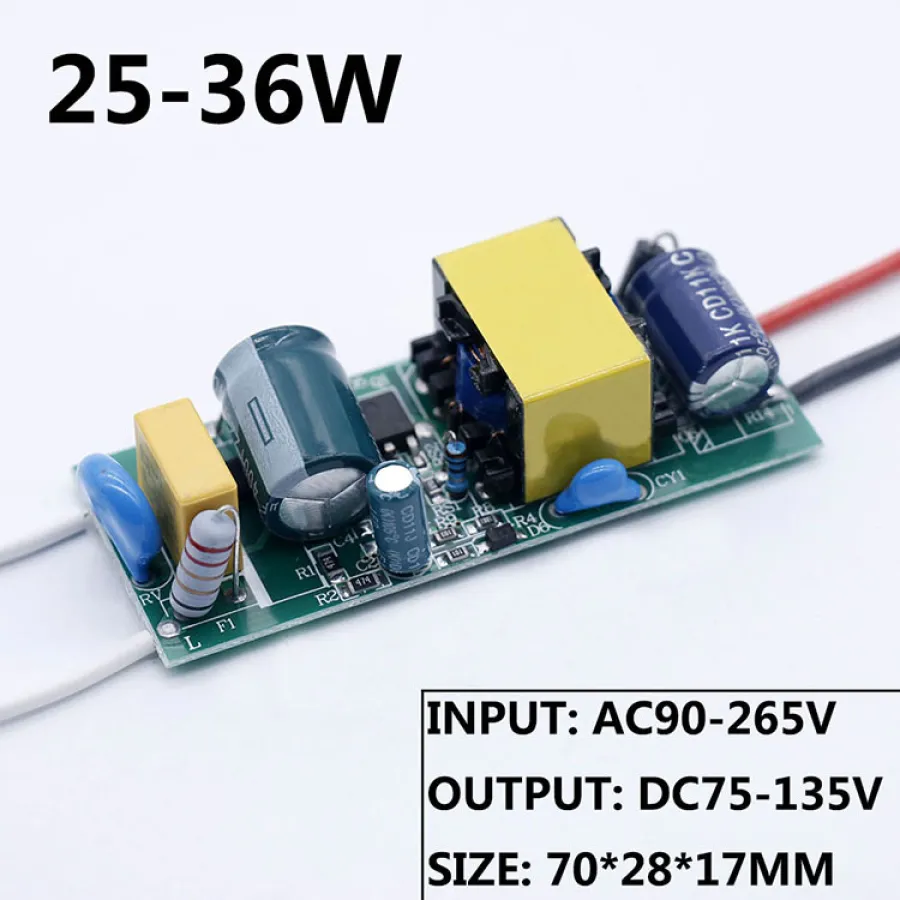

25-36W LED Driver（Use 3 years）
Input Voltage : 90-265V
Output Voltage : 75-135V
Output Current : 280-300mA
Advantage ：
1-Transformer
Bold copper wire
Power is sufficient and temperature is low.
2-Chip
Adopting the first-line brand IC-Aishi
High quality intelligent constant current
Overvoltage protection, overload protection,
overheat protection, short circuit protection
No flicker
3-Electrolytic Capacitor
High frequency low resistance capacitor
In theory, if the LED driver is used for 8 hours a day, it can be used for 3 years. If the LED driver uses a temperature below 70 ° C, it can even be as long as 5 years.
4-Processing Technology
All use mechanized patches, efficient and stable. Eliminate manual soldering and lead to poor contact of electronic components.
5-Application Place
LED track light / LED bulb
LED Spotlight / LED Bulb / LED Corn Light
LED Strip Light / LED Tube Light / LED Table Lamp
LED panel light / LED chandelier / living room lamp

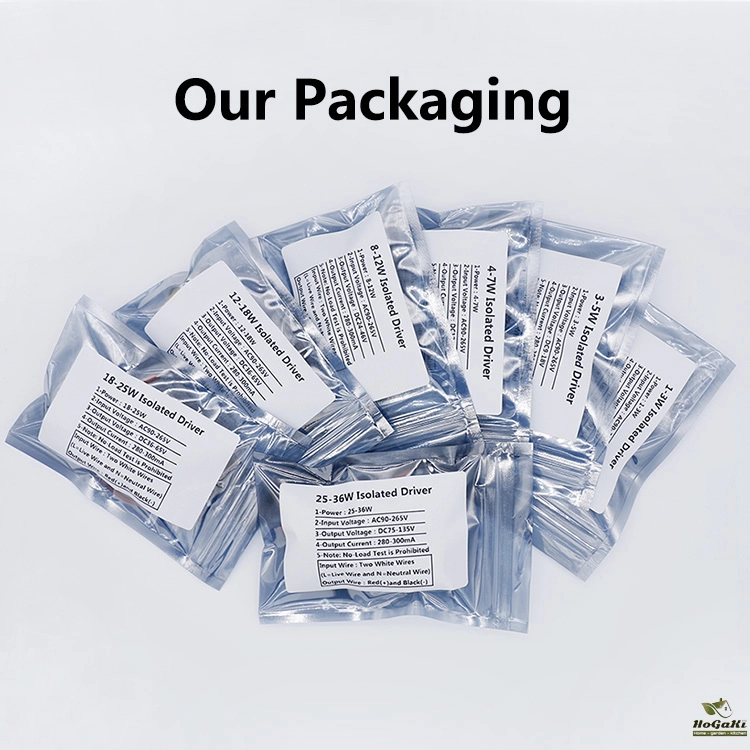

Packaging Details
- Unit Type:
- Package Weight: 0.010
- Package Size: 10x1x10
- Brand Name: warm and happy
- Hign-concerned Chemical: None
- Origin: Mainland China
- Output Signal: DC
- Output Voltage: 3-11V/12-20V/18-26V/24-48V/36-72V
- Material: Plastic Alloy
- Plug Type: None
- Certification: CQC
- Certification: CCC
- Certification: VDE
- Certification: ROHS
- Certification: ce
- Certification: EMC
- Features: Isolated driver
- Input Signal: AC
- Input Voltage: 90V-265V
- Item Type: Lighting Transformers
- Warranty: 2 years
- Weight: 10
- Model Number: TD1568
- Output Current: 180-300mA
- Power: 1-3W/4-5W/6-7W/8-12W/12-18W/18-25W/25-36W
- Voltage: AC90V-265V
