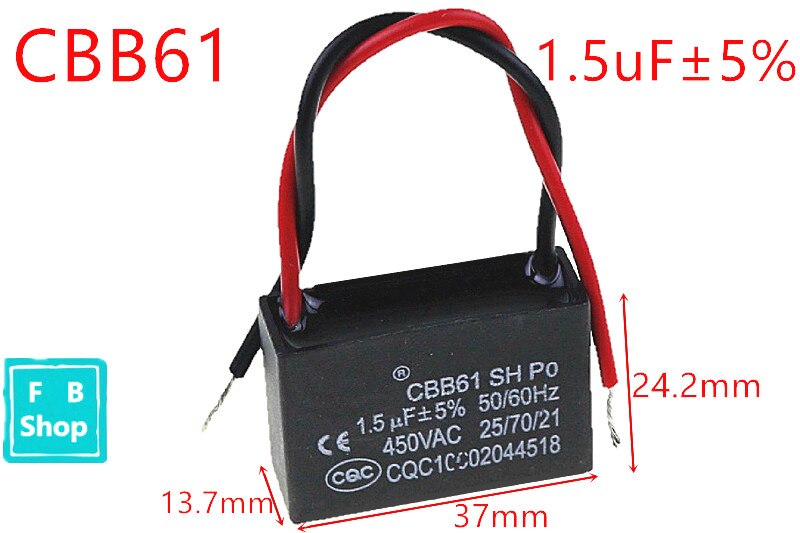

1pcs CBB61 1.5uF 450VAC starting capacitance AC Fan Capacitor CBB Motor Run Capacitor

0.0 (1 votes) | 14 orders
Price: US $104.06 / piece
Discount Price:
US $ 97.85 / piece
-6%
Quantity

Model: CBB61
Series: CBB
Nominal capacity: 1.5uF
Tolerance :+ 5 (%)
Rated voltage -AC: 450 (V)
Dielectric material: capacitance film
Equivalent series resistance (ESR): 10
Working temperature range: 25/70/21 or 25/85/21
Color: Black
Product certification: CE

The capacitor uses metallized ZnO film with thickened edge as electrode and dielectric. Then flame retardant epoxy resin is installed in the plastic shell of ABS or PBT cube. The capacitor has the characteristics of small volume, high performance and long service life.
Feature Description:

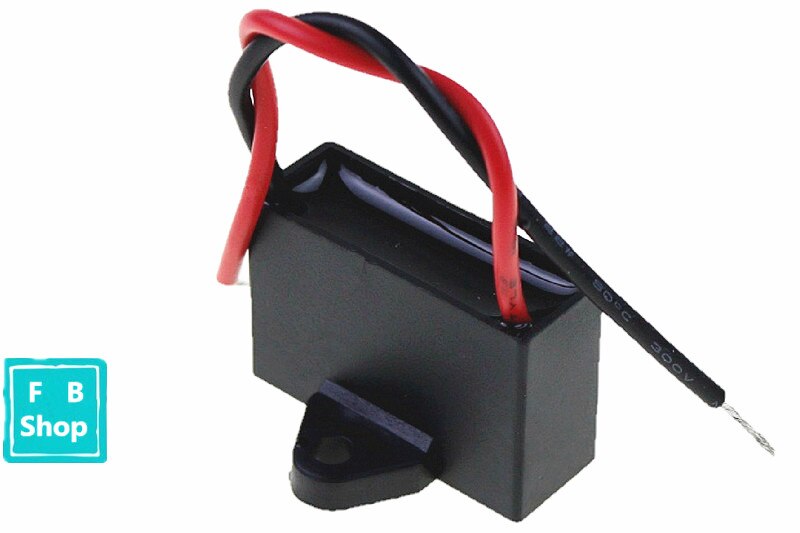

1. appearance: square, molded case
2. Lead-out wires are: ordinary lead (multi-copper core wire); solder (187 #, 250 # single or double plug); CP wire (pin, pin); tin-plated copper wire or lead.

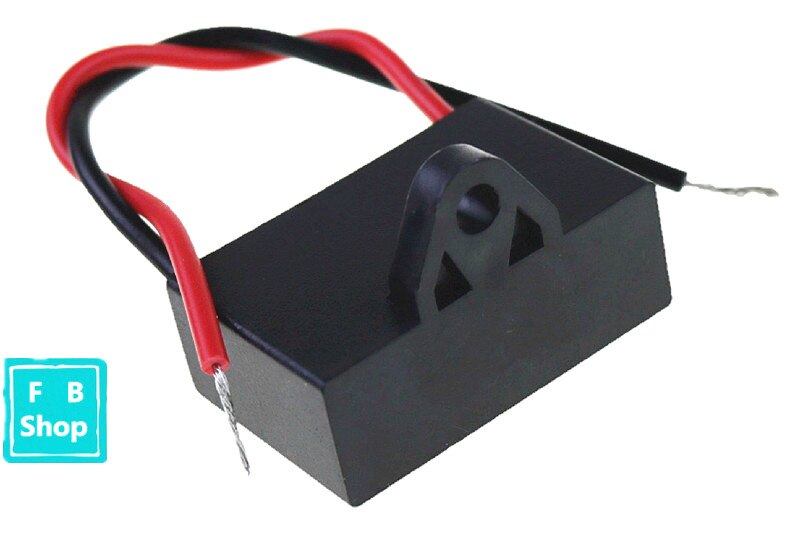

3. bottom ear: you can bring the bottom ear or the bottom ear according to user's needs.
Main uses:
1. Widely used in air conditioning fans, electric fans, exhaust fans and other frequencies of 50Hz/60Hz AC power supply relatively small single-phase motor start-up and operation.
2. the single-phase motor used for 50Hz AC power supply can start and operate continuously.
3., it is suitable for underground coal mines, railways, space and other places where safety requirements are high.
Rated voltage(VAC) Capacitance(VAC) size(mm) Product link
long wide high
450V 1uF 35.5 11 20.2
1.2uF 36 11 22.2
1.5uF 37 13.7 24.2
1.8uF 37.2 13.75 24.15
2uF 38.2 16.2 25
2.5uF 38.2 16.3 25
3uF 38.2 17.9 28
3.5uF 38.2 20 30.5
4uF 38.2 20 30.6
4.5uF 47.5 20.6 32.9
4.75uF 38.4 23.4 32
5uF 38.4 23.4 32
6uF 47.2 19.1 32.2
8uF 47.2 25.1 35.3
10uF 48.8 27.8 39.1
12uF 47.5 26.4 38.3
14uF 50.4 30.8 43.6
16uF 50.4 30.8 43.6
18uF 50.4 30.8 43.6
20uF 50.4 30.8 43.6
IMG_5665IMG_5667IMG_5670IMG_5671






  • is_customized: Yes
  • Model Number: CBB61 1.5uF
  • Type: Capacitor
