1PC DC 3V-3.7V Coreless Motor 0408,412,612,615,617.716,720,816,8520,1020 High Speed RC Drone Strong Magnetic DIY Aircraft
ID: 87251

1PC DC 3V-3.7V Coreless Motor 0408,412,612,615,617.716,720,816,8520,1020 High Speed RC Drone Strong Magnetic DIY Aircraft

5.0 (7 votes) | 41 orders
Price: US $16.87 - 18.23 / piece
Discount Price:
US $ 16.54 - 17.67 / piece
-2%
Quantity

Buy Now
Add to Cart




Specifications:




Tips:

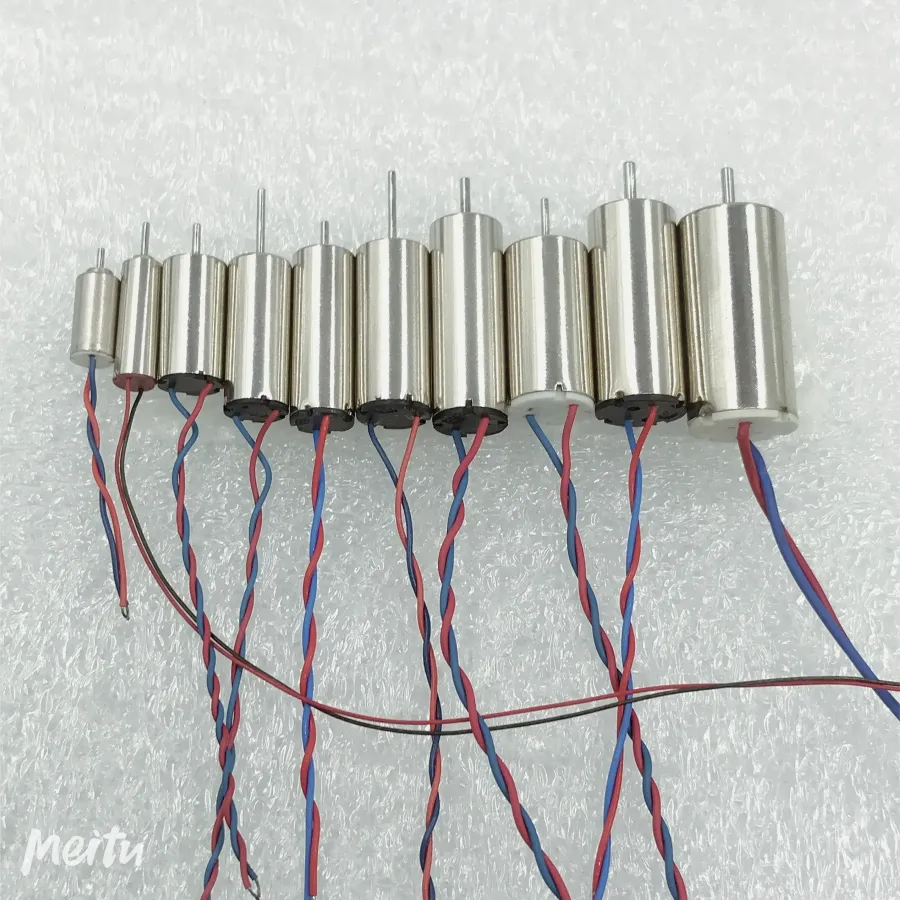

The numbers of different models represent different sizes of motors. For example, 412 is 4mm * 12mm, 8520 is 8.5mm * 20mm.

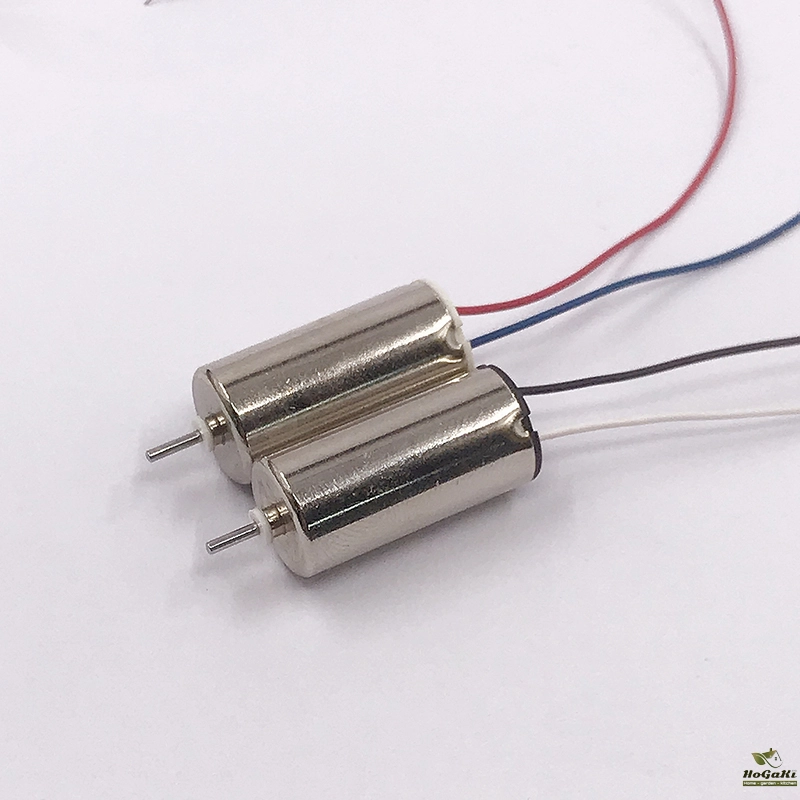

Type A is Red& Blue line motor, and type B is Black&White line.

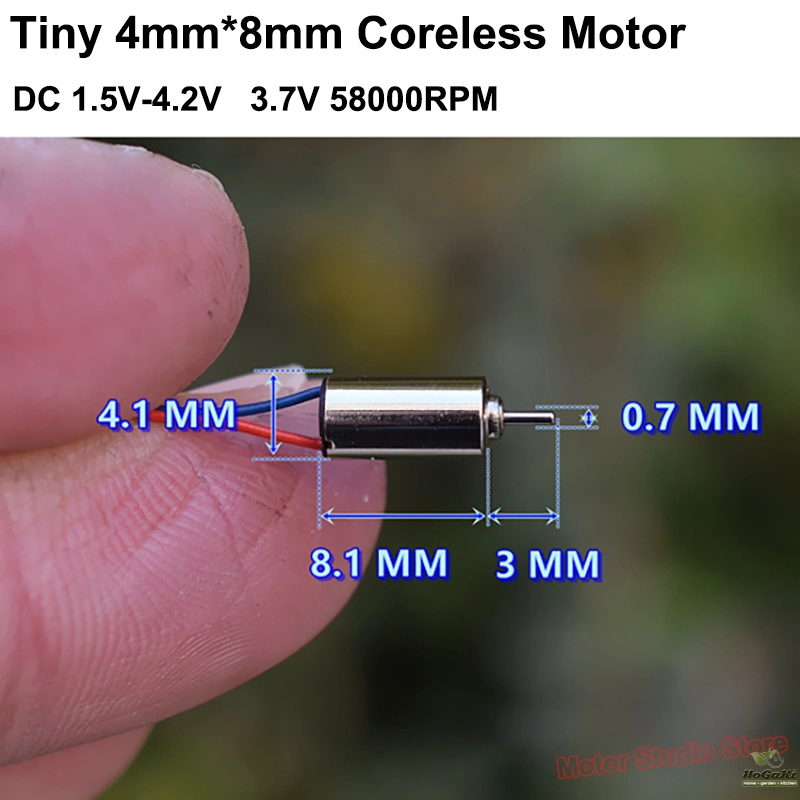

Model: 0408

Outer diameter of motor: 4.1 MM
Motor length: 8.1 MM
Motor shaft diameter: 0.7 MM
Length of output shaft: 3 MM
Line length: about 15 MM
Weight: about 0.45 g

Voltage: DC3 V
No-load current: 50 MA
No-load speed: 4800 RPM

Voltage: DC 3.7V
No-load current: 60 MA
No-load speed: 58000 RPM











------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------

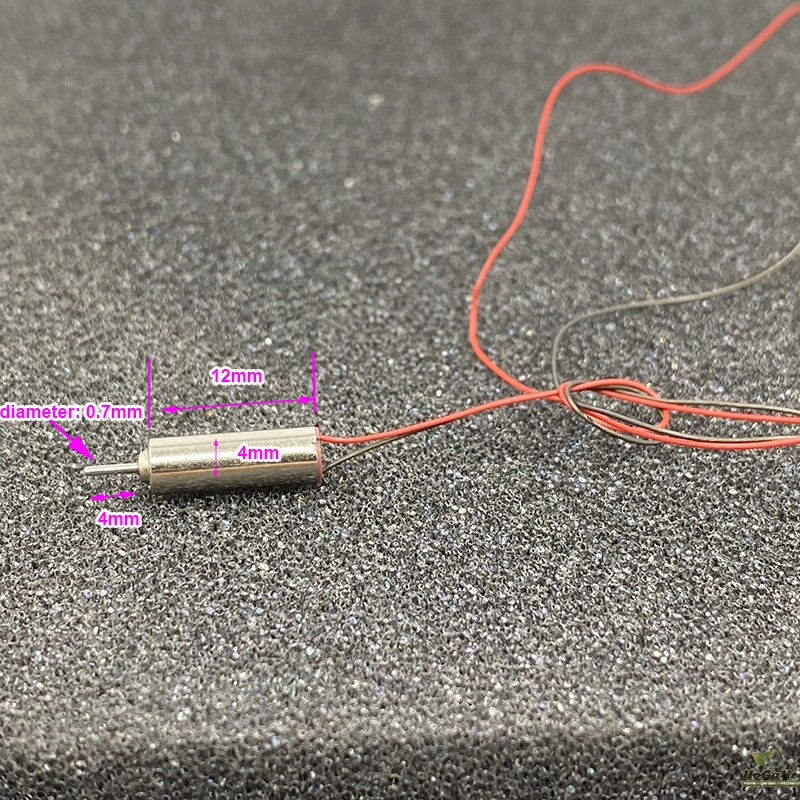

Model: 412
Output shaft: 4 mm
Radial shaft: 0.7 mm
Lead length: about 180mm
Voltage: 3.7V
Current: 30 ma
Speed: about 60000 RPM





--------------------------------------------------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------------------------------------------------------

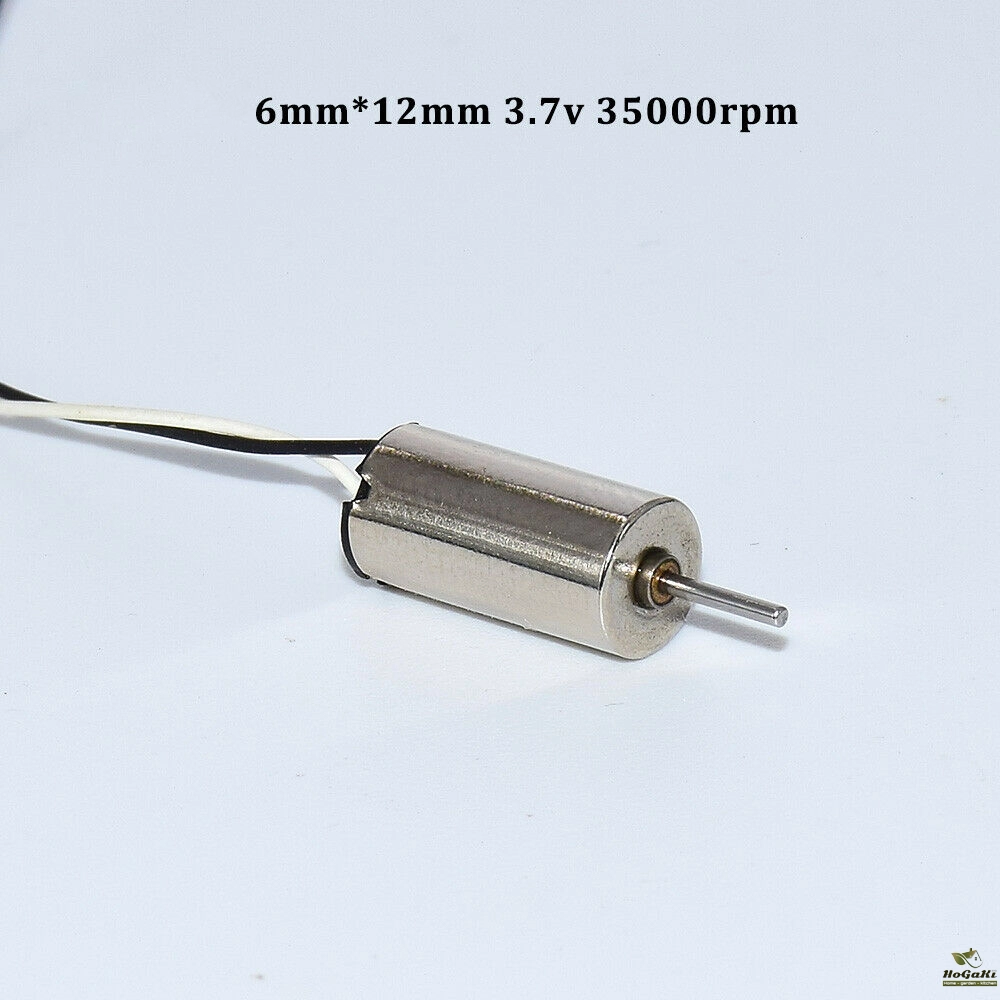

Model: 612B



[Size]: Motor diameter 6mm, Motor Length 12mm

[Shaft Length]: 5.7 mm

[Shaft Diameter]: 0.8 mm

[Test Data]

3.7V    35000RPM   20mA

4.2V   40000RPM   30mA








------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------

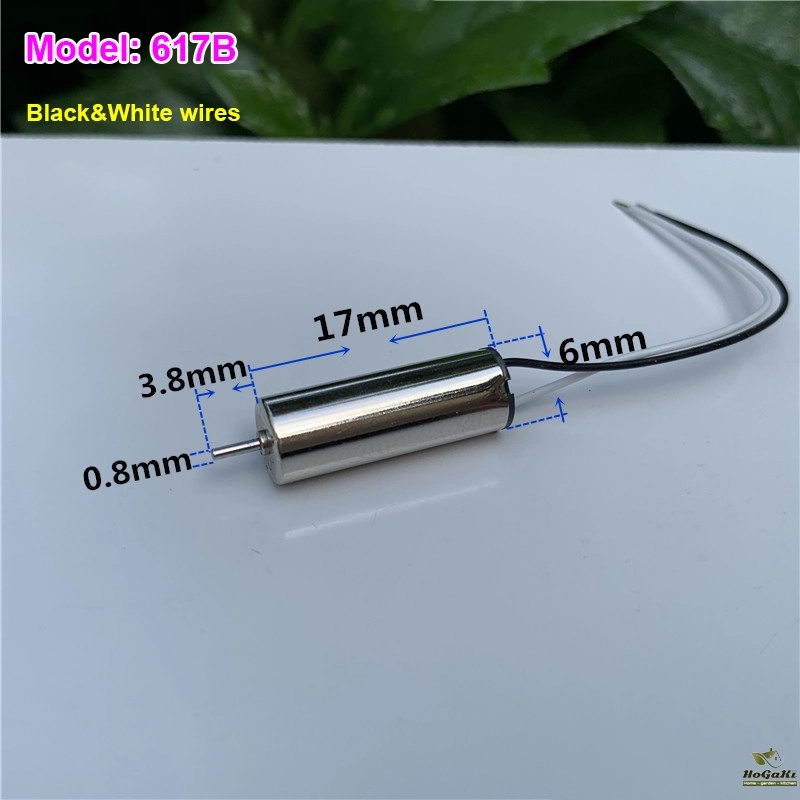

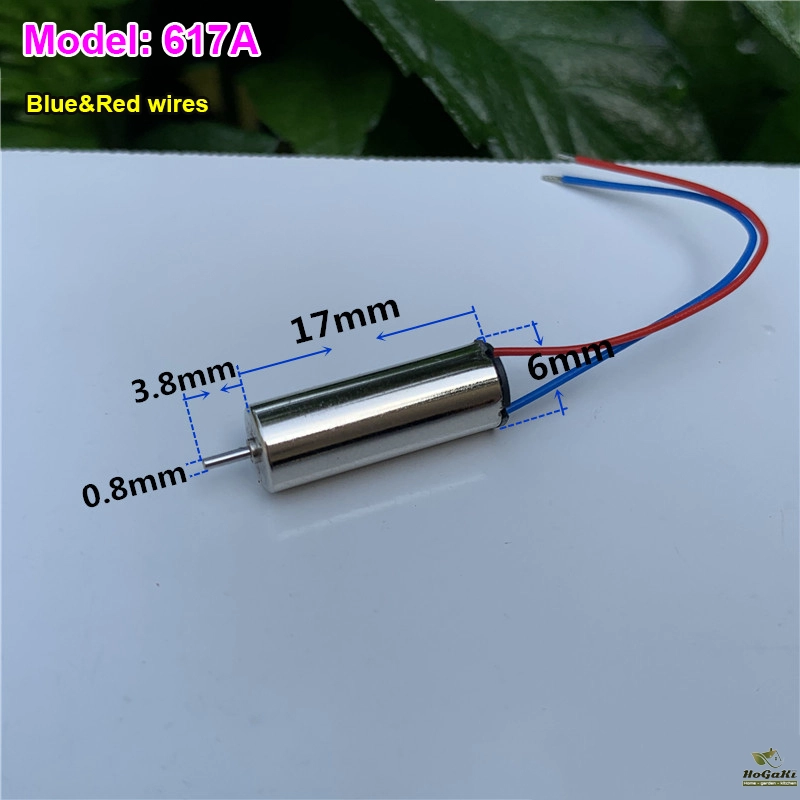

Model: 617A,617B
[size]: 6 mm * 17 mm
[voltage]: 3.7V
[shaft diameter]: 0.8 mm
[shaft length]: 3.8 mm
[line length]: 45 mm
[weight]: 2.2g
[current]: about 80 ma
[speed]: about 50000 RPM under no load





-----------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------

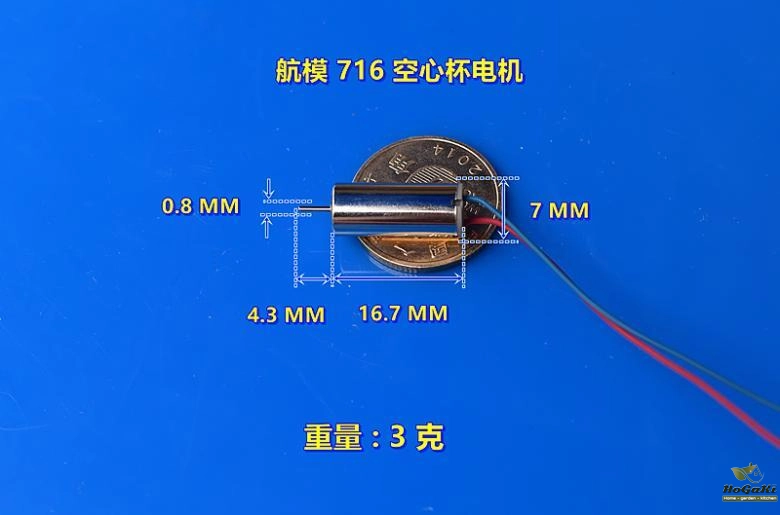

Model: 716A,716B
( 716A is Red&Blue wires; 716B is Black&White wires.)

Motor outer diameter: 7MM
Motor length: 16.7 MM
Motor shaft diameter: 0.8 MM
Output shaft length: 4.3 MM
Motor weight: about 3 grams
Cord length: about 75 mm
Voltage: DC3.7V
No-load current: 60 MA (locked rotor current 2.8A)
No-load speed: 47000 RPM
Voltage: DC4.2V
No-load current: 65 MA (locked rotor current 3.2 A)
No-load speed: 52000 RPM








=========================================================================================






Model: 720A,720B
( 720A is Red&Blue wires; 720B is Black&White wires.)



1.Motor diameter: 7mm

2.Motor length: 20mm

3.Output shaft diameter: 1.0mm

4.Output shaft length: 5.2mm

5.Cable length: 125mm

6.Weight: 5 grams

7.Suitable voltage: DC 1.5V-4.2V



Test data:

Voltage:3.0V Current:80mA Speed:4000RPM

Voltage:3.7V Current:100mA Speed:50000RPM

Voltage:4.2V Current:120mA Speed:55000RPM









=========================================================================================








Model: 816A, 816B

( 816A is Red&Blace wires; 816B is Blue&White wires.)





1.Motor diameter: 8.1mm

2.Motor length: 16.8mm

3.Output shaft diameter: 1.0mm

4.Output shaft length: 4.8mm

5.Cable length: 112mm

6.Weight: 5g

7. Test data:

Voltage: DC 3.0V No-load current: 0.2A Speed: about 5000RPM

Voltage: DC 3.7V No-load current: 0.3A Speed: about 61000RPM




========================================================================================

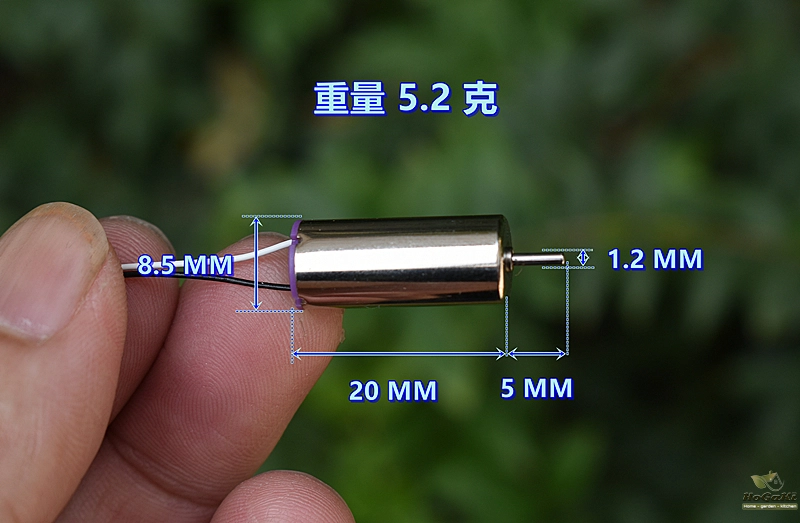

Model: 8520A/ 8520B
( 8520A is Red&Blue wires; 8520B is Black&White wires.)



Motor diameter: 8.5 MM

Motor length: 20 MM

Output shaft: 1.2 MM

Output shaft length: 5 MM

Line length: 120 MM

Weight: 5.2 g


Rated voltage: DC 3.7 V

Current: 0.22 A (locked rotor current exceeding 5.1 A)

Speed: 53000 RPM






======================================================================================

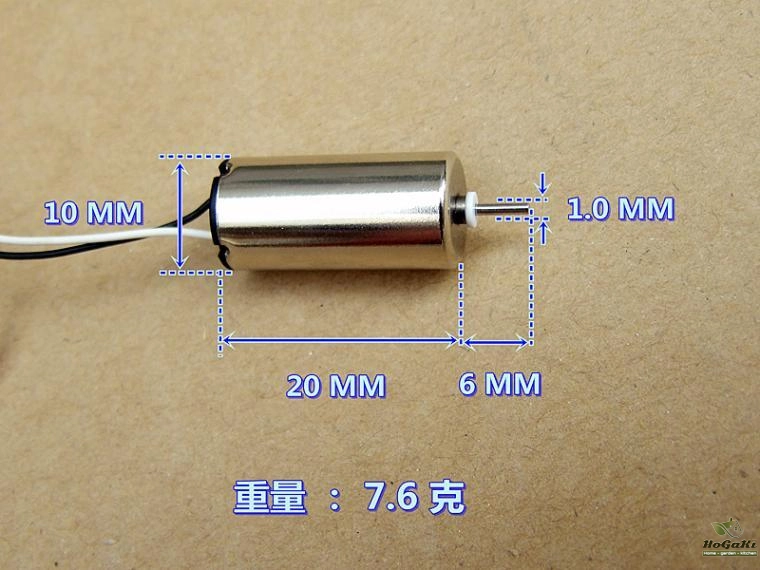

Model: 1020A,1020B
( 1020A is Red&Blue wires; 1020B is Black&White wires.)

1.Motor diameter: 10mm

2.Motor length: 20mm

3.Output shaft diameter: 1mm

4.Output shaft length: 6mm

5.Cable length: 50mm (black and white cable with terminal,red and blue cable without terminal)

6.Weight: 7.6g

7.Motor test data:

Voltage:3.7V
Speed:40000RPM








========================================================================================






Model: 615A,15B

1.Motor diameter: 6mm

2.Motor length: 15mm

3.Output shaft diameter: 0.8mm

4.Output shaft length: 5mm

5.Cable length: 50mm-60mm

6.Weight: 2g
7.Voltage: DC 3.7V

8.Speed: 43000RPM




===========================================================================================

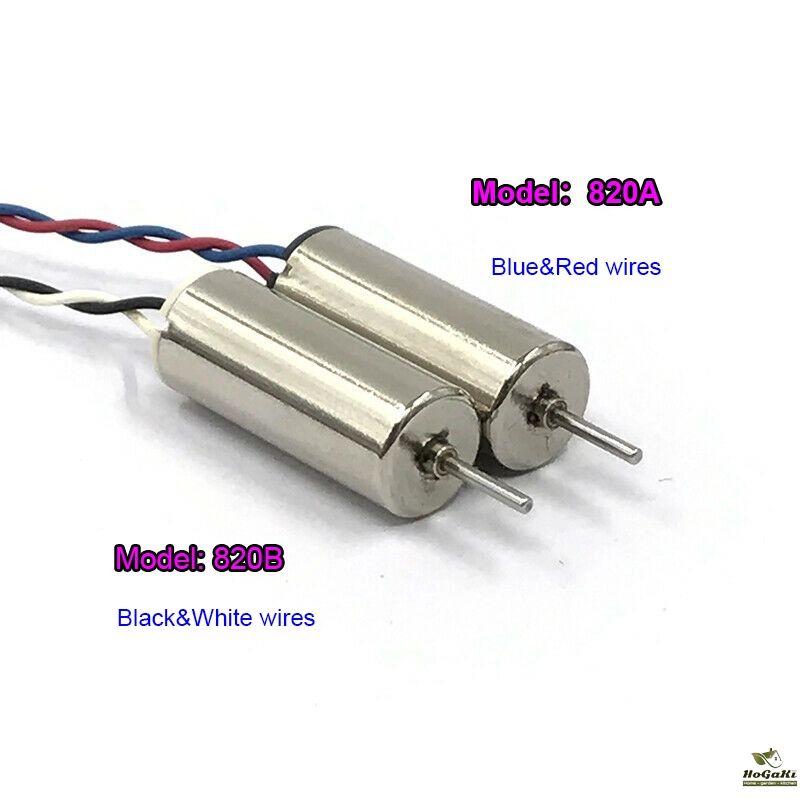

Model: 820A,820B



Model: 8mm*20mm coreless motor

Motor diameter: 8mm

Motor length: 20mm

Output shaft diameter: 1.0mm

Output shaft length: 7.5mm

Voltage: DC 3.7V-4.2V

Speed: 43000RPM-48000RPM

Weight: 5g







========================================================================================







Model: 8523A,8523B


1.Motor diameter: 8.5MM
2.Motor length: 23MM
3.Output shaft diameter: 1.2MM
4.Output shaft length: 5.5MM
5.Cable length: 75MM
6.Weight: 6g
7.Voltage: 7.4V
8.Speed: 40000RPM




========================================================================================






Model: 610




=======================================================================================

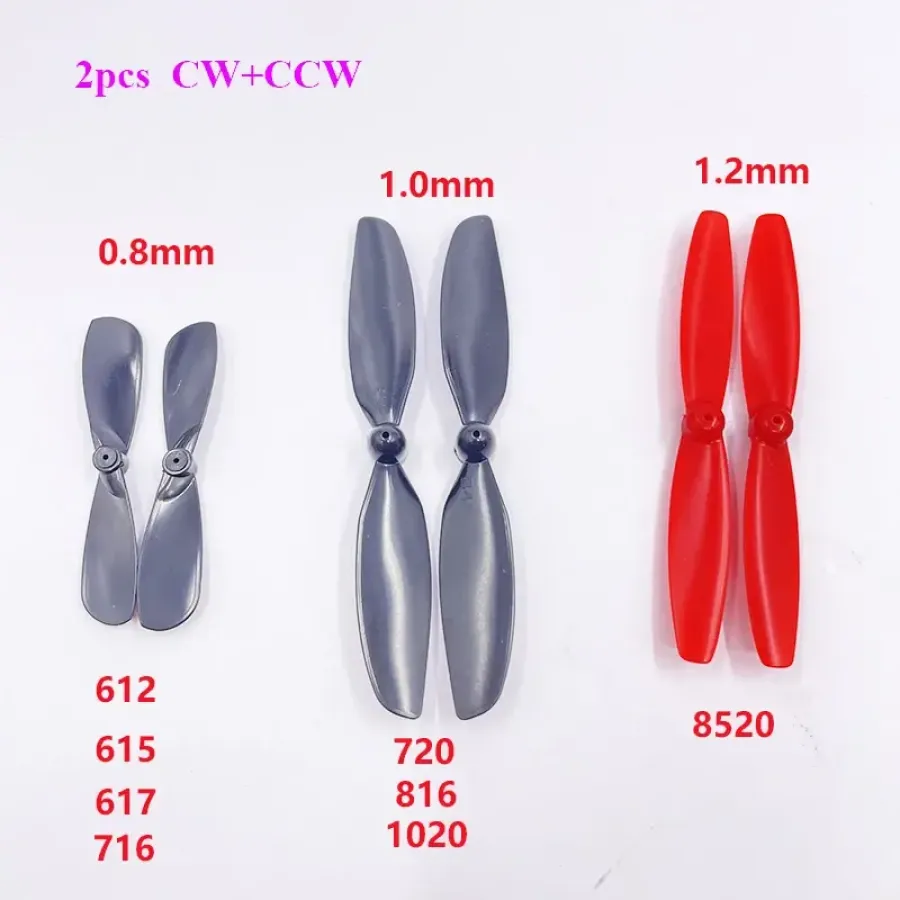

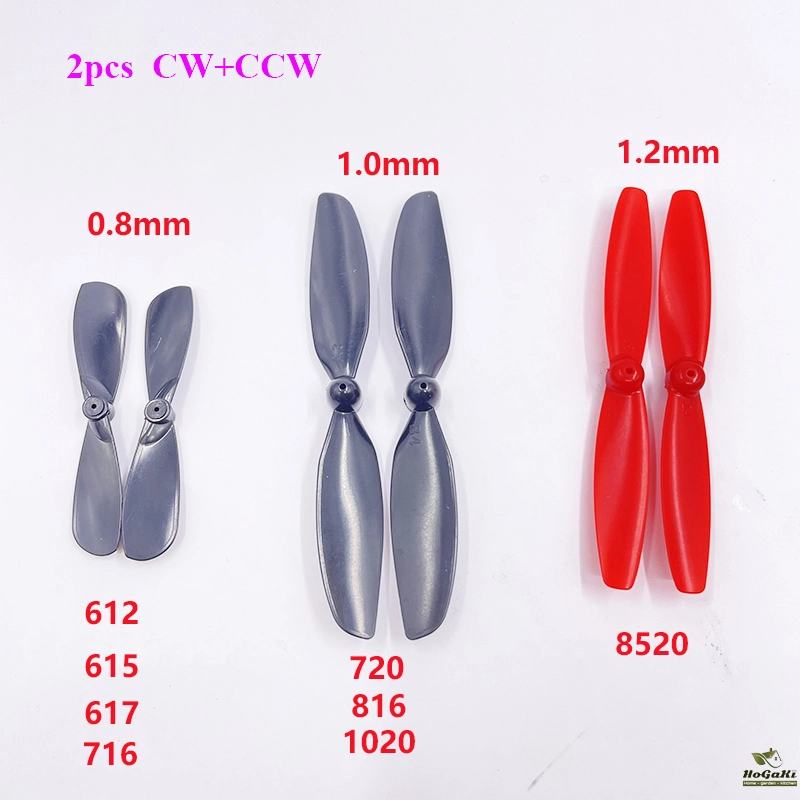

Model propeller: 0.8mm hole propeller/ 1mm hole propeller/ 1.2mm hole propeller






=====================================================================================







Package Include:

Motor * 1pc

Packaging Details

  • Unit Type: piece
  • Package Weight: 0.010
  • Package Size: 1x1x1

  • Brand Name: NoEnName_Null
  • Hign-concerned Chemical: None
  • Certification: None
  • Origin: Mainland China
  • Continuous Current(A): not clear
  • Commutation: Brush
  • Type: Micro Motor
  • Protect Feature: Totally Enclosed
  • Construction: Permanent Magnet
  • Efficiency: IE 1
  • Output Voltage: not clear
  • Model Number: coreless motor
  • Use: Home Appliance
  • Torque: not clear
  • Voltage: DC 3V 3.7V 7.4V
