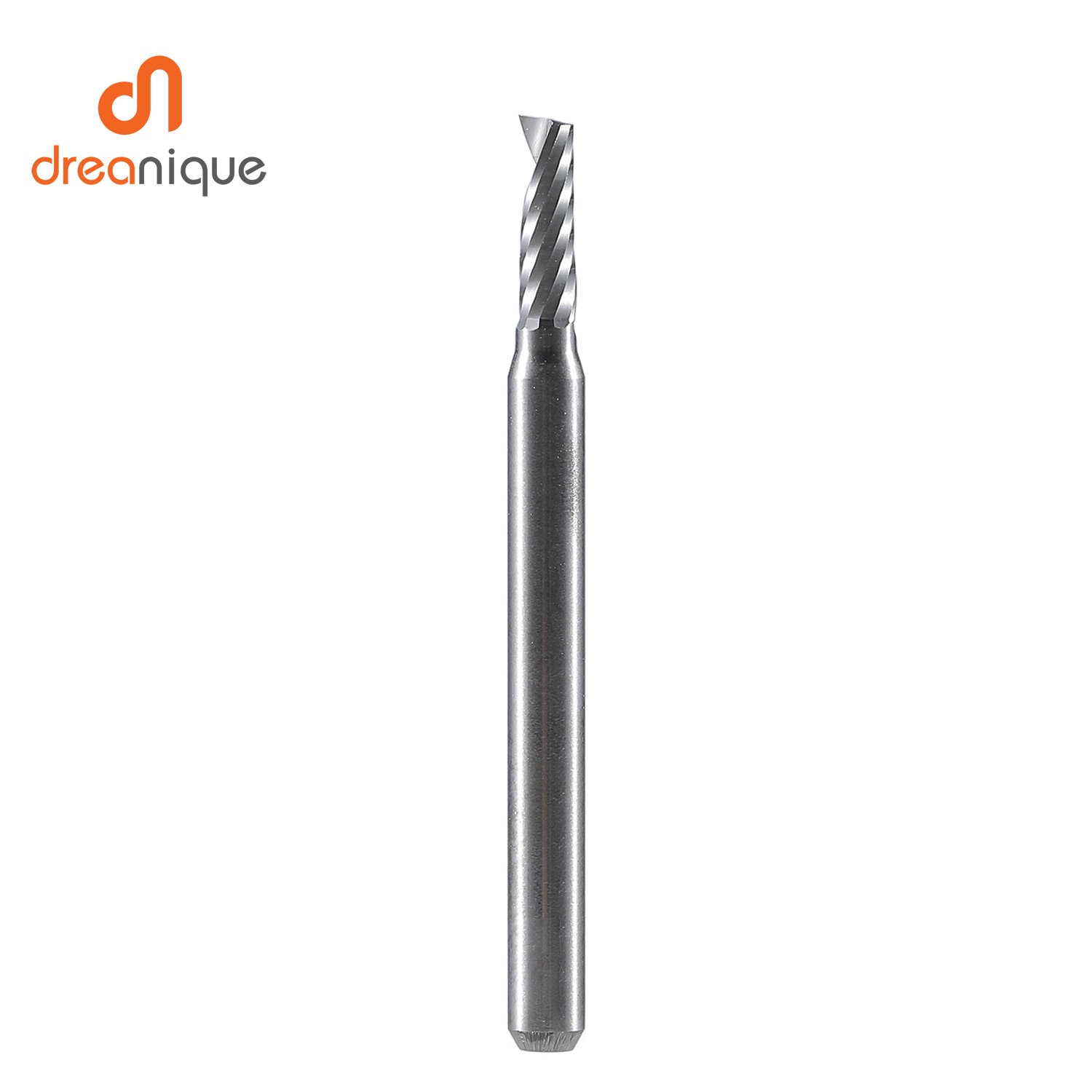

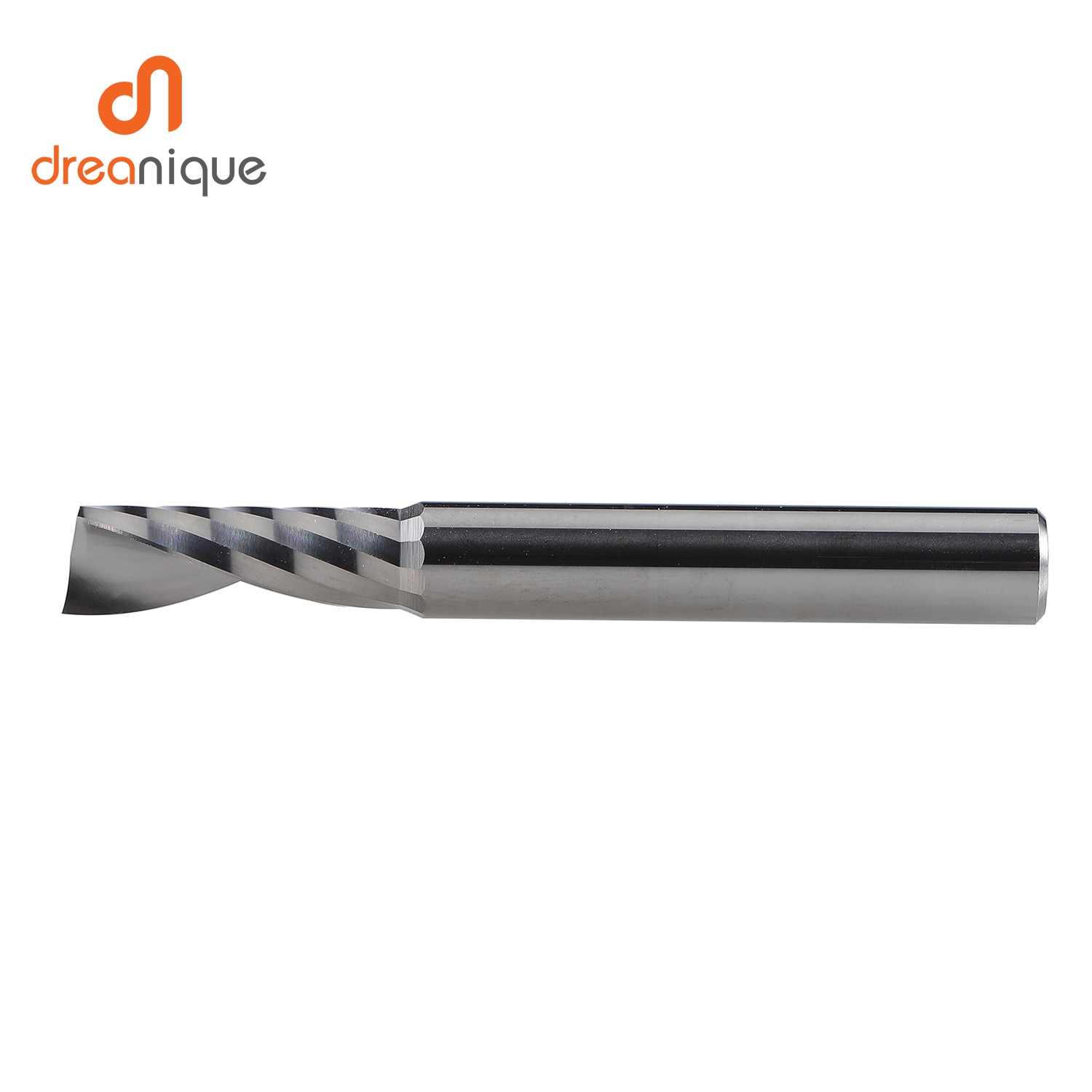

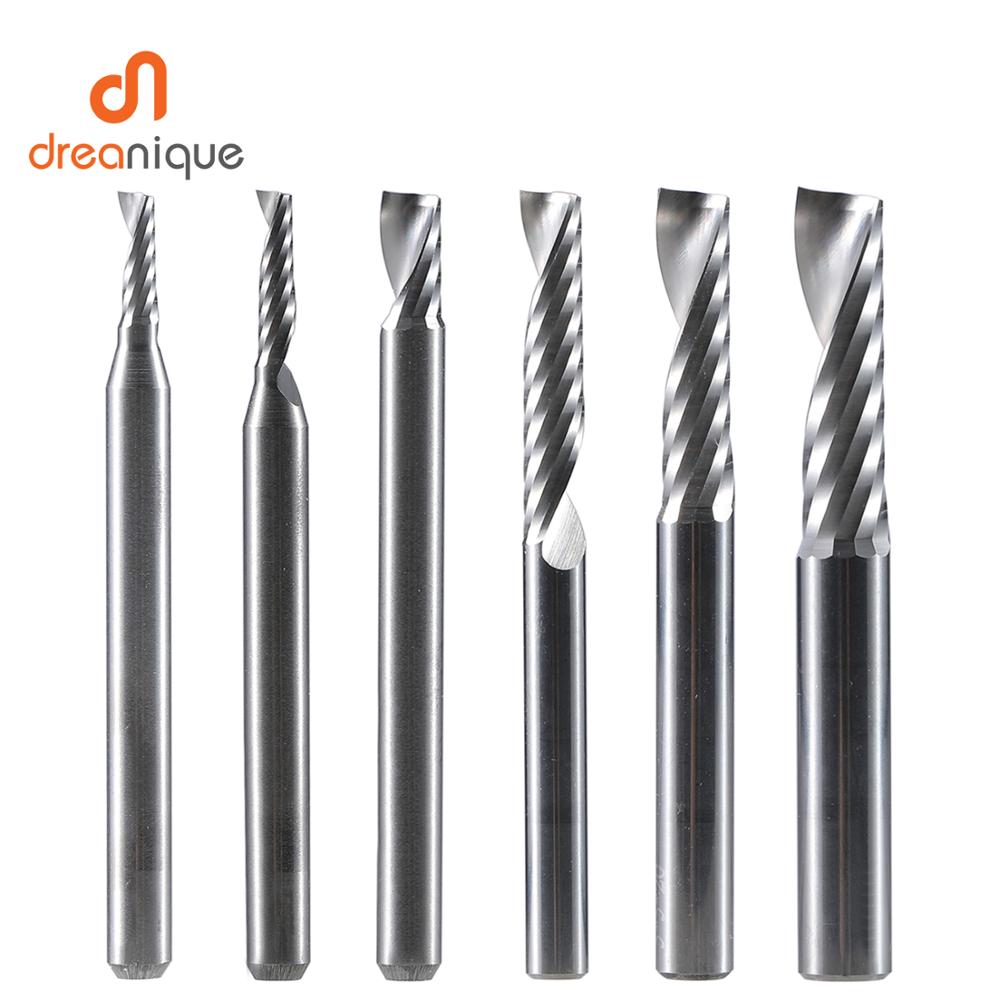

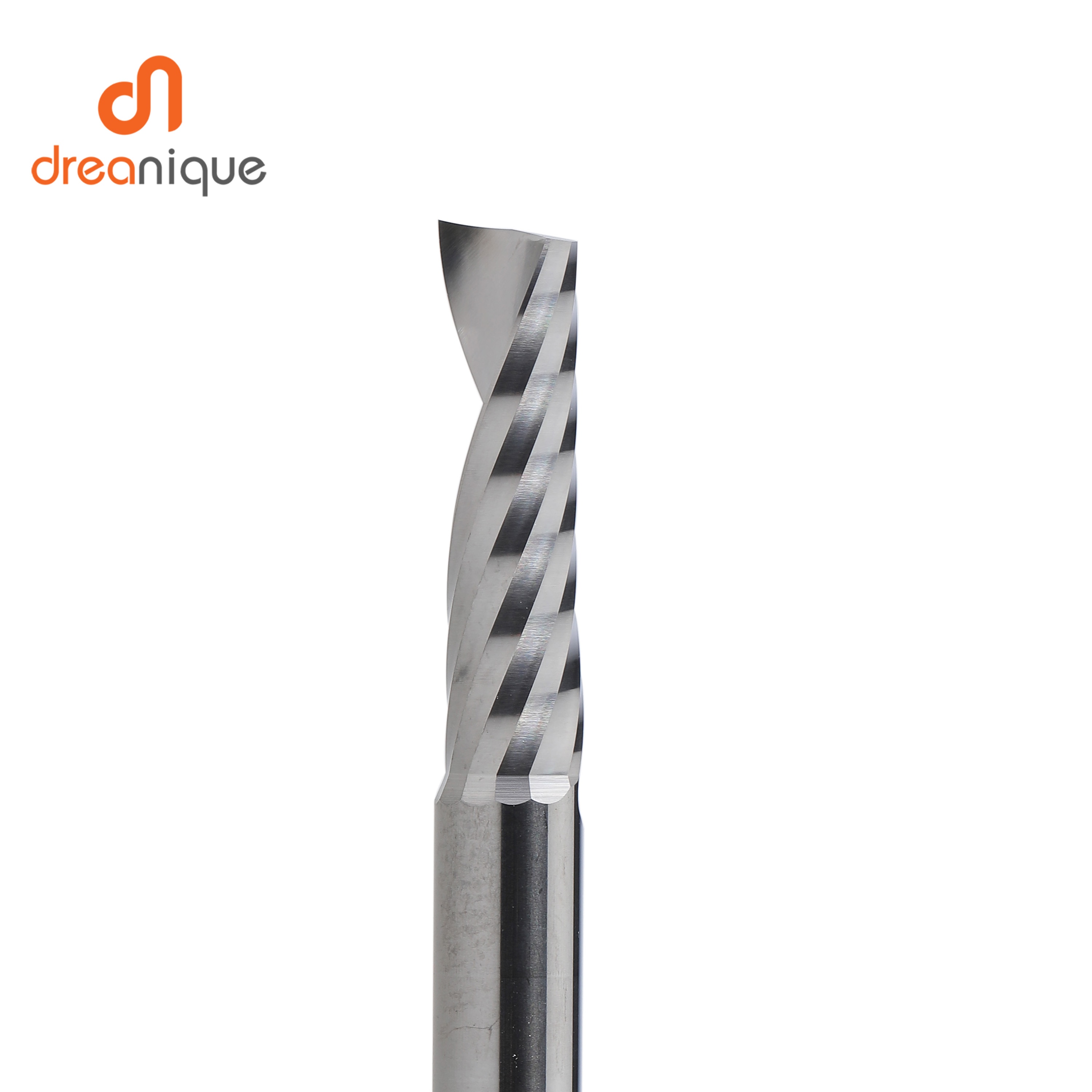

1pc AAAAA single flute spiral end mill 3.175 shank aluminum mill CNC 3D engraving carving bit for woodworking Acrylic ACM cut

5.0 (283 votes) | 844 orders
Price: US $9.95 - 98.83 / piece
Discount Price:
US $ 8.99 - 49.27 / piece
-10%
Cutting Edge Length

Sorry! This item is out of stock

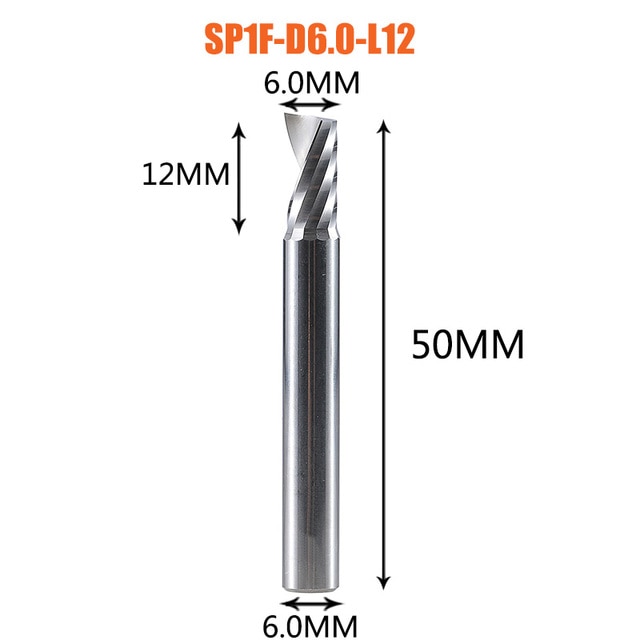

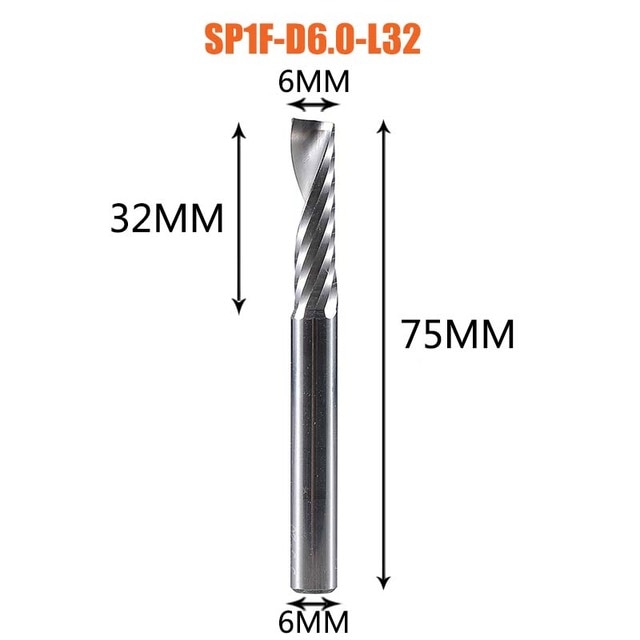

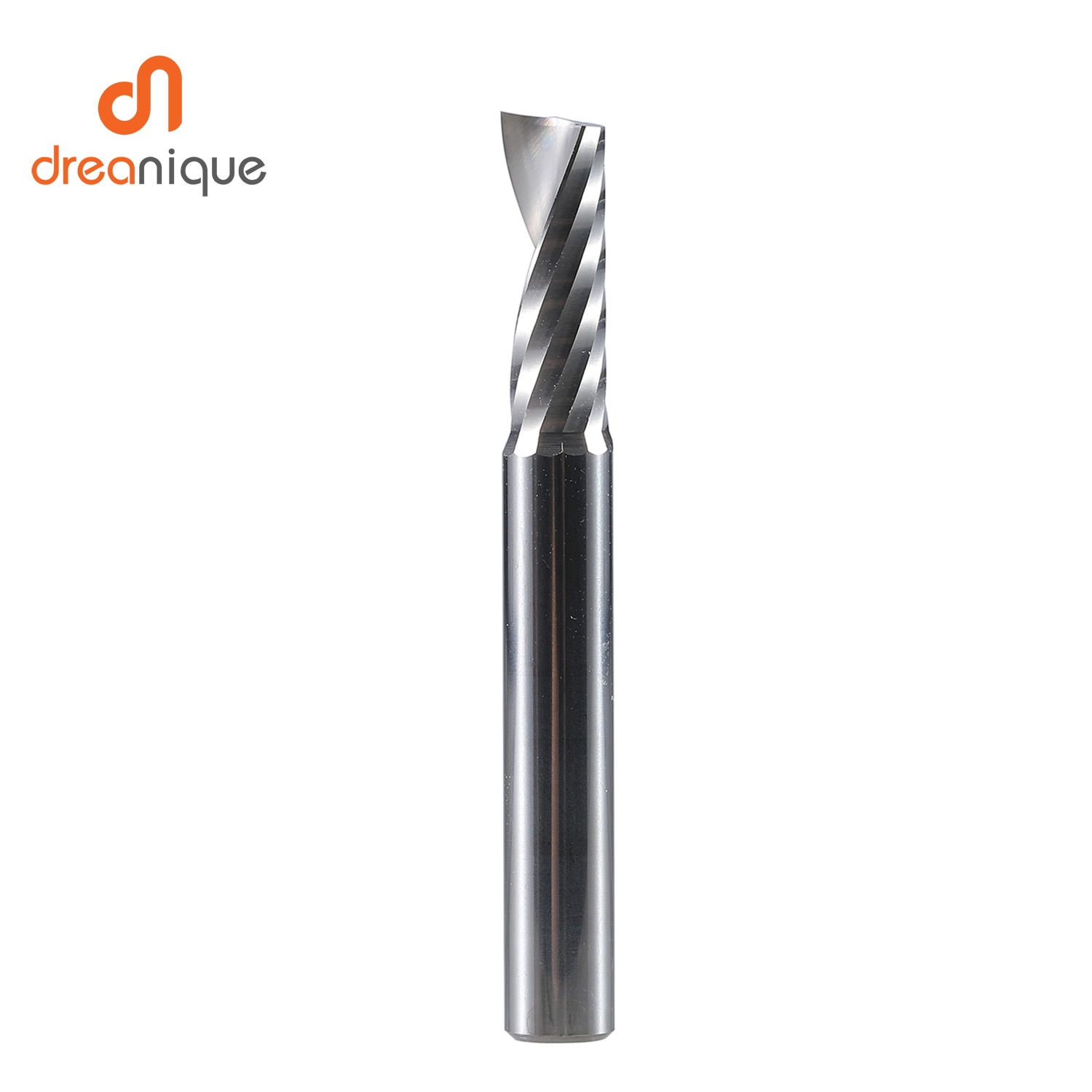

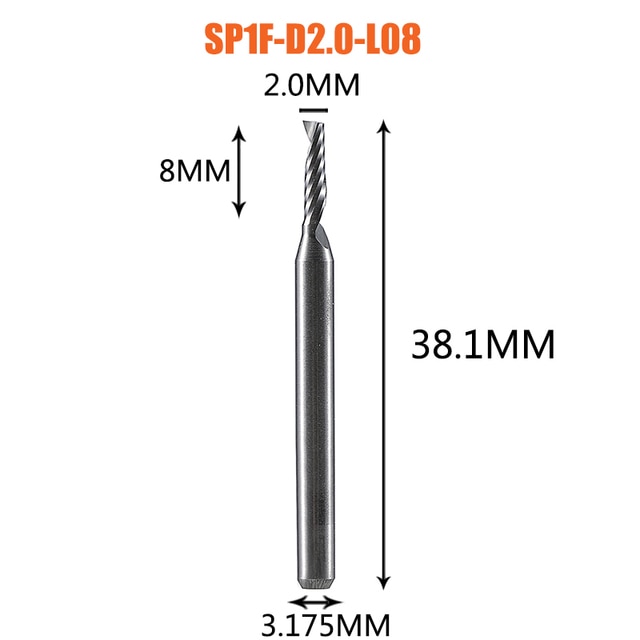

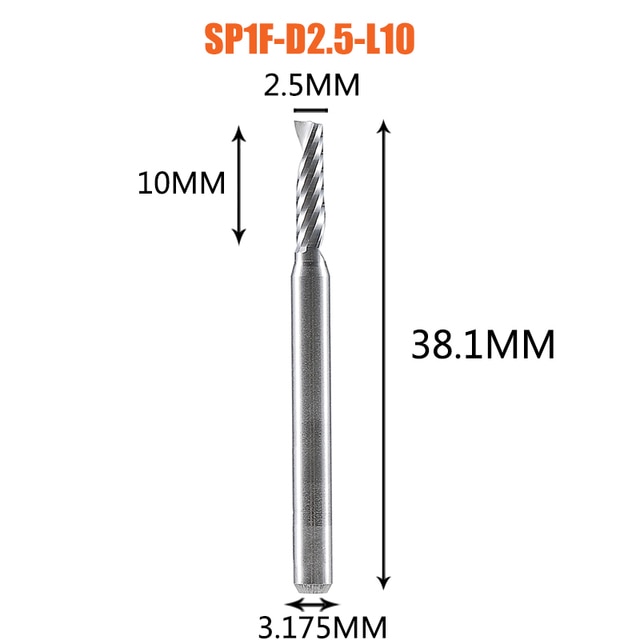

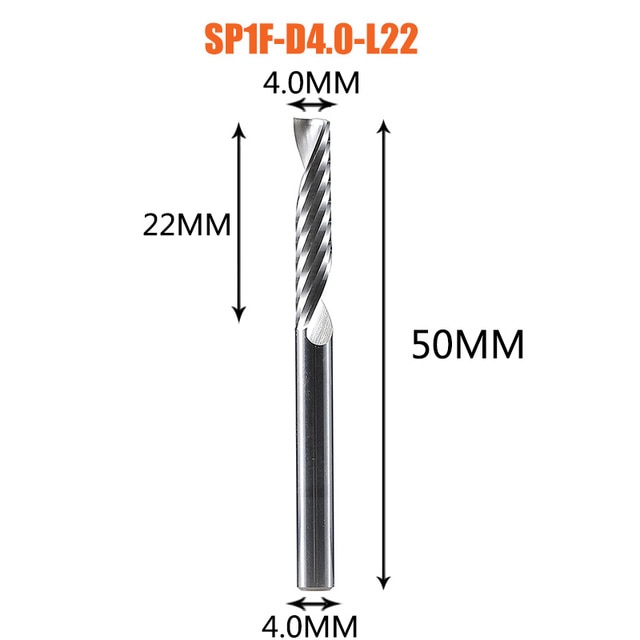

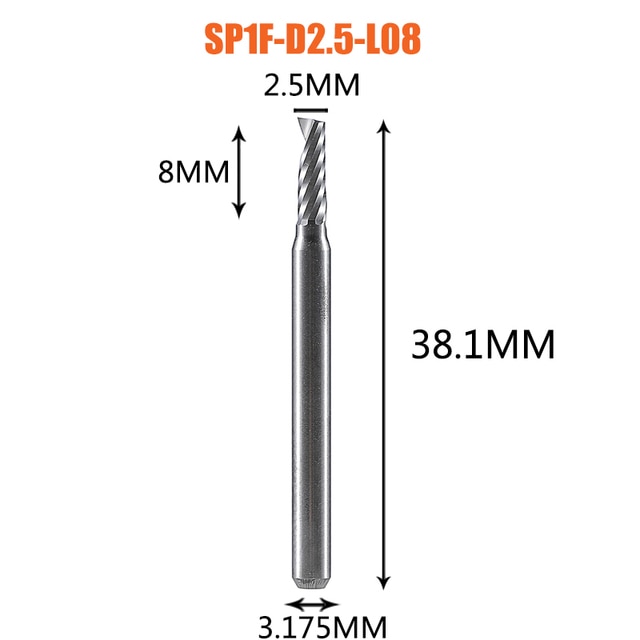

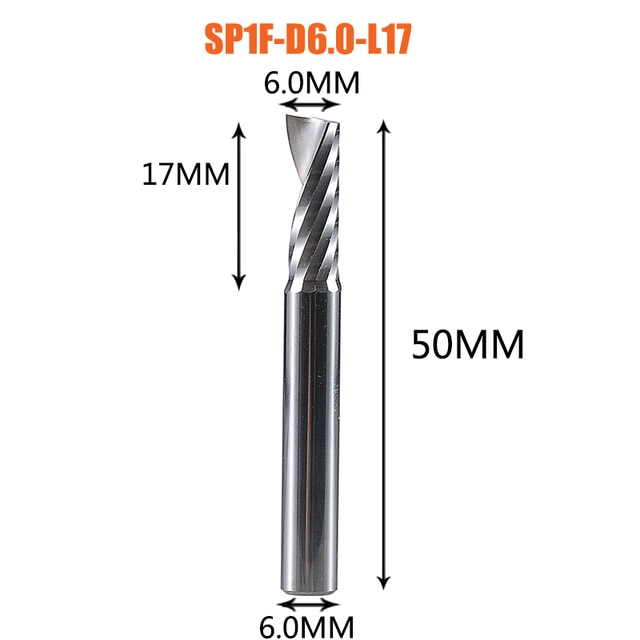

AAAAA single flute spiral end mill 3.175 shank Acrylic cutter single spiral aluminum mill CNC engraving carving bit for woodworking metal

Notice:
(1) the real cutting diameter is smaller than the marked diameter 0.05mm, it is specially designed like this, not caused by error or tolerance.
(2) The tolerance is ±0.005mm.
Description:
(1)  Brand: DREANIQUE

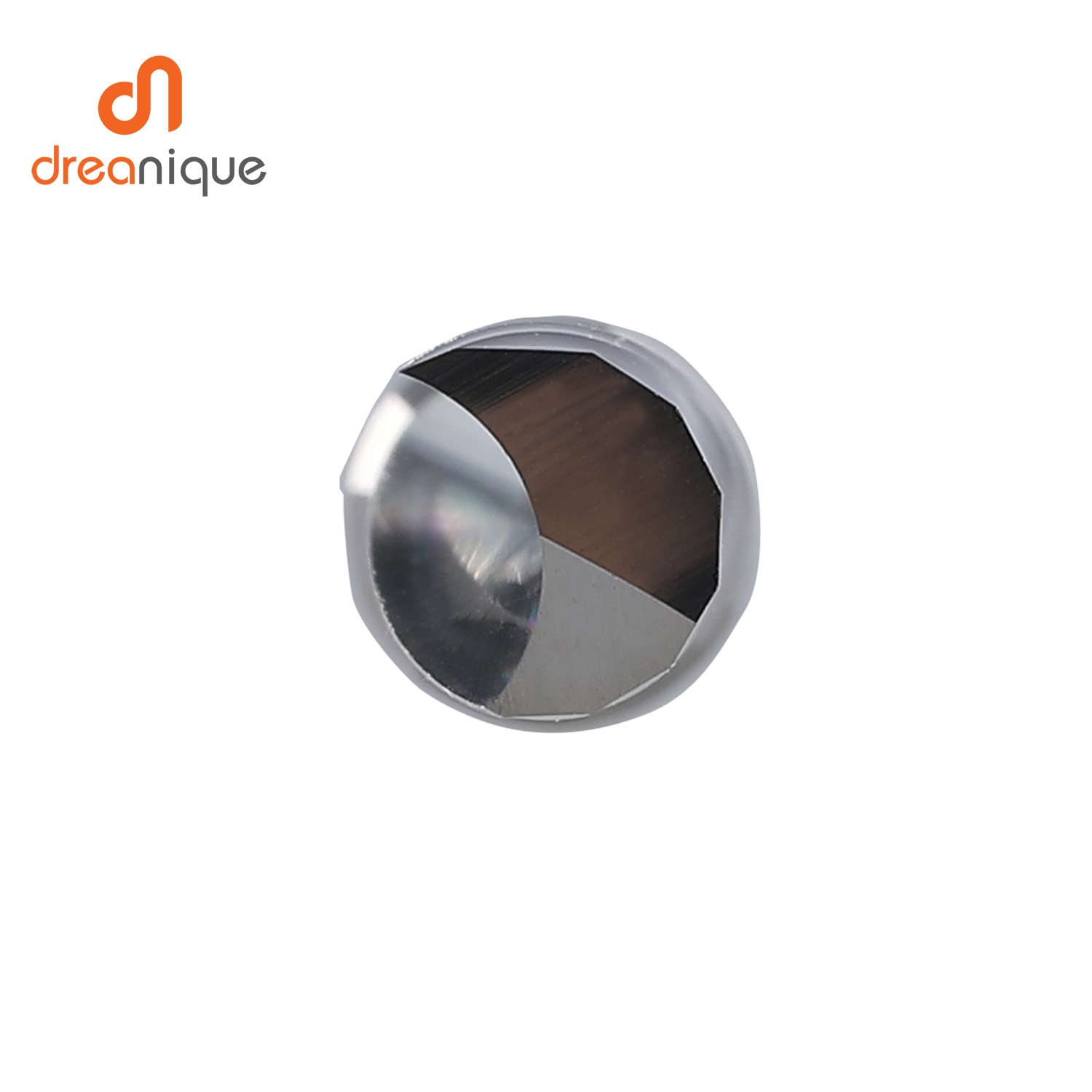

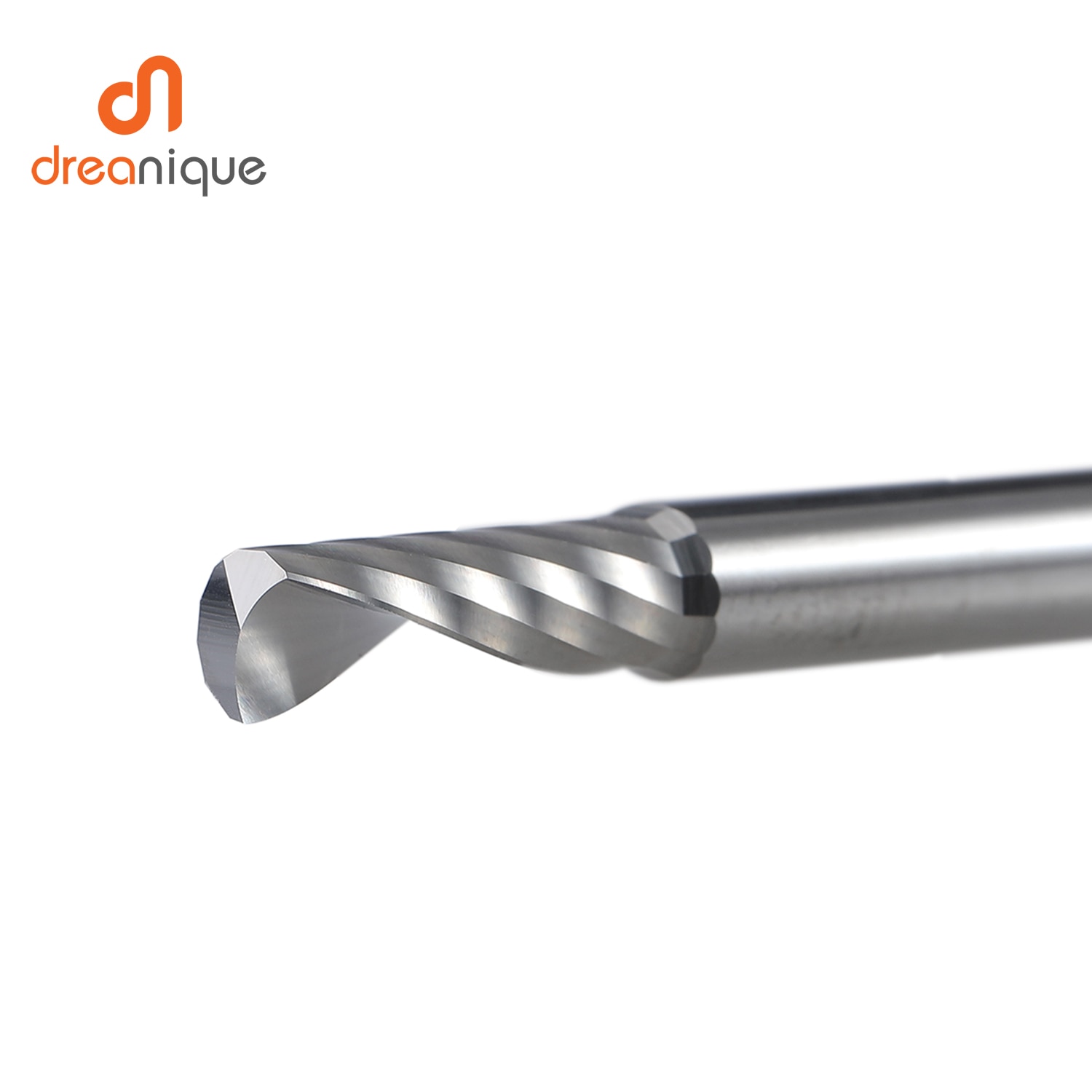

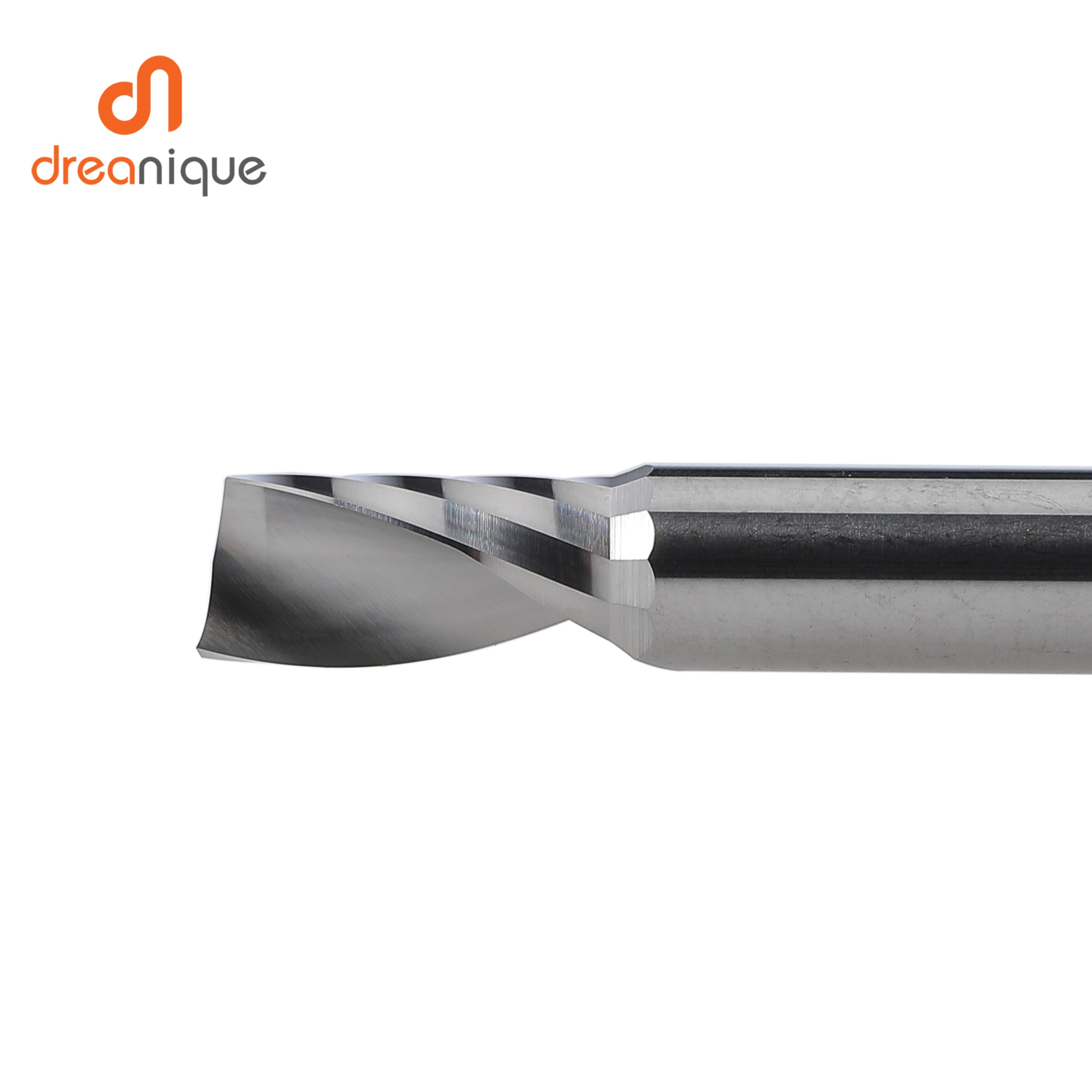

(2)  Type:  Single Flute Spiral Solid Carbide End mills;
(3)  Grade:  AAAAA;
(4)  Made of: High-quality Micro Grain Tungsten Steel Solid Carbide;

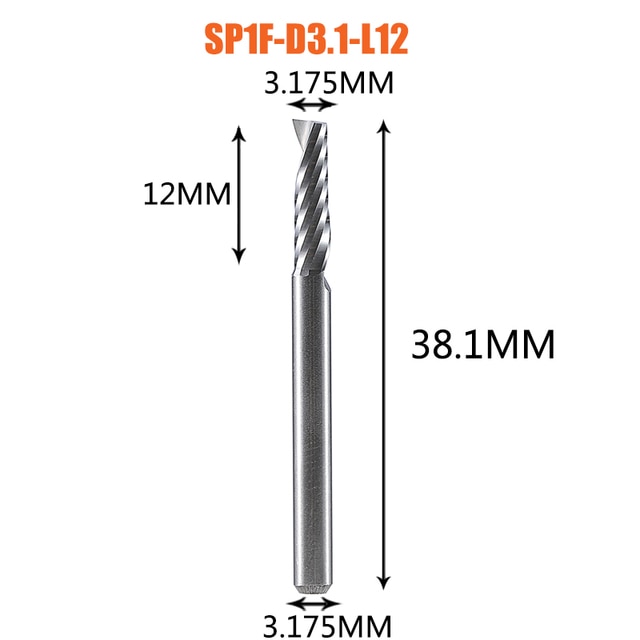

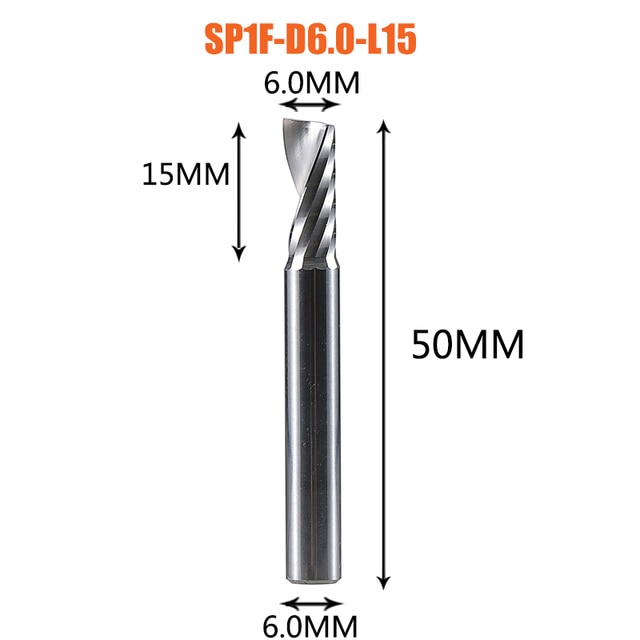

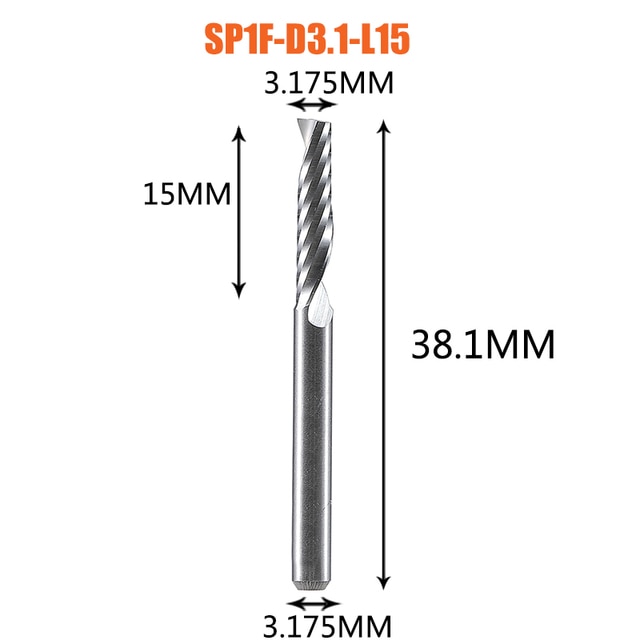

(5)  Shank Diameter: 3.175mm 4mm 5mm 6mm,8mm,10mm,12mm
Best Suitable Materials: Acrylic,plastices Aluminum composite panel ,ACM,alucobond, MDF, Aluminum
could also suitable on below materials:
(1)  MDF, particle board, board with lagging, log, affixed to the skin panels;
(2)  Acrylic, PVC, resin, plastic, chipboard, composite board, melamine board;
(3)  Solid wood, native wood, plywood, lotus plate;
Applied to:
CNC Router Machining Center, Woodworking Machine, Advertising CNC Router, etc;
Features:
(1)  Excellent combination of upper and lower blades, SHARP cutting edge;
(2)  High precision grinded and polished, high abrasion resistance and temperature resistance, good rigidity, not easy to break;
(3)  No burrs for Up and down spiral machining;
(4)  High performance, improve the work efficiency, reduce cost;

FAQ:

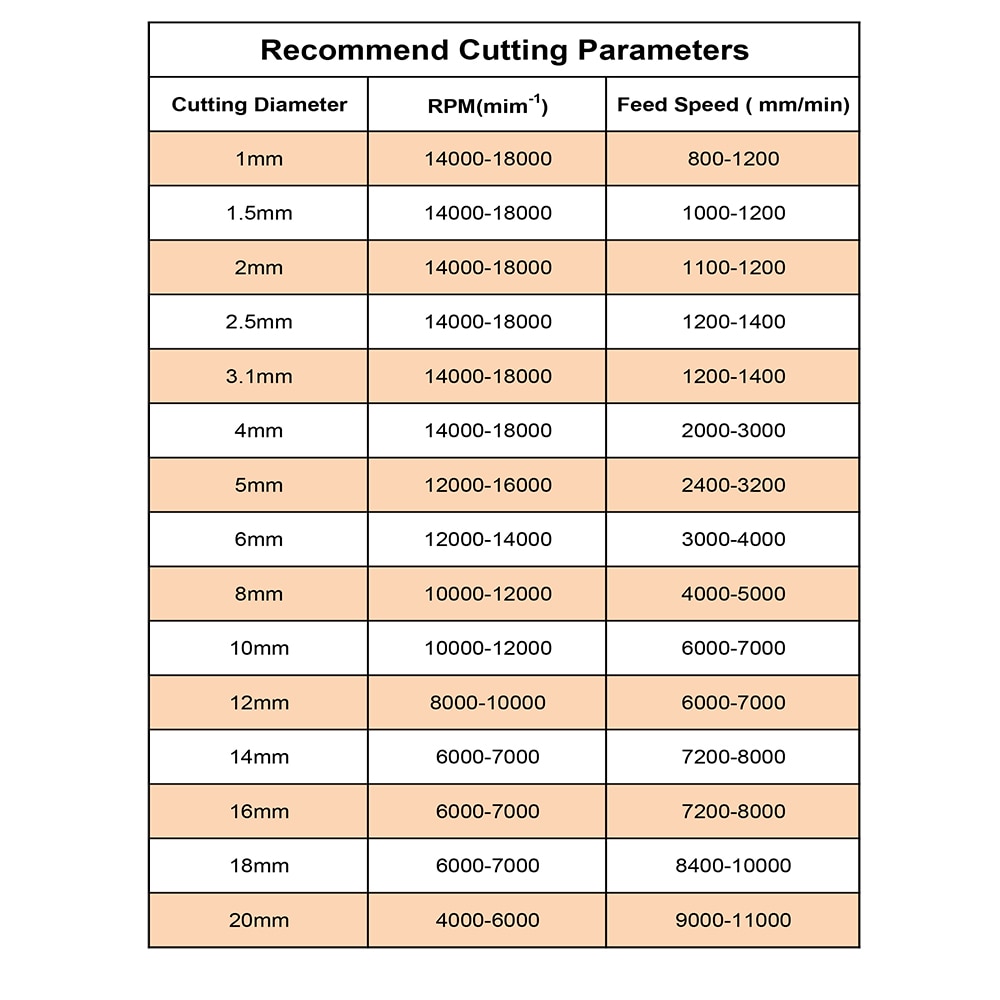

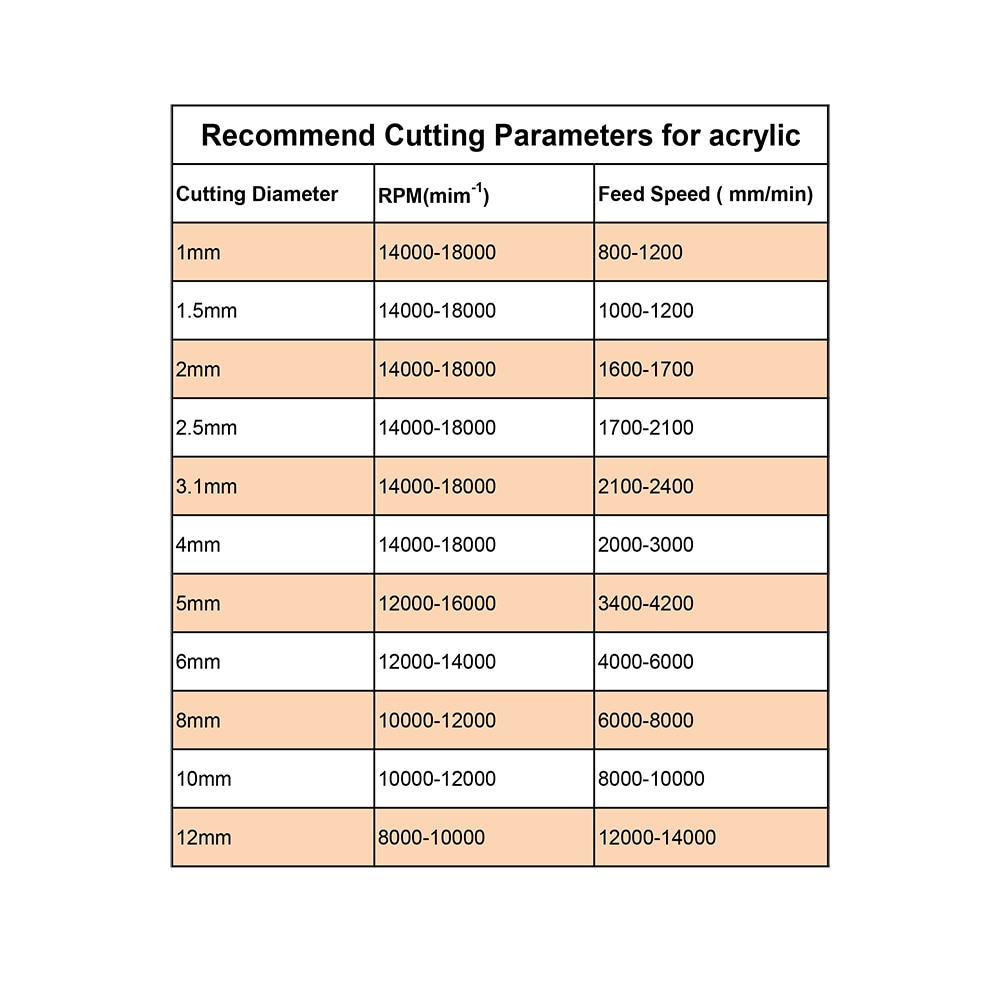

Question:What's the cutting parameters ?

Answer:18000-20000RPM.  feed speed 4-8m/min for Acrylic and wood, reduce the speed when using a 1.0mm or 2.0mm cutter.

Question:Can cut Acrylic ?

Answer:yes, can also process Wood, AL, MDF, PVC, PP, etc.

Question: Is this cutter good for wood roughing processing ?

Answer: yes, this cutter is very good for wood roughing and finishing.

Question:Can work on PCB ?

Answer:No. We recommend PCB corn milling cutter for PCB.

Question:Can work on steel ?

Answer:No. This cutter mainly used for processing wood, PVC, PP, AL, MDF, etc.

Question:Can work on electric drills ?

Answer: No. Cannot be used on electric drills and bench drills machine.This cutter mainly be used on engraving machine and CNC lathe with 18000-20000RPM.


Question:is there down cut ?

Answer:Yes,






  • Brand Name: DREANIQUE
  • Origin: Mainland China

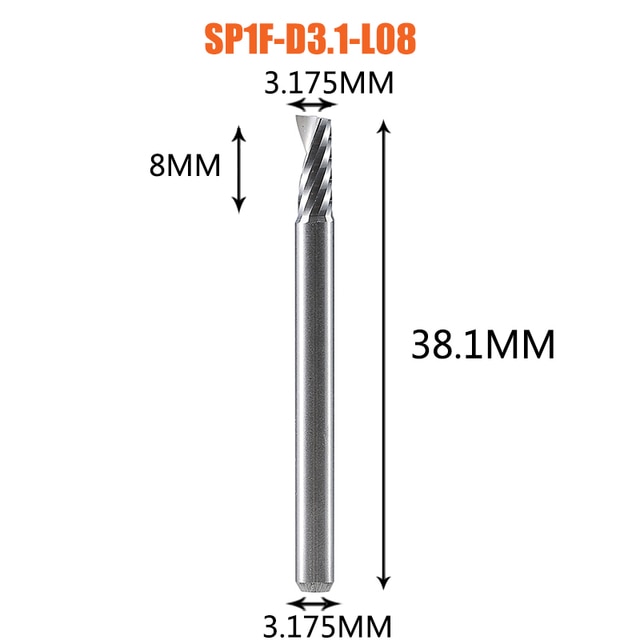

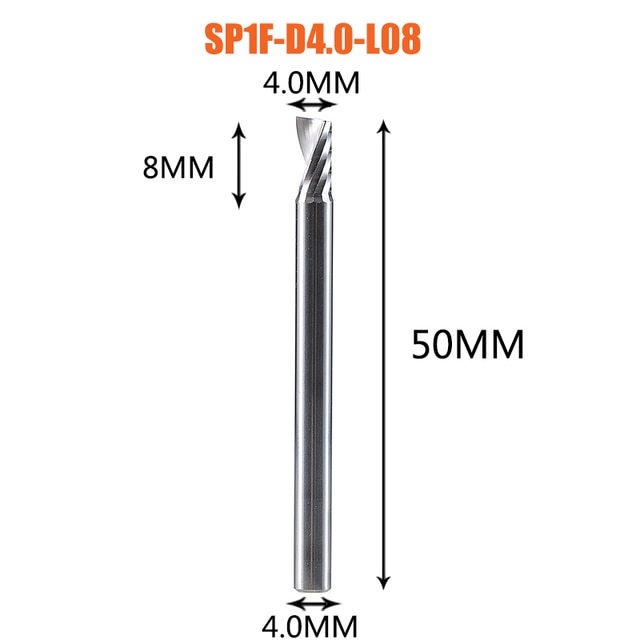

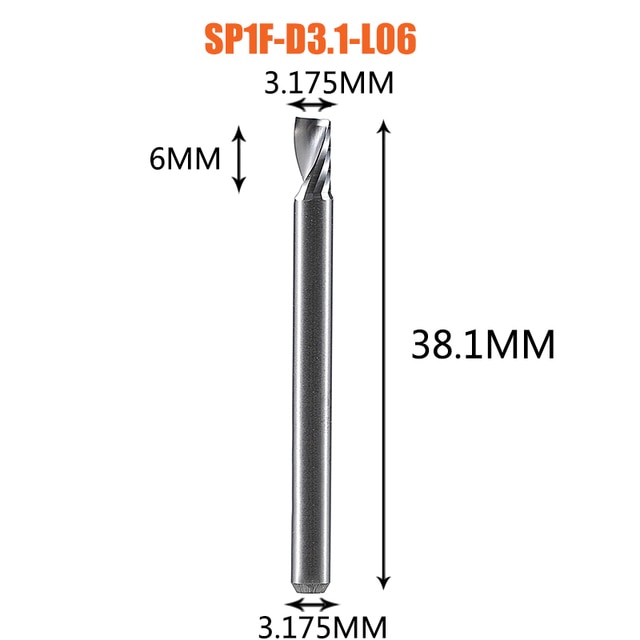

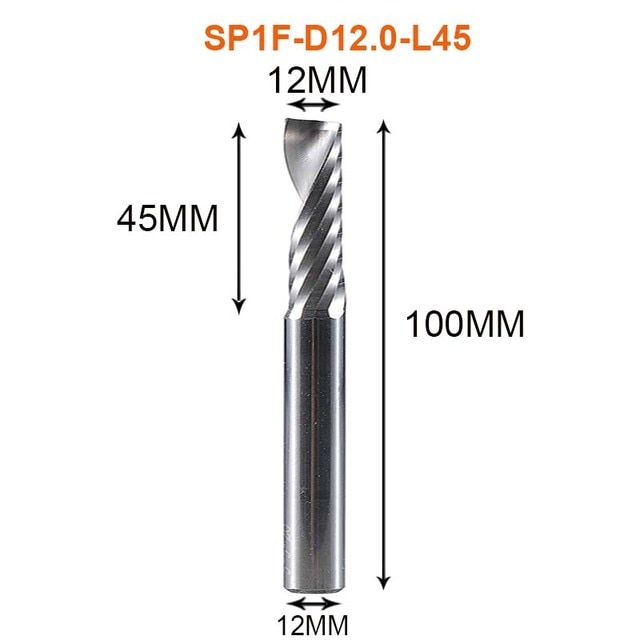

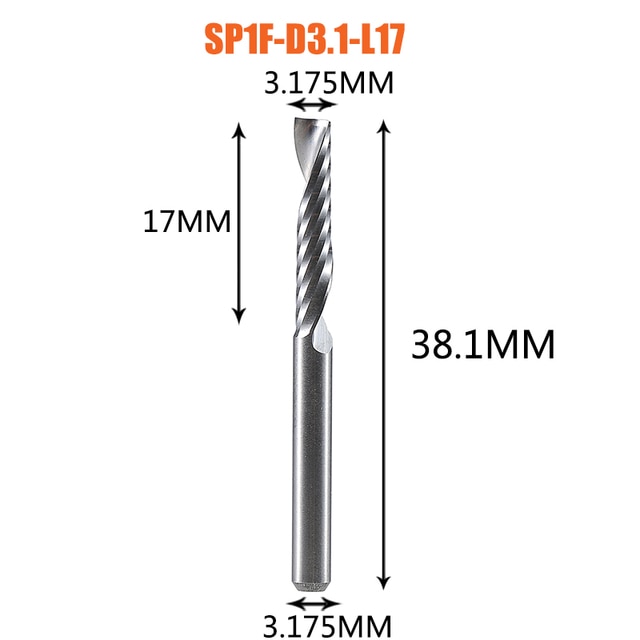

  • Model Number: spiral end mill SP1F
  • Degree: R0.1
  • Overall Length: 38mm 50mm
  • Material: Tungsten Cobalt Alloy
  • Type: End Mill
  • Certification: NONE
  • Diameter: 3.175mm 4mm 5mm 6mm
  • Flute: single flute
  • CNC or Not: CNC
  • working material: Aluminum
  • shank diameter: 3.18mm 4mm 5mm 6mm

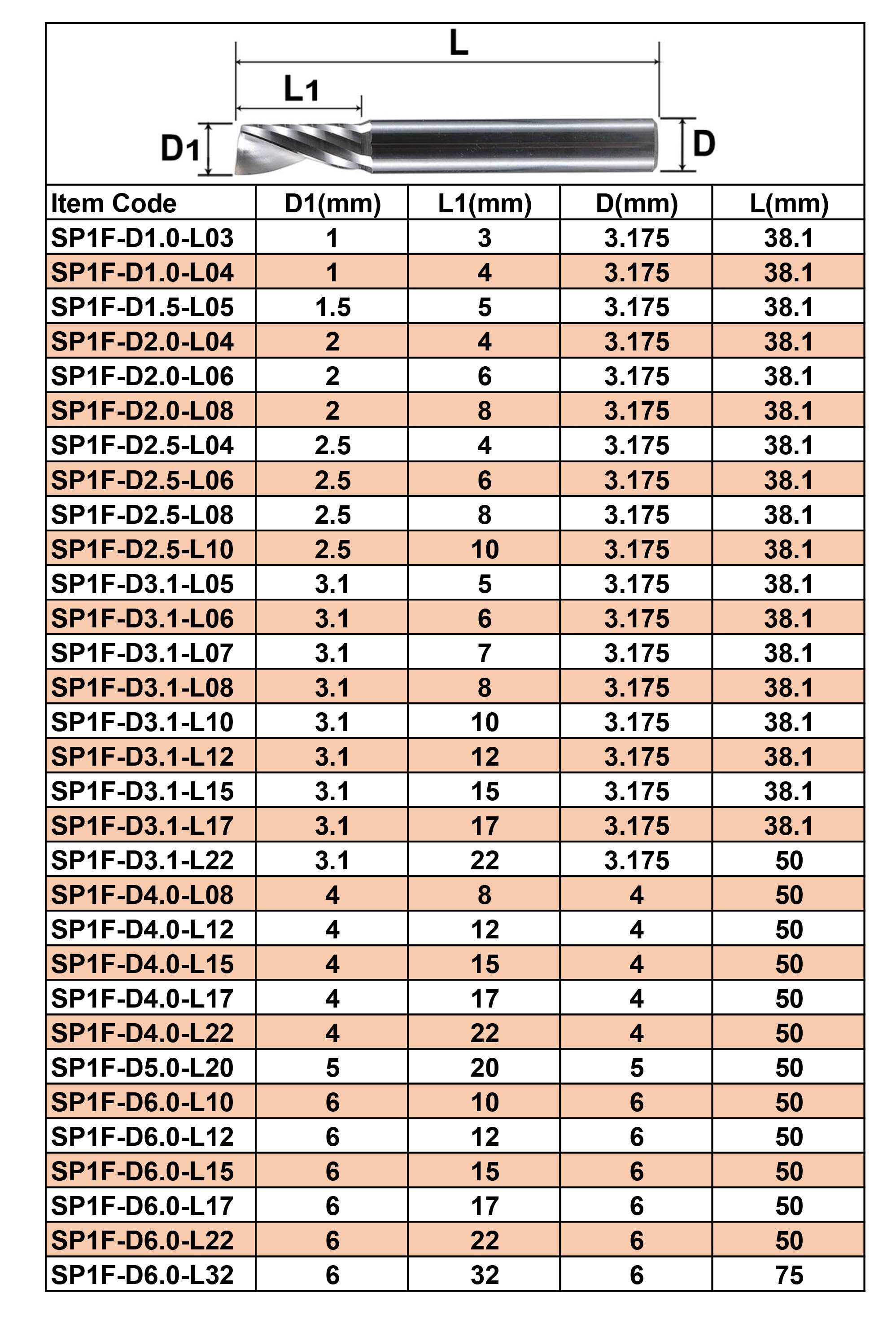

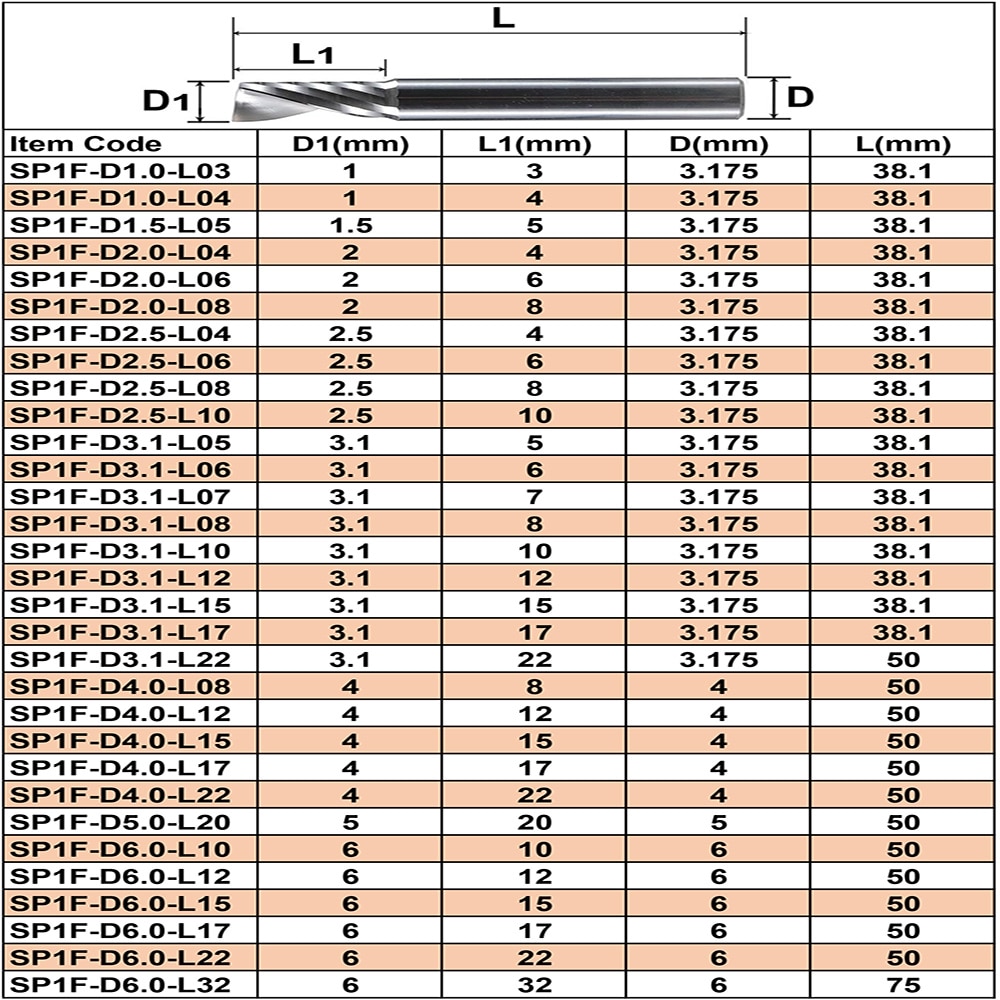

  • ITEM CODE: SP1F

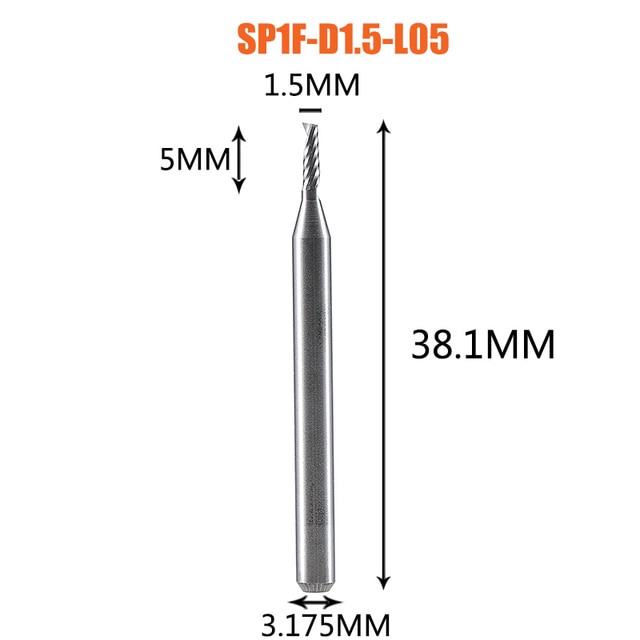

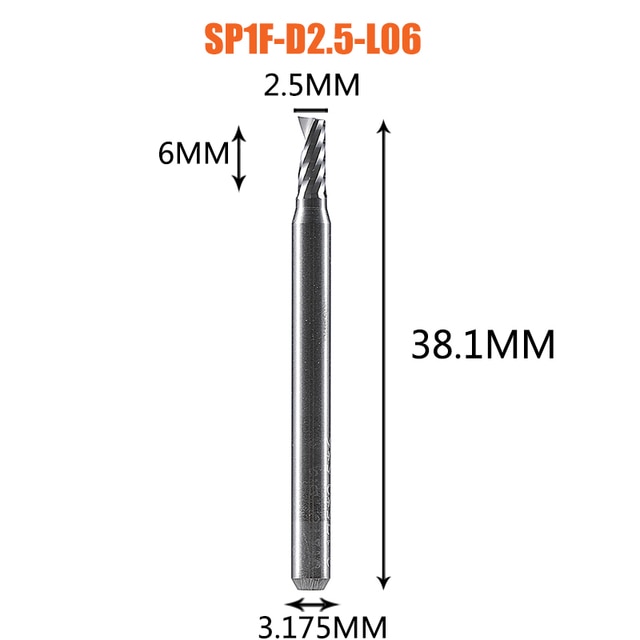

  • cutting diameter: 1mm-6mm
