16A GSM Temperature Controller Socket Power Off Alarm Home Smart Relay Switch Intelligent SMS Outlet Remote Control Gate Opener

KONLEN 16A EU Home Smart GSM Temperature Control Relay Switch Intelligent Blackout Reminder Power Socket SMS Call APP Remote Control (Hot Sales )

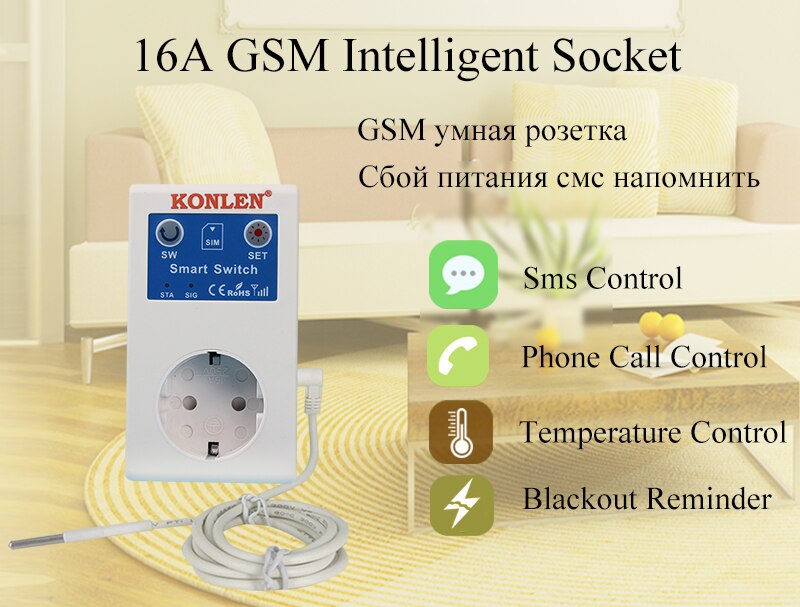

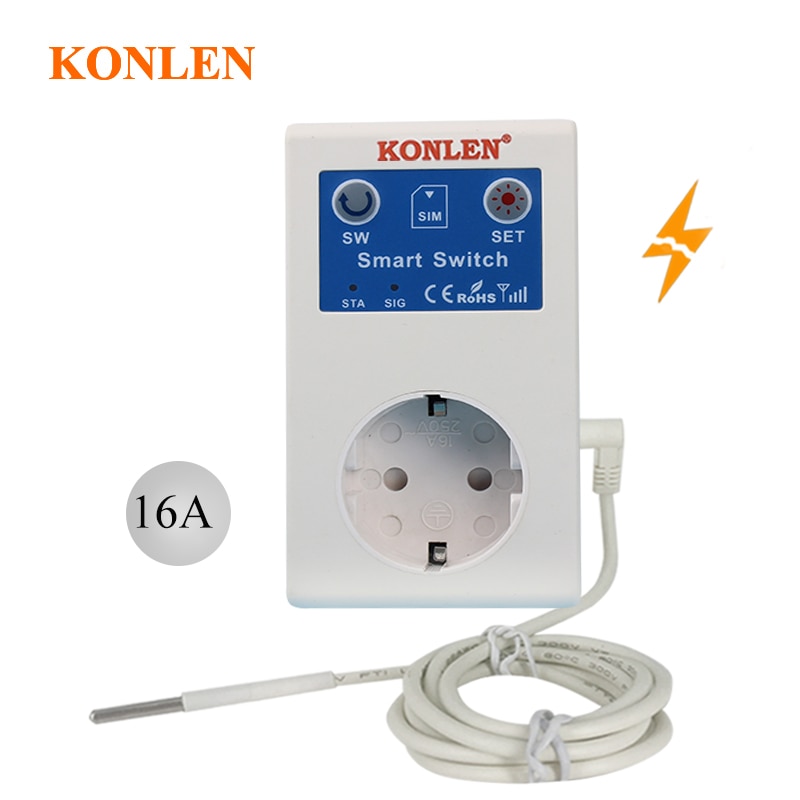

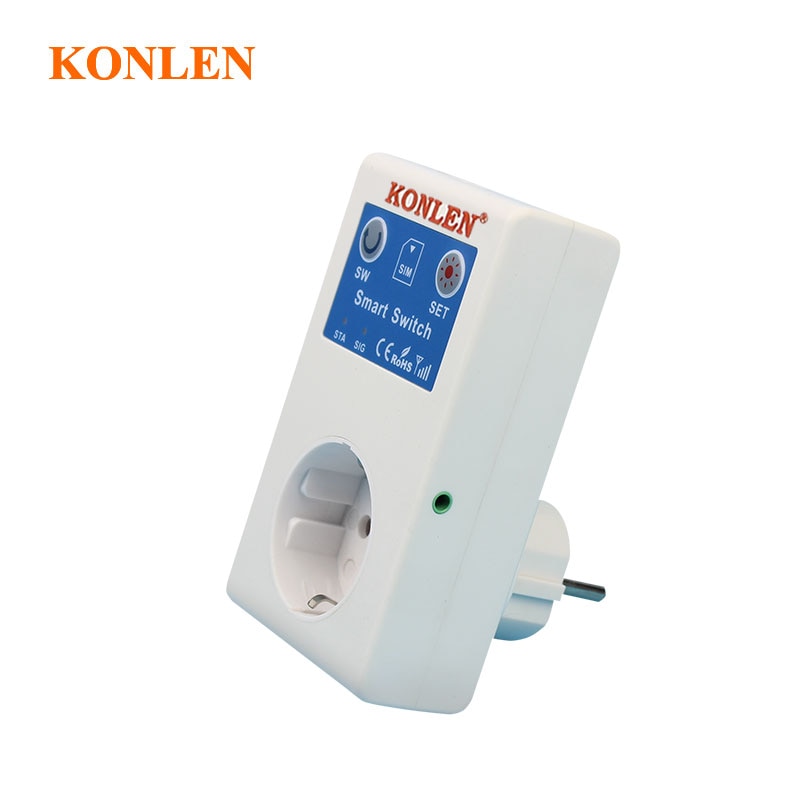

Model No. KLN-SC1-GSMS-TVC  GSM Remote Control Power Socket with temperature sensor

Power outage or power recovery SMS notification (New Function ) :  Will send SMS alert to user phone when power fails or recover.

1) 16A Max, Support High-power Household Electric Appliances
2) SMS/APP/Free Call Control Relay On or Off  via 2G GSM Network
3) SMS/APP/Free Call Control Electric Door Gate from on to off (0.5 to 9 seconds), then back to on, or off to on (0.5 to 9 seconds), then back to off  via T and XL Command.
4) Timed control other electric devices from on to off (001 to 240 minutes), then back to on or off to on (from 001 to 240minutes), then back to off via SMS L Comand40

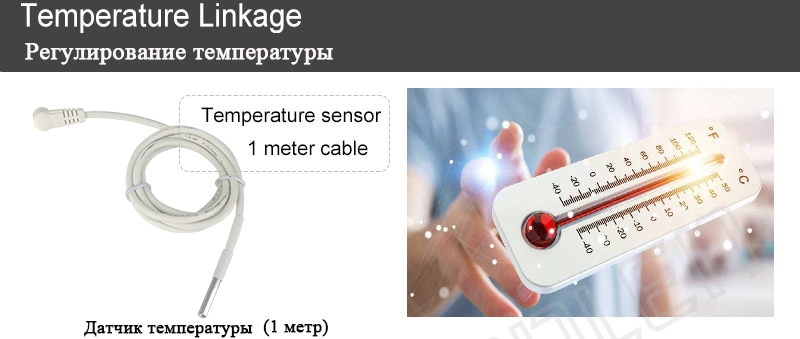

5) Temperature sensor linkage control  socket relay on or off

6) Power outage or power recovery SMS notification: Will send SMS alert to user phone when power fails or recover.

Power off and power on SMS alarm: It widely applys to aquarium, livestock farm, power equipment, bank, server monitoring center, basestation, street lamp, telecommunications equipment, 24 hour running machine etc.

 With it, no longer worry about the economic loss caused by power outages, no longer worry about the food deterioration in cold storeroom or fish dying because of lack of oxygen.

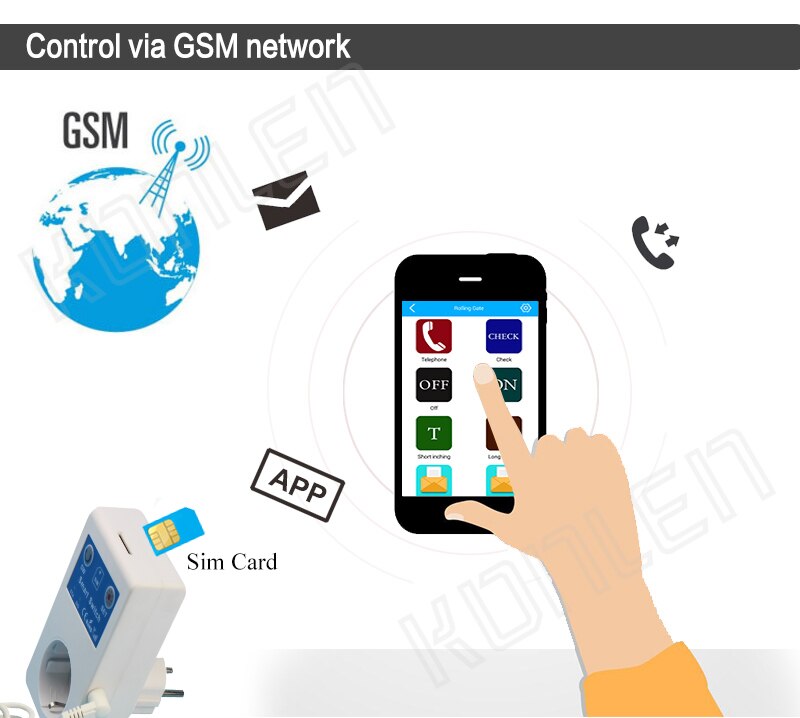

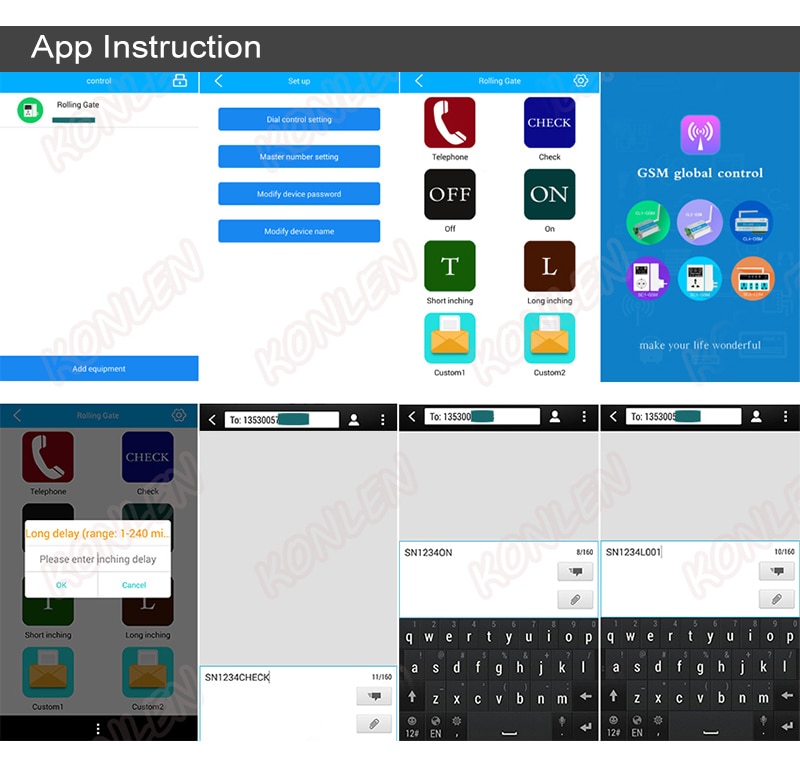

      Control GSM Power socket remotely by SMS/Free Call/Mobile App via GSM Network.

       GSM frequency: GSM850/900/1800/1900mhz quad band.

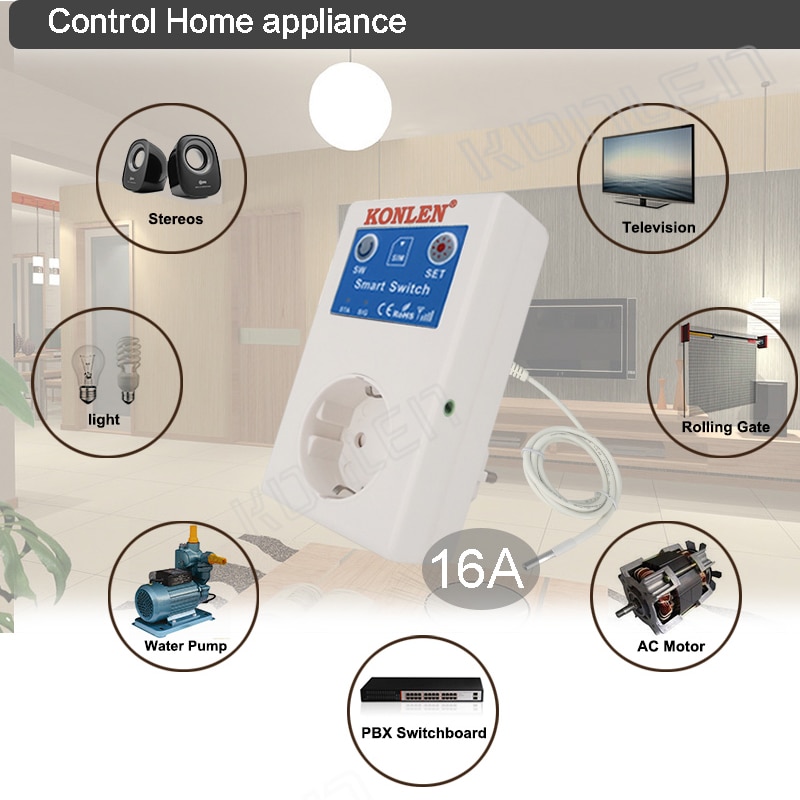

    16A Max, Support to control High-power Household Electric Appliances (light, air-conditioner, warmer, heater, TV, Stereos etc), and automatic door gate openers, AC Motor, Remote Base Station, PBX Switchboard, Water Pump, Server etc.

SMS/Free call/App/Temperature sensor 4 ways control socket relay on or off via on/off command

Short Inching (from 0 to 9 seconds): Control Door Gate Opener via T Command
T Command:
SMS Text: SN + 4 digits of password(0000) +T + inching time (0 to 9)
0    means 0.5 second, 1-9 means 1 to 9seconds
For example: a. Send SMS:  SN0000T0

on-----off 0.5 seconds-----on;
off-----on 0.5 seconds------off
If the original STATE LED on, it will be off for 0.5 seconds after command, then back to be on automatically.
If the original STATE LED off, it will be on for 0.5 seconds, then back to be off automatically
b. Send SMS: SN0000T3 (on-----off 3 seconds-----on; off-----on 3 seconds------off)

         User can also activate phone call inching relay via XL command ( SN + 4 digits of password(0000) + XT + one digit of time (0 to 9seconds, 0 stand for 0.5seconds). After activate it, users can control eletric door/gate/garage by a free call anywhere anytime

Long-time Inching switch: Timing control from 001 to 240 Minutes via L Commands

L Command:
SMS Text: SN + 4 digits of password(0000) + L + 3 digits of time (from 001 to 240 minutes)
For example. a. Send SMS:  SN0000L060
on-----off 60 minutes-----on;
off-----on 60 minutes-----off
If the original STATE LED on, it will be off for 60 minutes after the command, then back to be on automatically.
If the original STATE LED off, it will be on for 60 minutes after the command, then back to be off automatically.
b.    Send SMS: SN0000L030 (on-----off 30 minutes-----on;  off-----on 30 minutes-----off)

With the function, users can timed-control pond aerator, water pump, routers, server, rice cooker and other electrical equipments by a SMS

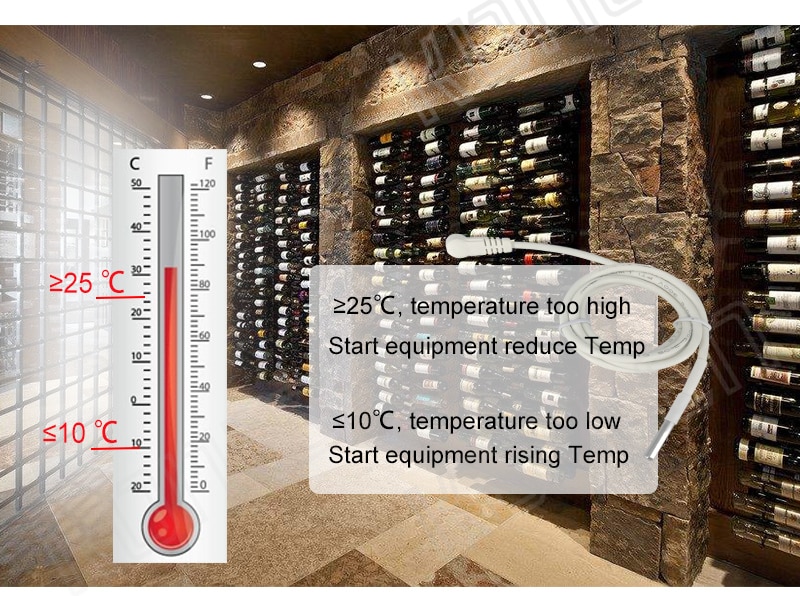

You can set the Temperature control according to your requires ,eg. : In wine cellar ,you can set the temperature control commands :  rise the temperature when the temperature is lower than 10 degree centigrade , reduce the temperature when the temperature is more than 25 degree centigrade .

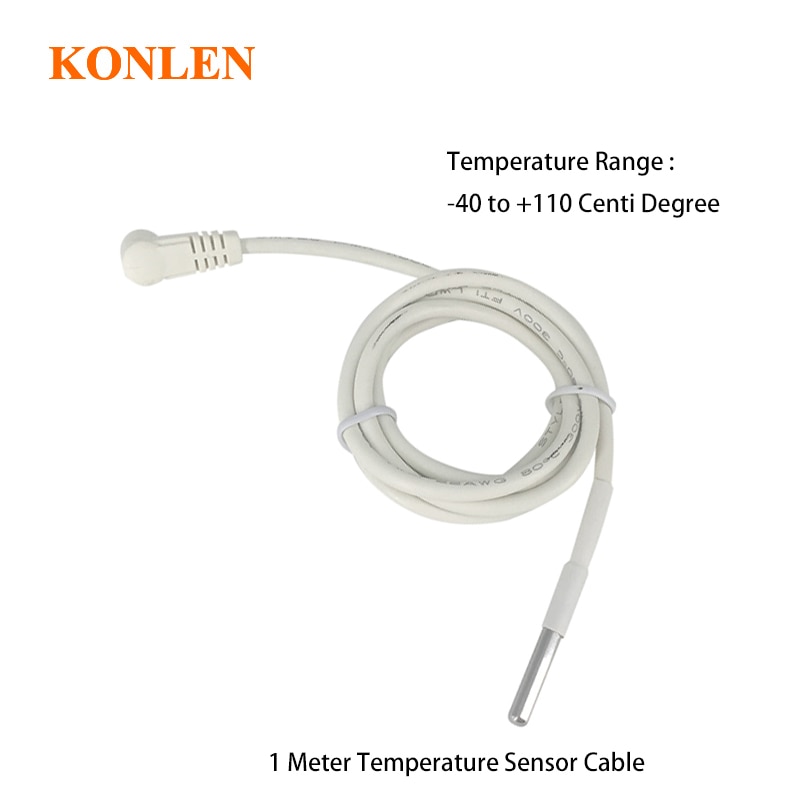

Inquiry temperature and adjust to Temperature Intelligently . ( Temperature control Range : -40 to +110 Centi Degree )

Other features:
1. With password protection
2. Can set 5 groups of control master numbers
3. SMS control(ON command, Off Command, T Command)

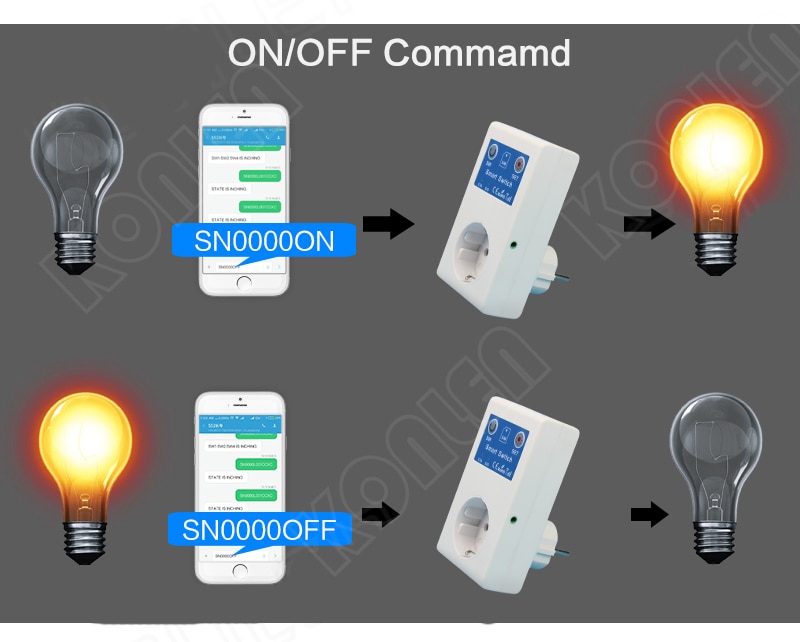

1)ON Command: turn the relay state to ON
SMS Text: SN+Password+ON
2)Off Command (Turn the relay state to off
SMS Text: SN+Password+OFF
4. Free Call to control
User can control the GSM controller by dial the SIM card number of GSM controller. The user may hear" You can't answer the phone call, beep, beep.......tone etc", which mean changing the relay state successfully.
If the controller connected, it will change to be disconnected state after a call.
If the original state is off, it will change to be connected state after a call.
5. Button Control
The controller state will be changed when you press the SW button at side of controller.
If the controller connected, it will change to be disconnected state.
If the original state is off, it will change to be connected state.
6. User can send sms to check the on/off state
SMS text: SN+Password+CHECK
7. With Power off memory Function

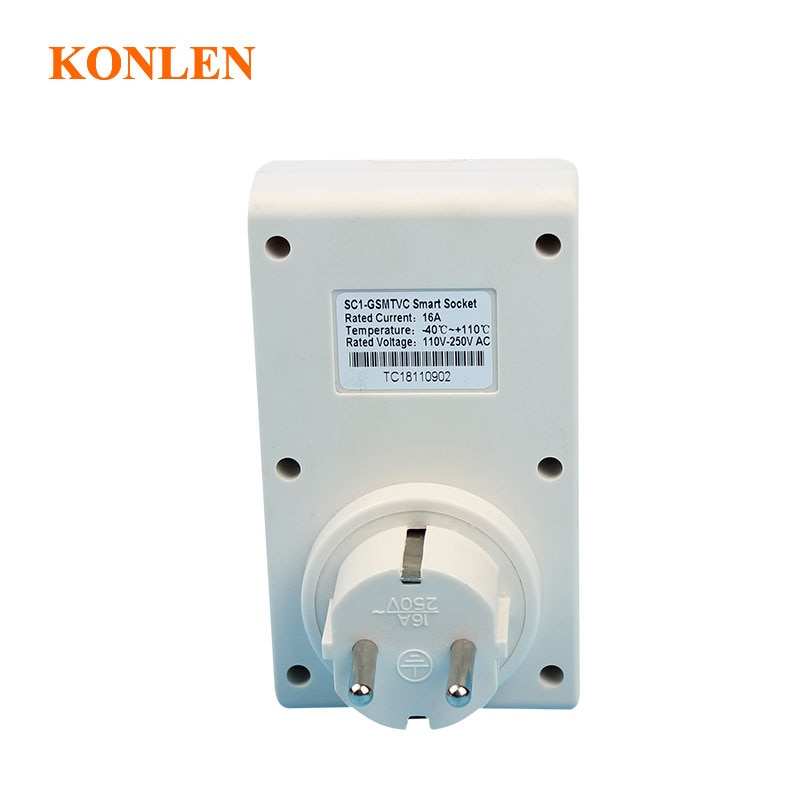

Specification:
Communication: Based on GSM Network
GSM Frequency: GSM850/900/1800/1900MHZ
Rated Current: 16A Max
Rated Power: 3000W
Rated Voltage: 110V to 250V AC

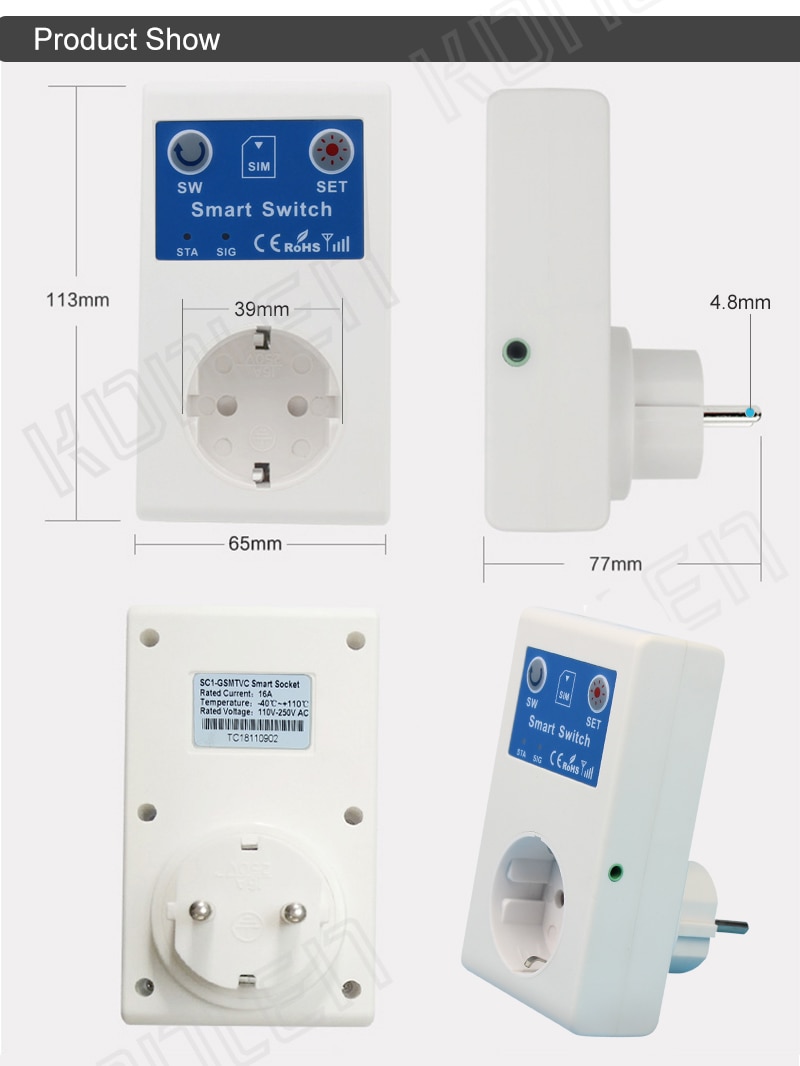

Dimension: 113mm x 65mm x 77mm ( 4.44 in x 2.55 in x 3.03 in)
Working Humidity: Less than 65%
Working Temperature: -40 to +110 Centi Degree
Power Socket and Plug: EU German Standard
