16A 230V LCD Programmable Warm Floor Heating Room Thermostat Thermoregulator Temperature Controller Air Manual Machanical

16A 230V LCD Programmable Warm Floor Heating Room Thermostat Thermoregulator Temperature Controller Air Manual Machanical

NOTE:

There has 5 models number, Function is a bit different，please check carefully and choose the one you need

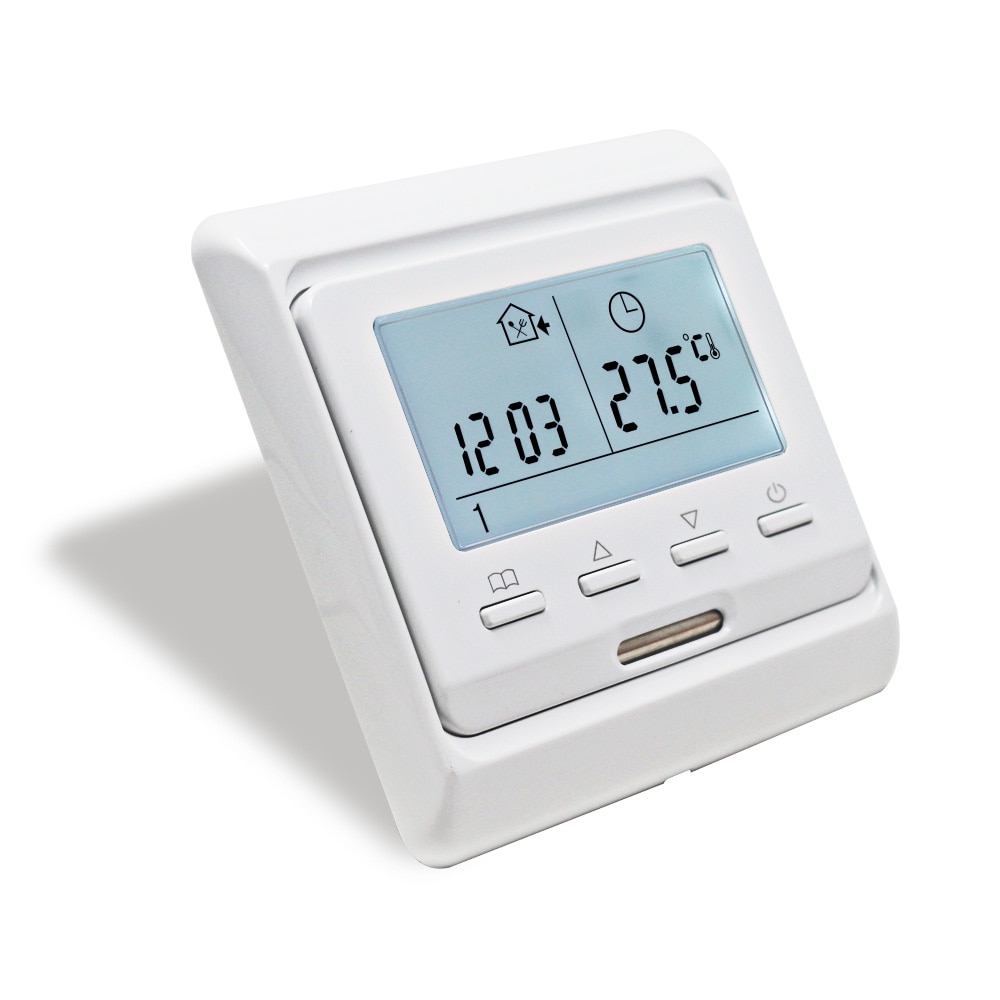

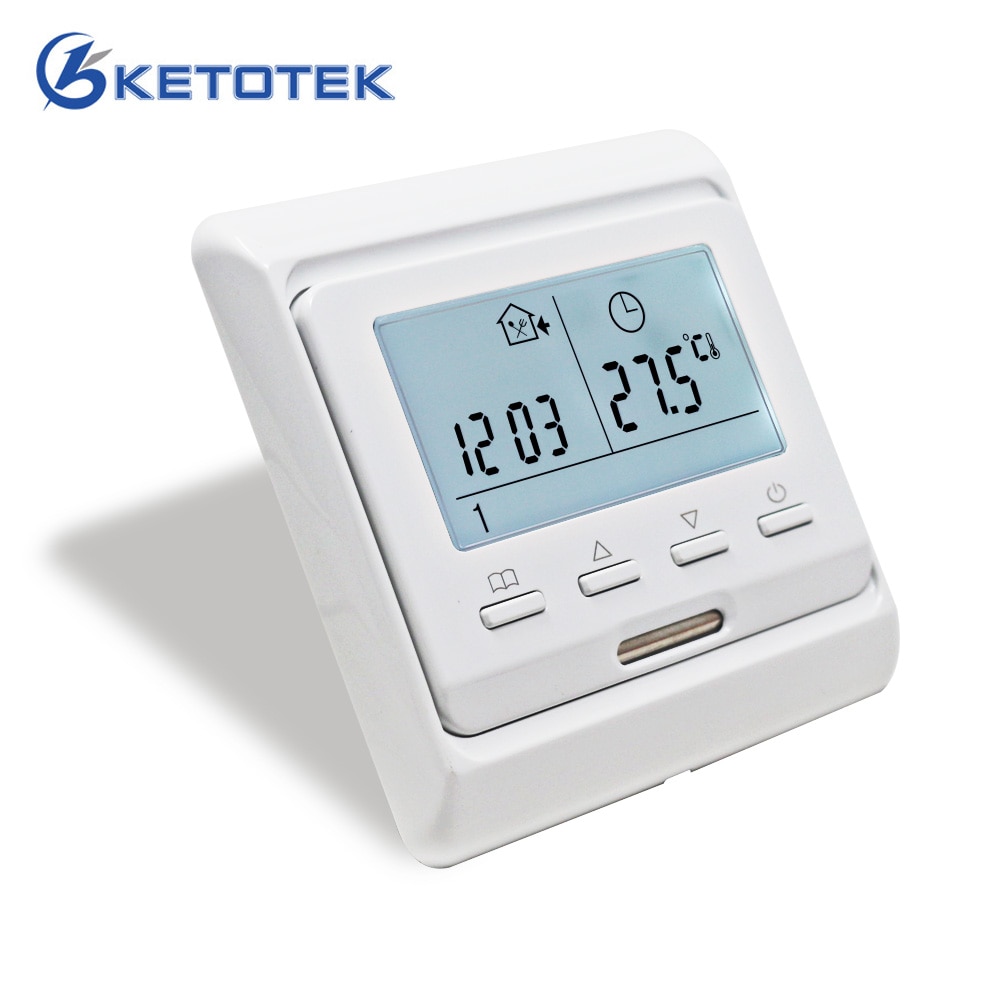

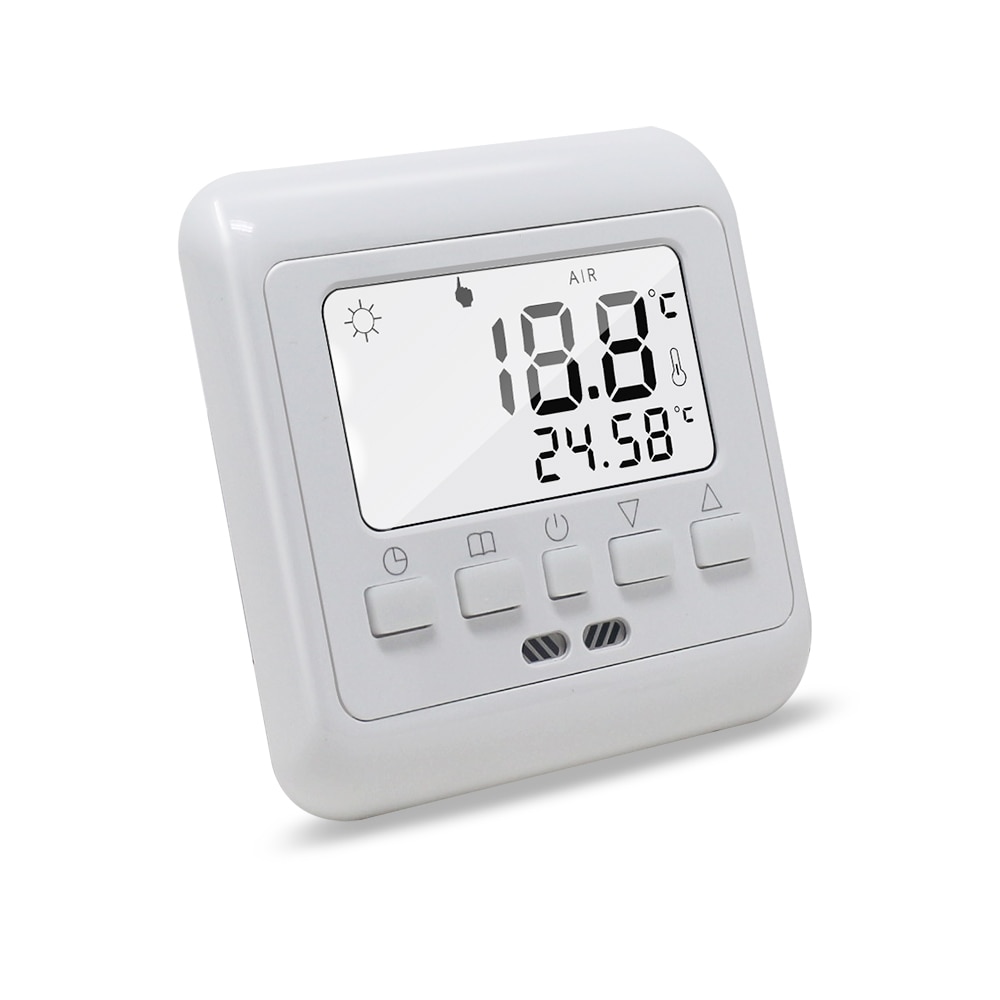

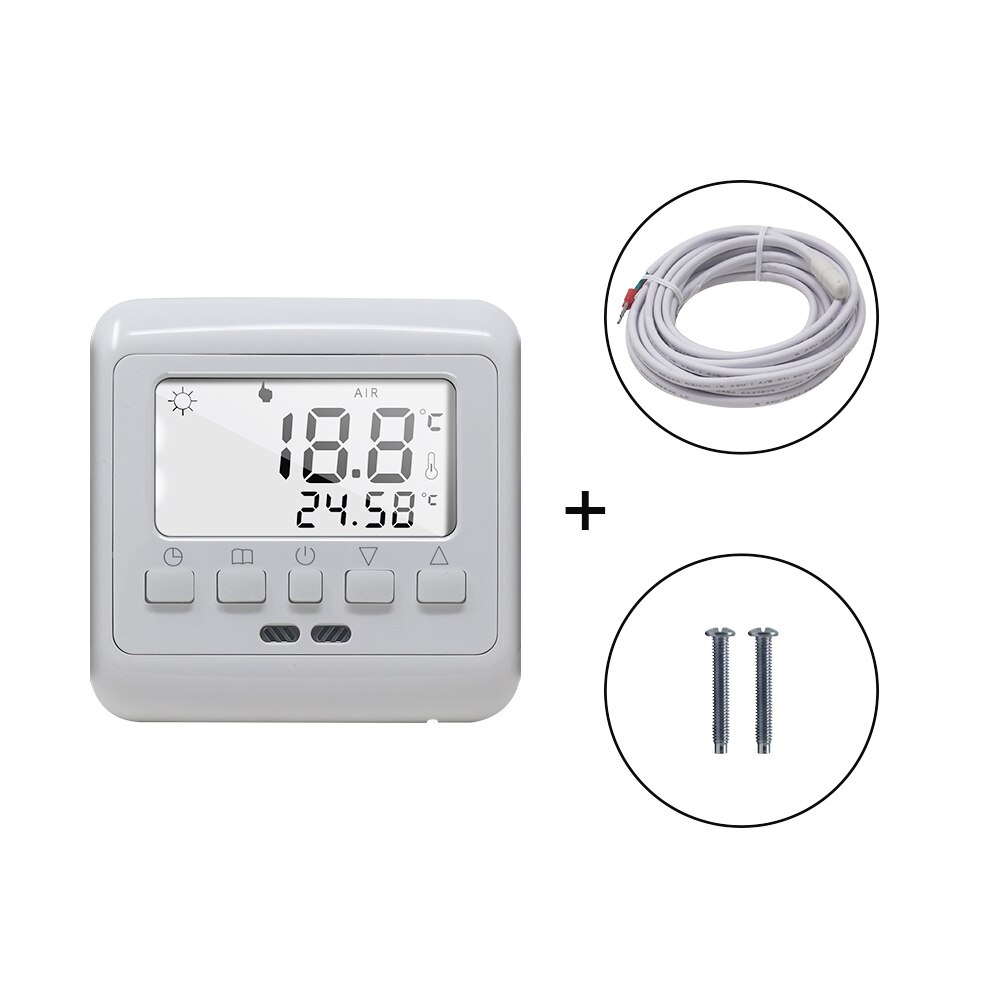

1(button)

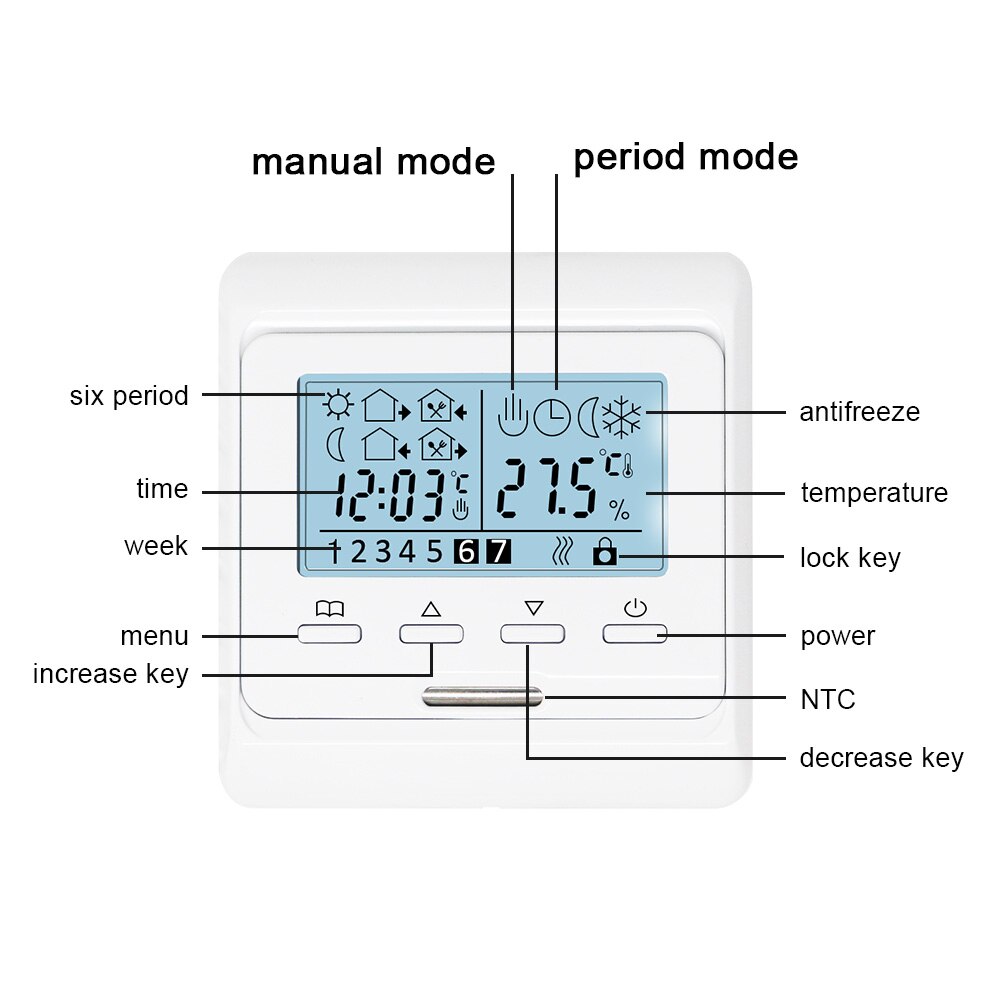

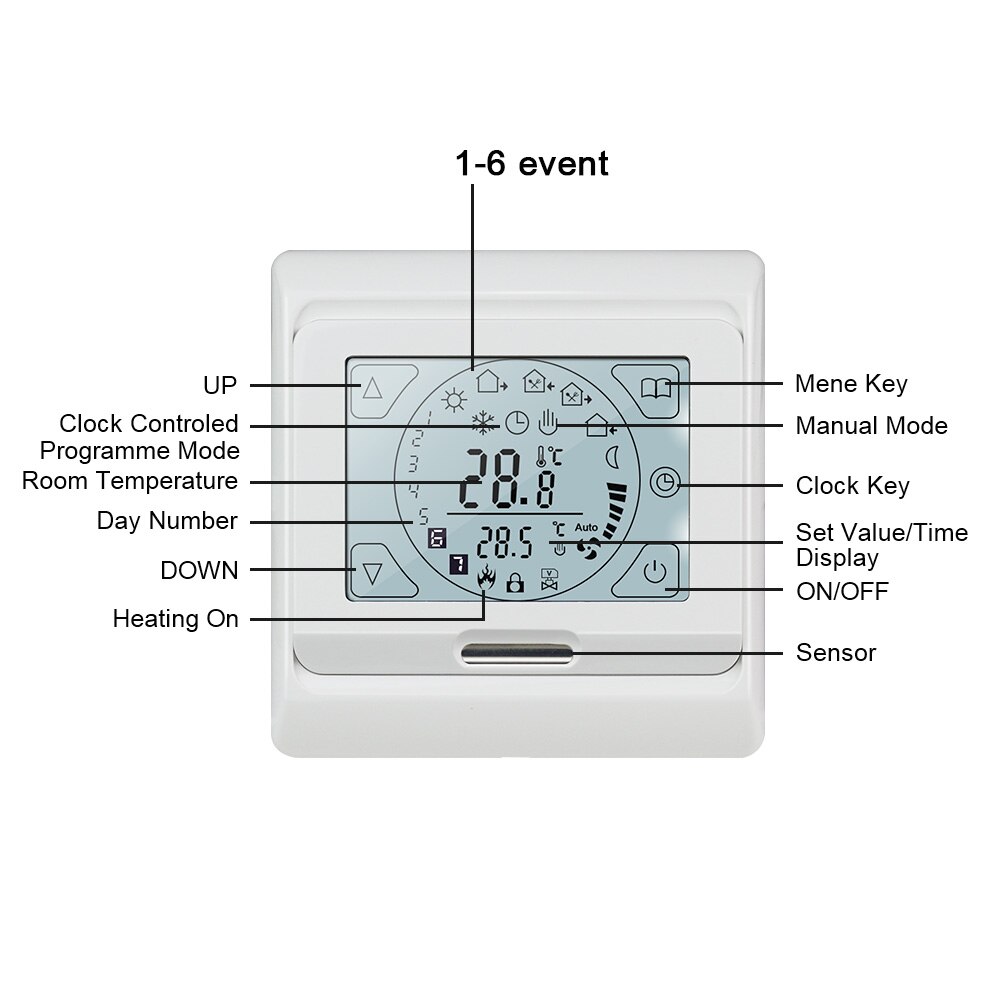

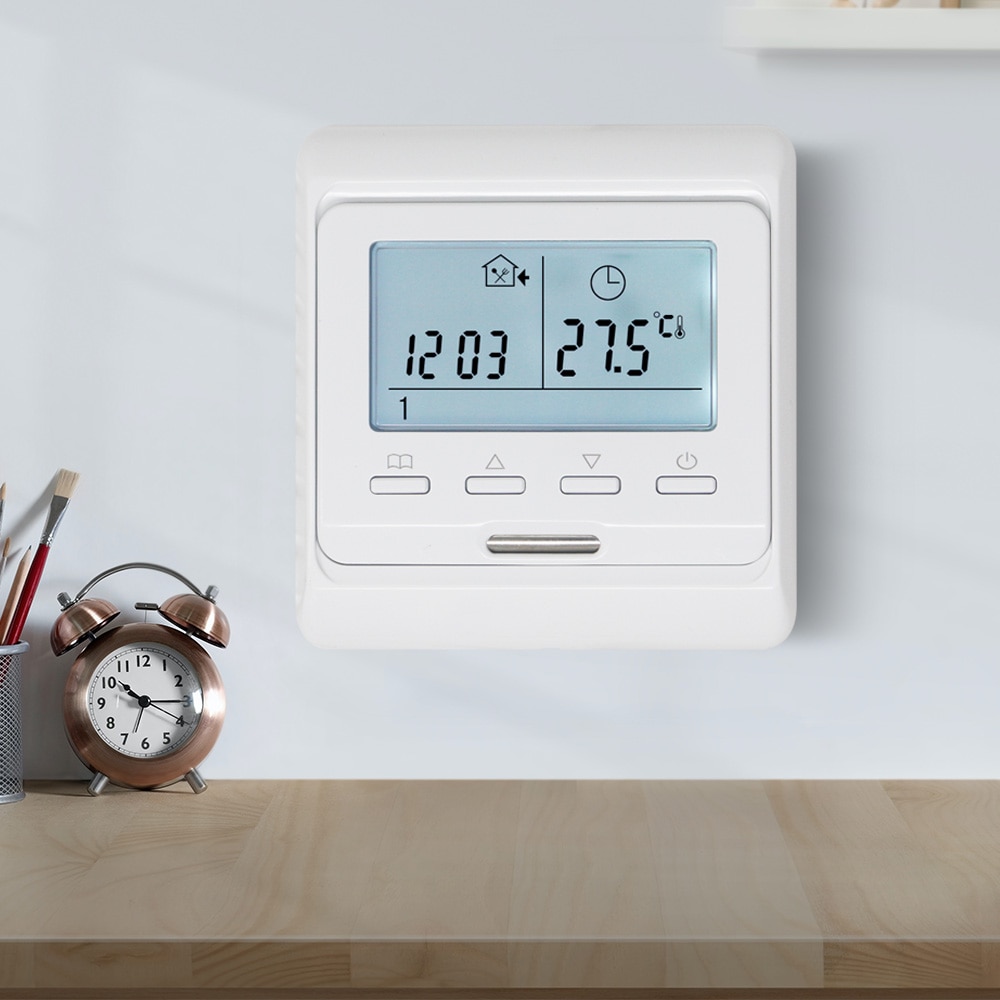

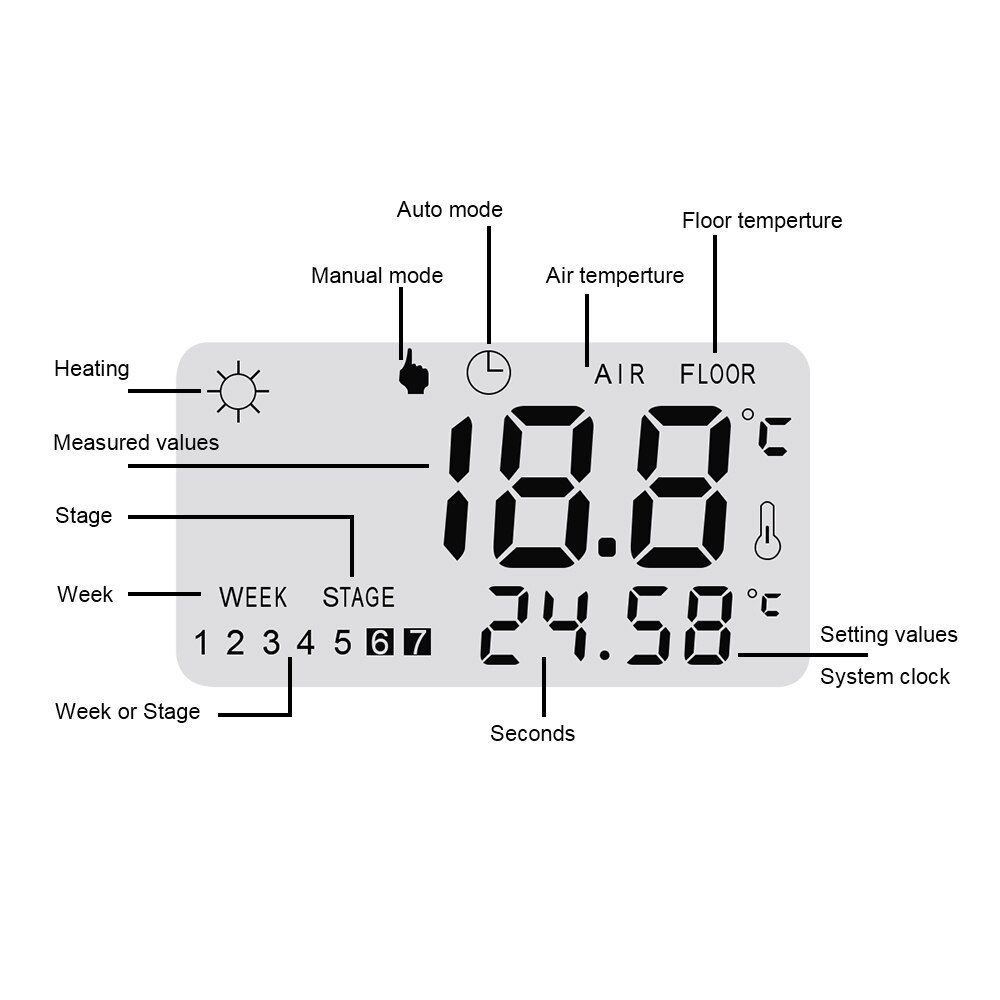

Weekly Programming Thermostat with LCD Screen, it is possible to set 6 perids called events each day with different temperature, also you can select " temperature control mode " or " manual mode " according to your requirments, the thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating system.


Technical Data

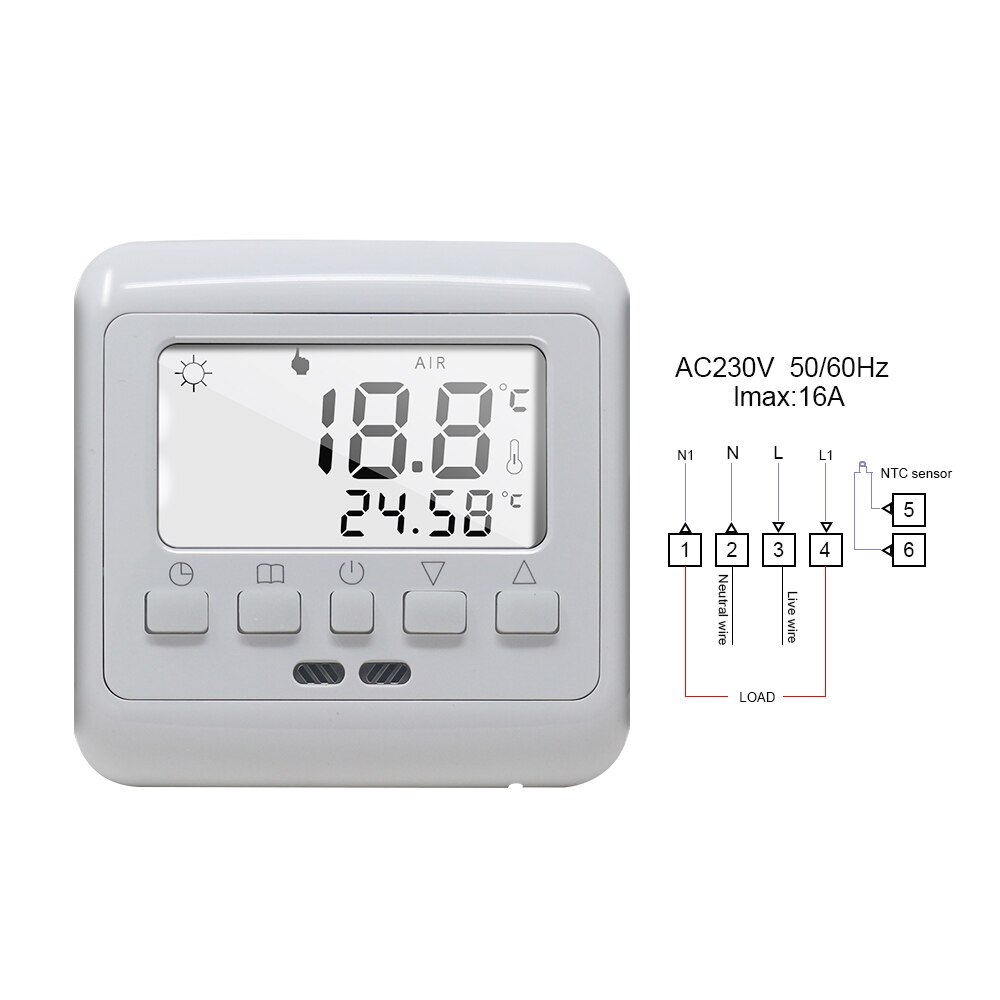

• Voltage: AC 230V 50-60Hz

• Power consumption: 2VA

• Setting range: 5 ~ 90 °C

• Limitation range: 5 ~ 99 °C ( factory setting : 35 °C)

• Accuracy of temperature measurements : 0.5 ~ 10°C adjustable, (factory setting: ± 1°C)

• Ambient temperature: -5 ~ 50°C

• Protecting grade: IP20

• Housing material: anti-flammable PC

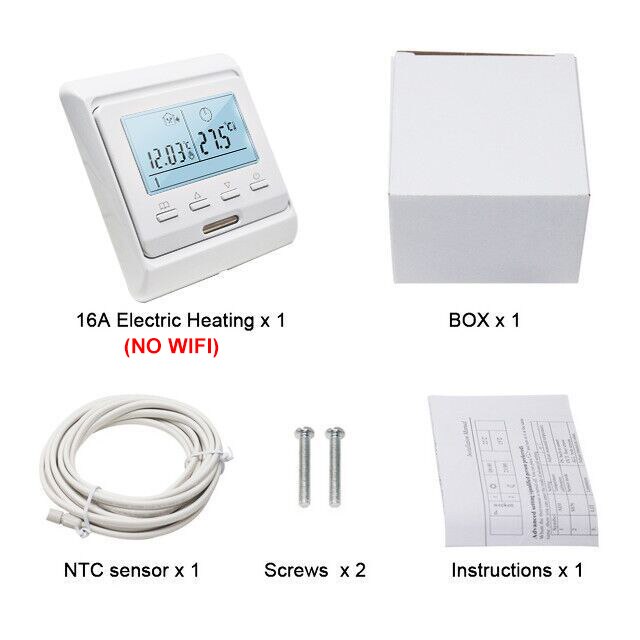

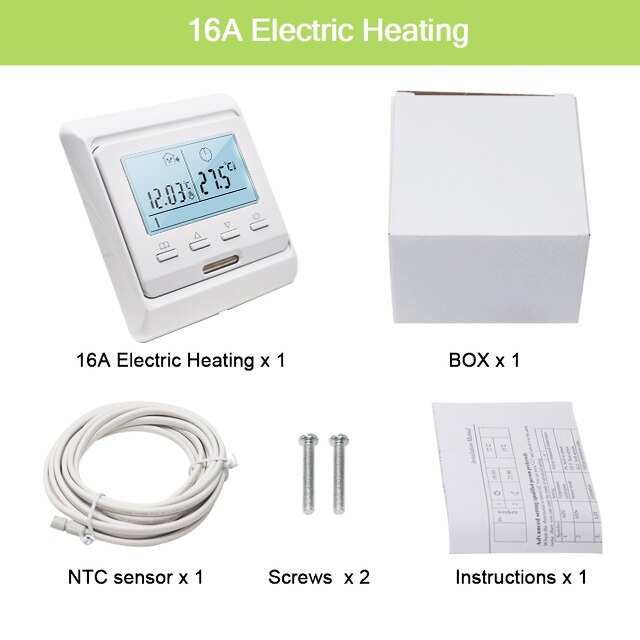

Package content:

16A

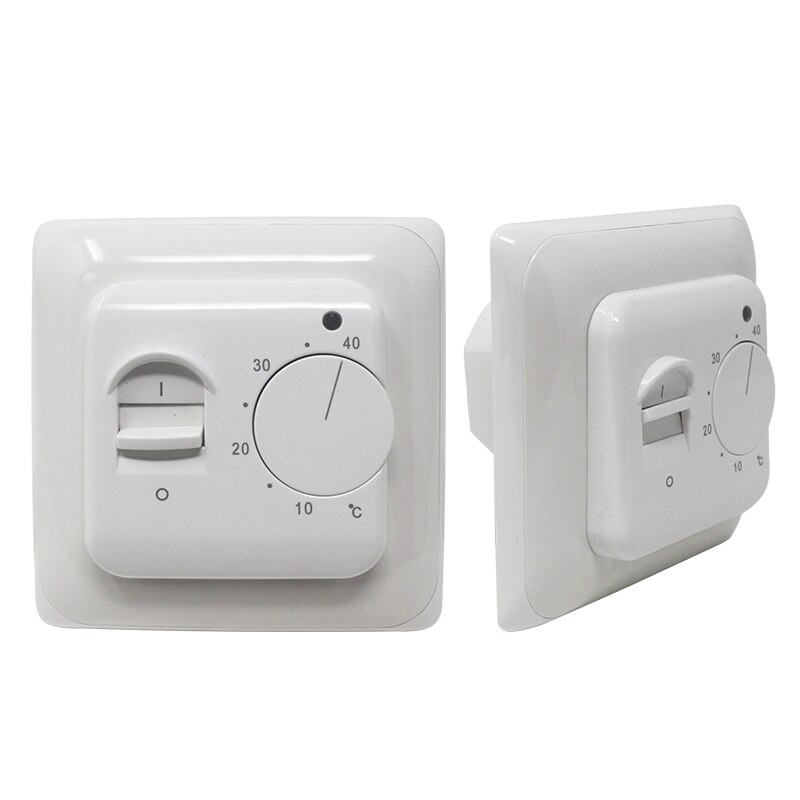

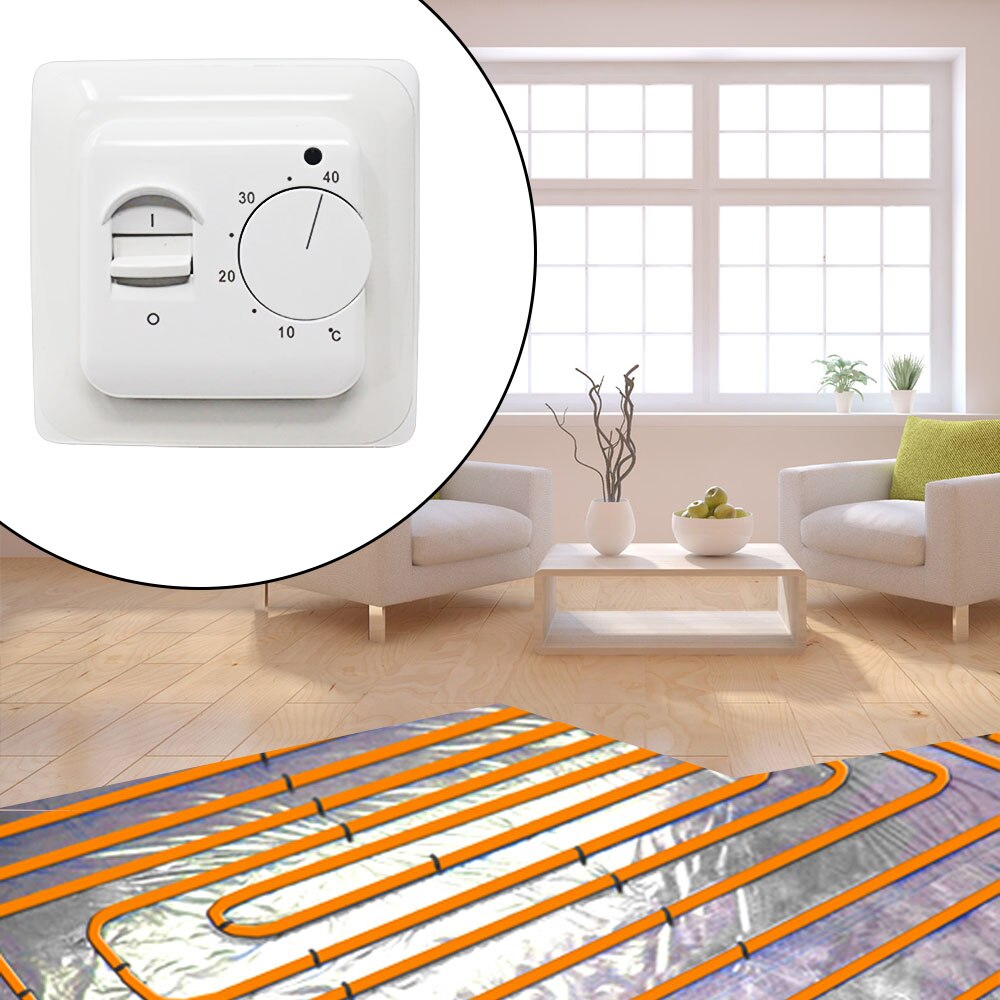

3(Machanical)

Features:

• -Designed for floor sensor and other electrical heating elements

• -Simple operation, no need to work out how to program

• -3m sensor cable included

• -Automatic safety power switch, On/off control output for heating device

• -With manual switch and knob for easy operation

• -Can fit into a standard single switch backbox

• -Mini size junction box and worldwide suitable.

• -LED indicator is light when heating is on

• -Full Installation and Operation Instructions Included

Specifications:

• -Power supply : 230V 50HZ

• -Power consumption: 5W

• -Adjusting range: 5 Celsius ~40 Celsius

• -Differential per. tem.: ±1 Celsius

• -Operating temperature: -5 Celsius~50 Celsius

• -Degree of protection: IP20

• -Housing material: self-extinguishing PC

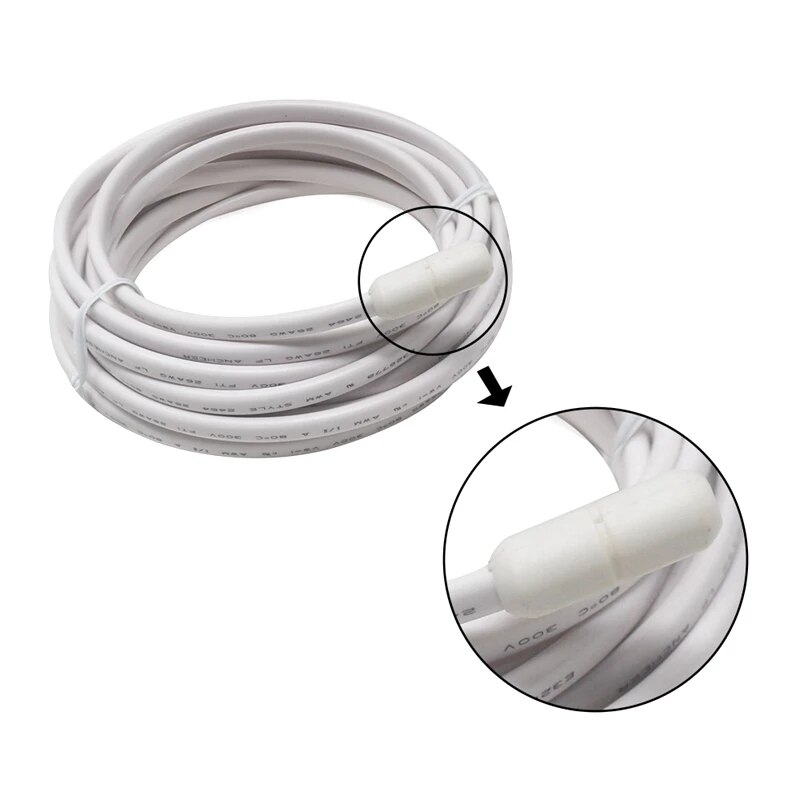

• -Floor sensor : NTC sensor 3m

• -Dimension: 80X80X50mm/3.15X1.97inch

• -Certification CE

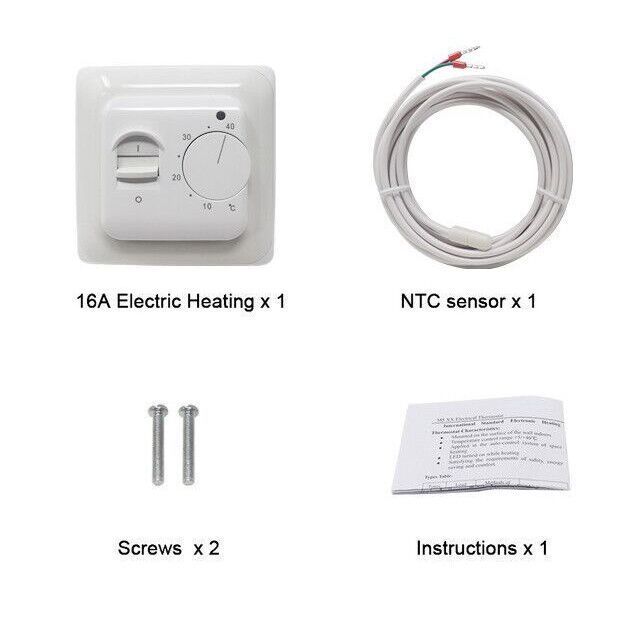

Package content:

• -1X Manual thermostat

• -1X 3m sensor cable

• -2 X Mounting screws

• -1x English user manual

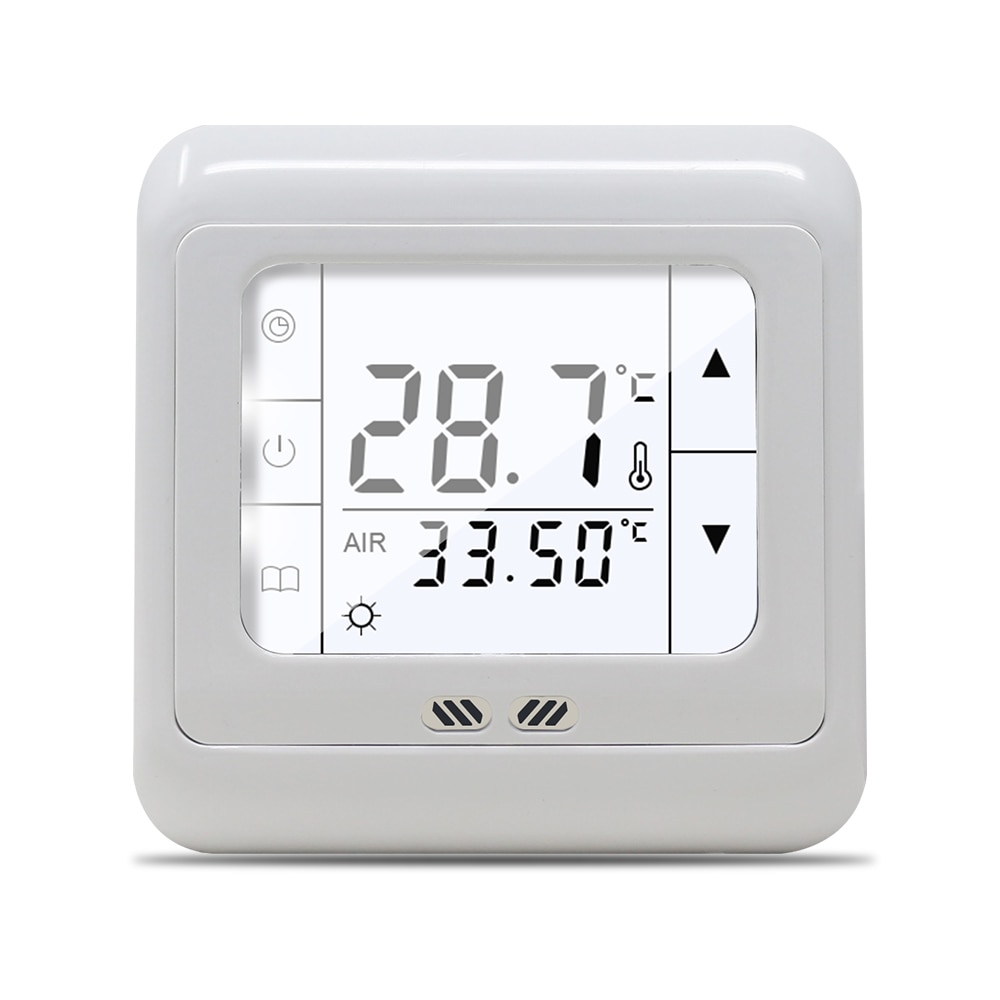

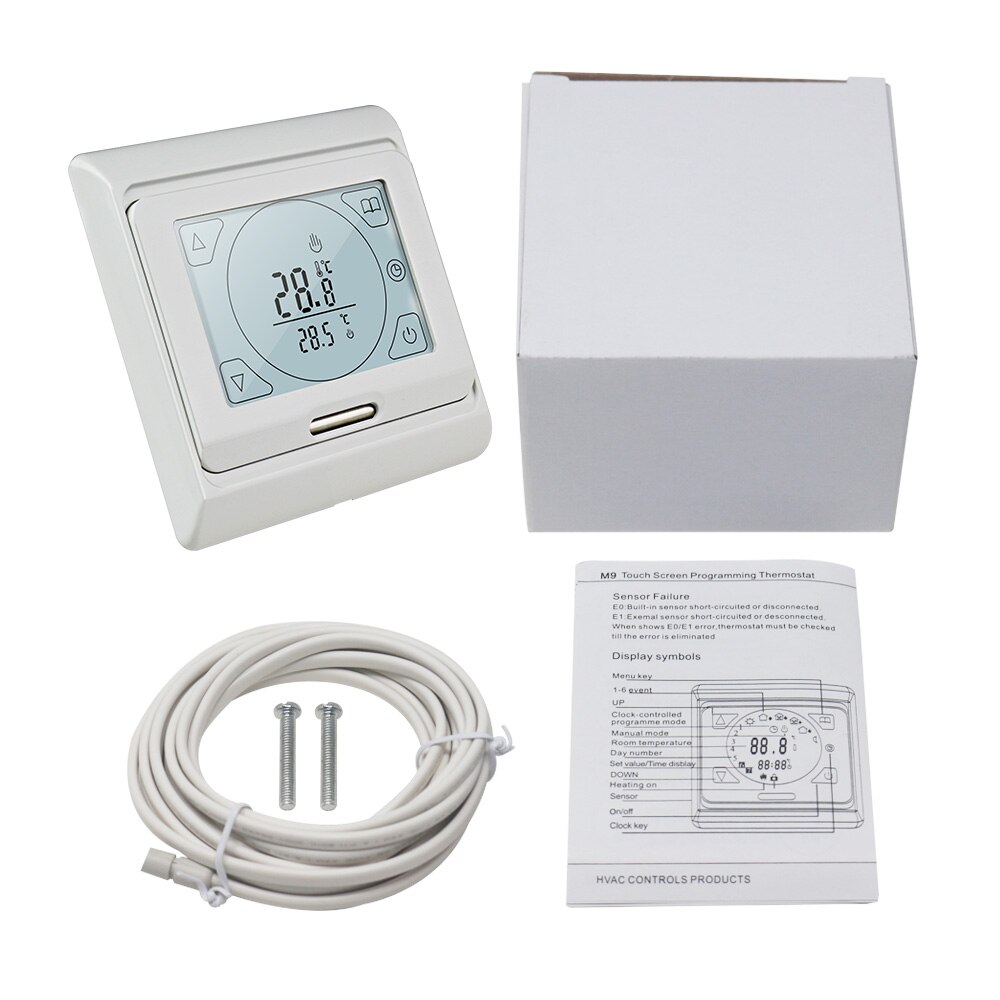

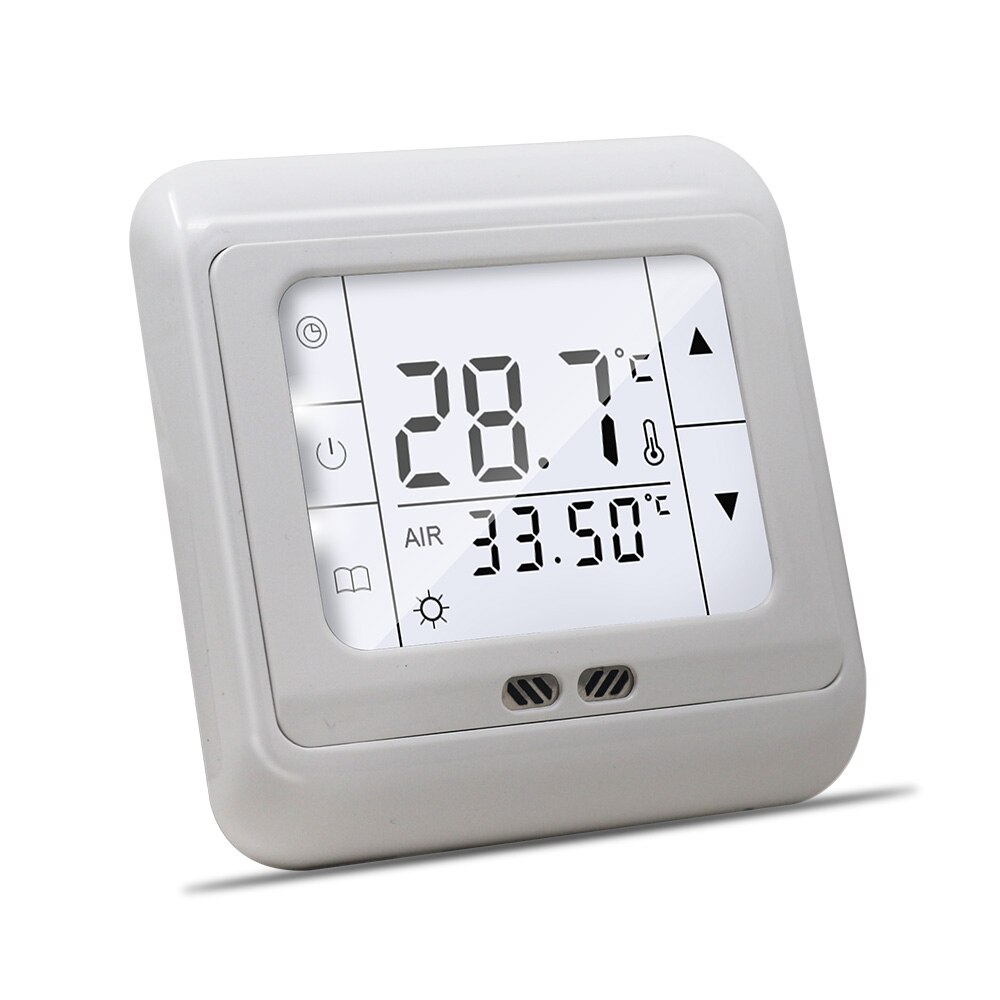

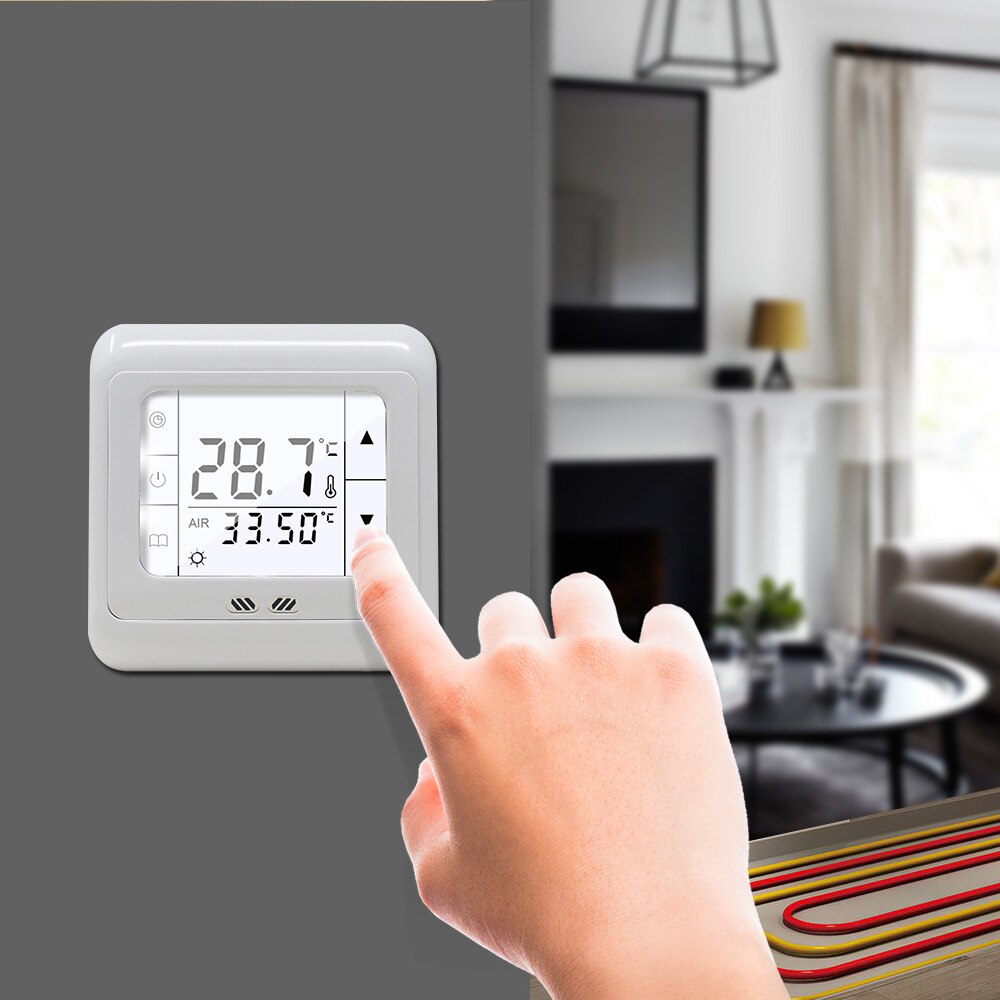

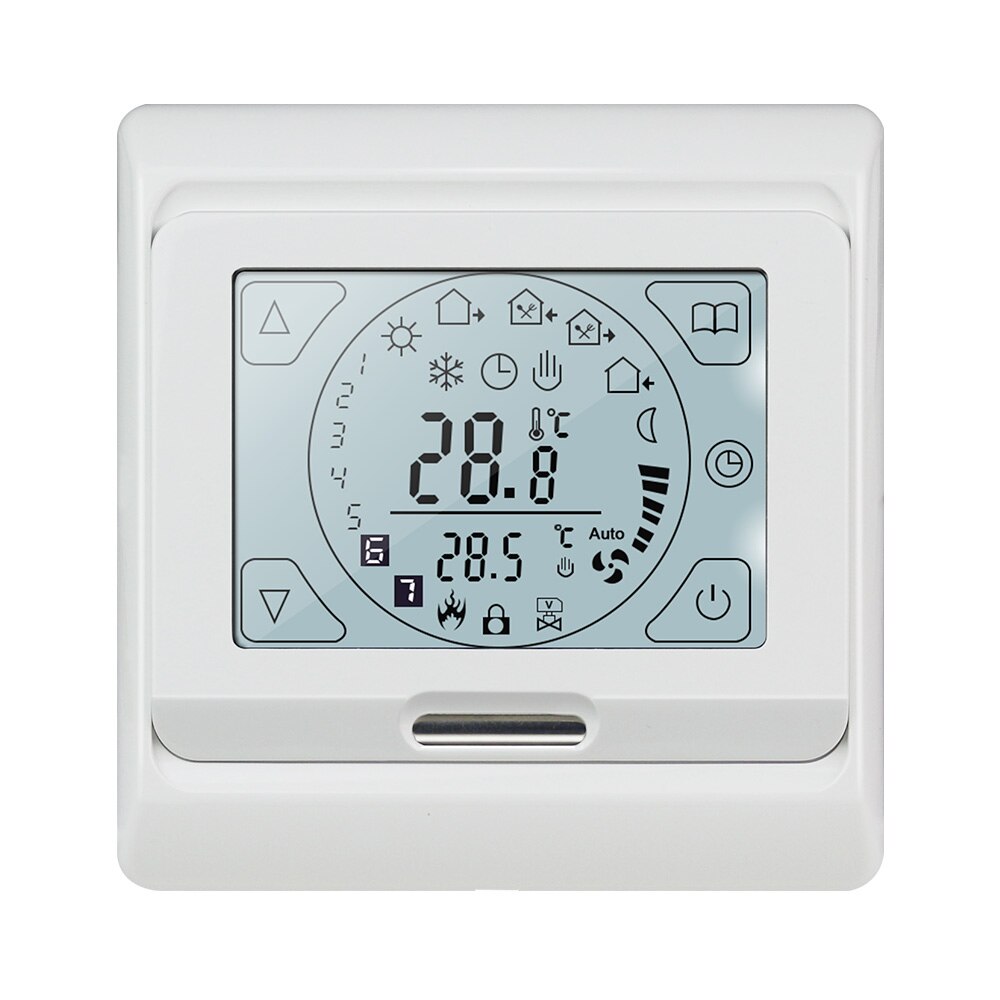

4（Touch screen）

Specifications:

• BYL105B Under Floor Heating Auto Control Room Thermostat China:

• For Room And With Programmable,Easy Heat Digital Thermostat.

• Weekly programmable heating room thermostat with touch screen for underfloor heating system can loop on every week every day.

General:

• 1.BYL105B Touch Screen Heating Thermostat with weekly programming adopts the latest single-chip

• computer control technology. It has the high reliability and powerful anti-jamming.

• 2.Setting daily 4 periods of time and the setting temperature.

• 3.The selection for manual control or automatic periods of time control.

• 4.The application of electric heating of the electric heating equipment and Water heating system of electric heating re-actuator control.

• 5.Easy operation and utility.

• 6.Touch screen input, Nice looking and easy-cleaning.

• 7.Kinds of periods of time modes. 5+2/6+1/7

• 8.The maximum switch power is 3600W.

• 9.Voltage input: AC 230V 50Hz/60Hz

• 10.Mini size junction box. It is suitable for the entire world.

• 11.The clock continues when power fail and it won't affect the period of time settings.

• 12.Flame retardant and safe.

• 13.Extra over heating sensor label length: 3 meters

Technical parameters:

• Power Supply: 230VAC, 50/60 Hz

• Set point Range: 5 to 35°C (programmable)

• Display Range: 0 to 40.0°C

• Inside Sensor: NTC B=3380 10k @25degrees Celsius

• Extra Sensor: Length=3M NTC B=3380 10k @25degrees Celsius

• Setting Unit: 0.5°C / step

• Indication Accuracy: 0.1°C

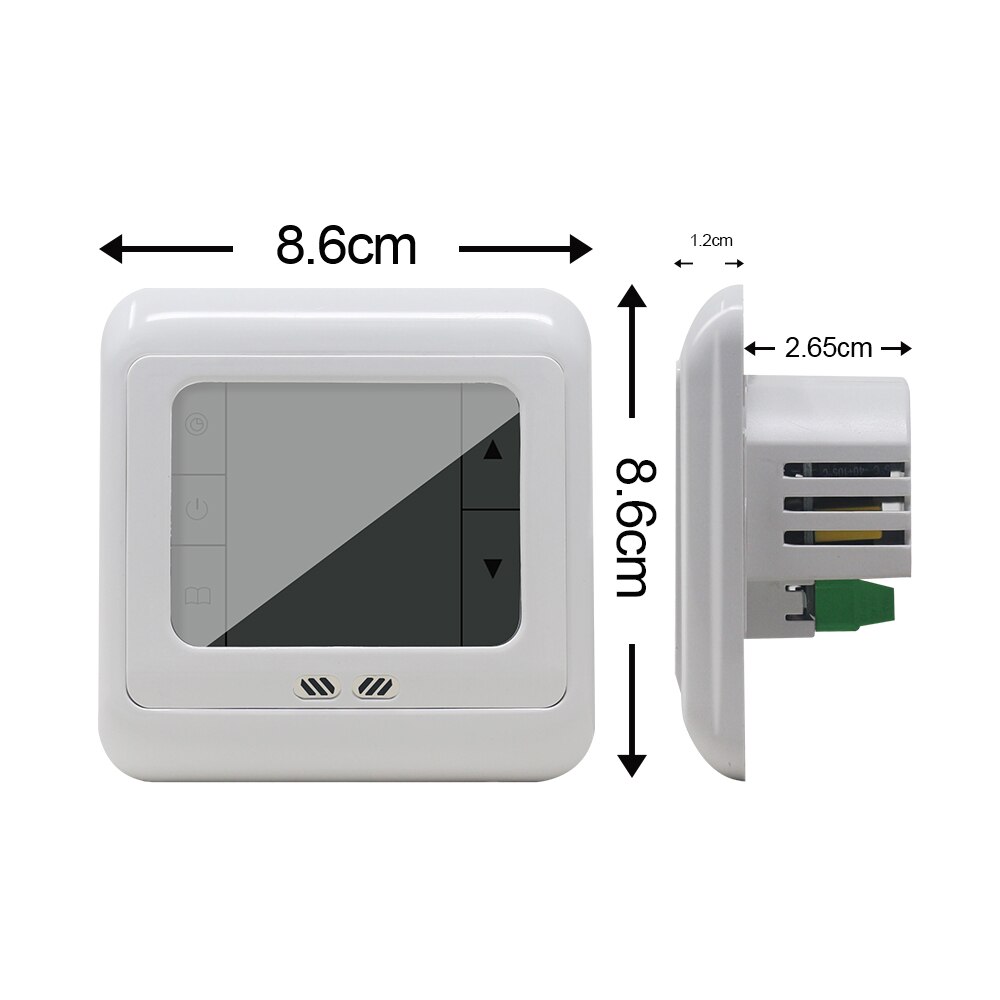

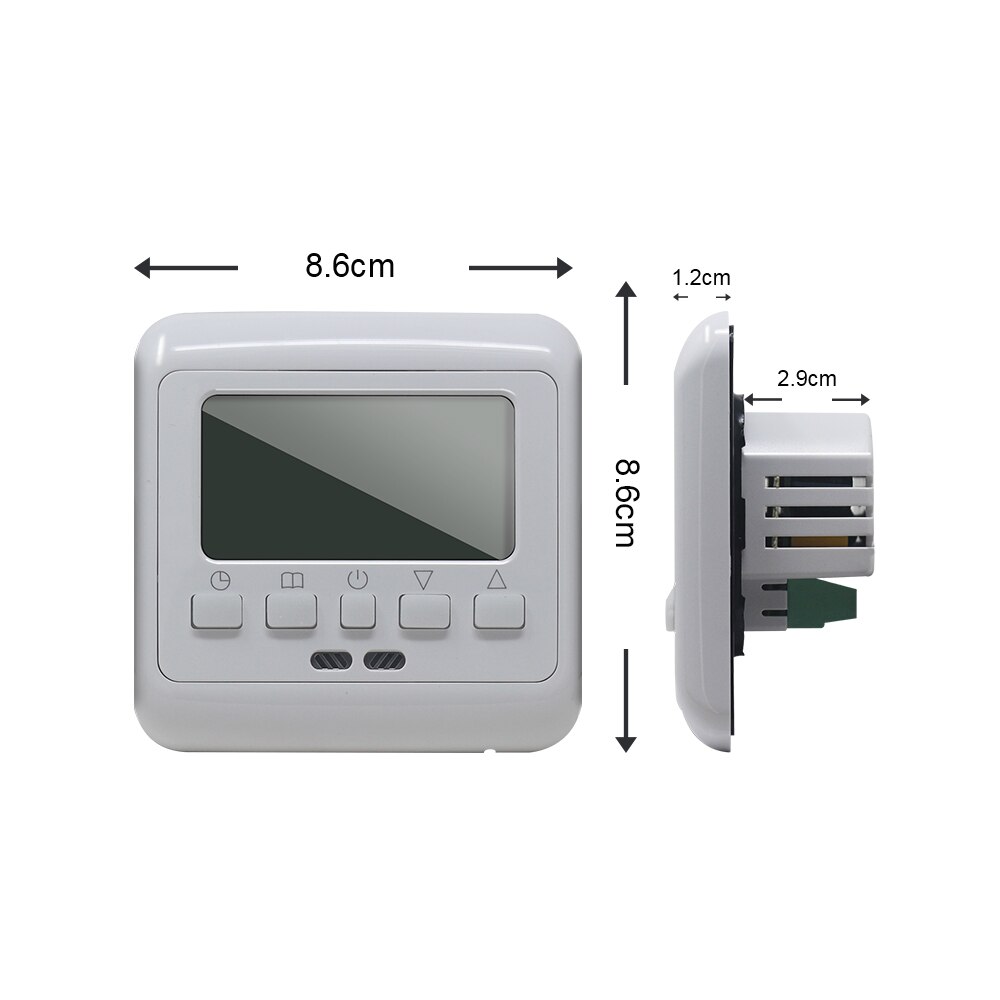

• Dimension: 86 x 86 x 12mm ( H x W x D )

• Weight: 175 g/piece

• Inner Box Size: 100 x 100 x 60 mm

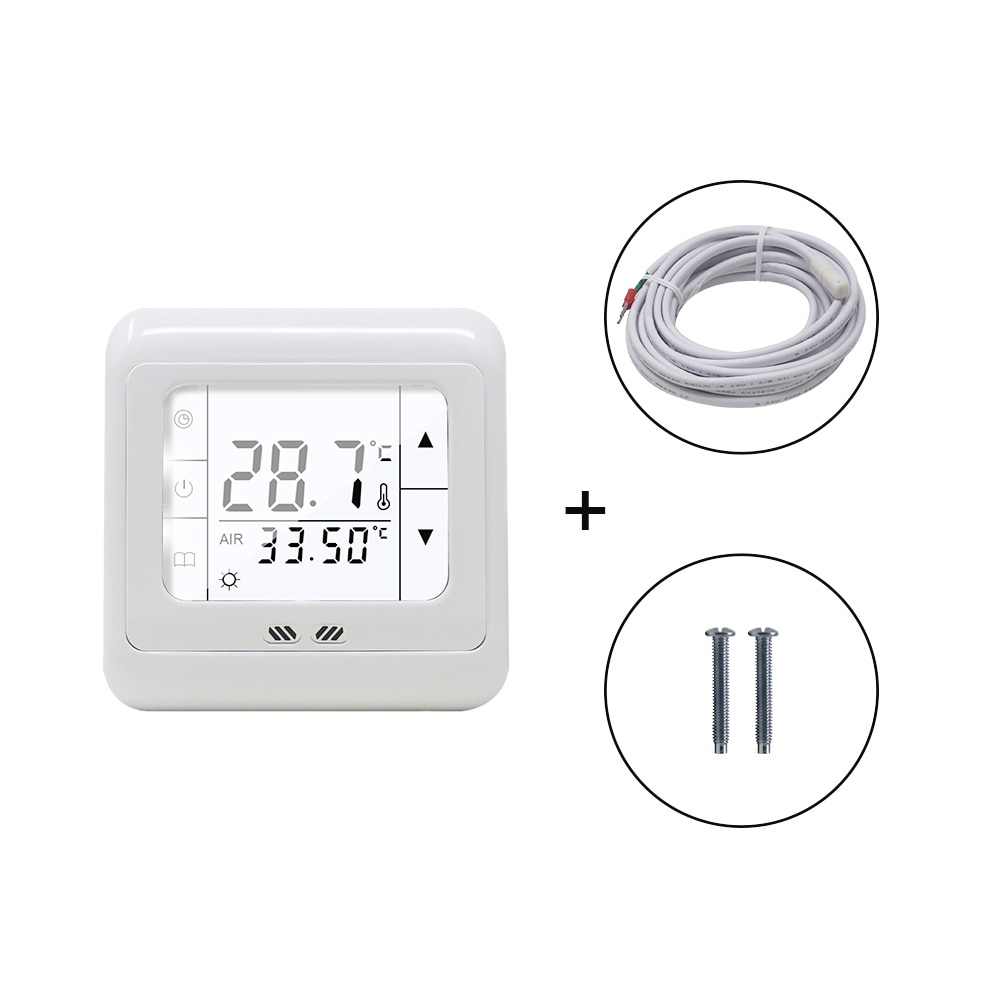

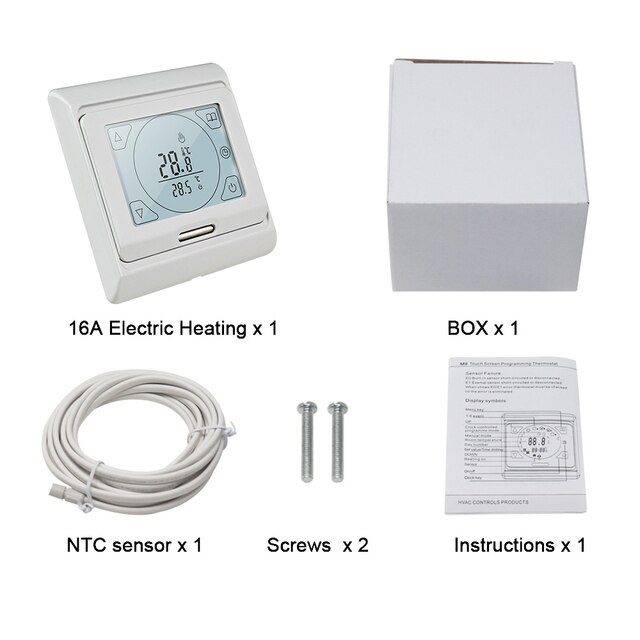

Package content:

• 1 x floor heating thermostat

• 1 x temperature sensor wire

Note :The color of the back might be different from the picture, which does not effect the usage, please understand.

5（Anti-Jamming）

Specifications

• BYL104B Weekly programmable heating thermostat  for underfloor heating system can loop on every week every day.

General

• BYL104B Heating Thermostat with weekly programming adopts the latest single-chip computer control technology. It has the high reliability and powerful anti-jamming.

• Setting daily 4 periods of time and the setting temperature.

• The selection for manual control or automatic periods of time control.

• The application of electric heating of the electric heating equipment and Water heating system of electric heating re actuator control.

• Easy operation and utility.

• Kinds of periods of time modes. 5+2/6+1/7

• The maximum switch power is 3600W.

• Voltage input: AC230V 50Hz/60Hz

• Mini size junction box. It is suitable for the entire world.

• The clock continues when power fail and it won't affect the period of time settings.

• Flame retardant and safe.

• Extra over heating sensor label length: 3 meters

Technical parameters

• Power Supply: 230VAC, 50/60 Hz

• Set point Range: 5 to 35°C (programmable)

• Display Range: 0 to 40.0°C

• Inside Sensor: NTC B=3380 10k @25degrees Celsius

• Extra Sensor: Length=3M NTC B=3380 10k @25degrees Celsius

• Setting Unit: 0.5°C / step

• Indication Accuracy: 0.1°C

• Dimension: 86 x 86 x 12mm ( H x W x D )

• Weight: 175 g/piece

• Inner Box Size: 100 x 100 x 60 mm
