137M-4.4GHz Frequency Synthesizer RF Signal Source Phase Locking Loop Board Frequency Synthesizer ADF4350 Frequency Signal Pwm
0.0 (1 votes) | 2 orders
Price:
US $64.73
/ piece
Discount Price:
US $
38.82
/ piece
-40%
137M-4.4GHz Frequency Synthesizer RF Signal Source Phase Locking Loop Board Frequency Synthesizer ADF4350 Frequency Signal Pwm
Features:
This ADF4350 signal source development board has well designed circuit board layout.
It can be controlled by the upper computer official software.
All control pins are leaded out for convenient operation.
Durable construction for long-lasting performance.
Three-wire serial peripheral interface bus lead to control pin and state locking pin, allowing all functions including point frequency sweep and frequency hopping.
Specifications:
Output frequency range: 137M-4.4GHz
Supply voltage: 4-9V (5VDC)
Output signal:
2.2GHZ--4.4GHz sine (fundamental)
137MHZ--2.2GHz square (fundamental division)
Output signal: wideband output, signal strength: + 5dBm (programmable)
RF connector: SMA female head
Control Interface: Three-wire Serial Peripheral Interface Bus
Reference Clock: 10.000MHZ (default), through the interface to an external SMA
Weight: 16g
Connection:
The module can pin microcontroller LCD1602 / LCD12864 module connection (can be plugged directly Backward), convenient software debugging, both lock indicator (Lock). Pin correspond to the following:
GND ------------------------- GND
VDD (5V) ------------------- VCC
VO -------------------------- NC (empty)
RS -------------------------- NC (empty)
R / W ------------------------- MUXOUT
EN -------------------------- CLK
DB0 ------------------------- DATA
DB1 ------------------------- LE
DB2 ------------------------- CE (has 10K pullup)
DB3 ------------------------- GND (do not take)
Reference Clock:
10.000MHZ default reference clock signal is or an external reference clock signal, you need to modify the three-way connection with a soldering iron, connect EXT_REF external reference signal.
RF output:
For ease of use, the default is broadband output, the output of two differential signals, one way can be used to output use, the other way can be used to monitor the output.
Package Included:
1 x RF Signal Source Frequency Synthesizer
Note:

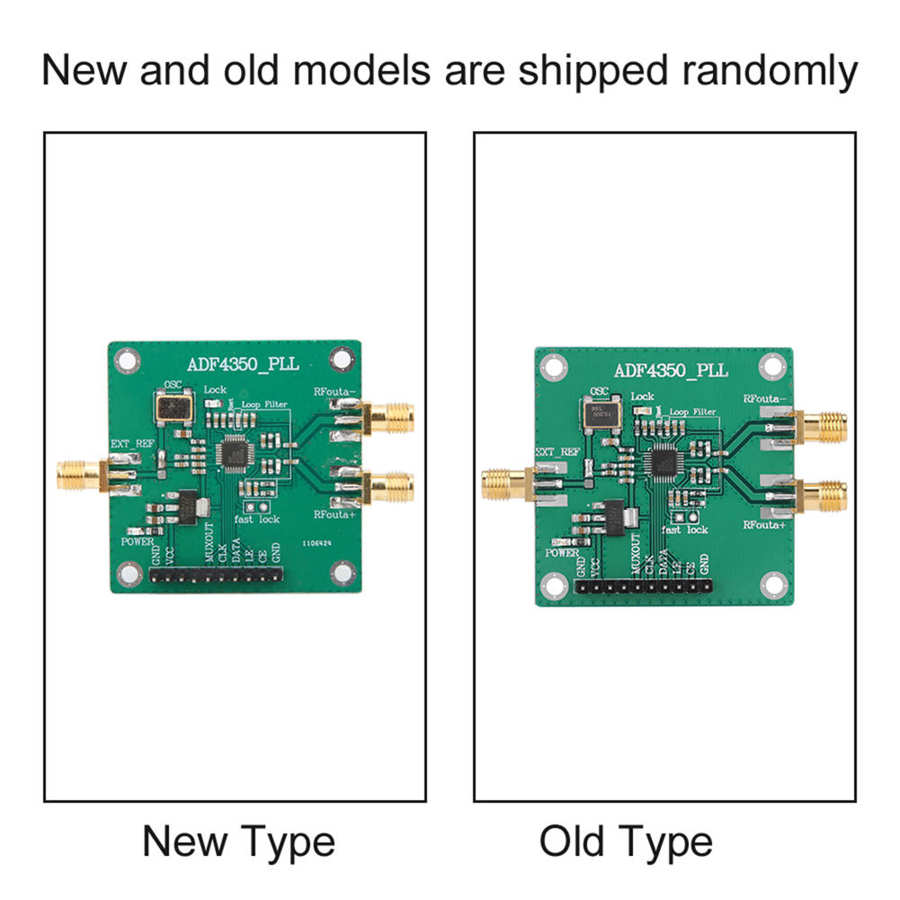

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
- Model Number: Frequency Synthesizer
- DIY Supplies: ELECTRICAL
- Brand Name: ZJCHAO
- Origin: Mainland China
- Certification: CE
- Product name: Frequency Synthesizer
- Type: Frequency Synthesizer Development Board
- Feature1: Phase-locked loop Board
- Item: 137M-4.4GHz Frequency Synthesizer
- For: 137M-4.4GHz Development Board
- Supply voltage: 4-9V (5VDC)
- RF connector: SMA female head
- Weight: 16g
- Feature2: RF Signal Source Frequency Synthesizer
- Control Interface: Three-wire Serial Peripheral Interface Bus
- Reference Clock: 10.000MHZ
- Stock: 100% high quality in stock
- Drop Shipping: Yes
