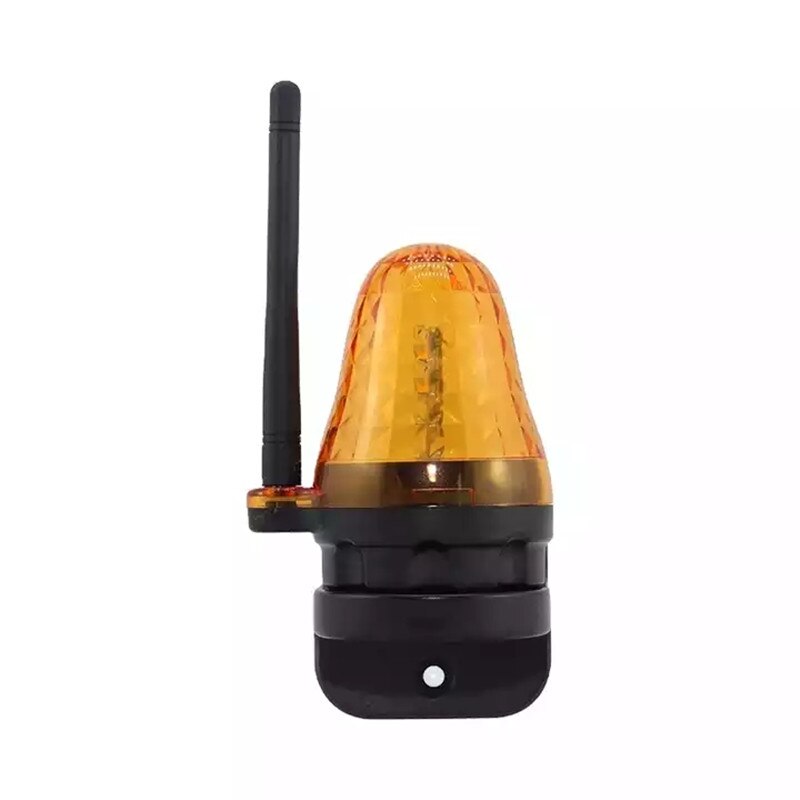

220VAC Bulb flashing alarm lamp light blinker strobe for automatic swing sliding garage gate opener(no sound)
31.14 29.72 $
SALE
ID: 91588
Quantity
12-265V AC DC outdoor LED Signal Alarm Light Strobe Flashing Emergency Warning Lamp wall mount for Automatic Gate Opener
5.0 (3 votes)
Price:
US $49.15
/ piece
Discount Price:
US $
30.15
/ piece
-39%
Safety Instruction
1.For security, please read the user manual carefully before initial operation;
2.Please be sure the power is off before connecting, the product is produced without fuse;
3.This system must not endanger life or property during the running failure or its security risks
have been eliminated.

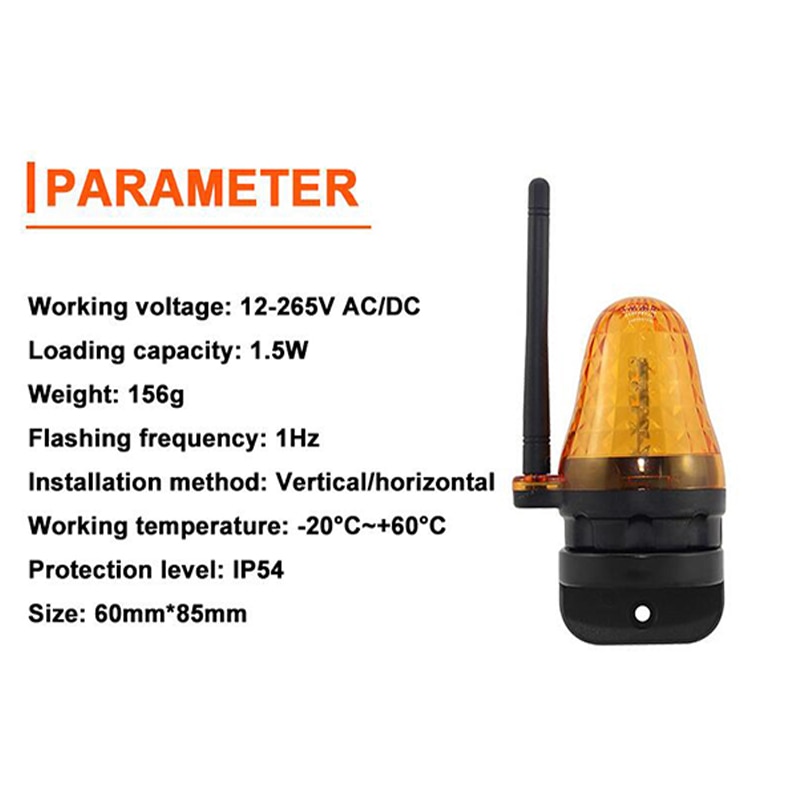

Specification
Working voltage: 12-265V AC/DC
Loading capacity: 1.5W
Weight: 156g
Flashing frequency: 1Hz
Installation method: Vertical/horizontal
Working temperature: -20°C~+60°C
Protection level: IP54
Size: 60*85mm
Notice：
1,Terminal 1 is for connectino thepower input; working voltage is 12-265VAC/DC.
2,Terminal 2 is for connecting the antenna of RF controller to extend the effective working distance
Instruction:
After power the lamp on, LED will start fashing in 1HZ(default setting).
sW1 is the switch for selecting flashing or on mode of the lamp.CAP short connectsthe 2 pins; the lamp is in flashing mode. Remove the CAP from 2 pins, the lamp is inon mode.

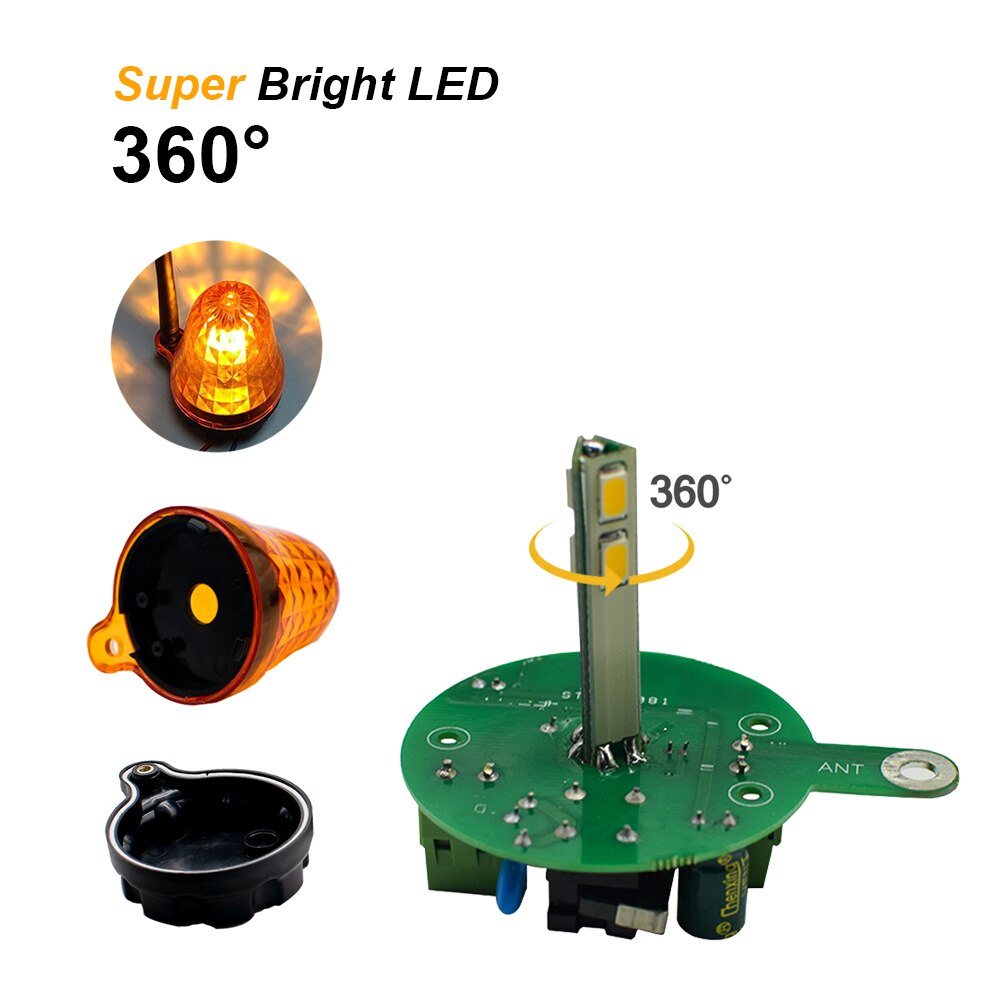

Be Careful, the whole board includes the components are with high voltage. Alwaysmake sure power is off before you open the cover
Installation
Open the package; take out the products and all the accessories. Removing the antenna by rotatinganticlockwise.
Mark 2 holes on the wall by using the fixing hole of bracket.
Drilling two 6mm diameter holes and one 10mm diameter hole. Then put the expansion plug intothe 6mm diameter holes. Put the wires through 10mm diameter hole.
Put the power wire and antenna through the cable holes in the holder. And fix the holder to thewall by provided 4mm*30mm self-taping screws.
Connect the wire and antenna to the correct terminals.
Put the cover back and make sure the cover is fastened with the bottom base without any gap.Then screw the antenna up and turn clockwise to make it tight.
Always install the holder and lamp upright to the ground. Horizontally installation may cause therain go inside the lam and damage the board.

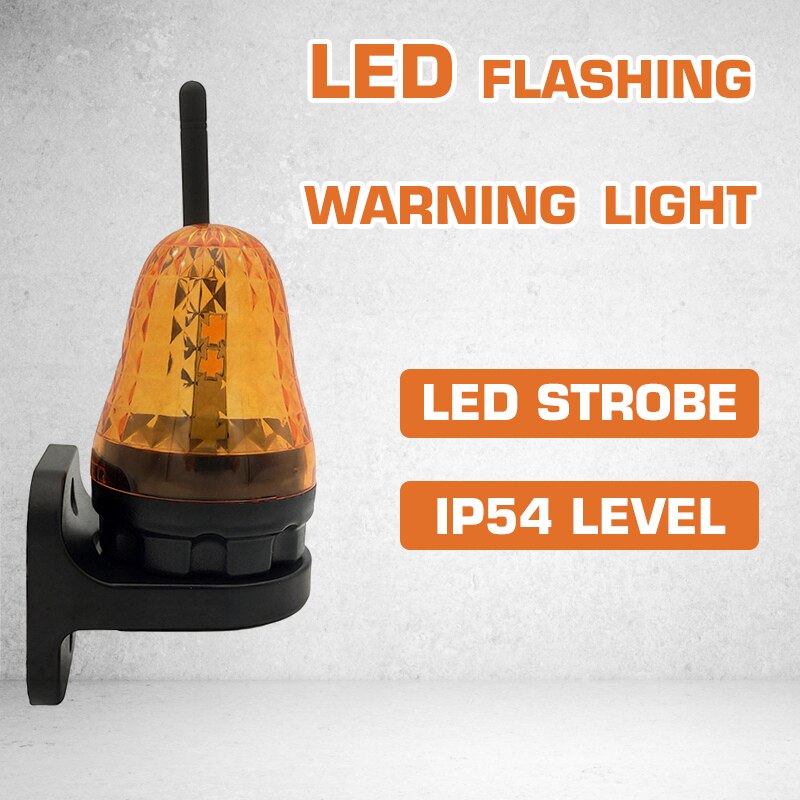

Mutiple Voltage Flash Lamp

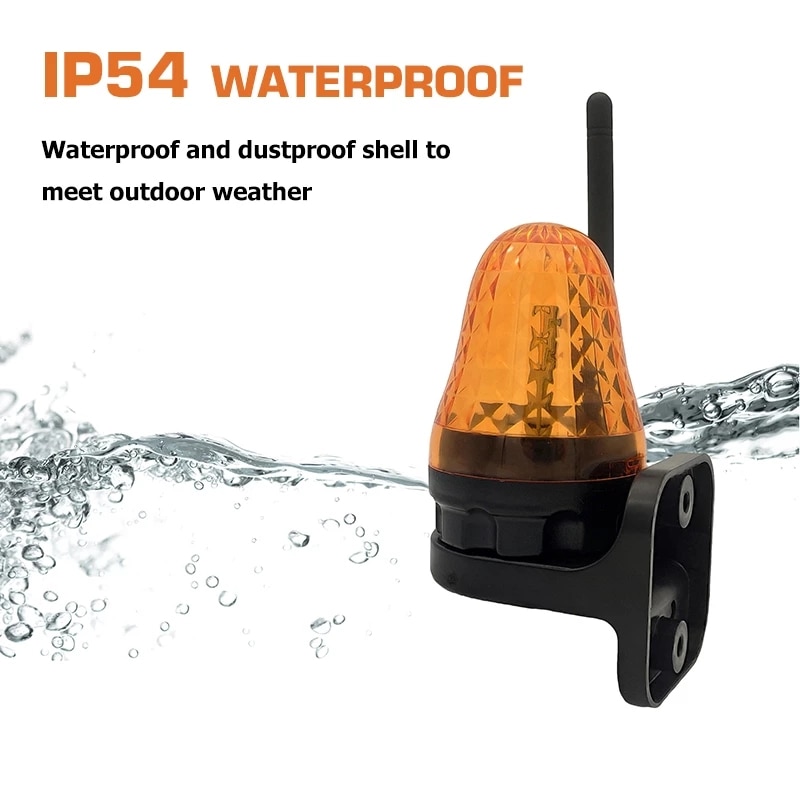

Antenna This is used to extend the effective distance of controller Waterproof and dustproof It is made of plastic material IP 54 .
wide range of uses:
Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e. lights, Alarm system, access control system
Terms Of Sale:
Please read and understand before bidding or buying.
Return of Faulty & Non Faulty Goods
All products are individually inspected before being dispatched, to ensure items are sent out in perfect condition.
Item must be returned within 15 days of After receiving
Item must be returned unmarked and in the Original Packaging
The package contains:
1X flash lamp
1X antenna
2X Screws
1 X English User Manual
Shipping:
Please ensure your delivery address is correct.
Items will be shipped within 48 hours after payment is received / cleared (except weekends and holidays).
Contact Us
If you have any questions please ask me. I will reply within 24 hours.
In the rare event that you have a problem with your item we strongly recommend contacting us before leaving negative or neutral feedback.
We will be happy to help with your problem.
- Model Number: S1
- Brand Name: KUANGZIPENG
- Origin: Mainland China
- Certification: NONE
- Power supply: AC/DC 12-265V
- color: yellow
- Name: flash lamp
- Temperature: -20℃~+60℃
- lnstallation: Vetical/Horizontal
- Light color: Orange
- IP level: IP54
