110V/220V 10KG Rotary Welding Positioner Turntable Table Mini 2.5" 3 Jaw Lathe Chuck
0.0 ( votes)
Price:
US $
818.00
/ piece
- Ships From

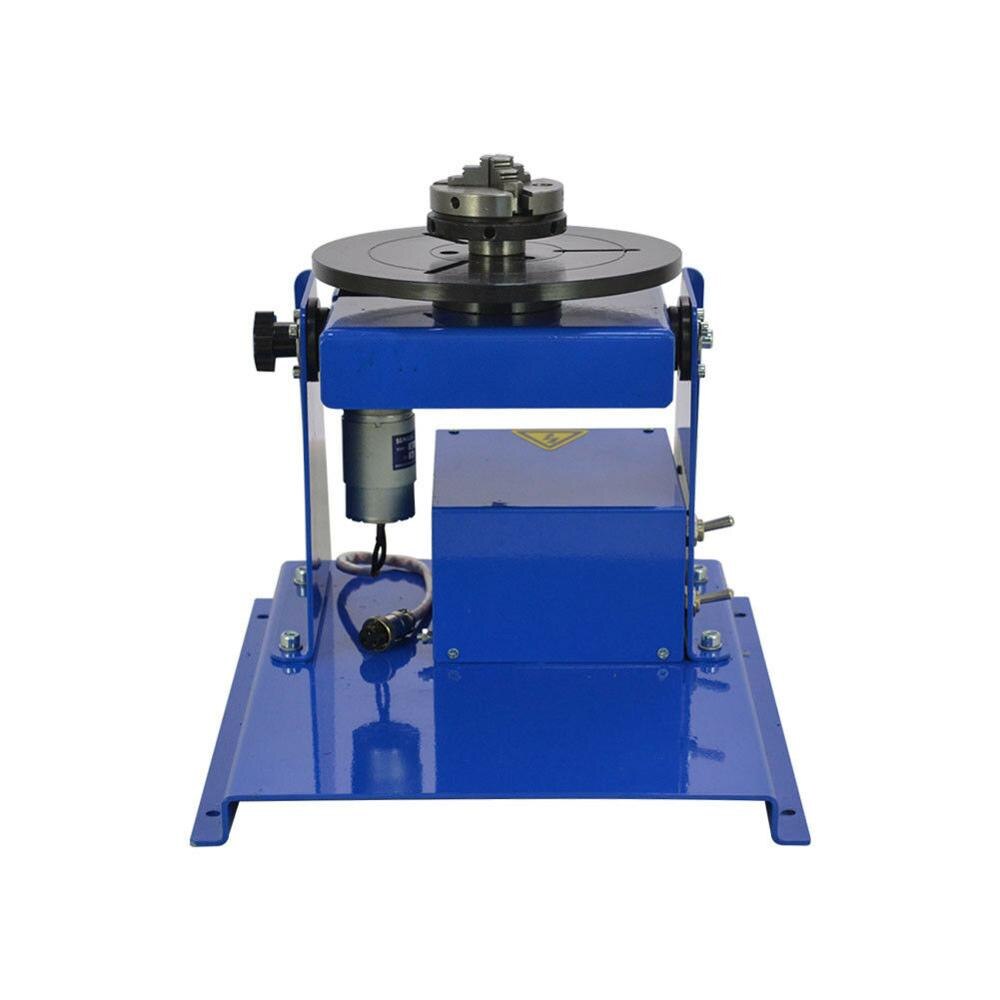

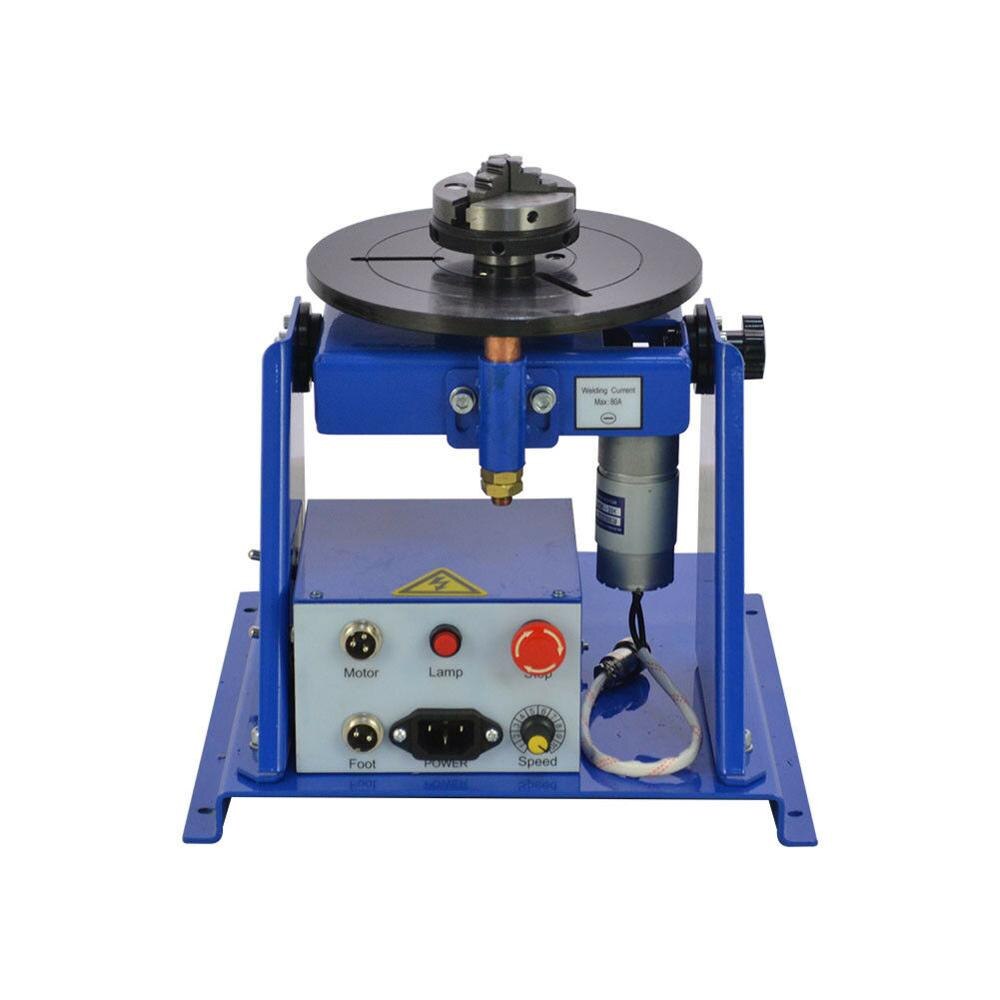

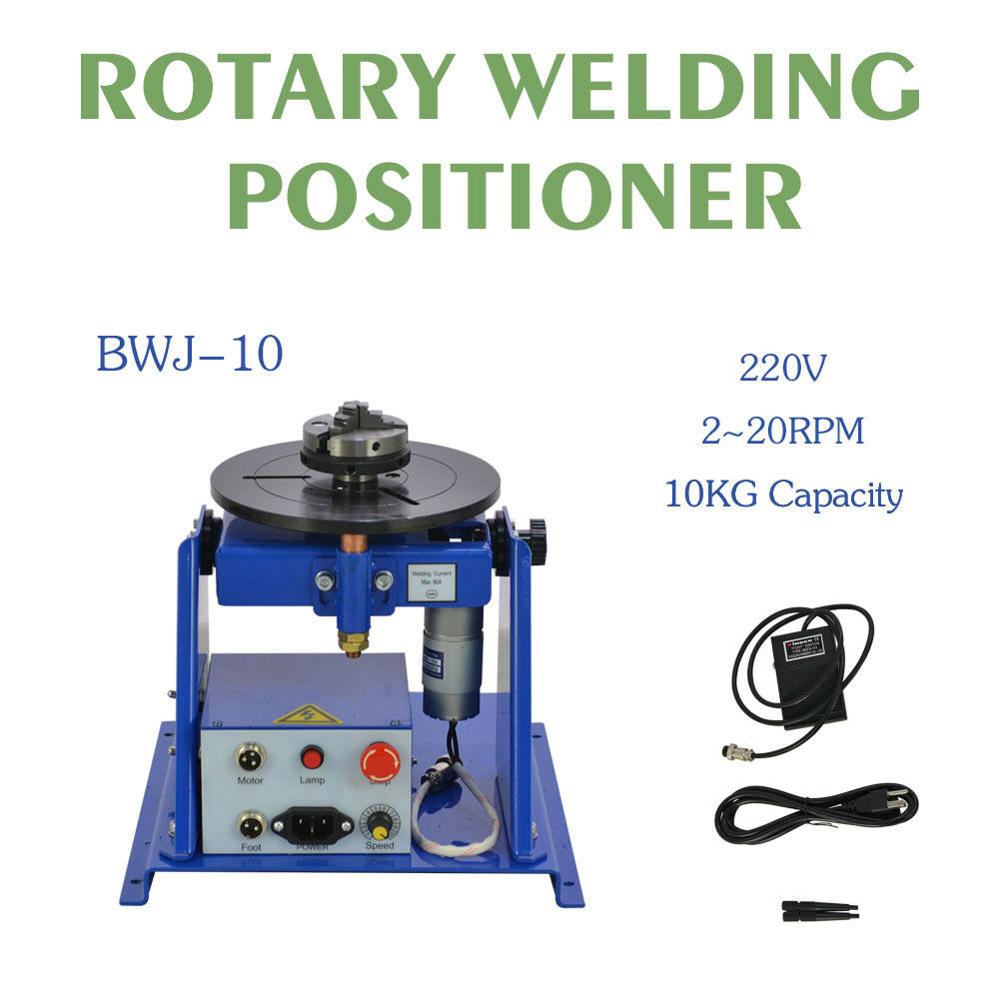

Rotary Welding Positioner Turntable Table Mini 2.5" 3 Jaw Lathe Chuck
Note: the speed can be adjusted with the yellow knob
Description:
BWJ series Light Positioner is mainly used for welding of annular weld. The main function of the machine is to tilt, turn the workpiece, so that the weld in the horizontal, ship-shape, such as the best position to apply welding. The device can be fixed on the working table or specific tooling for clamping workpiece with manual welding, can also be used with welding operation machine to achieve automatic welding, but also for cutting, grinding, assembly, testing and other processes.
Specifications:
Model: BWJ-10
Input voltage: 220V 50HZ for European countries and other countries, 110V for USA/Canada/Mexico
Horizontal loading capacity：10KG
Vertical loading capacity：5KG
Working table tilting angle：0-90°
Table diameter: 180MM
Worktable height: 230MM
Worktable speed: 2-20 r/min

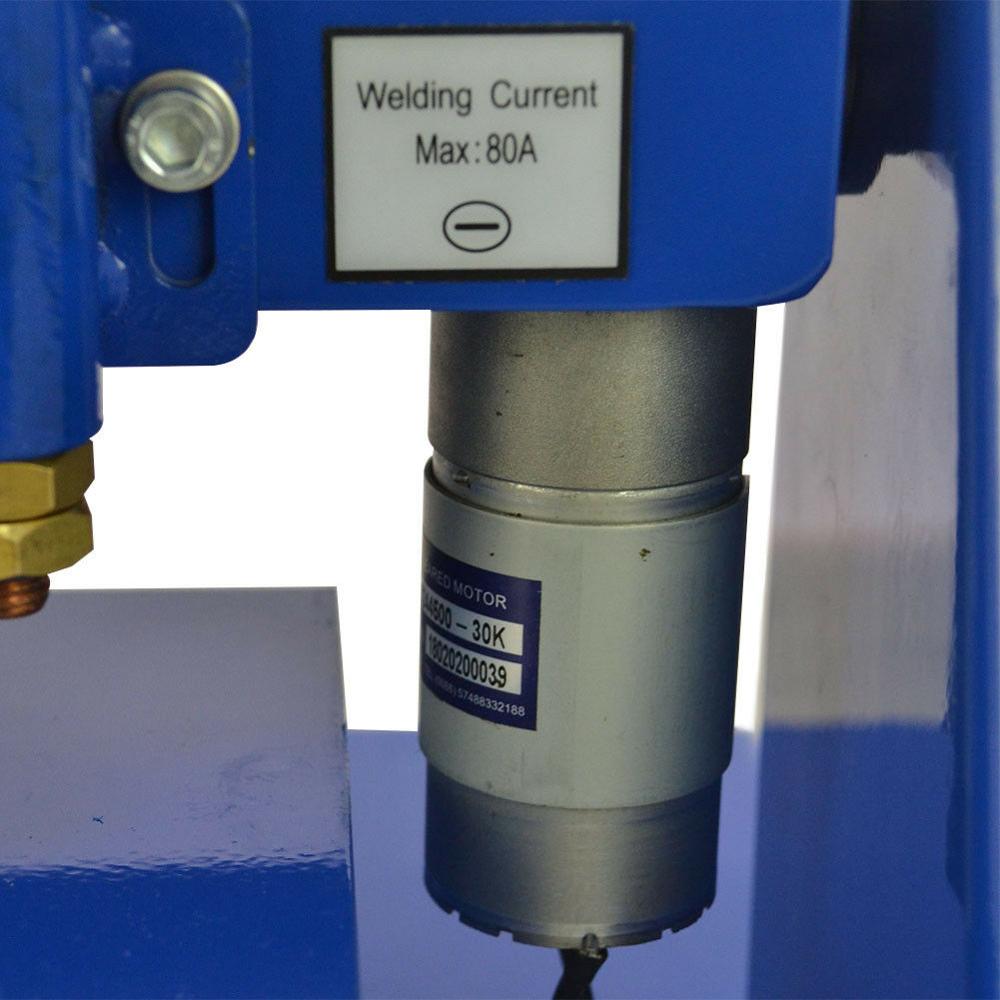

Rated welding current：80A
Drive motor: DC24V 15W
Workbench rollover: Manual
Rotary motor: 15W

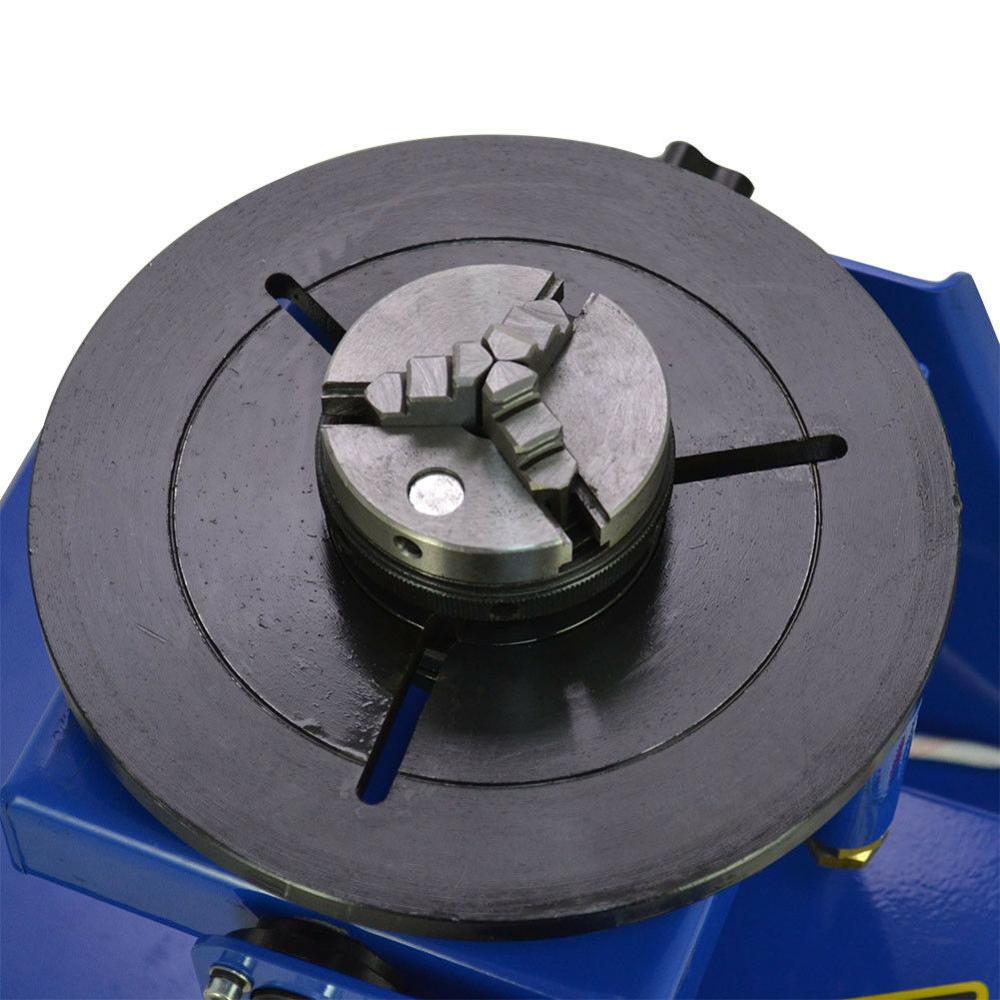

Chuck: 2.5" 3 Jaw Lathe Chuck (XH65)
Dimensions: 270 * 270 * 280mm
Features:
1. Speed regulation. The standard Worktable speed is 2-20 r/min.
2. Structure of precision, easy to operate, flexible to use.
3. Especially suitable for under 10KG flange, steel pipe and other seam welding.
4. High-quality DC motor, the worktable running smoothly, welding speed can be stepless regulation, large adjustment range, high adjustment precision;
5. Light weight, easy to use, handling, easy to operate;
6. Clamp and worktable Choose simple mechanical connection way, high positioning accuracy;
7. Using foot switch control table rotation, easy to control rotation;
Package include:
1x Rotary Welding Positioner Turntable Table
1x Foot pedal
1x Mini chuck
1x Power line
Warranty:
We offer one year warranty. Within warranty period, all exchanges or repairment due to defects are free(Buyer is responsible for shipping charges).
Express delivery:
We will ship the goods by FEDEX/DHL/EMS express and other commercial expressto you and e-mail tracking number immedicately.Shipping time will depend on location and the shipping method.Please note that if your address is too remote to achieve, there will be an extra remote surcharge.
FEDEX shipping time: 5-10 working days depend on your location
DHL shipping time: 5-8 working daysdepend on your location
EMS shipping time: 10-25 working daysdepend on your location
For Russian customers, we can send the machine by CDEK and it is commercial and also easy to do with the customs clearance, transit time: 25-40 working days. But dear customer, if your address is too remote to achieve by CDEK, there might be remote surcharge occurs. But please do not worry about that, we are always willing to refund all your money back if you do not need it anymore. And we would be really appreciate if you check with usfor that in advancewith your city and post code.
For USA,please note: American regional AK, HI, PR, are remote areas. These places will be charged extra postage. Please send a message to us before buying.
Purchasing instructions:
At the time of purchase, please include your contact phone number in your Paypal comments area. A contact phone number only for shipping purposes. (International delivery required your sign so we required.
we are honor and responsible seller.we always try our best to offer best quality and service to buyer with our 100% sincerity.Hope you will love our items.Pls don't leave us negative feedback or low rate or open a case without any communication if there have problem,if you satisfy with our items.Pls leave a good feedback with 5 star to us.thanks so much in advance.
if you don't receive the item or item lost in the delivery.we will refund you full money.
International Buyer.pls Note:
b.Import duties,taxes and other charge are not included in the item price or freight,These charges are buyer's responsibility.
c.please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.
The buyer from brazil.ukraine.russia.pls contact with us about the freight before you buy our item.
Technical support:
we have a professional technical support group for all of our items selling.if you have any technicalproblem on our items.Pls feel free to contact with us.our technical support always beside you.
Thanks for your visiting
- Model Number: BWJ-10
- Origin: Mainland China
- Certification: CE
- Horizontal loading capacity: 10KG
- Vertical loading capacity: 5KG
- Working table tilting angle: 0-90°
- Table diameter: 180MM
- Worktable height: 230MM
- Worktable speed: 2-20 r/min
- Rated welding current: 80A
- Drive motor: DC24V 15W
- Workbench rollover: Manual
- Rotary motor: 15W
- Chuck: 2.5" 3 Jaw Lathe Chuck (XH65)
