1M Alligator Cilp to AV Banana Plug Test Cable Lead Connector Dual Tester Probe 35mm Crocodile Clip for Multimeter Measure Tool
9.95 $
SALE
ID: 44022
Quantity
10pcs 2pin Pluggable Wire Connector Quick Splice Electrical Cable Crimp Terminals for Wires Wiring 22-20AWG LED Car Connectors
4.9 (666 votes) | 5674 orders
Price:
US $12.11
/ 10 Pieces
Discount Price:
US $
10.24
/ 10 Pieces
-15%
Pluggable Wire Connector 2 Pin for Quick Splice, Non-stripped crimp terminal for 0.34~0.54 / 22~20AWG Wire 12~36V,9A,CE and RoHS
DIY connector with wire as you want
Be able to unplug after connection
Electrical Professionals' View
" This wire terminal connector allow user to easily DIY a pair of connector for their electrical equipments. All the tools you need to assemble this terminal connector to wire is a pliers, no stripper nor electrical tape needed. It is the most flexible solution of electrical wire connection which free user from length limit of pre-fixed-wire connector like DC connector, pin connector or JST style connector, etc. With the help of this terminal wire connector, users can focus on arranging positioin of electrical equipment instead of including wire length into their project consideration. Further more,the plugable design allow user to disconnect power during mantenance or replacement of equipment. "

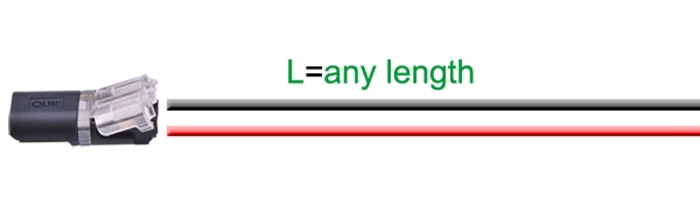

Extend Wire As You Want

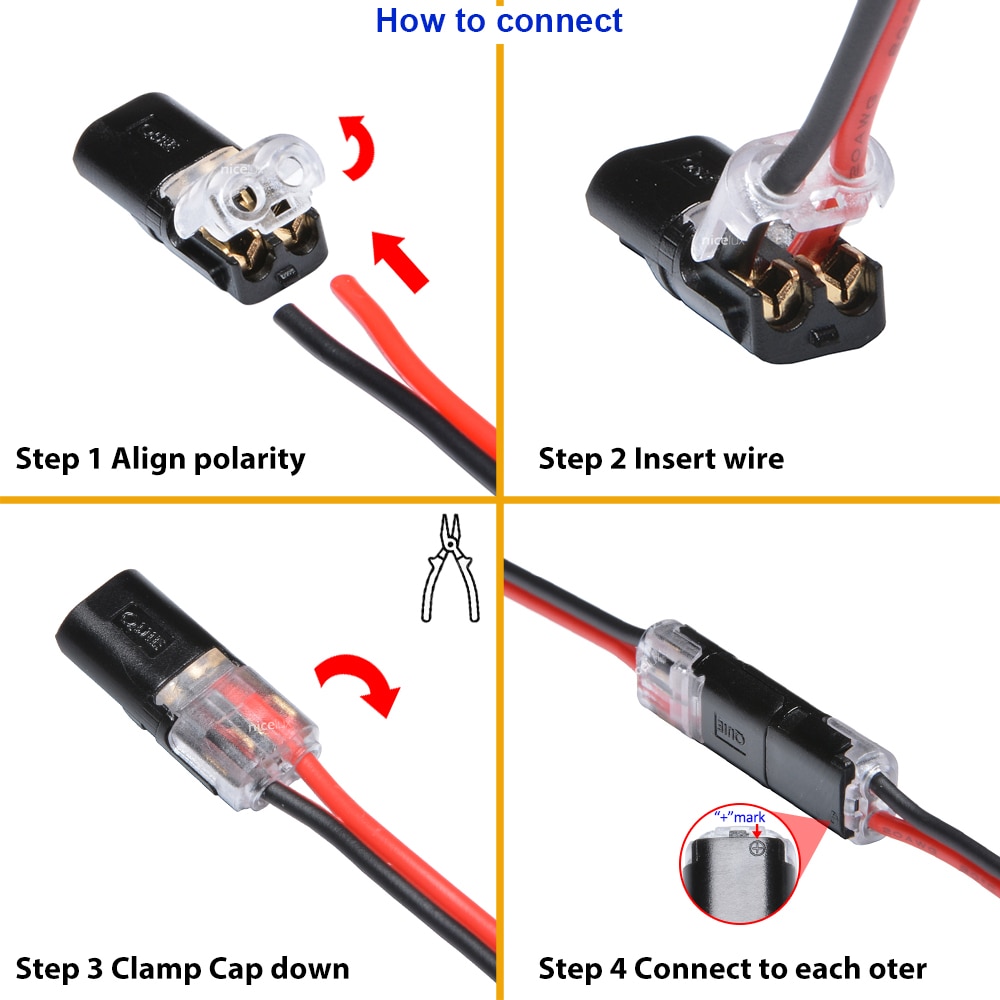

Very EASY TO USE

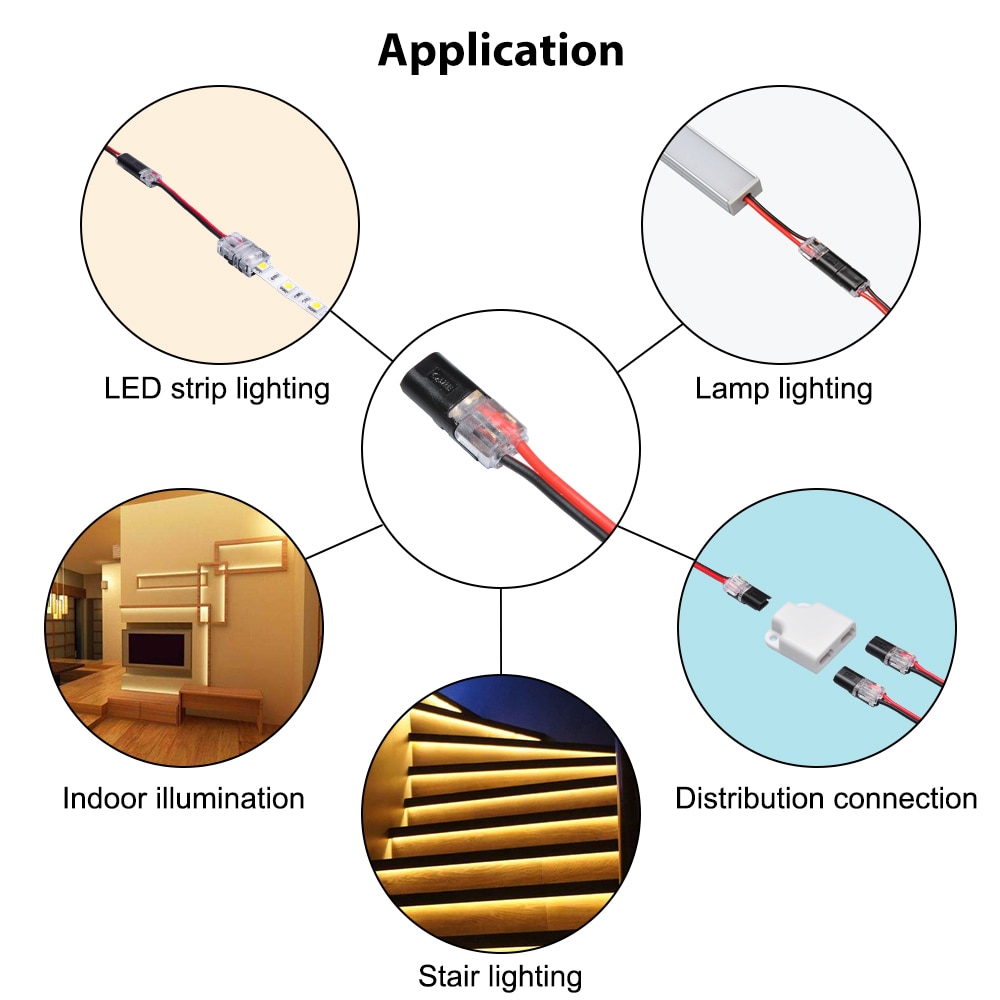

Widly Applicable

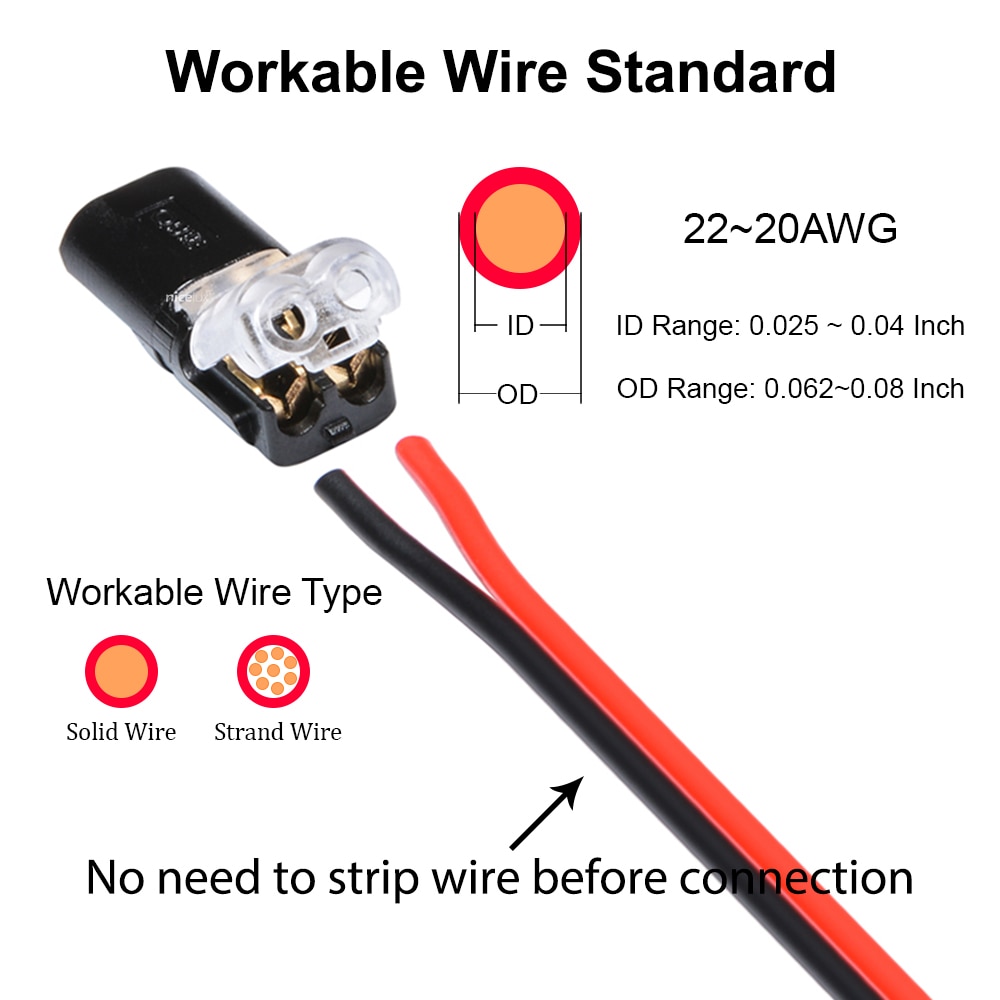

Note: 1 Inch=25.4 mm; 22~20AWG = 0.34~0.54 mm2
Positive Mark
Related Products
Package Include

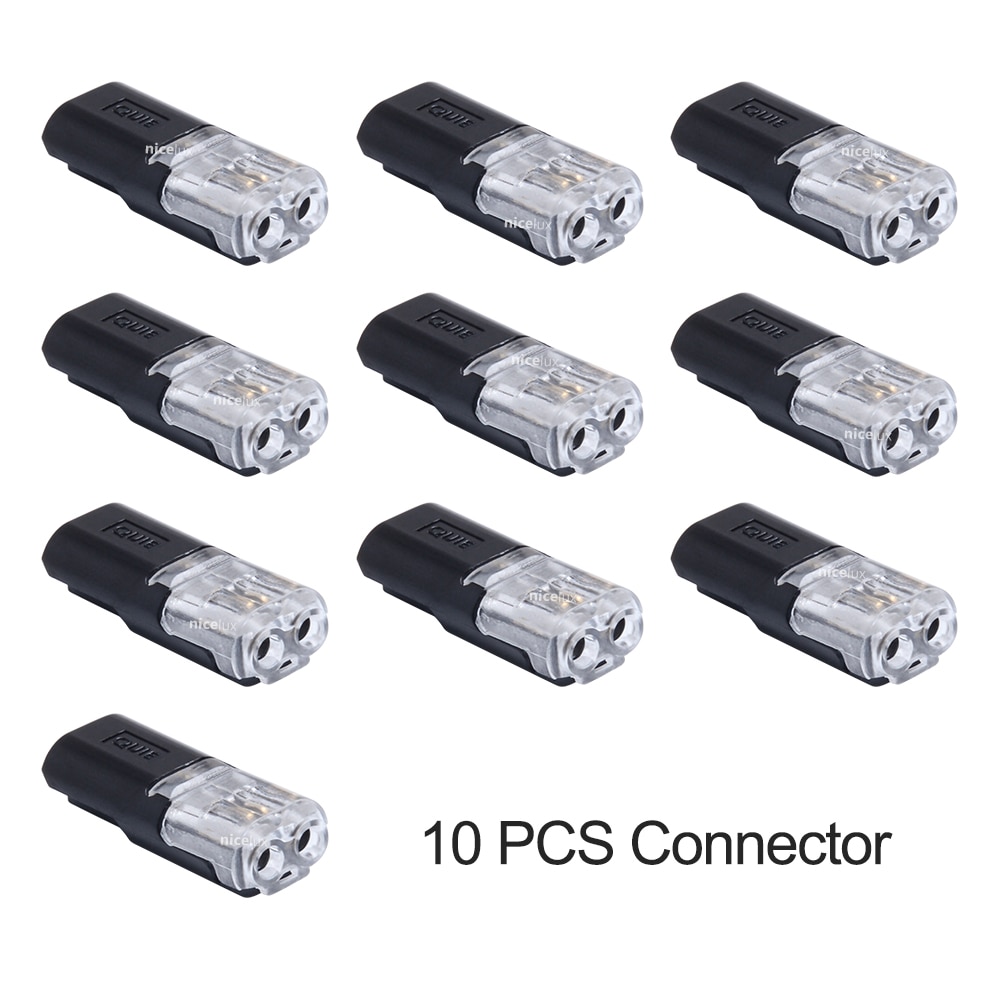

10x Cable Terminal Connector
1x User Manual
Questions & Answers
Q: Can this connector terminal be used to connect teflon wire?
A: Yes, it is workable
Q: Does it work with silicon insulation wire?
A: No, Silicon insulation is too soft, so the pressure to the blade is not enough for cutting insulation through, thus the blade(pin) can not contact the wire conductor inside.
Q: Which is male and female ?
A:male and female is same to this connector. Each one can connect to each other
Q: What is the IP rated level ?
A: This connector is IP20 which is non-waterproof.
About Brand
Nicelux is a leading LED accessory online brand. The main products we offer are Connectors for wire and LED strip connectors, etc.
- is_customized: Yes
- Model Number: PWJD2T
- Type: Splice
- Origin: Mainland China
- Certification: CE,RoHS
- Alias Name: Pluggable Wire Splicer
- Working Voltage: <36V
- Working Current: Max 9A
- Workable Wire Type: Flexible and Rigid / Strand and Solid
- Workable Wire Gauge (Cross Section): 0.34~0.54 mm2 (22~20AWG)
- Ingress Protection Rating: IP40
- Flame Retardant Rating: UL94v-0 (highest level)
- Certificate: CE & RoHS
- Material: PC & Copper
- Color (cap/base): Transparent / Black
- 5 pairs: 10 pieces,10 total elements!
