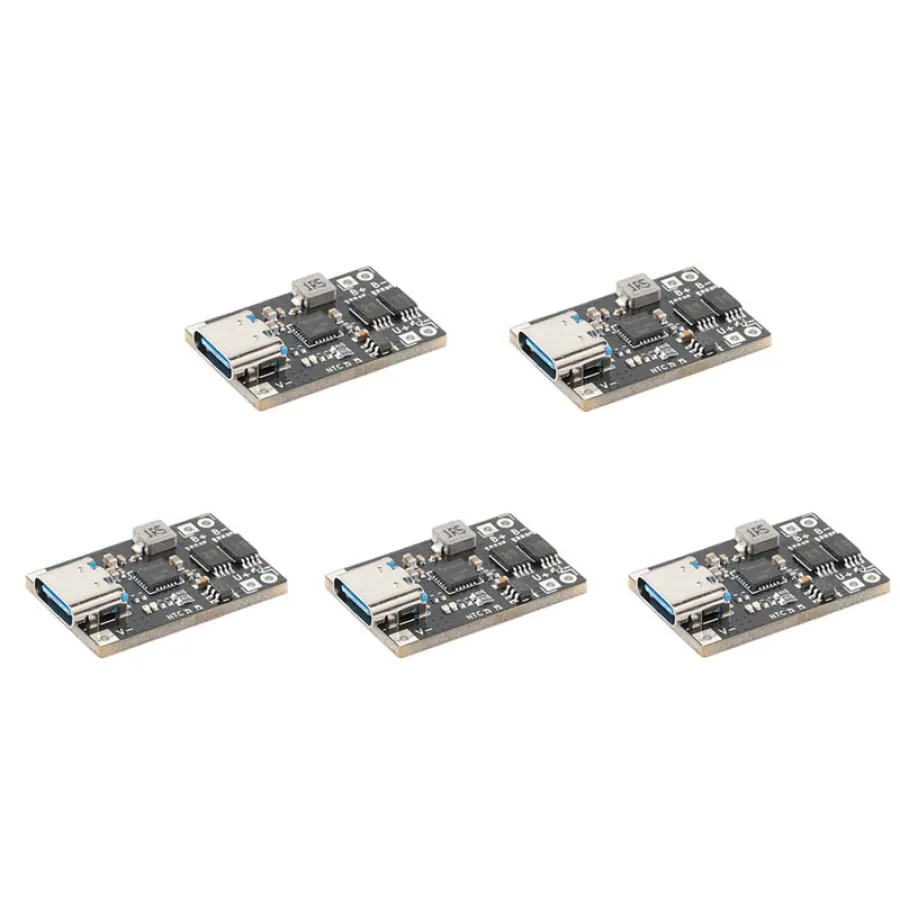

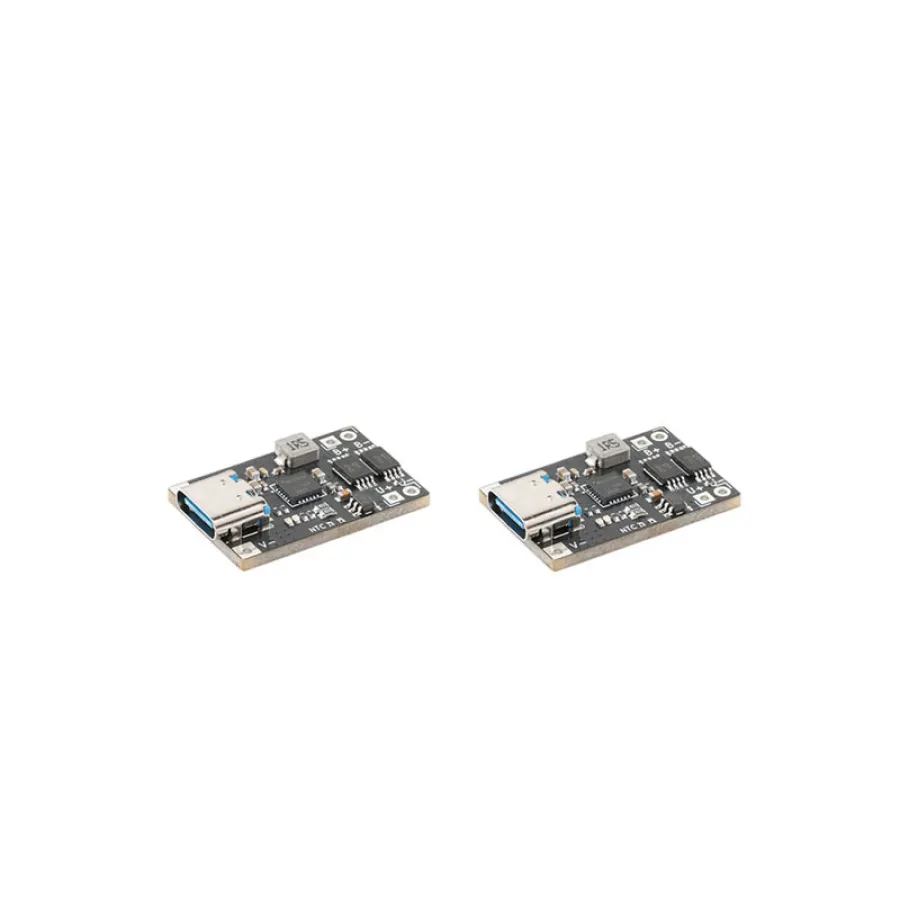

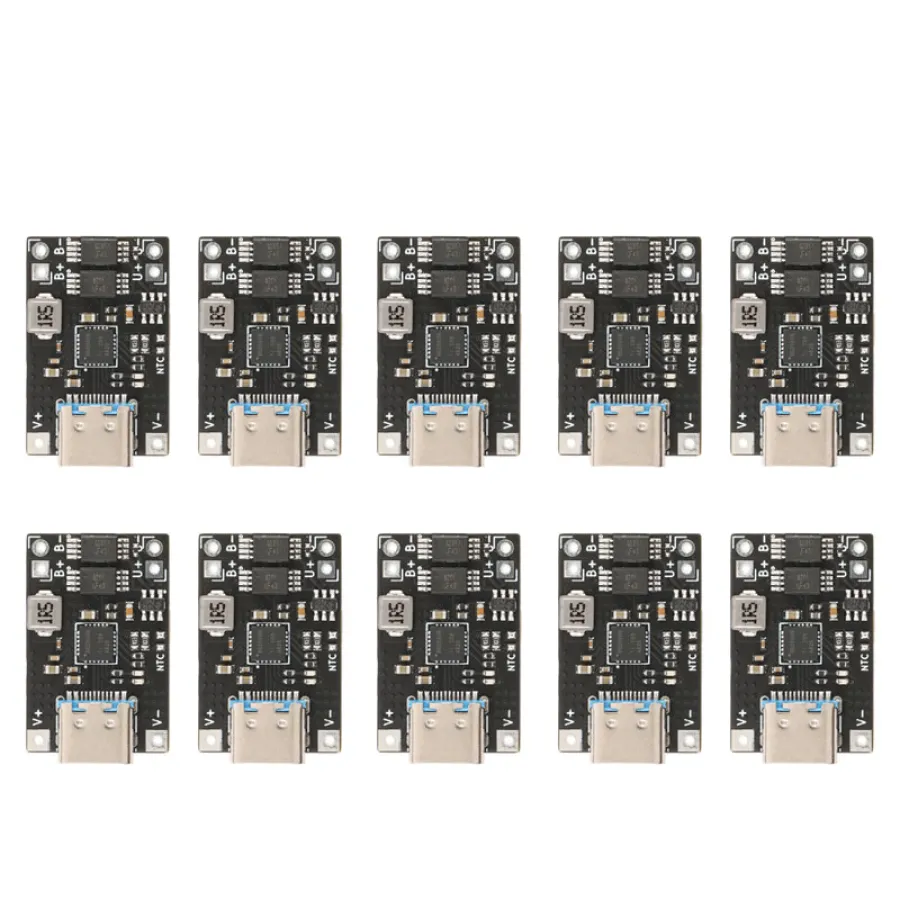

10Pcs/1pcs 5V TYPE-C USB 3A Lithium Battery Charger Module Charging Board With Protection Dual Functions 3A Li-ion
4.8 (63 votes) | 273 orders
Price:
US $24.36 - 53.60
Discount Price:
US $
23.24 -
43.85
-5%
- Color
-
-

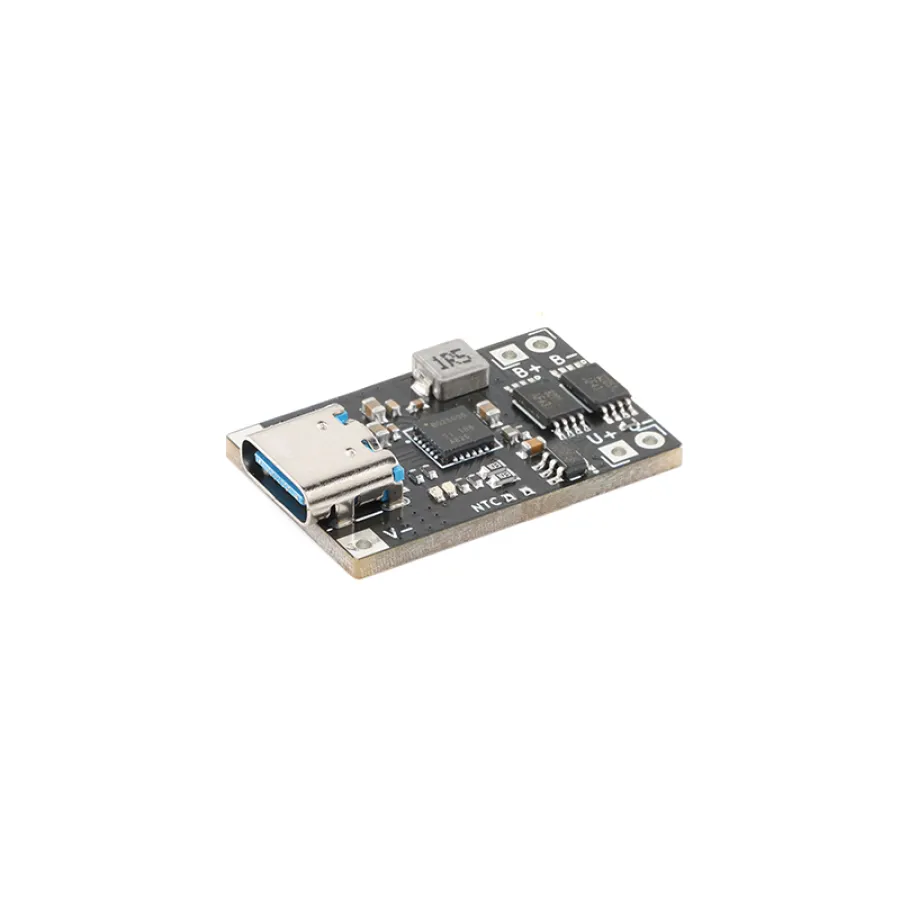

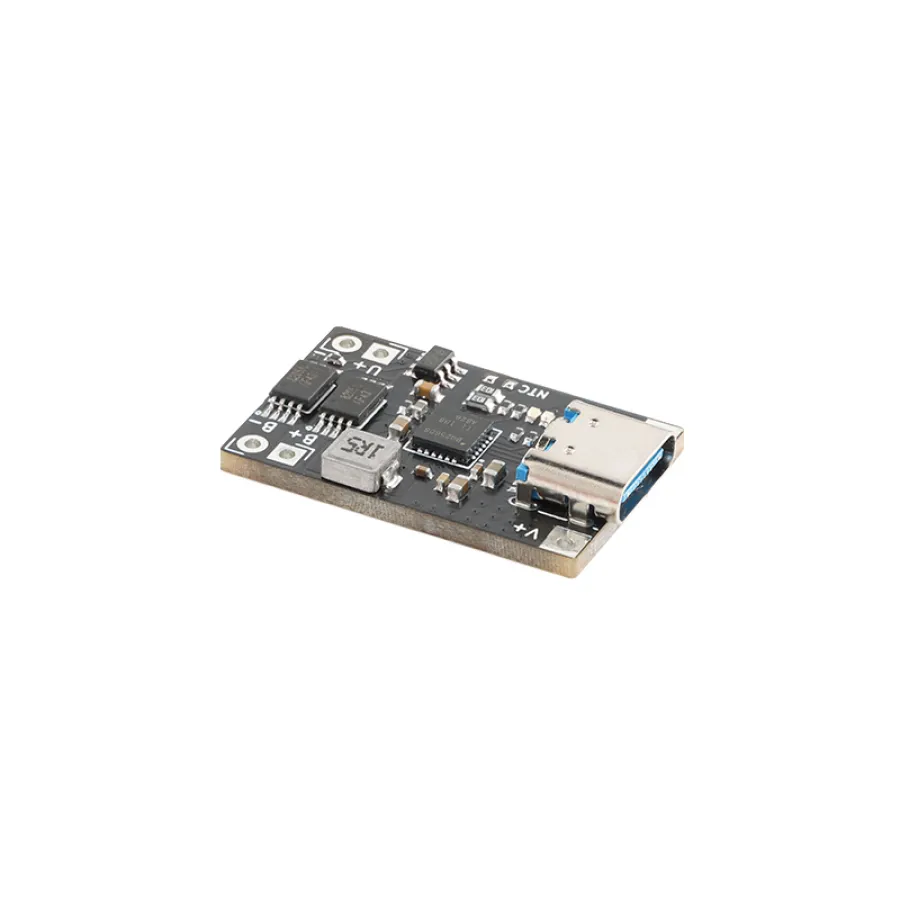

-Module Introduction

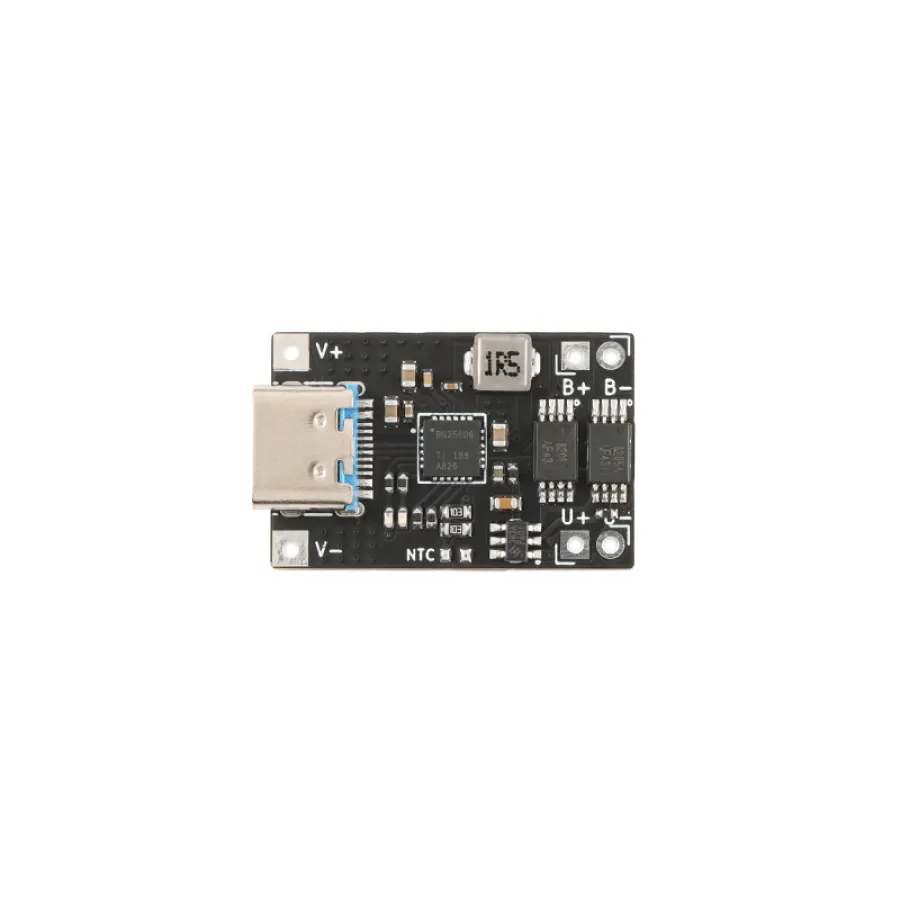

This module adopts the TI dedicated battery charging chip BQ25606 voltage reduction scheme, with high output efficiency and stable performance,
Equipped with overcharge and discharge protection. Type-C interface input, input voltage range 4.5-12V, maximum output current
3A, very suitable for nominal 3.7V lithium battery charging. The board is equipped with a red LED charging indicator light and a blue LED status
Indicator light, which can visually observe the charging status of the module and battery.
Parameter Introduction
Module type: Step-down power supply
Input voltage: DC 4 5-12V
Charging cut-off voltage: 4 2V ± 1%
Maximum charging current: 3000mA
Battery over discharge protection voltage: 3V
Battery overcharge protection voltage: 4 2 ± 0.05V

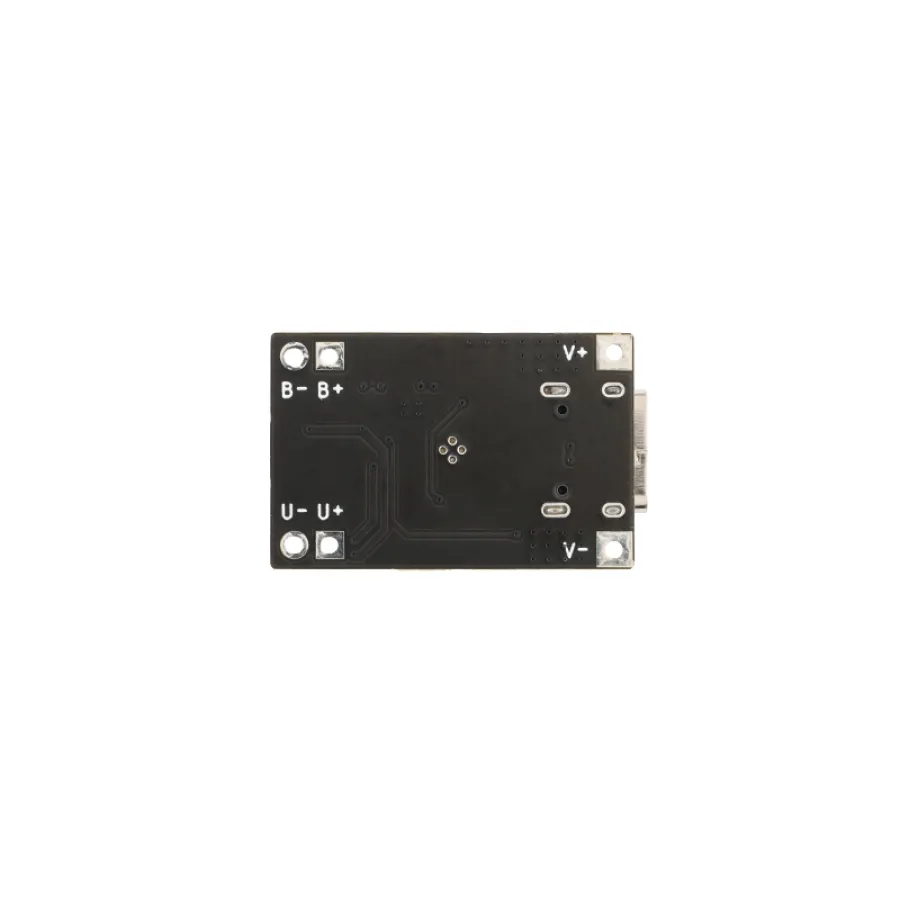

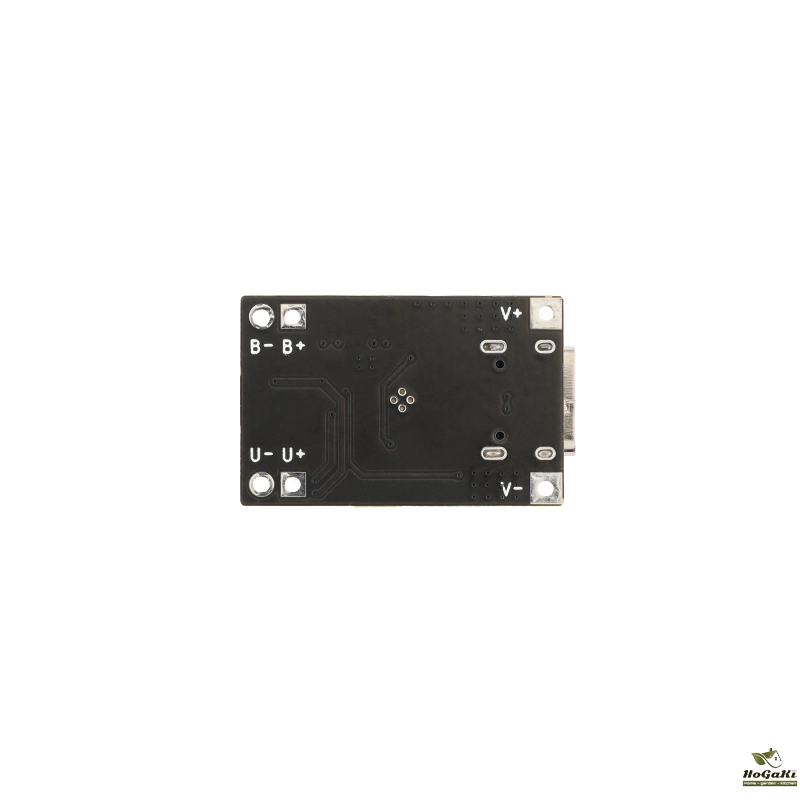

Module interface: solder pads (can also be connected to 2.) 54mm needle arrangement)

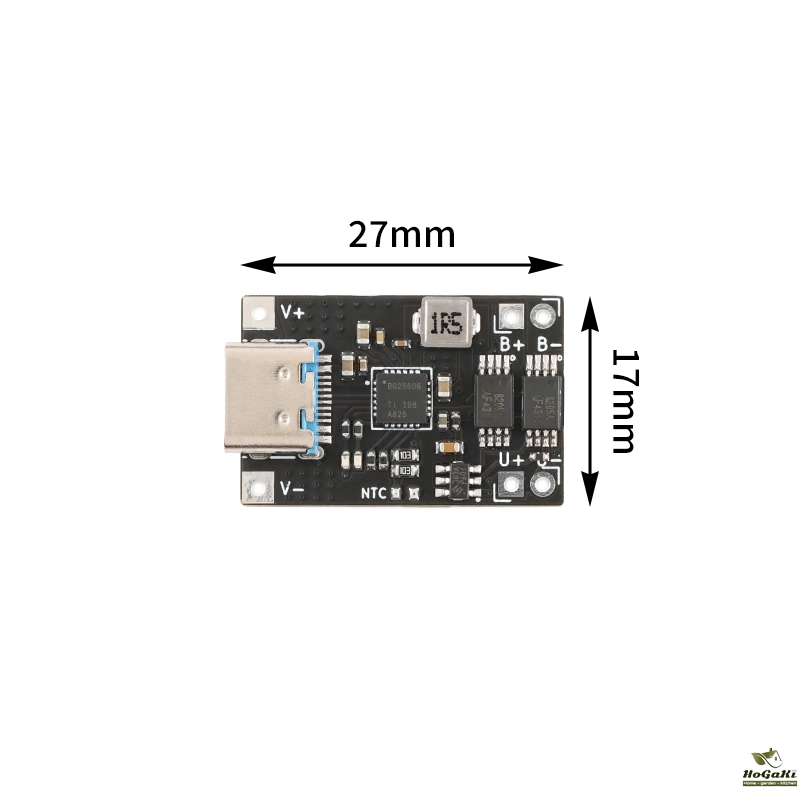

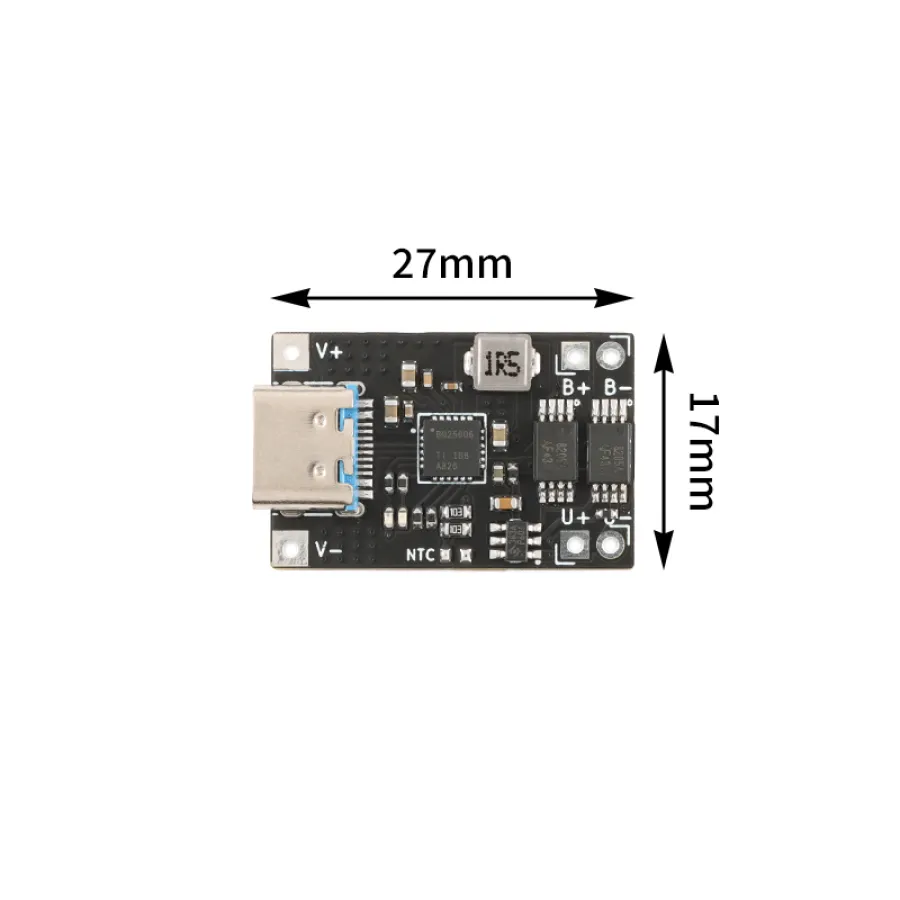

Module size: 17.1 x 26 2mm (manual measurement with deviation)
Packaging Details
- Unit Type:
- Package Weight: 0.035
- Package Size: 5x3x4
- Brand Name: Your Cee
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: 3A lithium battery charging module
- Phase: Lithium LiPo Battery Charger Protection Circuit Board
- Coil Structure: 5V 3A TYPE-C USB Buck Step-down Power Charging Module
- Use: Buck Step-down Power Charging Module

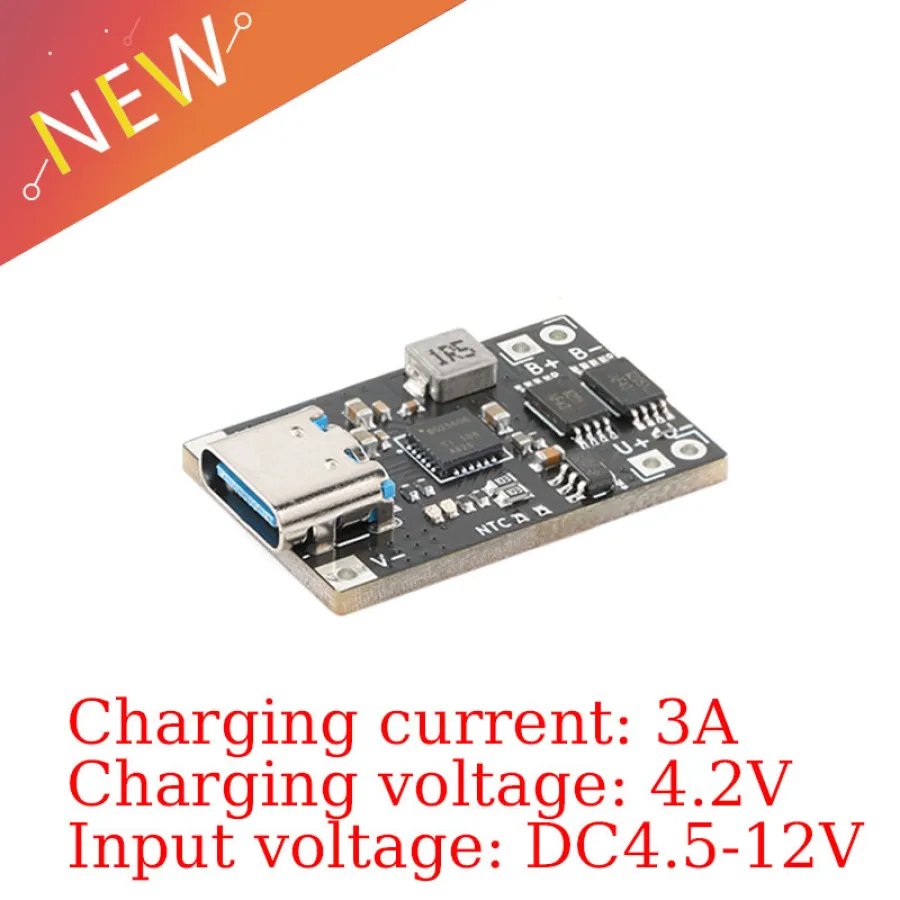

- Type: Charging current: 3A Charging voltage: 4.2V Input voltage: DC4.5-12V
- Type 2: 5V 3A lithium battery charging module
- 5V 3A TYPE-C USB Buck Step-down Power: Charging Module Lithium LiPo Battery Charger Protection Circuit Board DIY Mobile
- 5V TYPE-C USB 3A Lithium Battery Charger Module: Charging Board With Protection Dual Functions 3A Li-ion
- 5V 3A Step Down Buck Power Charging Module: TYPE-C USB Lithium LiPo Battery Charger Protection Circuit Board
