100m Can shipped from Russian Ukraine Poland 12K Silicone Rubber Infrared Carbon Fiber Electric Warm Floor Heating Cable 33ohm
SALE
ID: 44090

100m Can shipped from Russian Ukraine Poland 12K Silicone Rubber Infrared Carbon Fiber Electric Warm Floor Heating Cable 33ohm

4.8 (48 votes) | 277 orders
Price: US $52.93 - 137.16 / 100 Meter
Discount Price:
US $ 37.05 - 96.02 / 100 Meter
-30%
Ships From
Color
Length
Quantity

Buy Now
Add to Cart


100m Can shipped from Russian 12K with thermostat Silicone Rubber Infrared Carbon Fiber Electric Warm Floor H

Product Name:  Carbon fiber heating wire

Insulating materials:Silicone rubber

Temperature: 200 degrees celsius limit

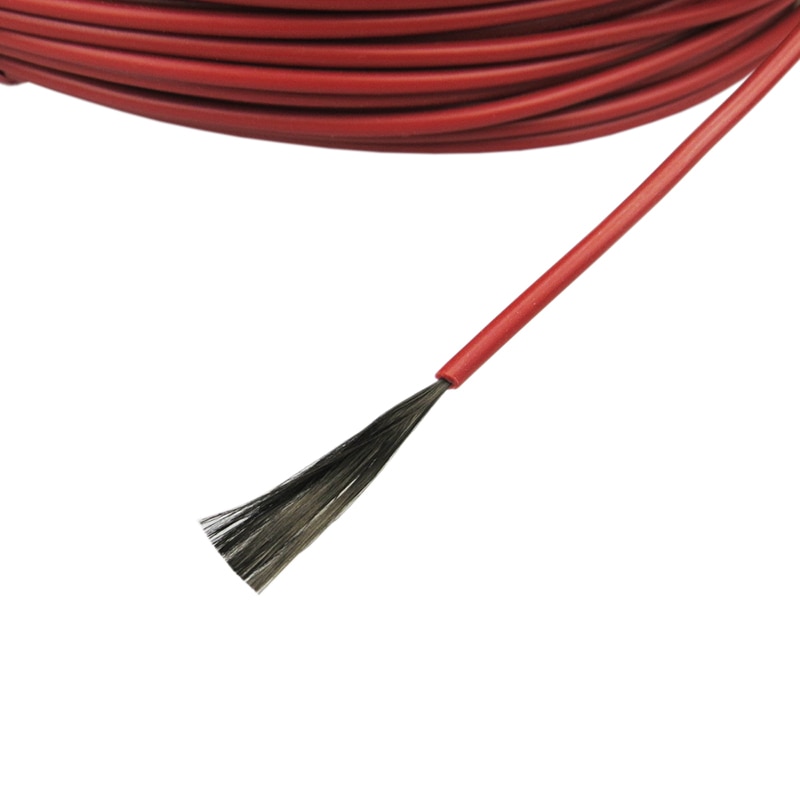

Heating conductor: 12K

High voltage test: 3000V

Leakage current: 0.05mA/m

The product can withstand the power of power: 25W/M

Diameter: 3±0.2 MM

Optional colors: Red, please leave a message for the desired color

Infrared wavelength: 8UM-18UM

Conductor resistance: 33±10%Ω / M

Length: (custom, not less than 10 meters)



Product Power Calculation:

Voltage * voltage / total resistance = power

For example: 12K carbon fiber, length of 10 meters

220V × 220V / (10 m x 33 Ohm) =150 watts

For example: 12K carbon fiber length of 15 meters

220V × 220V / (15 m x 33 Ohm) =100 watts

The data shows that the longer heating wire you use and the smaller output power. (The min length of 12K carbon fiber heating wire is 10 meters)

The longer length, the smaller power, and lower heating temperature.



Product Advantages:

1.High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.

2.Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.

3.Easy to install: The carbon fiber heating wire cost a little, and has a long life span,  an investment, life-long benefit, low maintenance costs.

And etc...

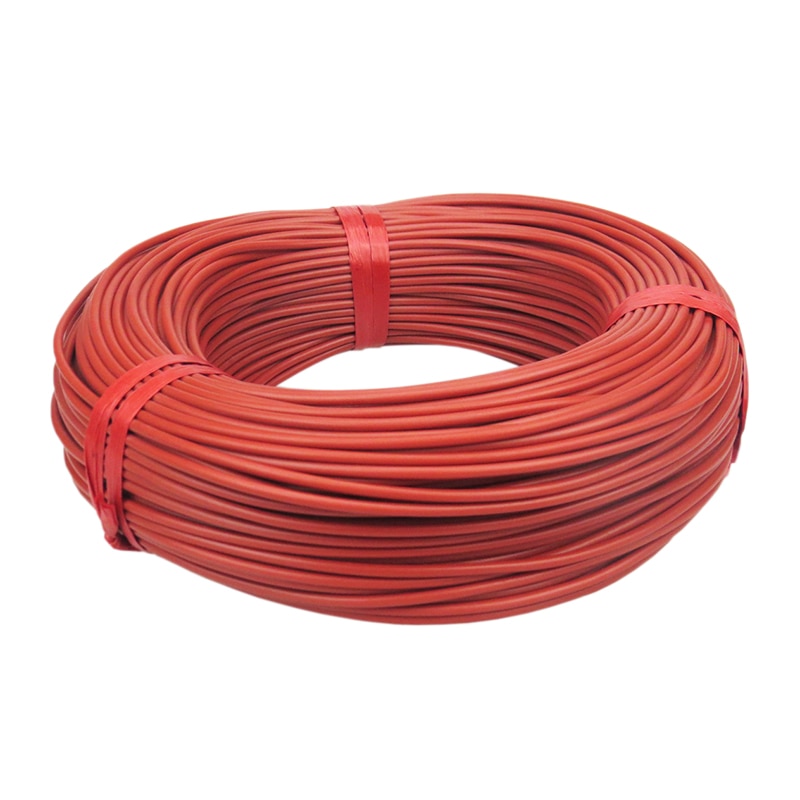

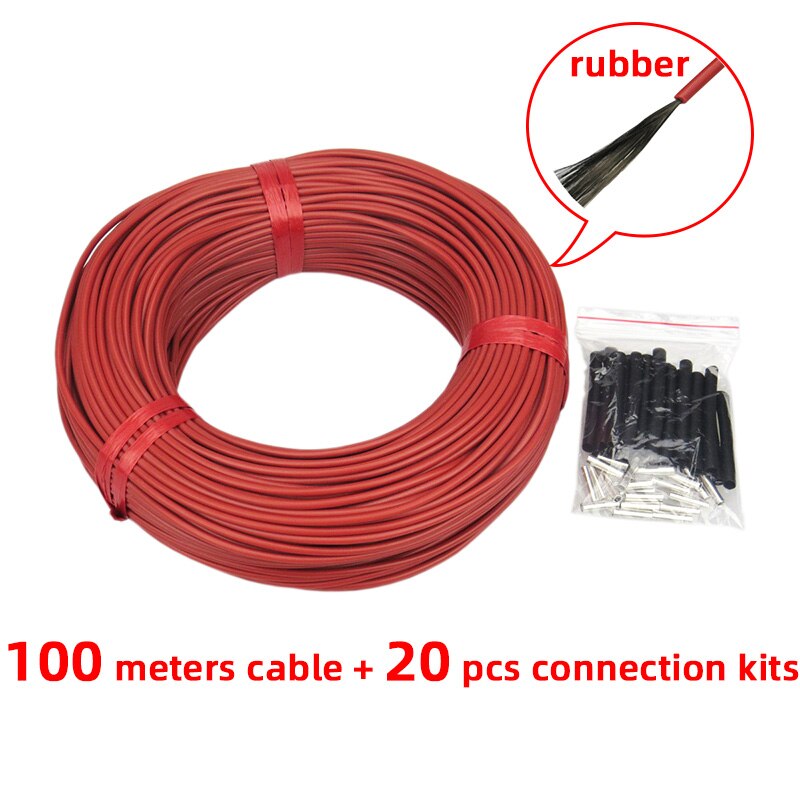

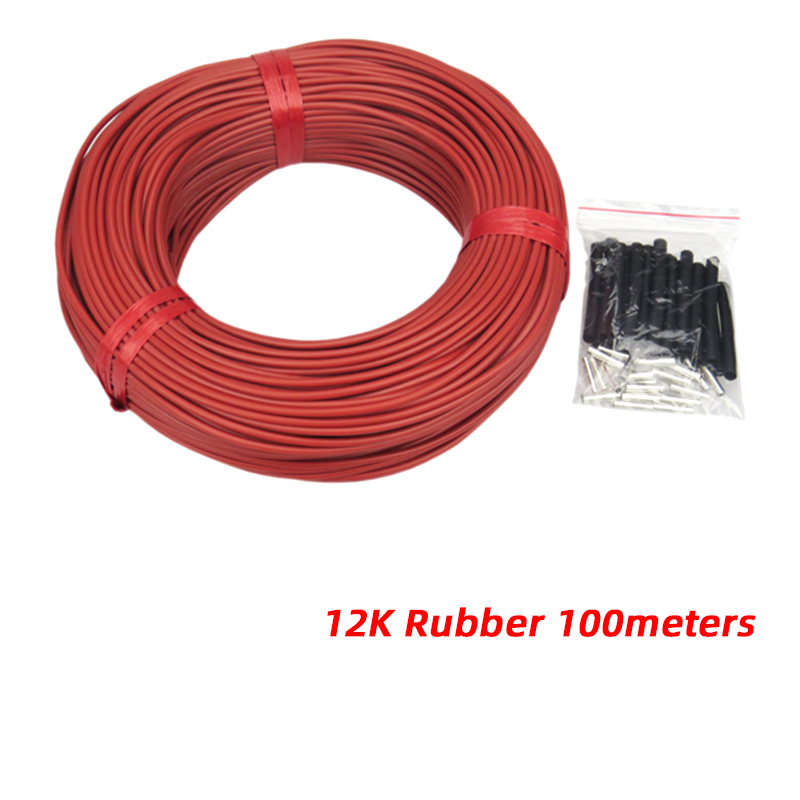

100 meters 33ohm/mCarbon Fiber Heating Cable

or

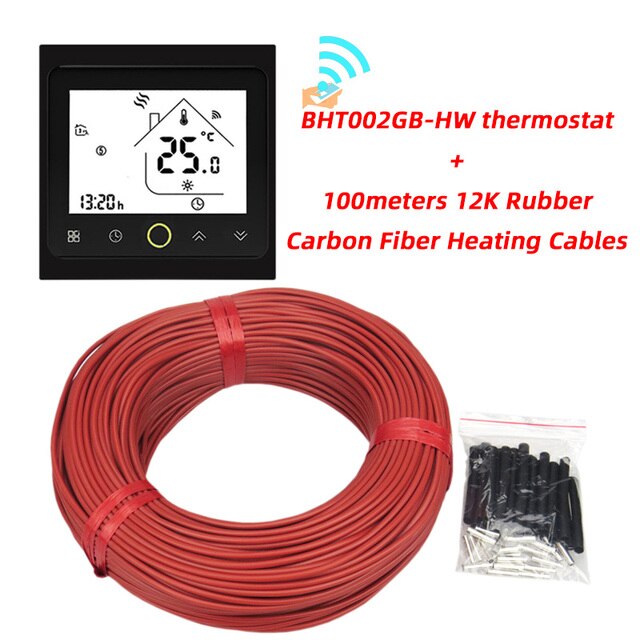

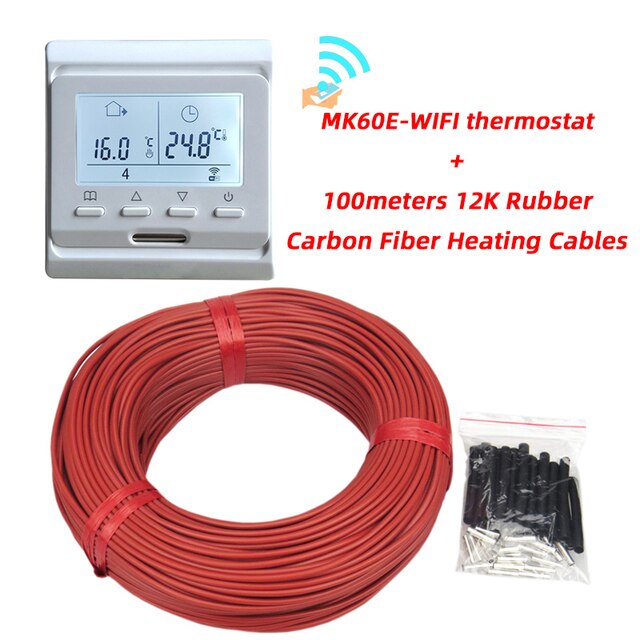

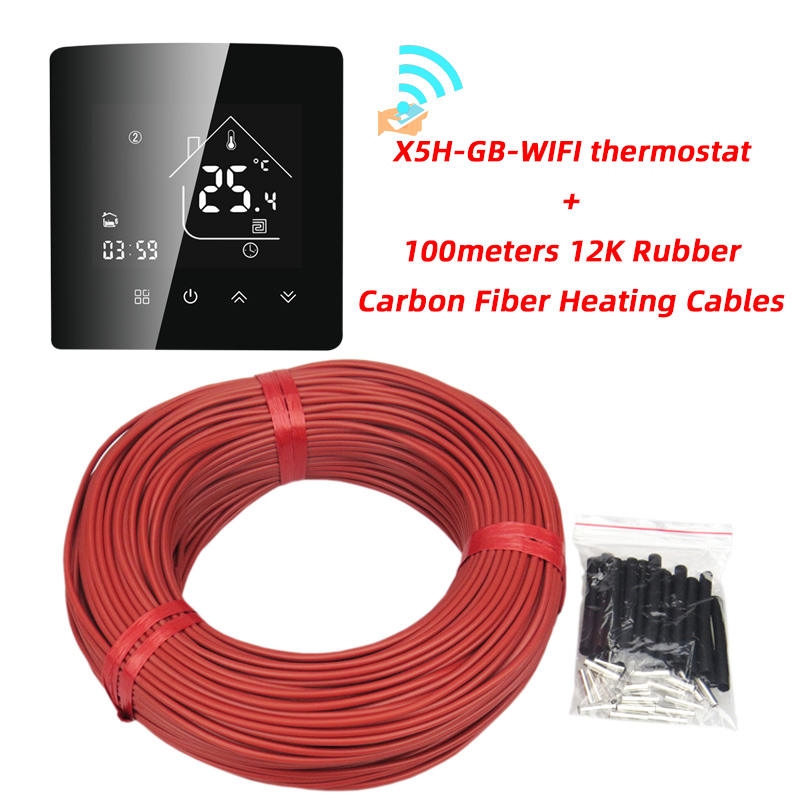

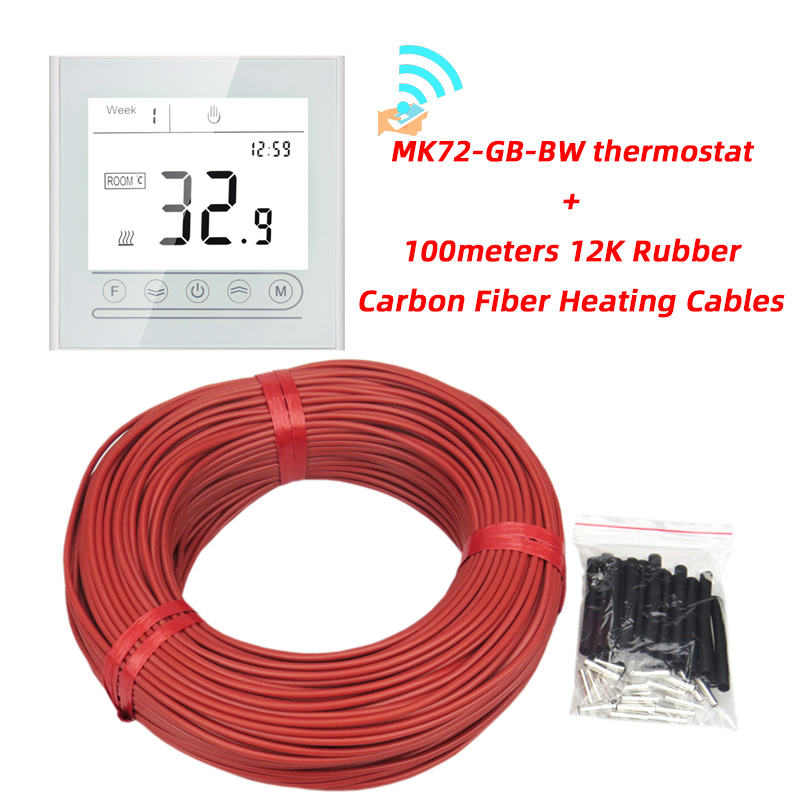

100 meters 33ohm/m Carbon Fiber Heating Cable and one piece thermostat  (include external sensor)


( there may be a little color different due to light)

We also supply Yellow color silicone rubber heating cable, same quality, if you need , please click the photo below:

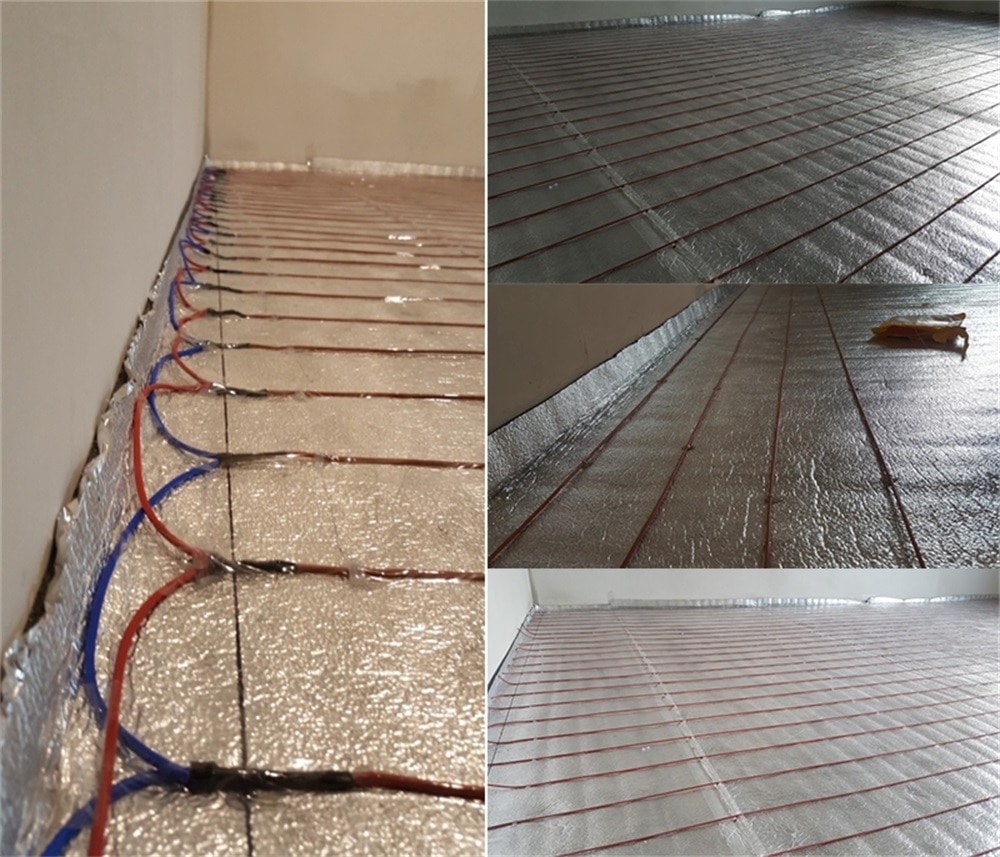

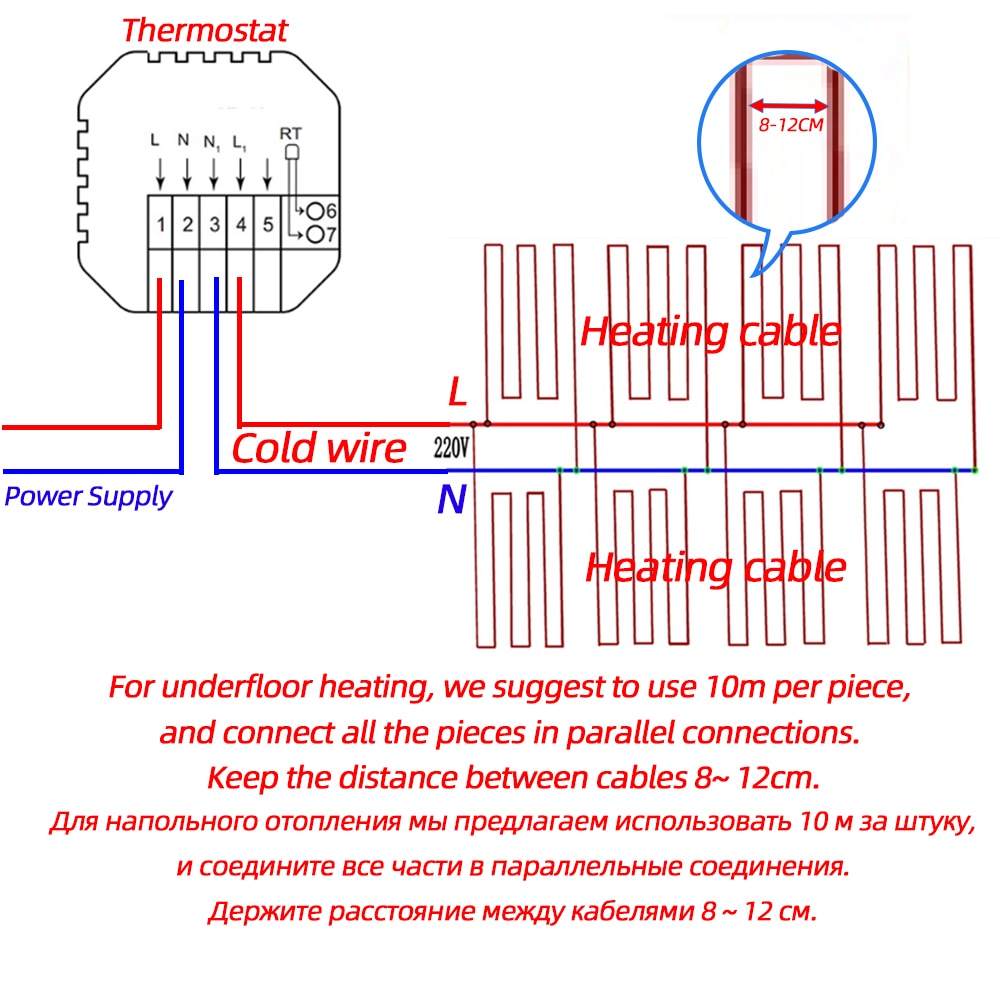

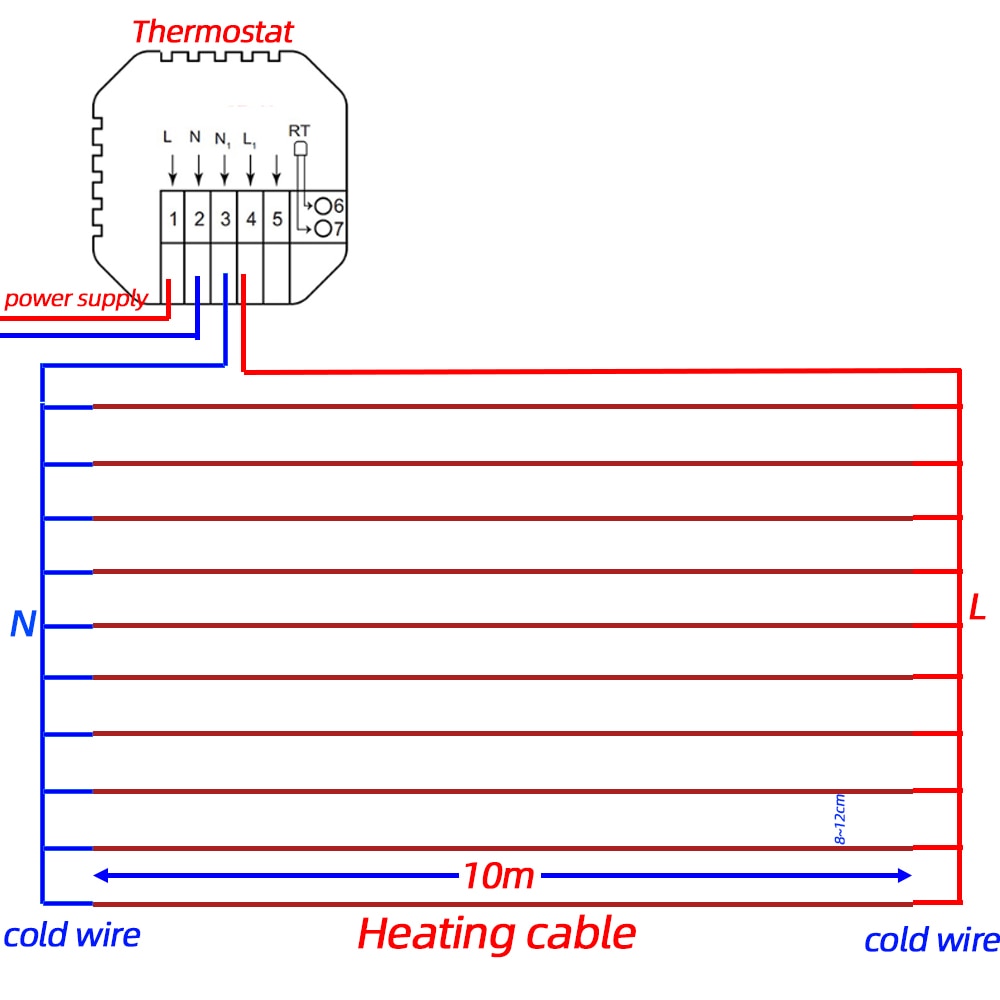

Because of the feature of the carbon fiber cable, this cable cannot be used for a long length. For underfloor heating, we suggest to use10m per piece, and connect all the pieces inparallel connections. Keep the distance between cables 8~ 12cm.

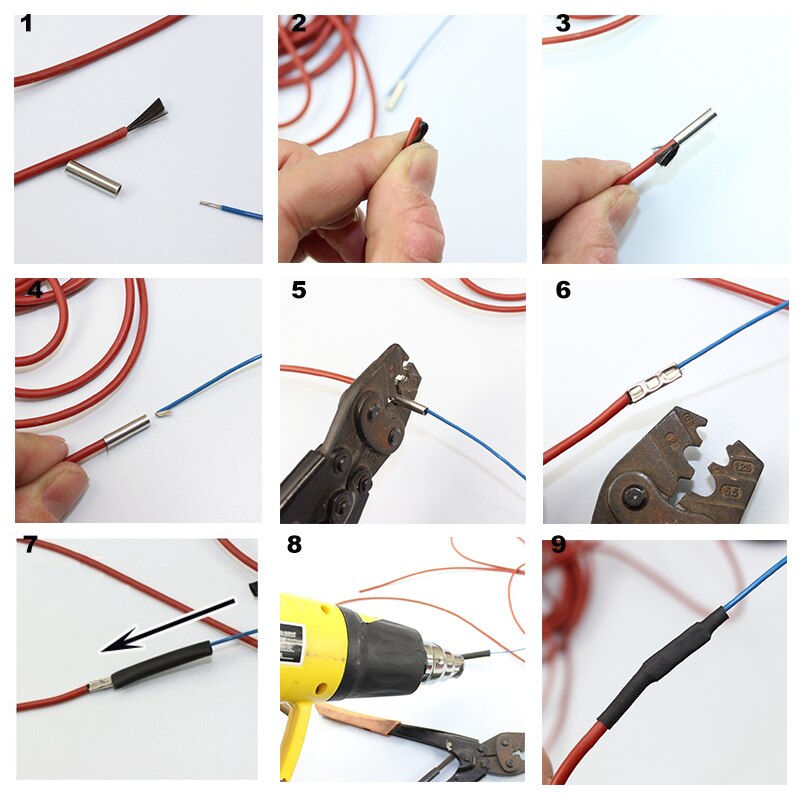

The heating cable can't connect to the thermostat directly, please connect to the cold wire first.

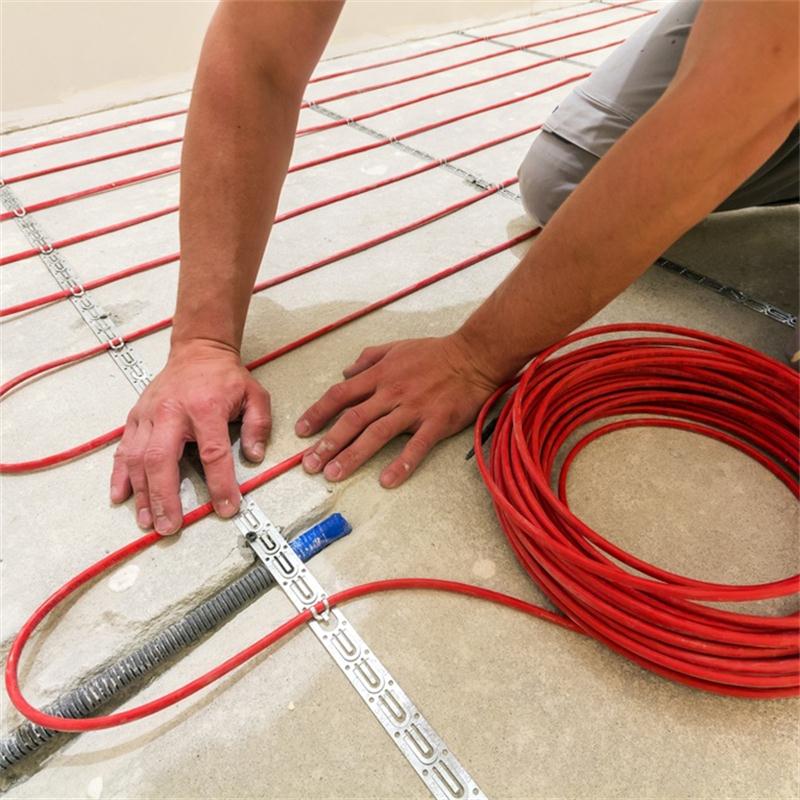

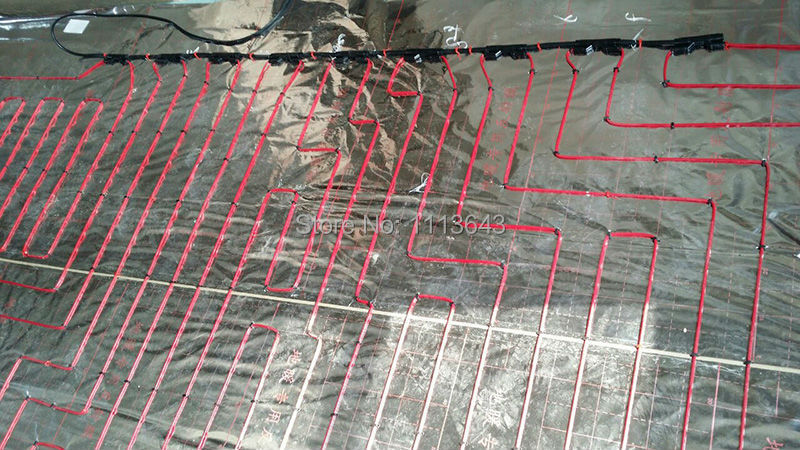

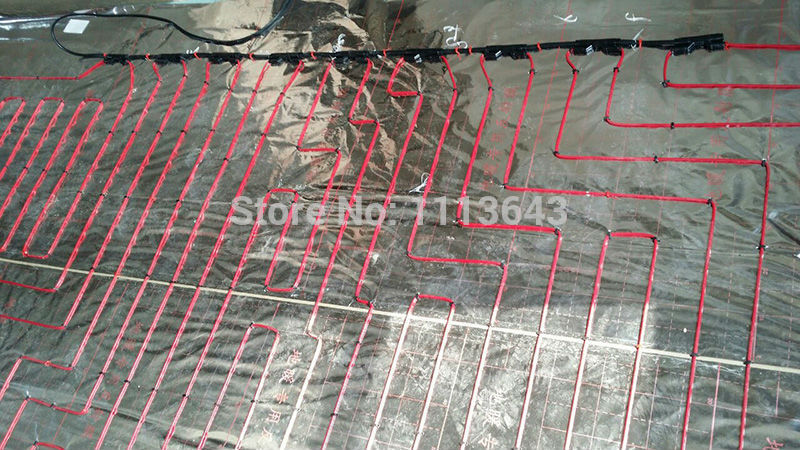

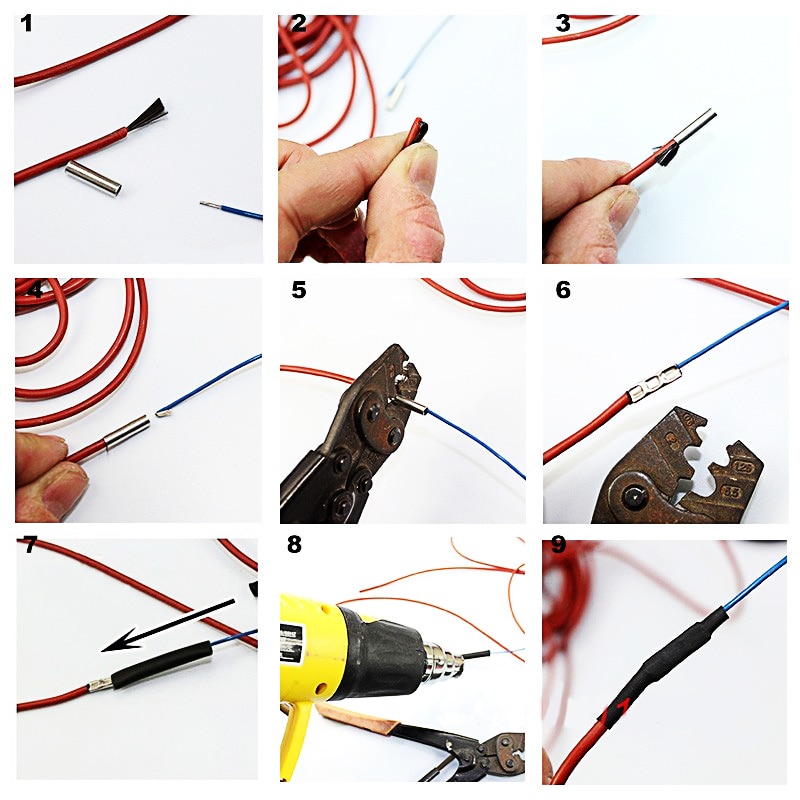

How to install?

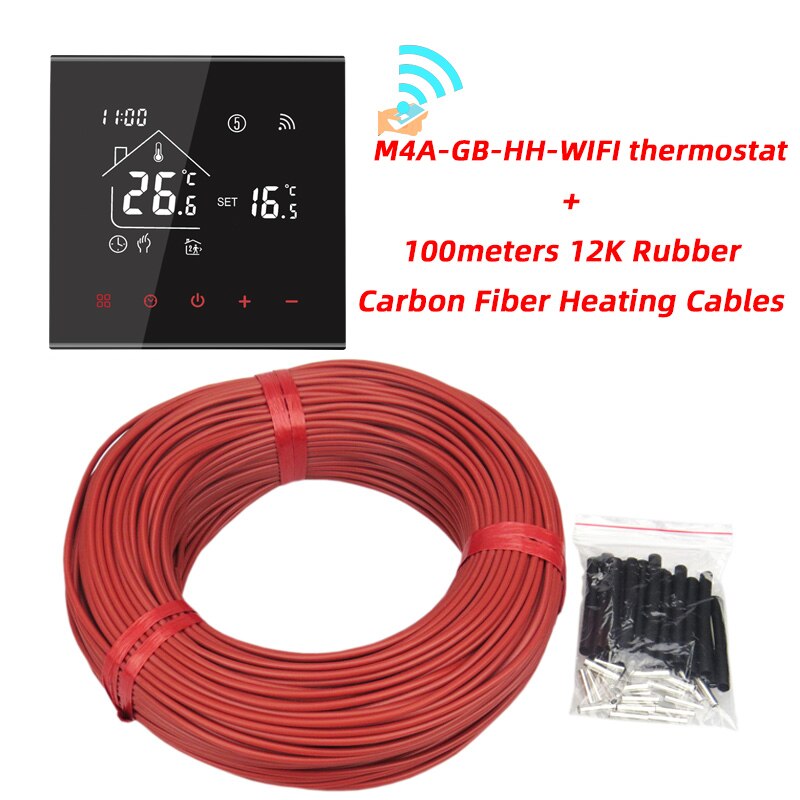

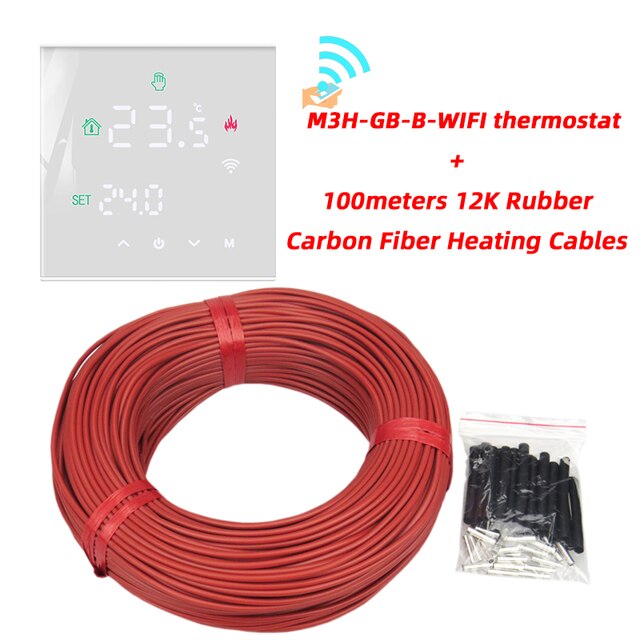

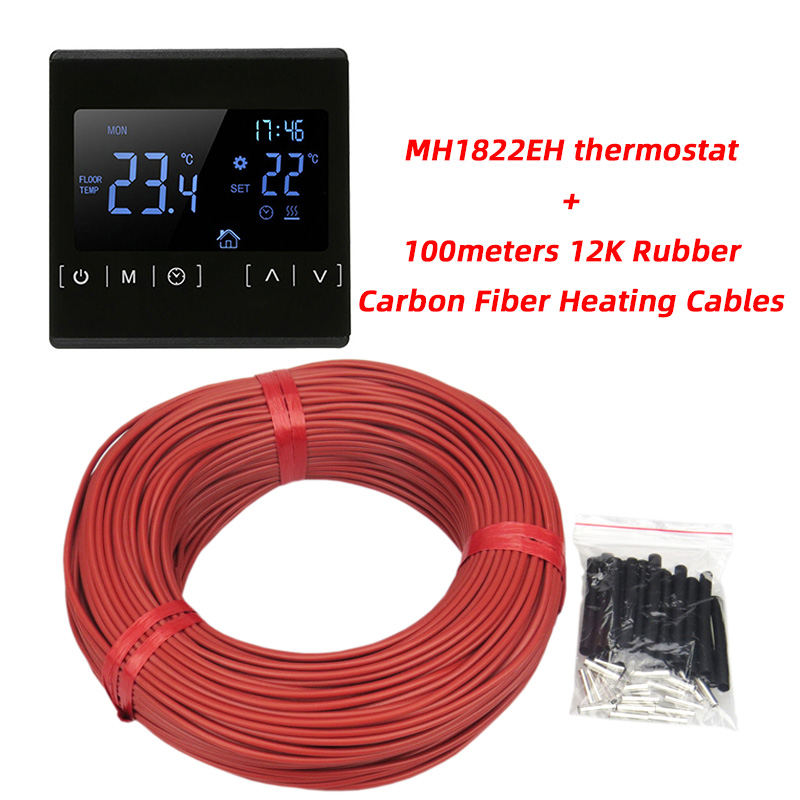

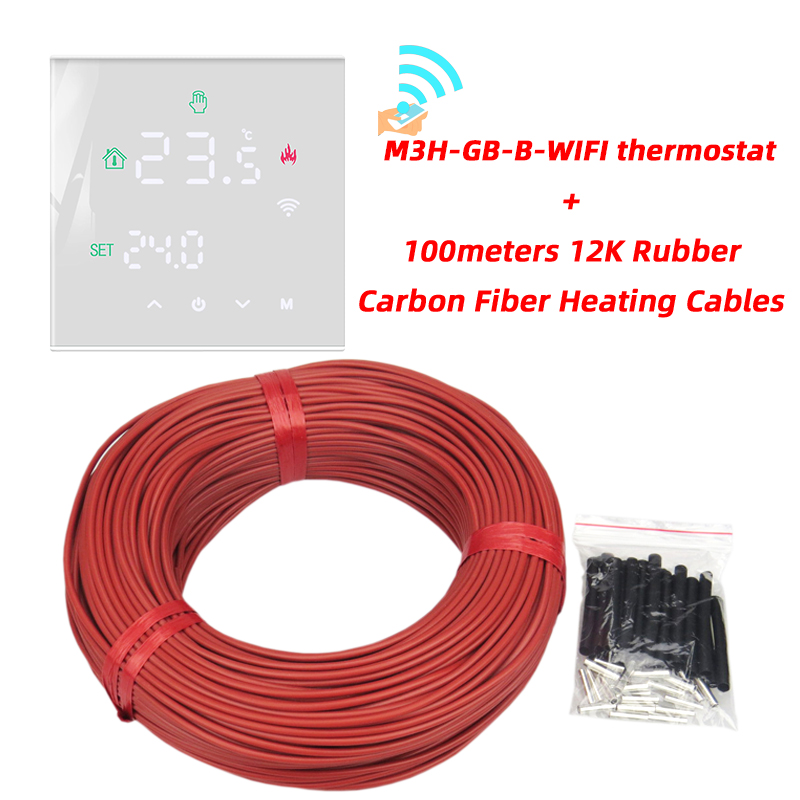

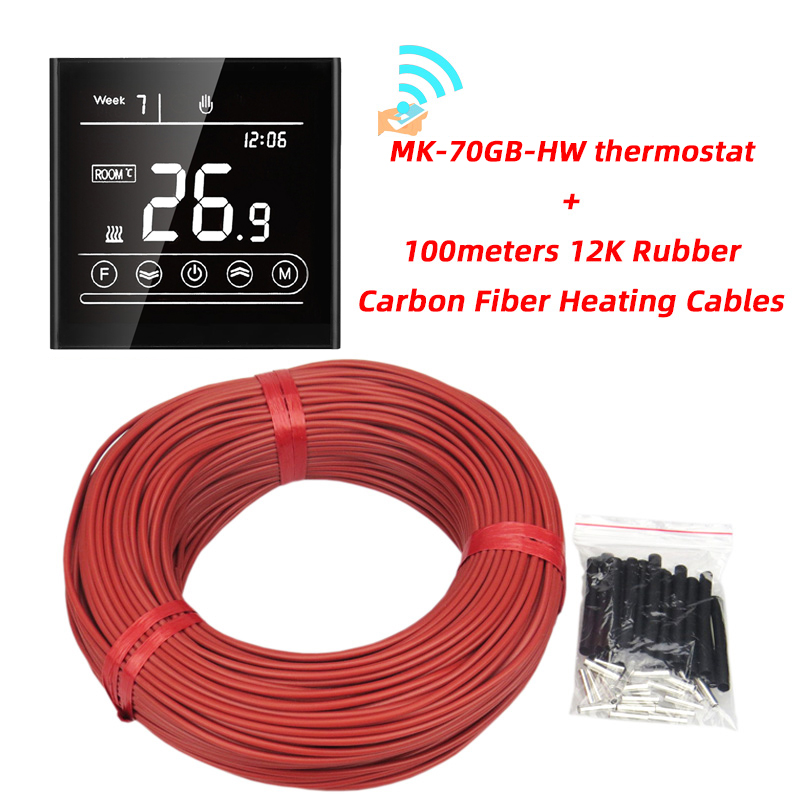

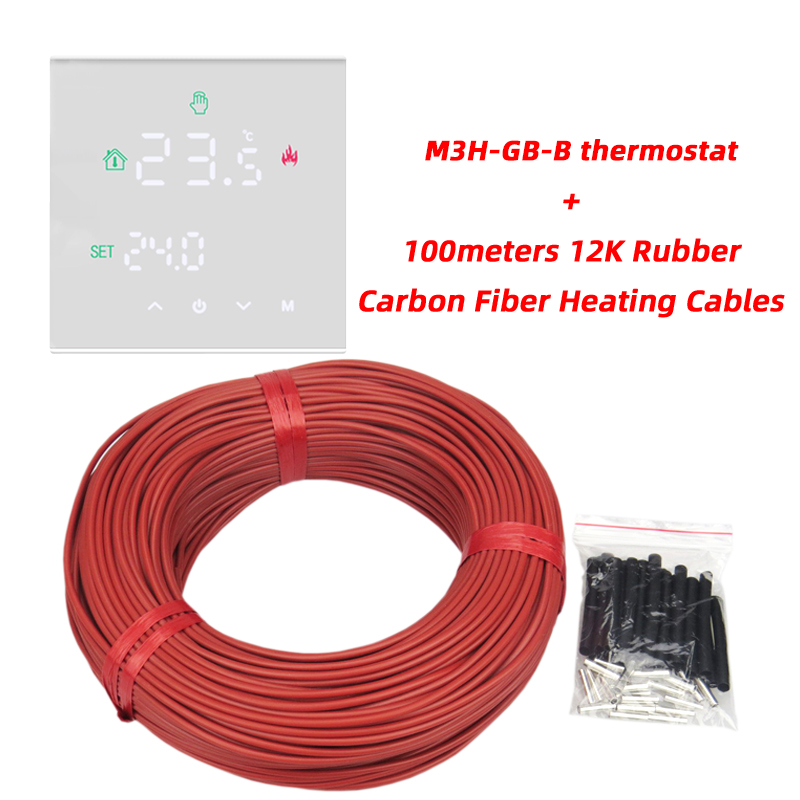

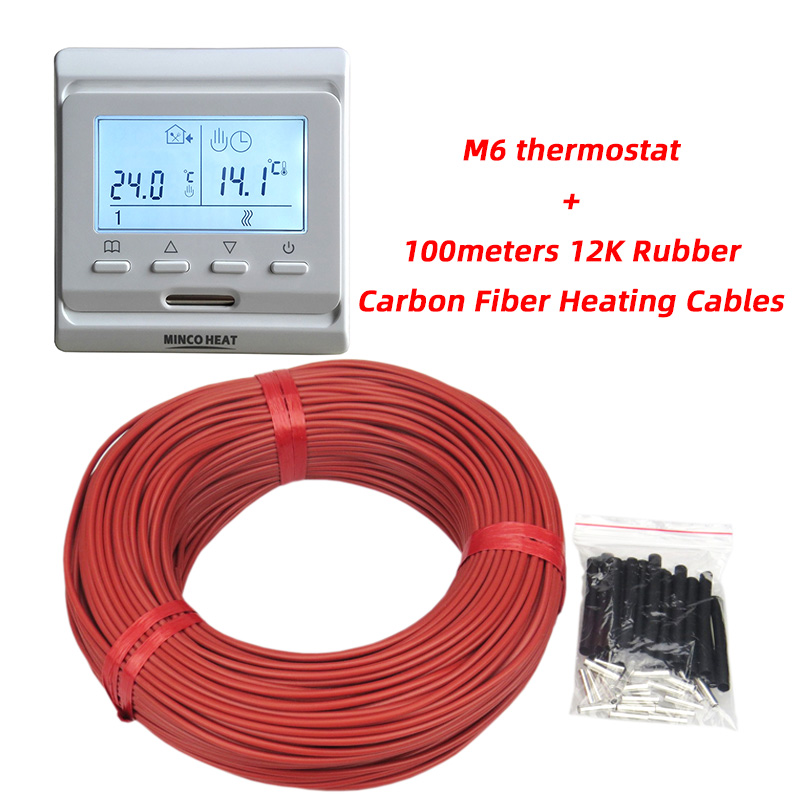

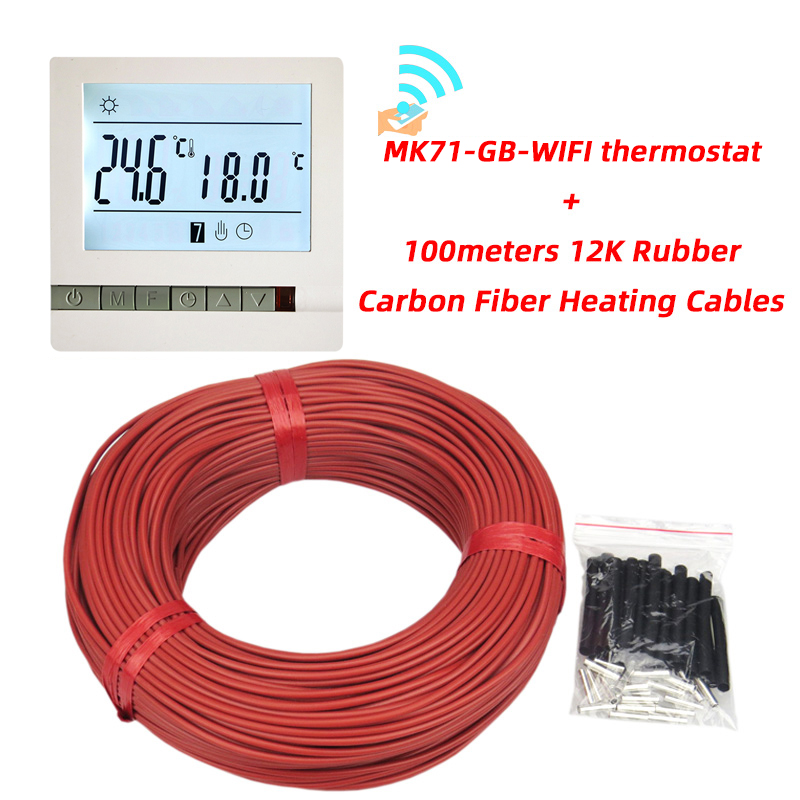

The marched thermostats:

Click the below picture to have more choose about thermostat



Product Applications:

1. Floor heating for Home and office: Homes, villas, hotels, office buildings, hospitals, shopping malls

2. Floor heating for public areas: Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten

3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways

4. Floor heating for professional field: Botanical garden, greenhouse, laboratory










  • is_customized: Yes
  • Insulation Material: Rubber
  • Conductor Type: Stranded
  • Conductor Material: other
  • Application: Heating
  • Type: Insulated
  • Model Number: CF-12-R
  • Brand Name: MINCO HEAT
  • Origin: Mainland China
  • Certification: CE
  • Product name: Carbon fiber heating wire
  • Resistance: 33 Ohm/m
  • Core size: 12K
  • Outer jacket: Silicone rubber
  • Diameter: 3+-0.2 mm
  • Voltage: 7~300V
