10 Pcs Mini Micro Limit Switch Roller Lever Arm SPDT Snap Action LOT
5.0 (12 votes) | 60 orders
Price:
US $
9.95
/ 10 Pieces

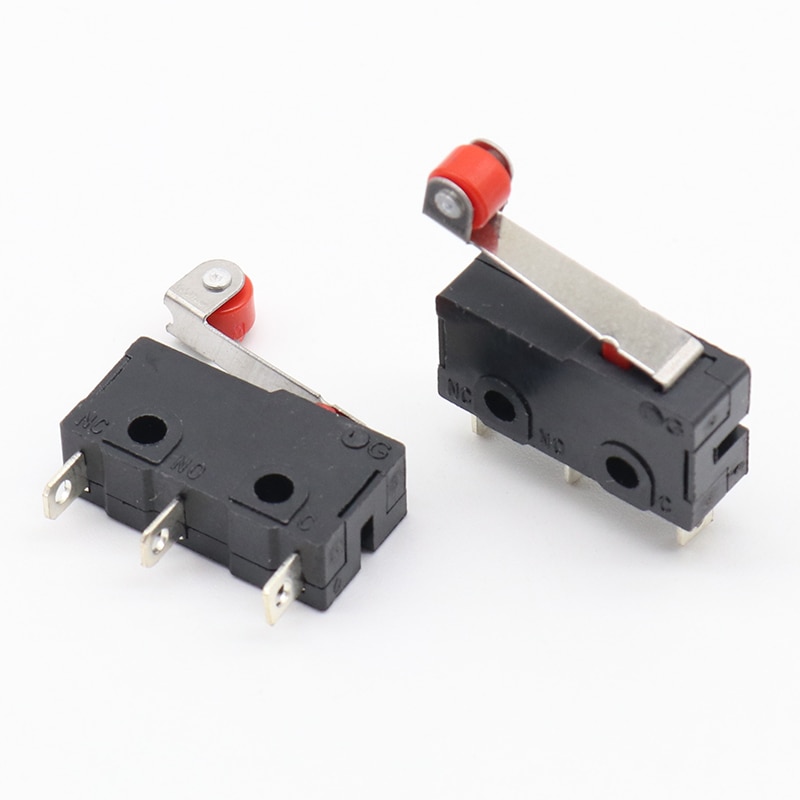

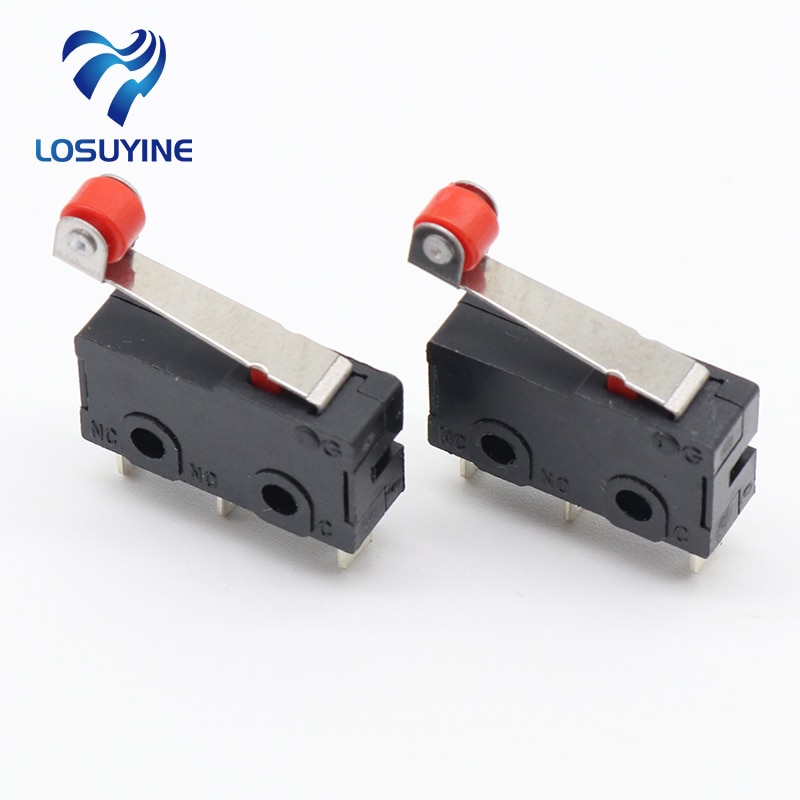

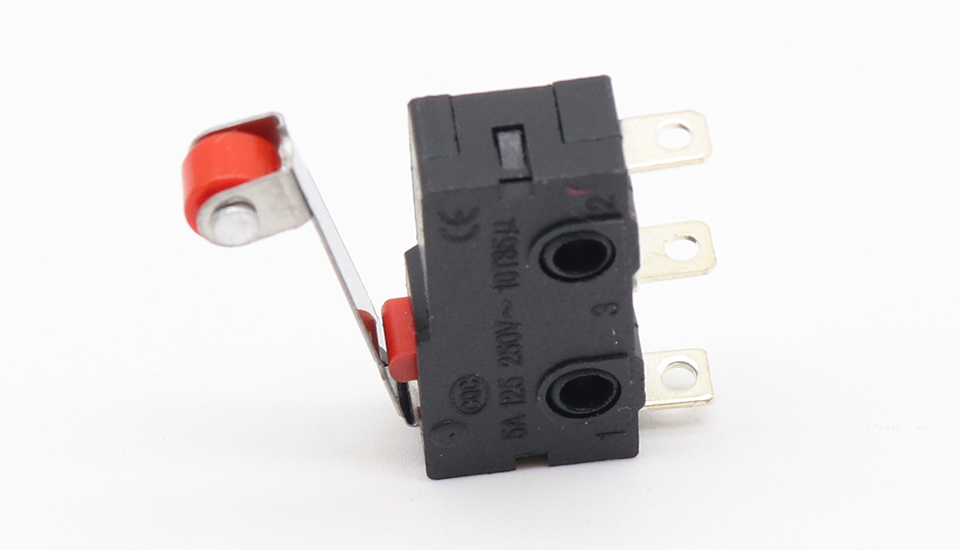

Product Name : Micro Switch;Voltage & Current : AC 125V 5A;Contact Type : SPDT 1NO 1NC 1COM
Action Type : Momentary;Actuator Type : Hinge Roller Lever;Terminal Type : 3 Pins
Overall Size(Pin not included) : 20 x 6 x 10mm / 0.8" x 0.2" x 0.4" (L*W*H);Hinge Roller Lever Length : 18mm/0.7";Roller Diameter : 4.5mm/0.2"
Mounting Hole Dia. : 2mm / 0.08";Mounting Hole Spacing : 9mm/ 0.35";Material : Plastic, Metal
Color : Black, Red, Silver Tone;Net Weight : 22g;Package Content : 10 x Micro Switch These Micro Switches features Single Pole Double Throw (SPDT) Type, 1NO + 1NC Contact, Momentary Action, Hinge Roller Lever Actuator, 3-Pin Terminals, etc.
Easy installation and long using life.
Widely used in electronic equipments, Microwave Micro Door/Oven/Refrigerator Interlock N/O / N/C Switch etc.
In snap action contacts, the movement of the actuator applies force to an overcenter mechanism.
This mechanism creates a quick change in contact state when the trip point is reached.
Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.
Snap action contacts have different trip and reset points.
The distance between the trip and reset point is called the travel to reset, hysteresis, or differential.
Finite travel to reset helps to avoid multiple changes of state if the object actuating the switch is subject to vibration.
Snap action contacts ensure repeatable performance in applications that involve low speed actuators.
The amount of travel of the contacts is also not dependent on the amount of travel by the actuator.
Length: 2cm
height: 0.6cm
Pin High: 0.8cm
- Model Number: KW11-3Z-2
- Switch Type: Micro Switch
- Warranty: 2 year
- Certification: CCC
- Item Type: Switches
- Brand Name: LOSUYINE
