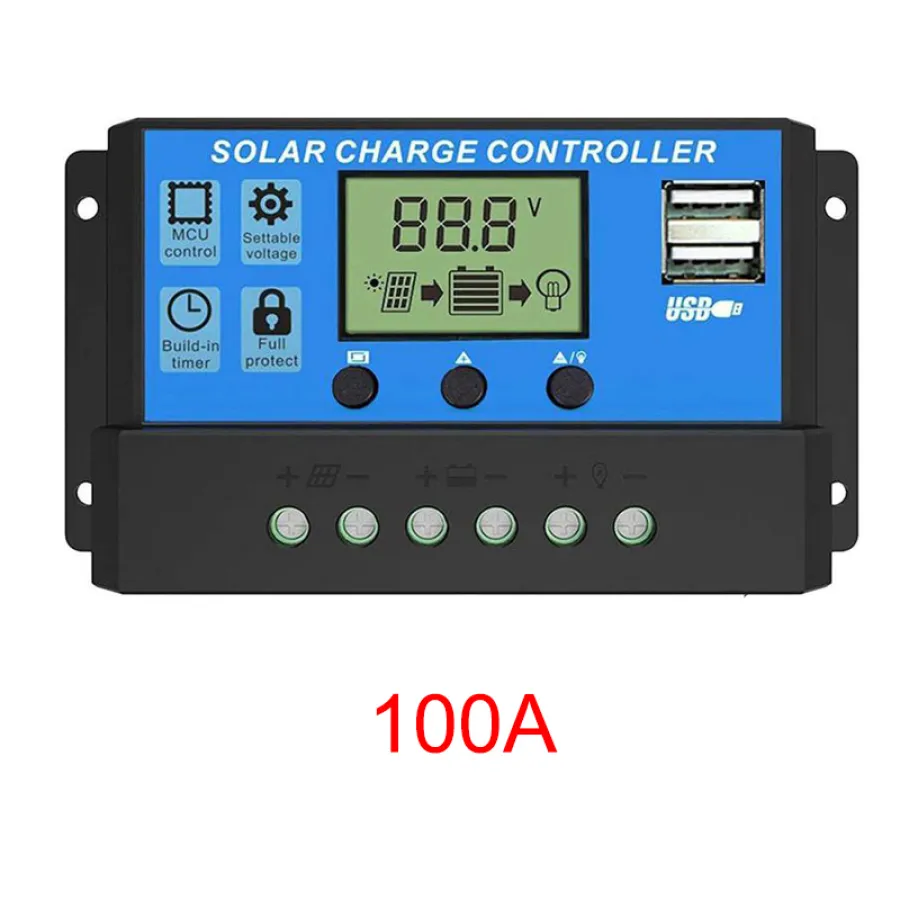

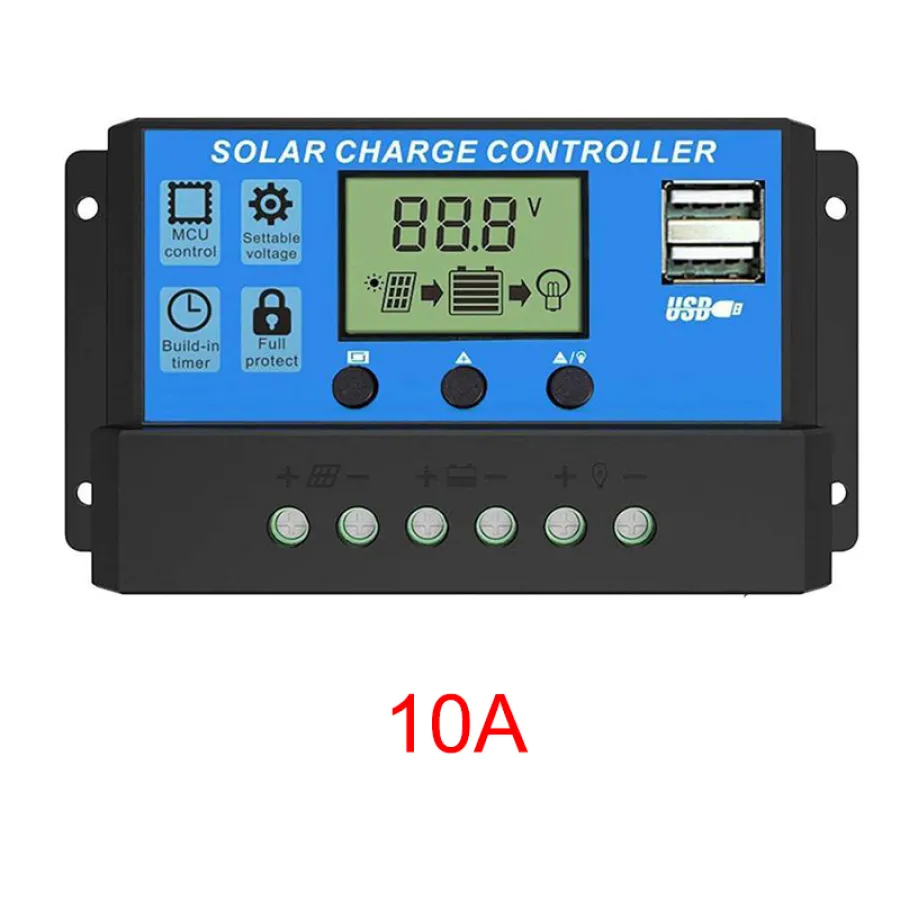

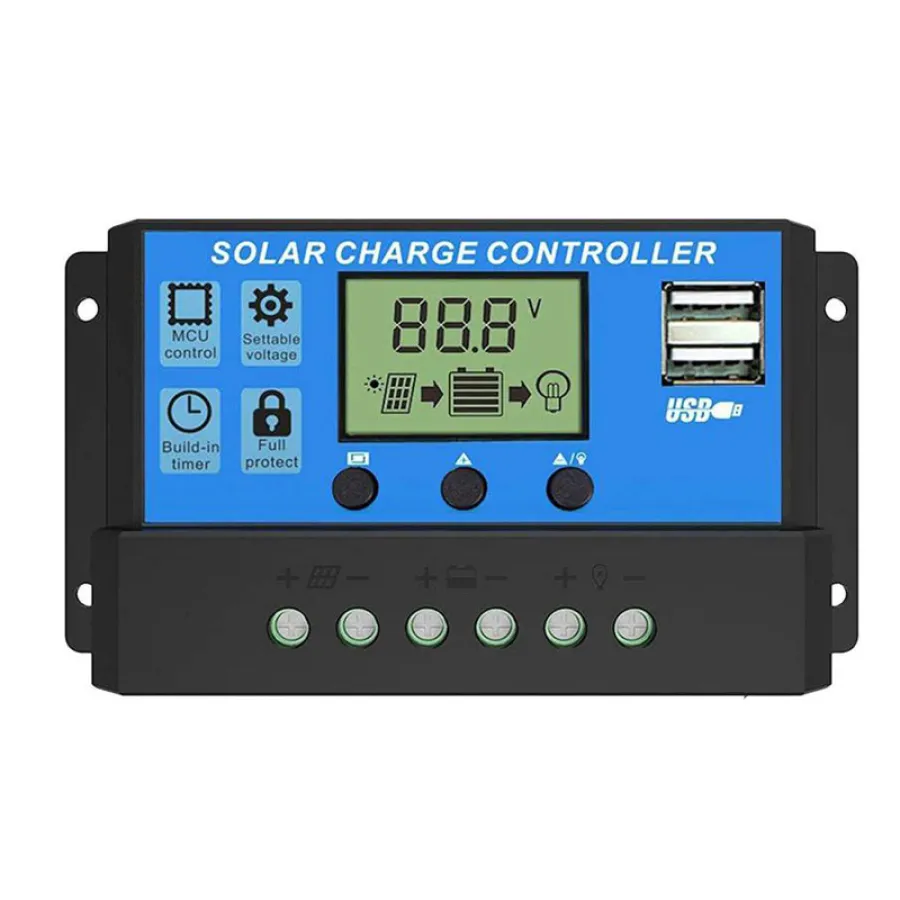

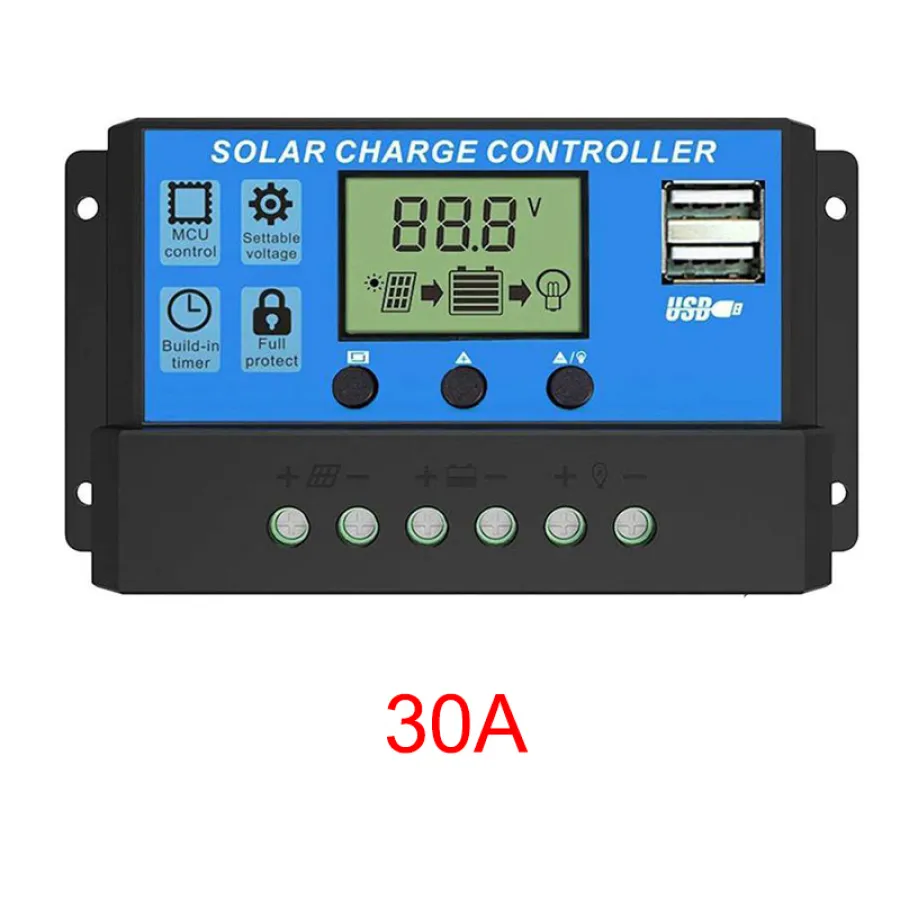

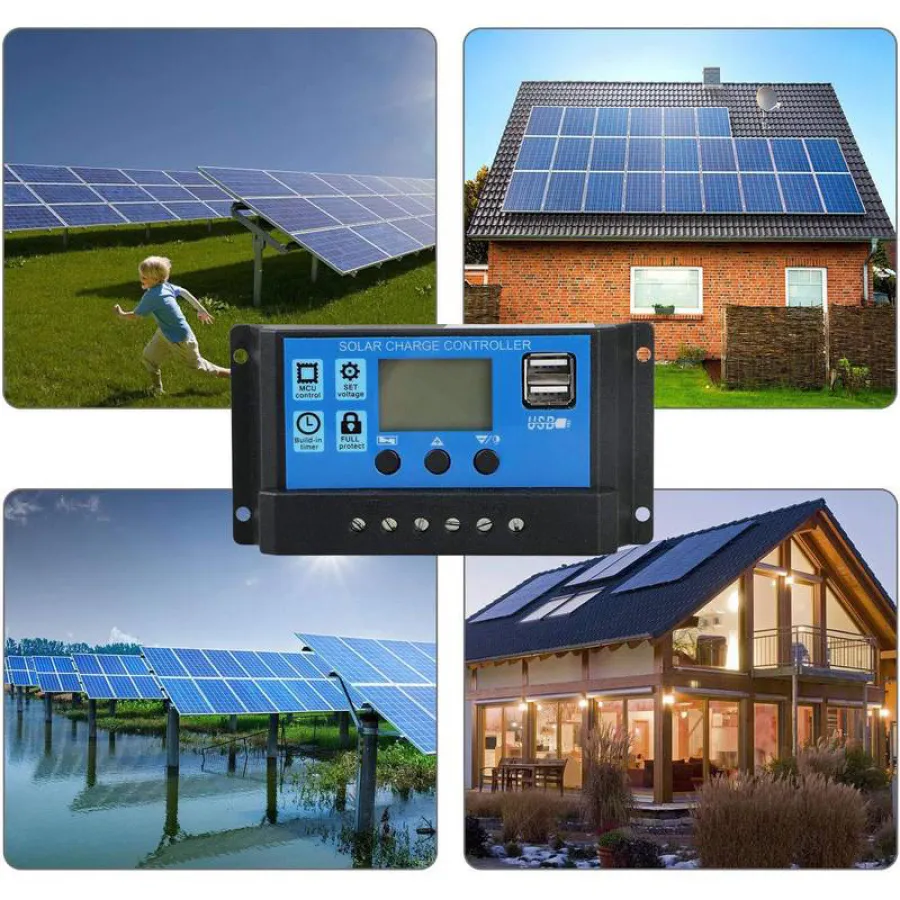

10/20/30/40/50/60/100A Solar Charge and Discharge Controller LCD Display Dual USB Auto Solar Cell Panel Charger Regulator
4.6 (415 votes) | 2000 orders
Price:
US $15.00 - 54.68
Discount Price:
US $
9.95 -
28.63
-34%
- Color
-
-
Specifications
1. Rated voltage: 12/24V
2. Rated current: 10/20/30/40/50/60/100A
Function:
1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from reverse charging to solar panels during
nights.
5. Reverse Polarity Protection for Battery
6. Reverse Polarity Protection for Solar Panels
7. When the battery voltage is low, the controller will
automatically cut off the load from the system. If the voltage of
battery is back to normal and the load will restart working.
8. Thunder protection
9. According to the battery voltage grade, the controller can
automatically set charge-off voltage, the load-off voltage, the
load- restore voltage. (The parameter is default under 25celsius
condition, locked by the CPU procedure, cannot adjust.)
10. The controller will automatically compensate the temperature of
the charging voltage according to the changes of ambient temperature.
Feature：
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.

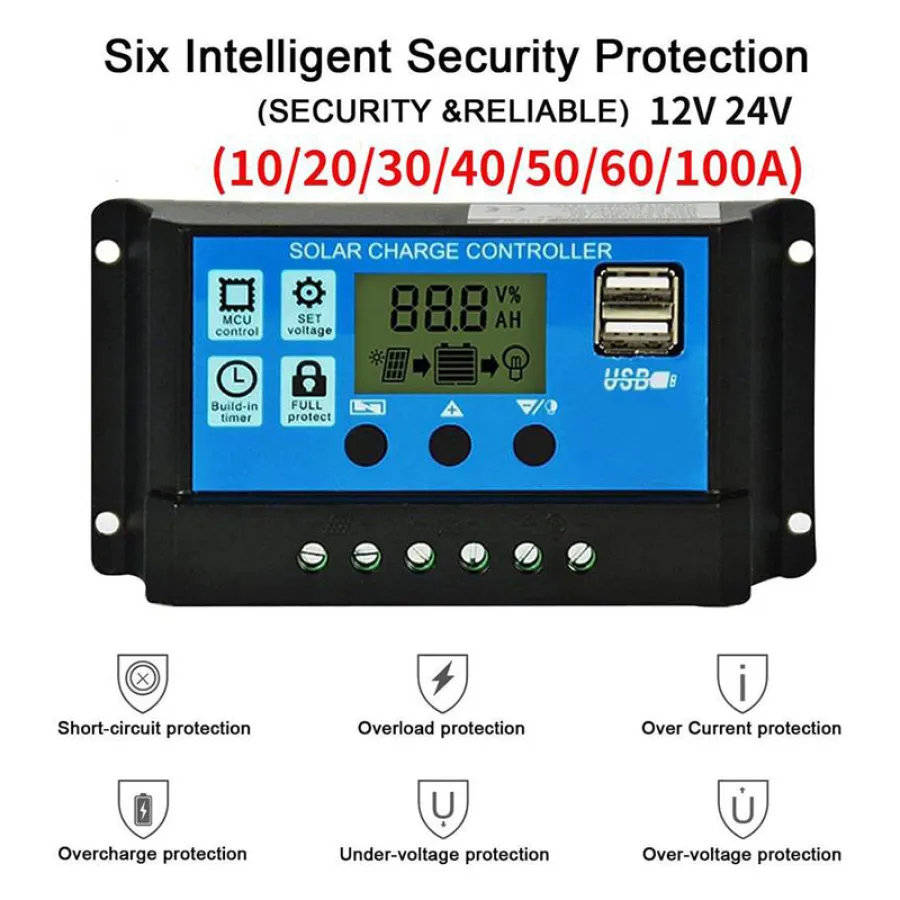

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.

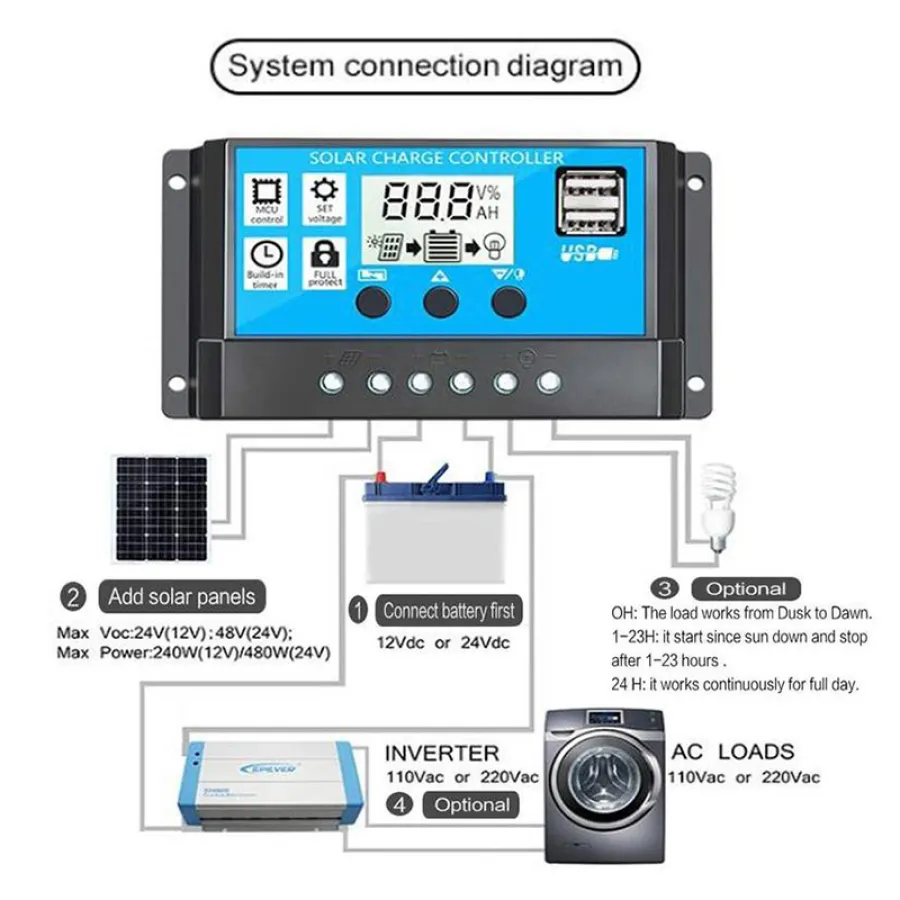

Connection：
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
Package Includes:
1 x Solar Panels Battery Charge Controller
Product Parameter：
MODEL | RBL-10A | RBL-20A | RBL-30A | RBL-40A | RBL-50A | RBL-60A |
Battery Voltage | 12V 24V Auto | |||||
Charging Current | 10A | 20A | 30A | 40A | 50A | 60A |
Discharging Current | 10A | 10A | 10A | 20A | 30A | 30A |
Max Solar input | 48V(for 24V battery) 24V(for 12V battery) | |||||
Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | |||||
Float charge | 13.7V(defaul,adjustable) | |||||
Discharge stop | 10.7V(defaul,adjustable) | |||||
Discharge reconnect | 12.6V(defaul,adjustable) | |||||
Charge reconnect | 13V | |||||
Voltage of open light | Solar Panel 8V(Light lights delay) | |||||
Voltage of close light | Solar Panel 8V(Light off delay) | |||||
USB output | 5V/3A | |||||
Self-consume | <10mA | |||||
Operating temperature | -35°C~+60°C | |||||

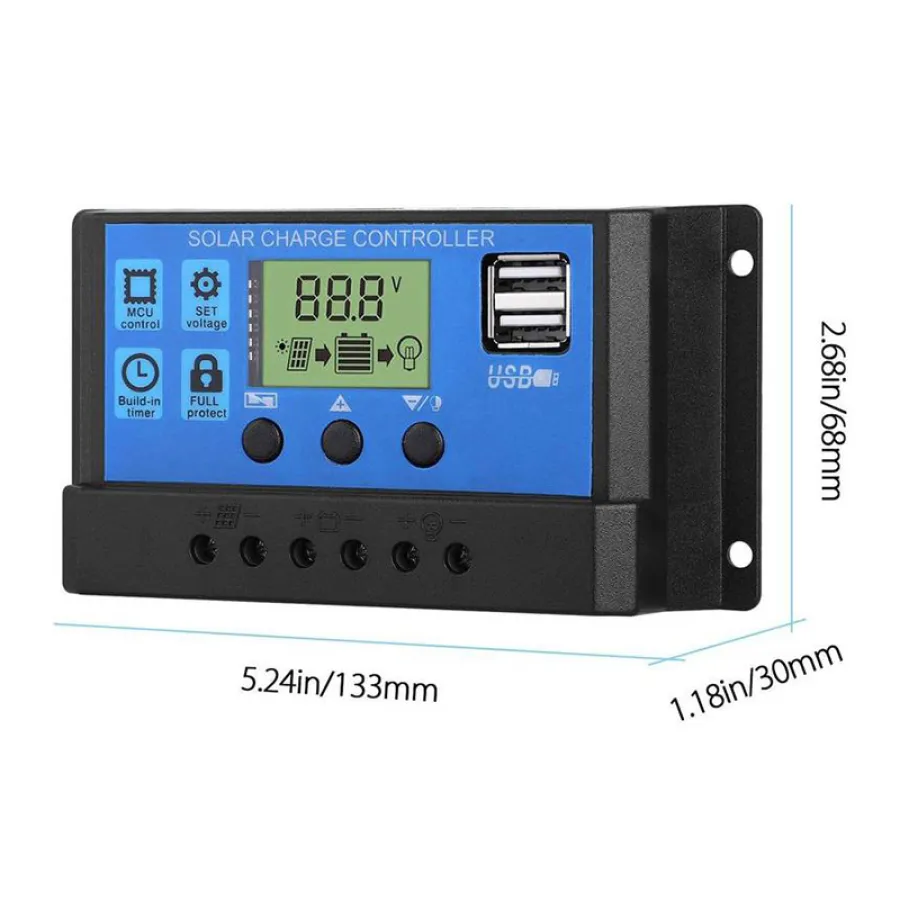

Size | 133.5*70*35mm | 188*90*47mm | ||||
