AC 110V 220V DC 12V Digital Time Delay Relay LED Display Cycle Timer Control Switch Adjustable Timing Relay Time Delay Switch
14.37 13.12 $

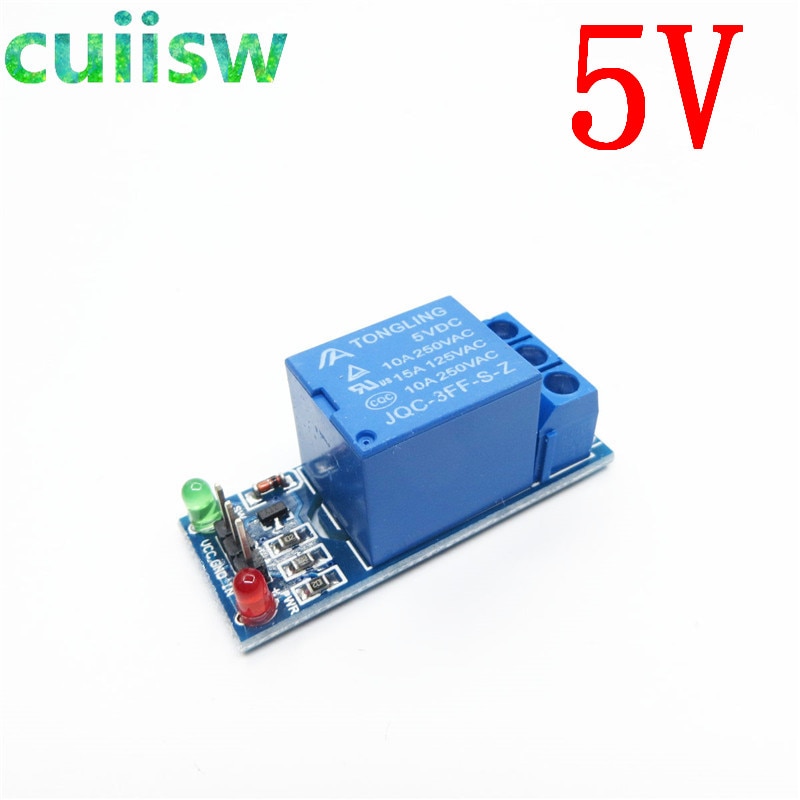

1 Channel Low level trigger：
The module uses genuine quality relay, normally open interfaces
Using SMD optocoupler isolation, driving ability, stable performance
The module can be high or low by a jumper setting trigger
Fault-tolerant design, even if the control line is broken, the relay will not operate
The power indicator (green), the relay status indicator (red)
The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA
Working voltage: 5V
Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm
DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay
NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin

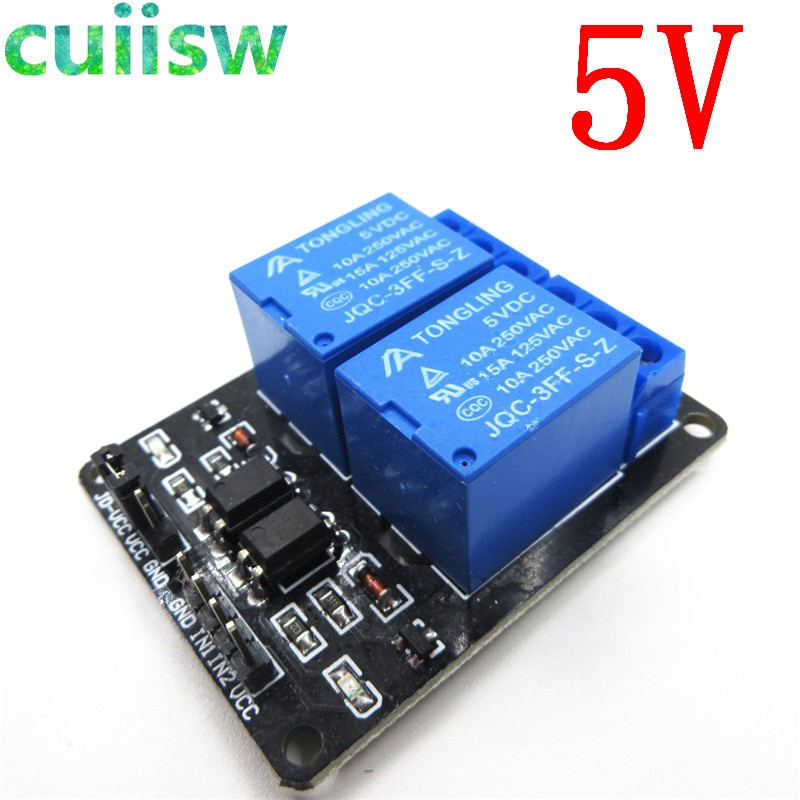

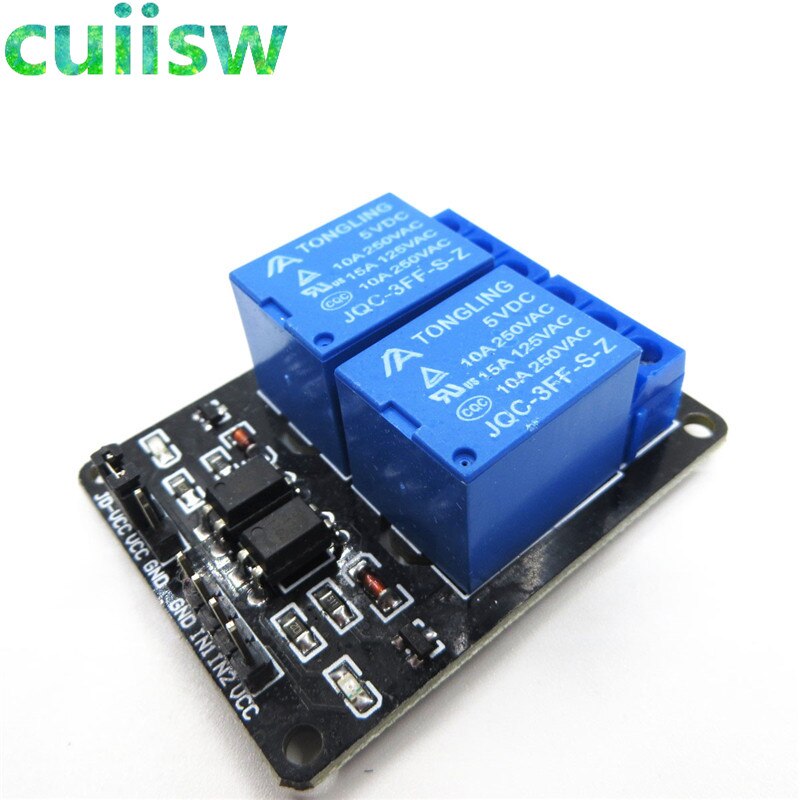

2 Channel:
The new 5V Relay Module
Can be used as microcontroller development board module can be used as home appliance control
5 V-12V to TTL control signal
The control signal DC or AC, 220V AC load can be controlled.
There is a normally open and one normally closed contact
A power indicator light
A control indicator, pull off, disconnect does not shine
Transistor drive to increase the relay coil control pins high impedance.
The control pin has a pull-down circuit to prevent malfunction relay vacant

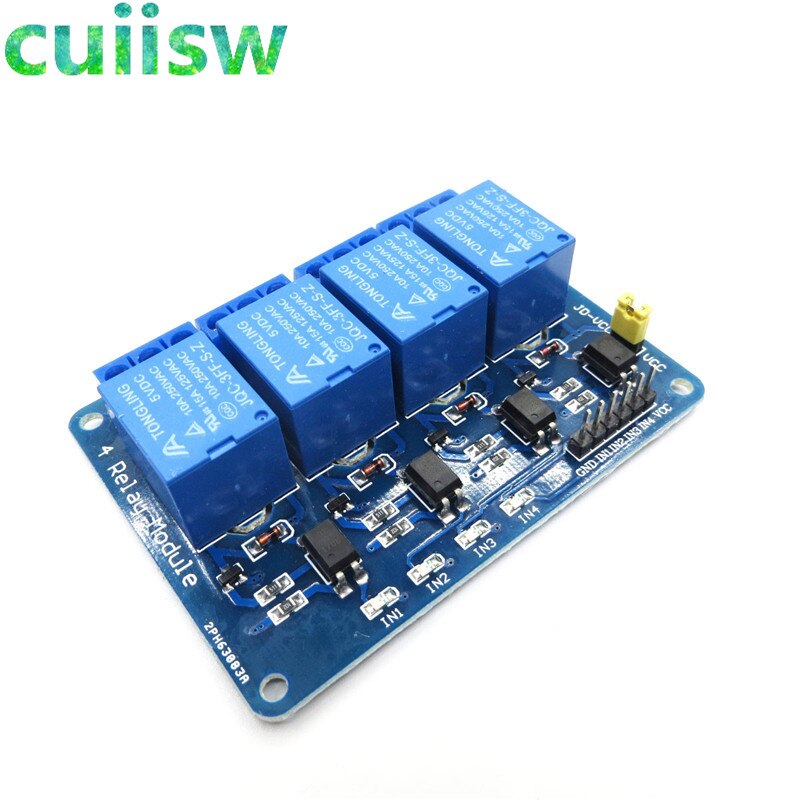

4 Channel:
The new 5V Relay Module
Can be used as microcontroller development board module can be used as home appliance control
5 V-12V to TTL control signal
The control signal DC or AC, 220V AC load can be controlled.
There is a normally open and one normally closed contact
A power indicator light
A control indicator, pull off, disconnect does not shine
Transistor drive to increase the relay coil control pins high impedance.
The control pin has a pull-down circuit to prevent malfunction relay vacant.

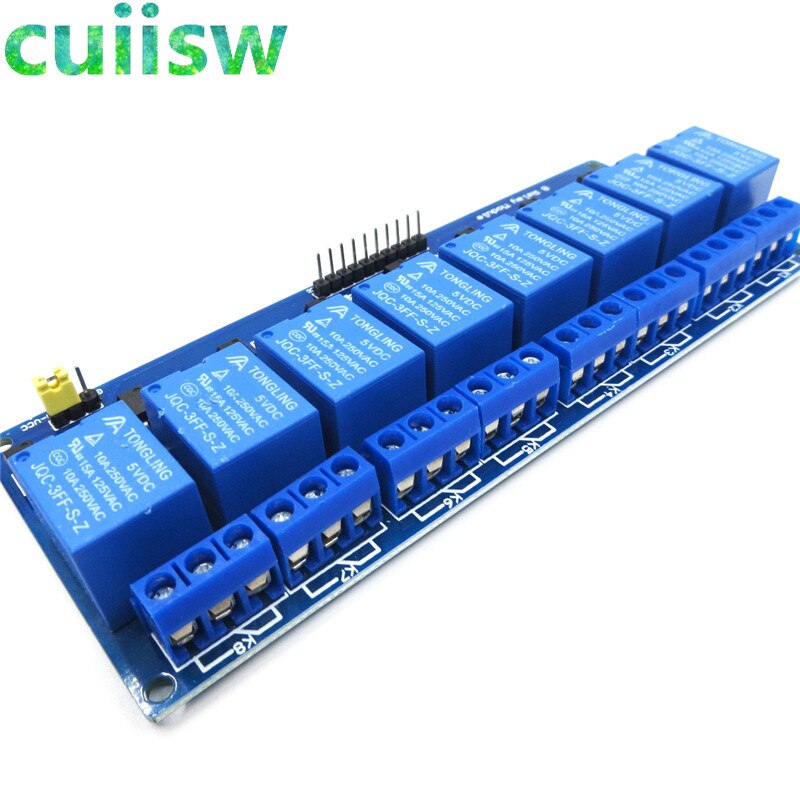

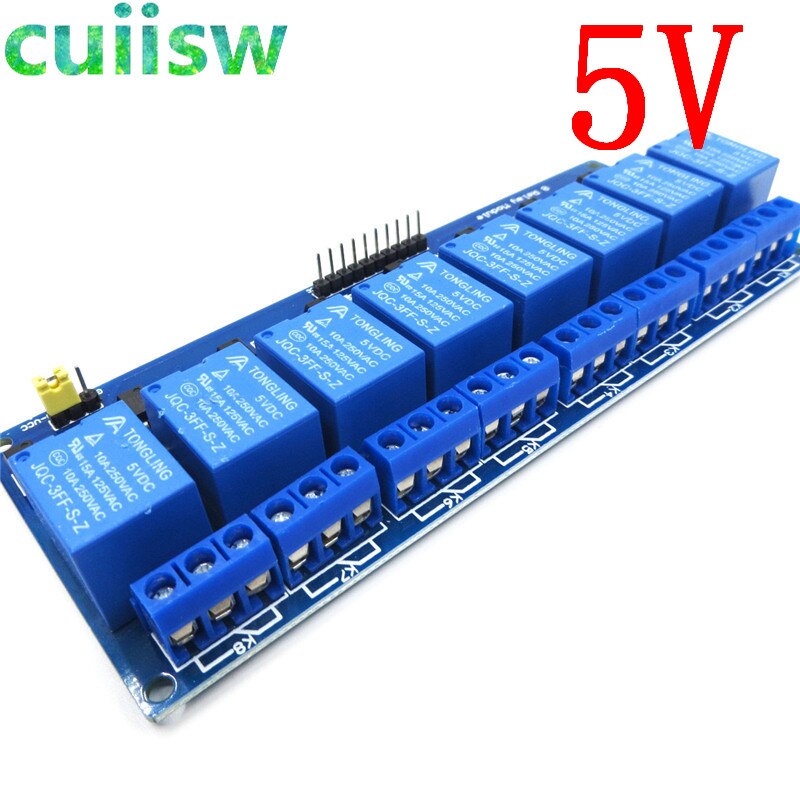

8 Channel:
The new 5V Relay Module
Can be used as microcontroller development board module can be used as home appliance control
5 V-12V to TTL control signal
The control signal DC or AC, 220V AC load can be controlled.
There is a normally open and one normally closed contact
A power indicator light
A control indicator, pull off, disconnect does not shine
Transistor drive to increase the relay coil control pins high impedance.
The control pin has a pull-down circuit to prevent malfunction relay vacant.
- Voltage: 5V
- is_customized: Yes
- Usage: General Purpose
- Model Number: Relay Module
- Contact Load: Low Power
- Protect Feature: Sealed
- Theory: Voltage relay
- Brand Name: cuiisw
- Certification: NONE
- Origin: Mainland China
