0.5kw Air Cooled Spindle 500W Spindle Motor ER11 Chuck CNC Spindle Motor+52mm Clamps+Power Supply Speed Governor For Engraving
4.9 (14 votes) | 76 orders
Price:
US $584.01
Discount Price:
US $
195.97
-66%
- Color
0.5kw Air Cooled Spindle 500W Spindle Motor ER11 Chuck CNC Spindle Motor+52mm Clamps+Power Supply Speed Governor For Engraving

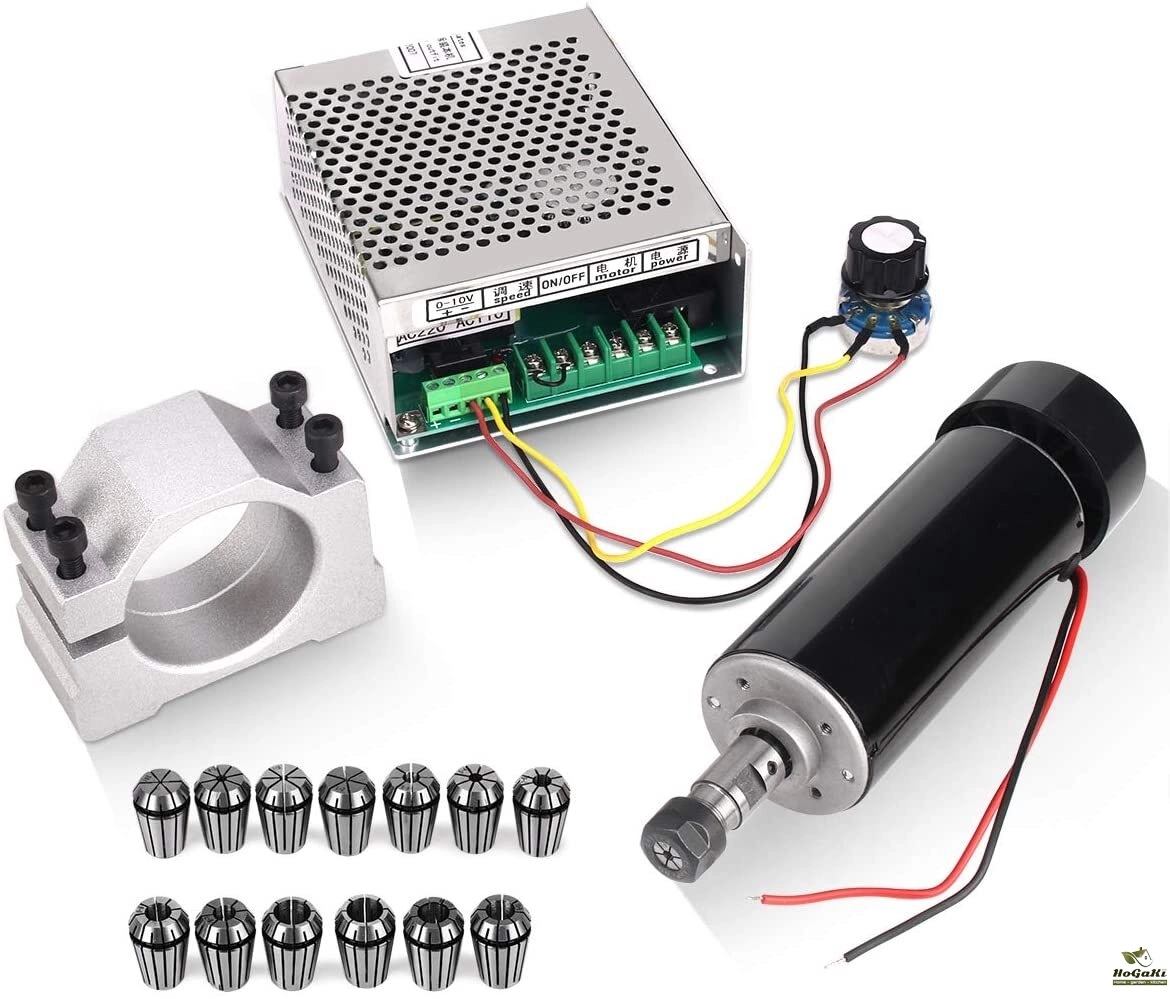

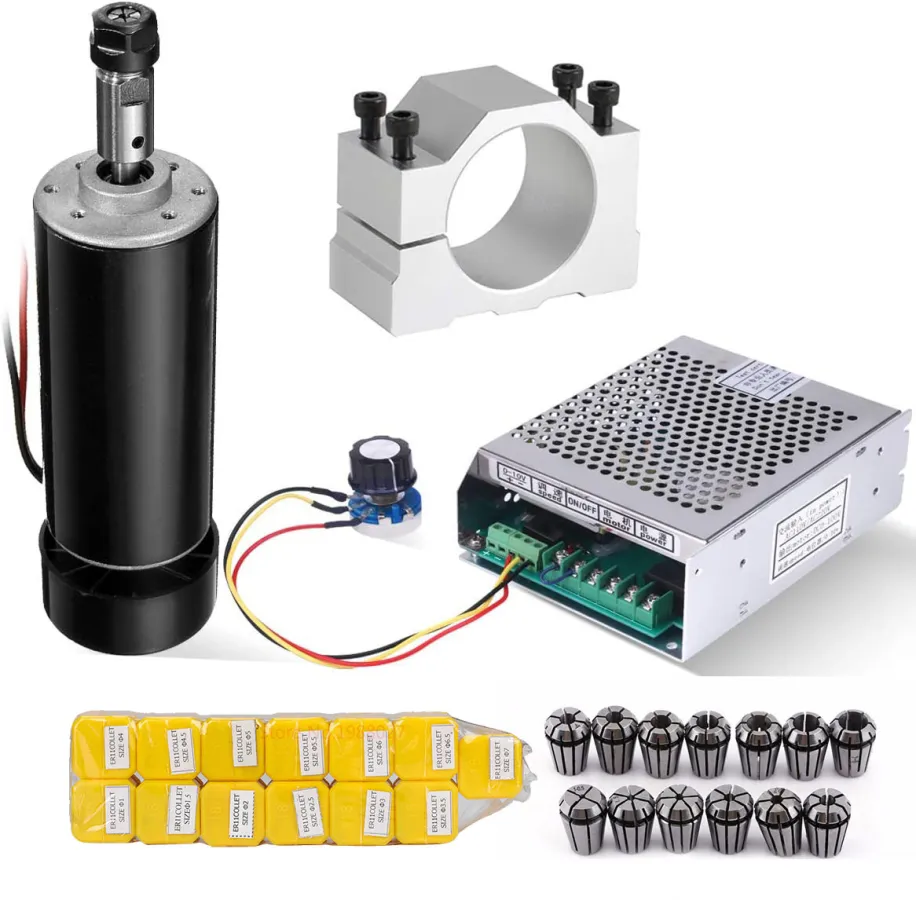

Packing Include：
1 piece 500W Air-Cooled Spindle Motor
1 piece 110V/220V Speed Governor with MACH3
1 piece 52mm Mount bracket
13 pieces ER11 collect
Parameter:

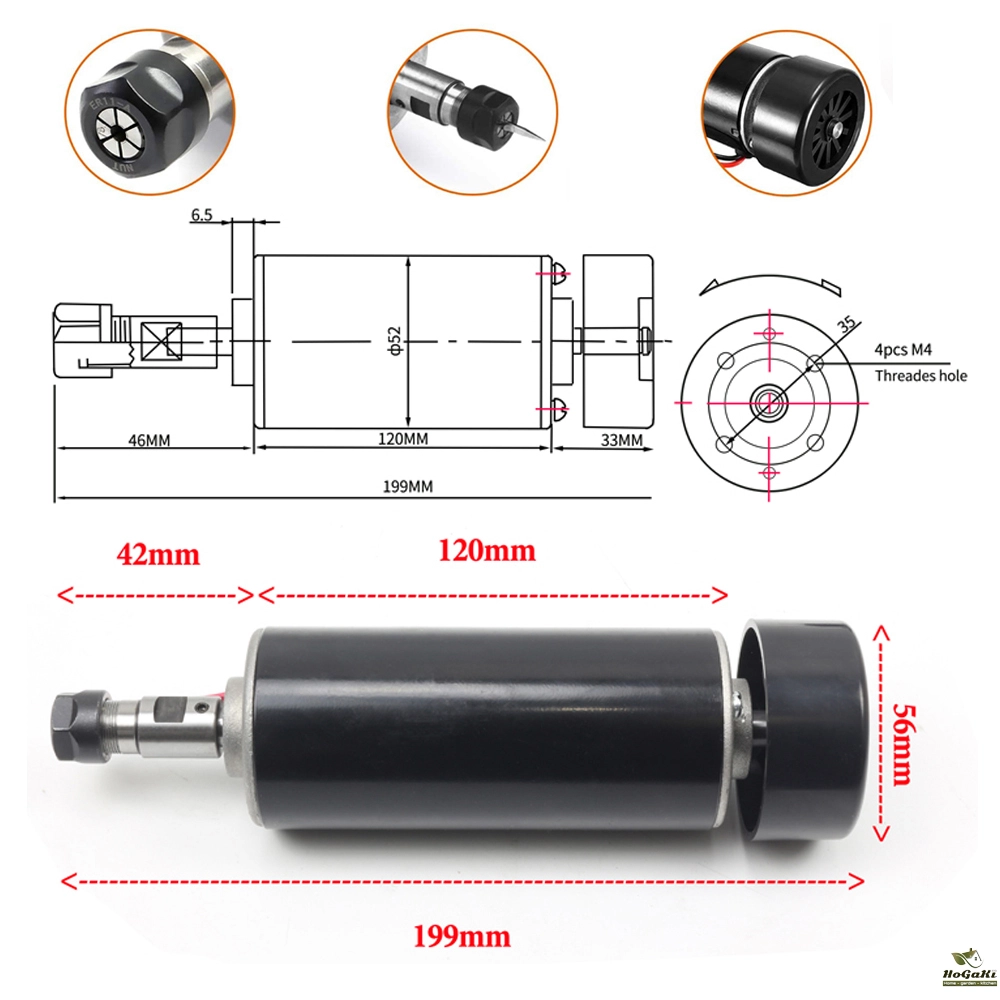

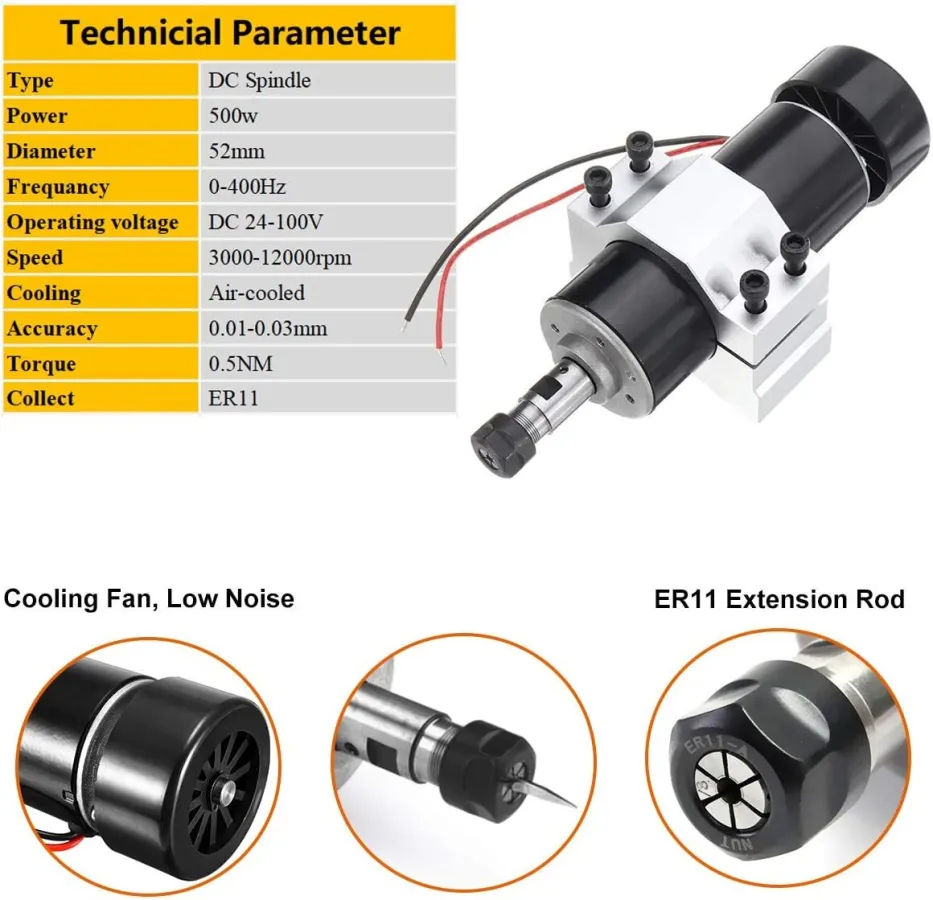

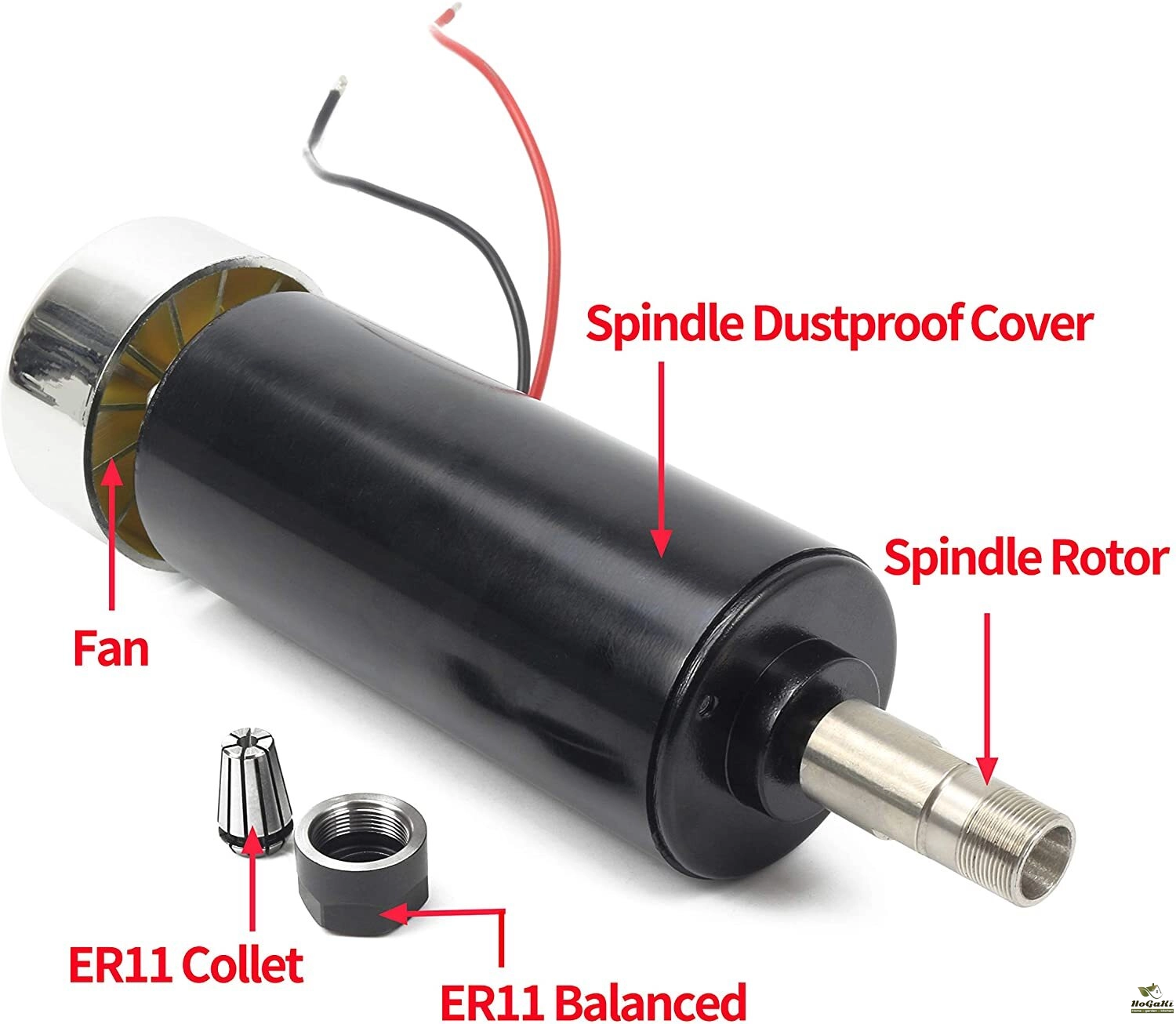

Air Cooled Spindle:
Input: AC110V± 10%50/60Hz
Operating voltage: 100VDC
Power: 500W
Current: 4A
Motor Length: 200MM
Speed: Up to idle up to 12,000 rev / min
Torque: 5000G/CM
Insulation resistance:> 2 megohms
Dielectric strength: 400V
High precision spindle runout 0.01-0.03

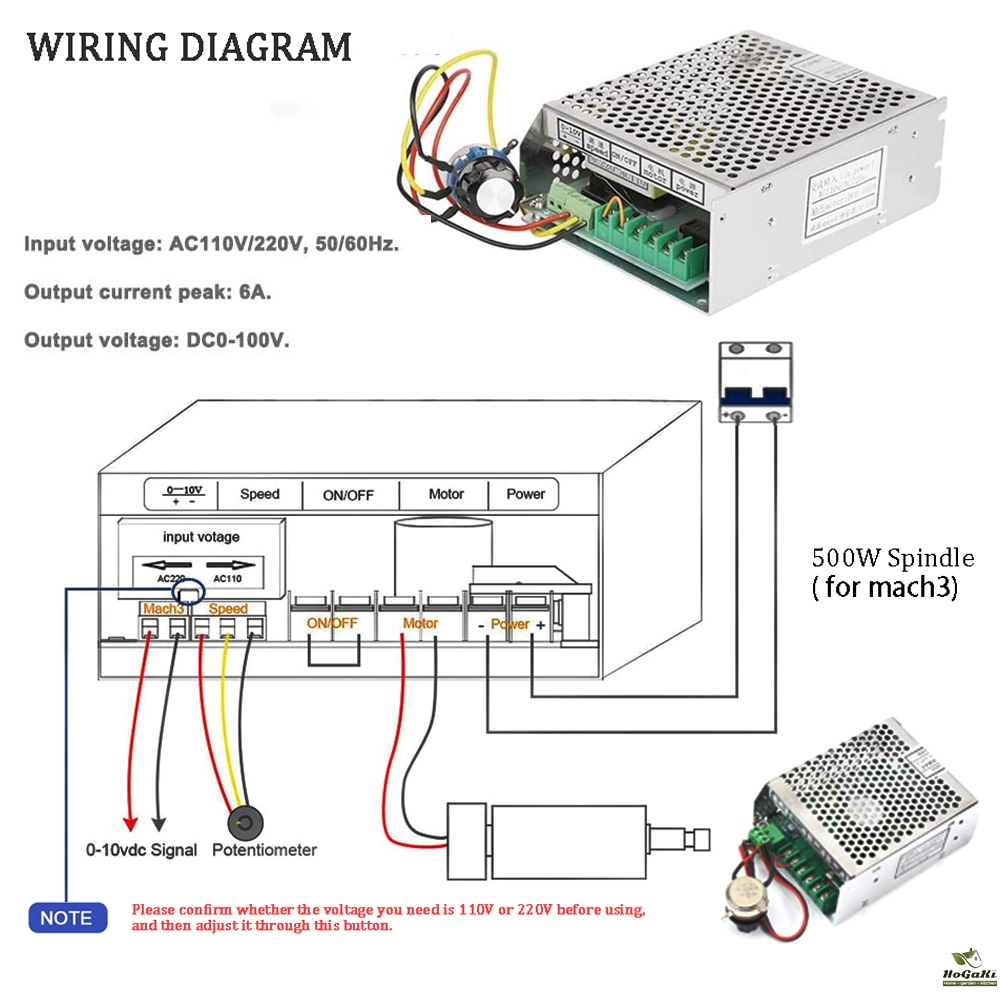

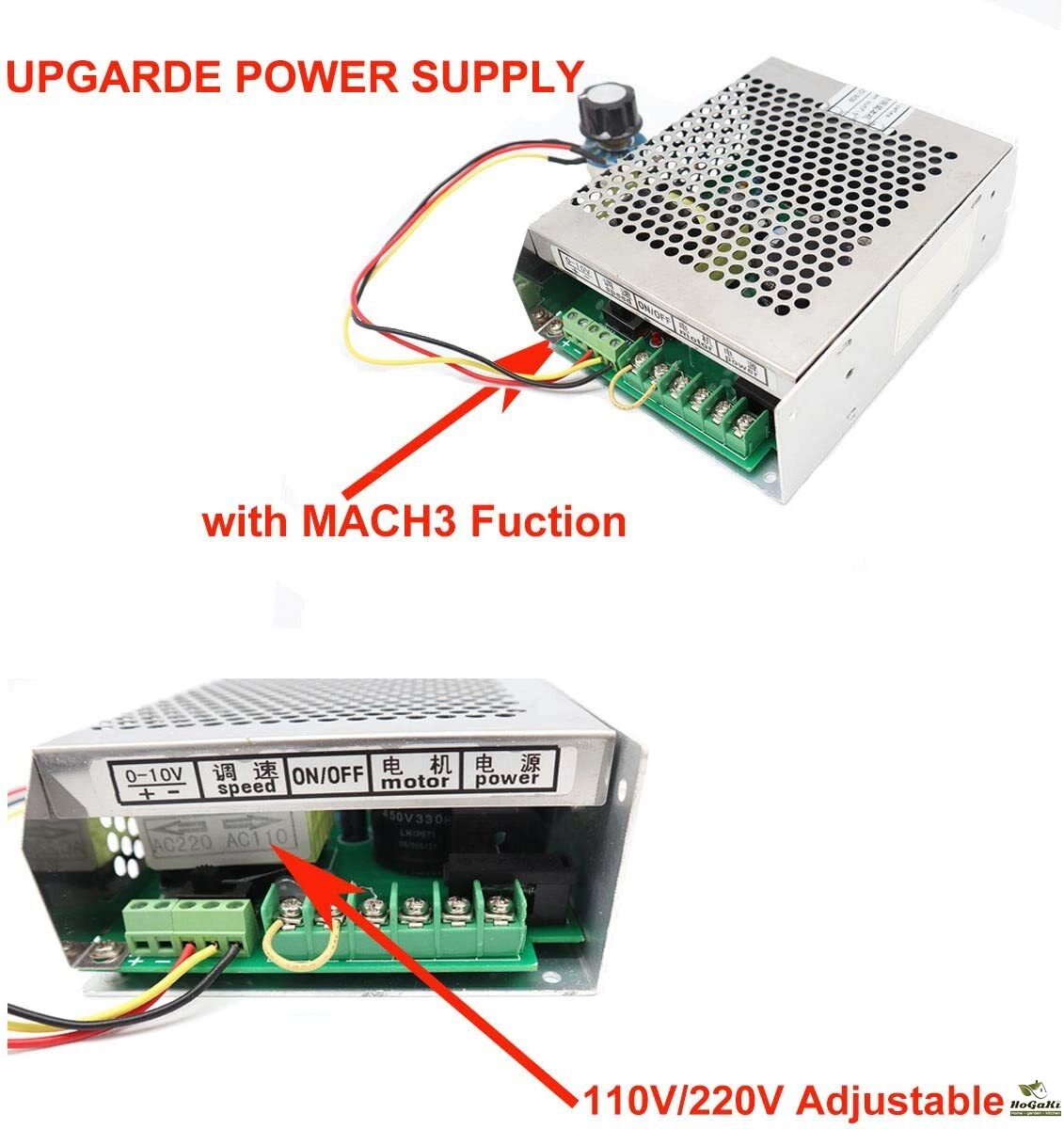

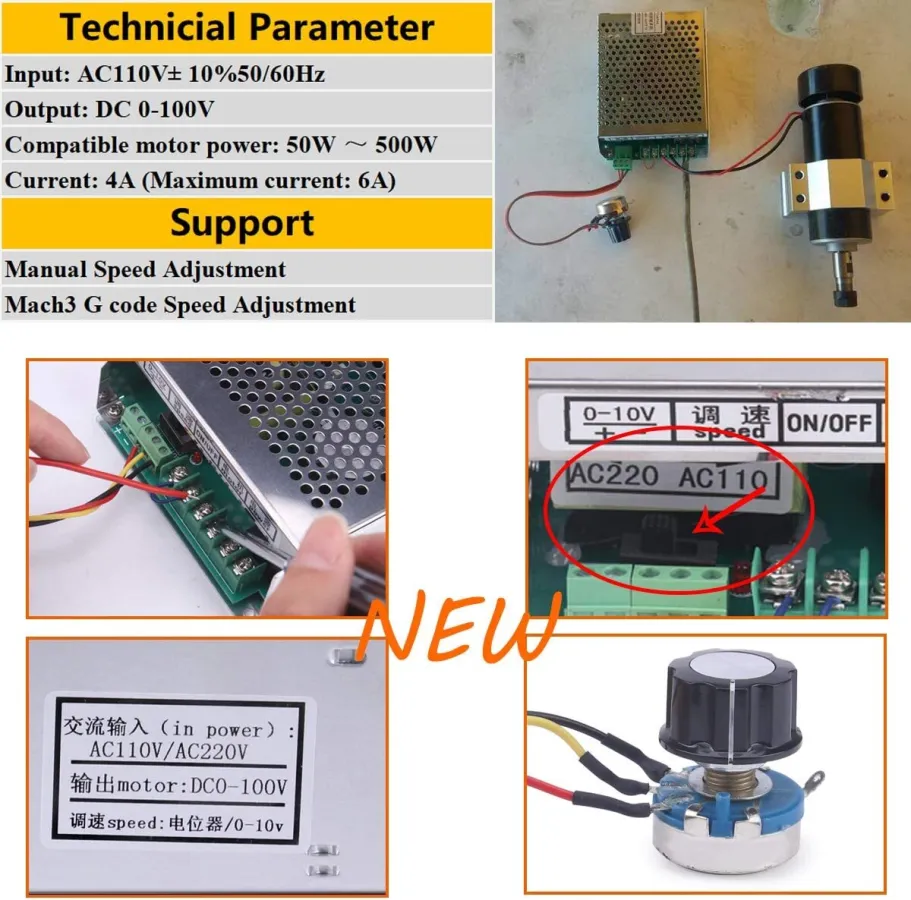

Speed Power Converter:
Input voltage: AC110V/220V, 50/60Hz
Output current peak: 6A
Adaptive motor power: 100W-500W
Output voltage: DC0-100V
Size: 5.5×4.3×2inch
Air temperature around: -10～40°C
RH(relative air humidity) under 85%, draughty
Please install in the place that is draughty, no dramatic impact, no vibration, no explosion hazard medium, no conductive metal particle.

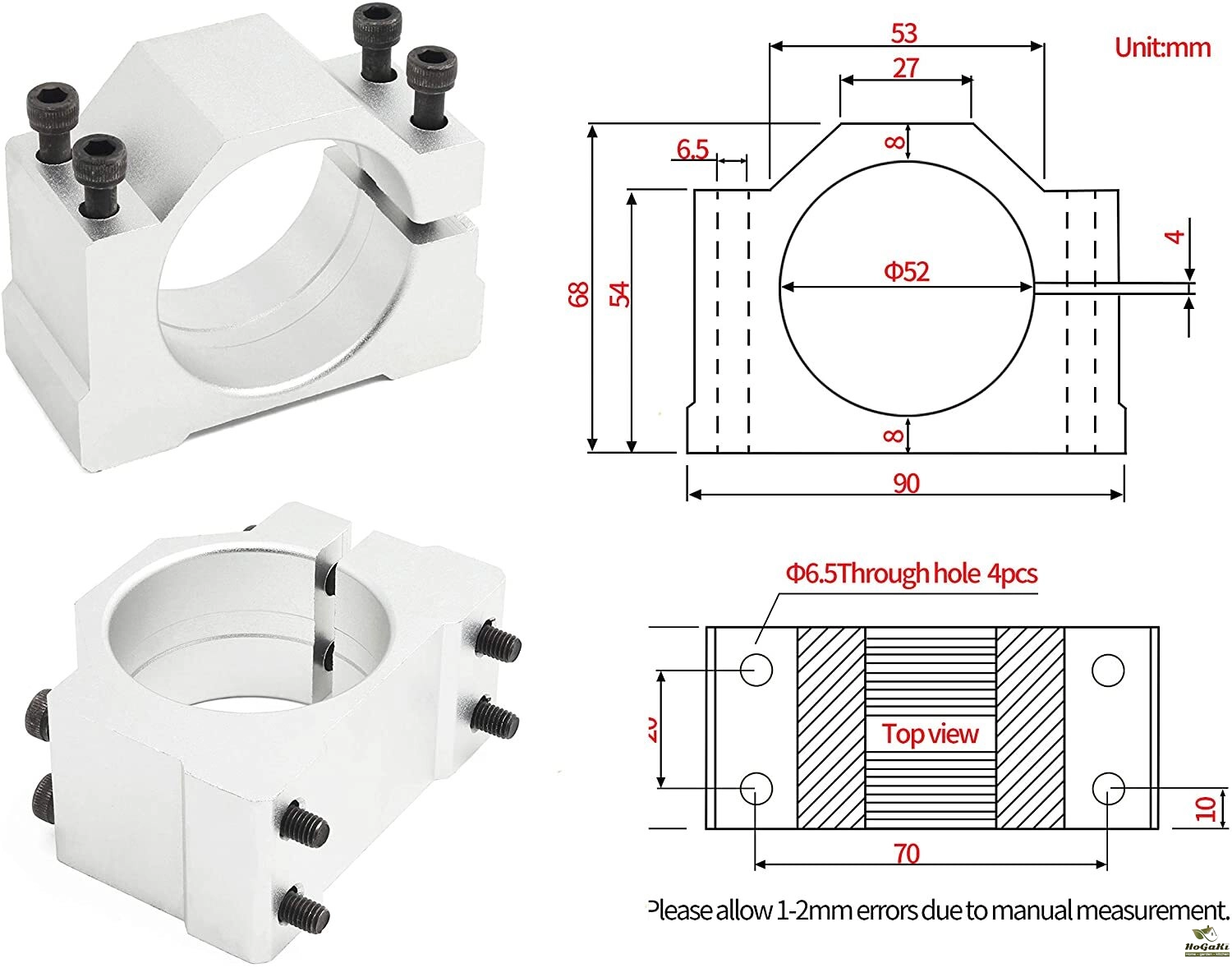

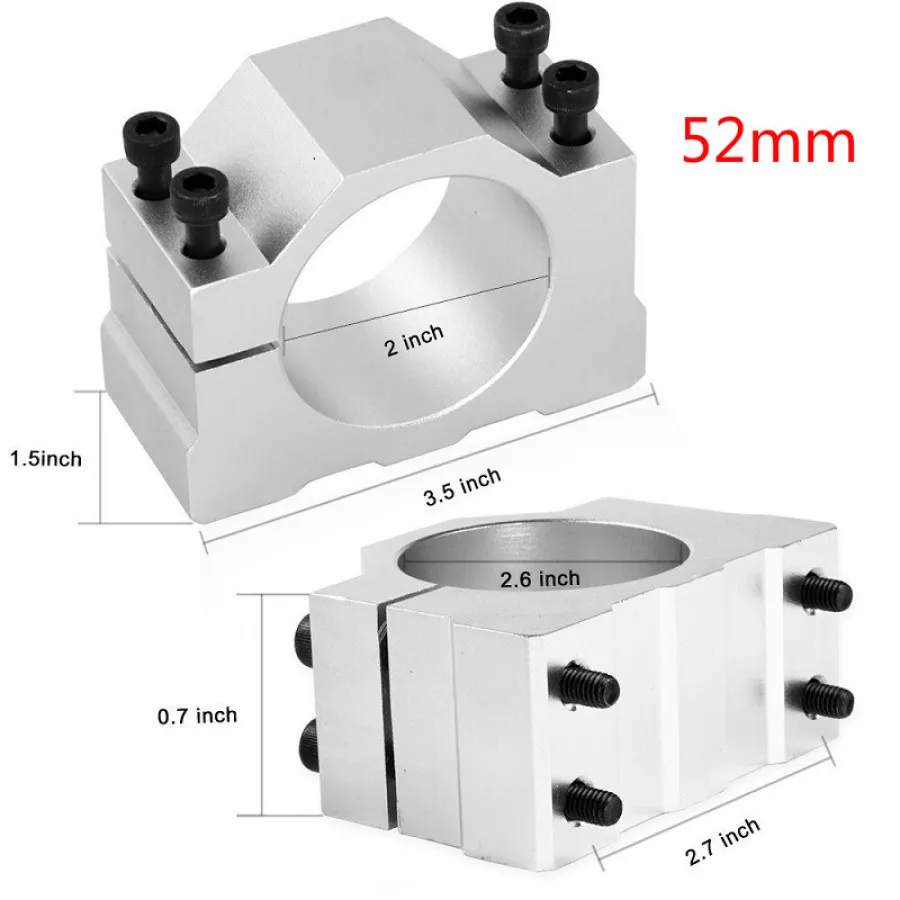

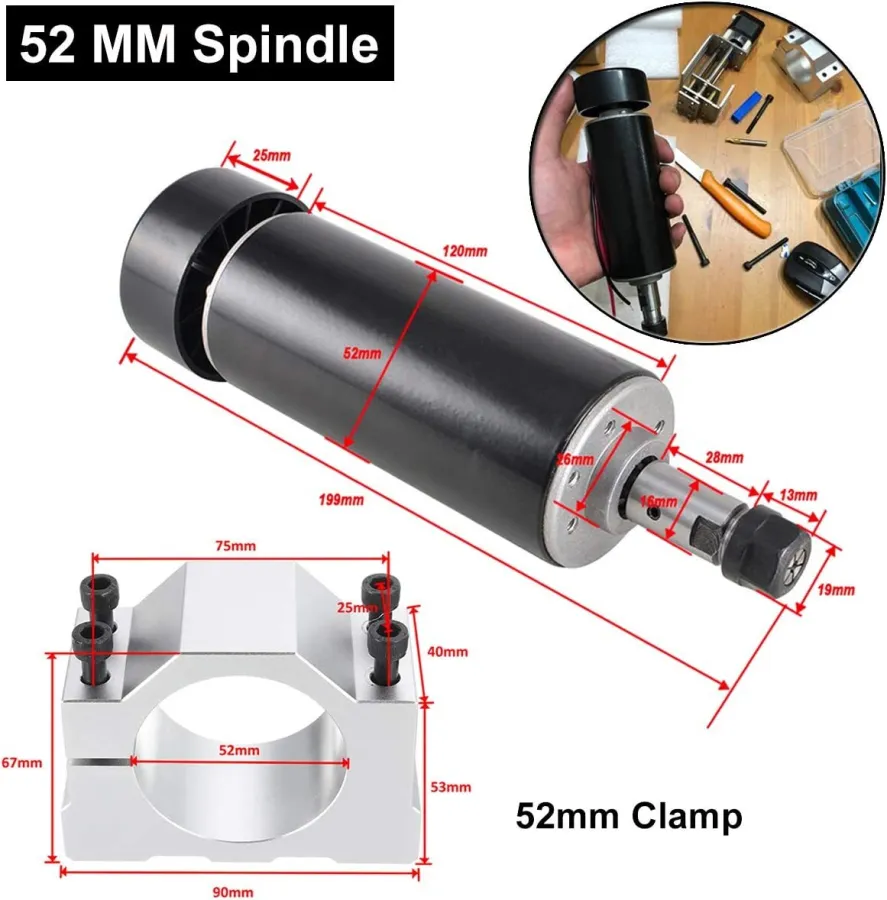

52mm Clamp:
Diameter: 52mm
Chuck portion length: 45MM
Chuck portion diameter: 16mm
Made of high quality cast aluminum, this spindle motor bracket clamp is strong and durable.
The surface is well finished by sand blast which ensures a better smoothness.
This motor bracket clamp would be a great replacement for CNC part.

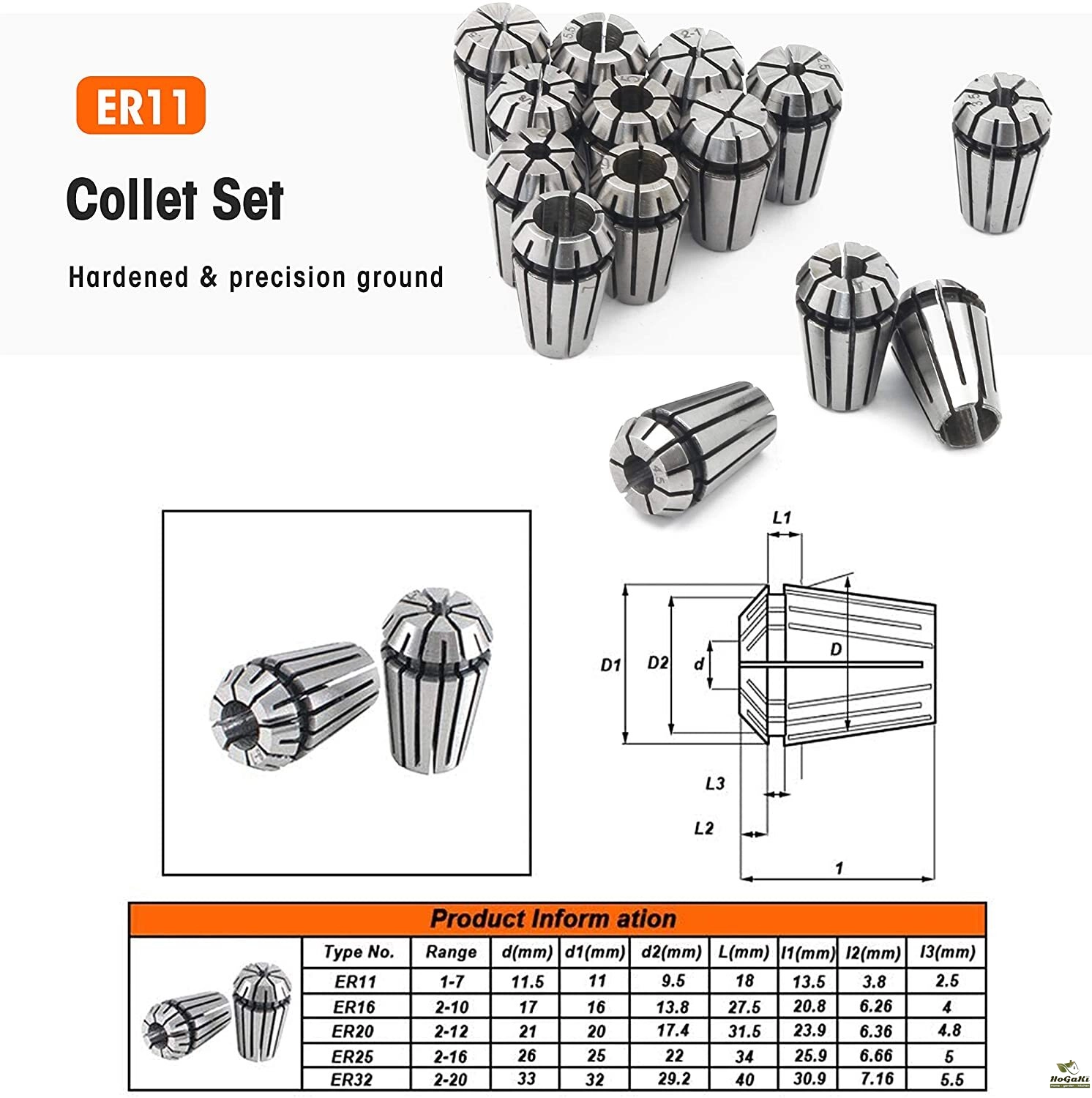

ER11 Collet Set:
13 pieces ER11 Collet Set Gripping Range: 1MM to 7MM (1mm,1.5mm,2mm,2.5mm,3mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.5mm,7mm), Run-out tolerance 0.01mm (0.0006")
First class 1065 carbon steel
Hardened & precision ground
Made of high grade specially formulated spring steel.
Packaging Details
- Unit Type:
- Package Weight: 1.940
- Package Size: 17x16x28
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: 500W Spindle router
- CNC or Not: Normal
- Condition: New
- Collet: ER11
- Voltage: 220V
- Cooling: Air Cooling
- Function: Milling/Engraving
- Choice: yes
