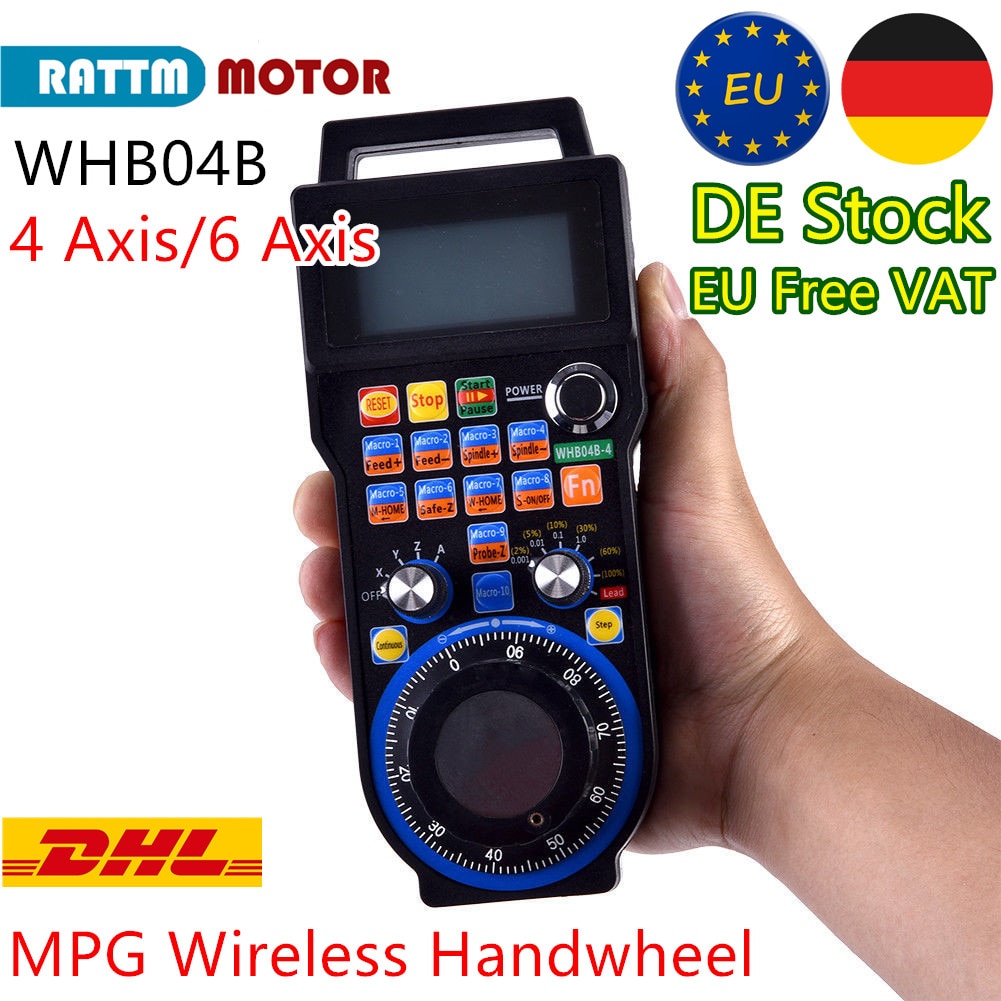

HLTNC XHC CNC Wireless Mach3 MPG Pendant Handwheel For Milling Machine 4 6 Axis WHB04B-4 WHB04B-6 Fit MK3-IV MK4-V Controlker
469.07 248.65 $
ID: 88637
Quantity
【DE/US/RU Stock】4 / 6 Axis XHC Mach3 / NC Studio MPG Pendant CNC Wireless Handwheel Manual USB Receiver 40 Meter Distance WHB04B
0.0 (4 votes) | 16 orders
Price:
US $
216.32 -
284.72
/ piece
- Ships From
- Color
-
-
Good News: We have warehouse in some countries, check as bellows
Package include:

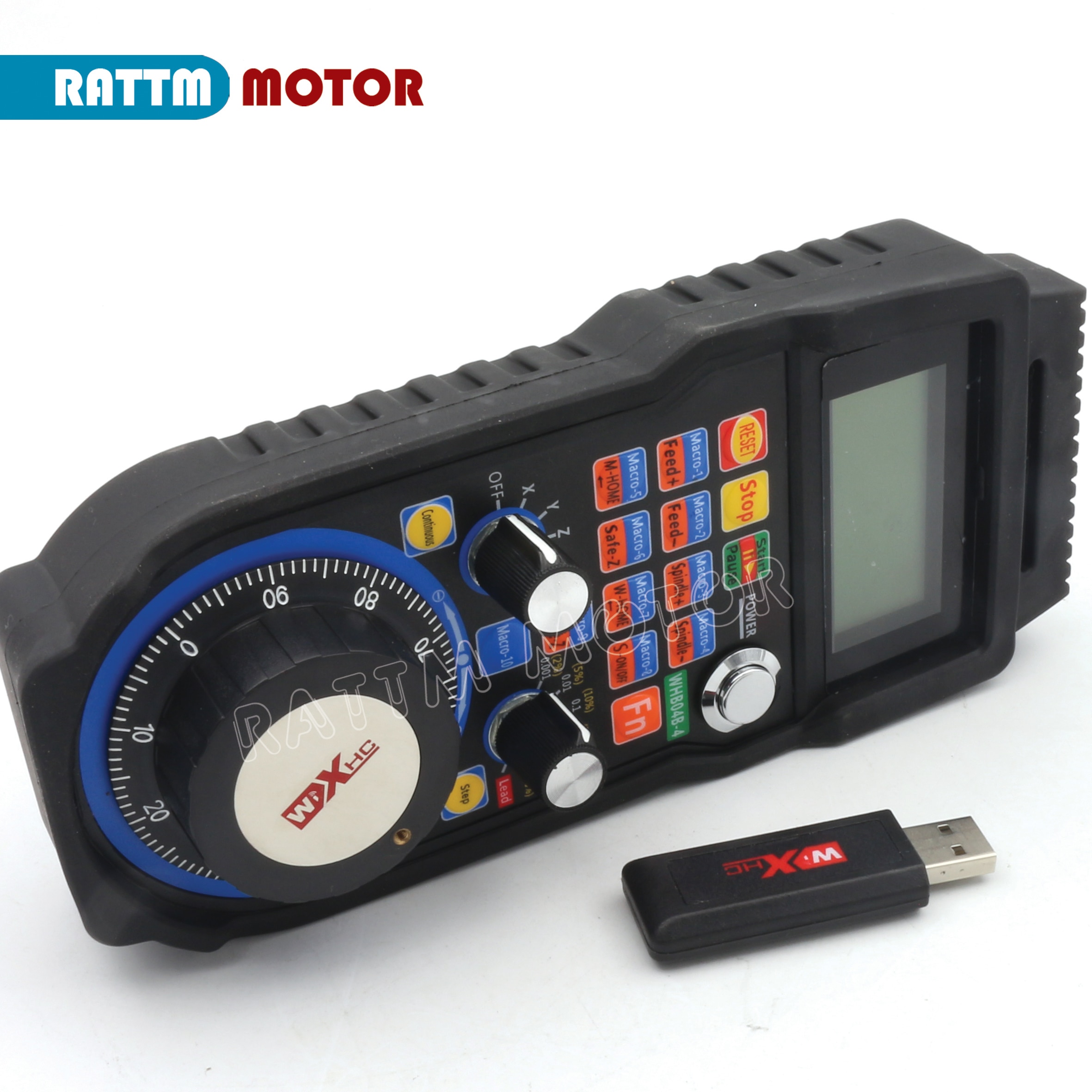

1 x 4 axis / 6 axis Wireless Handle(default send Mach3 type, if need Nc-Studio pls leave us a message, the same price)

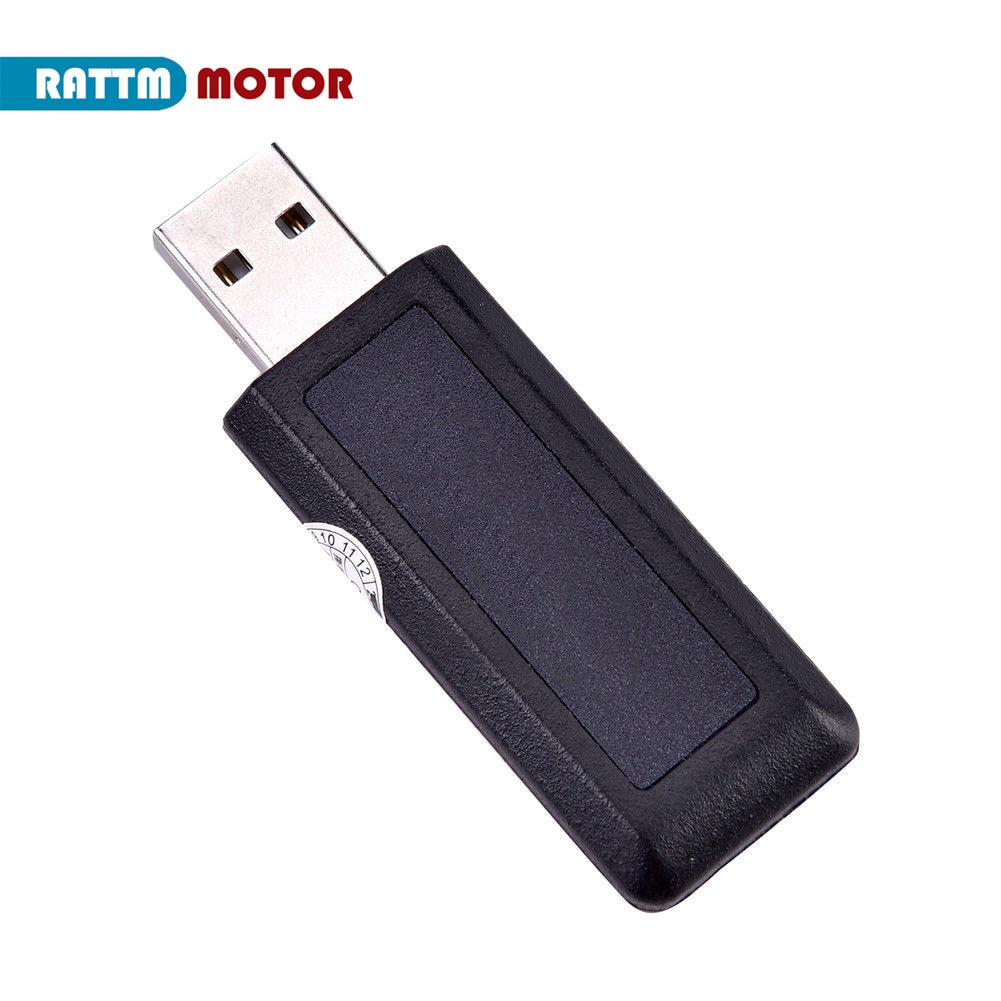

1 x Wireless USB Receiver
1 x Manual download from link too
Model | WHB04B | WHB04B new |
Picture |
|
|
Radio frequency | ISM,433MHZ | ISM,433MHZ |
Wireless transmission distance | 40 meter | 40 meter |
Power | 2pcs Alkaline batteries | 2pcs Alkaline batteries |
Pulse generator | 100PDR | 100PDR |
Accept sensitivity | negative 98DB | negative 98DB |
Max. axis | 6 | 6 |
Material | ABS and PC material | ABS and PC material |
Screen | LCD Display | LCD Display |
Only displayed the current axis value | Can display 3 axis value meanwhile | |
Macro code button | Not support | Support |
Step/Continuous mode switch | Not support | Support |
Compatibility | Only support some USB card, th following cards can not be used | All card can be used |
All parallel cards | All parallel cards | |
Some ethernet card | All ethernet card | |
Some USB card | All USB card |
-
Description :
1. Applications
WHB04B has 2 series：

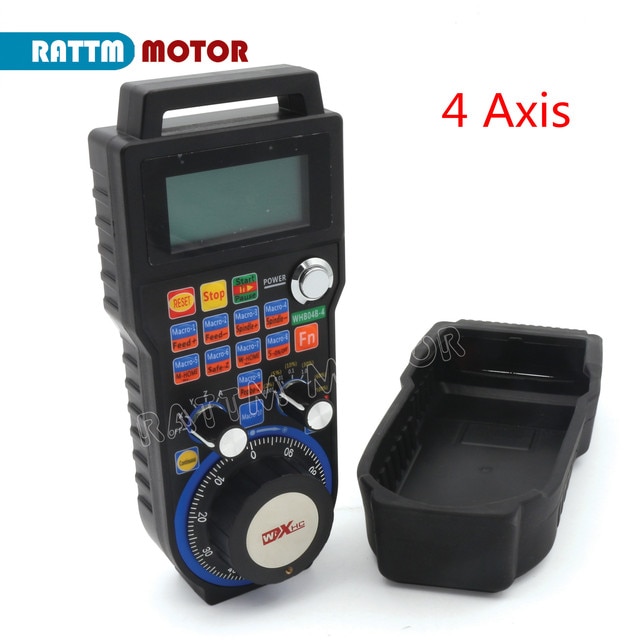

1. WHB04B-4：support 4 axis with x,y,z,a
2. WHB04B-6：support 6 axis with x,y,z,a,b,c
application on mach3 cnc system in windows platform.

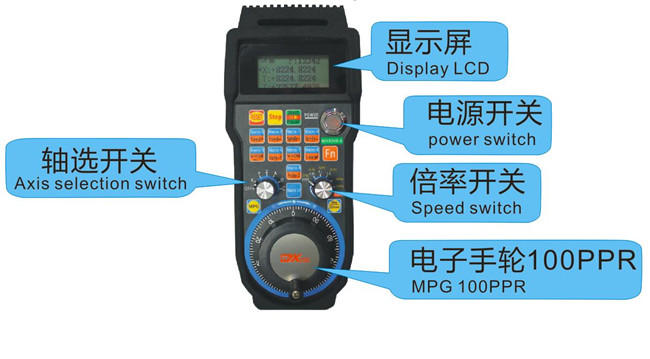

2. Product Overview
3. Application circut
4. Key feature
1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity-98DB.
32 hopping channels，the channel frequency gap is 1Mhz.
the transmission is encrypted， auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2. LCD display
Display the X Y Z A B C axis work and machine coordinate data.
Display the spindle and feed speed.
The lcd display data with background light.
3. Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
4. support 10 macro function button
5.
Parameter | Description |
Frequency bands | ISM，433MHZ |
Supply voltage | 2 AA batteries |
Wireless transmission distance | 40 meter |
MPG Encoder | 100PPR |
Function Key | 16 Keys(support 10 macro function button) |
Output power | 10DB |
Receiver sensitivity | -98DB |
Maximum axis | 6 axis |
LCD | Dot LCD with background light |
Material | The material is ABS and PC with anti-impact and heat-resistant. With protected Silicon coat |
6.LCD Display overview

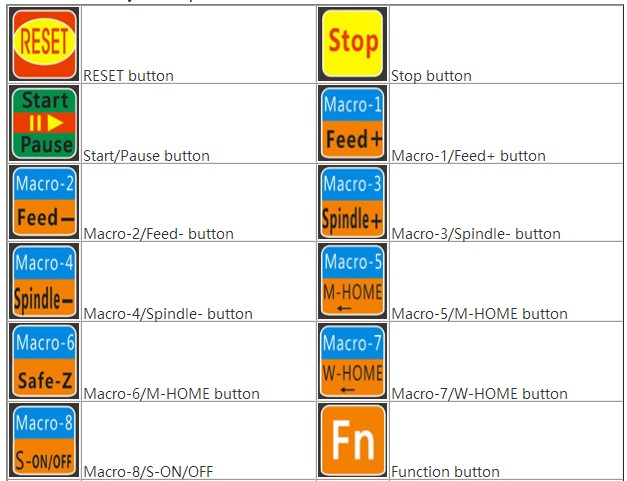

7. Funciton key descripiton
- Model Number: WHB04B
- Material: Other
- Origin: Mainland China
- Certification: CE
- MPG Encoder: 100PPR
- Function Key: 16 Keys(support 10 macro function button)
- Output power: 10DB
- Remote: 40M
- Material 1: ABS and PC material
- Software: Mach3 or Nc-Studio
- Wire: Wireless
- Axis: 4 axis or 6 axis
