【DE Free VAT】 Square 3KW ER20 Air Cooled Spindle Motor 4 Bearings & 3kw VFD Inverter Drive 220V & 1 set ER20 Collet CNC Router

0.0 ( votes)
Price: US $1186.16 - 1381.82 / piece
Discount Price:
US $ 942.06 - 1086.84 / piece
-21%
Quantity








Notice:


this item will delivery from our "EU/Germany"warehouse,within European Union countries free shipping by UPS/DHL, the package will be not easy broken with delivery.




The free ship and free VAT Europe countries area:


Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

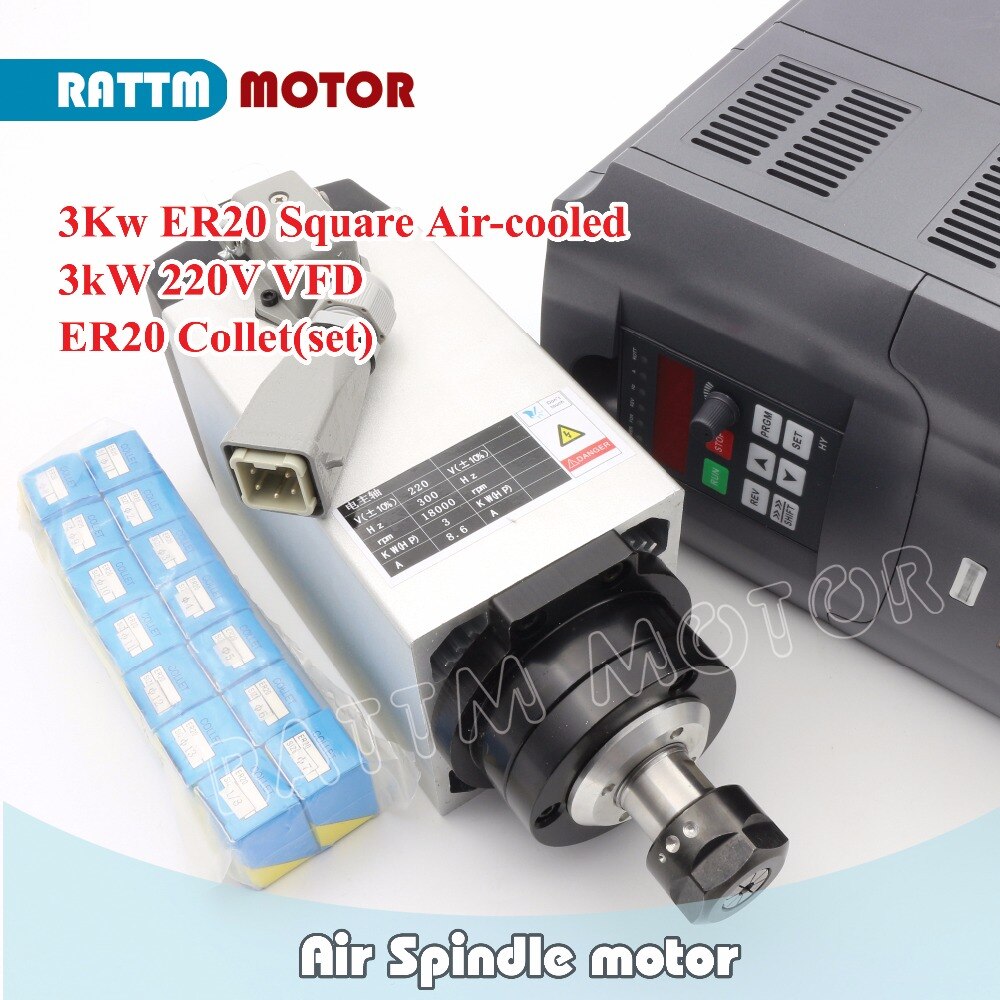

Package include:

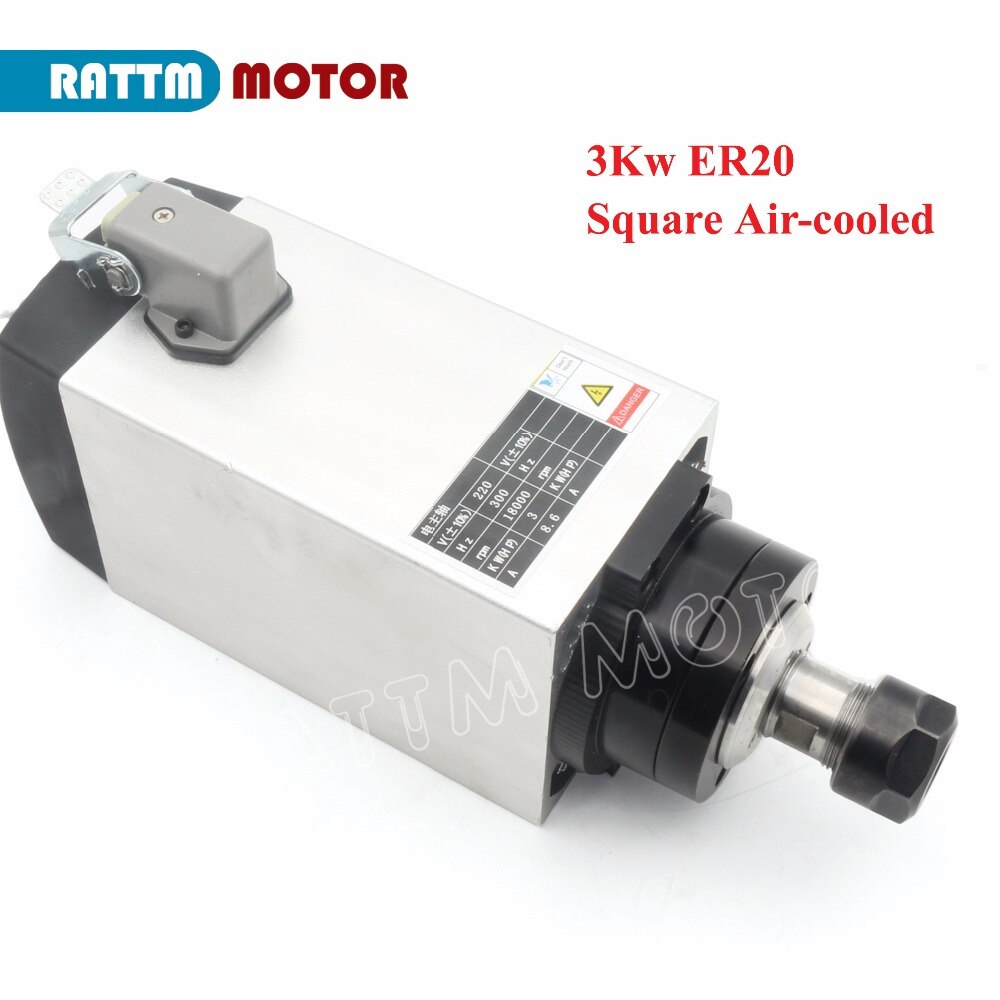

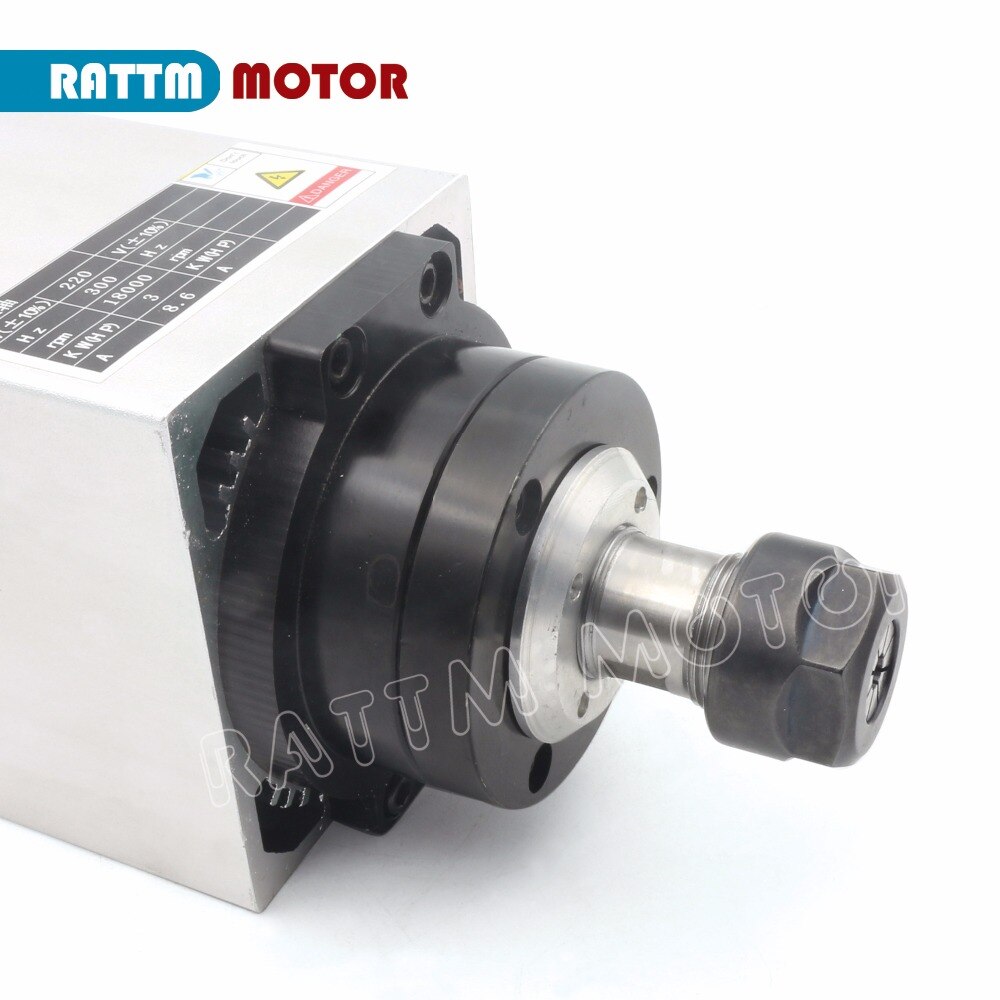

1 x 3KW  Square Air cooled spindle motor (ER20,18000rpm,220V,4bearing,300Hz,88x98x300mm)

1 x 3kw Inverter VFD 220V input with 220V output

1 x 1set ER20 spring collet 14pcs (1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm,                                         7mm,8mm,9mm,10mm,11mm,12mm,13mm)


1)  3KW ER20 Air-cooled Spindle motor Engraving milling Grind

Specification:

Material: Stainless Steel

Size: 88x98x300mm

Power: 3Kw

Voltage: 220-380VAC

Current: 8.6A

Frequency: 0-300Hz

Speed: 0-18000rpm

Cooling: Air-cooled

Accuracy: 0.003--0.005

Runout off: Less than 0.05mm

Bearing Lubrication: Grease

Collet size:ER20

Bearings: 4 bearings(C7005x2 + C7002x2),P4 class, Angular contact bearings

Power Interface: Optional GX16 waterproof air plug, there are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground.

Net Weight: 7 kg

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry



1. Structural features

1) High speed electric main bearing all adopt the C-class high-speed angular contact ball bearing, axis sets of loading, Improve spindle in the high-speed rotation supporting stiffness and precision grinding.

2) Before driving, rotation of the shaft by hand.Spindle high speed rotation caused by temperature rise, use of cooling liquid circulating system to eliminate.


2. Instructions for use

1) In use, must first connect the cooling water pipe, make spindle connect cooling water and then start.

2) Before driving, turned by hand spindle. If sensory block is not flexible, you should troubleshoot, and then check the direction of rotation of the spindle from the spindle end to see if the match should rotate counterclockwise power wiring should be changed to make it consistent.

3) Before driving, cooling water for grinding workpiece can’t be in the front end of the spindle cover, to prevent the front bearing cover slot inlet burning motor and bearing. the motor must not enter the water, after turned on of the motor, when you live in grinding the workpiece to open the grinding of workpieces coolant. First off the workpiece coolant shutdown, and then close the spindle motor.


3. Maintenance and Service

1) Motorized spindle by medium frequency power supply rated voltage, frequency should be consistent with electric spindle technology parameters, motorized spindle rotational speed can change the frequency to adjust, also directly proportional voltage change.

2) When the spindle is temporarily not in use, should use compressed air to blow the coolant water,to avoid rusting, plug the hole. Spindle surface should be coated with anti rust oil. The shaft end protecting device, placed in dry place.

3) If replacement the spindle of bearings, best professional and technical personnel from the replacement. Use special tools, stator coil does not to be removed.

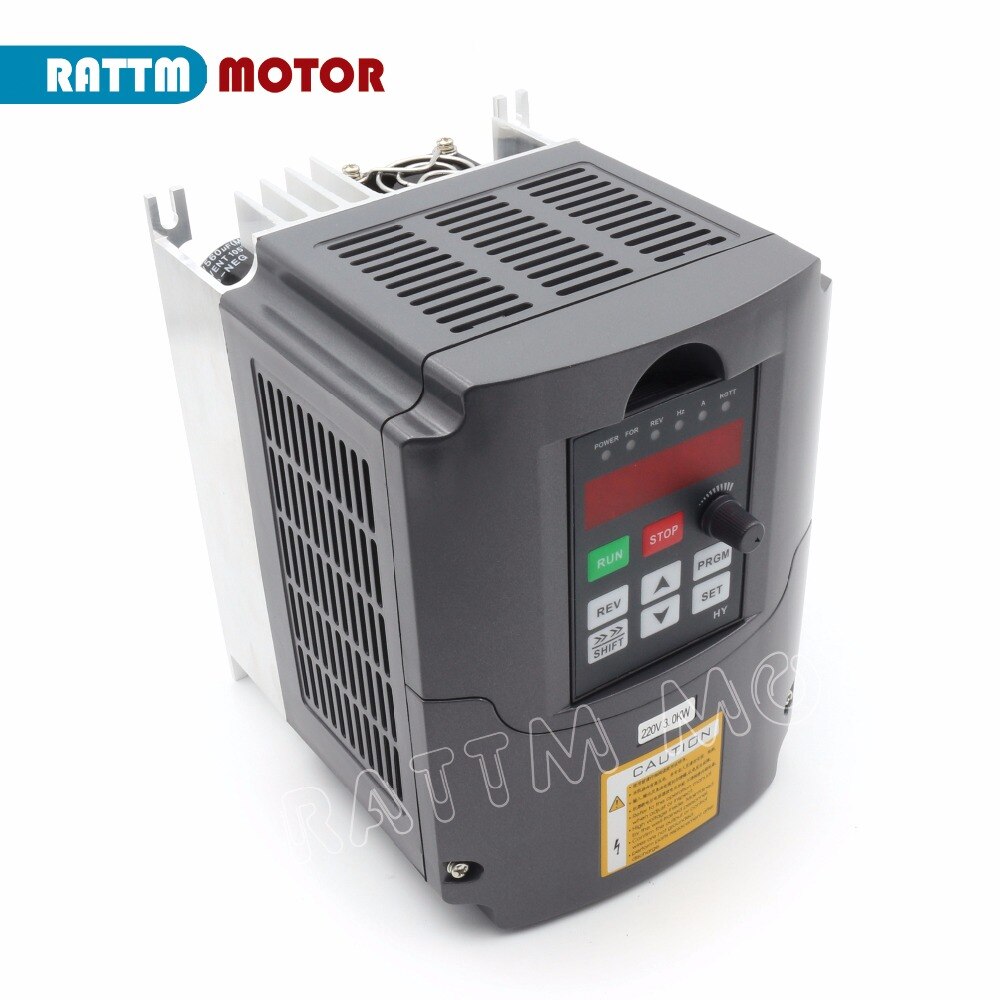

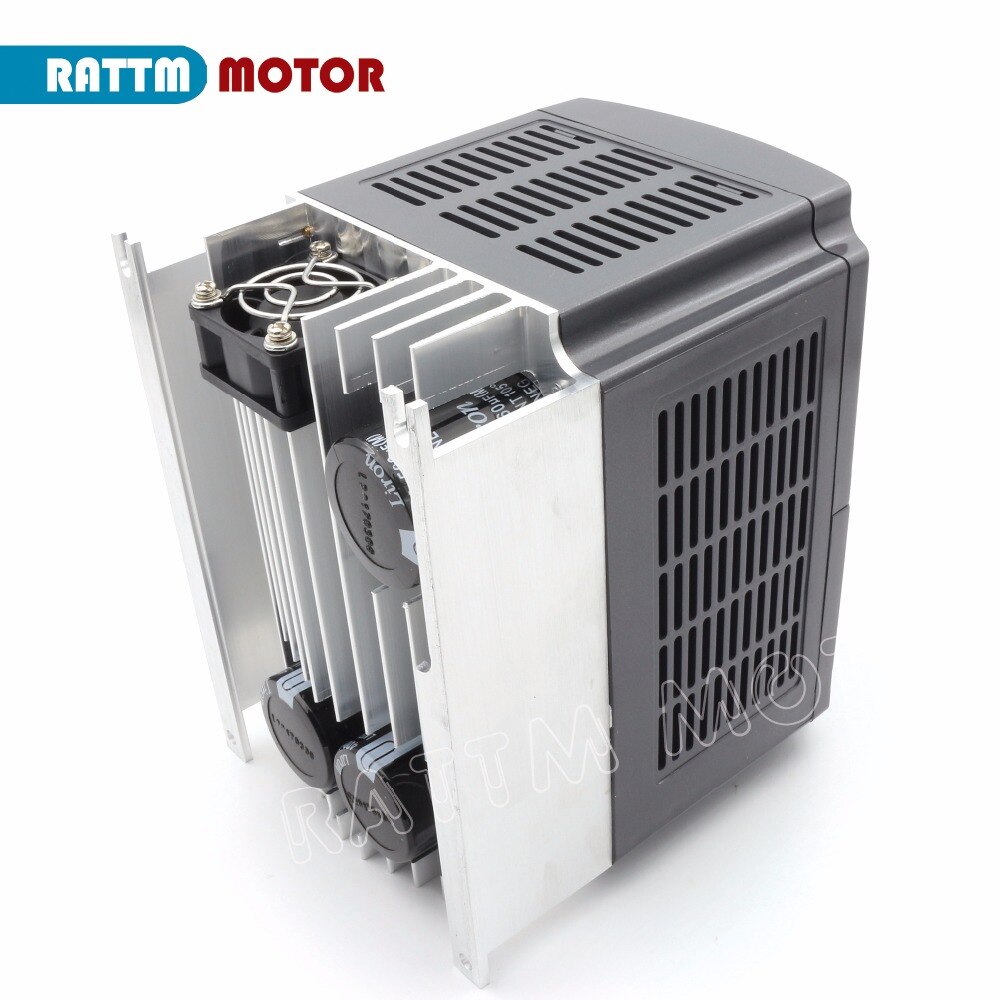

2)  3KW VFD Inverter 220V input with 220V output

Feature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

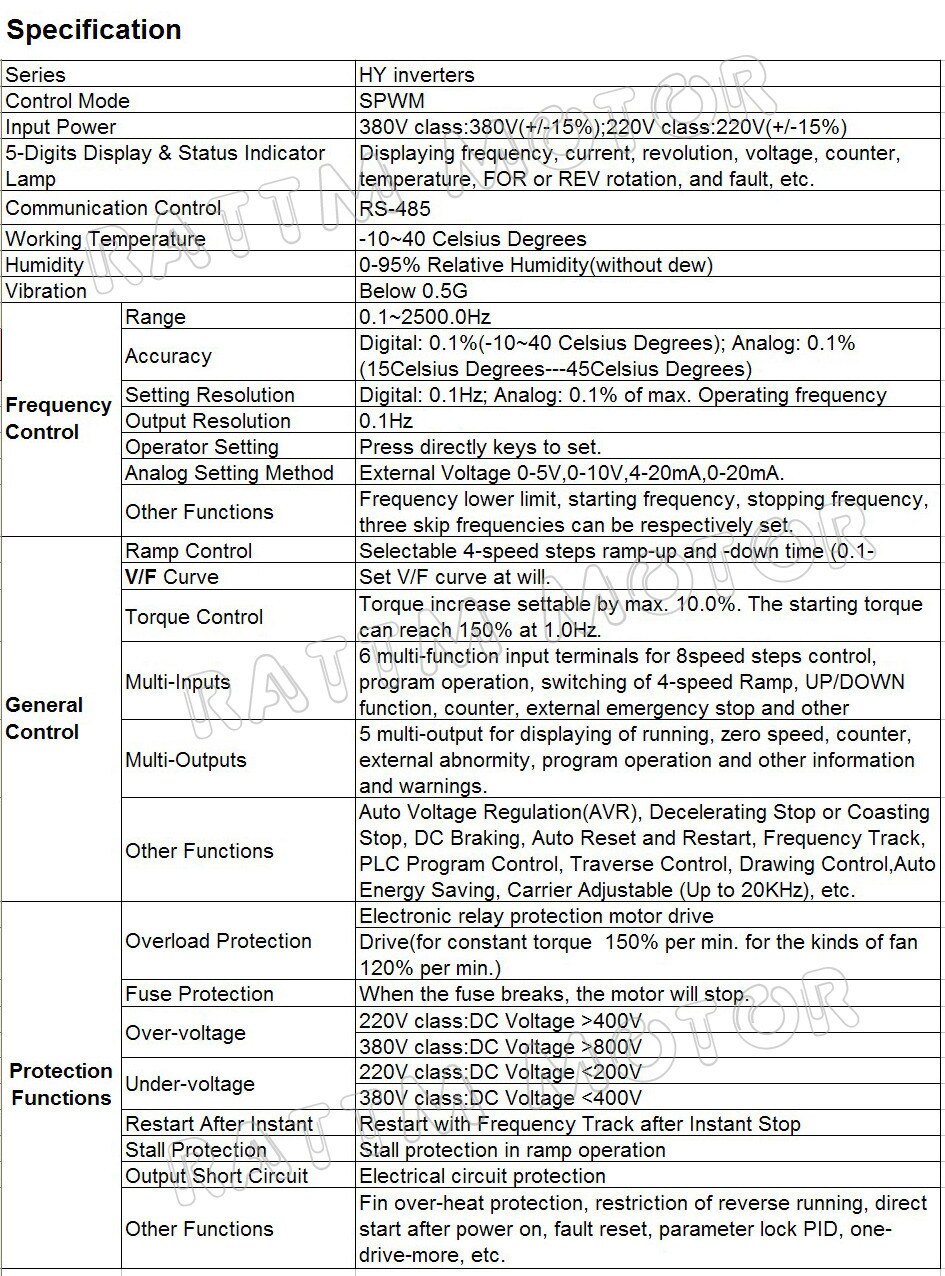

Tech parameters:
1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us for item stock.
2) Output Voltage 208Vac-240VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Warranty: 1 year from the date you purchased

Advantage:

1) Control mode is SPWM,it is very easy to use and convenient;

2) Protection functions are very strong;

3) Fin over-heat protection;

4) Overload protection;

5) Fuse protection;

6) Restart after instant stop,stall protection;

7) Powful function;

8) Reliable quality.

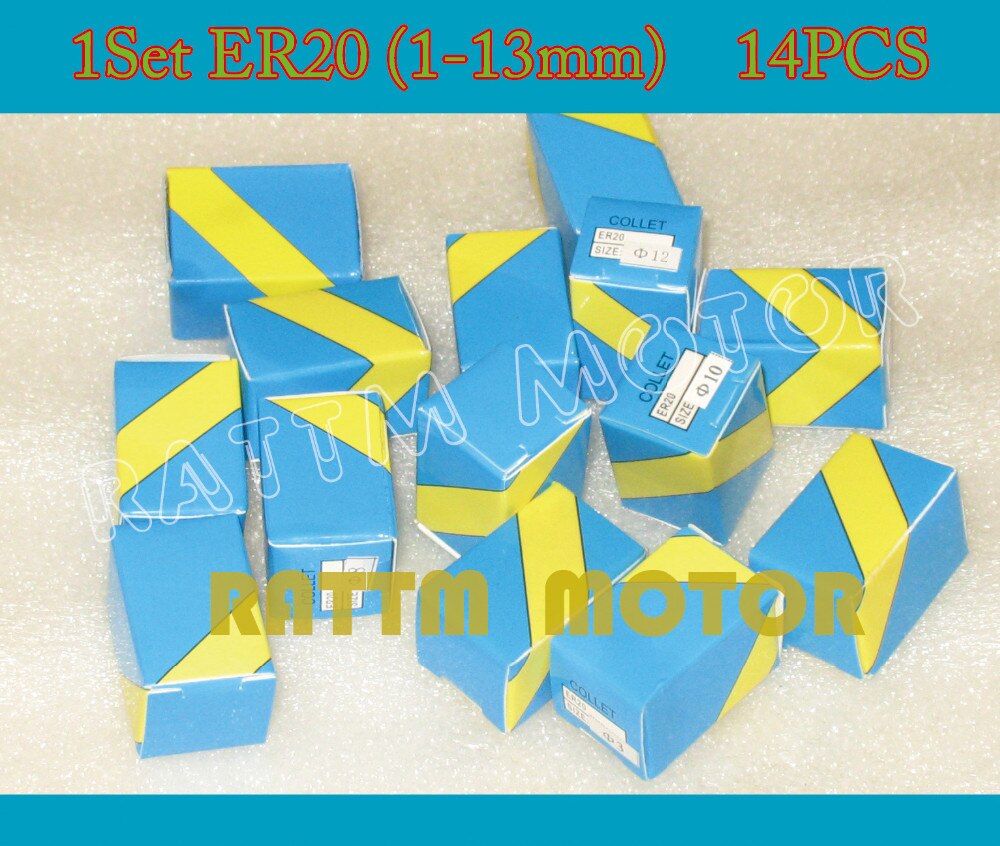

3.ER20 spring collet:

Product Description
Out dia (D1):11.5mm
Height (H):18mm
Hole dia (D2):1-13mm
Run-out tolerance 0.1mm (0.006")
First class 1065 carbon steel
Hardened & precision ground



Shipping

===================================================================

Item will ship within 2-4 business days on payment received

We are not responsible for wrong or undeliverable address,please

Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.

Delivery time :

By China post Air Mail: 45-60 days or more

By China poat air parcel :35-45 or more

By EMS :25-30 days Brazil need 50days or more

By DHL/FEDEX :3-8 days

If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.

Payment

===================================================================

1.Before purchasing, pls confirm details with us if you have request on items.

2.Pls make payment within 3 days of the order if possible.

3.Alipay(escrow),Credit Card,Western Union,Bank TT, etc are accepted.


Problem & Feedback

===================================================================

We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit

If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.

1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.

2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.

3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,


Refund

===================================================================

Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.

When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.


Contact us

===================================================================

Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.

Customer’s satisfaction is very important to us.



  • Operating Speed: 18000rpm
  • Maximum Torque: None
  • Application: Milling
  • Model Number: 3KW Spindle motor & 3KW VFD
  • Drive: Motor
  • Brand Name: RATTMMOTOR
  • Certification: CE
  • Origin: Mainland China
  • Name: CNC spindle & inverter
  • Spindle: 3KW ER20 Air-cooled Spindle
  • Inverter: 3KW VFD Inverter 220V input with 220V output
  • Place of Origin: Jiangsu, China (Mainland)
  • Bearing: 4pcs ( C7005x2 + C7002x2 )
  • Lubrication: Grease
  • Phase: 3
  • Frequency: 300Hz
  • Collet: 1 set 14pcs ER20 Collet
  • Spindle motor speed: 18000rpm
  • Accuracy: 0.003-0.005
  • Runout off: Less than 0.05mm
