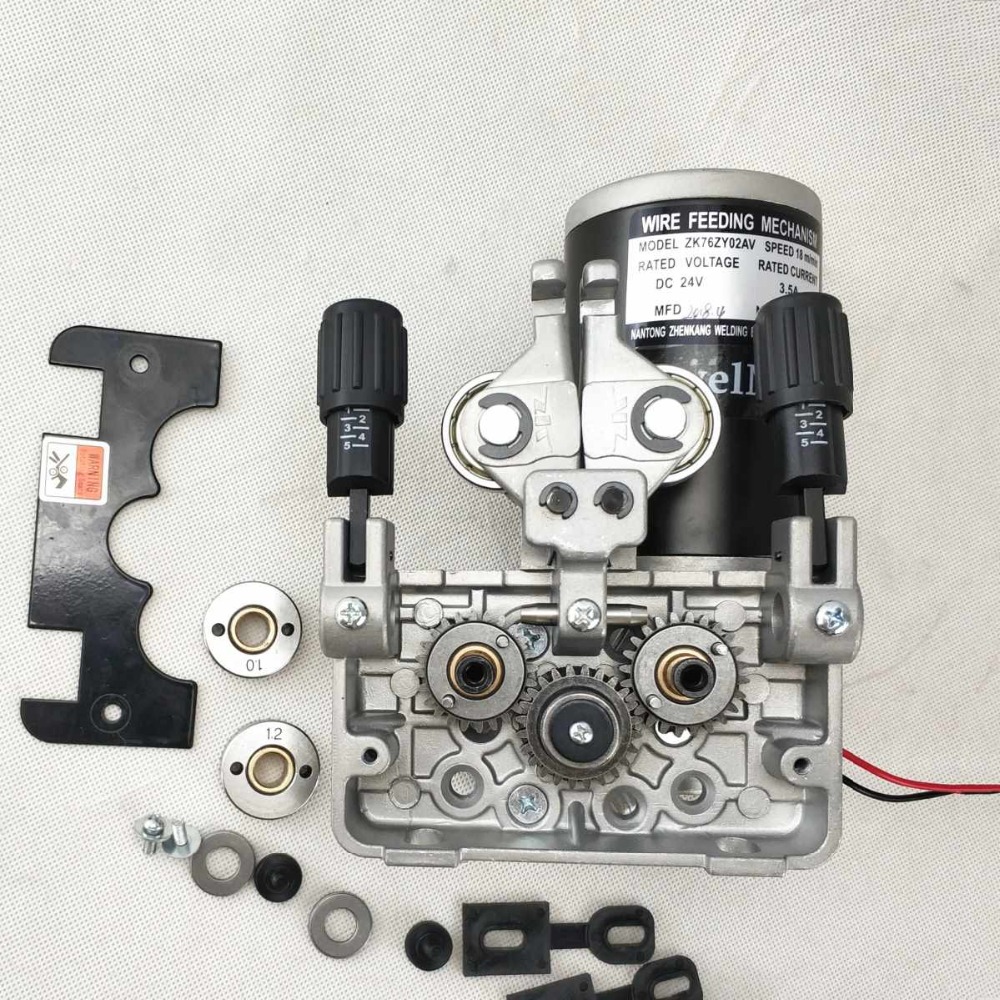

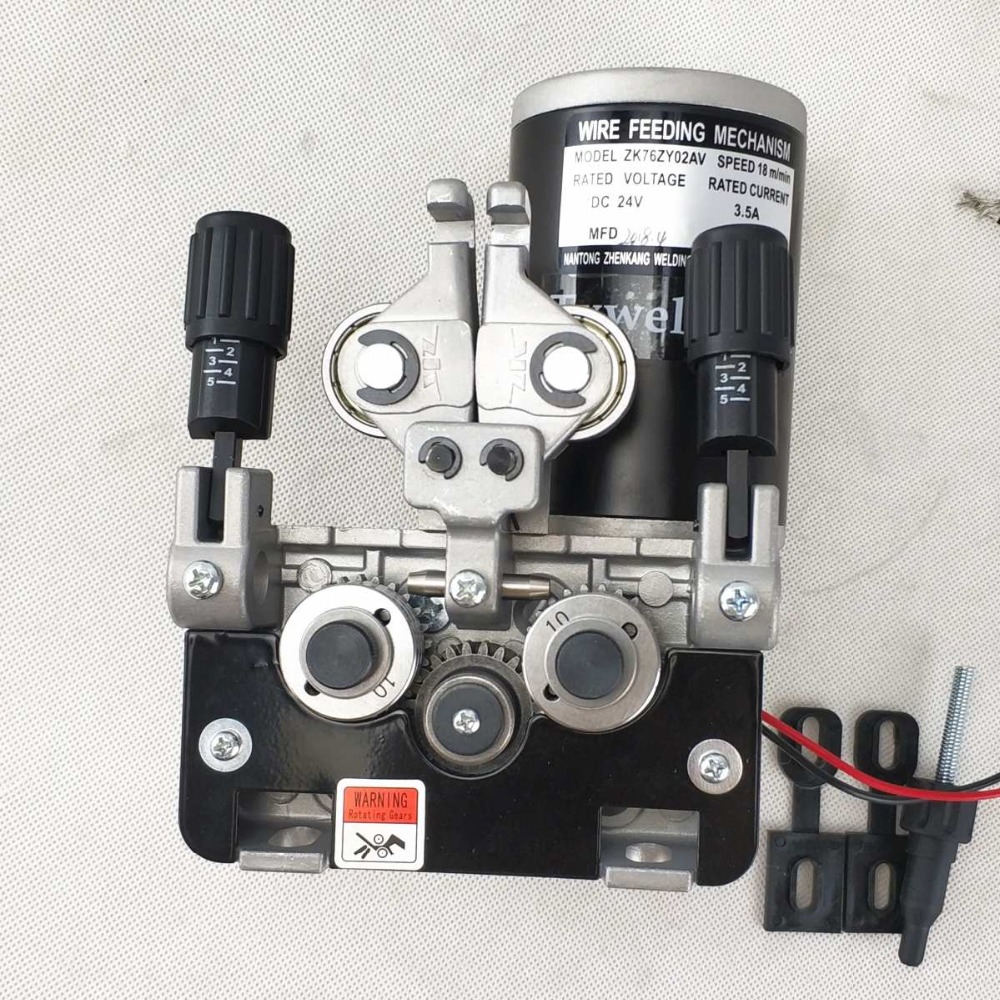

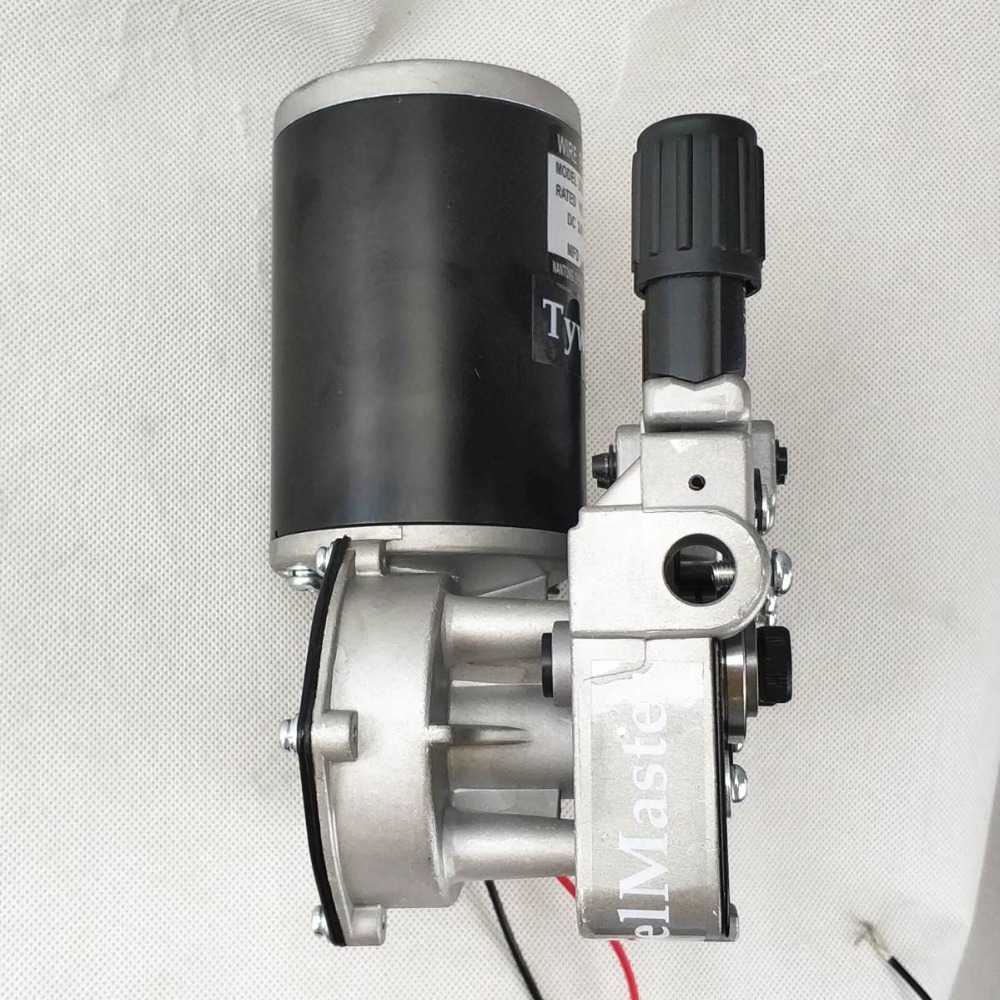

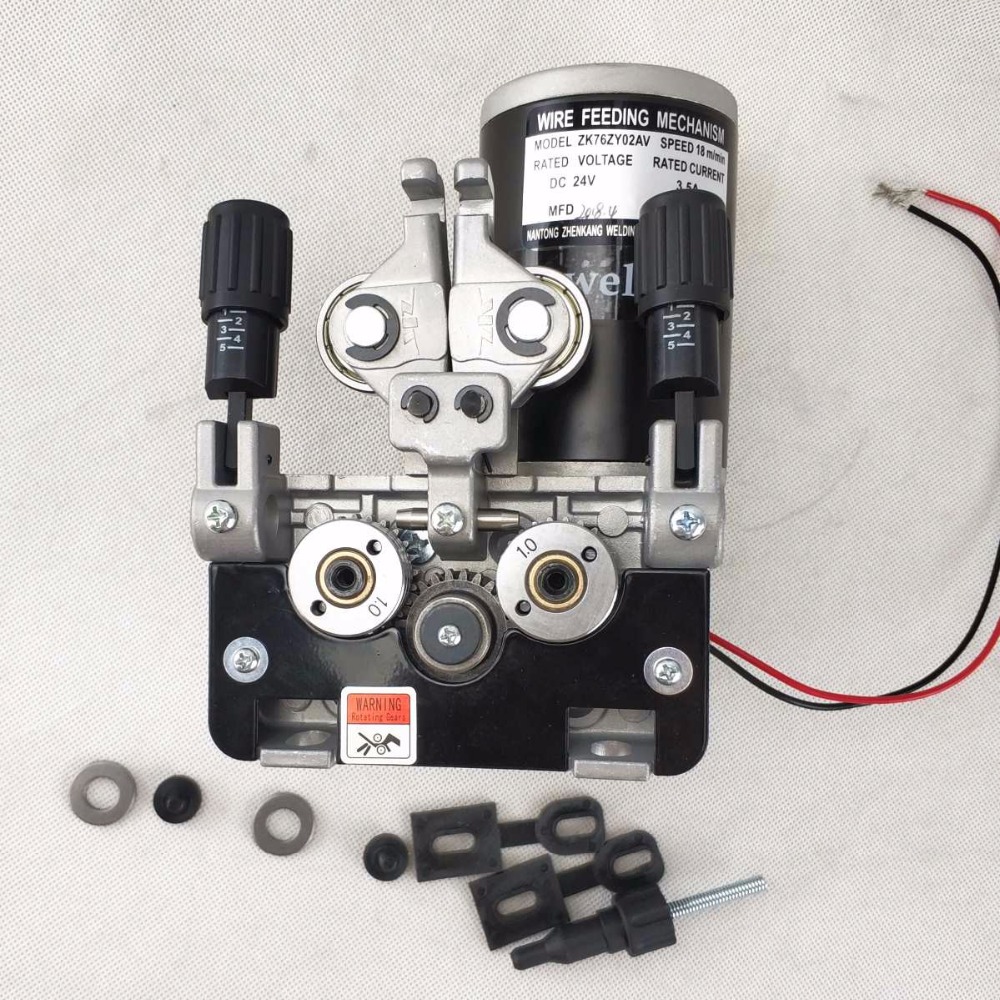

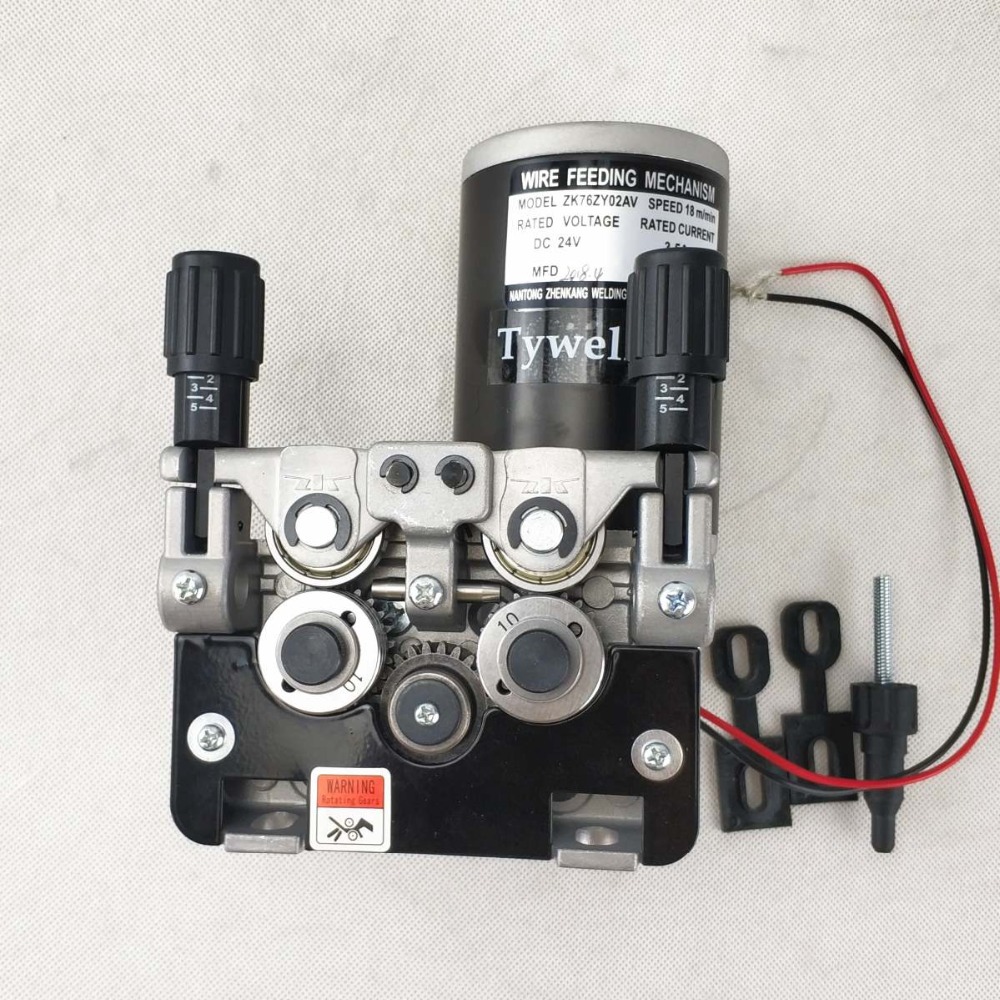

Wire Feeder DC 24V Welding Wire Feeding Assembly Wire ZK 76ZY-02AV for MIG/MAG Welding Machine
The Wire Feeder Assembly are widely used on MIG/MAG welding machines.
Including many of the top international brands, i.e. Lin*******, E**b.
The producer is the best welding wire feeder factory in China, they are only focusing on the welding wire feeder system.
The quality is very stable, because they are widely tested and approved by many international brands.
Standard Meets: EN60974-5, GB15579.5.

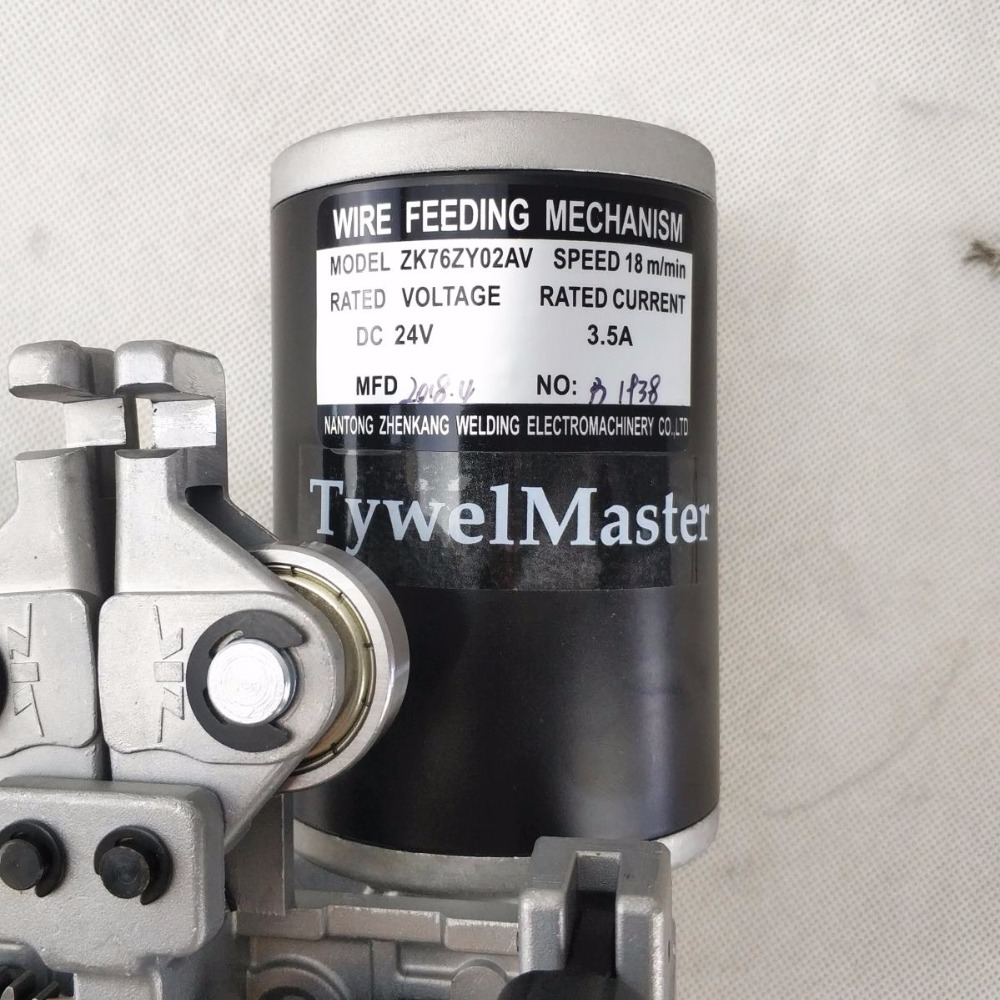

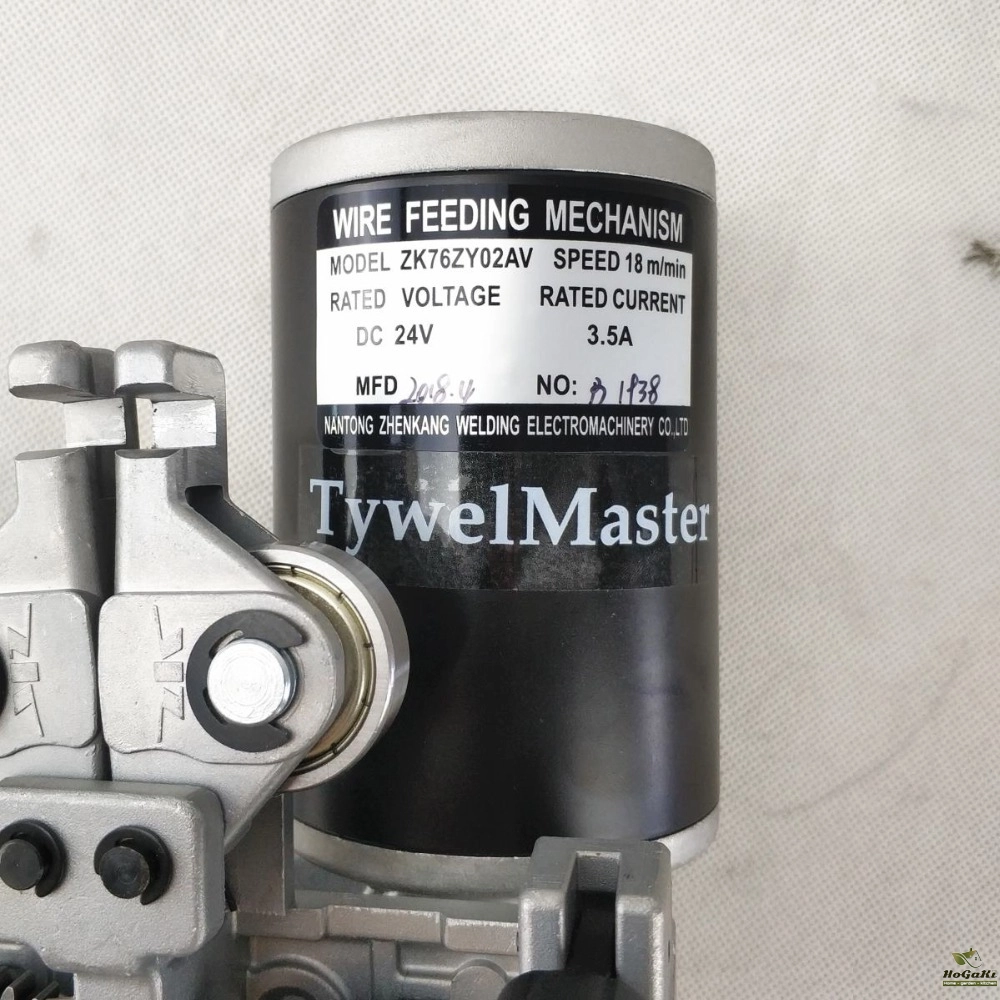

It is using High Quality DC 24V/42V motor, YZAlSi10Mg Body.
DC 24V Version:
The feeding speed is 2-18m/min.
Motor Rated Input Current: 3.5A.
Motor Input Voltage: DC 24V.
Moto Rated Power: 80W.

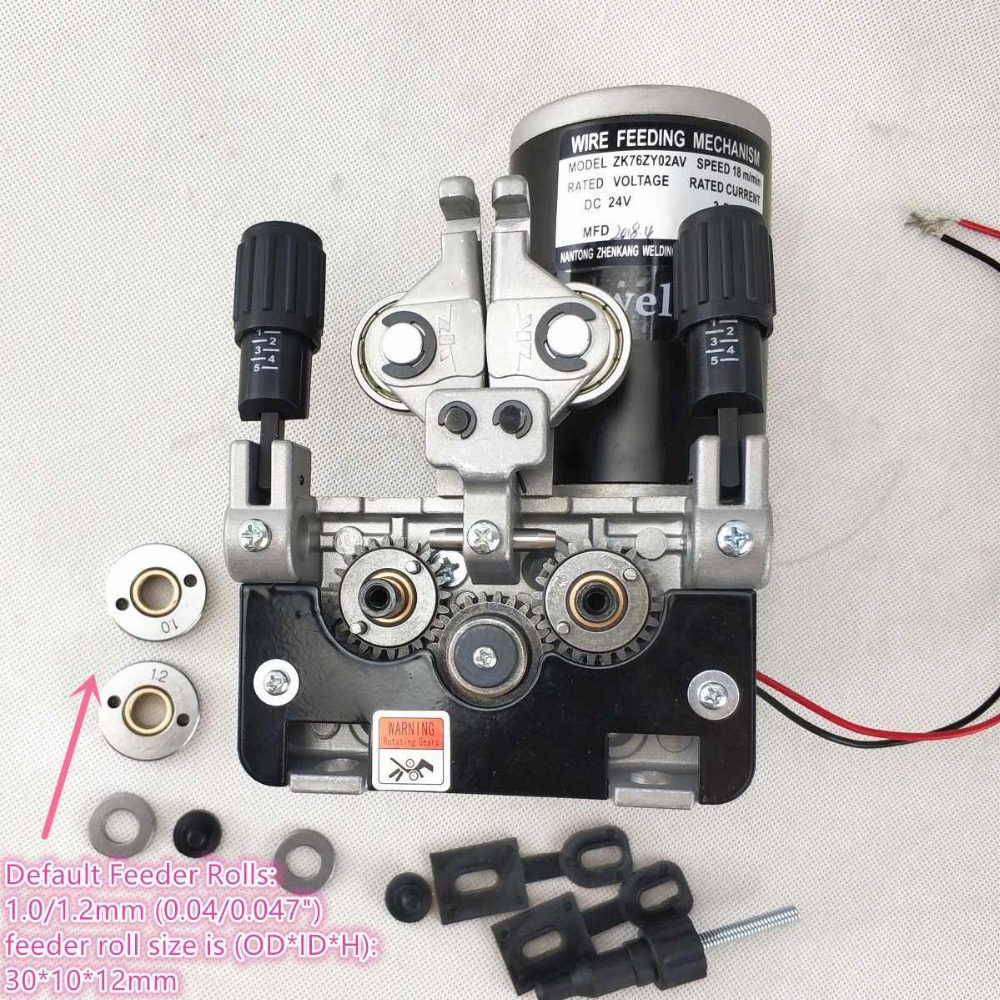

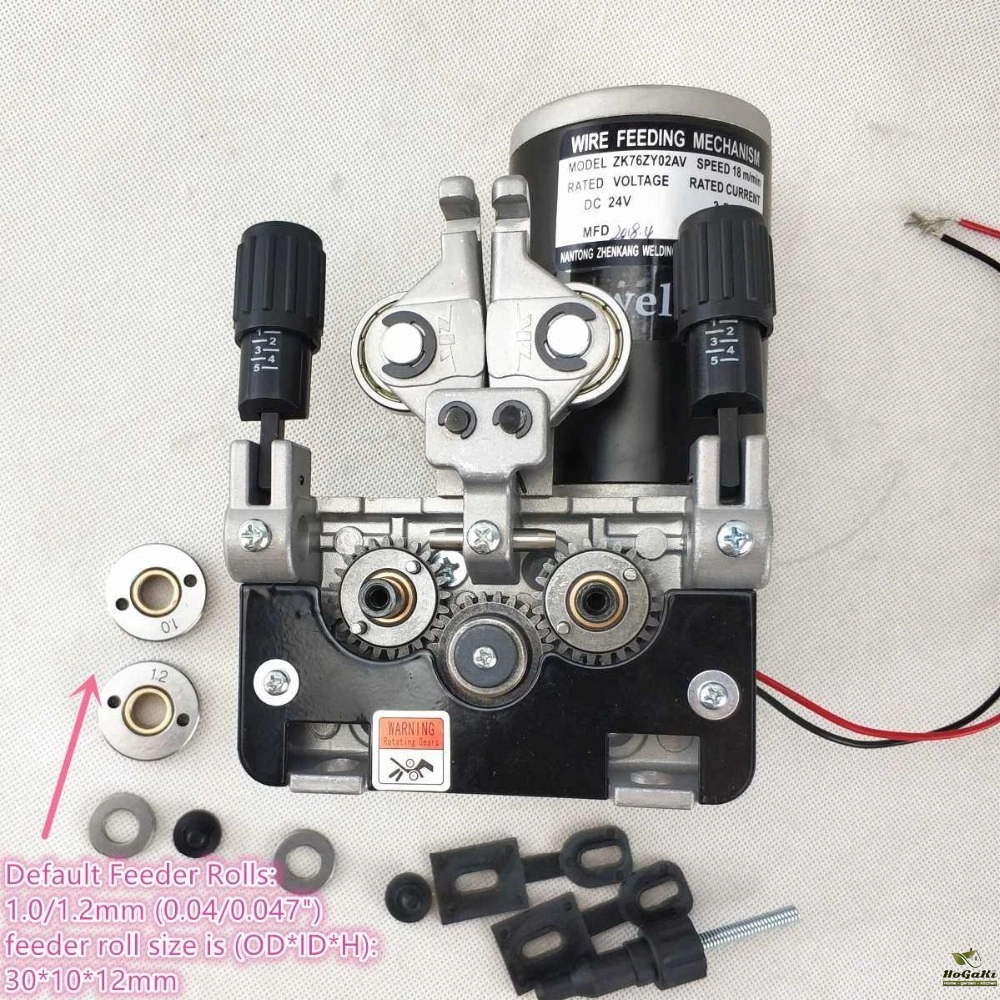

The wire feeding capability is 0.8mm to 2.0mm (0.031"-0.079"), the default feeding roll is 1.0/1.2mm (0.04/0.047").

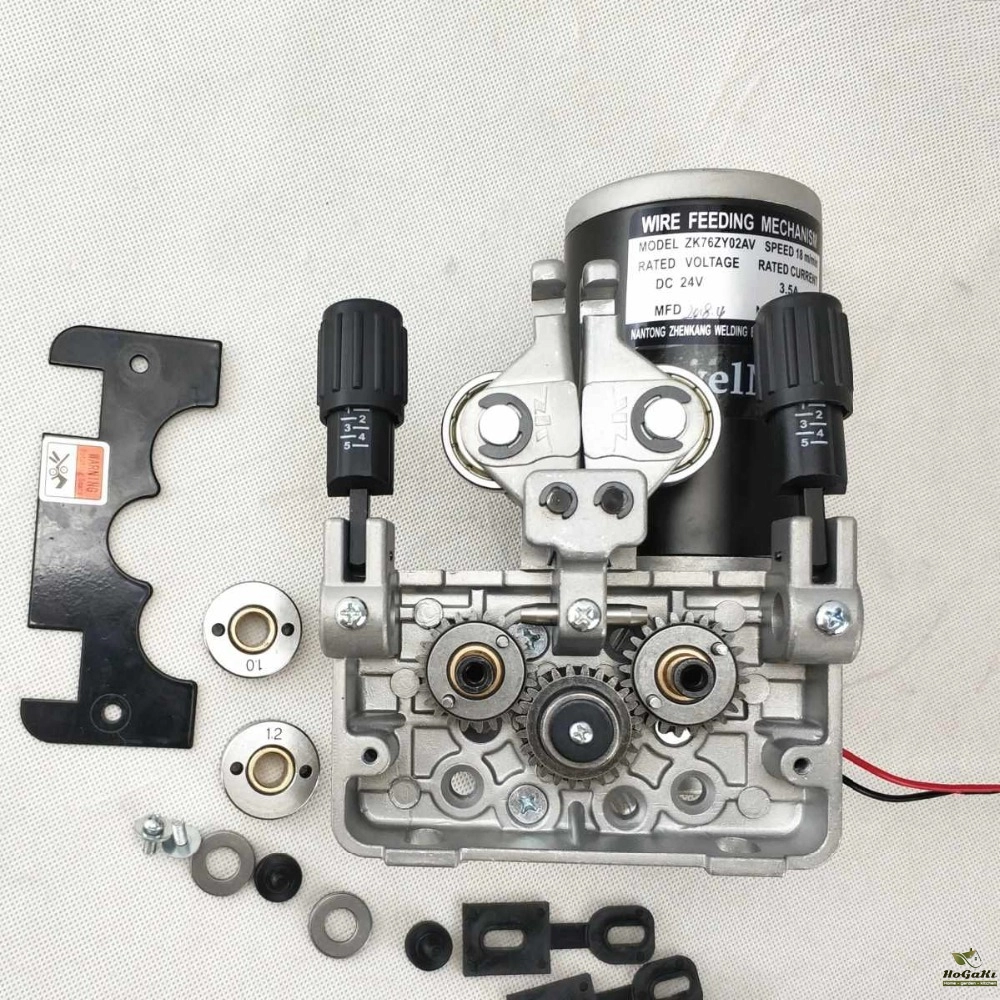

2 Feeder Rolls, and 2 Press Rolls.
The feeder roll size is (OD*ID*H): 30*10*12mm.

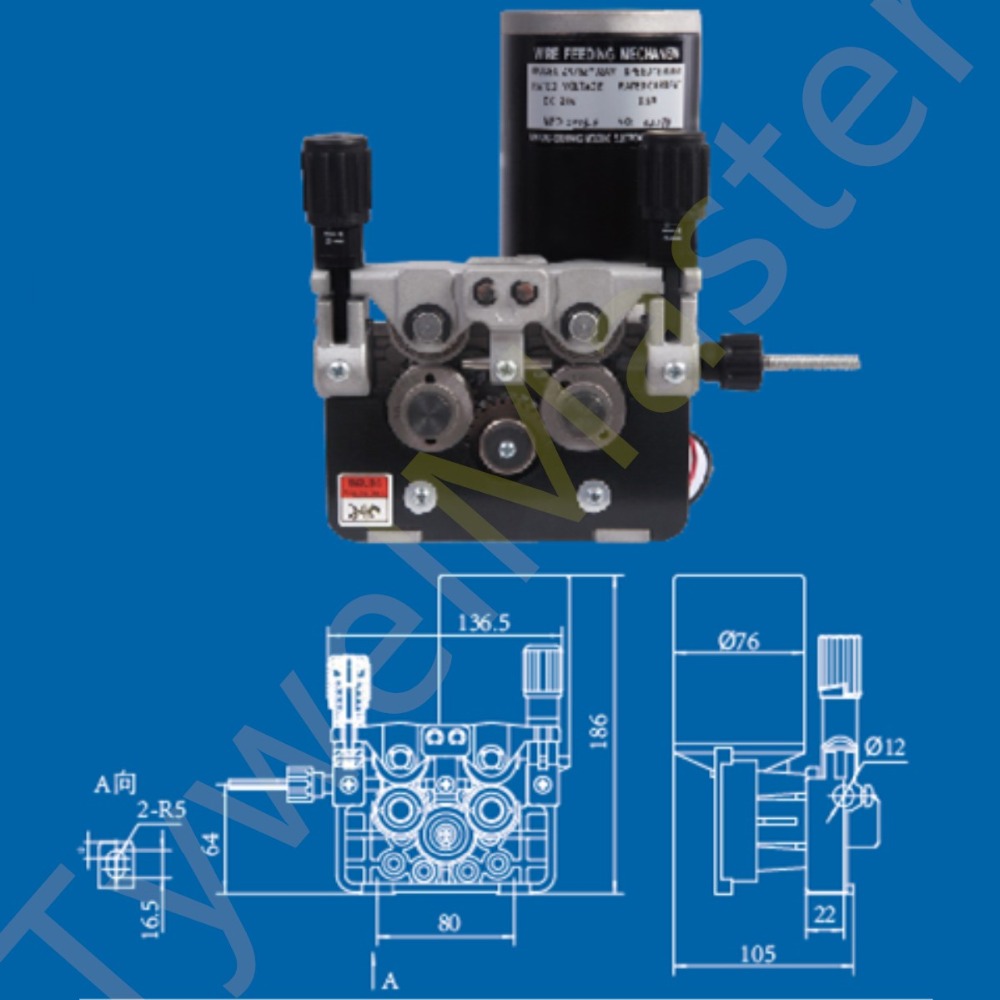

The Wire Feeder Assembly outer dimension is: 186*136*105mm.
Net Weight: about 2.7kg.
Package:
1Set.
Additional Offer:

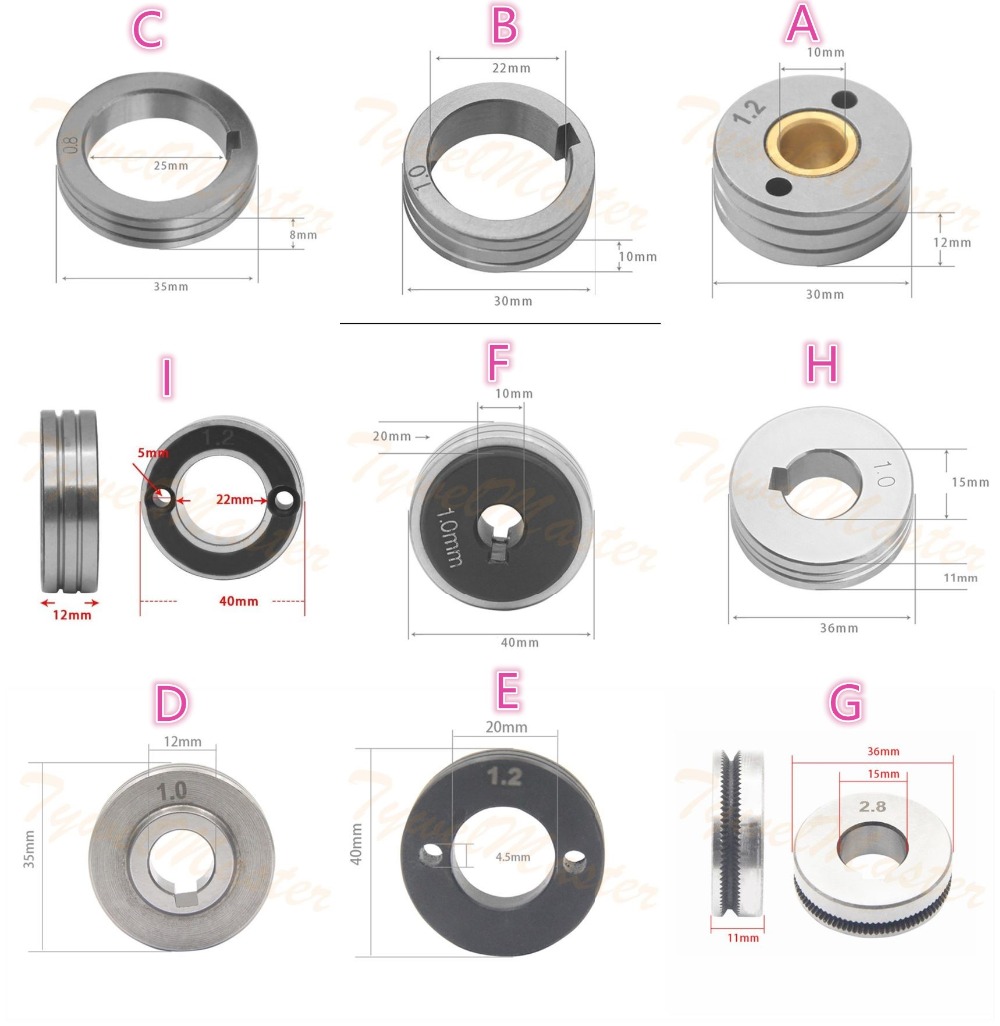

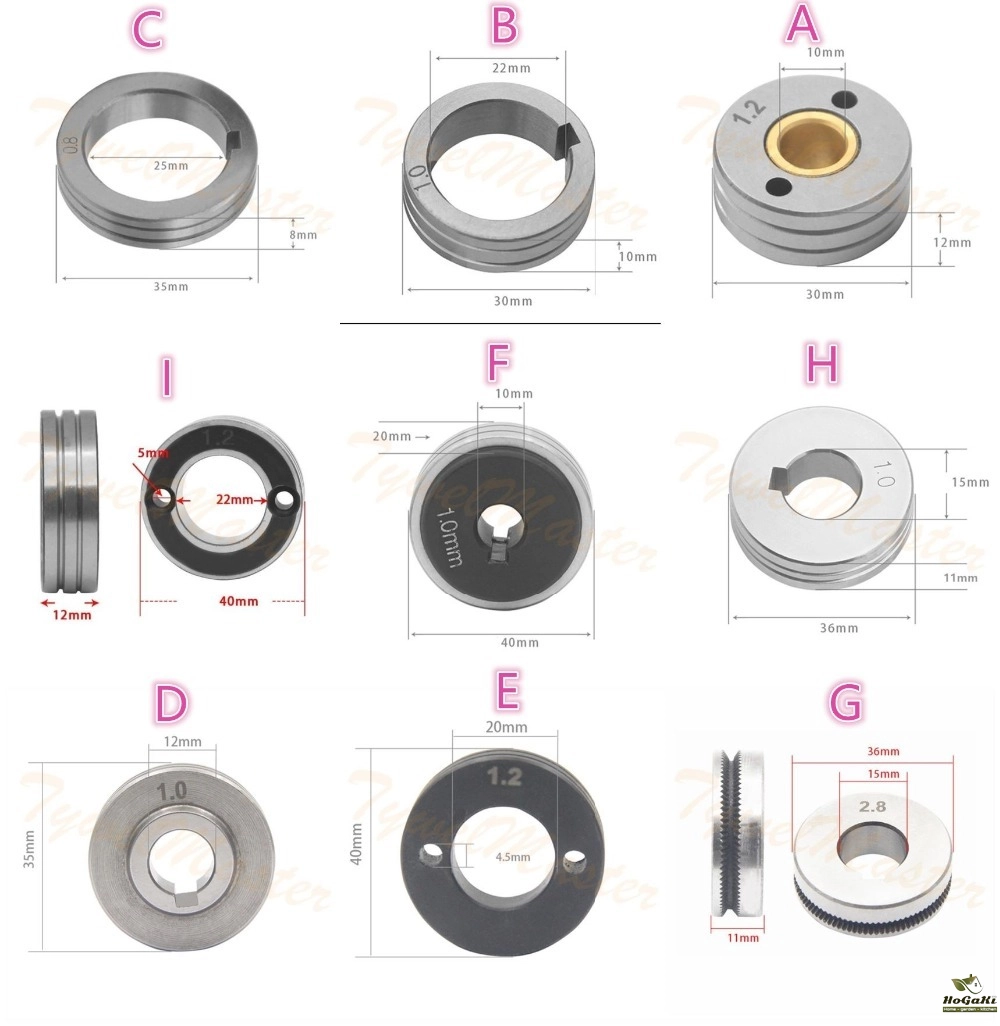

If you need additional Feeder Rolls(0.8, 1.0, 1.2, 1.6mm), please visit our shop our below link, choose style A.
We are providing full range professional Welding & Cutting products, check our shop for more options.
Packaging Details
- Unit Type: Set
- Package Weight: 4.000
- Package Size: 23x23x33
- Brand Name: TywelMaster
- Hign-concerned Chemical: None
- Certification: CE
- Origin: Mainland China
- Weight: about 2.7kg(net)
- Model Number: ZK 76ZY-02AV
- Dimensions: 186*136*105mm
- Wire Feeding Speed: 2-18m/min
- Use: MIG/MAG welding wire feeding
- Wire Feeder Frame(Body) Material: YZAlSi10Mg
- Motor Rated Voltage: DC 24V
- Default Feeder Roll: 1.0/1.2mm (0.04/0.047") V groove
- Wire Feeding Capability: 0.8mm to 2.0mm (0.031"-0.079")
- Moto Rated Power: 80W
- Standard Meets: EN60974-5, GB15579.5
- Drive Style: Double Drive
