Very important information

Starting from June 6, 2025, this motor has been upgraded to the latest version. The differences between the old version and the new version are as follows:

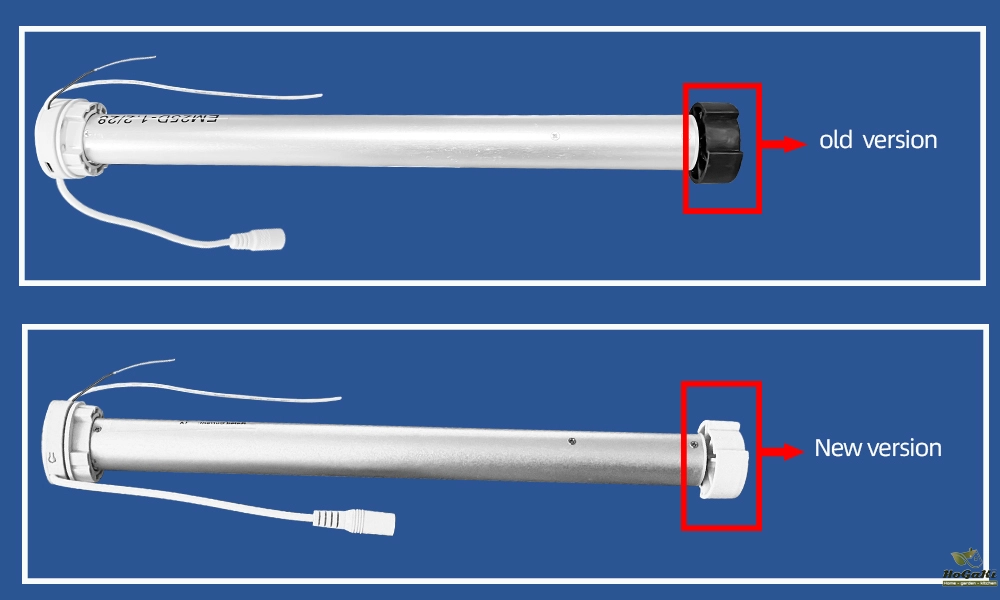

First, the driver of the old version motor is black, while the driver of the new version motor is white.

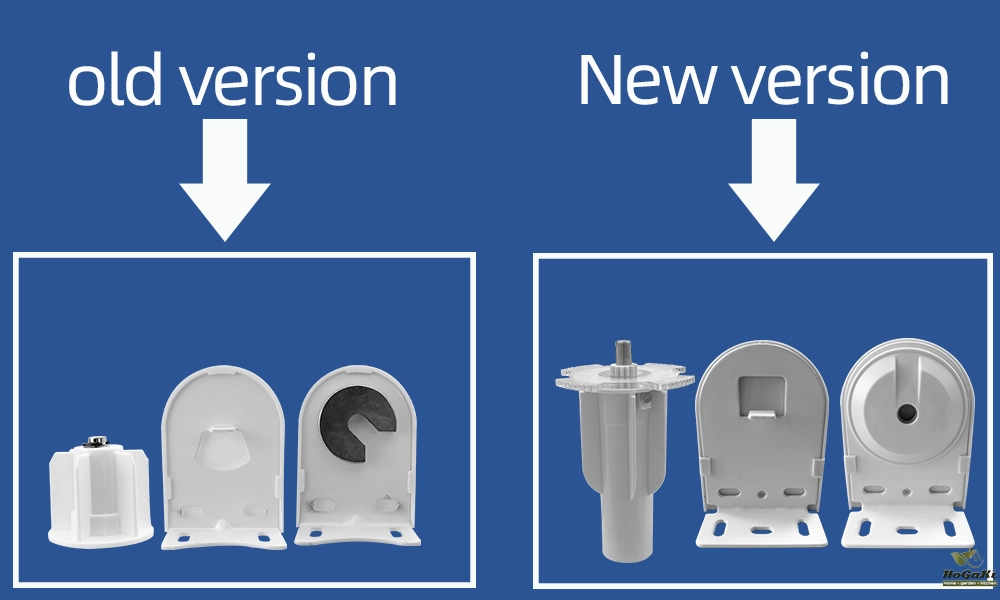

Second, the bracket has been modified. The new version features round holes, making the motor less likely to fall off. Additionally, the tail plug bracket of the new version can rotate, making installation easier. (Please note: There is still some inventory of the old bracket in the Hogaki platform’s logistics warehouse. You may receive the old bracket. We will switch to the new bracket only after the old inventory in the Hogaki logistics warehouse is depleted. The actual bracket received shall prevail, and this will not affect the motor’s functionality. Thank you very much.)

Very new information

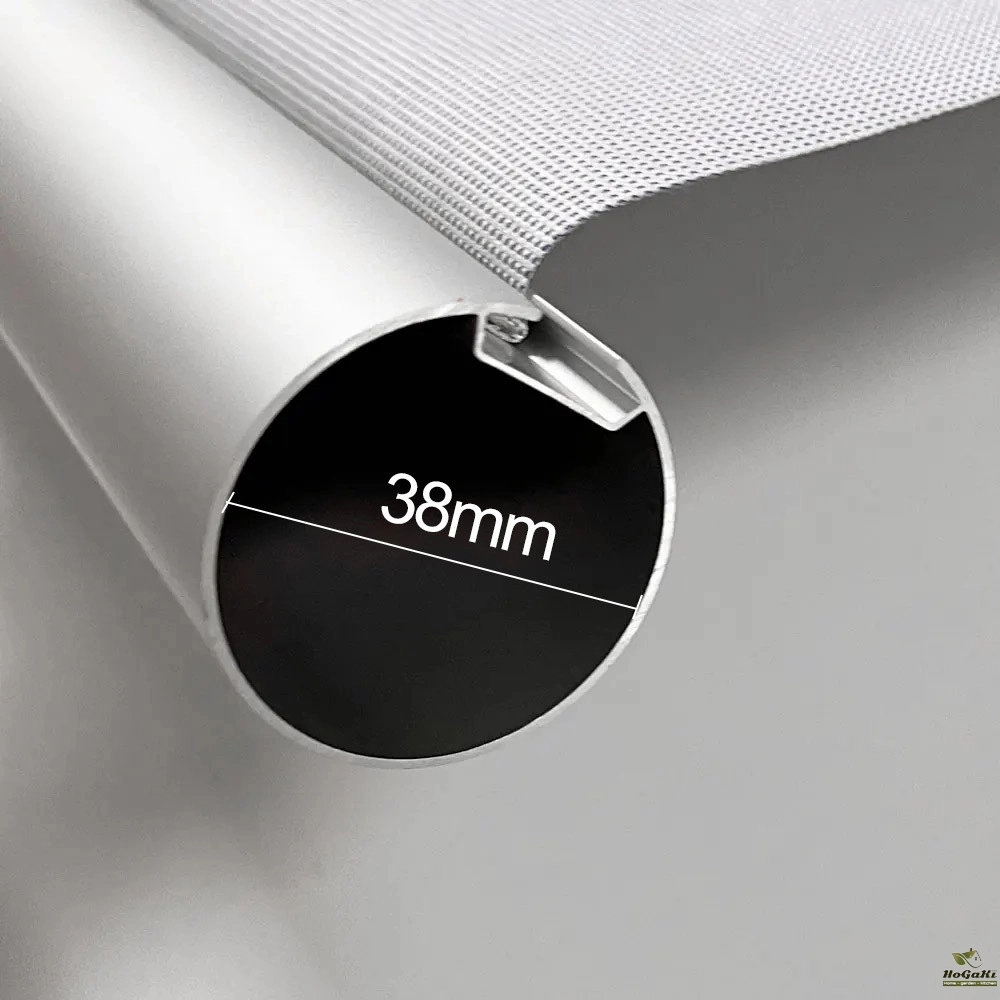

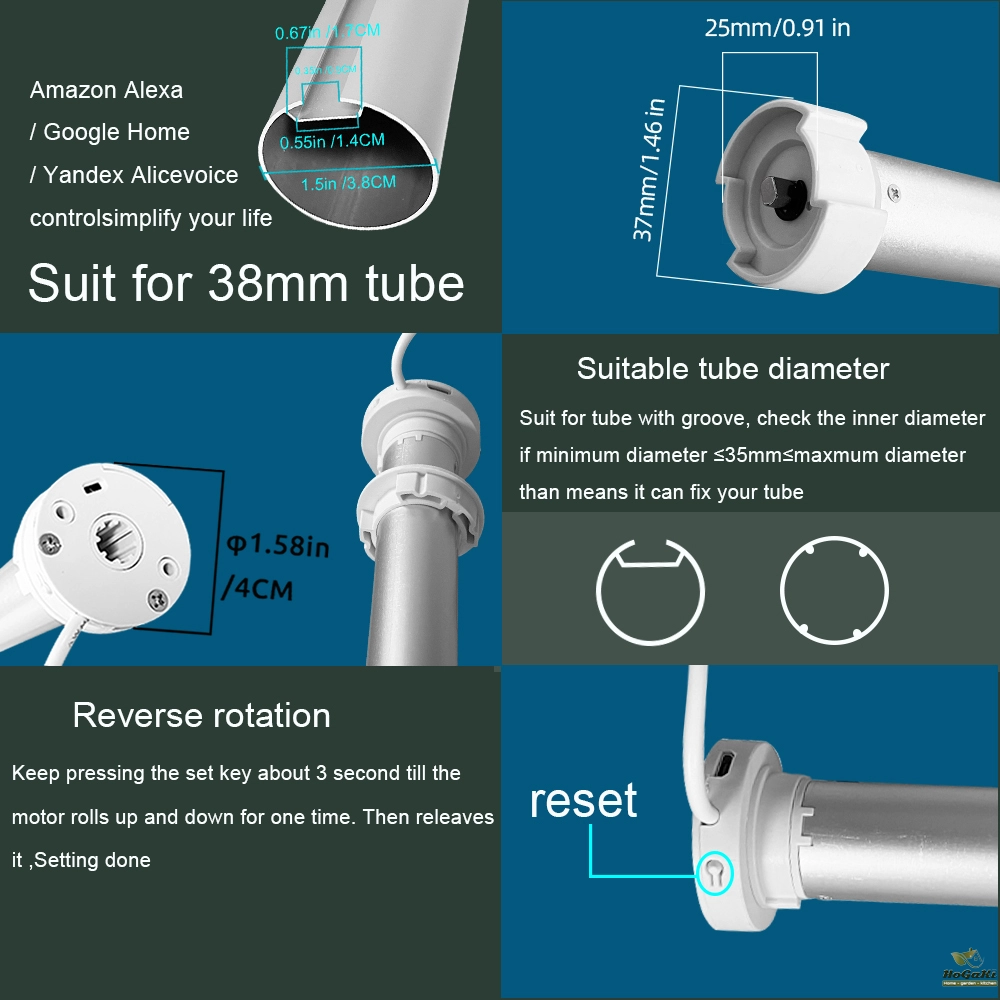

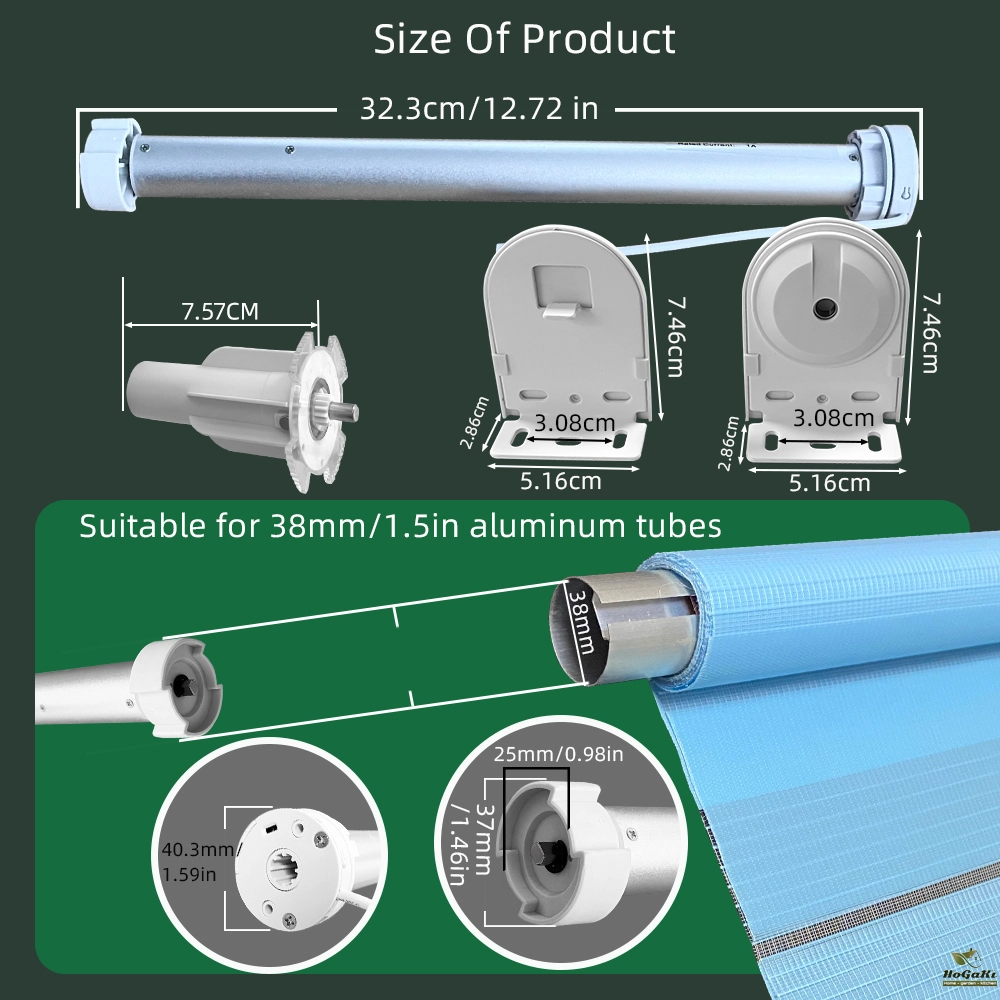

This is a Tuya WiFi smart roller shade motor designed for aluminum tubes with an inner diameter of 38mm. The tube must have a single card slot (refer to the image for details).

1. It can be used for roller shades up to 2m * 3m in size and can pull fabric weighing up to 5.3kg.
2. It works with the "Tuya Smart" app or "Smart Life" app—please note that it is not compatible with other apps.

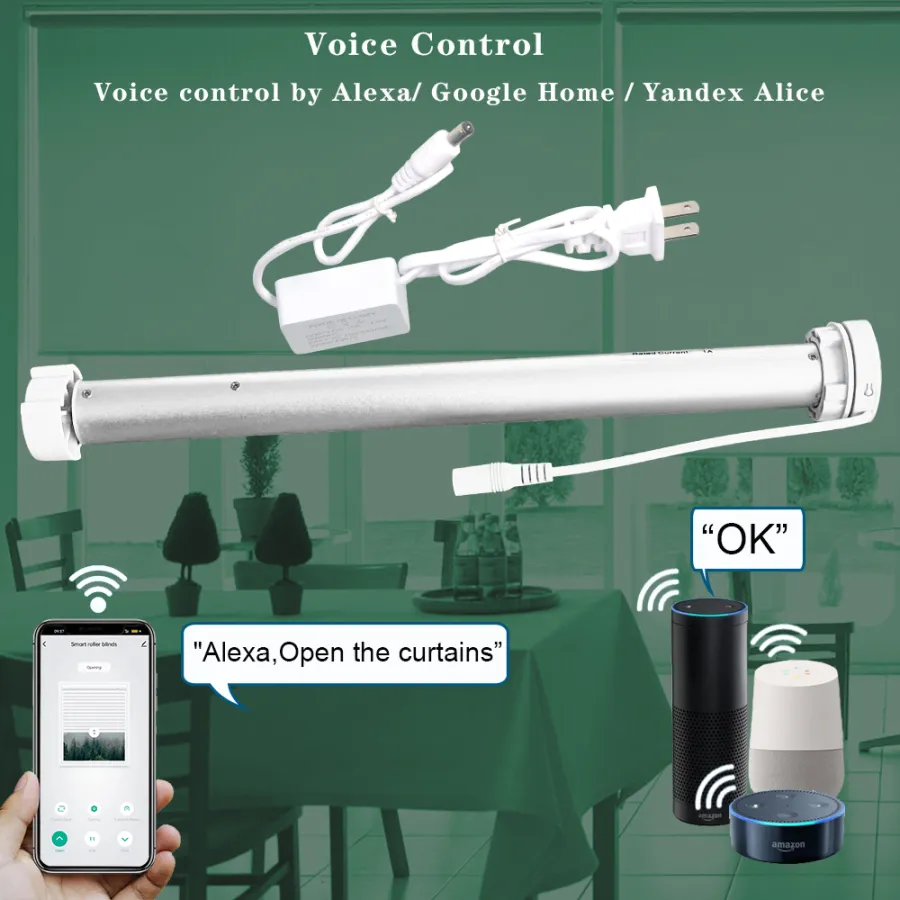

3. This WiFi roller shade motor allows you to remotely open/close your shade via the smartphone app, set timers for automatic operation, and supports voice control through “Alexa ”and “Google Home” assistants.

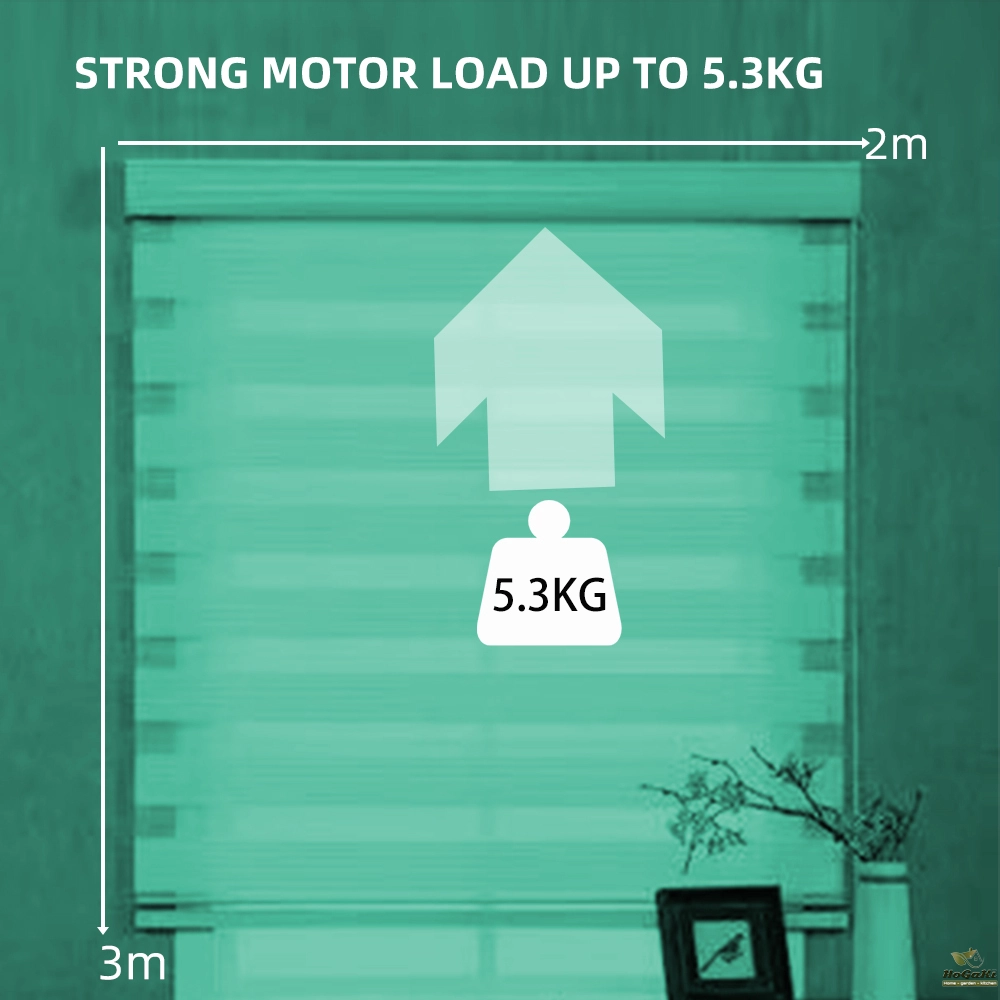

The following is the maximum bearing capacity of our tubular motor electric roller blind and applicable rolling fabric size

1. The maximum bearing capacity of our tuya wifi roller shade blind motor is 5.3KG.

2.Supported window sizes:2x3 meters ( in 6㎡）

Related product parameters

1.Without thermal protection
2.100-240VAC
3.Quite DC motor
4.20 rpm/min
5.1.2Nm
6.Safe load:5.3kg
7.App control
8.Works with Alexa&Google assistant

Take you to understand the tuyawifi roller shade blind motor

1.Bulit in wifi module, no need any hub or gateway to work.
2.This wifi roller shade blinds motor is for 38mm tube.
3. It base on tuya or smart life app. So that can voice control by Alexa and Google Assistant.
4. Set limit via remote and set timer schdule via auto setting in the app.
5. With wide voltage so that can work for 100v to 240v.
6. With up/ middle/ Dowm limit for set, meet your mind easily.
7. Support weight: About 5.3kg

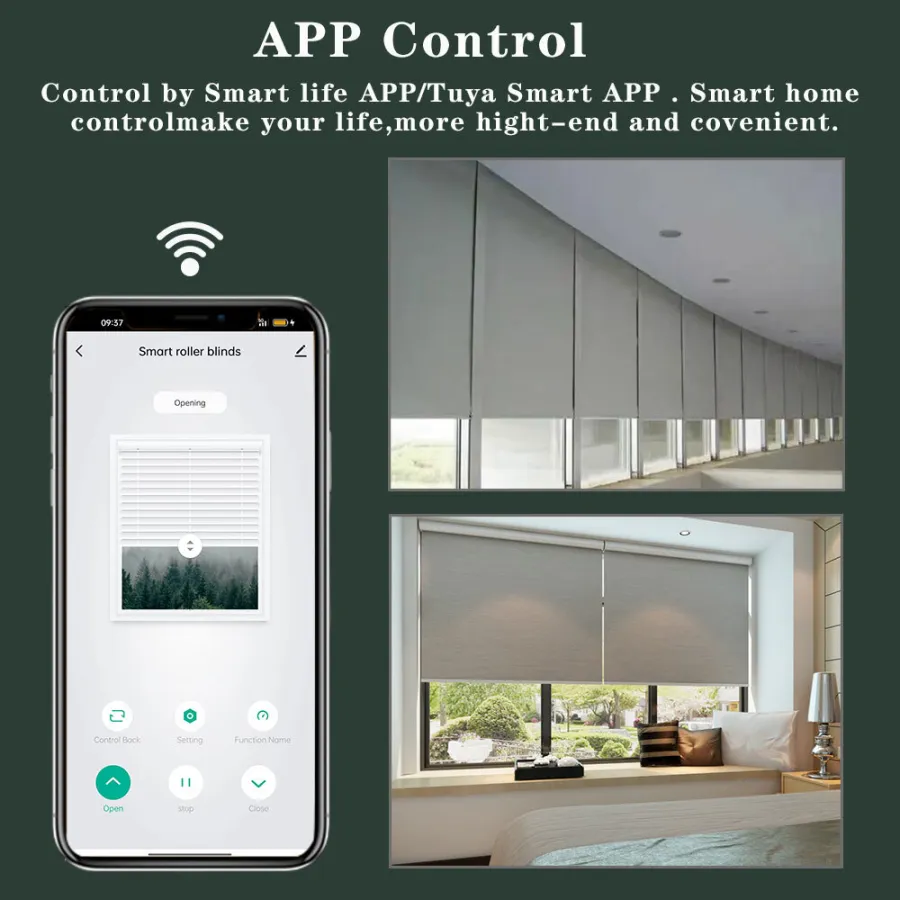

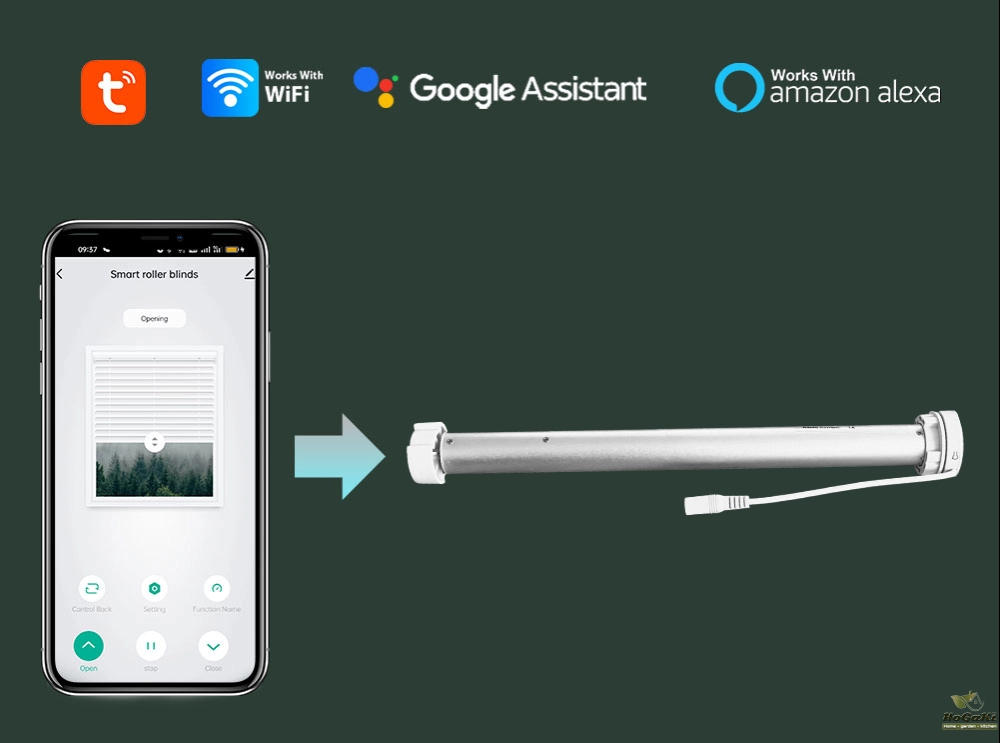

The phone APP controls your curtains and lets you open them manually

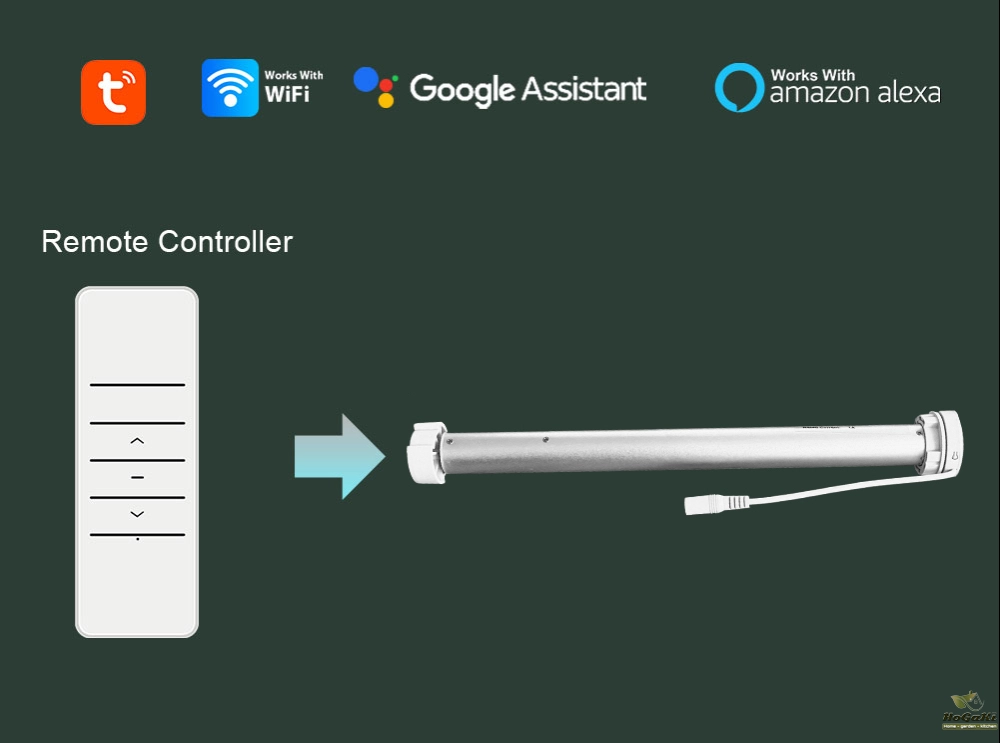

If there are old people or children at home who cannot control the curtains with the mobile APP, you can select the SKUs with remote control attached to the link to place an order

Support Alexa Google Home And Other Voice Assistant Automatic Electric Roller Blinds Shutter Motor

Smart roller shutter motor

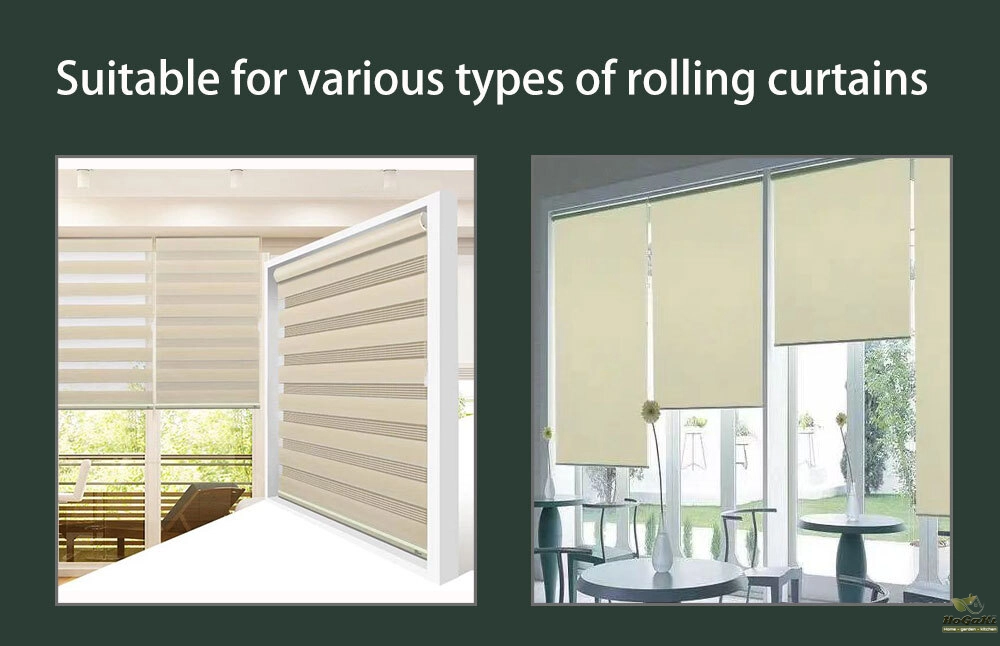

Can be applied to various scenarios

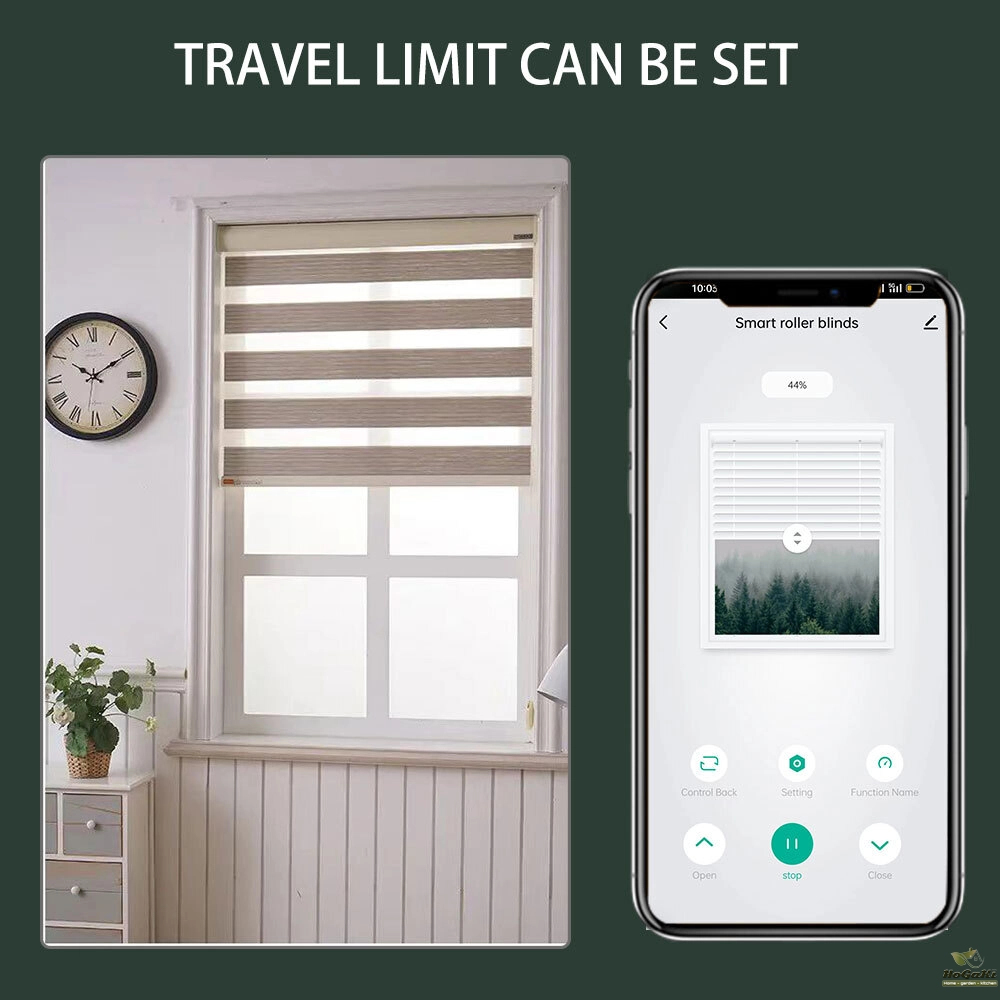

Intelligent roller motor with morning limit can be set

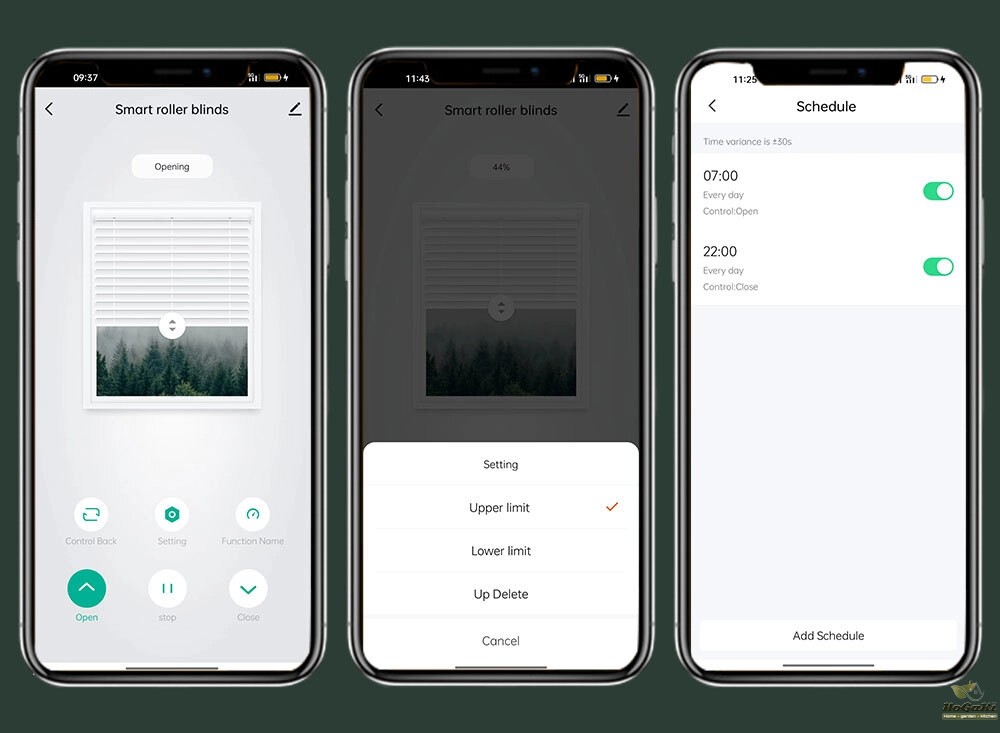

When you prefer to keep your curtain open to 60%, you can set the percentage of curtains open directly on your phone APP. Any percentage can be set

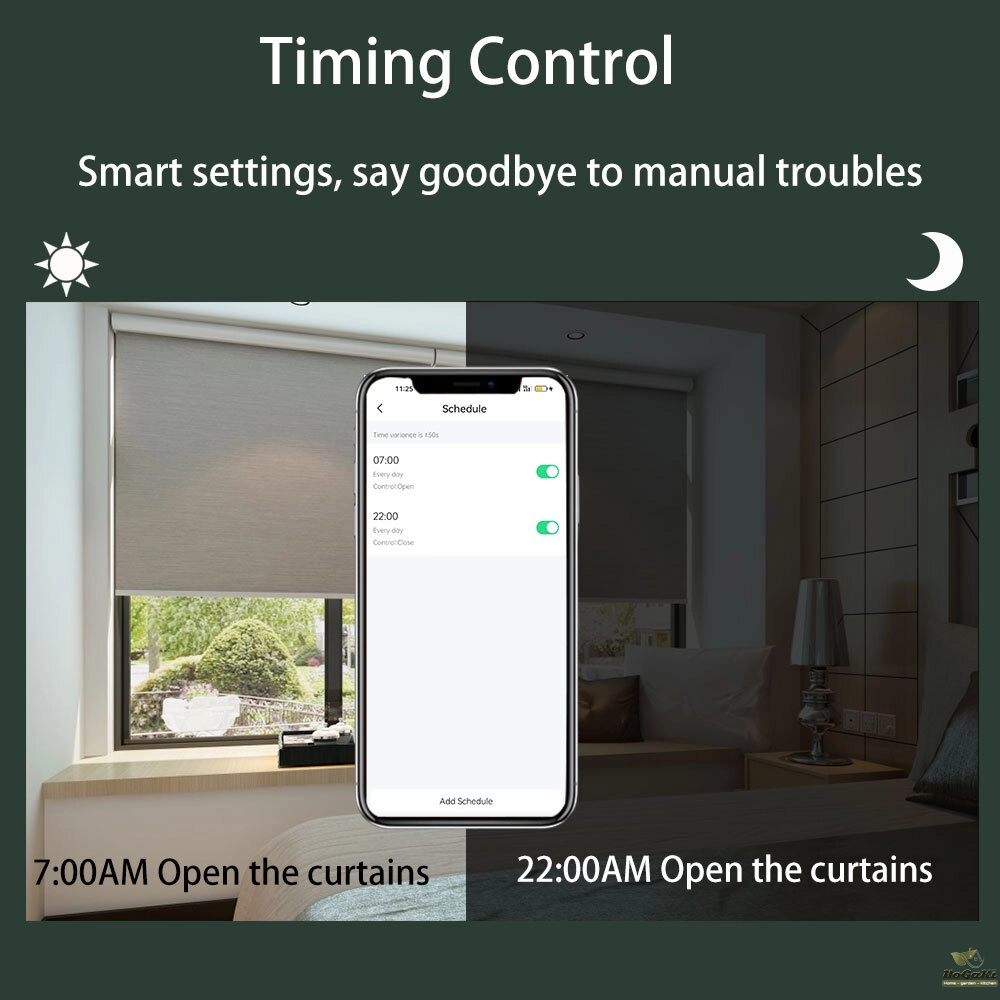

Timing Control

Smart settings, say goodbye to manual troubles

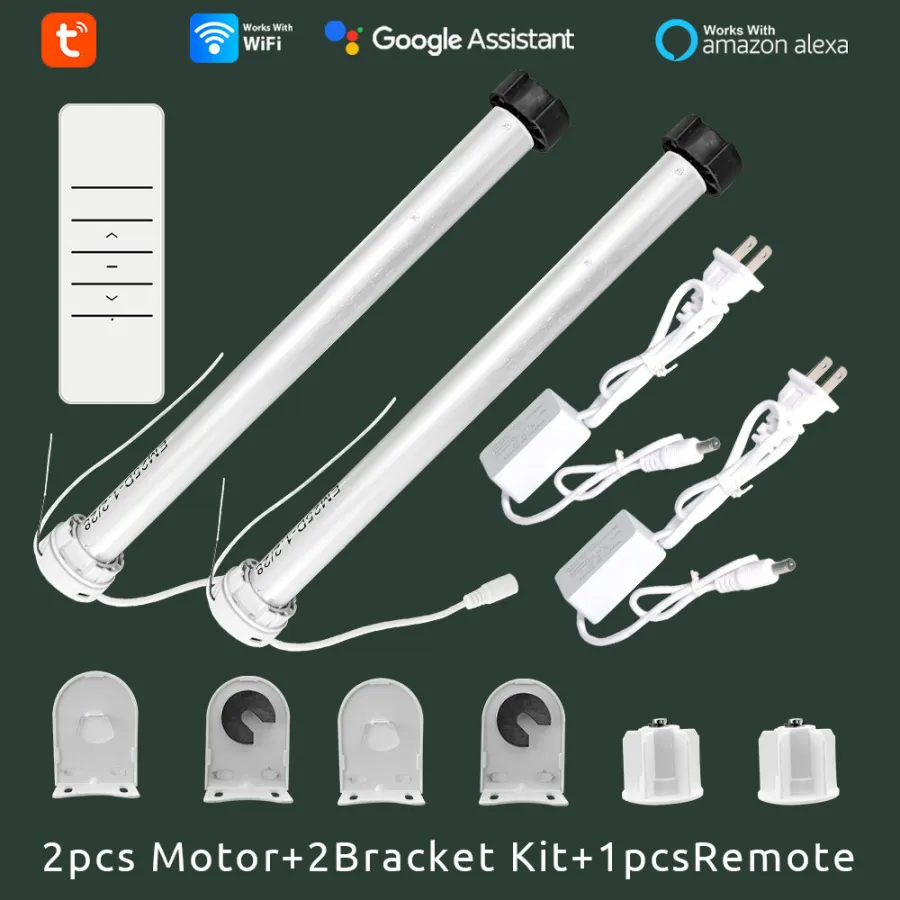

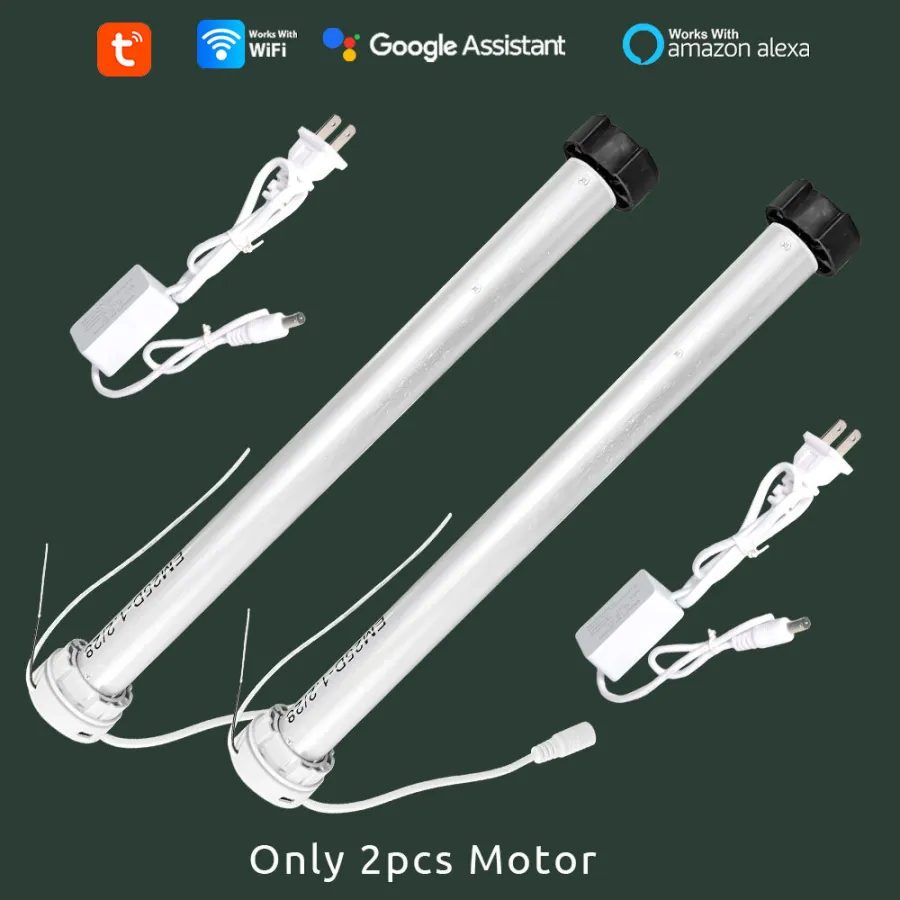

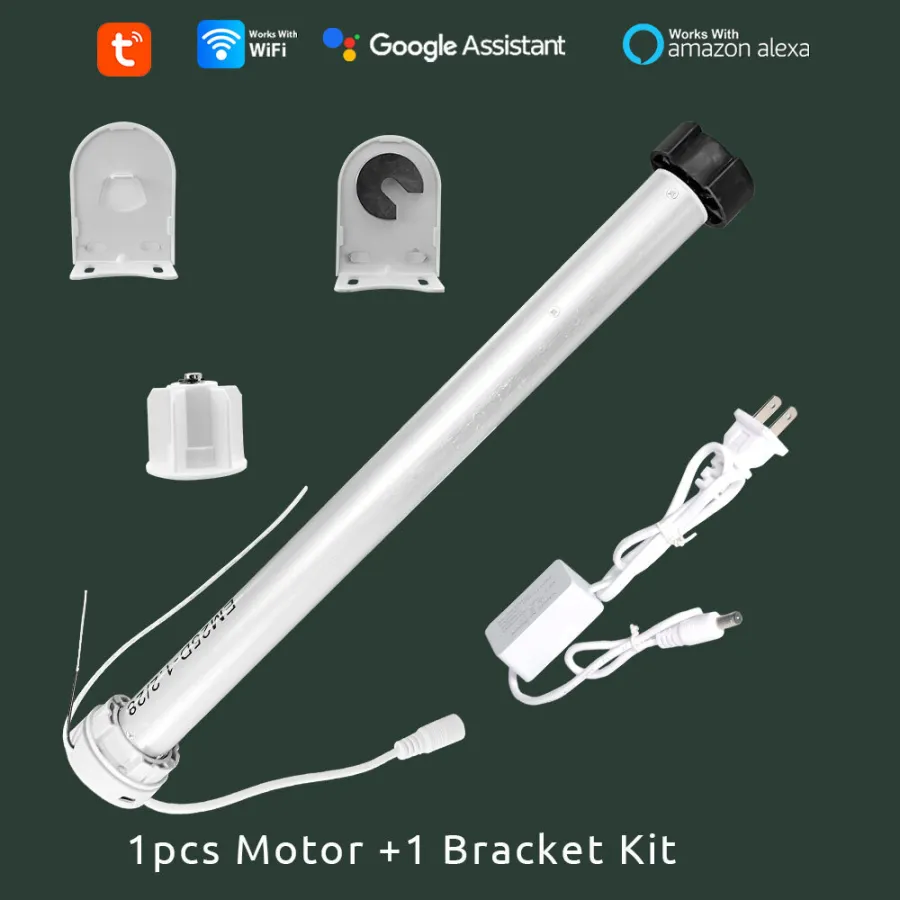

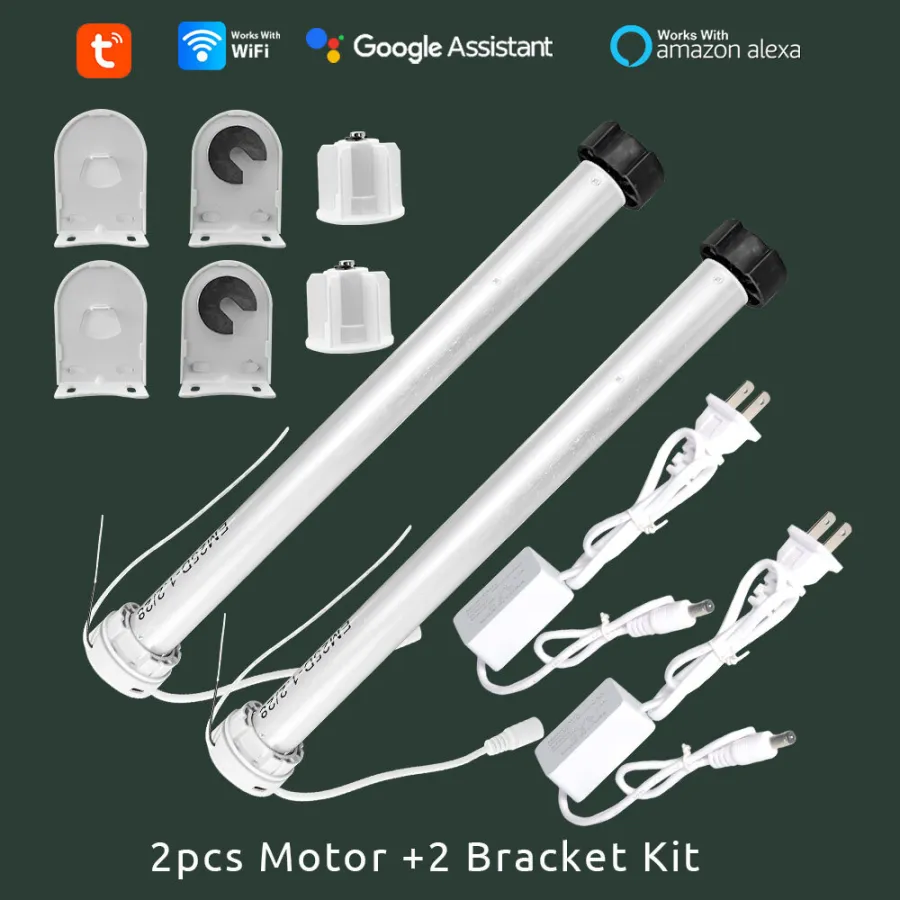

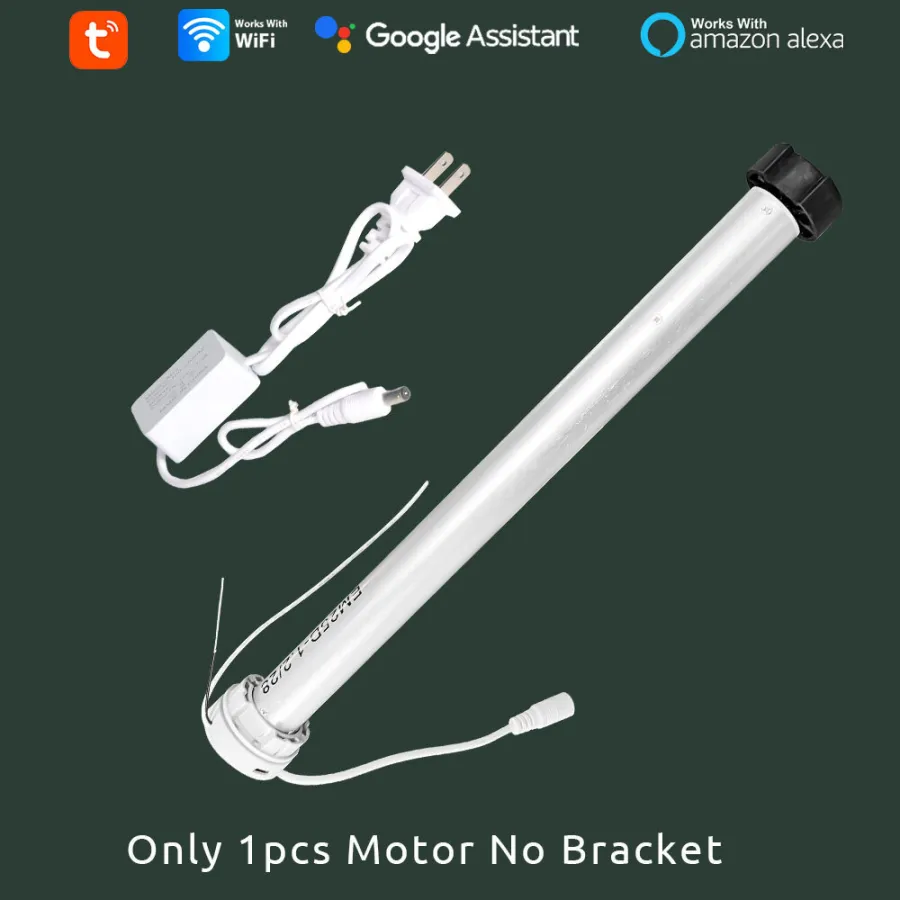

What's in the box?

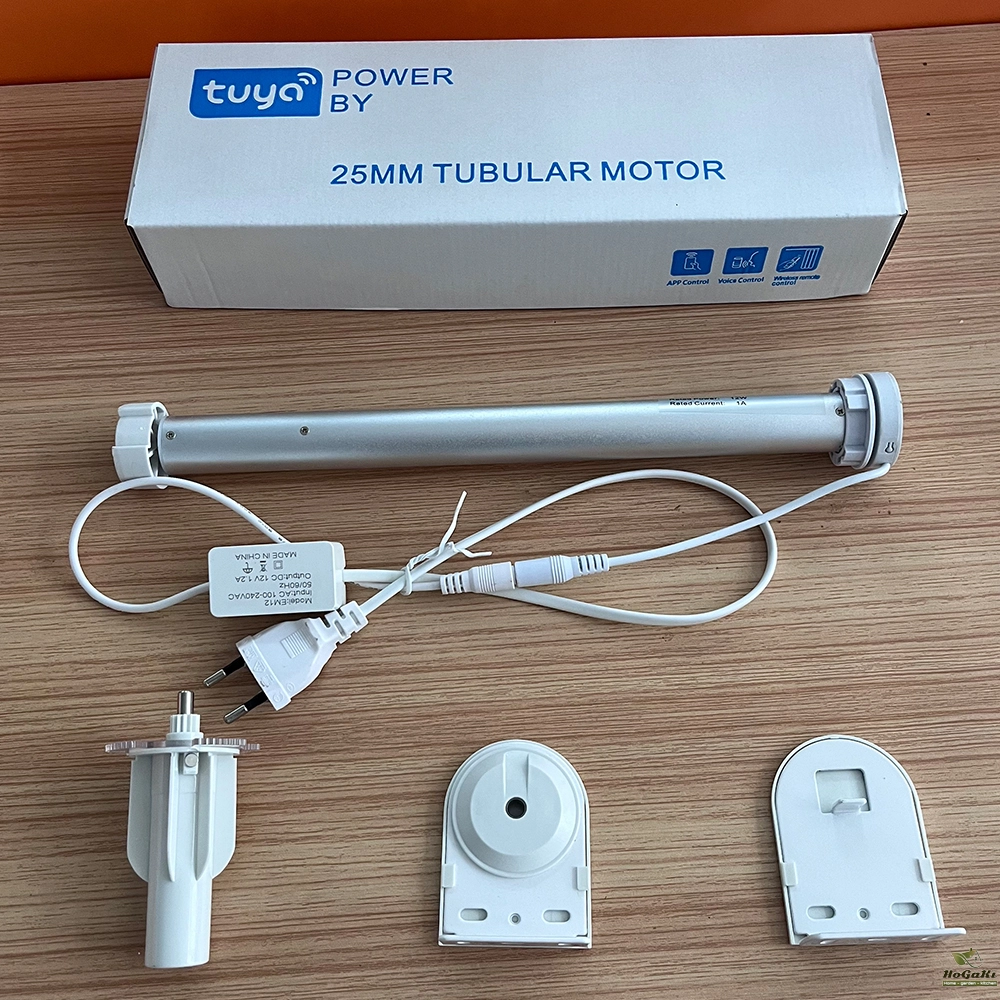

This is an intelligent rolling shutter motor +1 set of installation code + power supply factory real picture, the specific received material will be shipped according to the SKU you choose.

EU power and US power are available for selection. You can place an order according to the specifications of the plug you need

Install the APP and log in

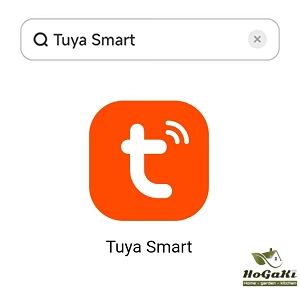

1.Download and install the free Tuya Smart APP from the Appstore or Google Playstore (or scanning QR code in the manual) on your smartphone or tablet.

2.Power on the device using the DC12v cable.

3.Open theTuya Smart APP, register and log in your app account.

4.Connect Mobile to 2.4GHz WiFi
