TQESC1-40B single plate dry electromagnetic clutch motor clutch packaging machine flange installation clutch 40N.M B type
0.0 ( votes)
Price:
US $
516.63
- Color

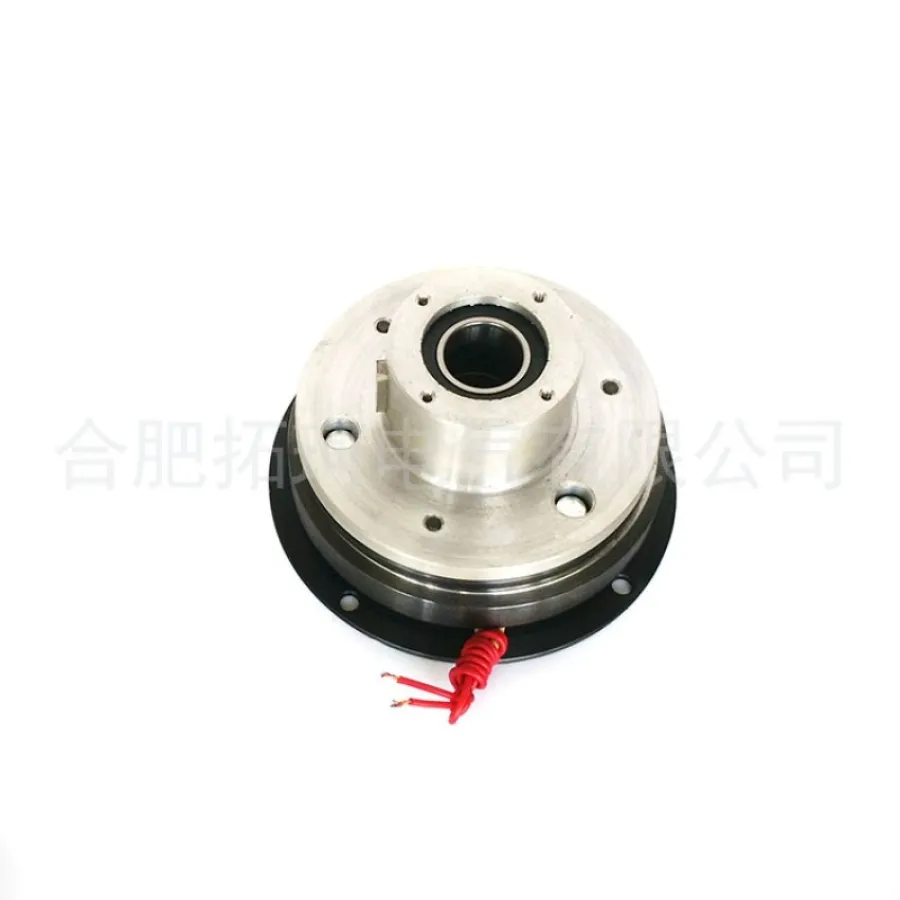

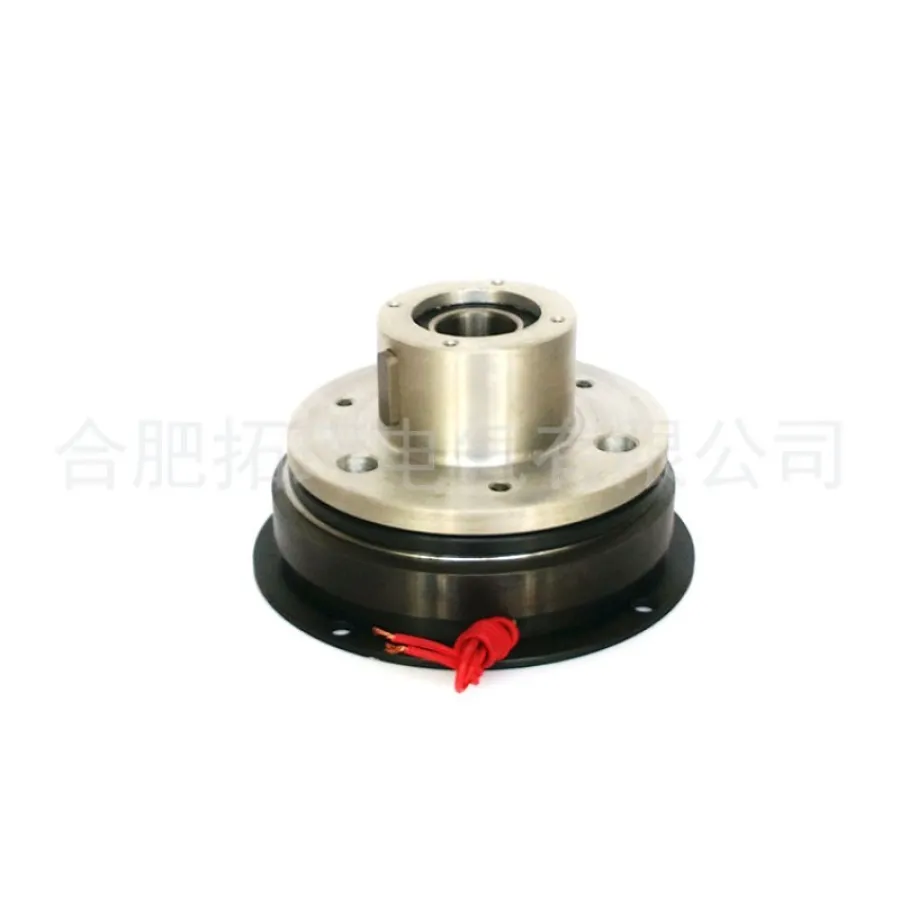

TQESC1-40B single plate dry electromagnetic clutch Motor clutch packaging machine clutch flange installation clutch 40N.M B type
Outer diameter 150mm/flange installation center distance 137mm/height 86.5mm
Shaft bore is 25mm/voltage is 24VDC
Size and voltage can be customized for you,if you have any question,please let us know,
Many thanks!
Outer diameter 150mm/flange installation center distance 137mm/height 86.5mm
Shaft bore is 25mm/voltage is 24VDC
Size and voltage can be customized for you,if you have any question,please let us know,
Many thanks!

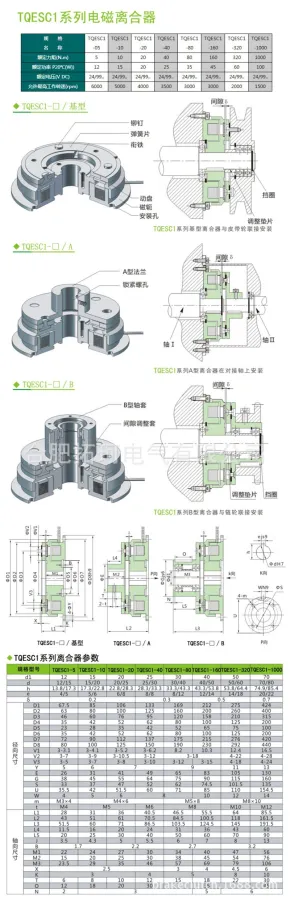

| Model TQESC1-05 | Outer 80/set 63/shaft 12 & 15mm/24V | Click to buy | Model TQESC1-05A | Outer 80/set 63/shaft 12 & 15mm/24V | Click to buy |
| Model TQESC1-05B | Outer 80/set 63/shaft 12mm/24V | Click to buy | Model TQESC1-10 | Outside 100/set 80/shaft 15 & 20mm/24VDC | Click to buy |
| Model TQESC1-10A | Outside 100/set 80/shaft 15 & 20mm/24VDC | Click to buy | Model TQESC1-10B | Outside 100/set 80/shaft 15mm/24V | Click to buy |
| Model TQESC1-20 | Outside 125/set 100/shaft 20 & 25mm/24VDC | Click to buy | Model TQESC1-20A | Outside 125/set 100/shaft 20 & 25mm/24VDC | Click to buy |
| Model TQESC1-20B | Outside 125/set 100/shaft 20mm/24V | Click to buy | Model TQESC1-40 | Outer 150/set 125/shaft 25 & 30mm/24VDC | Click to buy |
| Model TQESC1-40A | Outer 150/set 125/shaft 25 & 30mm/24V | Click to buy | Model TQESC1-40B | Outer 150/set 125/shaft 25mm/24V | Click to buy |
| Model TQESC1-80 | Outside 190/set 160/shaft 30 & 40mm/24VDC | Click to buy | Model TQESC1-80A | Outside 190/set 160/shaft 30 & 40mm/24VDC | Click to buy |
| Model TQESC1-80B | Outside 190/set 160/shaft 30mm/24V | Click to buy | Model TQESC1-160 | Outer 230/set 200/shaft 40 & 50mm/24VDC | Click to buy |
| Model TQESC1-160A | Outer 230/set 200/shaft 40 & 50mm/24VDC | Click to buy | Model TQESC1-160B | Outer 230/set 200/shaft 40 & 50mm/24VDC | Click to buy |
| Model TQESC1-320 | Outside 290/set 260/shaft 50 & 60mm/24VDC | Click to buy | Model TQESC1-320A | Outside 290/set 260/shaft 50 & 60mm/24V | Click to buy |
| Model TQESC1-320B | Outside 290/set 260/shaft 50 & 60mm/24VDC | Click to buy | Model TQESC1-1000 | Click to buy |
purpose

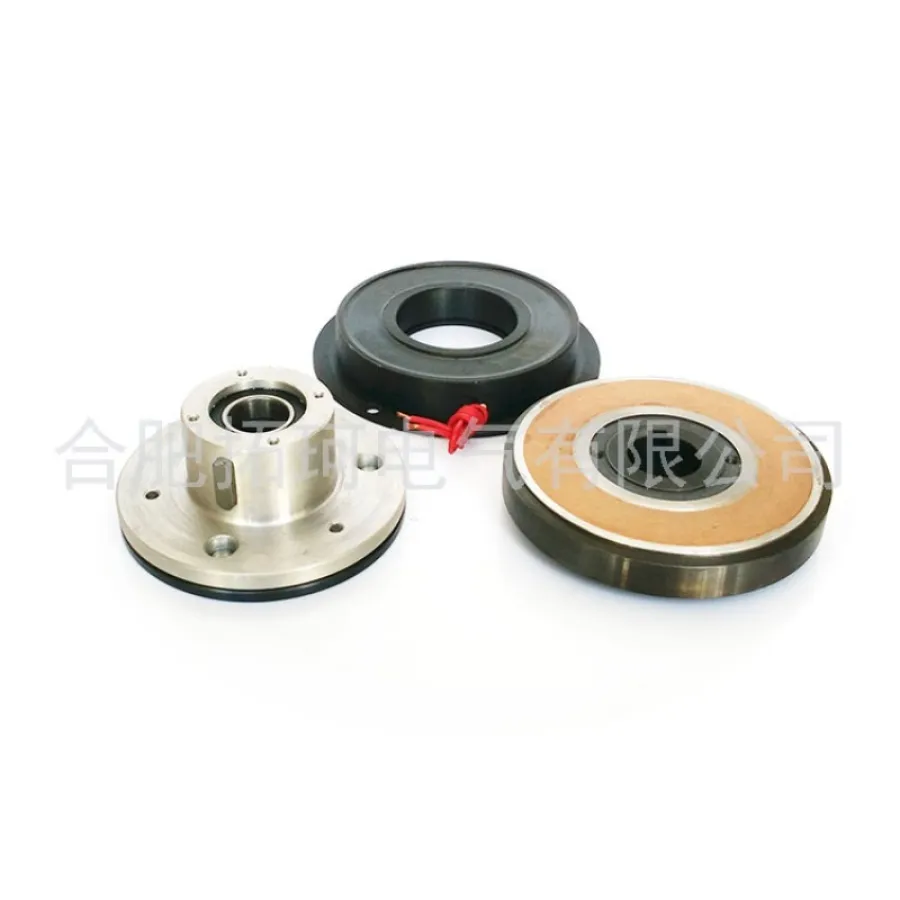

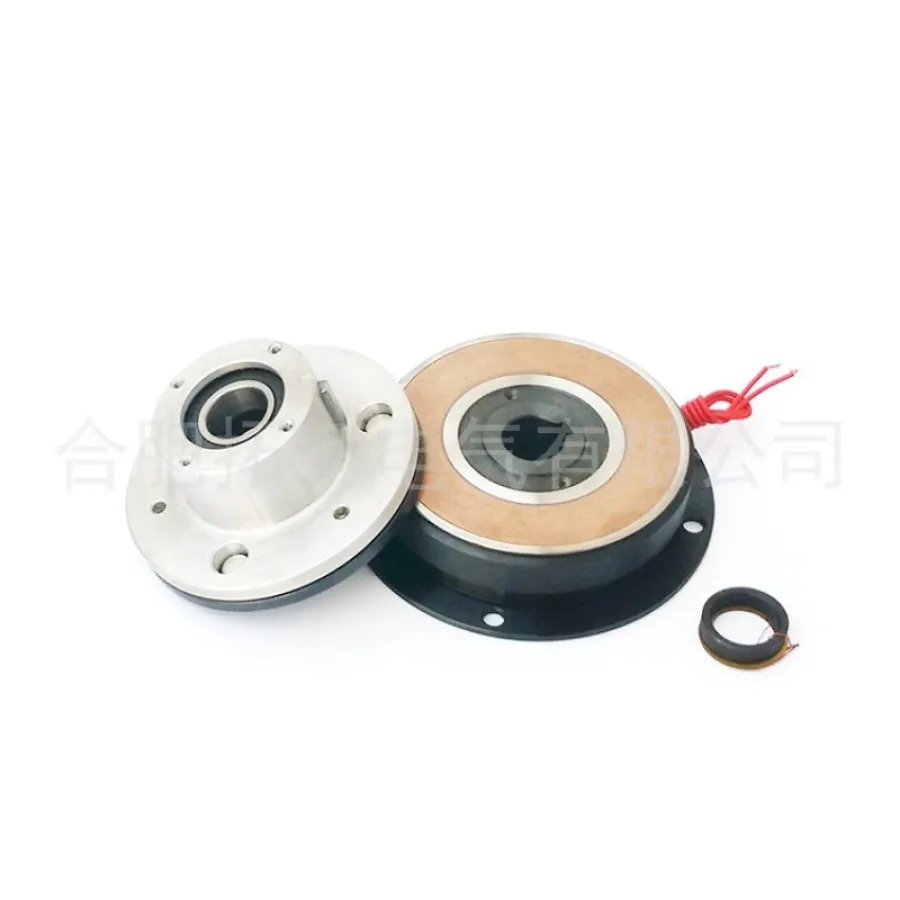

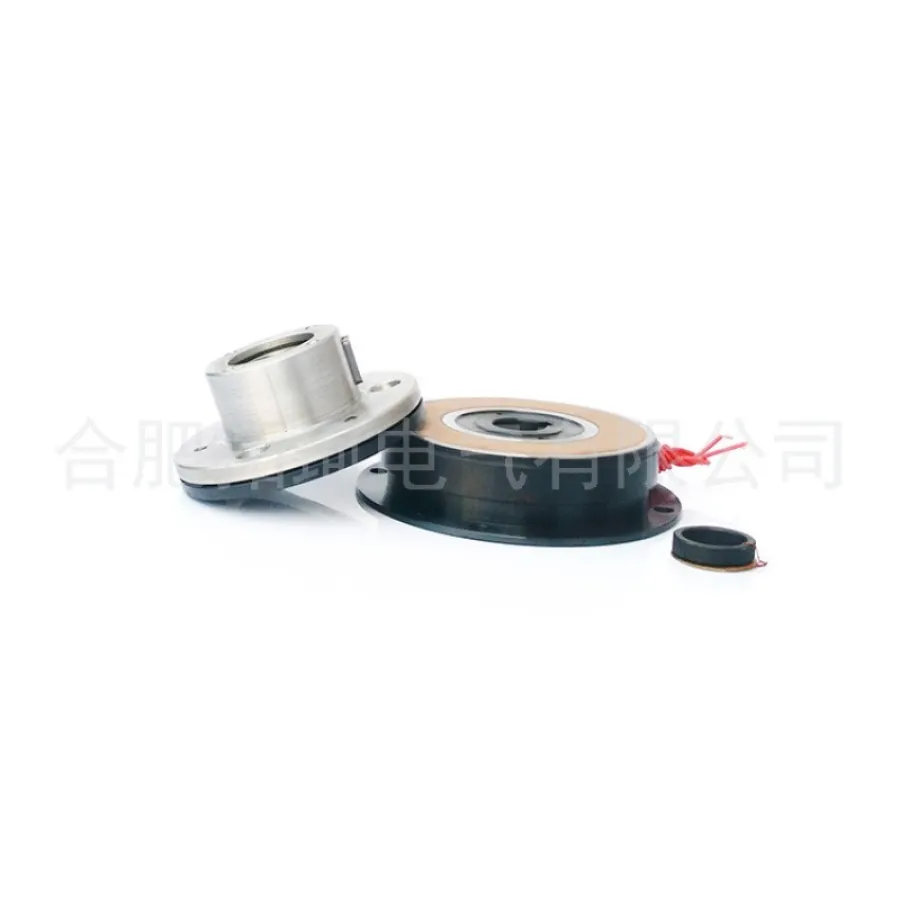

The dry single-plate electromagnetic clutch is mainly composed of a magnetic yoke, an armature, a spring plate, a rotor, a flange, etc. The magnetic yoke coil is energized to generate a magnetic field to attract the armature to generate friction torque to combine or brake the driven part, and a special shaped spring plate is used to reset. The product structure is simple, the braking delay time is short, and the braking torque is large. It is suitable for occasions where timing bonding or brake positioning requirements are required in mechanical transmission systems, such as precision machine tools. Clutch and positioning in transmission systems such as printing machinery, packaging machinery, experimental equipment and office machinery.
conditions of use
This series of clutches can operate reliably under the following conditions
1. Work in dry conditions;
2. In the surrounding medium, there is no risk of explosion and no gas or conductive dust sufficient to corrode metals and damage insulation.
3. The working environment temperature is -40~ + 150 ° C, and the surface of the friction plate and armature must not be oily and must be kept clean.
4. The insulation class is Class B, the protection class is IP23, and the voltage fluctuation range does not exceed + 5% and -15%.
5. The working air gap shall not exceed the maximum working air gap. The main and driven sides of the brake shall be fixed and no axial movement shall be allowed.
6. Installation method: axial horizontal installation, axial vertical installation, the installation clutch must ensure that the coaxial is not greater than 0.1mm.
7. Working mode: intermittent work, continuous work.
Packaging Details
- Unit Type:
- Package Weight: 4.500
- Package Size: 18x9x18
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: CE
- Certification: RoHS
- Voltage: 24VDC
- Model Number: TQESC1-40B
- torque: 40N*M
- weight: 4.5kg
- brand: TORQ
- rotational speed: 3500rpm
- material: Iron, friction material, copper wire
- Model: TQESC1-40B
- Specifications: 150mm*86.5mm
- Scope of application: Packaging , textile , printing , machining machinery, food machinery
- Outer diameter: 150mm
- Flange installation center distance: 137mm
- Height: 86.5mm
- Shaft bore: 25mm
