100% Original Taiwan CHAIN TAIL ME10S4AA Micro Electromagnetic Clutch
519.93 $
ID: 154626
Quantity
Taiwan CHAIN TAIL Electromagnetic Clutch DC24V CDE2S5AA CDE2S5AD Inner Bearing Clutch 20W For Strapping Machine
0.0 ( votes)
Price:
US $
654.92 -
668.90
Taiwan CHAIN TAIL Electromagnetic Clutch DC24V CDE2S5AA CDE2S5AD Inner Bearing Clutch 20W For Strapping Machine

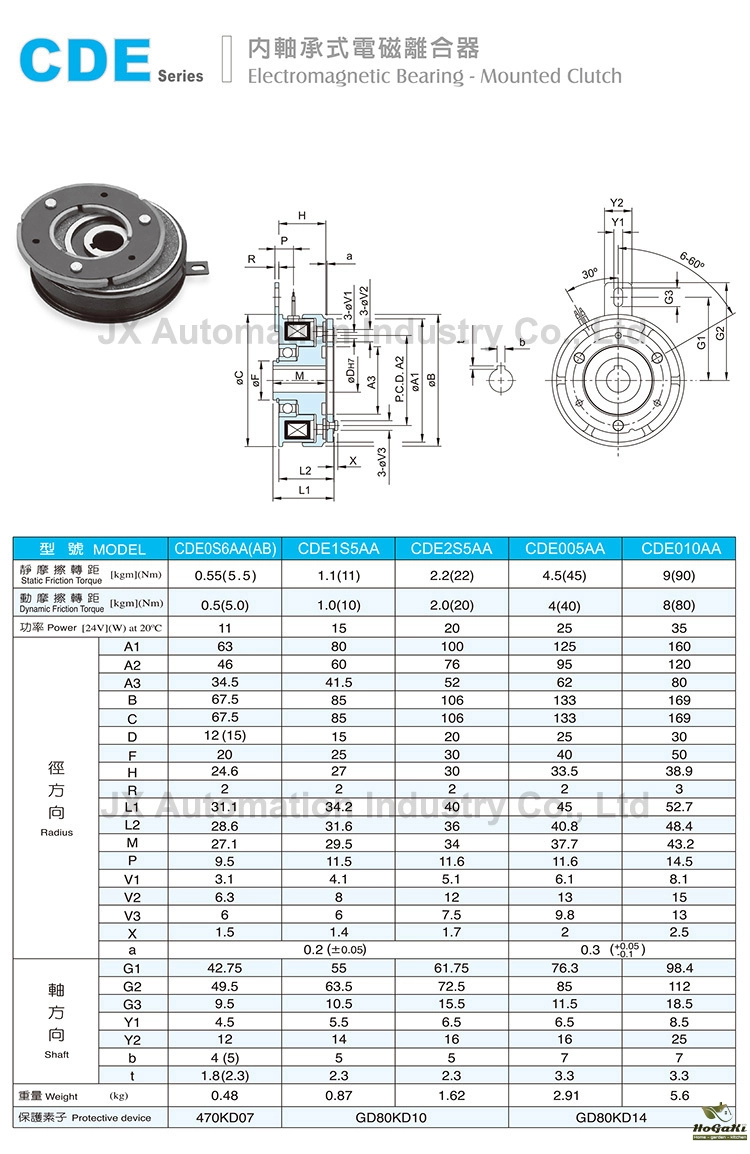

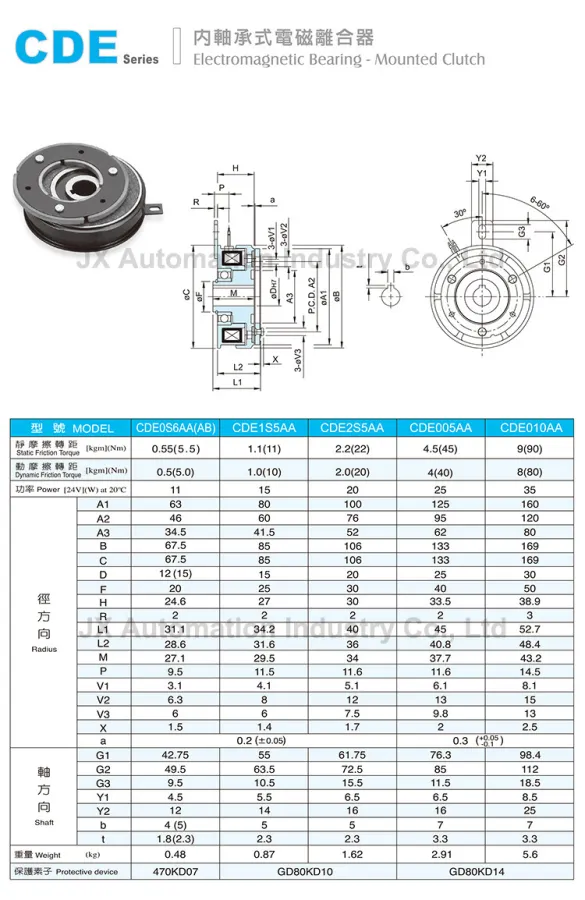

Brand: CHAIN TAIL

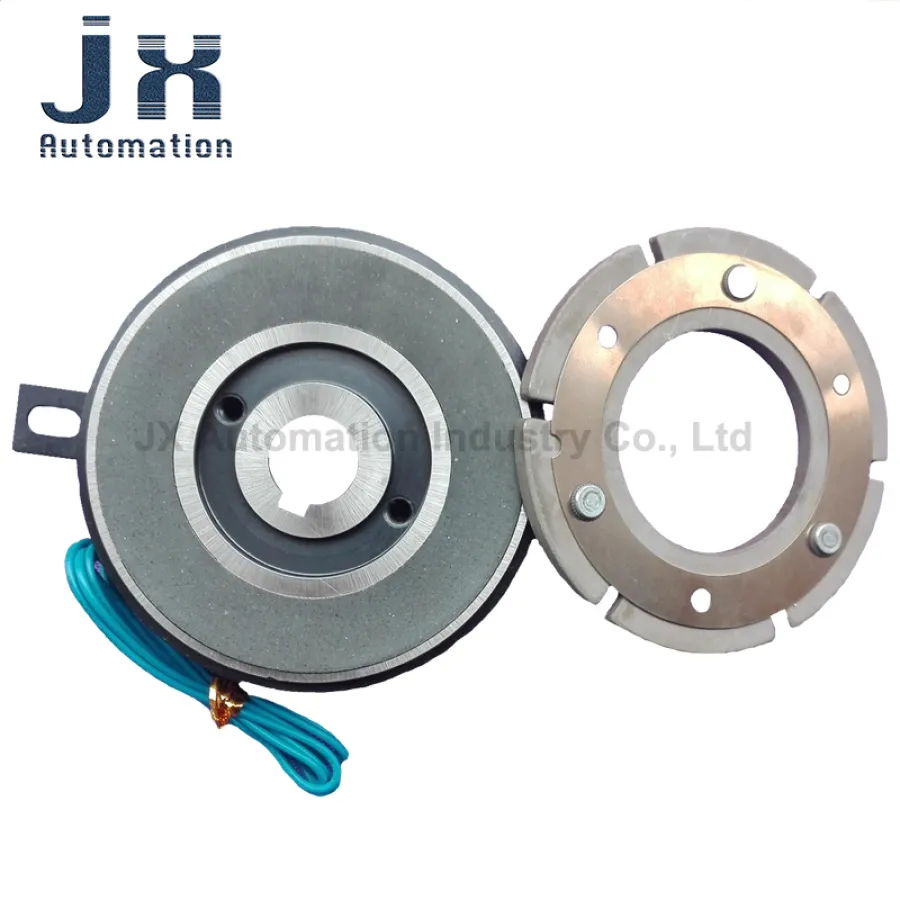

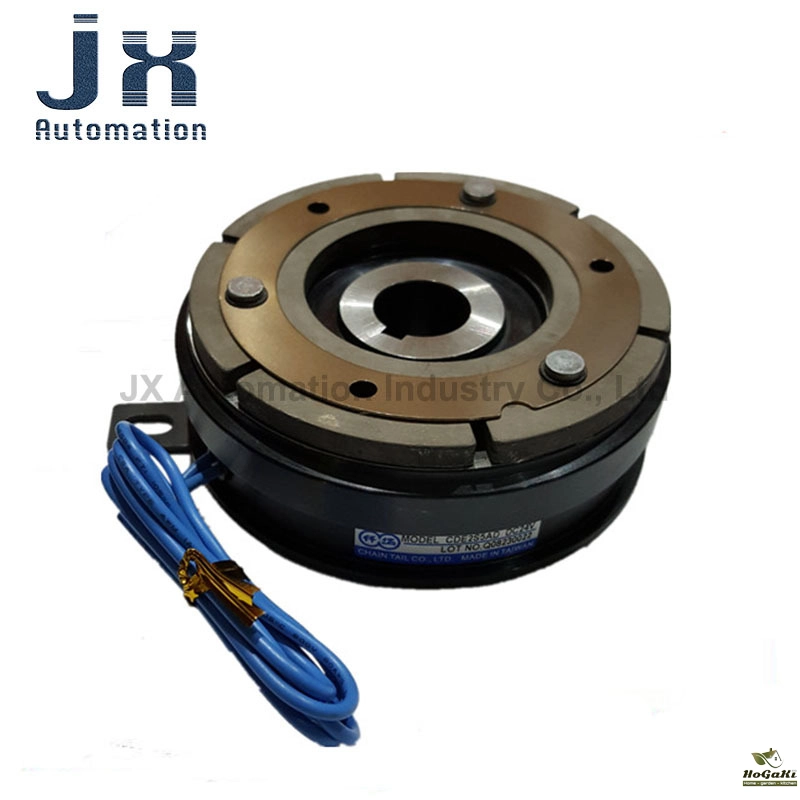

Name: Inner bearing type electromagnetic clutch
Model: CDE2S5AA CDE2S5AD
Material: Cast iron
Origin: Taiwan
Voltage: 24V
Power: 20W
Static Friction Torque: 22N.m
Dynamic Friction Torque: 20N.m
Inner hole diameter: 20MM
Maximum outer diameter: 106MM
Torque: 22Nm
Weight: About 1.62KG
Features:
Exquisite design and CNC computer drilling are done by CHAIN TAIL years of manufacturing experience and professional development engineers
The materials of the machine and CNC computer processing equipment use the best permeability material to make the film use
The high-grade non-asbestos material with high friction coefficient and low friction improves product response time and production
The service life of the product.
●High-speed response
●Strong durability
●Easy to assemble and maintain
●No wear adjustment is required
Action is indeed
●Torque adjustment is possible
Applications
●Packing and packing machinery: packing machine, strapping machine, packing machine.
●Fiber machinery: twisting machine, preparation machinery, textile machinery.
Metal processing machinery: calender, wire drawing machine, punching machine, welding machine, copper wall and iron wall line
Return machine, cutting machine, pipe making machine, coiling machine.
●Working machinery: lathes, milling machines, tapping machines, automatic CNC machines, special machines.
Handling machinery: cranes, feeders, conveyors, winding machines, hoists.
●Paper machinery: bag making machine, carton machine, follower, book making machine, cutting machine, paper machine.
●Printing machinery: rotary presses, feed presses.
Woodworking machinery: sawmills, woodworking machines, plywood machinery.
Business machinery: electronic copy machines, computers, fax machines, copper counters, printers.
Measuring machinery: testing machine, durability test device, measuring machine.
●Food processing machinery: meat cutting machinery, cake making machinery, bottling machinery, noodle making machine.
Others: reducer, electroplating device, physical and chemical machinery, paper making machinery, resin processing machine.
Installation Precautions
Use it without moisture, oil, etc.
When using in dusty places, put all the clutches and brakes in the box.
When installing, please mechanically adjust the suction gap to within 20% of the specified value.
Please use the bracket to keep it light and do not subject the bearing of the clutch to excessive pressure.
For the assembled screws, please use spring metal sheets, adhesives, etc. to prevent loosening deal with.
While using the frame on the machine side to maintain the leads, it is also necessary to use terminal boards, etc.
Packaging Details
- Unit Type:
- Package Weight: 2.000
- Package Size: 15x10x18
- Brand Name: NoEnName_Null
- Origin: TW(Origin)
- Hign-concerned Chemical: None
- Voltage: DC24V/12V
- Model Number: CDE2S5AD CDE2S5AA
- Material: Cast Iron
- Product Name: CHAIN TAIL Electromagnetic Clutch
- Name: Inner bearing type electromagnetic clutch
- Power: 20W
- Weight: 1.62KG
- Inner hole diameter: 20MM
- Maximum outer diameter: 106MM
- Torque: 22Nm
- Applications: Packing machine, strapping machine, packing machine.
