Taiwan CHAIN TAIL DC24V Inner Bearing Electromagnetic Clutch with Aluminium Hub CE10S6AA CE11S5AA CE12S5AA CE10105AA
657.52 $
ID: 154620
Quantity

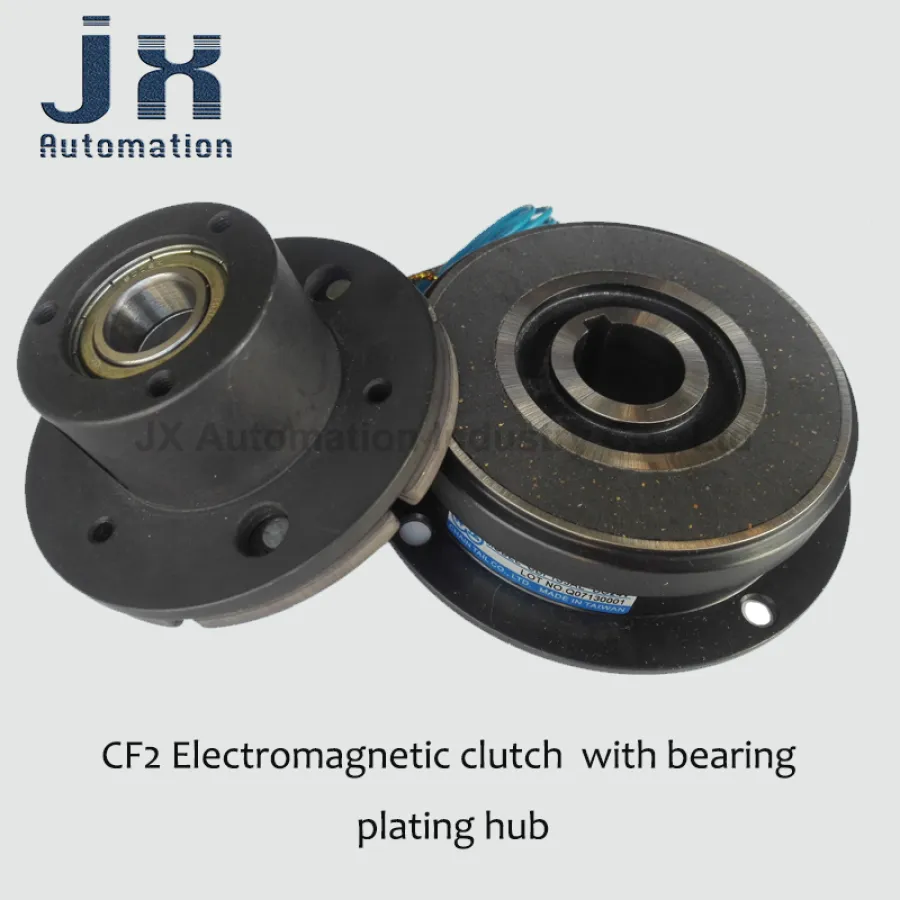

Taiwan CHAIN TAIL Electromagnetic Clutch CDF1S5AA/AL CDF1S5AB CDF2S5AA CDF2S5AM CDF005AA CDF005AG CDF0S6AA CDF010AA DC24V
0.0 ( votes) | 2 orders
Price:
US $
426.86 -
1009.74
Dear Customers,
Please mark AA inner hole (20mm) and AB inner hole (15mm) before placing an order!
The new model CDF1S5AA commonly used by Qiandai is CDF1S5AL. The new model of CDF1S5AB is CDF1S5AK, please be aware of new and old customers, the specifications and dimensions remain unchanged.
Thank you for your trust and support!
Taiwan CHAIN TAIL Electromagnetic Clutch CDF1S5AFAKAL CDF2S5AM CDF005AG 010AA DC24V
Place of Origin: Taiwan
Type: CHAIN TAIL Electromagnetic Clutch
Model: CDF1S5AF/AK/AL CDF2S5AM CDF005AG 010AA
Material: Aluminium-copper Alloy
Voltage: DC24V
Features
1. High-speed response: Because it is a dry type, the torque transmission is very fast, which can achieve convenient actions.
2. Strong durability: good heat dissipation, and the use of advanced materials, even if it is used with high frequency and high energy, it is also very durable.
3. Easy to assemble and maintain: the magnetic field coil in the ball bearing is static, so there is no need to take out the core or use the carbon brush, which is simple to use.
4. Wear adjustment is not required: Because this structure does not require abrasion adjustment of the friction surface. Therefore, no adjustment is required after installation (except for some).
5. Reliable action: using plate-shaped shrapnel, it will not loosen despite strong vibration and has good durability.
6. Torque adjustment can be performed: current can be used to adjust the friction torque, so it can be operated for various purposes.
Applications
●Packing and packing machinery: packing machine, strapping machine, packing machine.
●Fiber machinery: twisting machine, preparation machinery, textile machinery.
Metal processing machinery: calender, wire drawing machine, punching machine, welding machine, copper wall and iron wall line
Return machine, cutting machine, pipe making machine, coiling machine.
●Working machinery: lathes, milling machines, tapping machines, automatic CNC machines, special machines.
Handling machinery: cranes, feeders, conveyors, winding machines, hoists.
●Paper machinery: bag making machine, carton machine, follower, book making machine, cutting machine, paper machine.
●Printing machinery: rotary presses, feed presses.
Woodworking machinery: sawmills, woodworking machines, plywood machinery.
Business machinery: electronic copy machines, computers, fax machines, copper counters, printers.
Measuring machinery: testing machine, durability test device, measuring machine.
●Food processing machinery: meat cutting machinery, cake making machinery, bottling machinery, noodle making machine.
Others: reducer, electroplating device, physical and chemical machinery, paper making machinery, resin processing machine.
Installation Precautions
Use it without moisture, oil, etc.
When using in dusty places, put all the clutches and brakes in the box.
When installing, please mechanically adjust the suction gap to within 20% of the specified value.
Please use the bracket to keep it light and do not subject the bearing of the clutch to excessive pressure.
For the assembled screws, please use spring metal sheets, adhesives, etc. to prevent loosening
deal with.
While using the frame on the machine side to maintain the leads, it is also necessary to use terminal boards, etc.
Packaging Details
- Unit Type:
- Package Weight: 2.500
- Package Size: 18x10x20
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: CE
- Voltage: DC24V
- Model Number: CDF1S5AF/AK/AL CDF2S5AM CDF005AG 010AA
- Material: Cast Iron
- Name: CHAIN TAIL
- Place of Origin: Taiwan
- Scope of application: Printing factory
