GSM Gate Opener Relay Switch Mobile Phone Remote Door Opener Switch By Free Call 850/900/1800/1900MHz
65.41 33.84 $
ID: 161293
Quantity

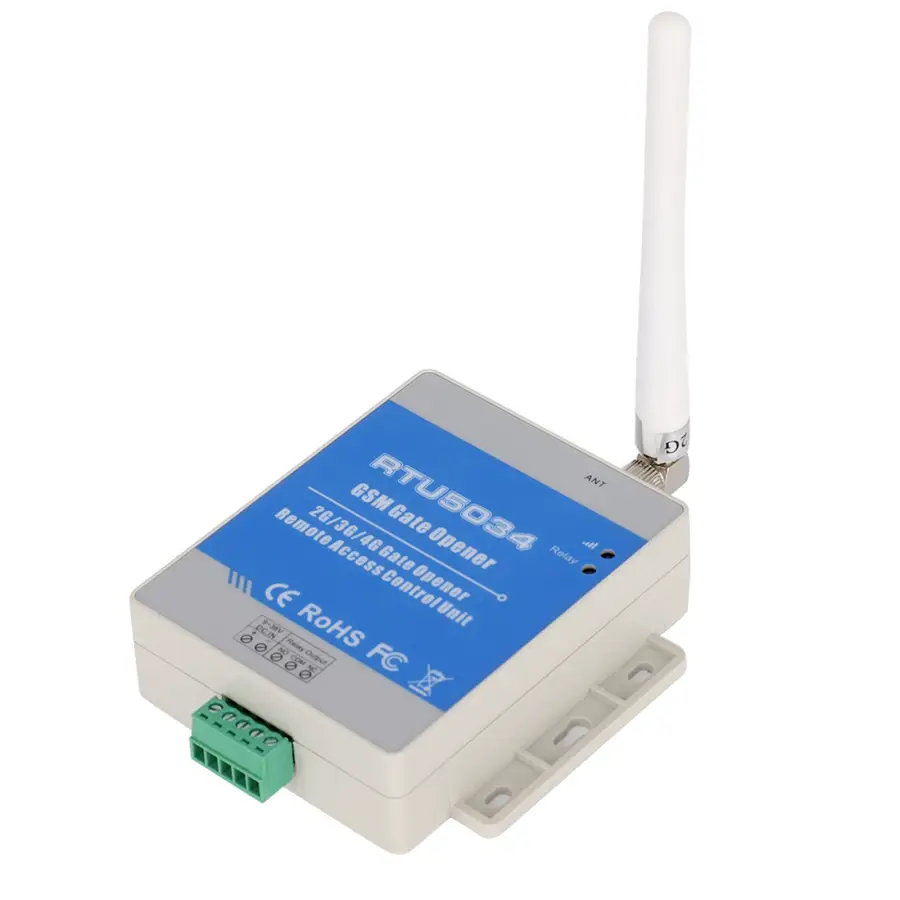

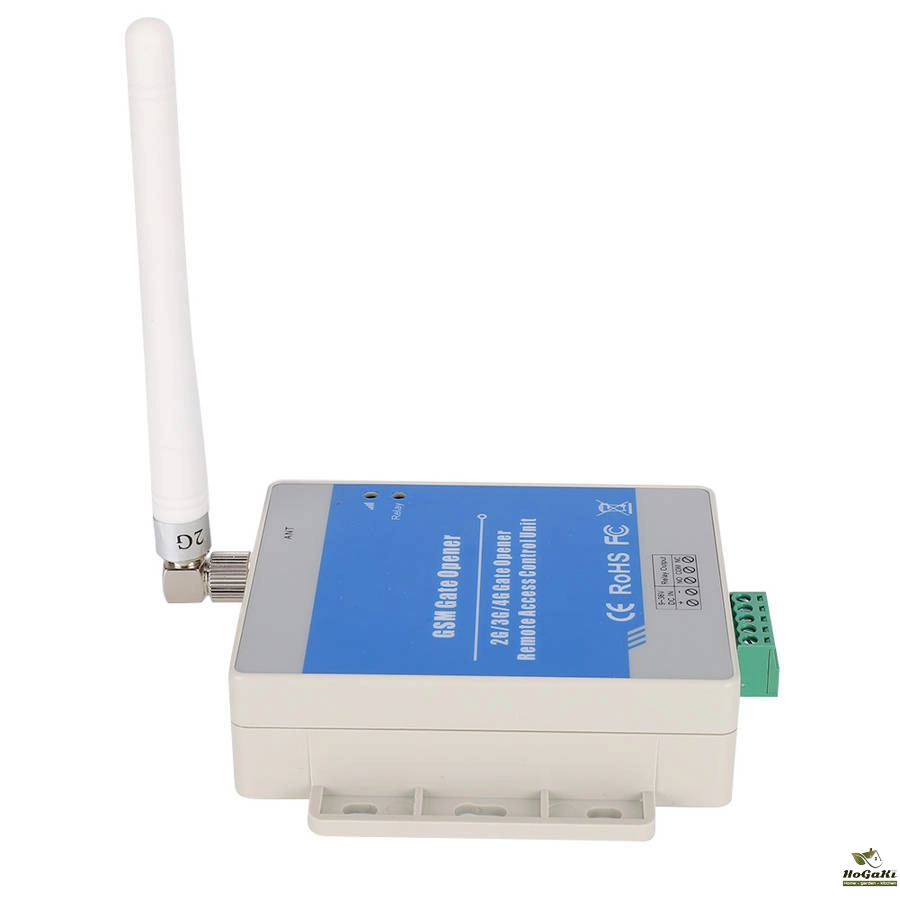

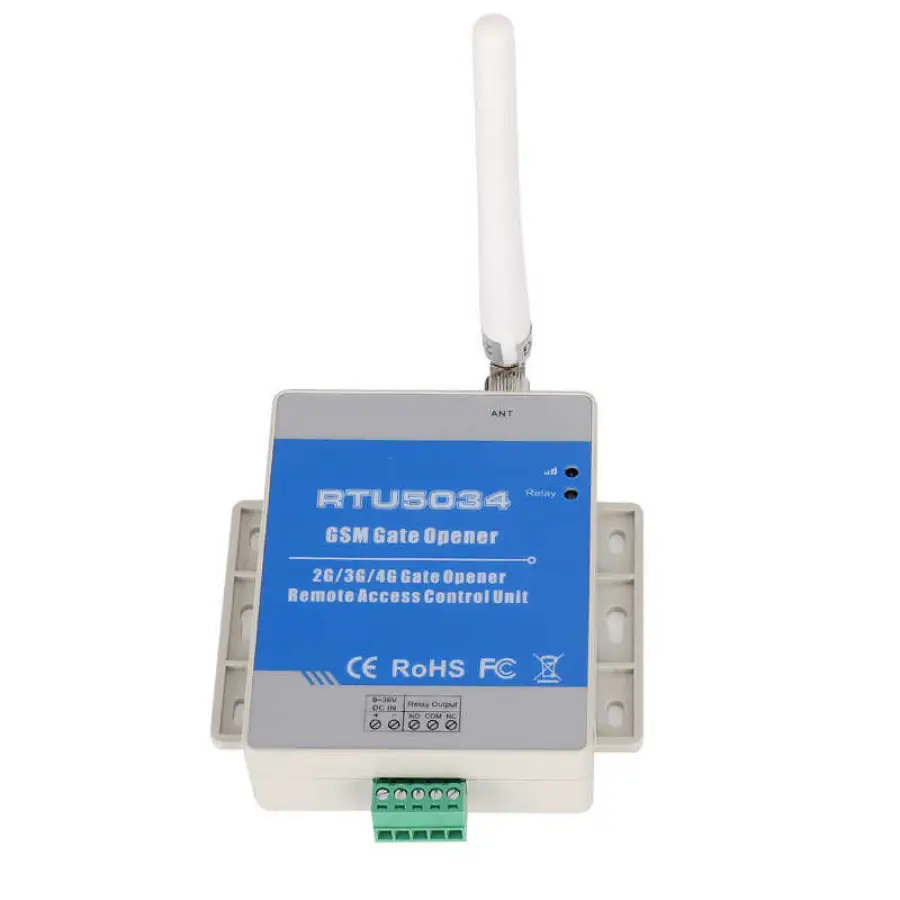

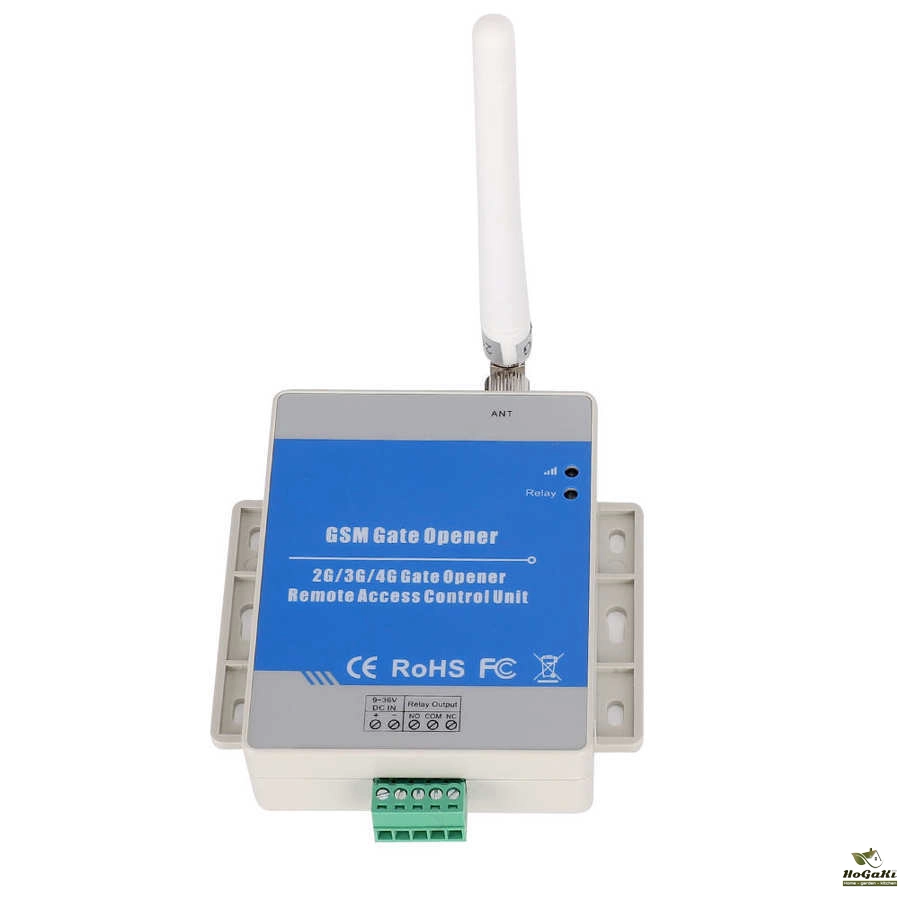

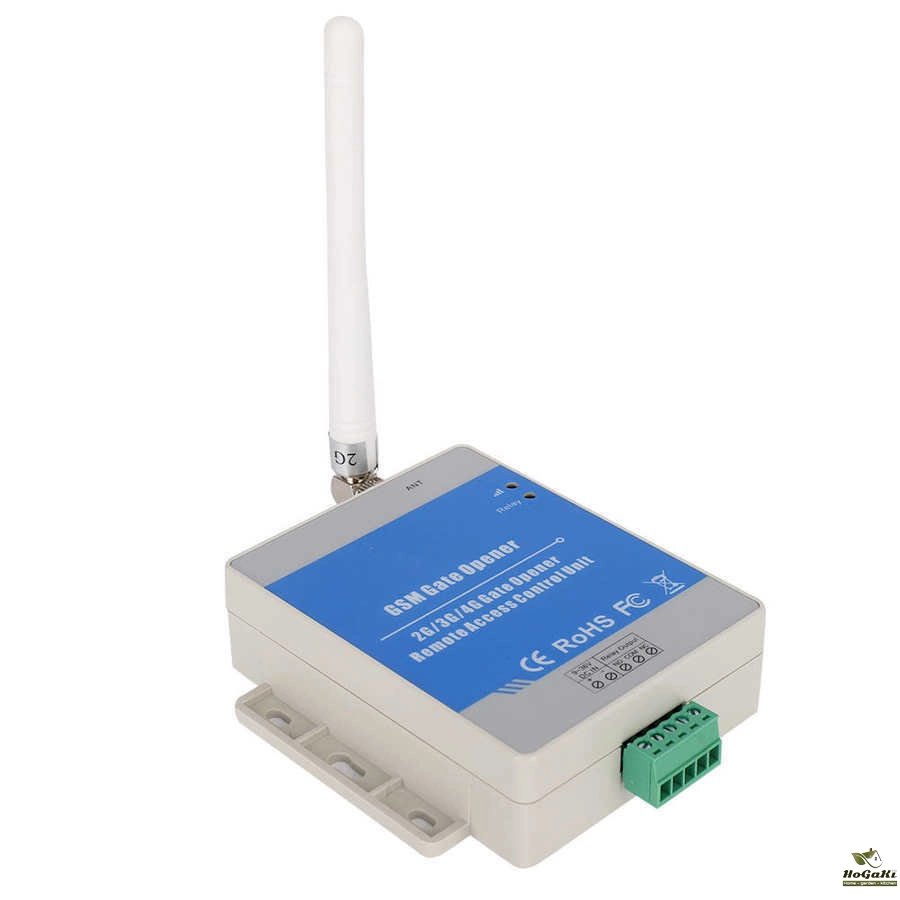

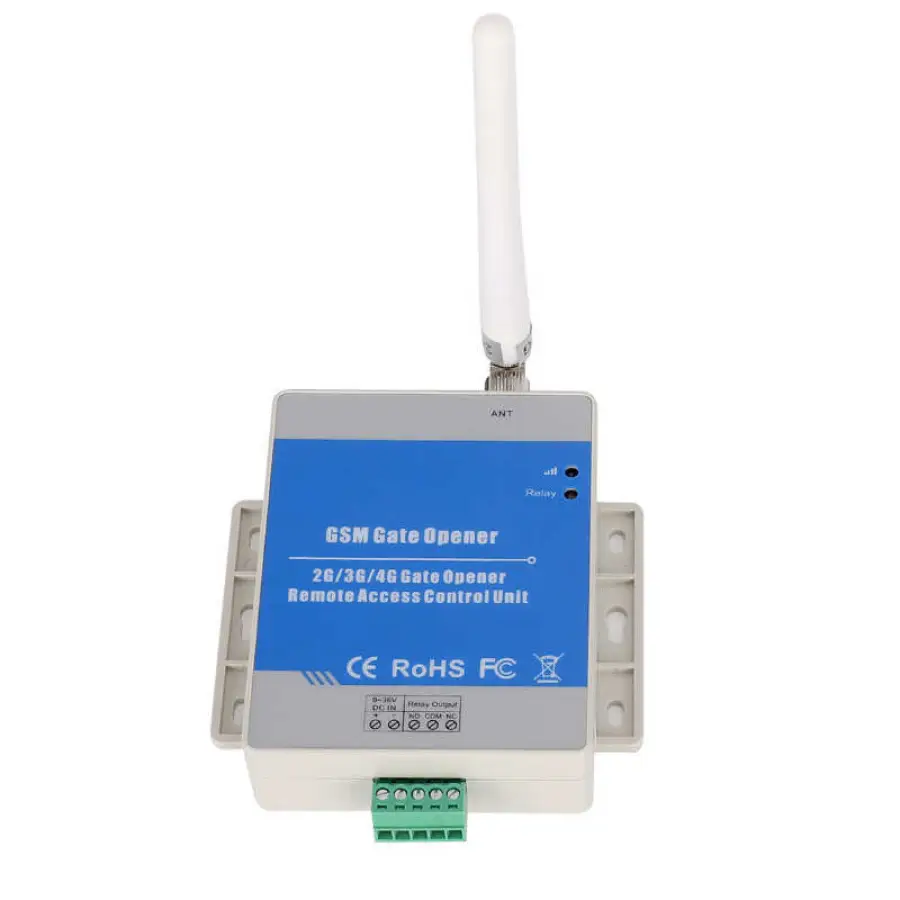

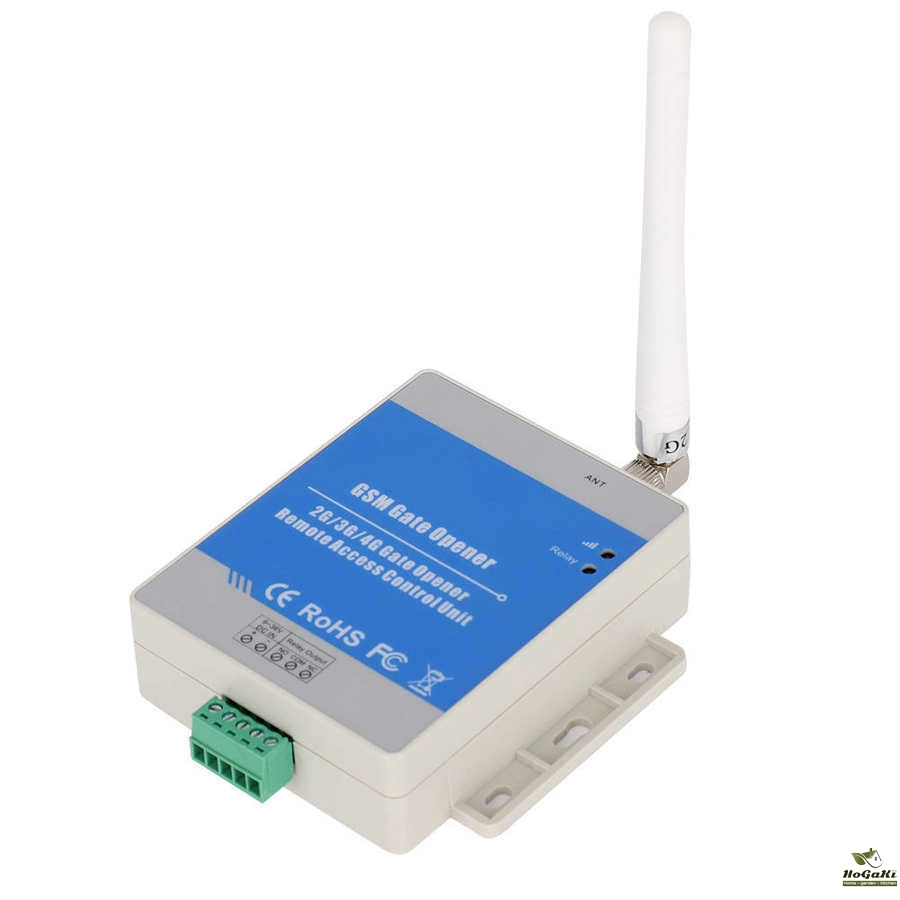

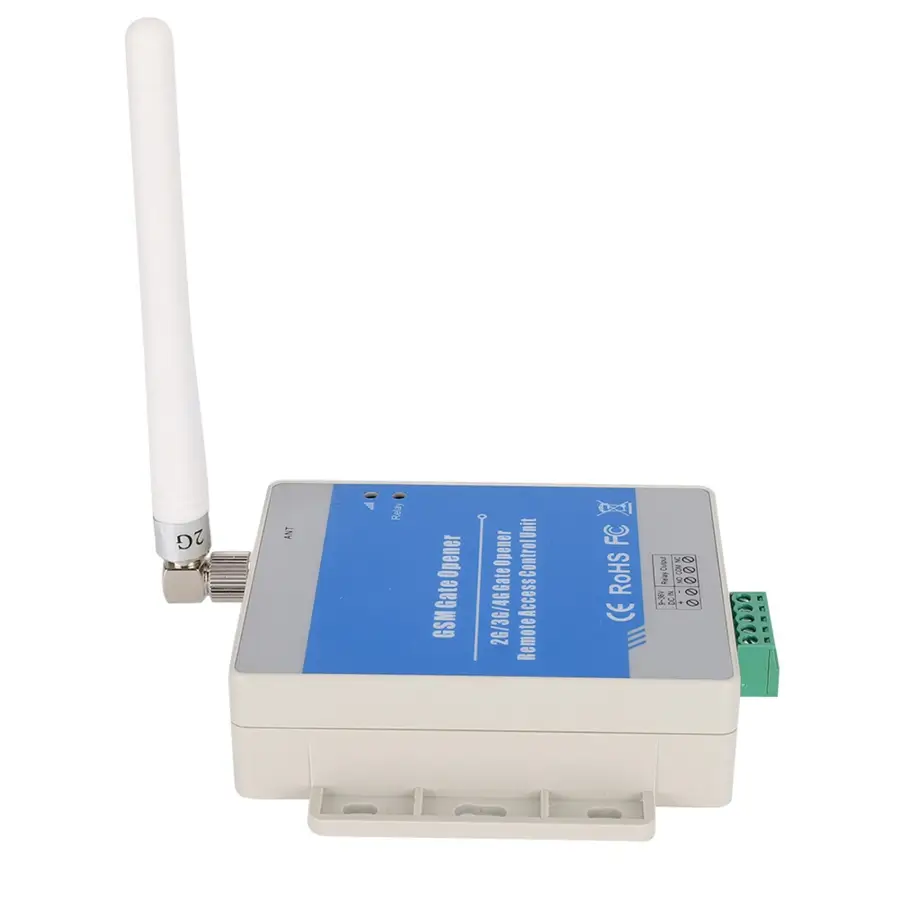

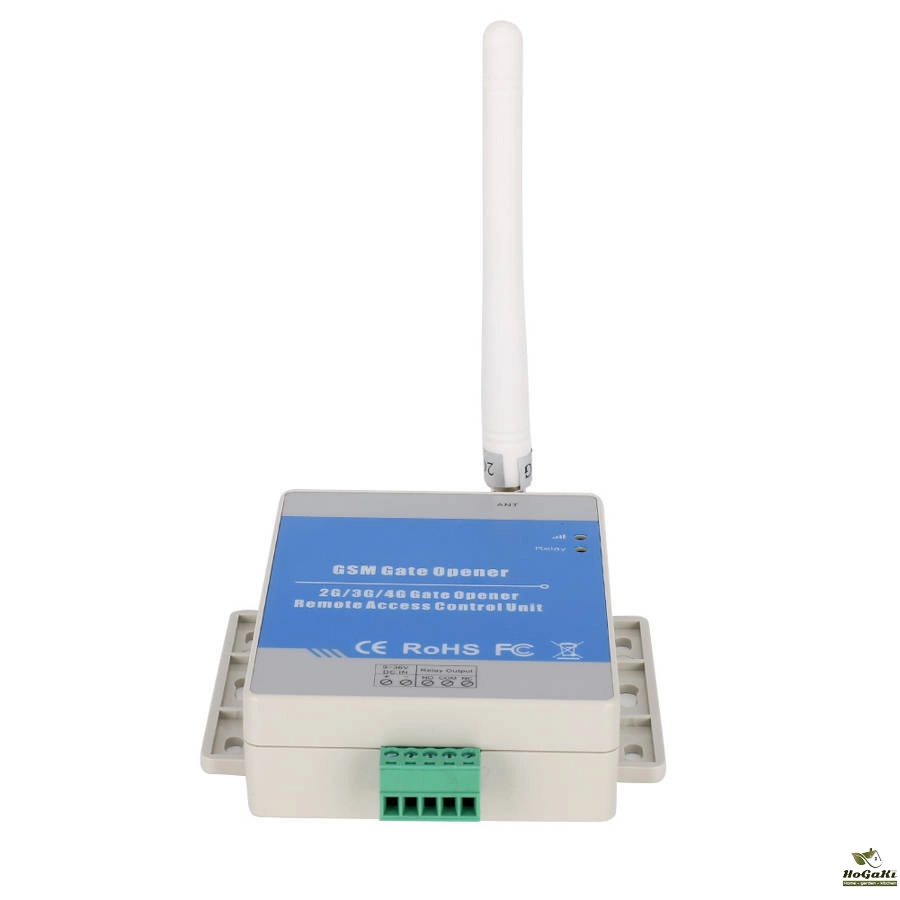

RTU5034 GSM Gate Opener Relay Switch Automatic Remote Access Controller by Free Call
5.0 (8 votes) | 23 orders
Price:
US $51.97
Discount Price:
US $
50.37
-3%

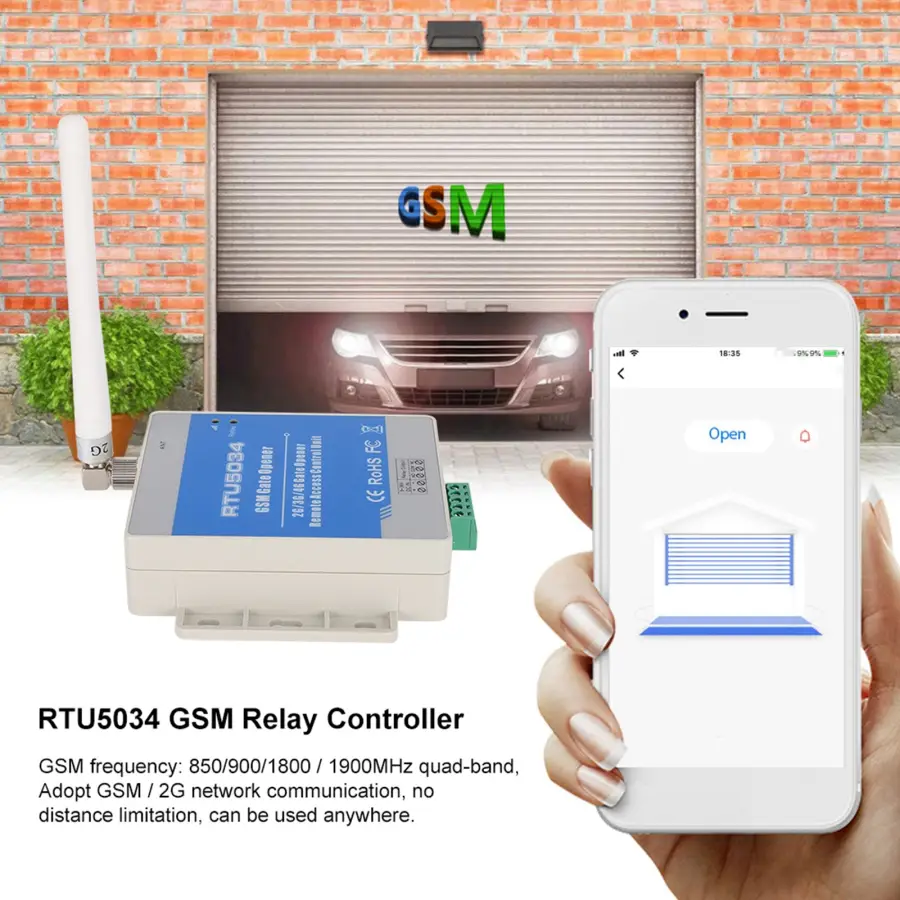

GSM Gate Opener Relay Switch Automatic Remote Access Controller by Free Call RTU5034
Feature:
1. Adopt GSM /2G net communication, without any distance limitation, it can be used anywhere.
2. 850/900/1800/1900MHz quad-band GSM frequency, can work in global GSM network.
3. Without call charges, the GSM GPRS relay switch rejects calls from authorized numbers and then performs an open / close operation on the first "ring".
4. Wide working voltage, support DC 9 - 24V power supply, and with anti-reverse protection design.
5. Using SMS to set parameters remotely, easy to operate and easy to use.
6. Support 200 groups of numbers, each group of numbers can be set to control the relay within a specified period of time.
7. One relay output, the authorized number will be closed after the incoming call, and it will be automatically opened after the set time.
8. Add or delete users with SMS text commands, simple operation, convenient for using.
9. After the authorized phone controls the relay, it can send action text messages to the user.
10. Between 0-999 seconds, the relay closing time can be controlled arbitrarily, where 0 means: the relay will open 0.5 seconds after closing, and 999 means: the relay will remain closed until the permission number is dialed in.
11. You can query the current status of the device (relay status and GSM signal value) through SMS instructions.
12. You can upload the current status of the device to the first user by SMS in a timely manner.
13. Use the clock on the module and send yourself a text message to synchronize after each boot.
14. Metal case with IP30 protection. The metal housing is safely isolated from the system, which is especially suitable for industrial control field applications.
15. Compact size, (L x W x H) 90 x 70 x 27mm/3.5 x 2.8 x 1.1in, simple installation, support wall mounting, no need complicated tools.
16. Wide range of applications, suitable for garage access control, remote switching equipment, street lights, motors, inverters, remote pumps, LED signs, etc.
2. 850/900/1800/1900MHz quad-band GSM frequency, can work in global GSM network.
3. Without call charges, the GSM GPRS relay switch rejects calls from authorized numbers and then performs an open / close operation on the first "ring".
4. Wide working voltage, support DC 9 - 24V power supply, and with anti-reverse protection design.
5. Using SMS to set parameters remotely, easy to operate and easy to use.
6. Support 200 groups of numbers, each group of numbers can be set to control the relay within a specified period of time.
7. One relay output, the authorized number will be closed after the incoming call, and it will be automatically opened after the set time.
8. Add or delete users with SMS text commands, simple operation, convenient for using.
9. After the authorized phone controls the relay, it can send action text messages to the user.
10. Between 0-999 seconds, the relay closing time can be controlled arbitrarily, where 0 means: the relay will open 0.5 seconds after closing, and 999 means: the relay will remain closed until the permission number is dialed in.
11. You can query the current status of the device (relay status and GSM signal value) through SMS instructions.
12. You can upload the current status of the device to the first user by SMS in a timely manner.
13. Use the clock on the module and send yourself a text message to synchronize after each boot.
14. Metal case with IP30 protection. The metal housing is safely isolated from the system, which is especially suitable for industrial control field applications.
15. Compact size, (L x W x H) 90 x 70 x 27mm/3.5 x 2.8 x 1.1in, simple installation, support wall mounting, no need complicated tools.
16. Wide range of applications, suitable for garage access control, remote switching equipment, street lights, motors, inverters, remote pumps, LED signs, etc.
Specification:
Condition:Brand
New
Item Type:GSM Gate Opener
Material:Metal
Color:As picture shown

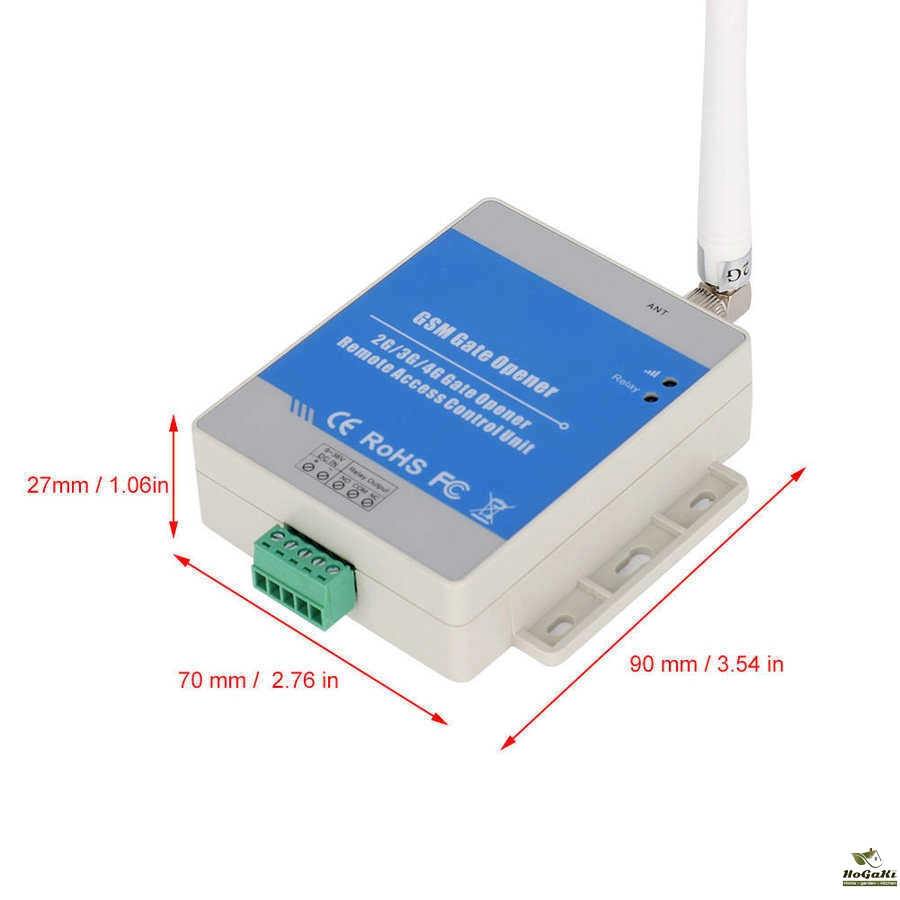

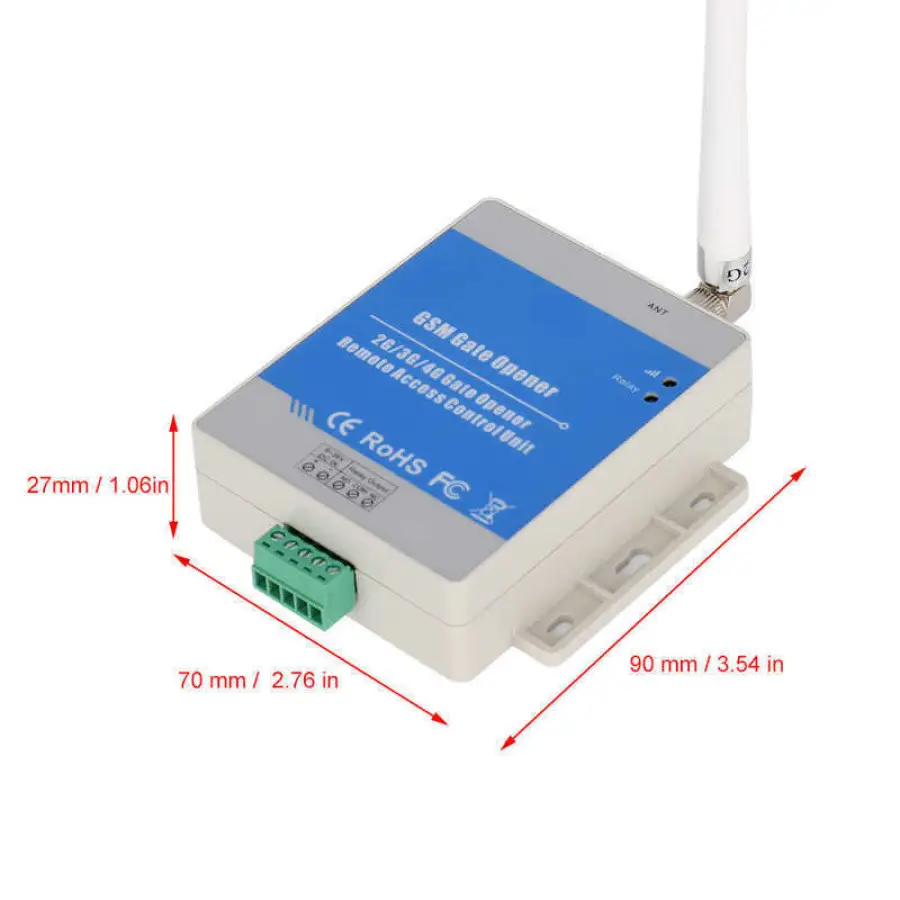

Size(L x W x H):Approx. 90 x 70 x 27mm/3.5 x 2.8 x 1.1in
Working Voltage:DC 12V/1.5A,Range:9-24VDC
Working Power Consumption:Standby:12V/25mA; Working Maximum:12V/50mA
Gsm Frequency:850/900/1800/1900MHz
SIM Card Interface:Support 3V SIM Card
External Antenna:SMA Antenna Interface:50 Ohm
Relay Output:1 Relay Output,Rated Output 3A / 220V AC,7A / 125V AC,20A / 14V DC
Operating Temperature Range:-20 - + 60 ° C
Operating Humidity Range:95% Relative Humidity (non-condensing)
Applications:
Remote open/close swing/sliding gates,doors,shutters,garage doors,locks with a free call!
Residential:Door,gate,garage access control,electronic fan,microwave,air-conditioner control.
Industry:Remote switch equipment,for example:street lights,solar power,motor,inverter,PLC,pumps,fans,etc.
Agriculture:Remote control pumps,etc.
Business:Remote control electronic boxes,bright billboards,LED signs,etc.
Item Type:GSM Gate Opener
Material:Metal
Color:As picture shown
Size(L x W x H):Approx. 90 x 70 x 27mm/3.5 x 2.8 x 1.1in
Working Voltage:DC 12V/1.5A,Range:9-24VDC
Working Power Consumption:Standby:12V/25mA; Working Maximum:12V/50mA
Gsm Frequency:850/900/1800/1900MHz
SIM Card Interface:Support 3V SIM Card
External Antenna:SMA Antenna Interface:50 Ohm
Relay Output:1 Relay Output,Rated Output 3A / 220V AC,7A / 125V AC,20A / 14V DC
Operating Temperature Range:-20 - + 60 ° C
Operating Humidity Range:95% Relative Humidity (non-condensing)
Applications:
Remote open/close swing/sliding gates,doors,shutters,garage doors,locks with a free call!
Residential:Door,gate,garage access control,electronic fan,microwave,air-conditioner control.
Industry:Remote switch equipment,for example:street lights,solar power,motor,inverter,PLC,pumps,fans,etc.
Agriculture:Remote control pumps,etc.
Business:Remote control electronic boxes,bright billboards,LED signs,etc.
Package List:
1 x Host Controller
1 x GSM Antenna
1 x Instruction
Packaging Details
- Unit Type:
- Package Weight: 0.140
- Package Size: 10x3x13
- Brand Name: YOUTHINK
- Origin: Mainland China
- Hign-concerned Chemical: None
- Smart home platform: None
- Model Number: RTU5034
- Certification: None
- Gsm Frequency: 850/900/1800/1900MHz
- Material: Metal
- Type 1: GSM Gate Opener
- Type 2: Remote Access Controller
- Type 3: GSM Remote Control
- Type 4: GSM Access Relay
- Choice: yes
- semi_Choice: yes
