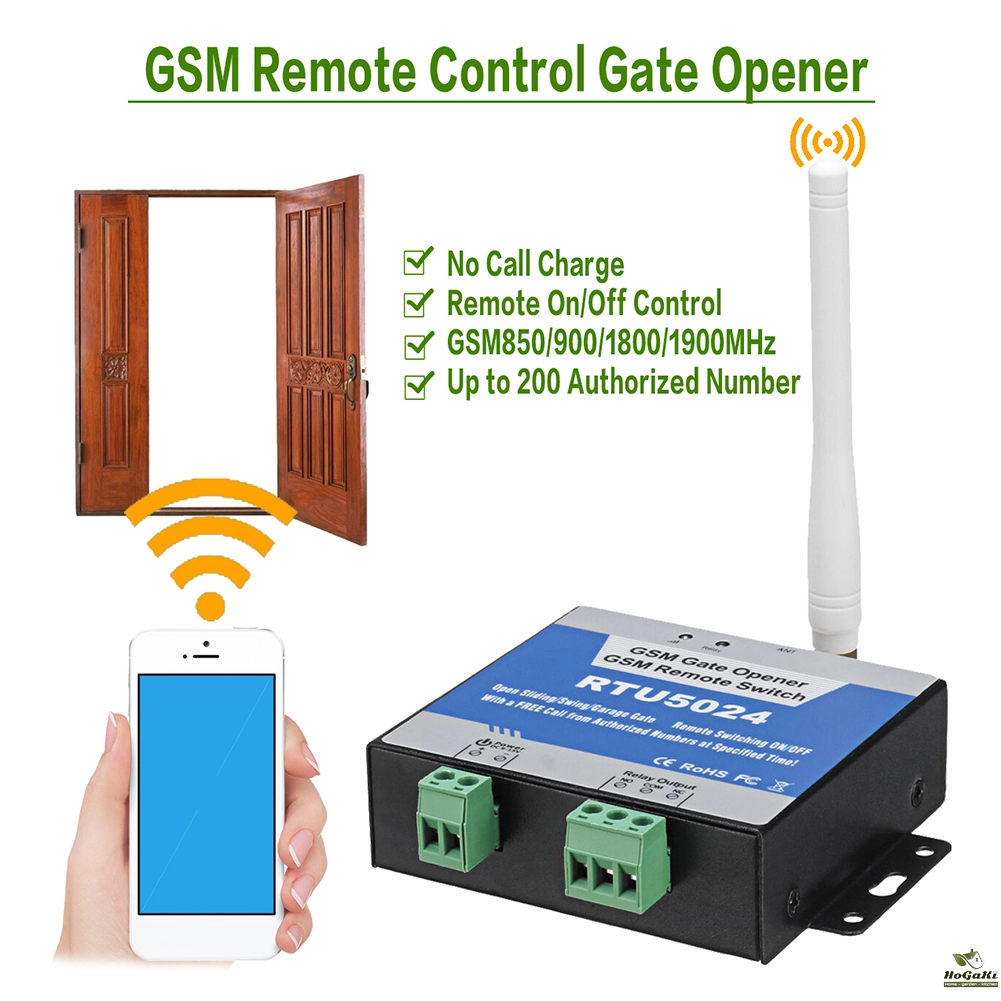

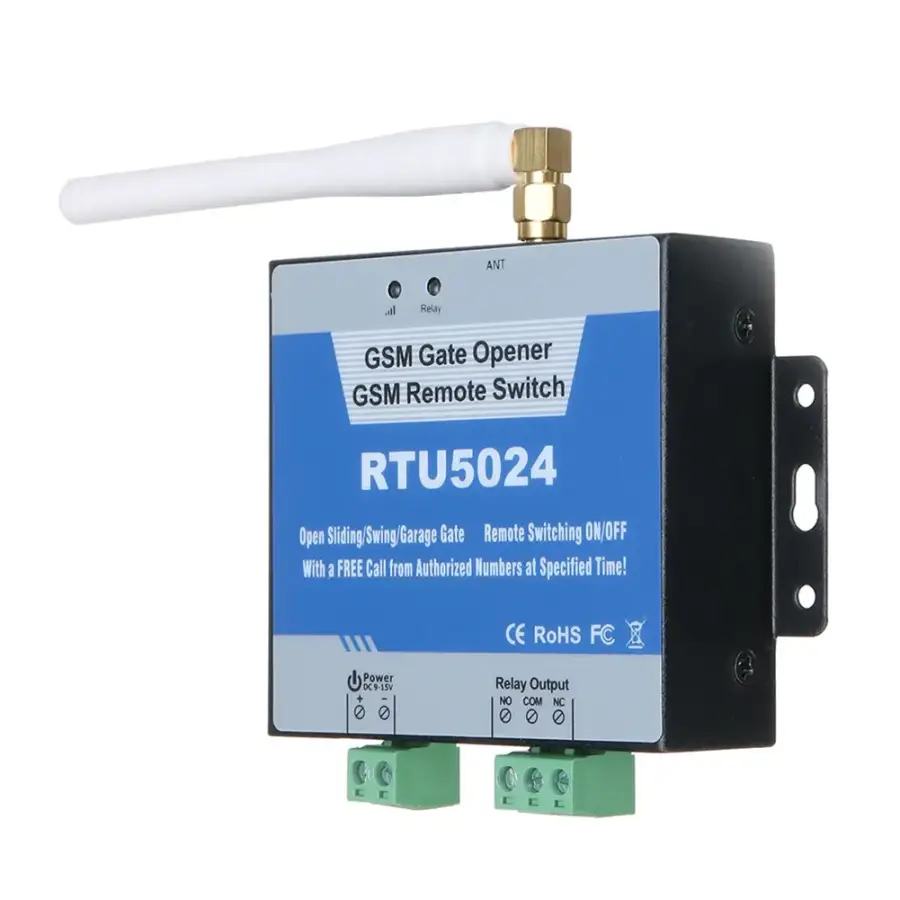

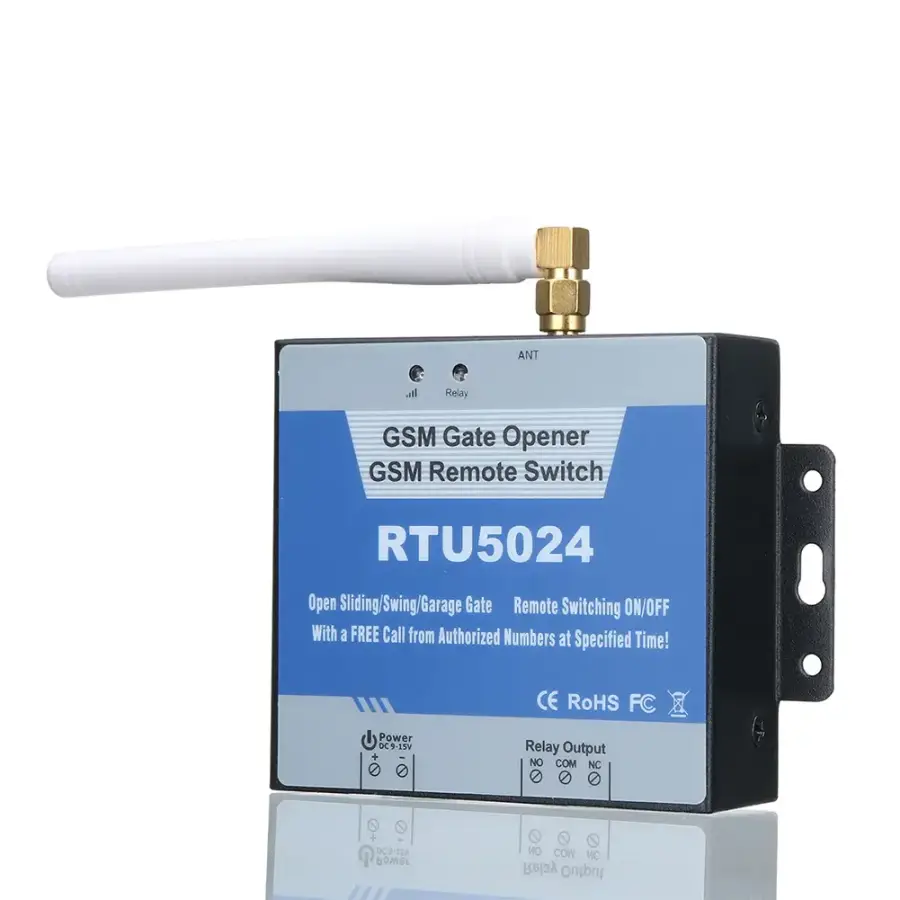

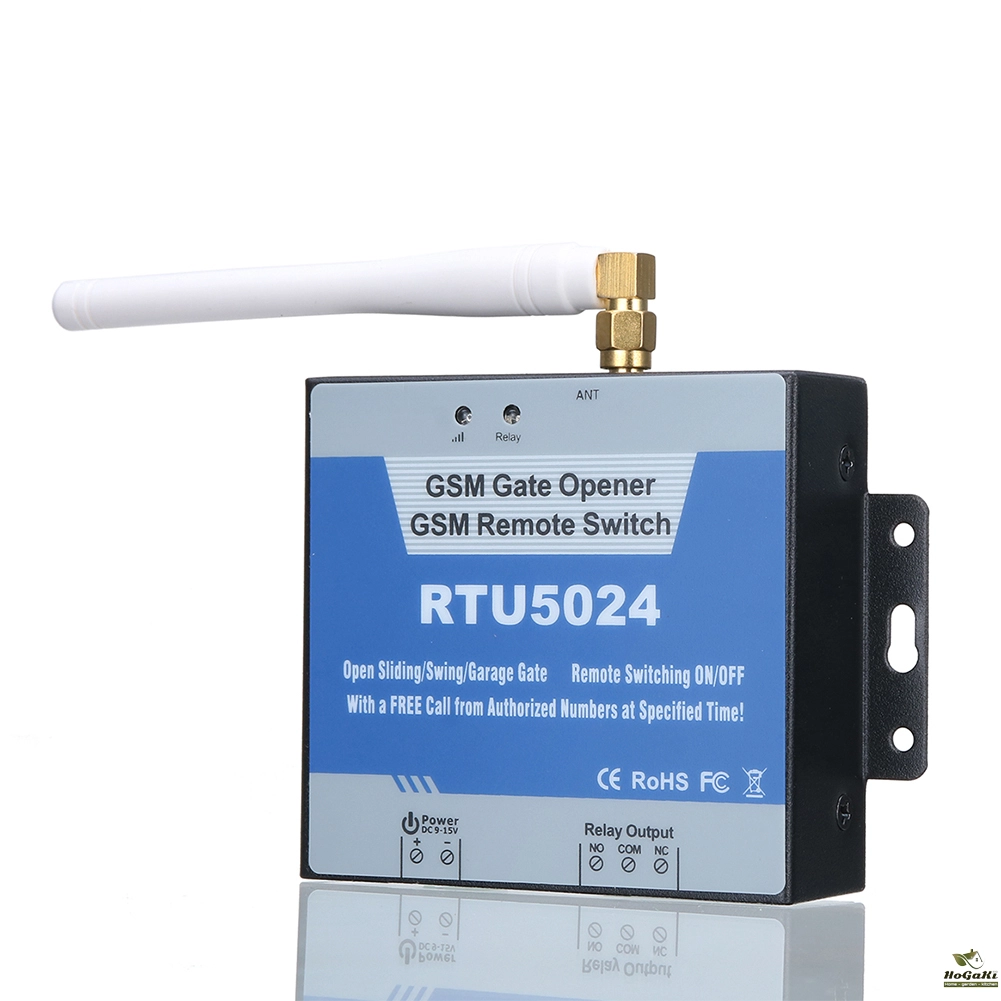

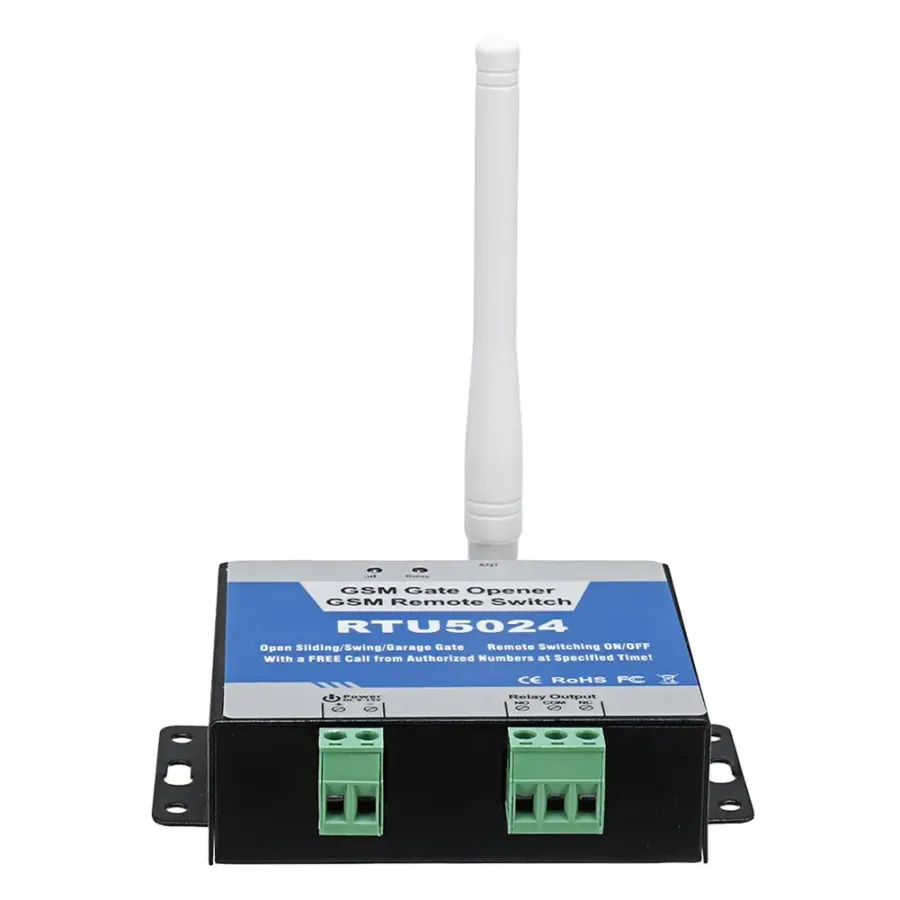

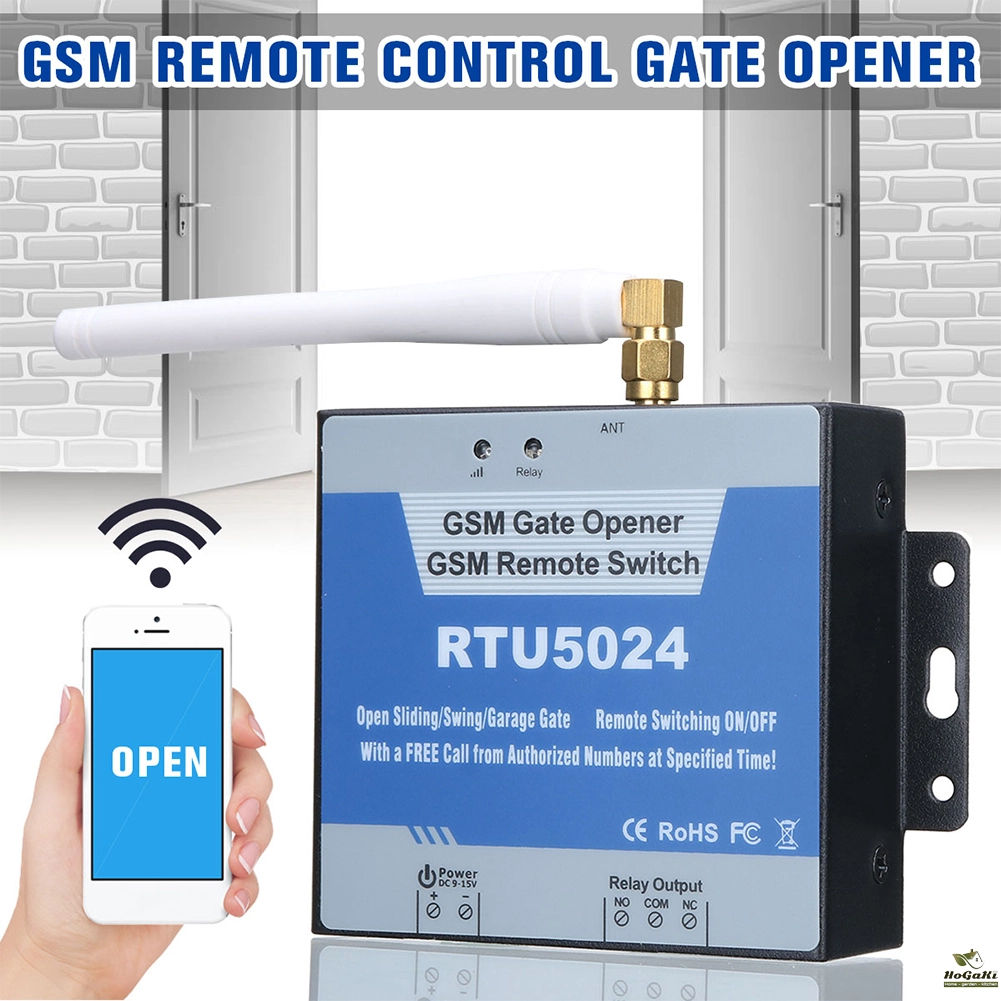

RTU5024 GSM Gate Opener Relay Wireless Remote Control Door Access Switch Free Call 850/900/1800/1900MHz
Description:

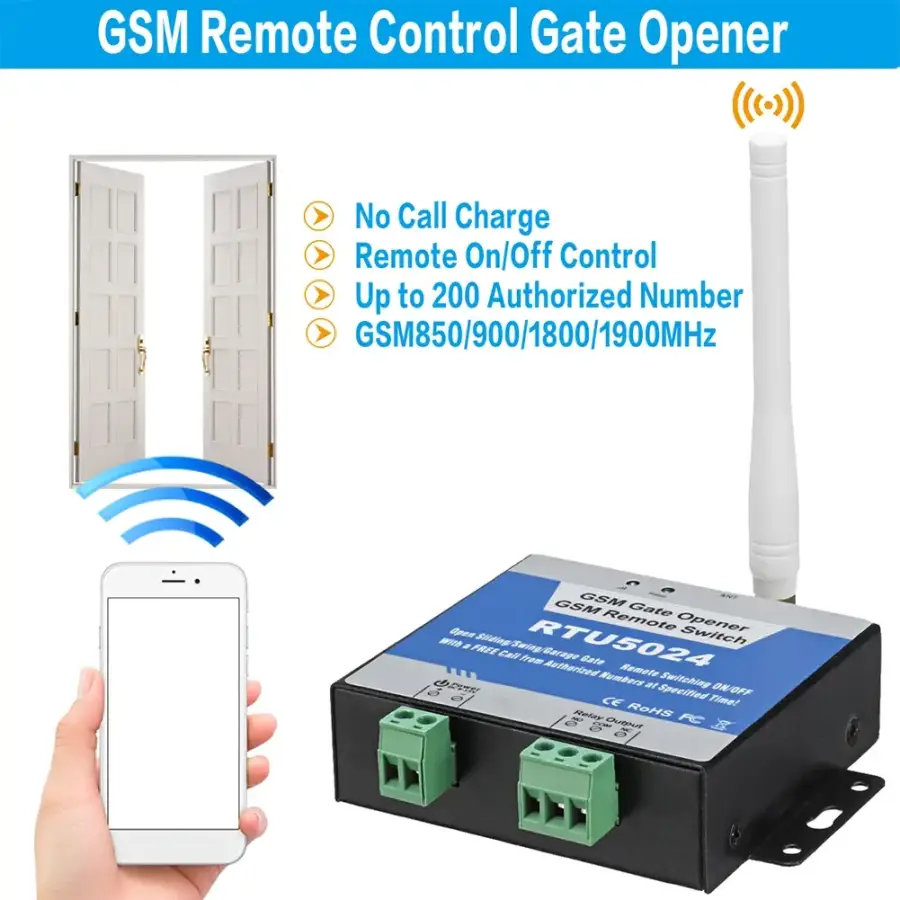

The GSM Gate Opener RTU5024 is a powerful GSM relay that can be used for authorized door access, controlling gates, switching of remote equipment, and car parking systems. Additionally, it can also be used in places which require you to turn on/off your system, machines, or equipment remotely with a free call from your mobile phone.

Feature:
- Add or remove users by SMS Text com mand.
- The relay close or open time is programmable.
- Can be operated from anywhere, no distance limit.
- Quad-band, can work in the worldwide GSM Networks.
- No need to provide a remote control or keys for different users.
- Secure - Using caller-ID for identification, unknown callers are ignored.
- Up to 200 authorized phone numbers can be configured at the specified time.

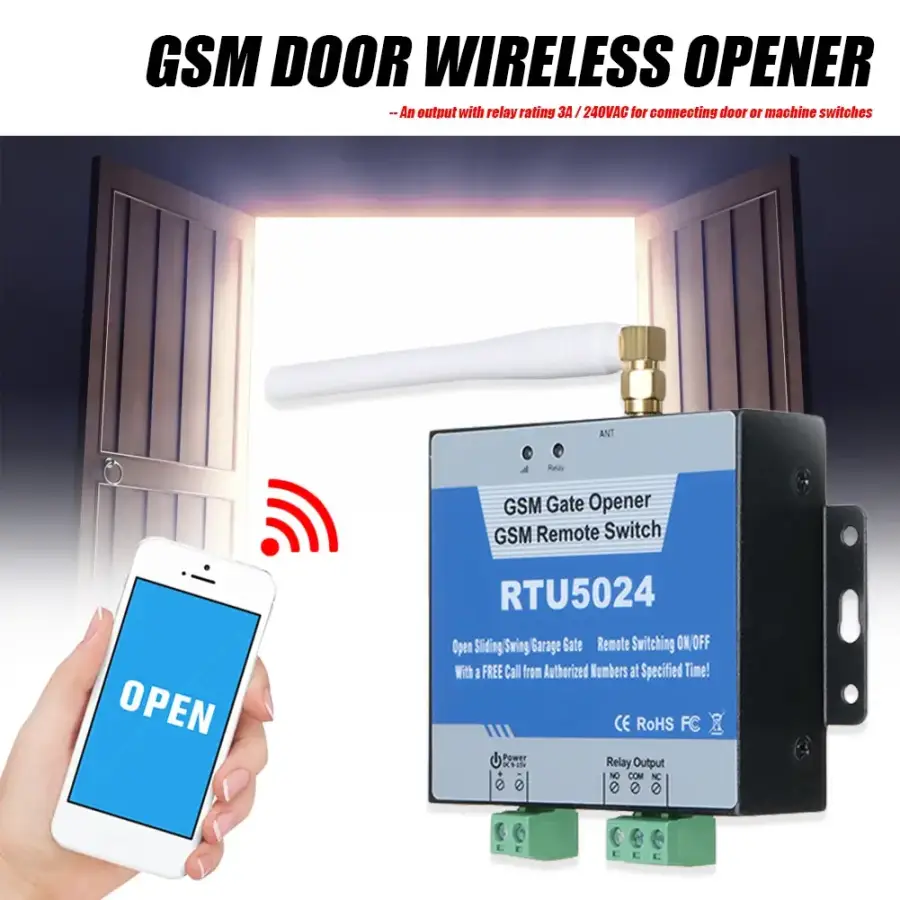

- One output with relay rating 3A/240VAC for connecting the switch of the door or machines.
- Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines).
- The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user.
- No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring'.

Specification:
GSM Frequency: Quad-band 850/900/1800/1900MHz
Network: 2G

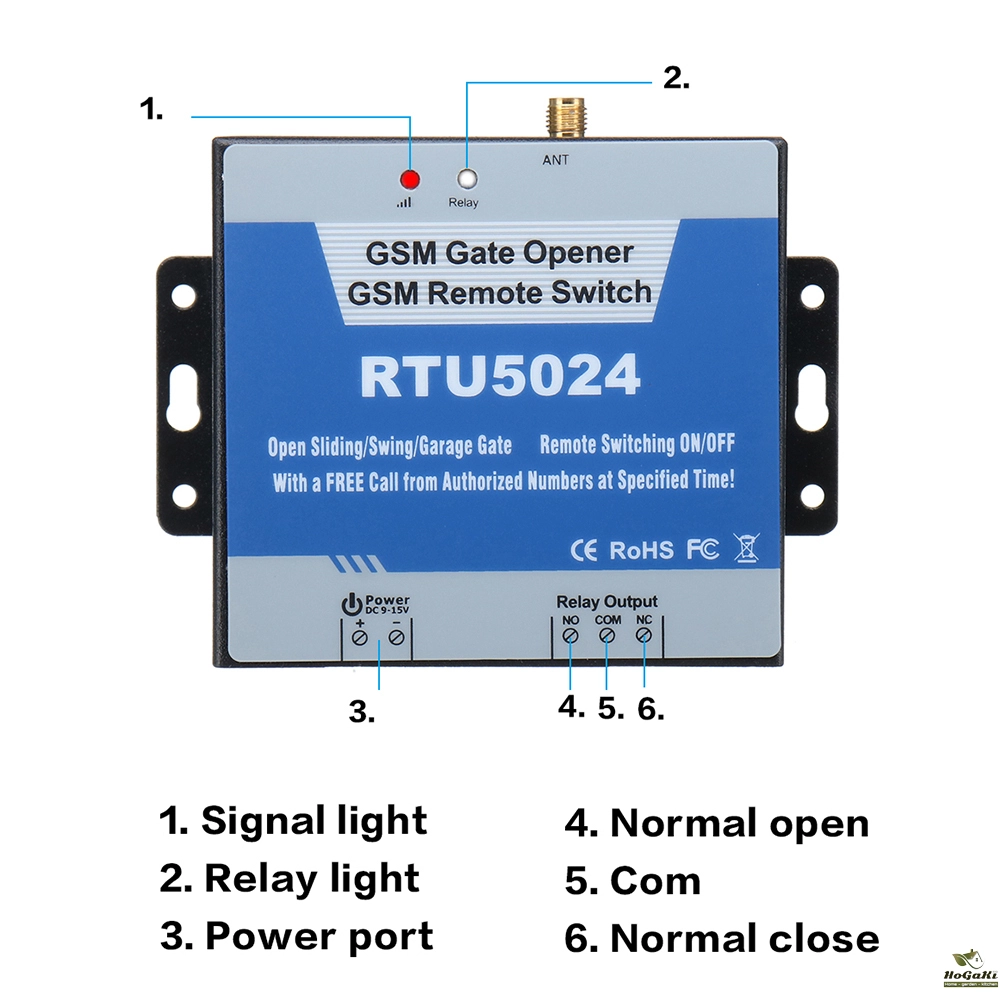

Digital Output: NC/NO dry contact, 3A/240V AC
DC Power Supply: 9-24V DC/2A
Power Consumption: 12V Input Max. 50mA/ Average 25mA
SIM Card: Support 3V SIM Card
Antenna: 50Ω SMA Antenna Interface
Temperature Range: -20~+60℃
Humidity Range: Ralative Humidity 90%

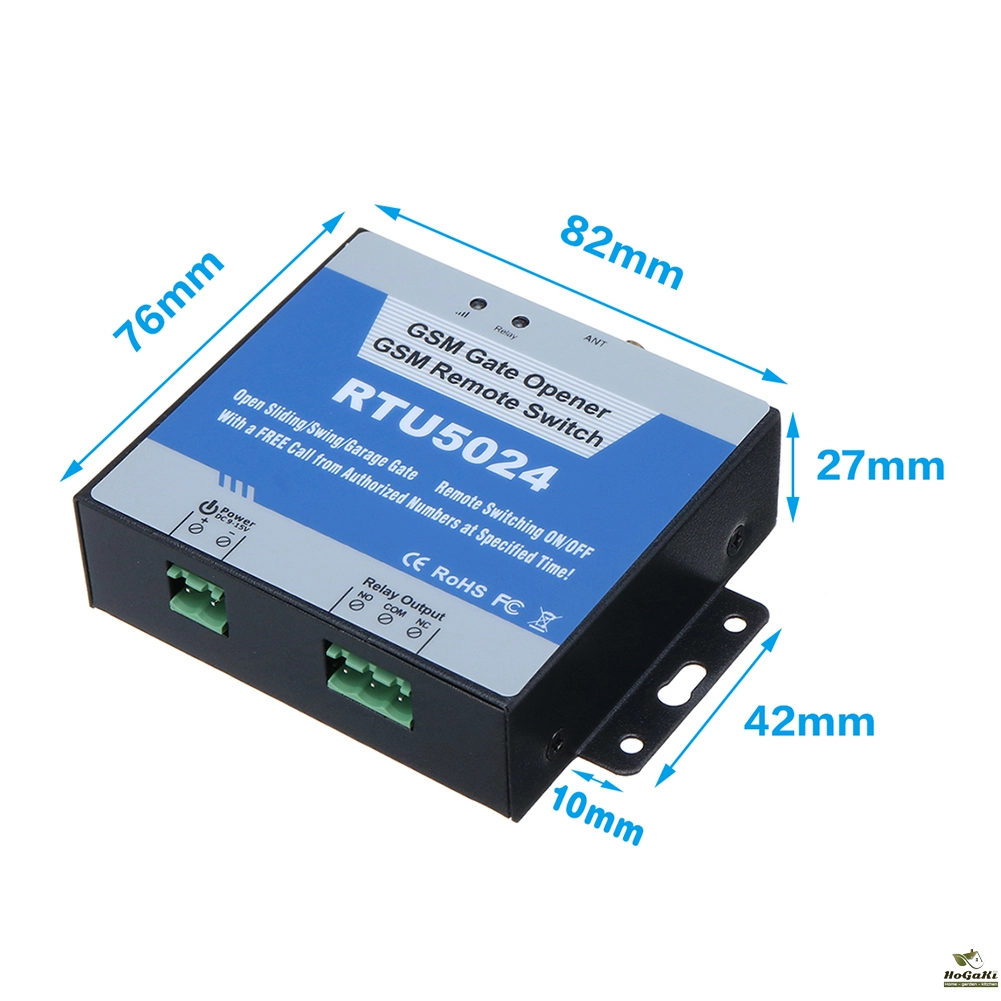

Size: 82mm*76mm*27mm/3.23*2.99*1.06"

Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

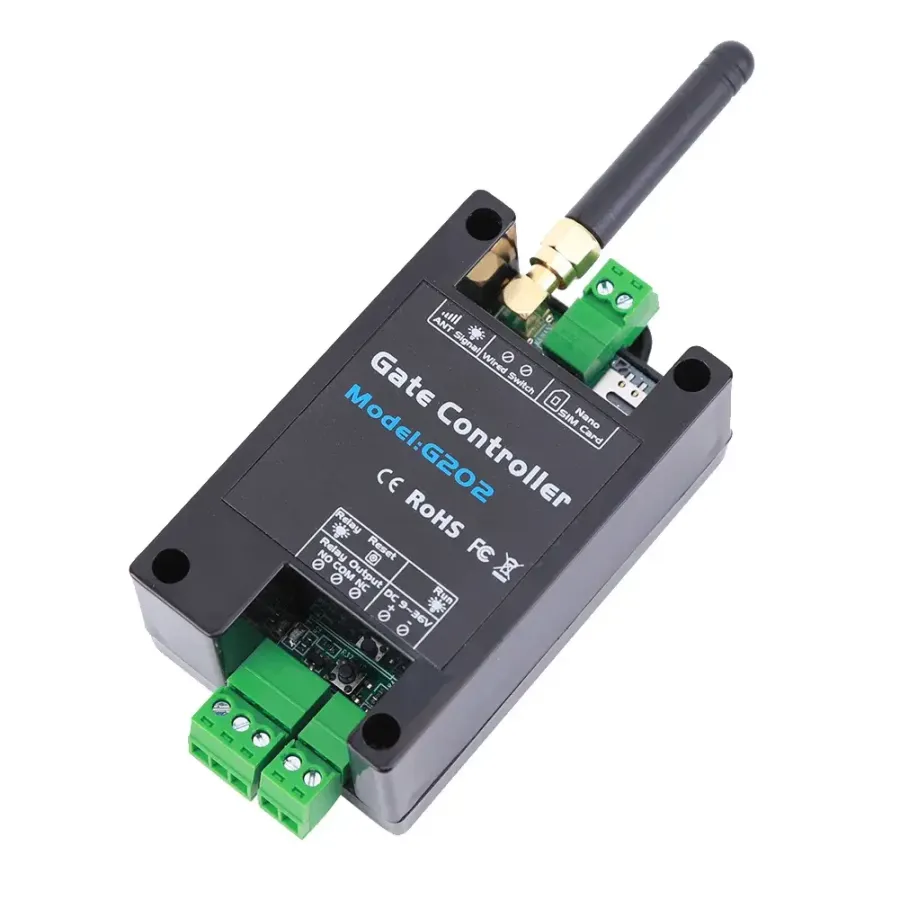

G202 2G Remote Control 200 Users GSM Gate Opener Relay Switch Door Access Wireless Door Opener By Free Call 850/900/1800/1900MHz
Feature:
Add or remove users via SMS text commands.
Relay close or open time is programmable.
Can be operated anywhere, no distance restrictions.
Quad-band, can be used in the global GSM network.
No need for remotes or buttons for different users.
Safe - use caller ID for identification, unknown callers will be ignored.
Up to 200 authorized phone numbers can be configured at a given time.
One output with a relay rating of 3A/240VAC for connecting a door or machine switch.
multiple applications. (doors, bollards, barriers, garage doors, shutters and access doors or machines).
The relay action will return an SMS confirmation to the owner or authorized phone, this feature can be edited by the user.
No call charges. The GSM GPRS trunk exchange rejects calls from authorized numbers and then performs an open/close operation on the first "ring".

Specification:
GSM frequency: Quad-band 850/900/1800/1900MHz
Network: 2G
Original output: NC/NO dry contact, 3A/250VAC
DC power supply: 9-24VDC/2A
Power consumption: 12V input maximum 50mA / average 25mA
SIM card: Support 3V SIM card
Antenna: 50ΩSMA antenna interface
Temperature range: -20-60℃
Humidity range: 90% relative humidity
Material: Plastic
Dimensions: 96.5x50x31.5mm/3.8x1.97x1.24in

Describe
The GSM door opener is a powerful GSM relay that can be used for authorized access control, control doors, switching of remote devices and parking systems.
Also, it can be used where a system, machine or device needs to be turned on/off remotely with free calls from your cell phone.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 X GSM Gate Opener
1 X Antenna
1 X Manual

1 X G202 GSM Door Opener
1 X Gain Antenna
1 X Instruction
