nRF52833 dongle hardware develop tool for BLE
0.0 (4 votes) | 12 orders
Price:
US $51.28
/ piece
Discount Price:
US $
50.20
/ piece
-2%
nRF52833 dongle hardware develop tool for BLE

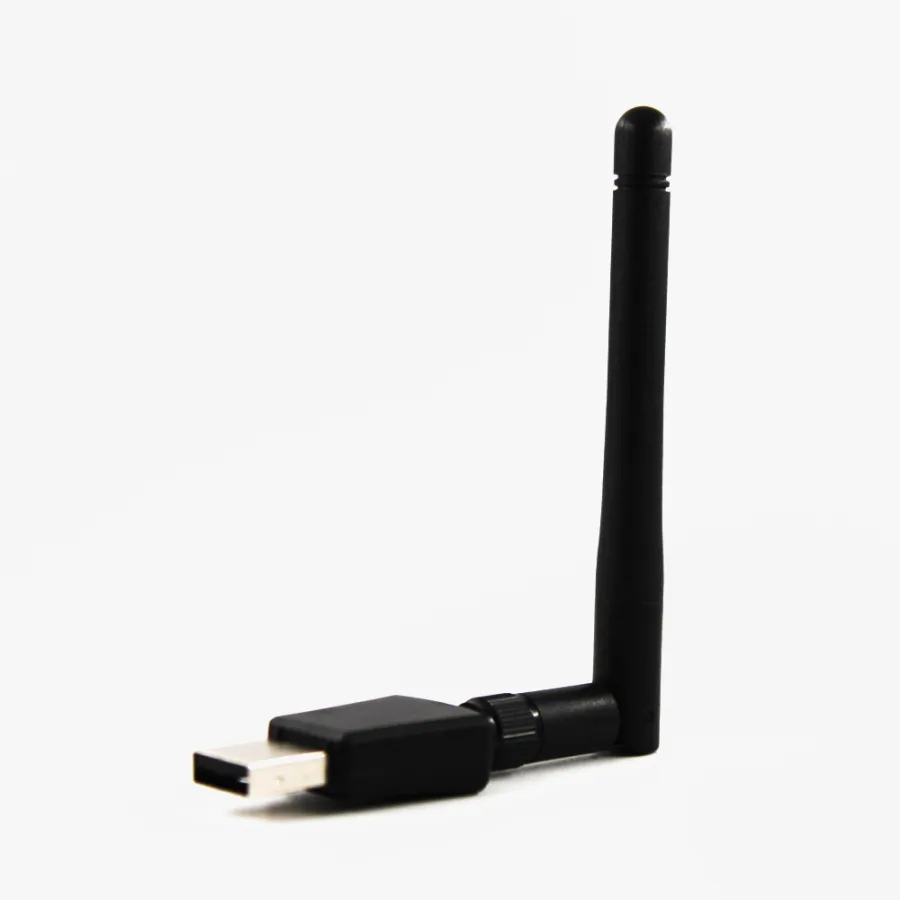

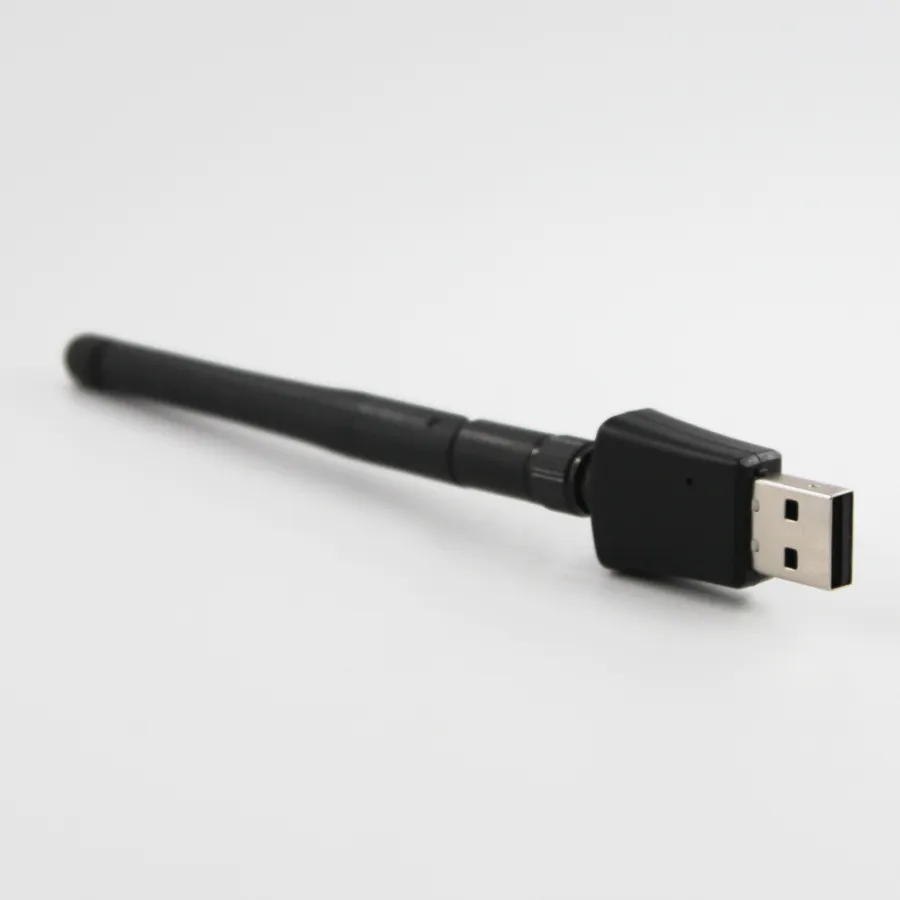

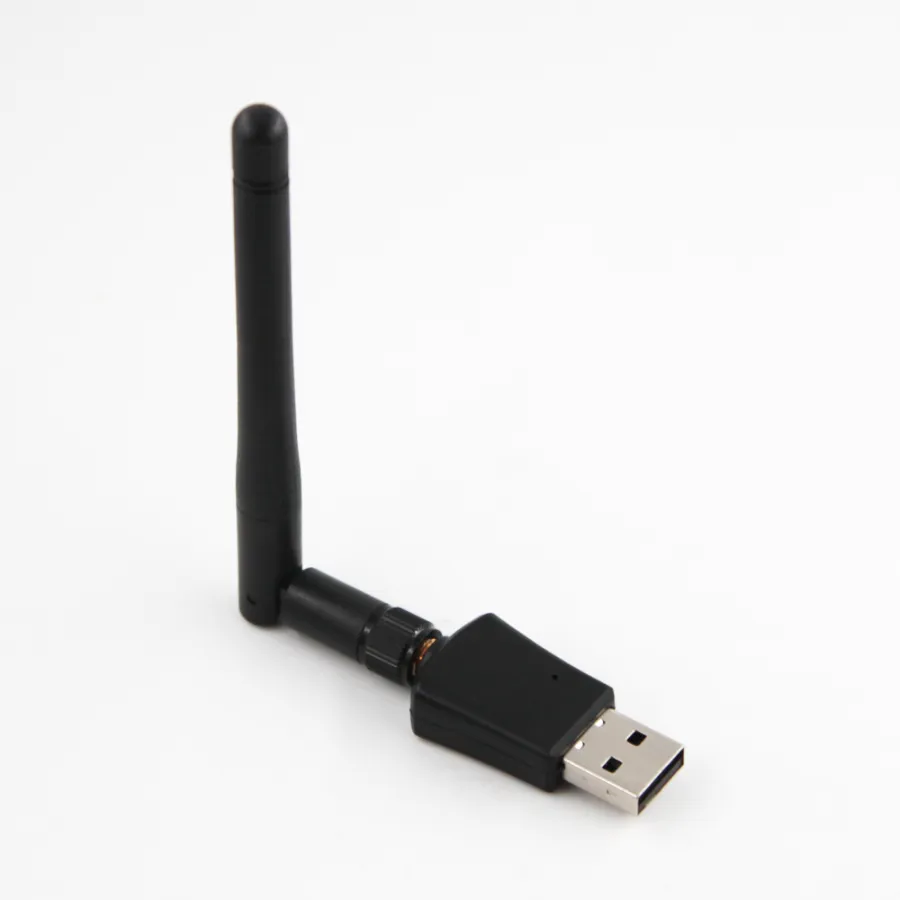

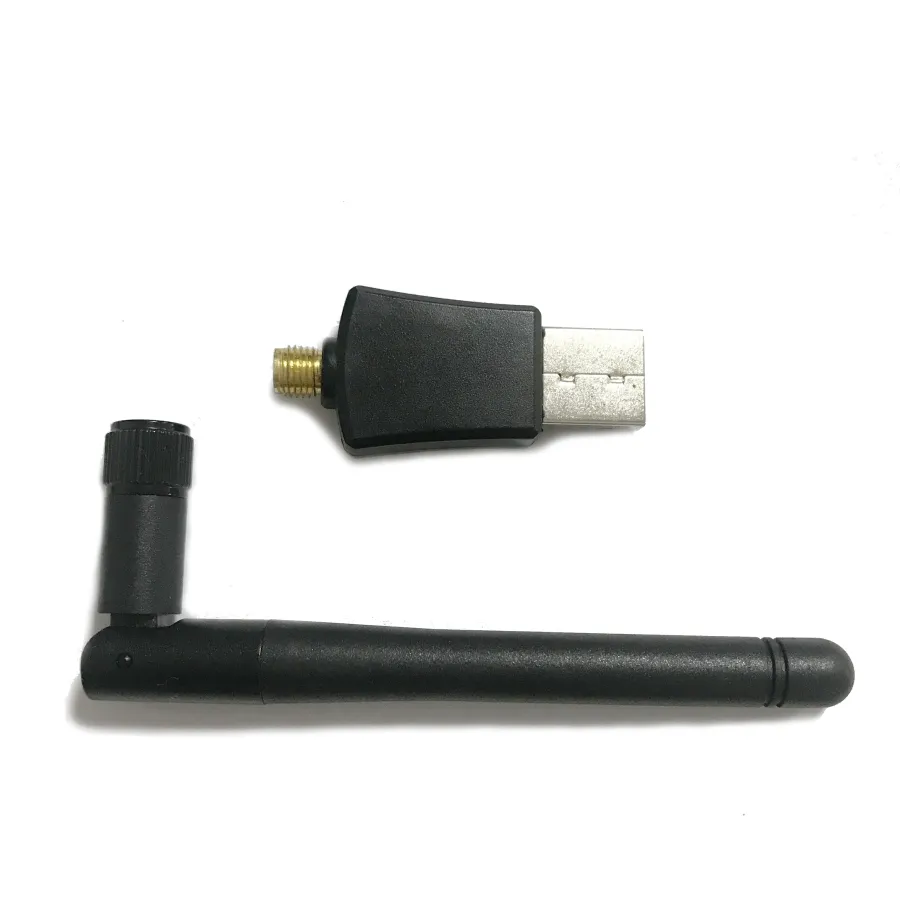

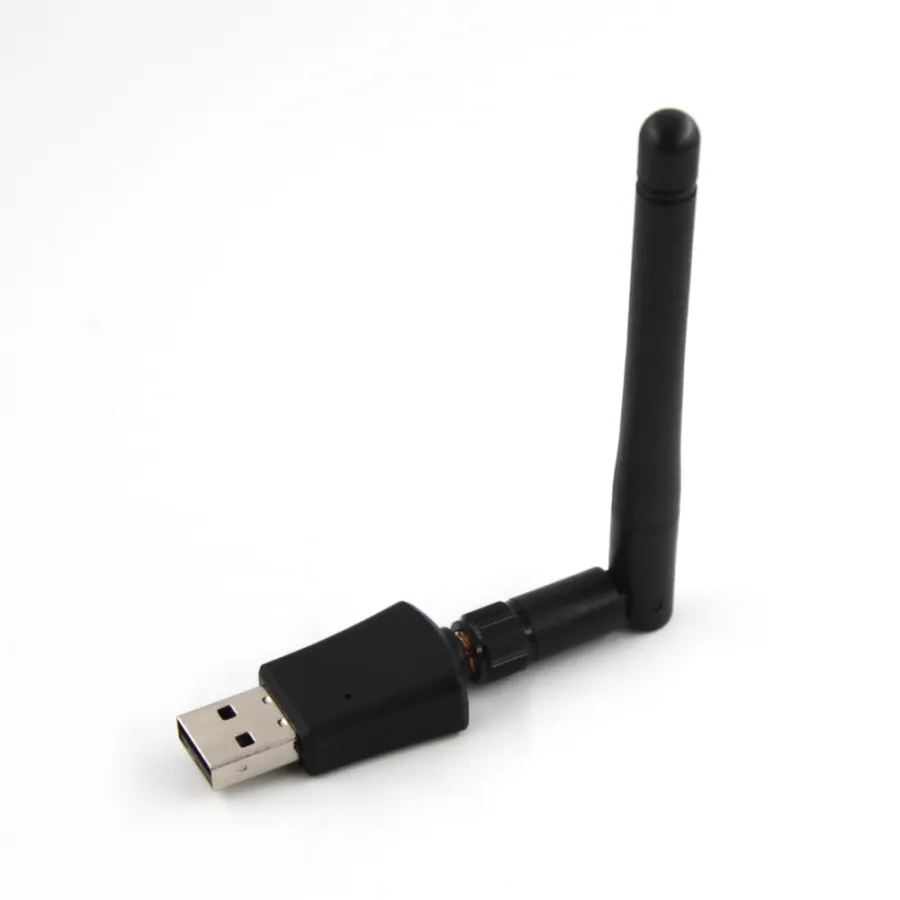

A small and low-cost nRF52833 USB Dongle Form Factor with external antenna
Firmware
The USB dongle nRF52833 is flashed nRF sniffer firmware default
Note: The dongle is not flashed the DFU bootloader.
If you need other firmware, please tell us what firmware you want to pre-flash
Key Features
nRF52833 flash-based ANT/ANT+™, Bluetooth Low Energy SoC solution
Button and LEDs for user interaction
Super Small Form Factor
Pre flashed nRF sniffer firmware
Onboard external antenna
USB support
Hardware Description
nRF52833 Sniffer for Bluetooth LE is a useful tool for debugging and learning about Bluetooth Low Energy applications.
The nRF Sniffer for Bluetooth LE allows near real-time display of Bluetooth LE packets.
This helps the developer to identify and fix issues by allowing a view of what is happening on-air.
nRF52833 dongle is pre-flashed firmware nRF sniffer v4.1.0
The nRF52833 Dongle can be used as a development platform for the nRF52833 SoC. It features user configurable LEDs and a button. In addition to radio communication, the nRF5233 SoC can communicate with a computer through USB.
SWD Interface
On the front side of the nRF52833 Dongle, there are connection hole for the SWD interface.
Pinouts P1 (from square soldering hole)
GND
VCC
SWDIO
SWDCLK
Packaging Details
- Unit Type: piece
- Package Weight: 0.085
- Package Size: 12x5x12
- Brand Name: Aprilbeacon
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: 52833
- Name: nRF52833 dongle for BLE
- Place of Origin: Beijing, China (Mainland)
- Compatible Technology: iPad, iBeacon,BLE 4.0, iPhone, iPad, iOS, Android
- Case color: black
- Antenna: External
- Mainchip: nRF52833
