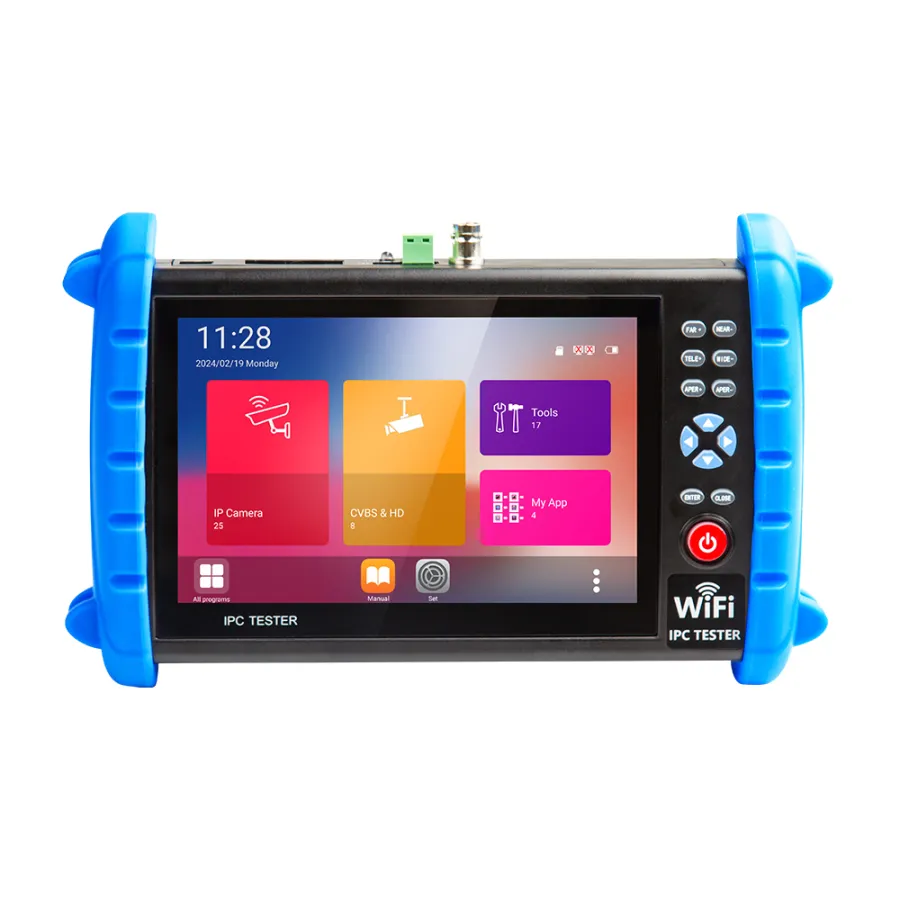

NF-722 CCTV Tester IP Camera AHD Mini Monitor 4K HDMI VGA IPC Tester PoE Portable Monitor CFTV Camera Cable Testing IPC722 ATCHS
5.0 (1 votes) | 13 orders
Price:
US $1073.30
Discount Price:
US $
720.86
-33%
- Color
-
-
IPC TESTER

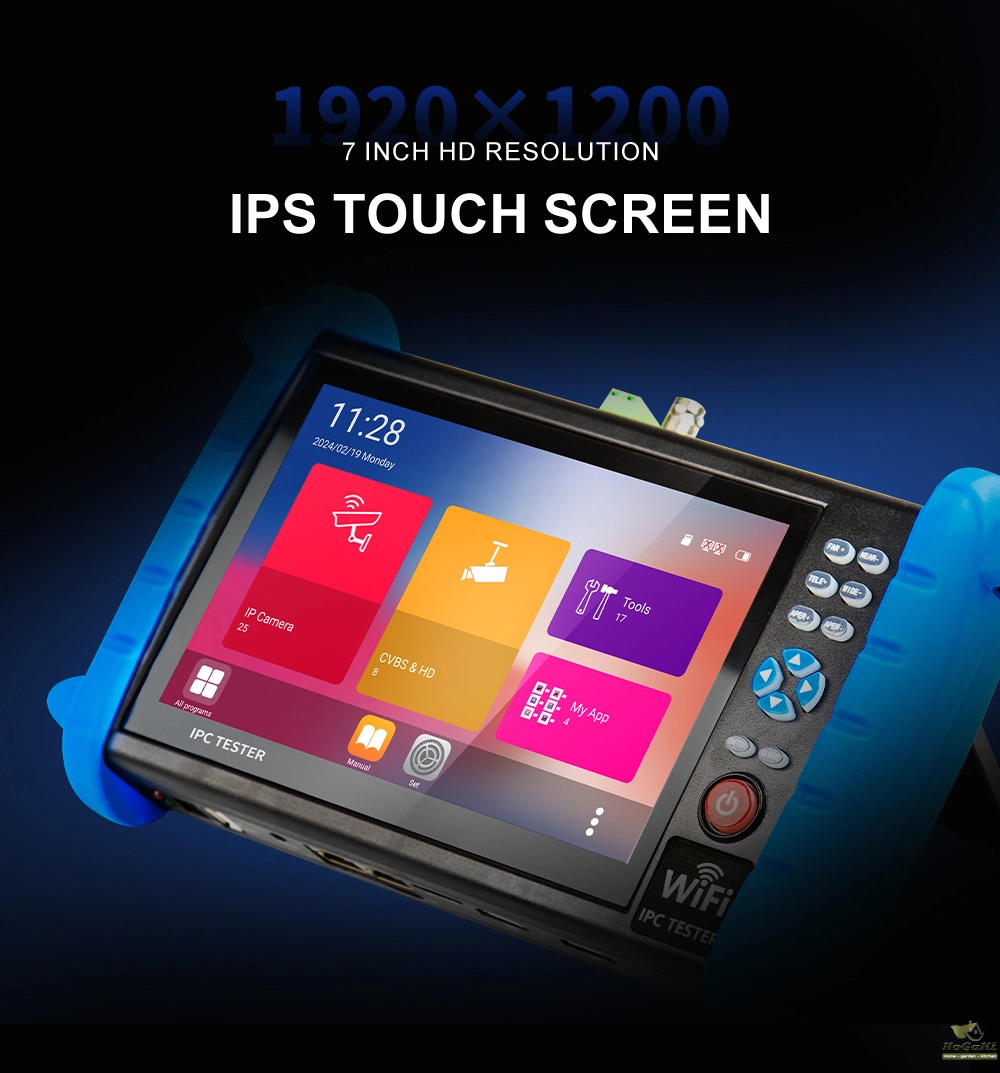

7 INCH HD RESOLUTION IPS TOUCH SCREEN

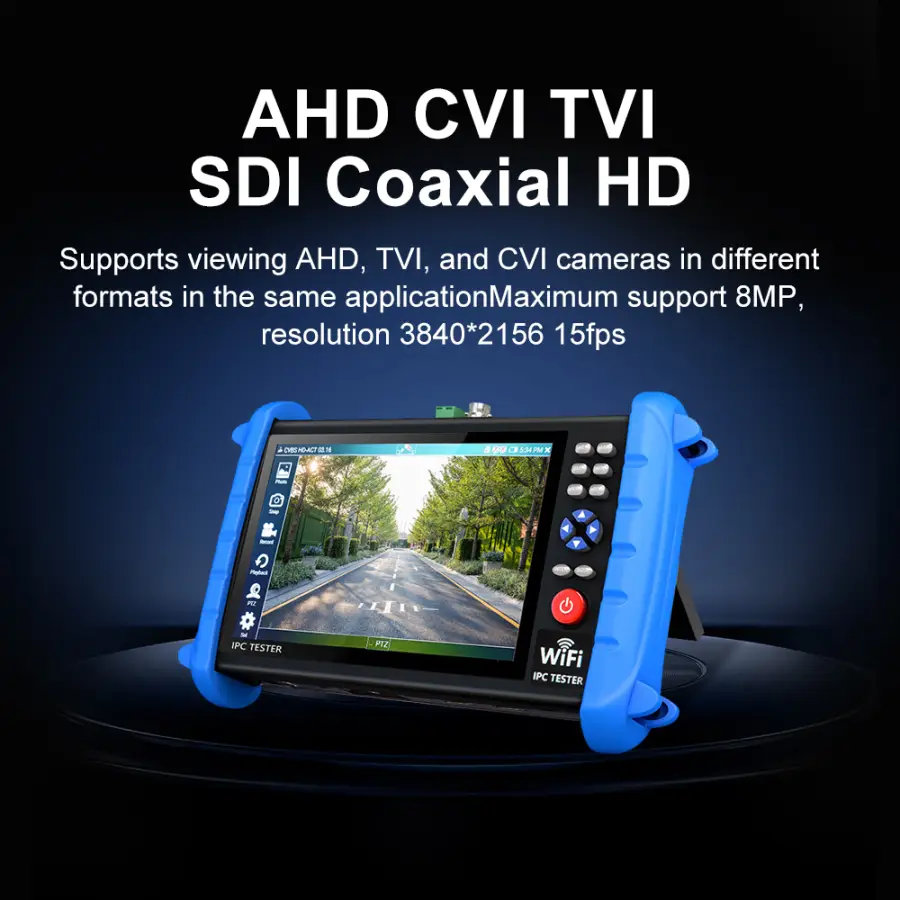

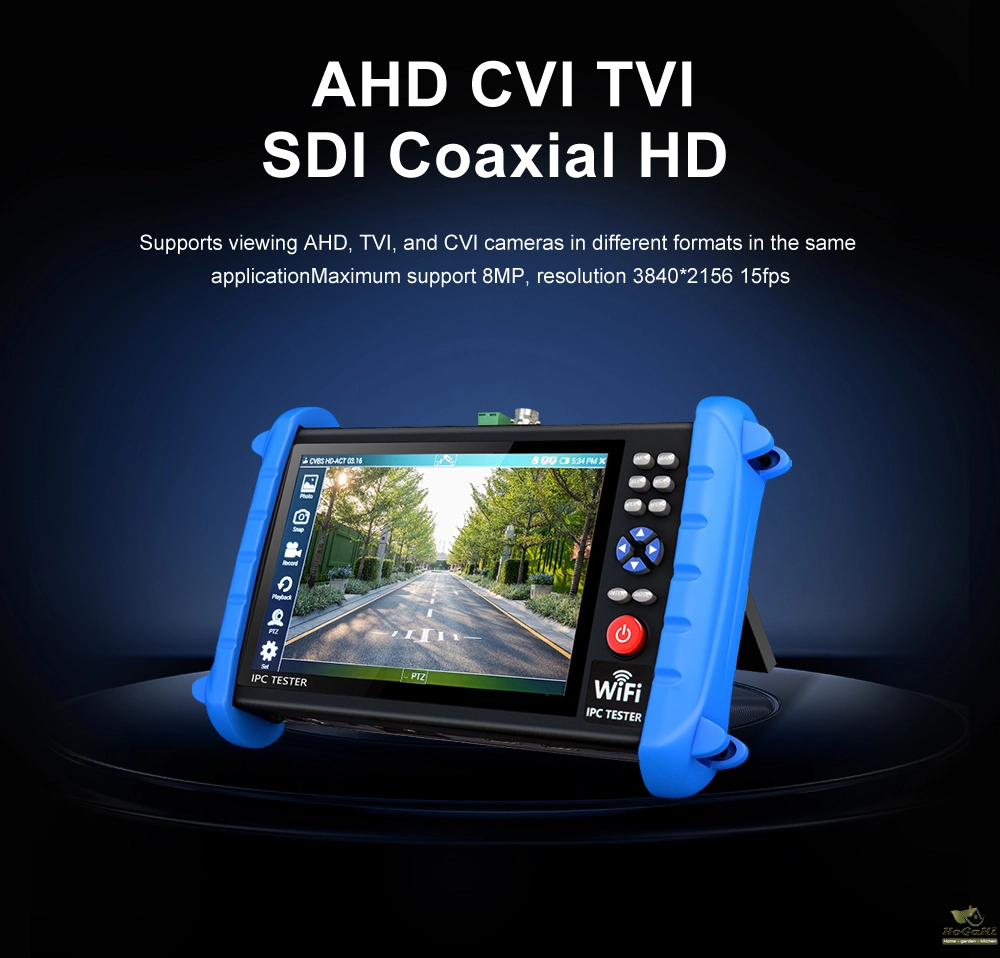

AHD CVI TVI SDI Coaxial HD
Supports viewing AHD, TVI, and CVI cameras in different formats in the same applicationMaximum support 8MP, resolution 3840*2156 15fps

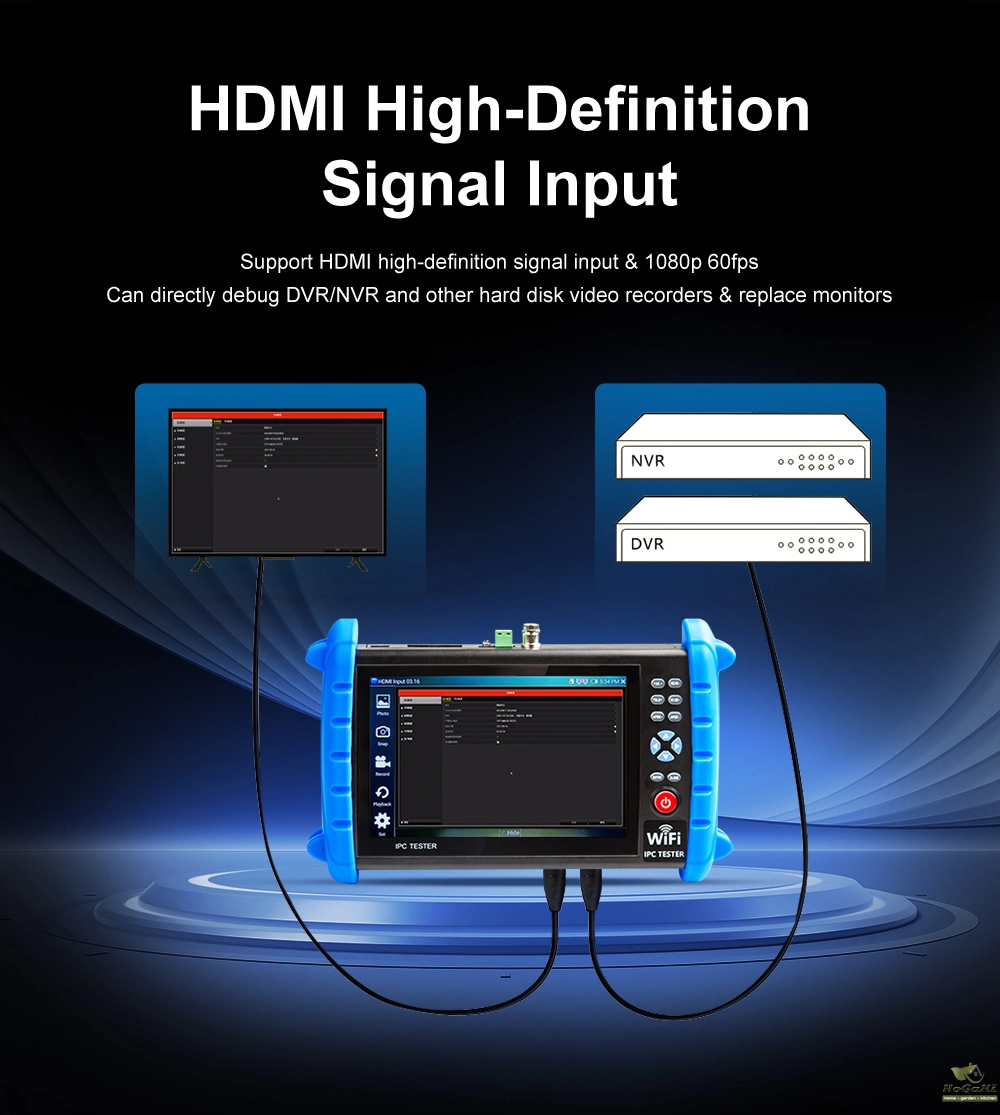

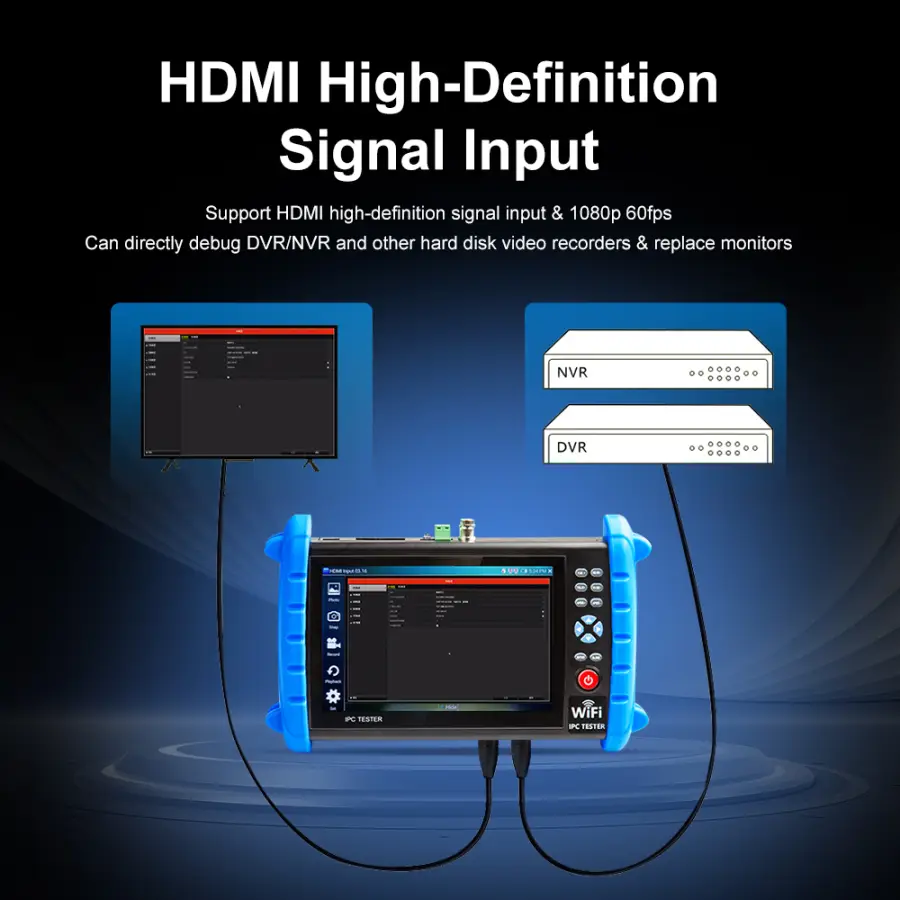

HDMI High-Definition Signal Input
Support HDMI high-definition signal input & 1080p 60fps
Can directly debug DVR/NVR and other hard disk video recorders & replace monitors

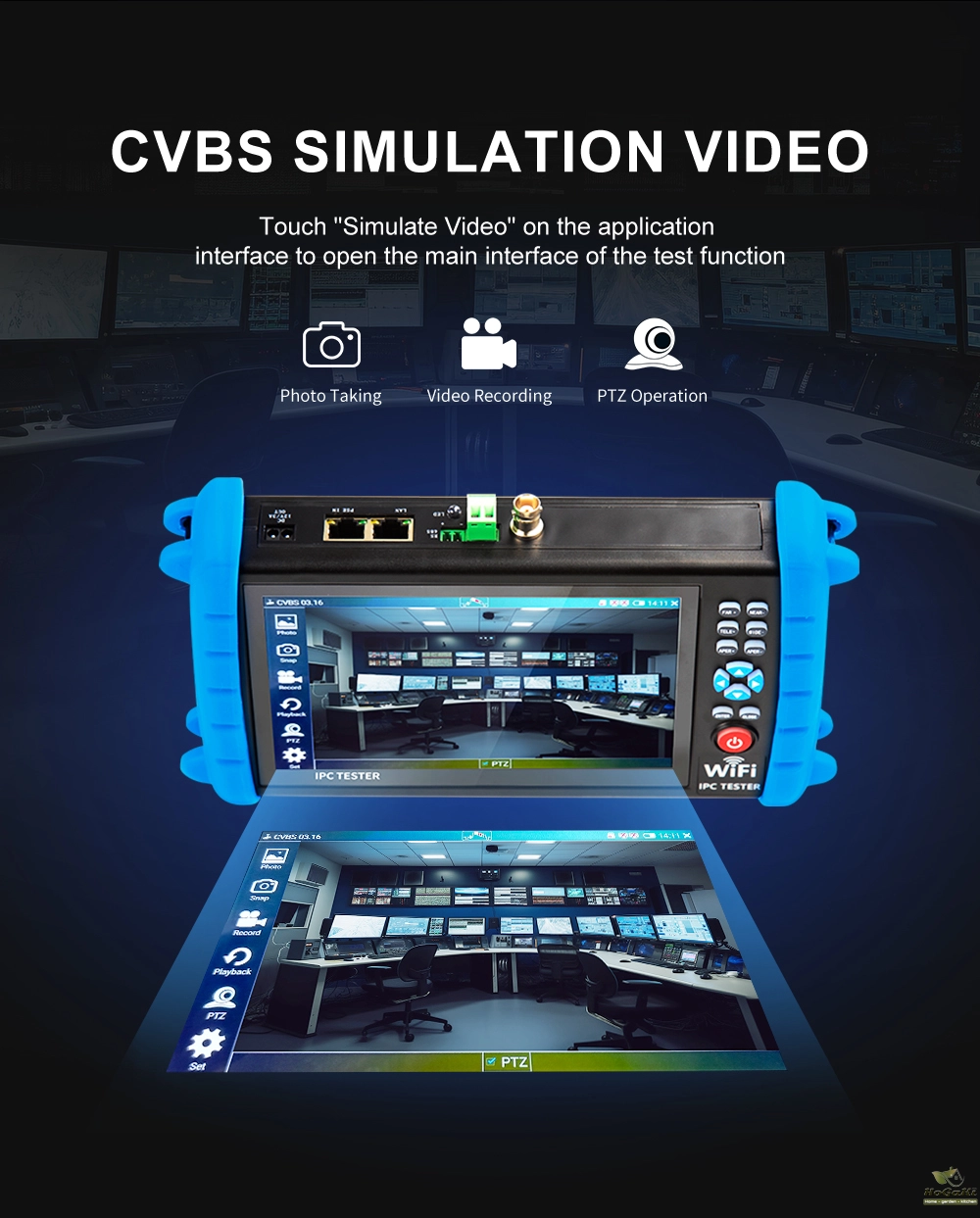

CVBS SIMULATION VIDEO
Touch "Simulate Video" on the application
interface to open the main interface of the test function

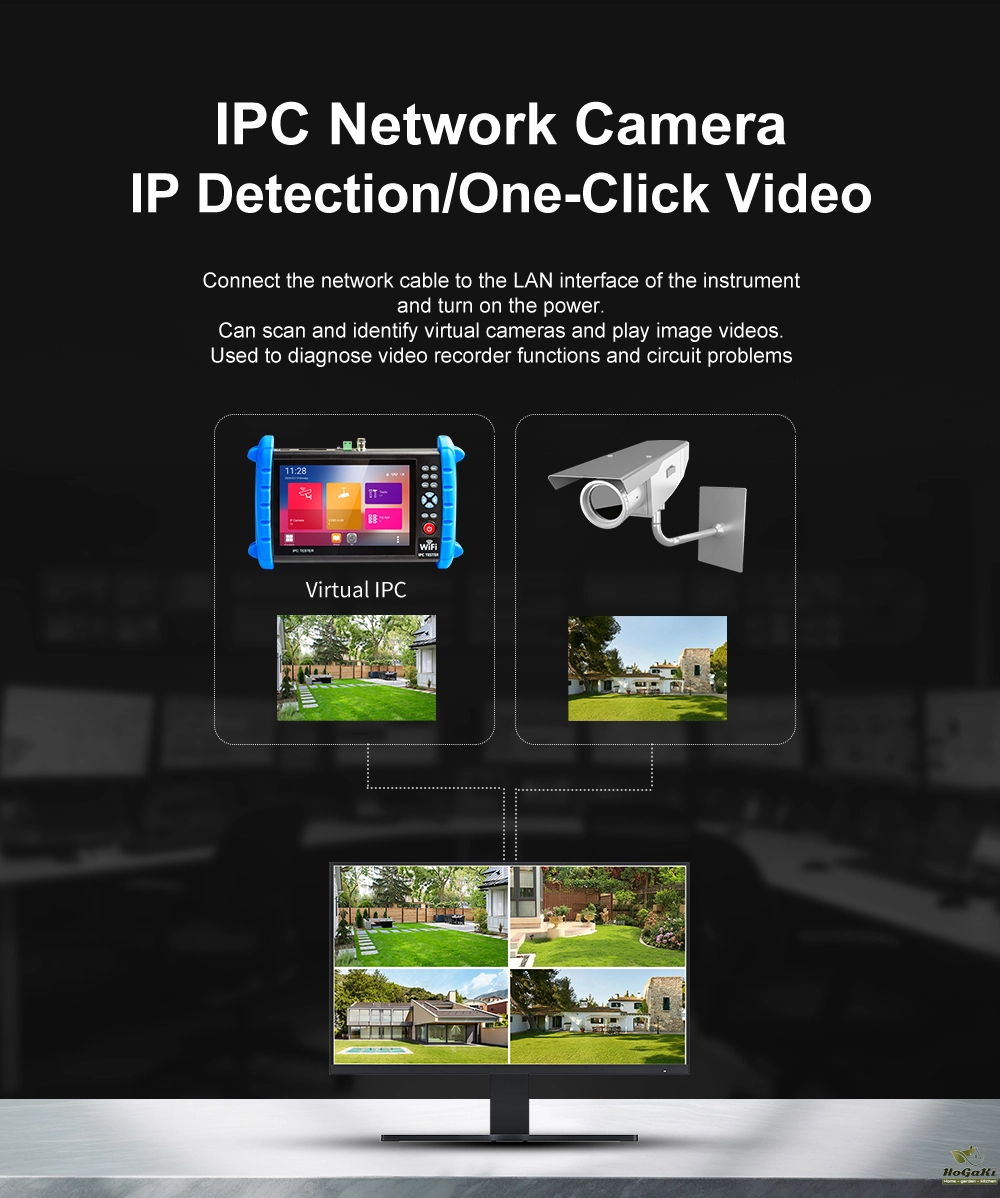

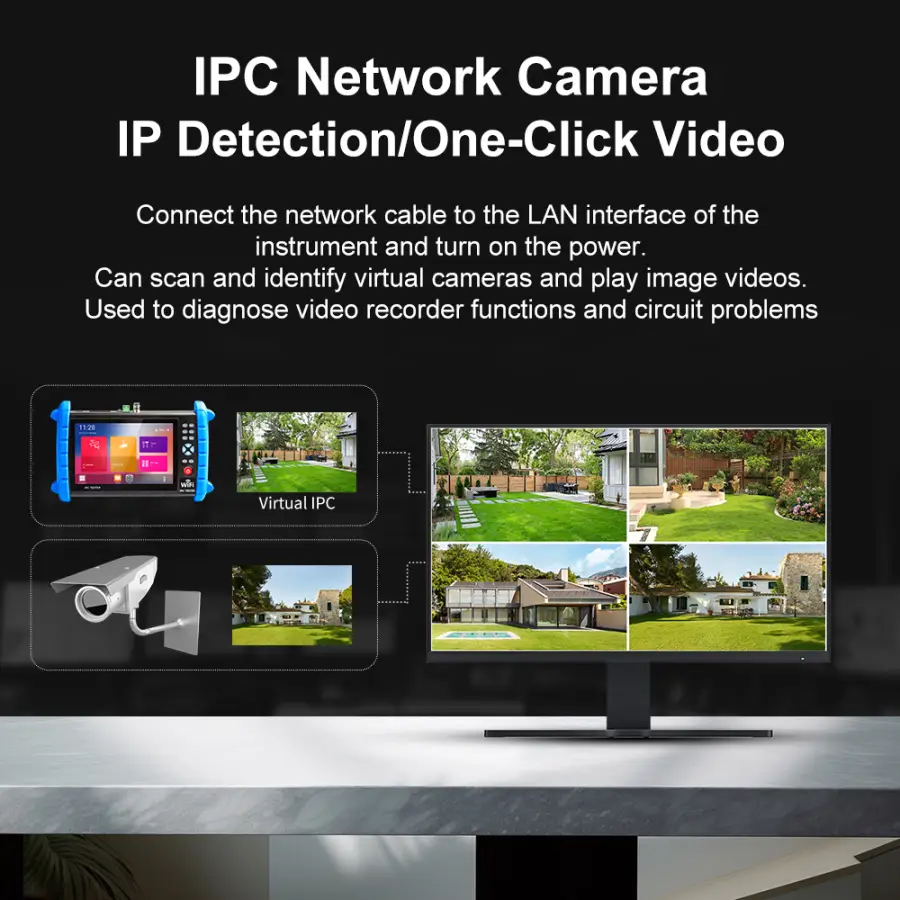

IPC Network Camera IP Detection/One-Click Video
Connect the network cable to the LAN interface of the instrument and turn on the power
Can scan and identify virtual cameras and play image videos.
Used to diagnose video recorder functions and circuit problems

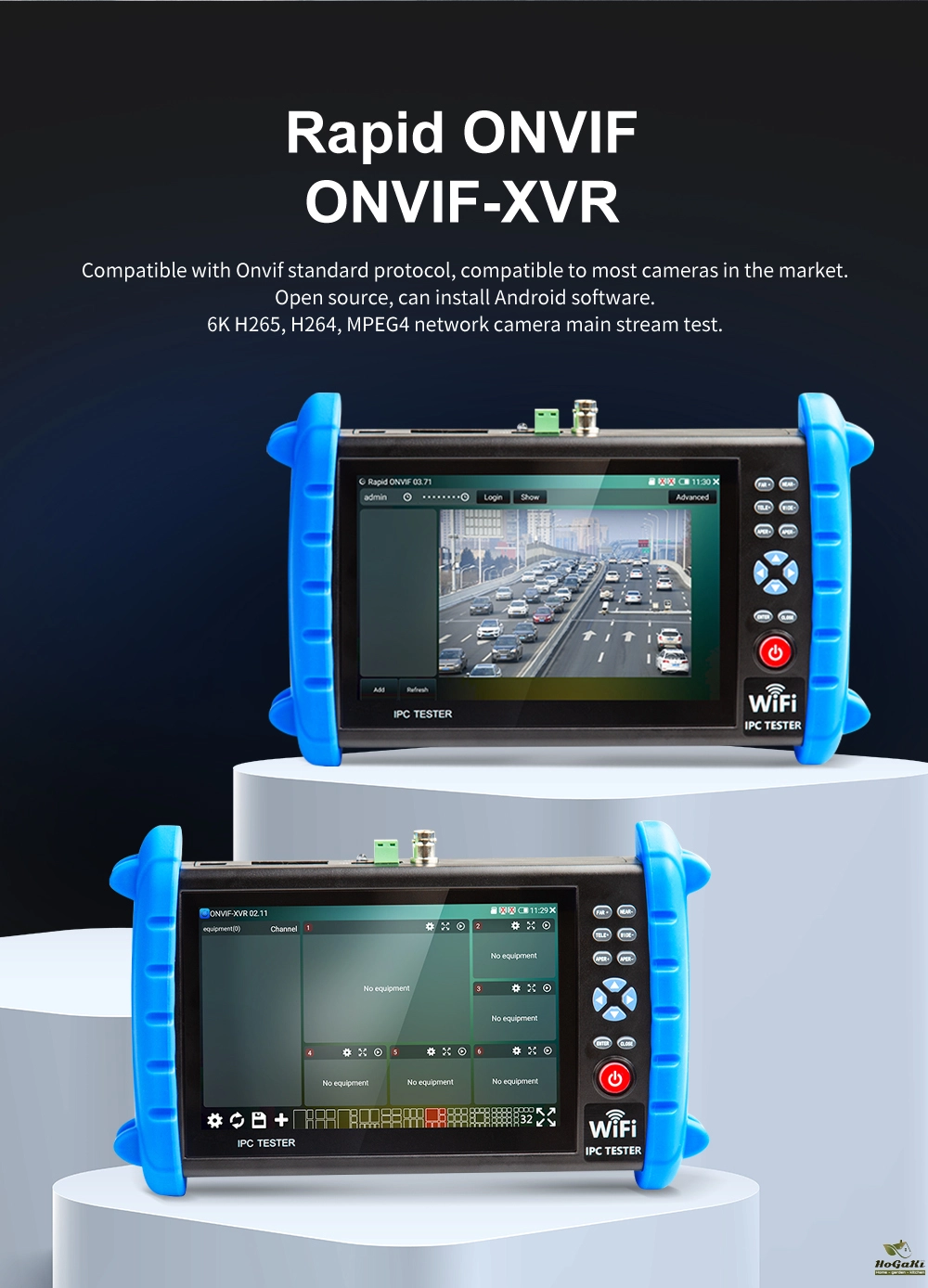

Rapid ONVIF ONVIF-XVR
Compatible with Onvif standard protocol, compatible to most cameras in the market.
Open source, can install Android software.
6K H265, H264, MPEG4 network camera main stream test.

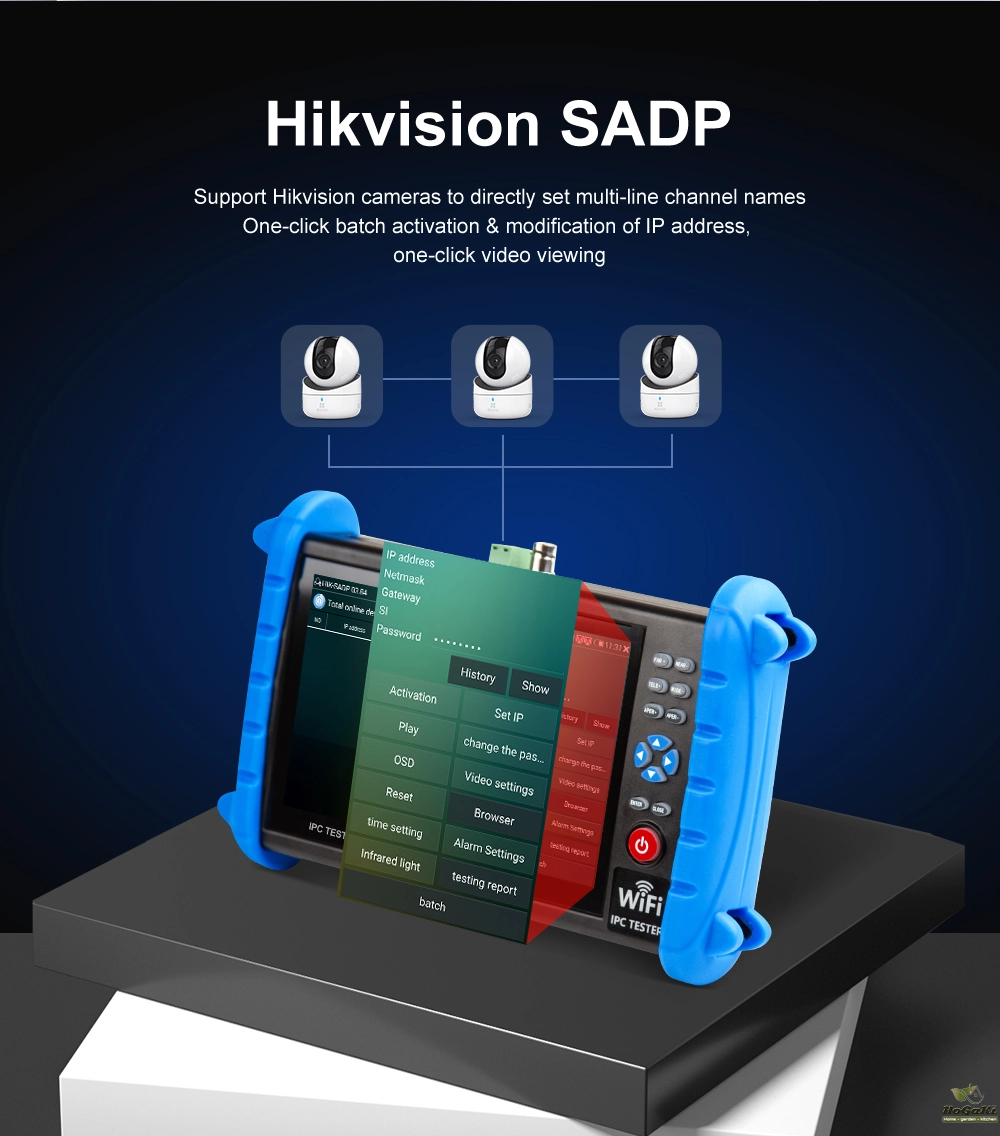

Hikvision SADP
Support Hikvision cameras to directly set multi-line channel names One-click batch activation & modification of IP address, one-click video viewing

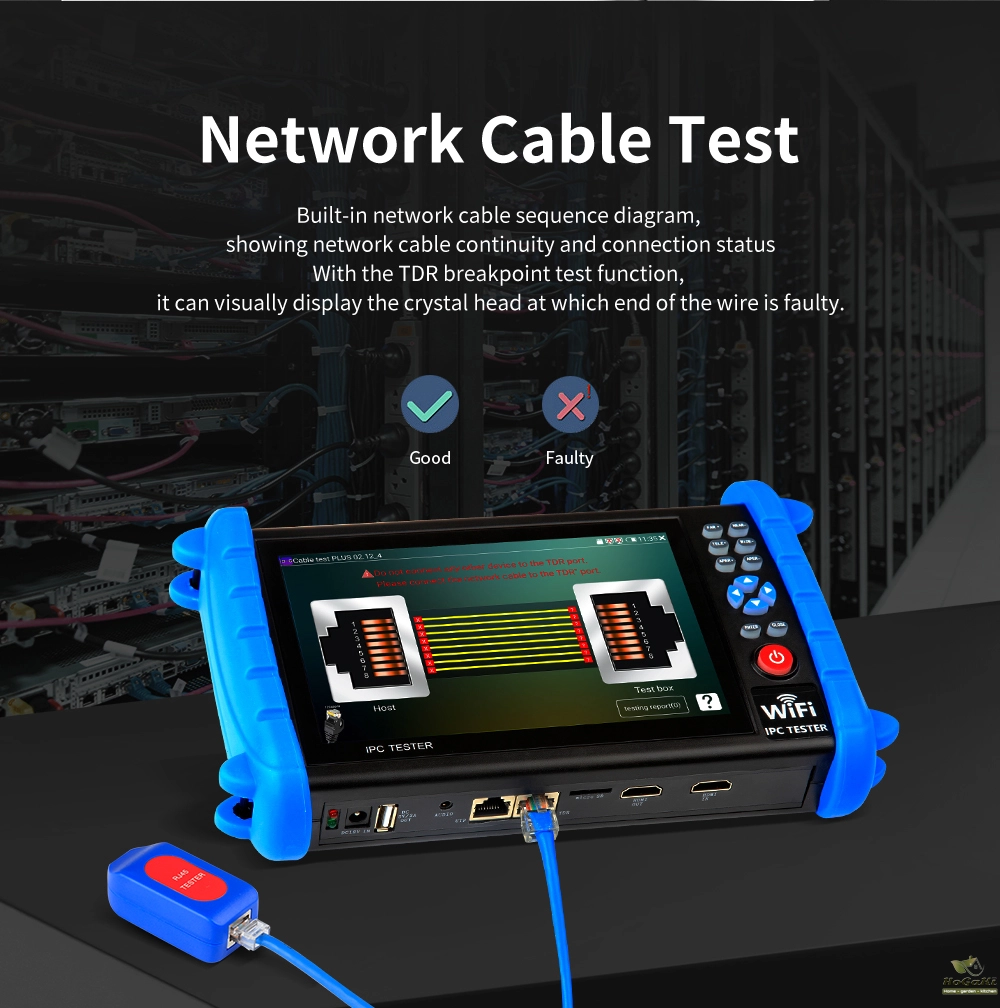

Network Cable Test
Built-in network cable sequence diagram, showing network cable continuity and connection status With the TDR breakpoint test function, it can visually display the crystal head at which end of the wire is faulty.

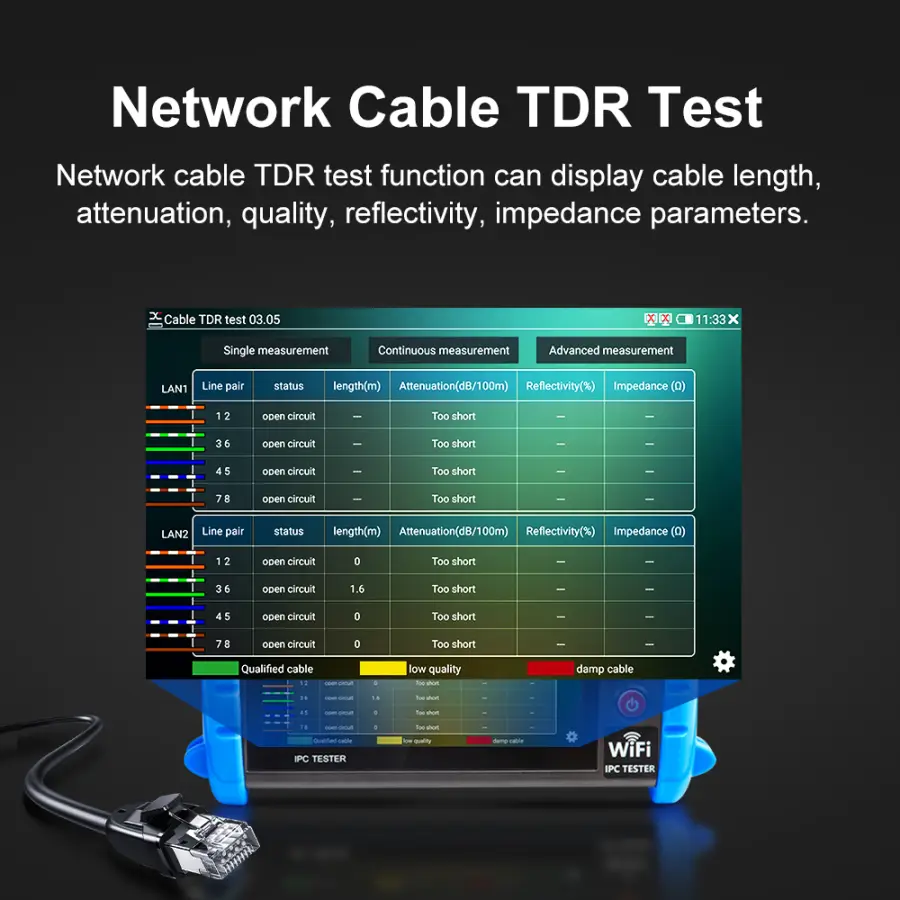

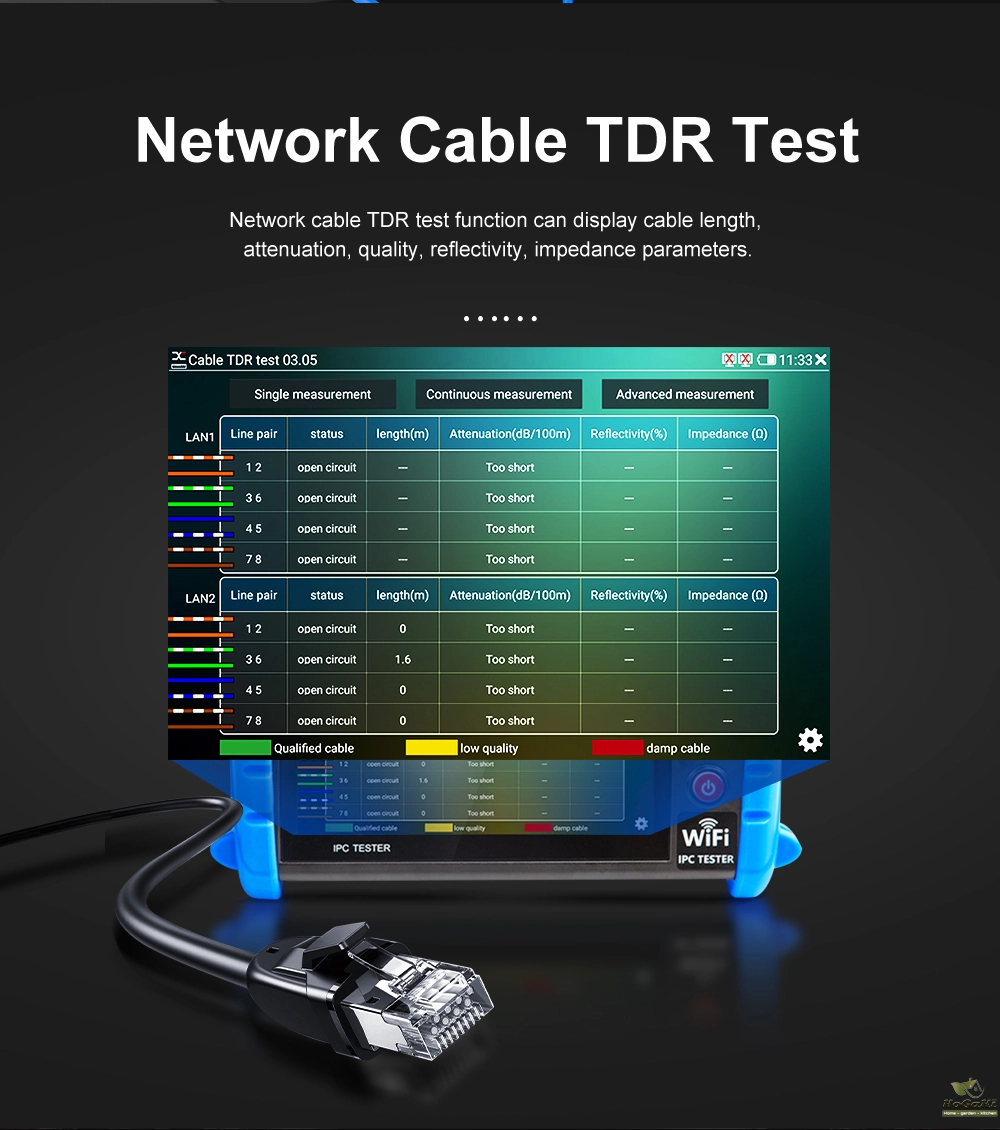

Network Cable TDR Test
Network cable TDR test function can display cable length.
attenuation, quality, reflectivity, impedance parameters.

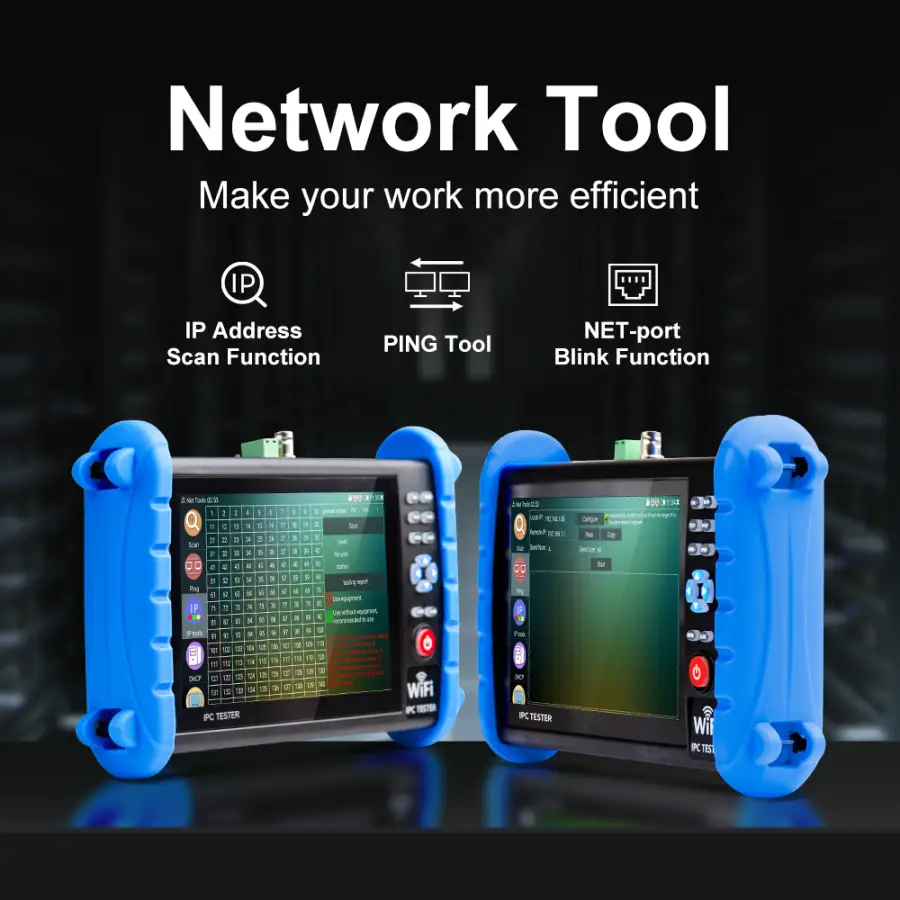

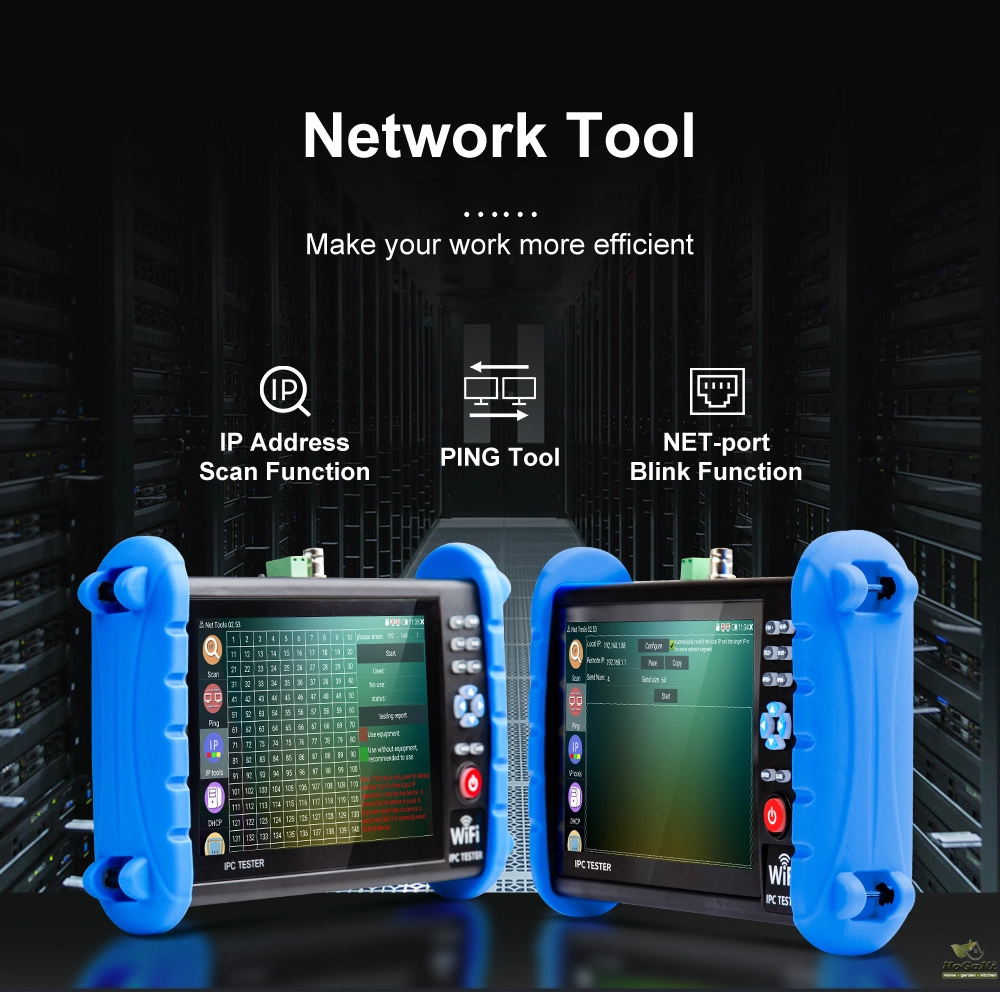

Network Tool
Make your work more efficient

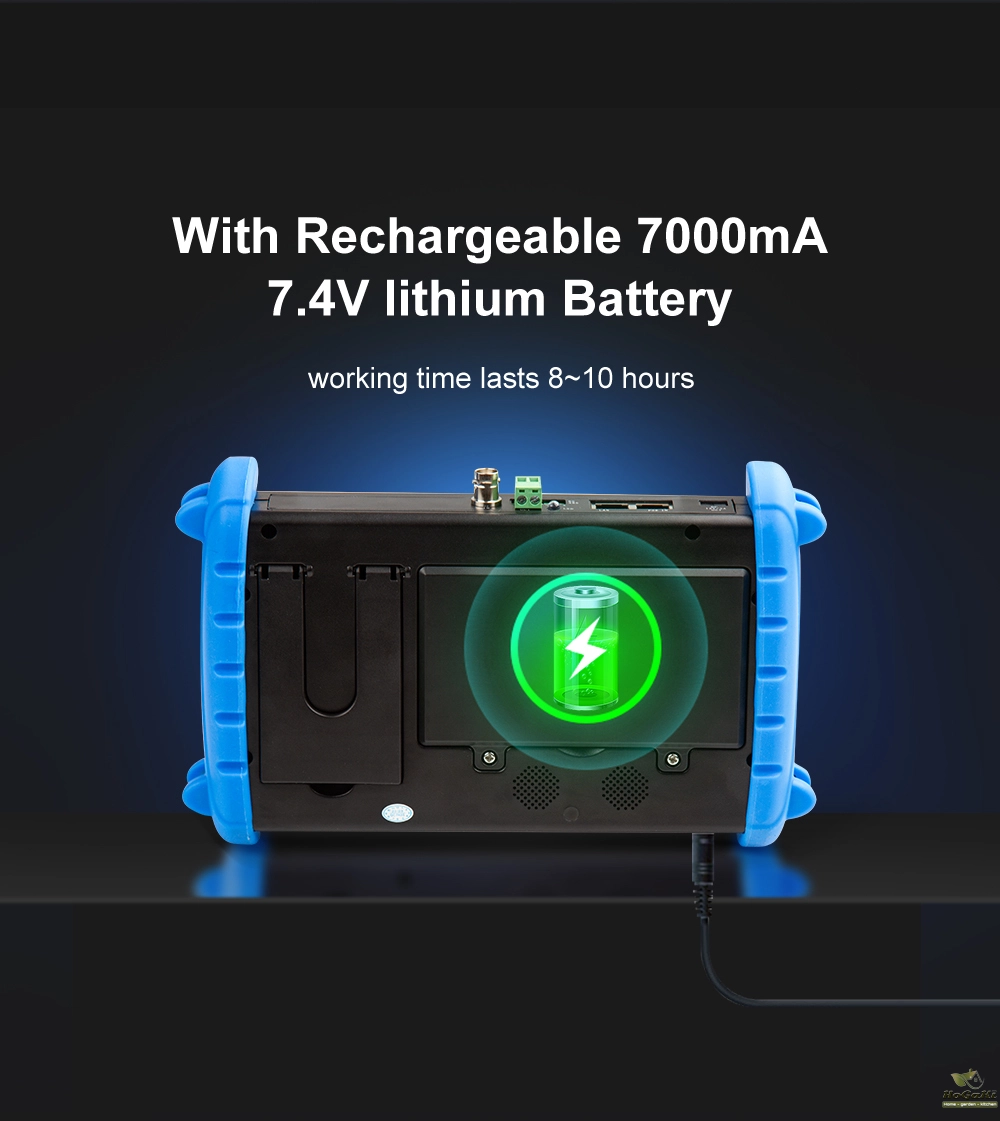

With Rechargeable 7000mA 7.4V lithium Battery
working time lasts 8~10 hours

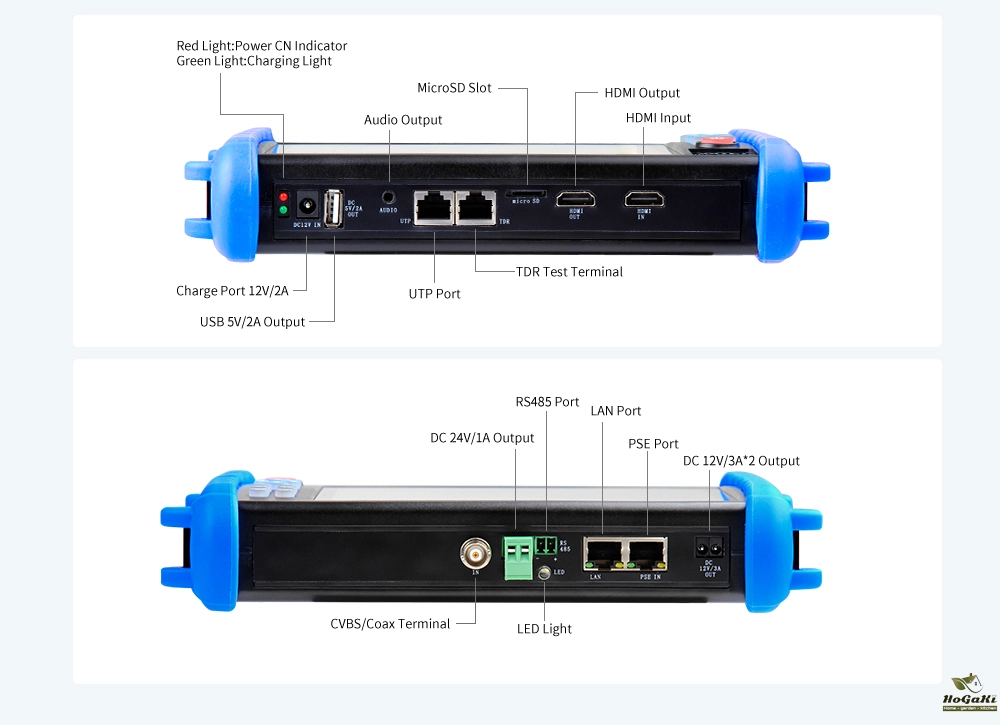

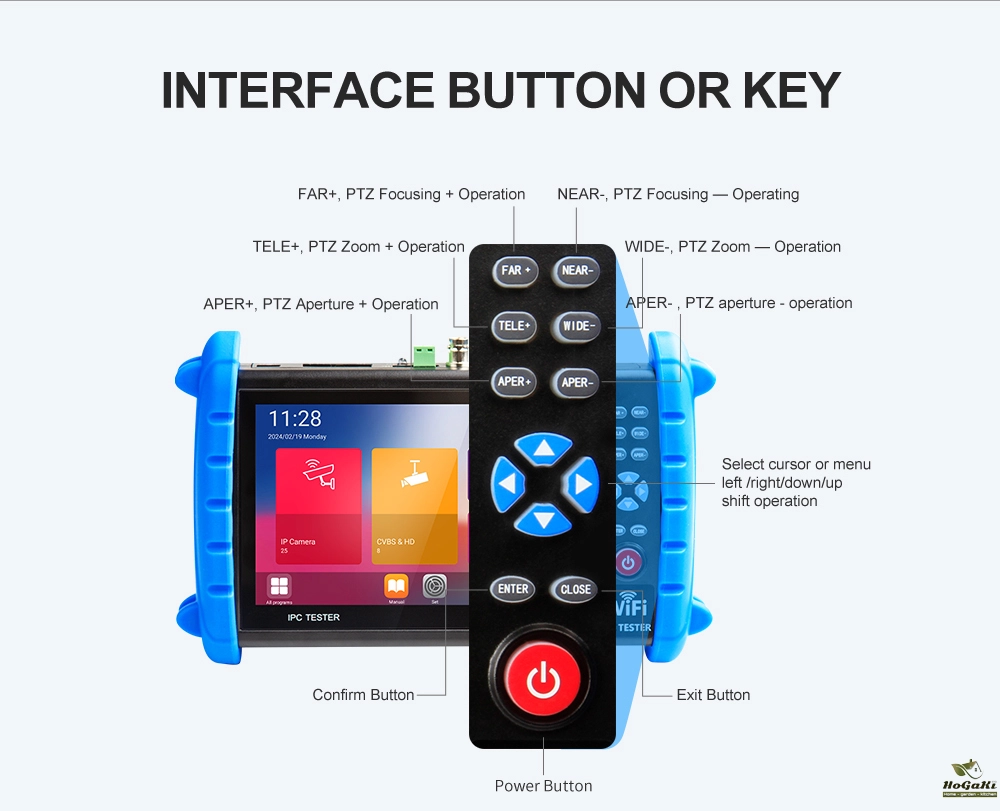

INTERFACE BUTTON OR KEY

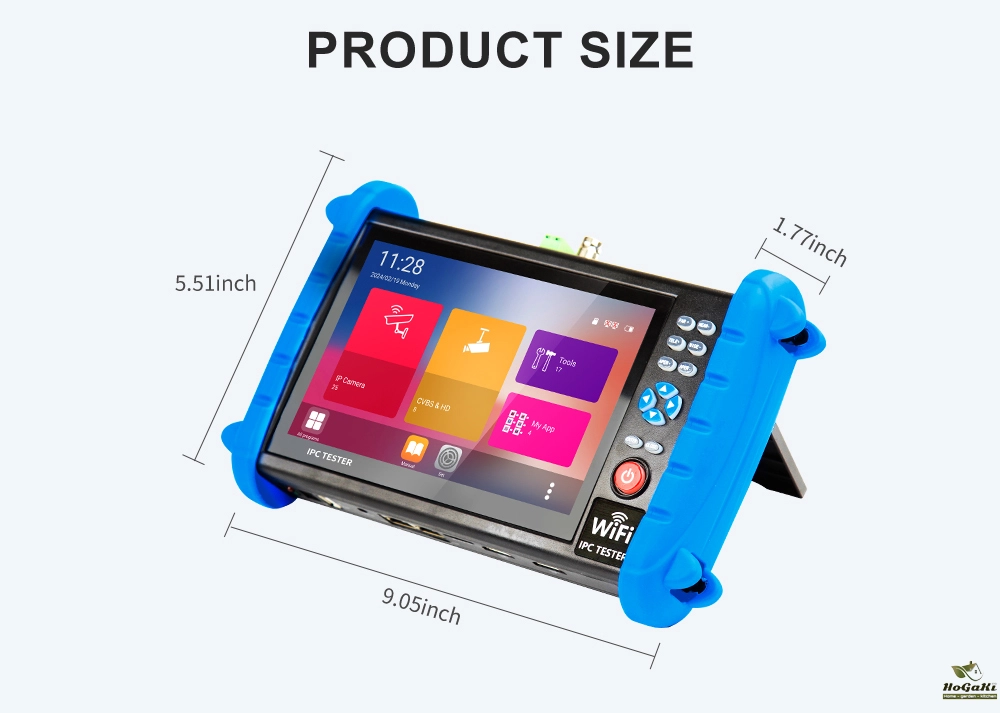

PRODUCT SIZE

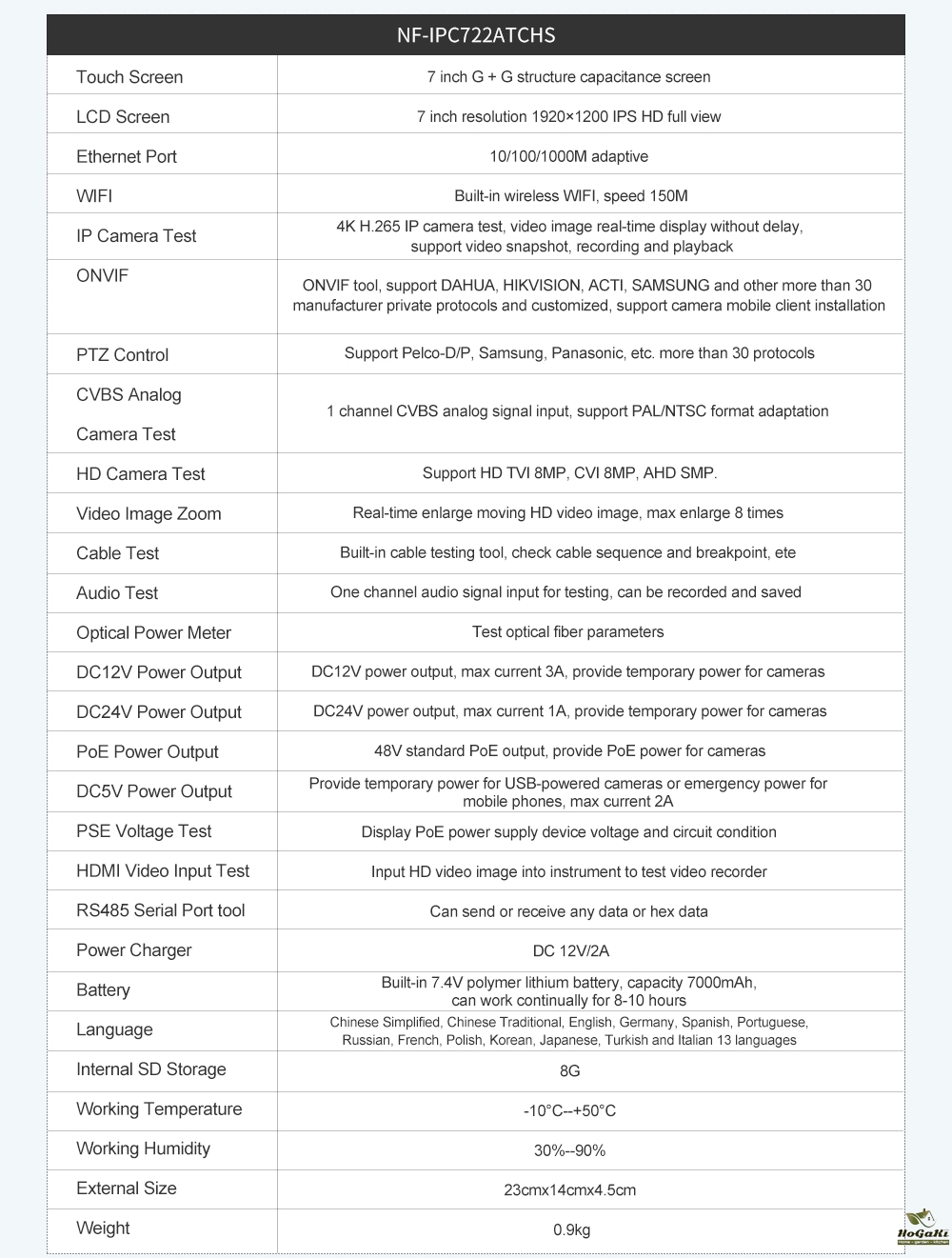

Parameters
Touch Screen：7 inch G+G structure capacitance screen
LCD Screen：7 inch resolution 1920x1200 IPS HD full view
Ethernet Port：10/100/1000M adaptive
WIFI：Built-in wireless WIFI, speed 150M
IP Camera Test：4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording and playback
ONVIF：ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and other more than 30manufacturer private protocols and customized, support camera mobile client installation
PTZ Control：Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
CVBS Analog Camera Test：1 channel CVBS analog signal input, support PALNTSC format adaptation
HD Camera Test：Support HD TVI8MP, CVI 8MP, AHD SMP.
Video Image Zoom：Real-time enlarge moving HD video image, max enlarge 8 times
Cable Test：Built-in cable testing tool, check cable sequence and breakpoint, ete
Audio Test：One channel audio signal input for testing, can be recorded and saved
Optical Power Meter：Test optical fiber parameters
DC12V Power Output ：DC12V power output, max current 3A, provide temporary power for cameras
DC24V Power Output：DC24V power output, max current 1A, provide temporary power for cameras
PoE Power Output：48V standard PoE output, provide PoE power for cameras
DC5V Power Output：Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
PSE Voltage Test：Display PoE power supply device voltage and circuit condition
HDMI Video Input Test：Input HD video image into instrument to test video recorder
RS485 Serial Port tool：Can send or receive any data or hex data
Power Charger：DC 12VI2A
Battery：Built-in 7.4V polymer lithium battery, capacity 7000mAh, can work continually for 8-10 hours
Language：Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
Internal SD Storage：8G
Working Temperature:-10°C-+50°C
Working Humidity:30%-90%
External Size:23mx14cmx4.5m
Weight:0.9KG

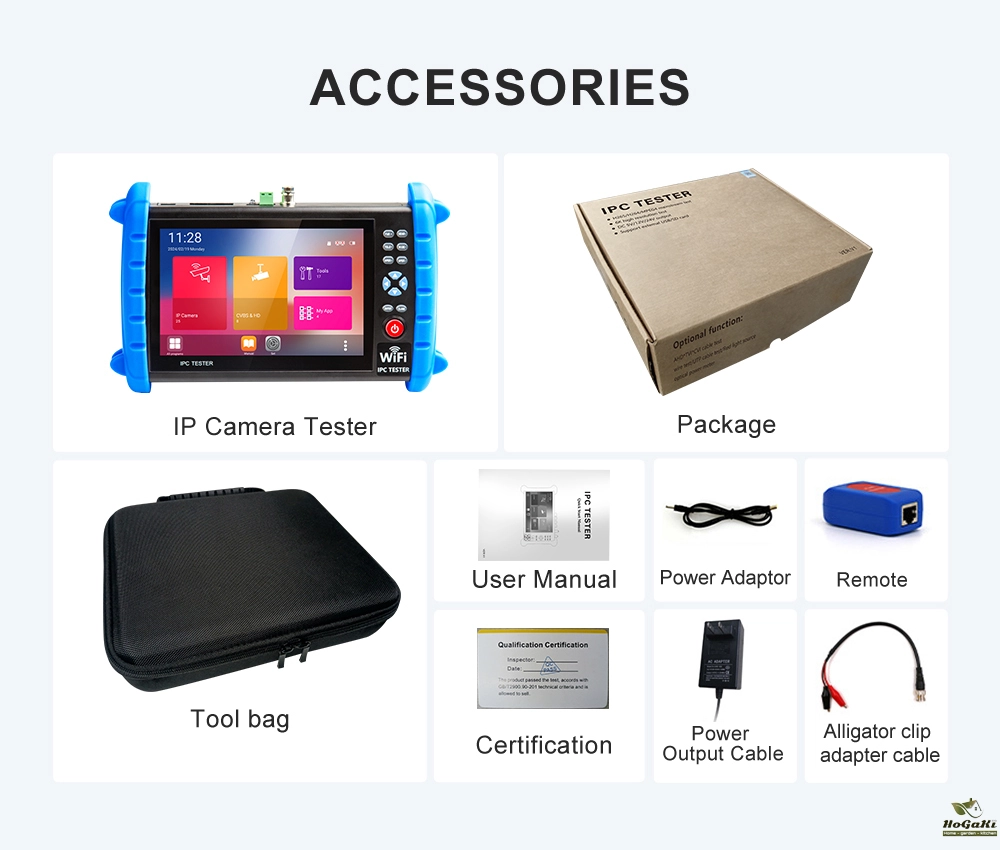

ACCESSORIES
Packaging Details
- Unit Type:
- Package Weight: 2.000
- Package Size: 12x10x12
- Brand Name: NOYAFA
- Lens: 2.8mm
- Origin: Mainland China
- Hign-concerned Chemical: None
- Sensor Size: 1/3 inch
- Maximum IR Distance(m): 10-20m
- Certification: CE
- Certification: FCC
- Sensor Size: 1/3 inch
- Touch Screen: 7 inch G+G structure capacitance screen
- LCD screen: 7 inch resolution 1920x1200 IPS HD full view
- Ethernet Port: 10/100/1000M adaptive
- WIFI: Built-in wireless WIFI, speed 150M
- IP Camera Test: 4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording and playback
- ONVIF: ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and other more than 30manufacturer private protocols and customized, support camera mobile client installation
- PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
- CVBS Analog Camera Test: 1 channel CVBS analog signal input, support PALNTSC format adaptation
- HD Camera Test: Support HD TVI8MP, CVI 8MP, AHD SMP.
- Video Image Zoom: Real-time enlarge moving HD video image, max enlarge 8 times
- Cable Test: Built-in cable testing tool, check cable sequence and breakpoint,ete
- Audio Test: One channel audio signal input for testing, can be recorded and saved
- optical power meter: Test optical fiber parameters
- DC12V Power Output: DC12V power output, max current 3A, provide temporary power for cameras
- DC24V Power Output: DC24V power output, max current 1A, provide temporary power for cameras
- PoE Power Output: 48V standard PoE output, provide PoE power for cameras
- DC5V Power Output: Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
- PSE Voltage Test: Display PoE power supply device voltage and circuit condition
- HDMI Video Input Test: Input HD video image into instrument to test video recorder
- RS485 Serial Port tool: Can send or receive any data or hex data
- power charger: DC 12VI2A
- Battery: Built-in 7.4V polymer lithium battery, capacity 7000mAh, can work continually for 8-10 hours
- LANGUAGE: Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
- Working Temperature: -10°C-+50°C
- Working Humidity: 30%-90%
- Weight: 0.9KG
- External Size: 23emx14emx4.5em
