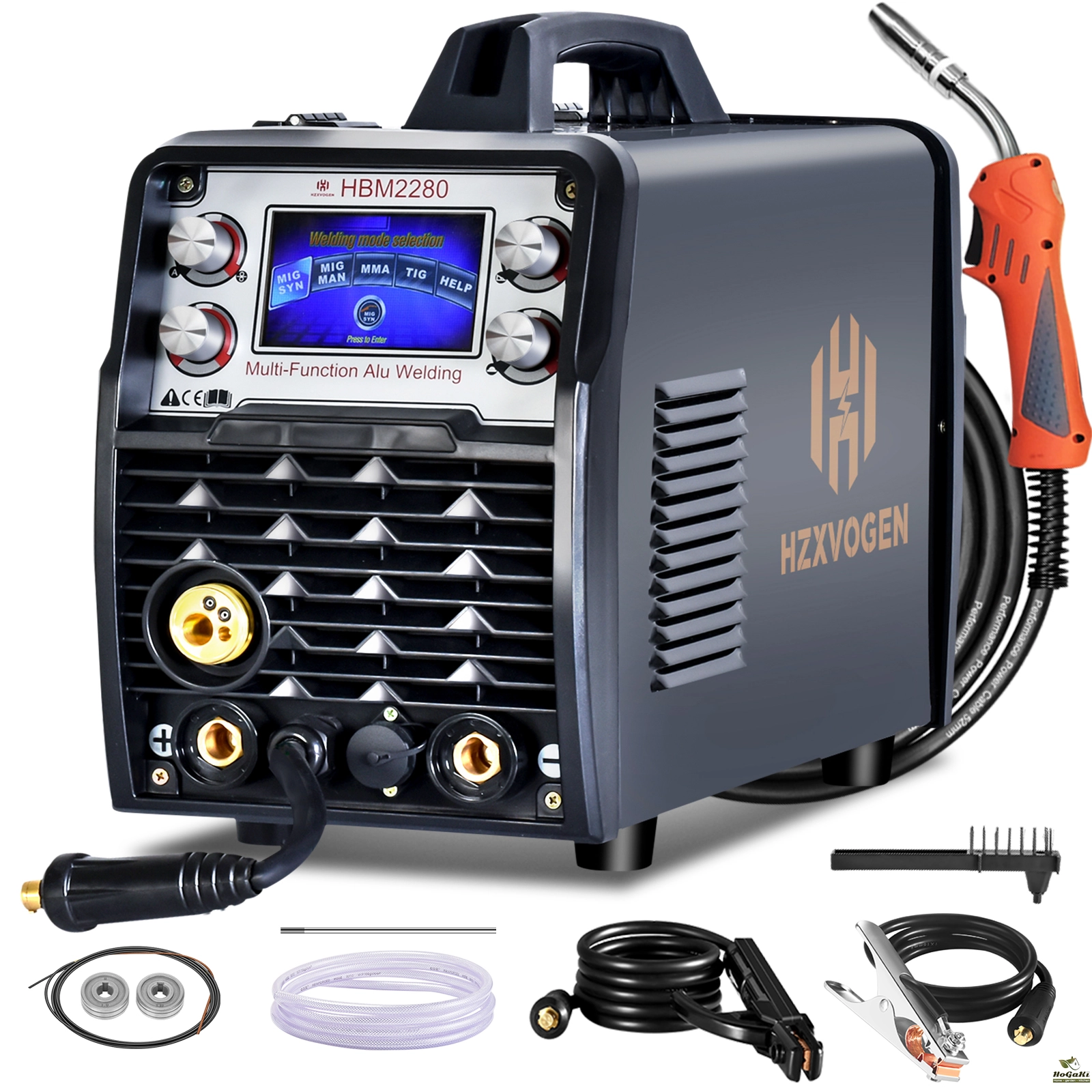

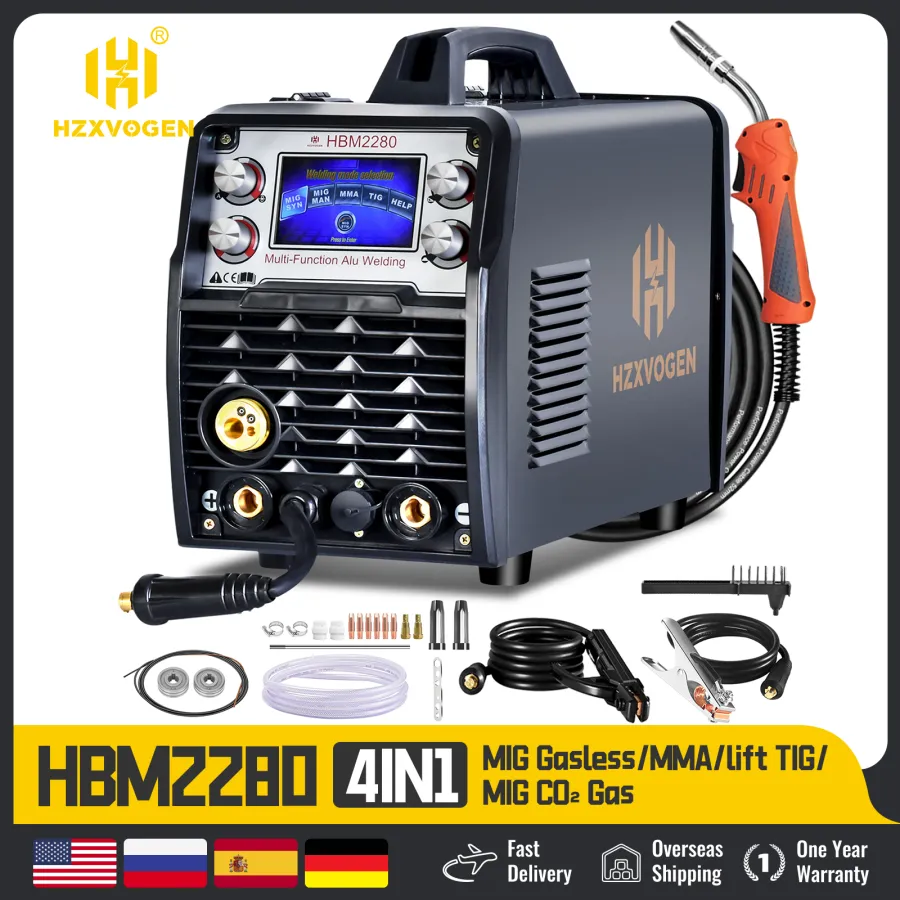

HZXVOGEN Welder 5 In 1 HMB2280 Gasless/Gas MIG ARC/MMA Lift TIG HBM2280 AluminumSynergy Semi-automatic Welding Machine Tools
4.2 (5 votes) | 11 orders
Price:
US $1583.56
Discount Price:
US $
1187.66
-25%
- Color
-
-
HZXVOGEN Welder 5 In 1 HMB2280 Gasless/Gas MIG ARC/MMA Lift TIG HBM2280 AluminumSynergy Semi-automatic Welding Machine Tools
Update Feature

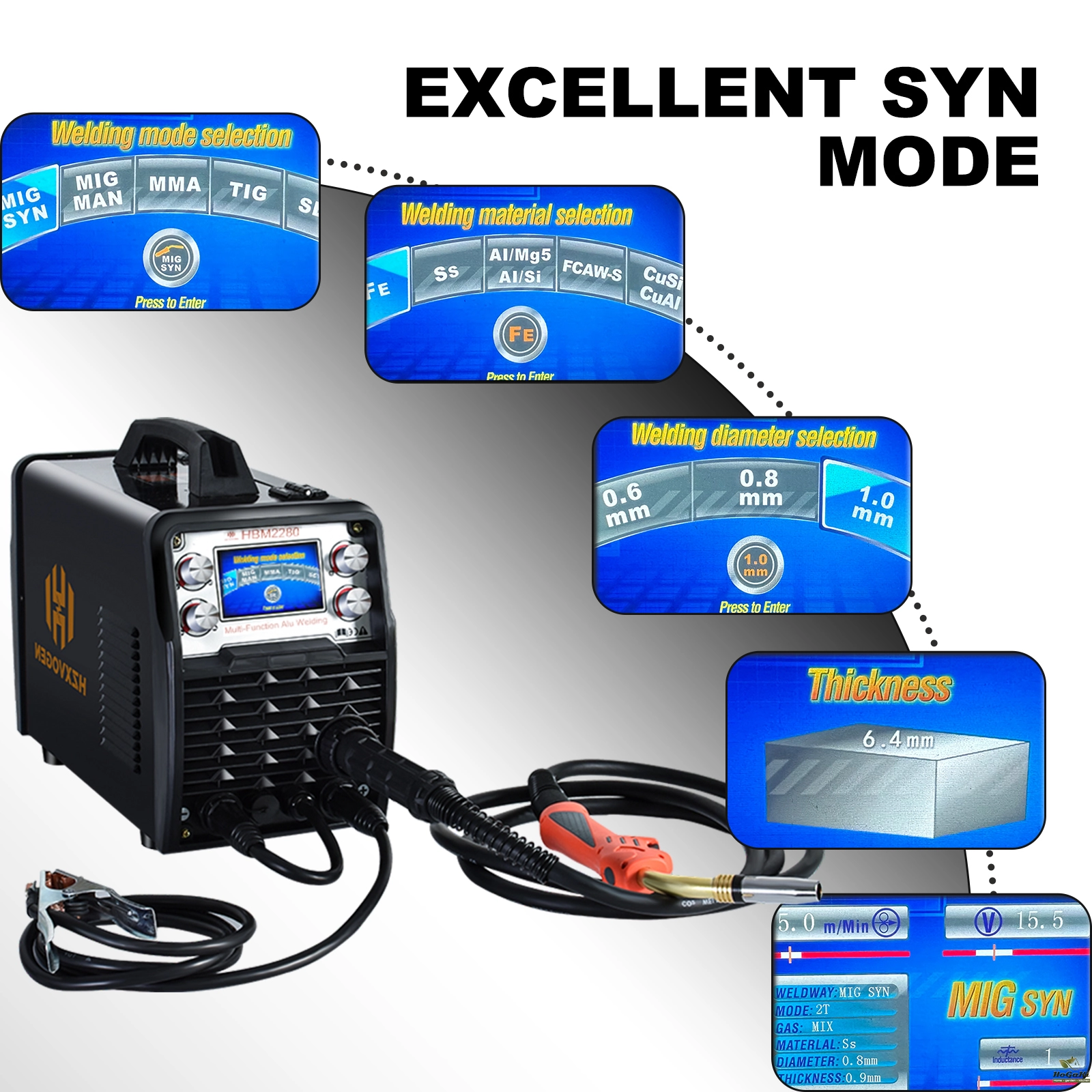

1.The most advanced multifunctional welder and is easy and convenient to usd - just need 3 steps: 1.chose the welding mode . 2. chose material .3.chose workpiece thicness you need .It will show all the parameters clearly

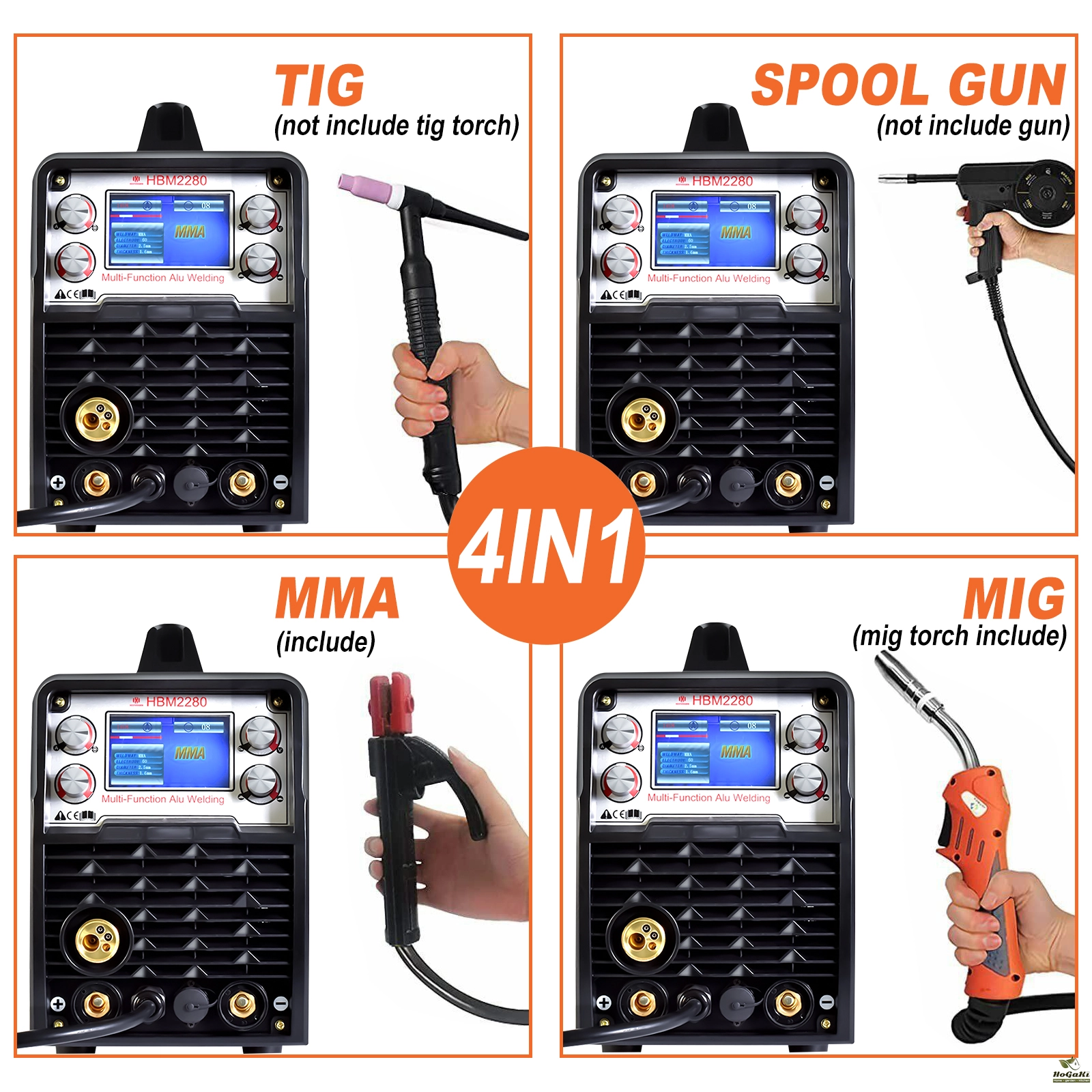

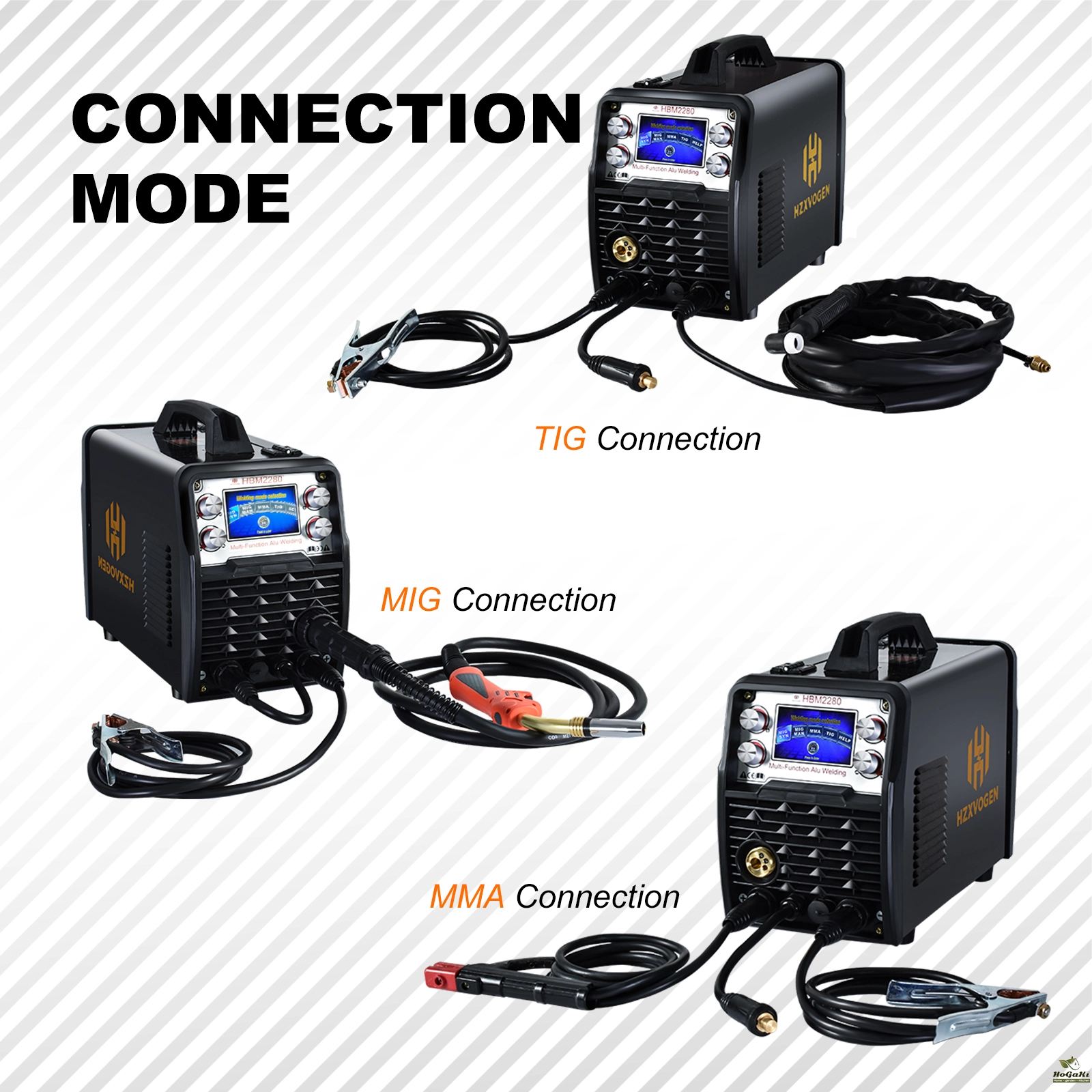

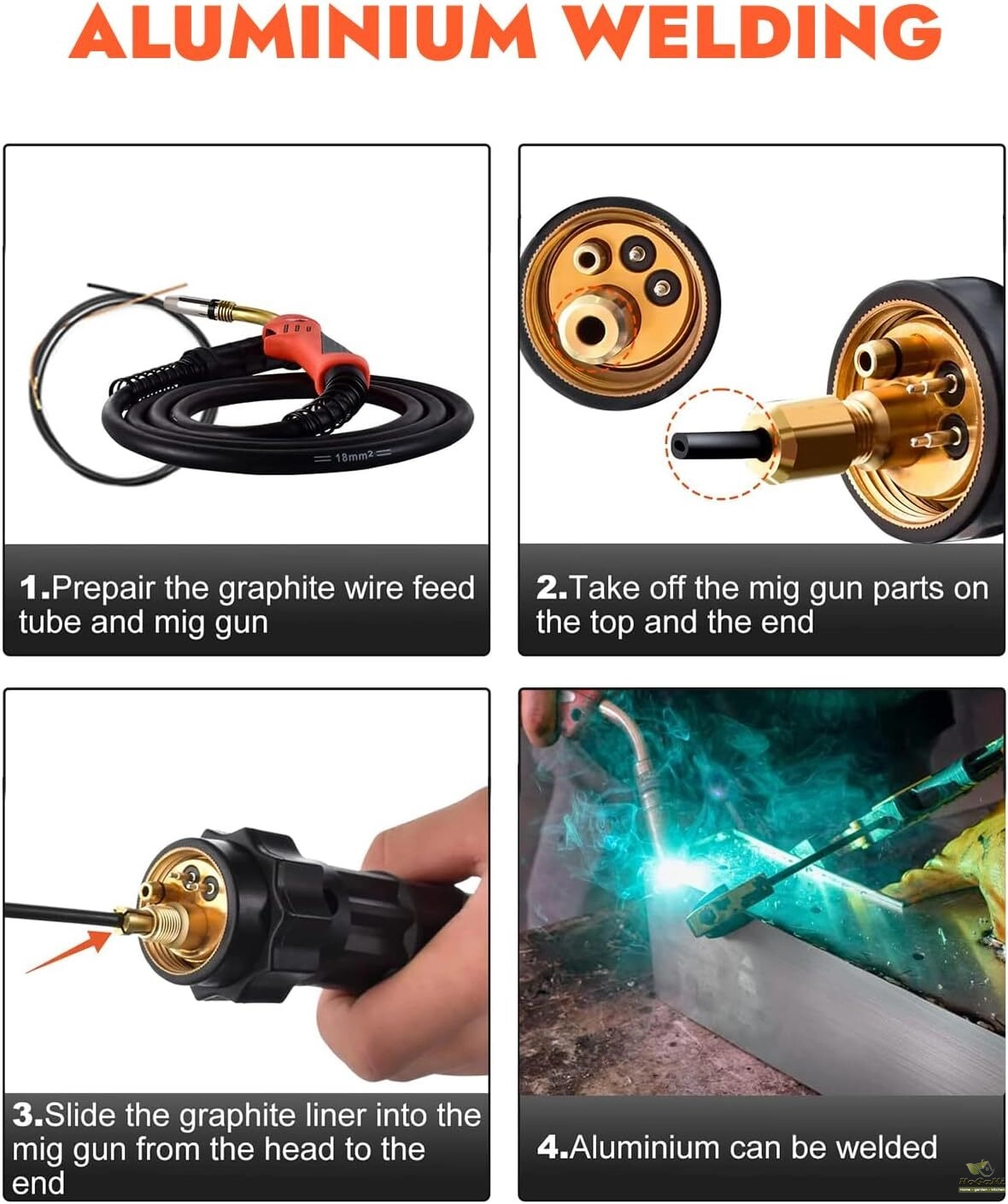

2.Can weld Aluminium - This welder can weld aluminium, iron, carbon steel, stainless steel, etc. MIG synergistic setting & MIG manual setting, Gasless Flux wire MIG Welds, stick welds, and Lift TIG welds. Dynamic control-set arc control to crisp or soft depending on your preference and application.

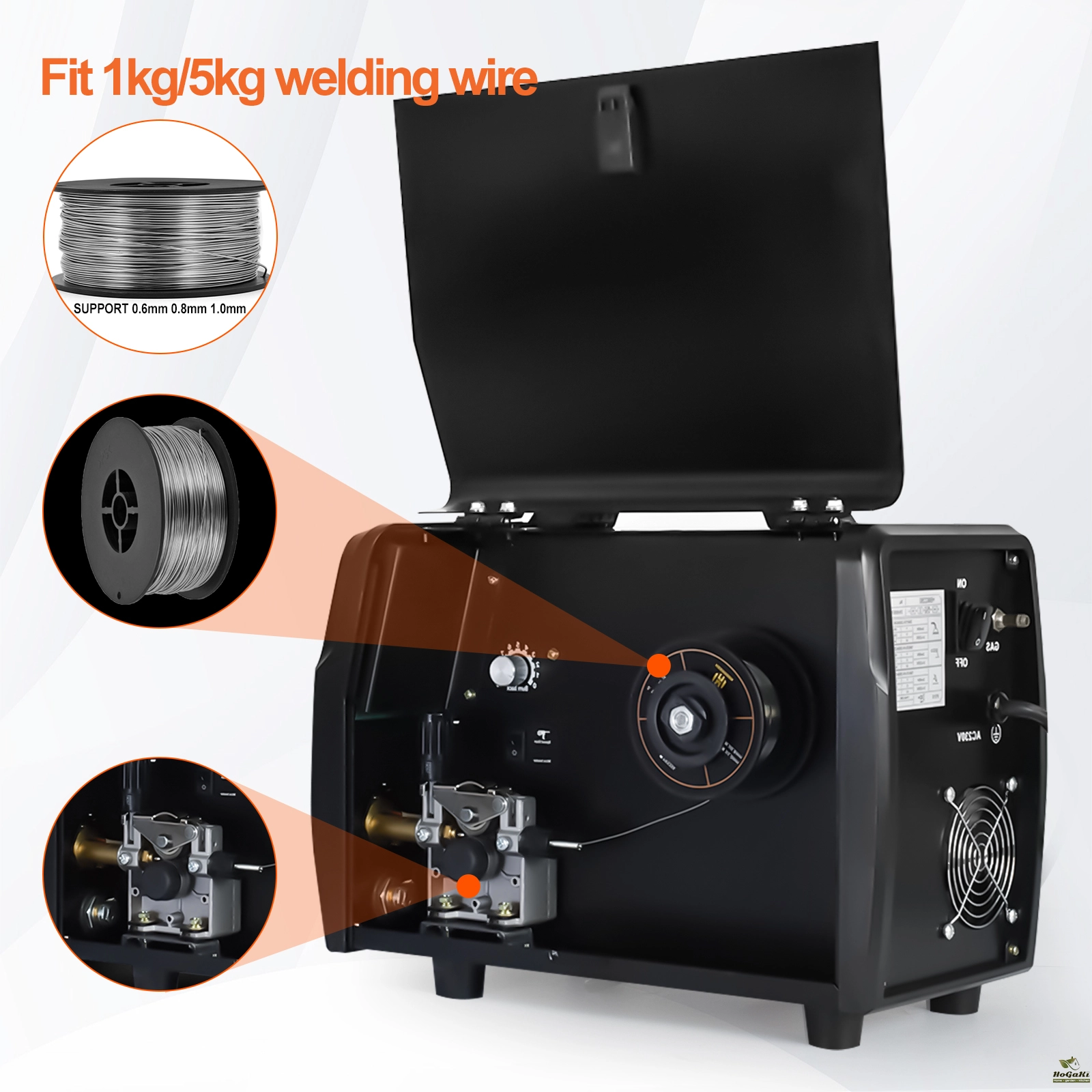

3.MIG function - MIX GAS can use 0.6/ 0.8/ 0.9/ 1.0mm flux wire. When using 0.6/ 0.8/ 0.9mm wire, it can weld 0.7 ~ 3.4mm thickness. When using 1.0mm wire, it can weld 1.2 ~ 6.4mm thickness.
GAS (CO2) can use 0.8/ 1.0mm wire. When using 0.8mm wire, it can weld 0.9 ~ 4.8mm thickness, when using 1.0mm wire, it can weld 1.2 ~ 6.4mm thickness
4.TIG function - Can use 1.6mm and 2.4mm tungsten.When using 1.6mm tungsten can weld 0.7 ~ 4.8 thickness, using 2.4mm tungsten can weld 1.2 ~ 6.4mm thickness
5.MMA function - Current 10 ~ 170 amp. Can weld 2.5/ 3.2/4.0mm electrode. Using 2.5/ 3.2mm rods, can weld 1.6 ~3.4mm thickness. Using 4.0mm rods, can weld 3.4mm ~ 8.0mm thickness
6.HBM2280 220V 200 Amp MIG/Stick/TIG Multi-Process Welder
7.The IGBT inverter technology provides high power in a light, compact unit .it's designed for for hardware, decoration, car modification, equipment and factory maintenance .This units are capable of performing MIG (can weld aluminium) ARC and LIFT TIG.
8.Advanced IGBT - Maximize durability to overloads, improve work efficiency, longer service time and improve stability.
Adopt copper amorphous transformer - High frequency transformer with strong conductivity can save energy, resist to high temperature, provide long working hours and lower loss.
9.With user manual in English ,Russian, Spanish, French
Specifications:
Brand name: HITBOX
Model: HBM2280
Inverter technology: IGBT
Rated input power (KW) - MIG: 5.7; TIG: 4.37; MMA: 6.3
Rated input current (A) - MIG: 36.0; TIG: 28.1; MMA: 40.5
Rated input apparent power (KVA) - MIG: 7.8; TIG: 6.21; MMA: 8.9
Welding current adjust range (A) - 10 ~ 200
Welding voltage adjust range (V) - 10 ~ 26
Duty cycle (40℃ 10min) - 25%, 200A; 60%, 150A; 100% 130A
No load voltage (V) - 50V (adjustable)
Power factor - MIG: 0.73; TIG: 0.70; MMA: 0.71
Efficiency(%) - ≥80%

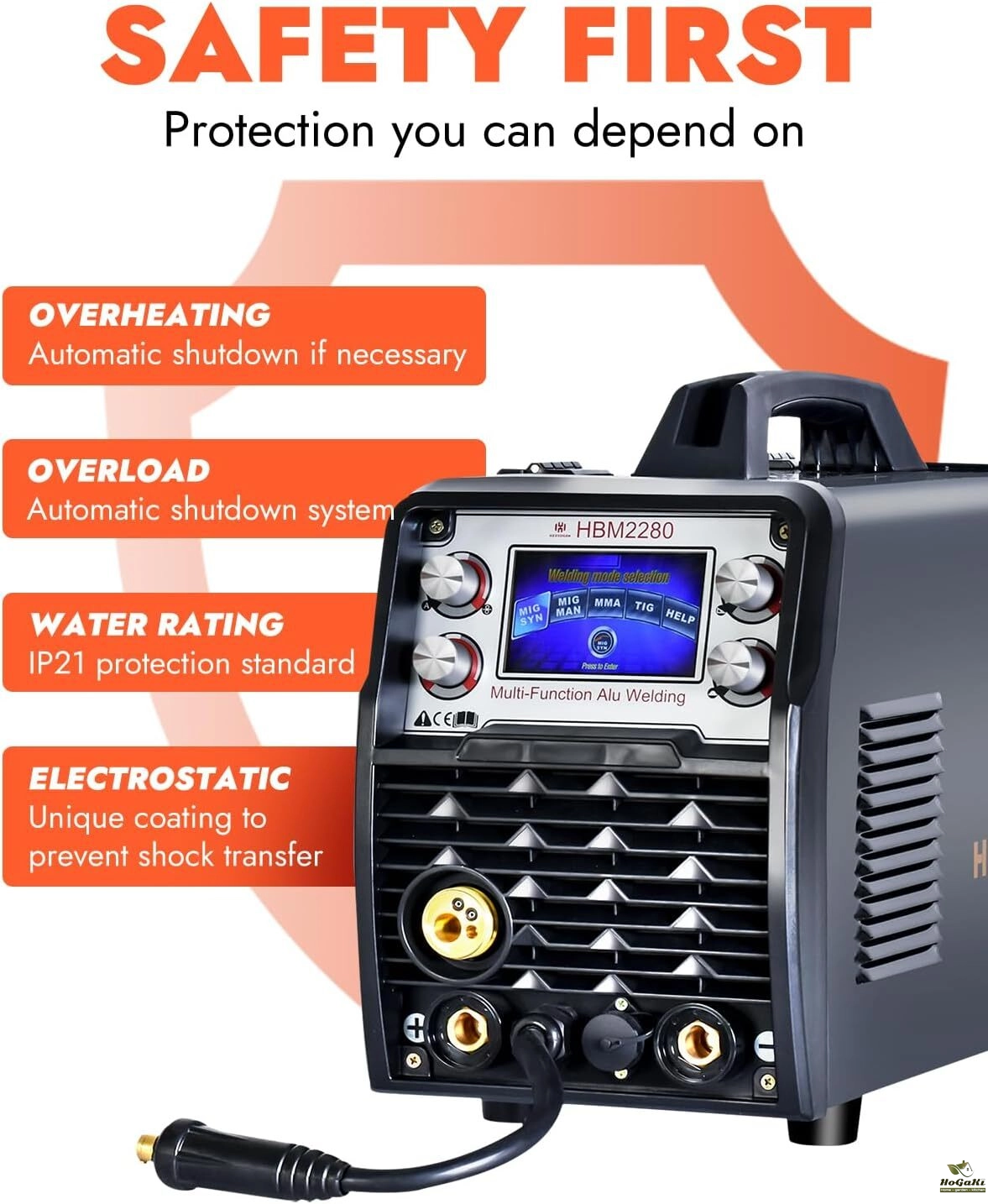

Protection class - IP23
Insulation class - F

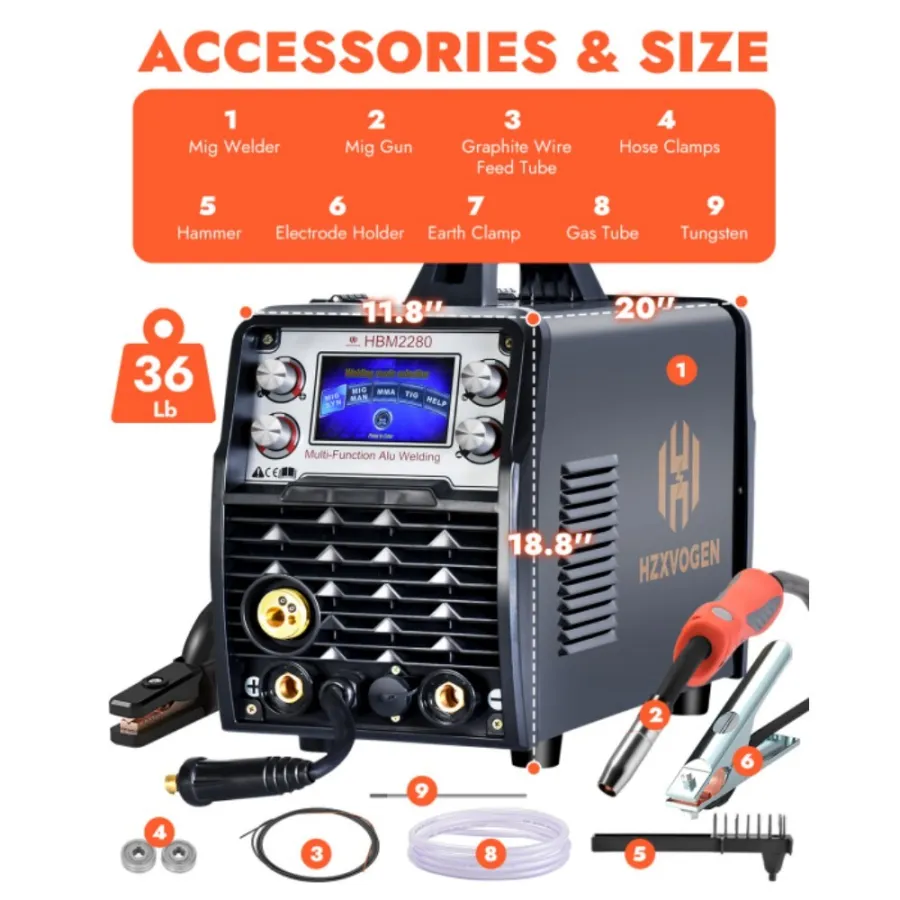

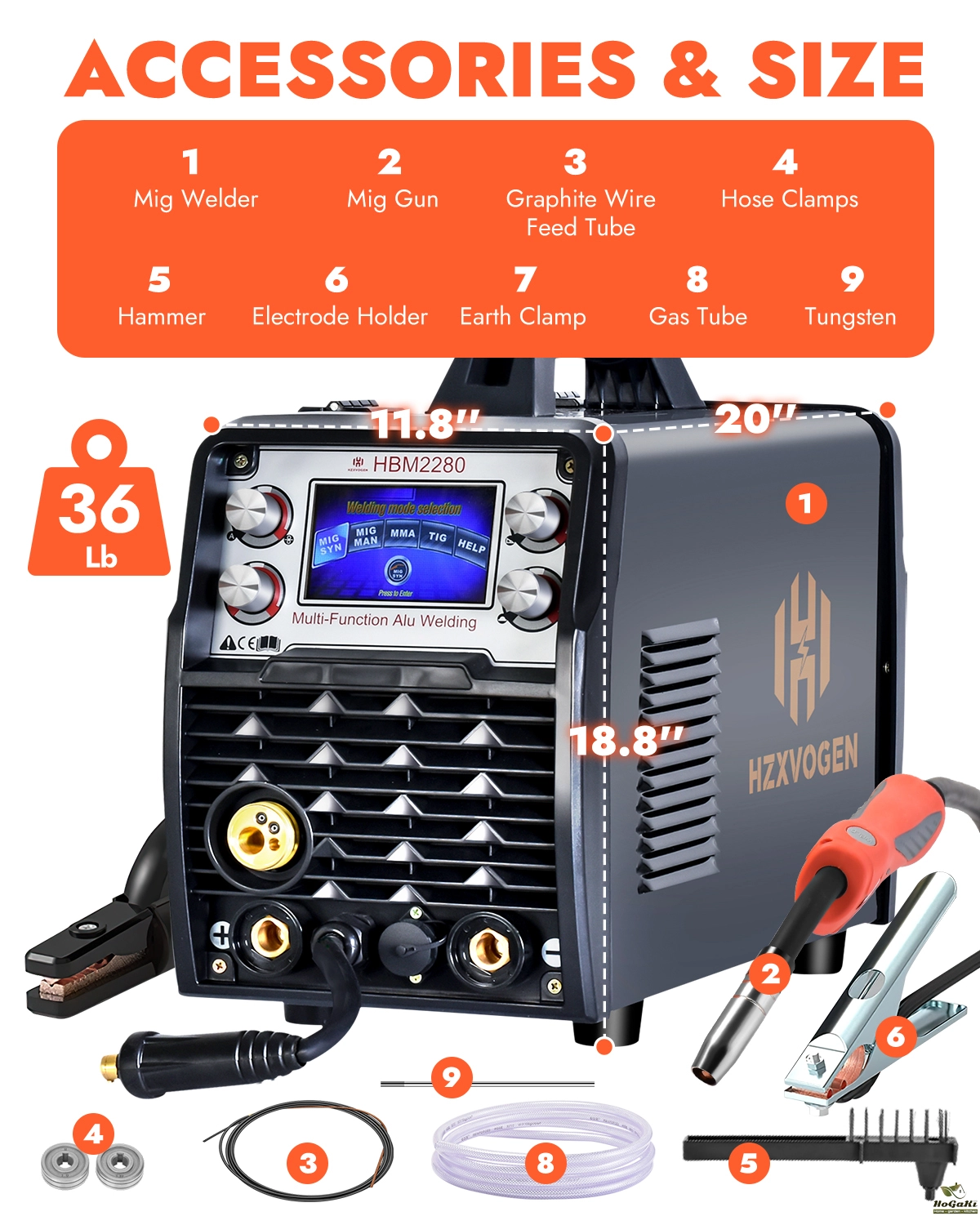

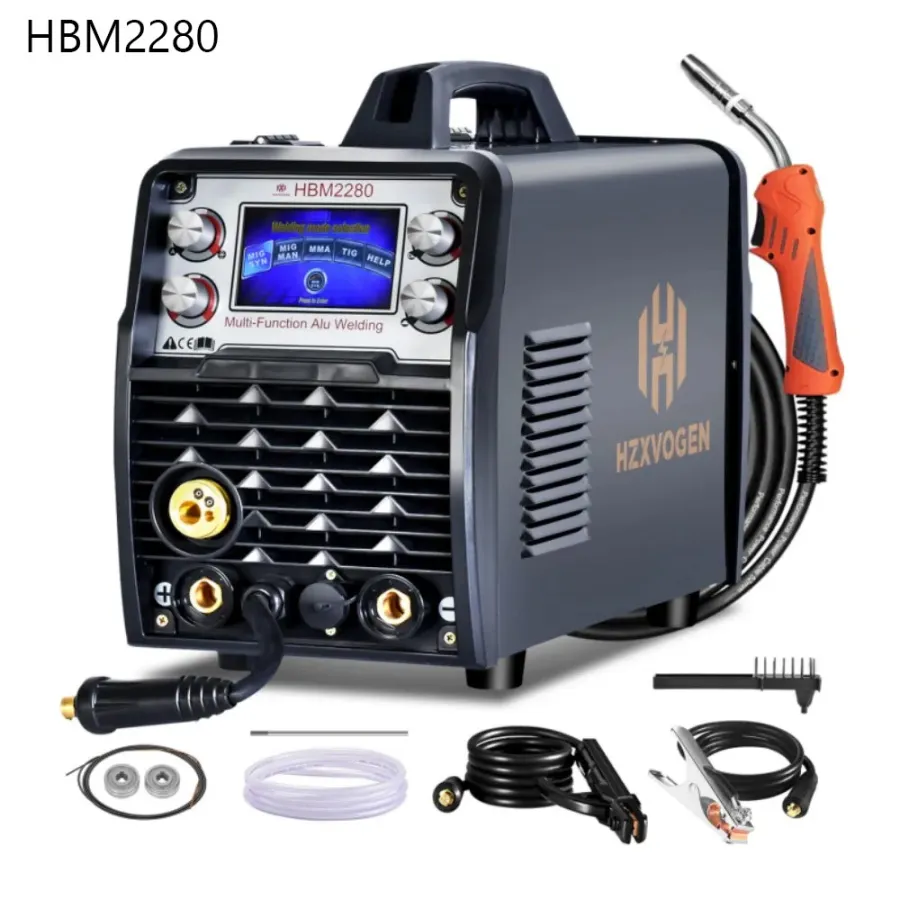

Package includes:
Package Content :(NO Tig Torch)
1X Mig Welder HBM2280
1X MB24 Mig torch
1X 300A Electrode holder
1X 200AEarth clamp
1X Gas tube
1X Pack of tips and nozzles
1X Manual
Package Content :(With Tig Torch)
1X Mig Welder HBM2280
1X MB24 Mig torch
1X WP26V Tig Torch
1X 300A Electrode holder
1X 200AEarth clamp
1X Gas tube
1X Pack of tips and nozzles
1X Manual
Pacakge Content: (With Stainless wire)
1X Mig Welder HBM2280
1X MB24 Mig torch
1X WP26V Tig Torch
1X 300A Electrode holder
1X 200AEarth clamp
1X Gas tube
1X Pack of tips and nozzles
1x 1.0kg Stainless Steel wire
1X Manual
Packaging Details
- Unit Type:
- Package Weight: 17.000
- Package Size: 30x48x51
- Brand Name: HZXVOGEN
- Hzxvogen Model: HBM2280
- Hign-concerned Chemical: None
- Certification: CE
- Origin: Mainland China
- Weight: 17KG
- Model Number: HBM2280
- Dimensions: 425*183*290mm

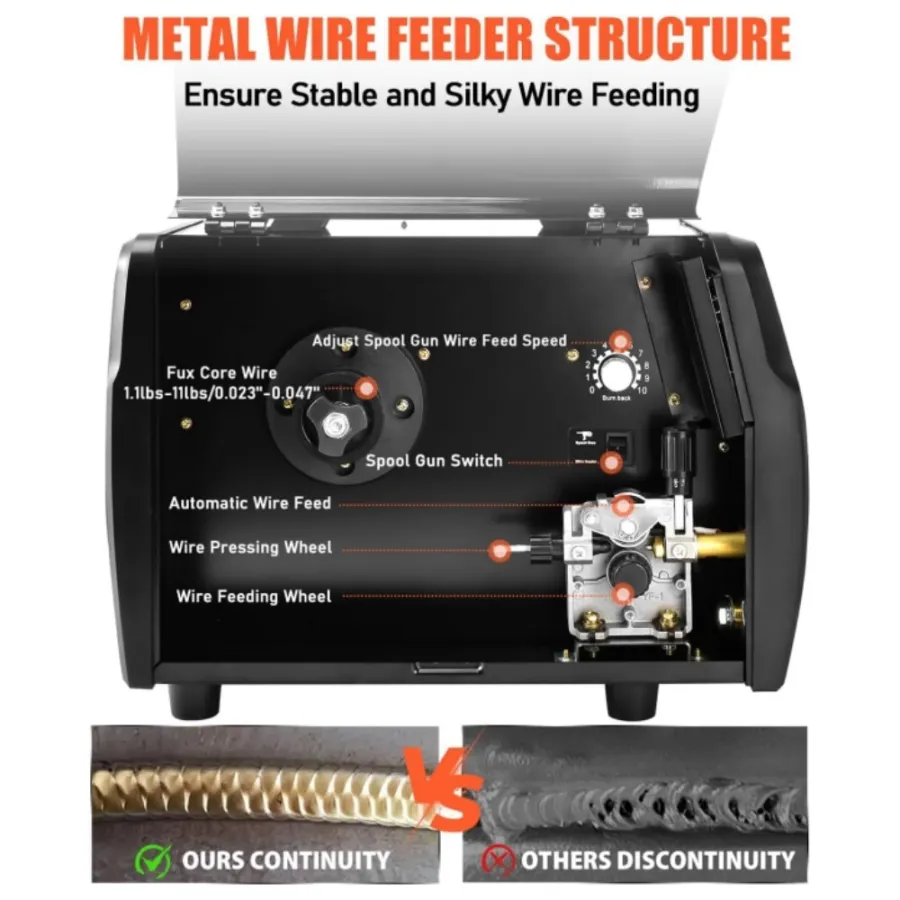

- Wire Feeding Speed: 3-18mm
- Is Smart Device: No
- Plug Type: EU Plug
- Use: Mig / TIG / ARC Welder
- Rated input power (KW): MIG: 5.7 TIG: 4.37 MMA: 6.3
- Rated input current: MIG: 36.0; TIG: 28.1; MMA: 40.5
- Rated input apparent power (KVA): MIG: 7.8; TIG: 6.21; MMA: 8.9
- Welding current adjust range (A): 10 ~ 240
- Welding voltage adjust range (V): 10 ~ 26.8
- Duty cycle (40℃ 10min): 60%, 200A; 100% 155A
- No load voltage (V): 50V (adjustable
- Power factor: MIG: 0.73; TIG: 0.70; MMA: 0.71
- Efficiency(%): 85%
- Protection class: IP23
- Insulation class: F
- Welder Wire: Aluminum,Solid,Flux Core Welding
- Special Features 1: VRD
- Special Features 2: IGBT
- Special Features 3: Aluminium Welding
- Special Features 4: Synergic
- Special Features 5: Smart Chips
- Usage 1: iron sheet
- Usage 2: stainless steel
- Usage 3: carbon steel
- Usage 4: Ideal for welding aluminium sheet
