HZXVOGEN 3 in1 MIG/TIG/MMA Semi-Automatic Welding Machine HVM200 Inverter Welder Synergy Tool Non Gas For Gasless Iron Soldering
ID: 157715

HZXVOGEN 3 in1 MIG/TIG/MMA Semi-Automatic Welding Machine HVM200 Inverter Welder Synergy Tool Non Gas For Gasless Iron Soldering

4.5 (13 votes) | 52 orders
Price: US $1314.02 - 1391.20
Discount Price:
US $ 807.34 - 842.86
-39%
Color
Quantity

Buy Now
Add to Cart

*HVM200 Inverter 5 Advanced Advantages:
  1. 【3 IN 1 FLUX CORE WELDER】: HZXVOGEN HVM200 MIG welder supports flux core gasless MIG/Lift TIG/MMA. Release gas hard conditions, perfect for use with flux cored wire (for 0.030/0.032/0.035" flux cored wire) and compatible with φ1.0 to 2.5φ conventional electrodes, good for welding metal parts up to 4.0mm.
  2. 【EASY TO USE】: The welding machine is designed as a single-knob intelligent control system, coordinating the speed and current of the wire feeder. The precise digital display guides your welding work and provides a perfect weld.
  3. 【RELIABLE PERFORMANCE】: This mig gasless welder machine will automatically control voltage and current to achieve a smooth arc by synergy fuction,best ideal for welding beginner. The built-in overheating and overcurrent protection system and the fan cooling system will keep dust and dirt out, thus extending the life of the machine.

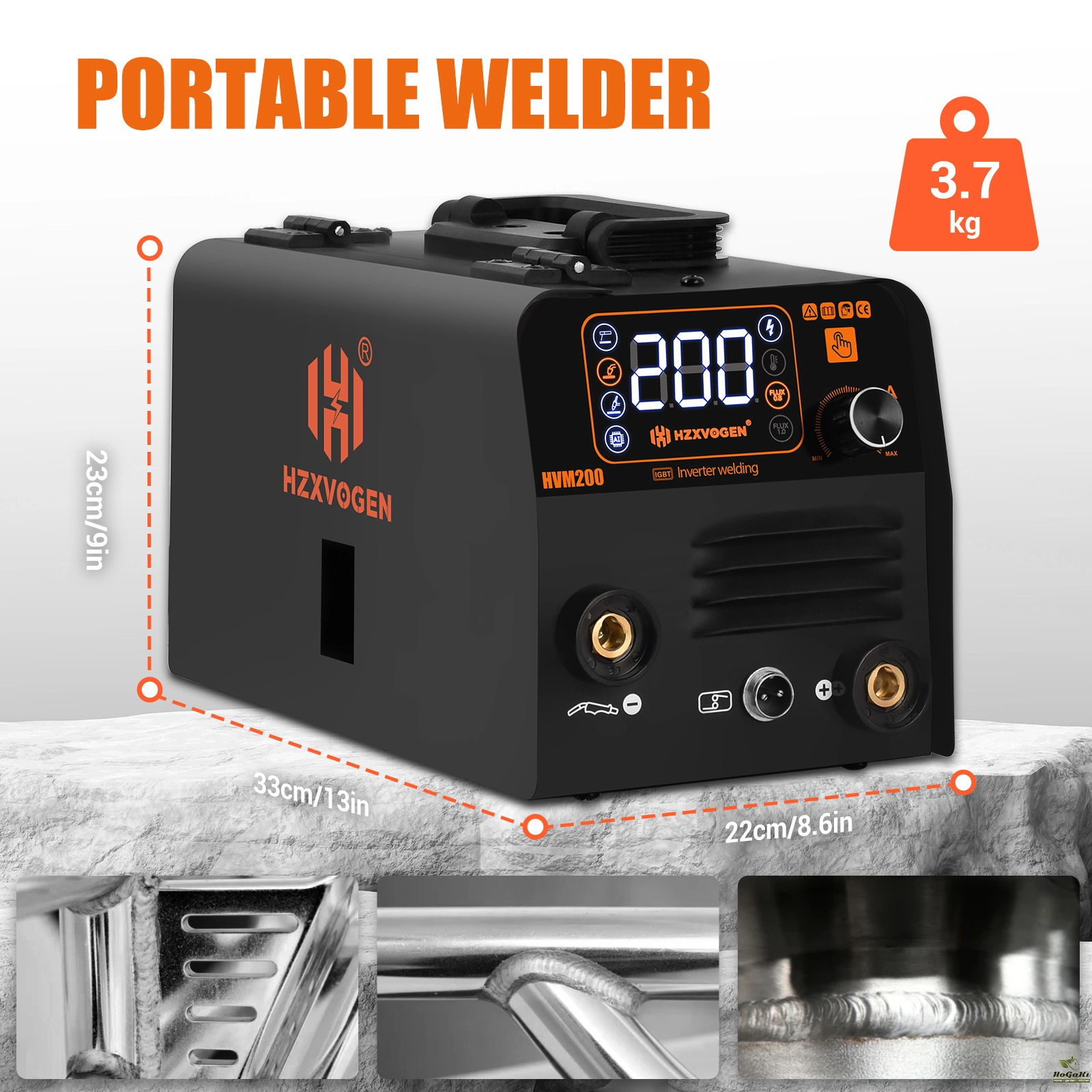

  4. 【PORTABLE DESIGN】: The wire feed welder weighs only 10 lbs/5.2 kg. Size: 13.38*9.45*8.66inch. The split torch is easy to set up and transport, allowing you to move around. What you get: 1X mig torch, 1 X ground clamp, 1 X welding holder, 1* flux cored wire, 1 X slag hammer, 2 X tip nozzles, 1 X instruction manual.
  5. 【PURCHASE WITH 100% CONFIDENCE】: The welder comes with 1 year warranty. If you’re not satisfied with your welder, please contact us. Faulty welders can also be replaced within 60 days. Arrives 1 to 5 days after the order is placed.

HZXVOGEN 200A 3 IN 1 MIG Welding Machine

  • This all-purpose multi-process welder handles flux core gasless MIG, Lift TIG, or Stick welding.

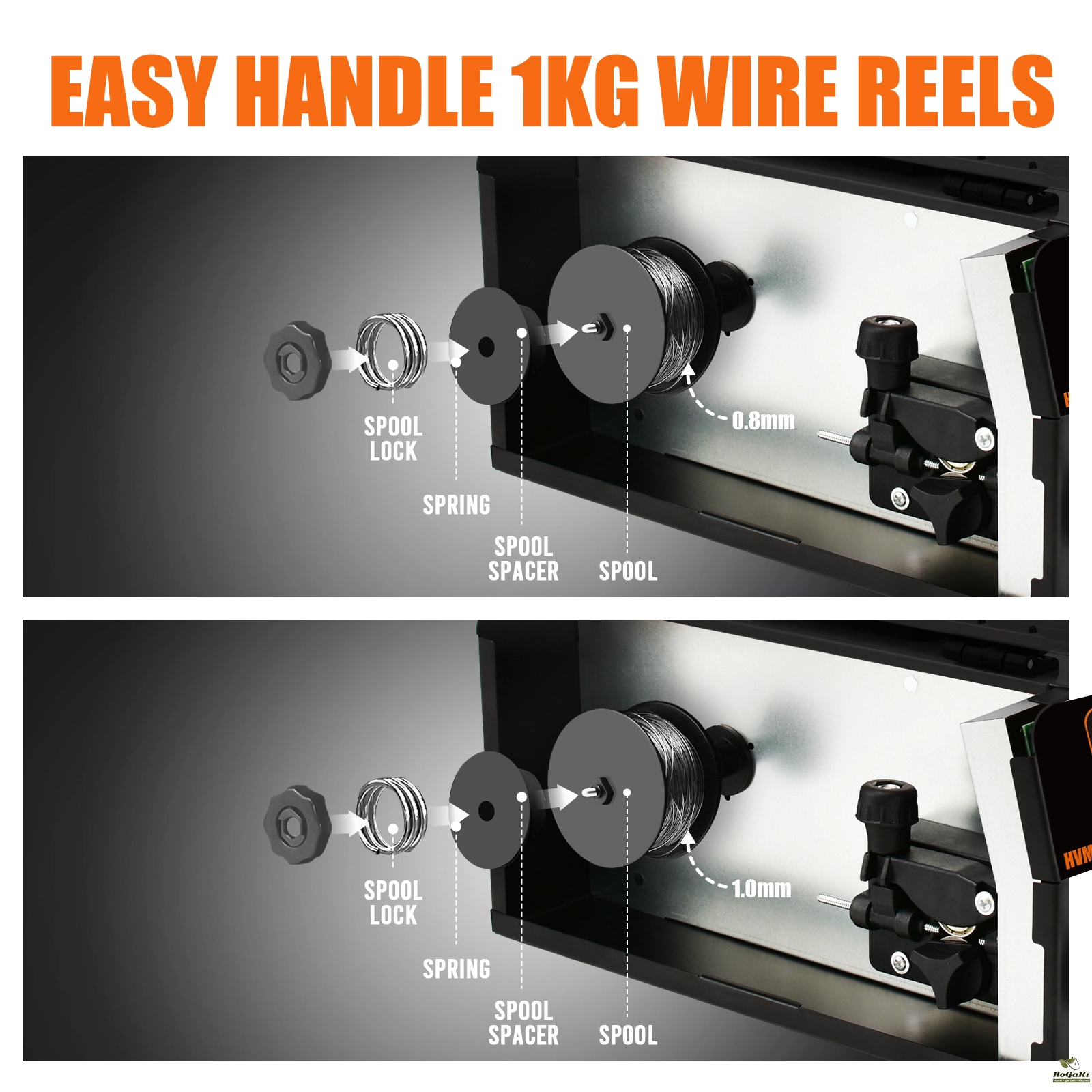

  • Maximum output 200A allows you to weld plates up to 1-5mm thick, can handle 2.2 pound rolls of wire.

  • MMA/ARC mode fits rods: E7018, E6013, E6011 Meet your welding needs.

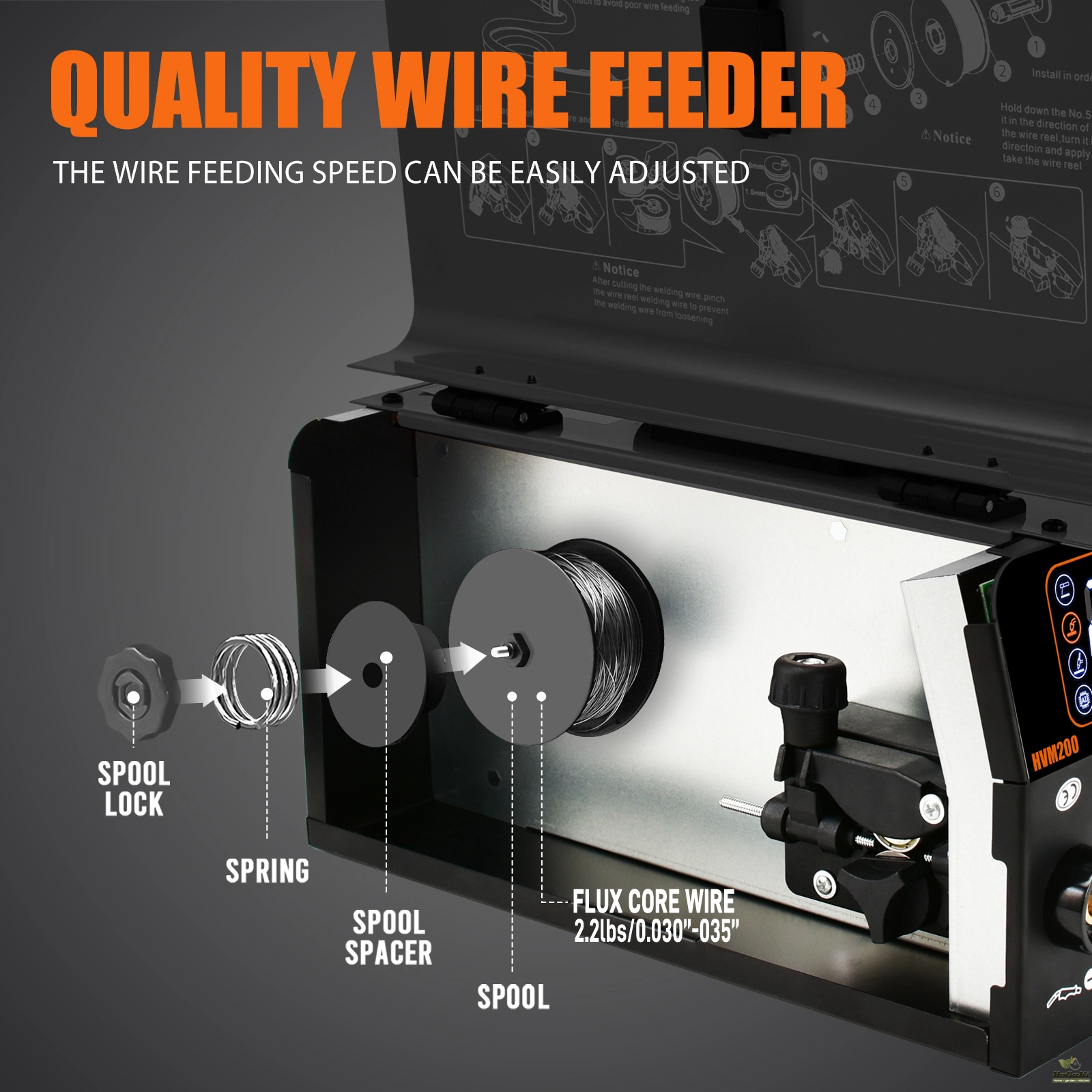

  • Use Synergic adjustment control system to realize precise and stable wire feeding.

  • Uniform adjustment, multi-functional integrated operation, easy for beginners to achieve welding project.

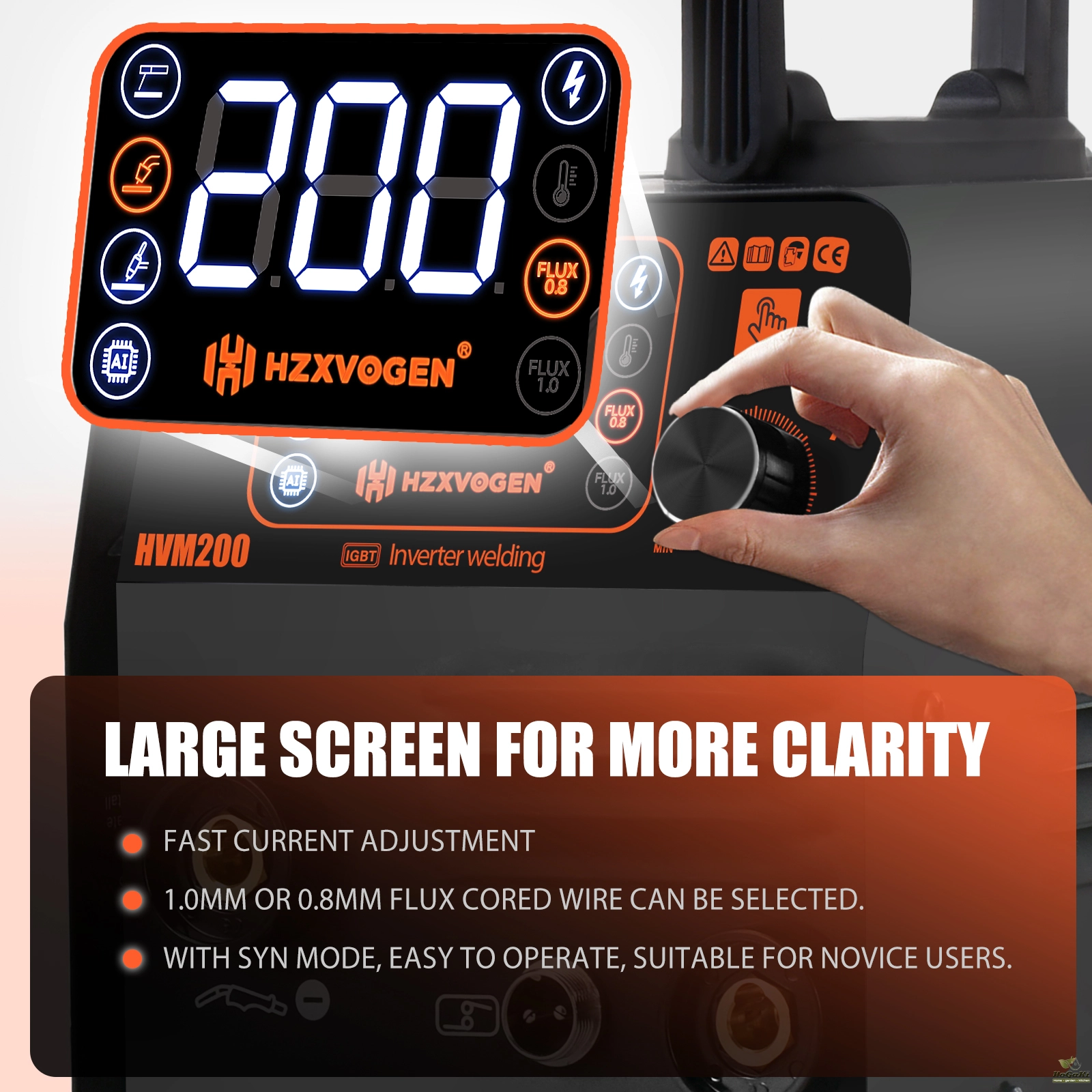

  • Best-in-class 4.3 in. LED display for process selection and advanced controls.

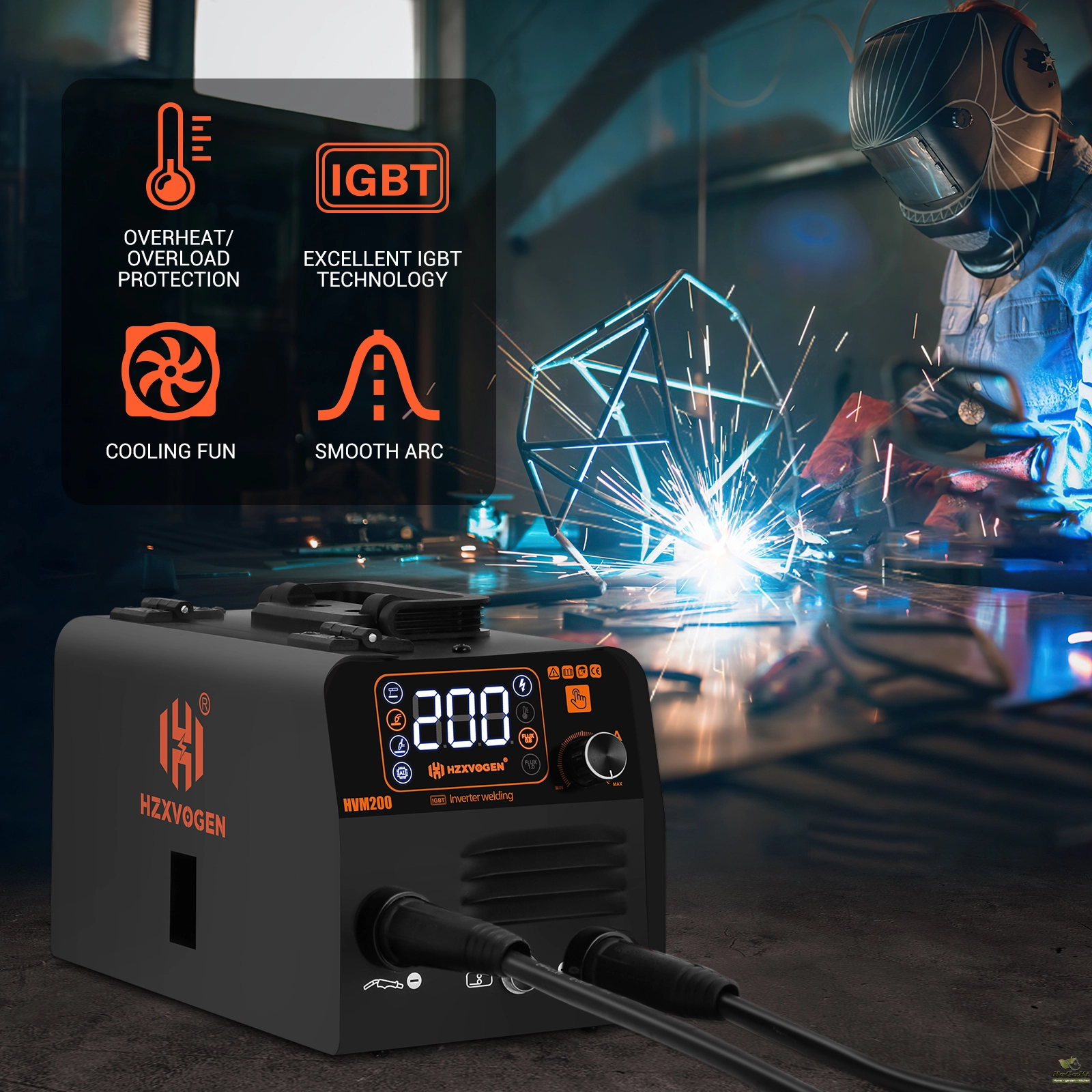

  • Dopts the most advanced IGBT inverter technology with excellent arc stability.

  • It only weighs 10lbs, ideal for shop or field use.

  • Widely used in interior decoration, DIY, Repair, Maintenance, Metal Fabrication, Farm & Road equipment.

  • Built-in safety protection design, with Over-heating protection, Over-current protection and over-loading protection.

Recommend:

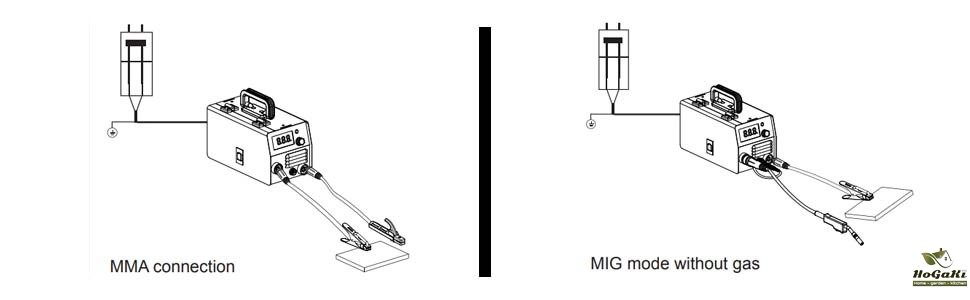

*MIG function:no gas iron welding.
*ARC function:no gas iron welding.
*Full-digital control system to realize precise control and stable arc length during welding.
*Great reduction in metal loss obviously enhances the welding efficiency and energy saving effect.
MIG welding 0.5~6mm iron and mild steel plate
ARC welding 2.5mm acid electrode

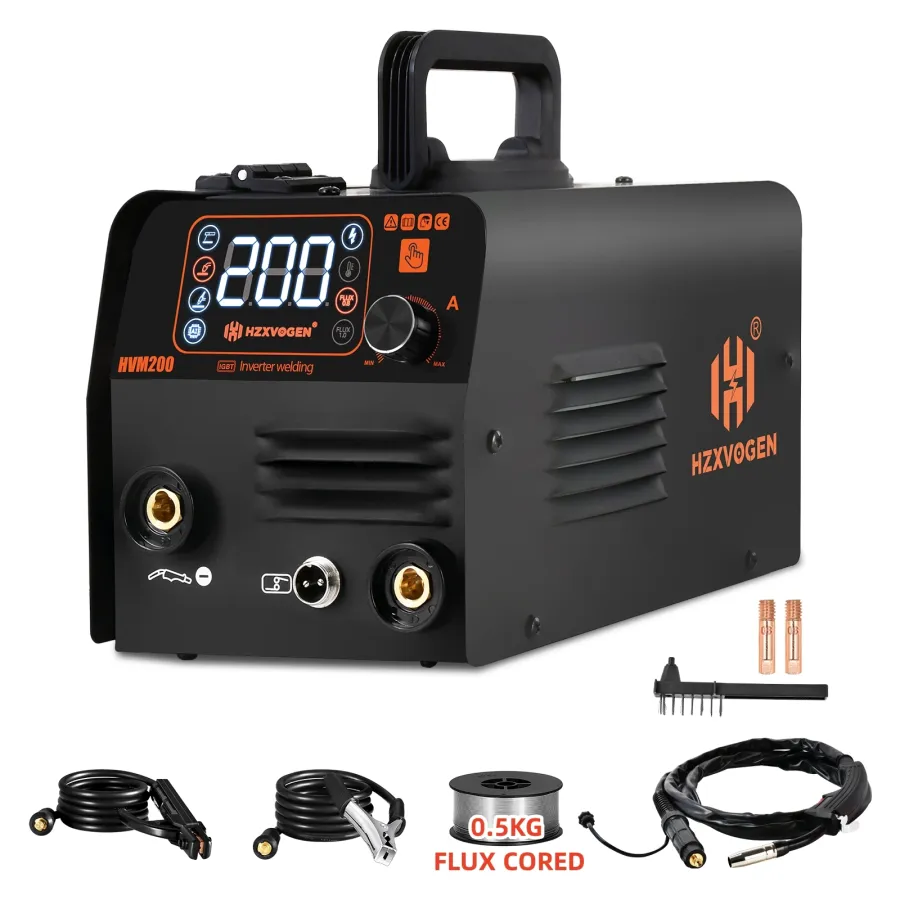

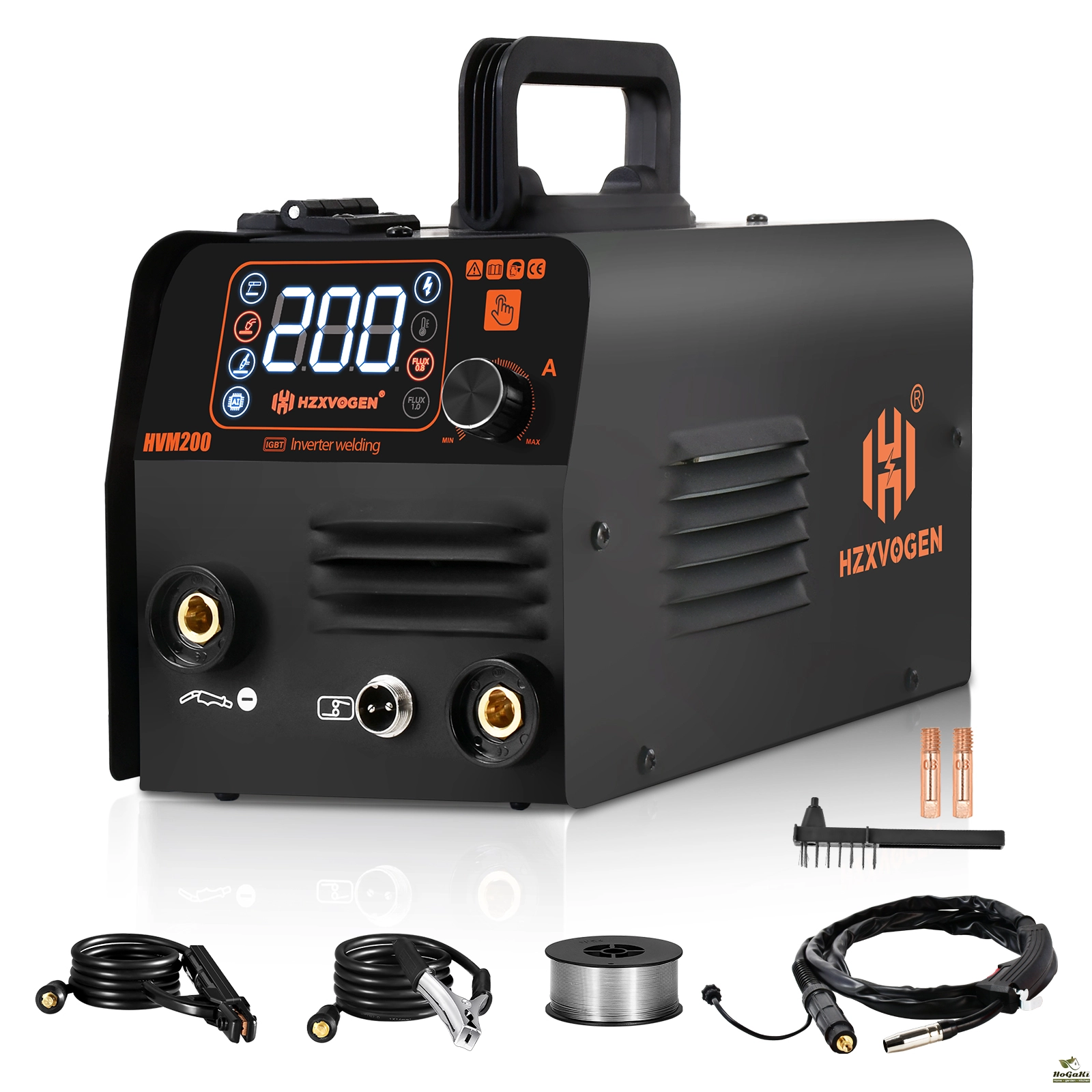

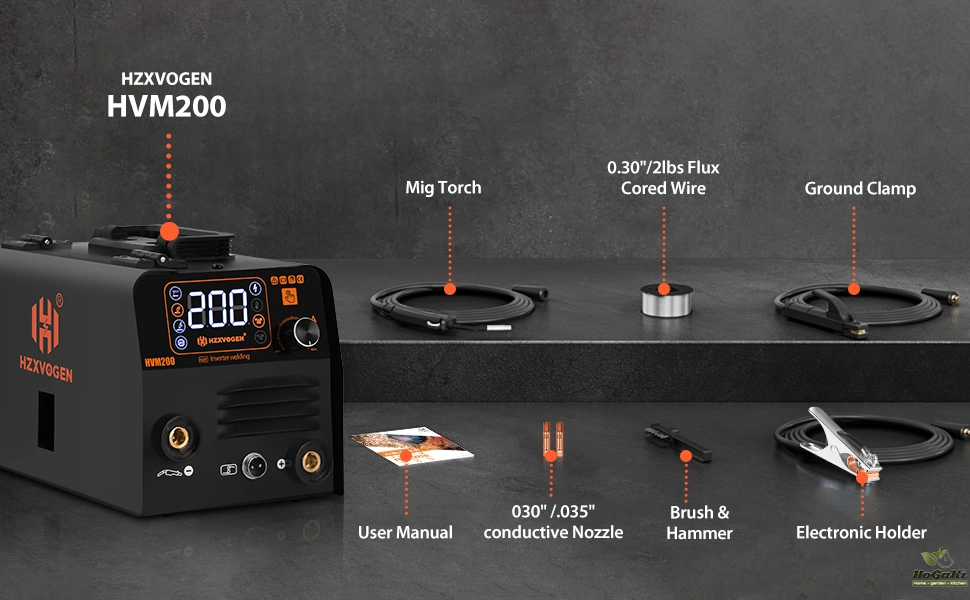

Packing list 1（HVM200）:
1* HVM200 Welder
1* MIG Gun 7.9ft
1* Earth Clamp 4.9ft
1* Electrode Holder 4.9ft
1* Flux Core Wire 1lb .030
1* Conductive Nozzle
1* Hammer
5* Welding Rod
1* User Manual

Packing list 2（With 17V）:
1* HVM200 Welder
1* MIG Gun 7.9ft
1* Earth Clamp 4.9ft
1* Electrode Holder 4.9ft
1* Flux Core Wire 1lb .030
1* Conductive Nozzle
1* Hammer
5* Welding Rod
1* User Manual
1* WP17 Tig Torch


Specifications: ! Please leave message about the PLUG !

Model

110V HVM200

220V HVM200

Rated Input Voltage (V)

AC110V+10%,50/60Hz

AC220V+10%,50/60Hz

Rated Input Power (KVA)

4.2KVA

4.4KVA

Rated Input Current (A)

MAX:37A

MAX:20A

Rated Output Current & Voltage

MMA:120A / MIG:130A

MMA:120A / MIG:130A

Output Current (A)

MMA:20-120A/ MIG:40-130A

MMA:20-120A/MIG:40-130A

No-load Voltage (V

MMA:55V / MIG:56V

MMA:55V / MIG:56V

Rated Duty Cycle (%)

60

60

Efficiency (%)

85

85

Power Factor (coso)

0.73

0.73

Protection Class

IP21S

IP21S

Insulation Class

F

F



Universal equipment for beginners or professionals.

  • Whether you are a DIYer or a professional, with the compact 2-in-1 gasless welding machine, you can easily master all your welding tasks.

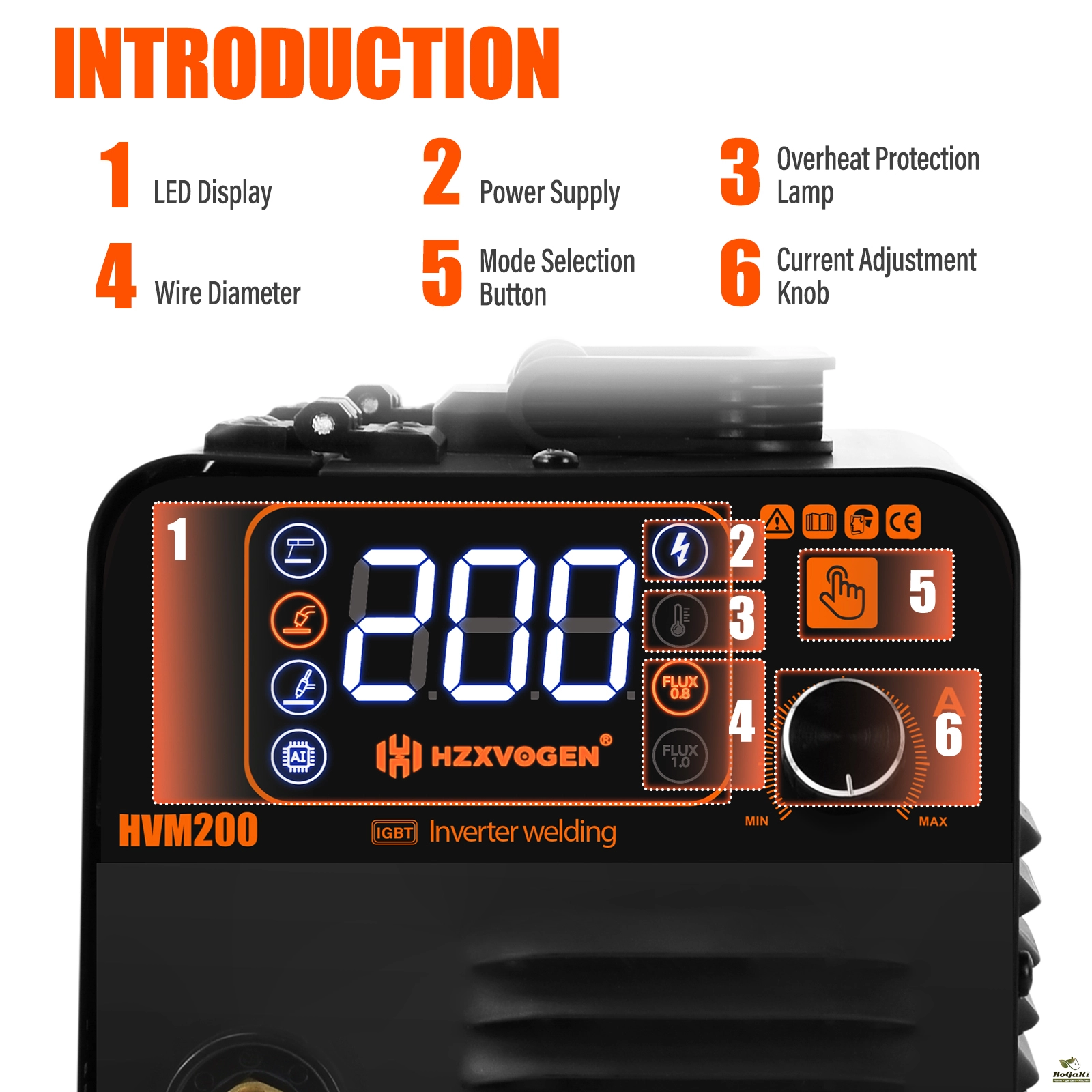

  • The control panel with clear digital display gives you full control when setting the parameters. With the turn of a knob, you can determine wire feed speed and MIG and MMA welding currents, which you can also read on the display.




Packaging Details

  • Unit Type:
  • Package Weight: 6.500
  • Package Size: 24x28x43

  • Brand Name: HZXVOGEN
  • Hzxvogen Model: HVM200
  • Hign-concerned Chemical: None
  • Certification: CE
  • Origin: Mainland China
  • Weight: 6.3
  • Model Number: NEW HVM200
  • Dimensions: 43cm*24cm*28cm
  • Wire Feeding Speed: automatically
  • Is Smart Device: No
  • Plug Type: EU Plug
  • Use: MIG TIG ARC welding
  • Voltage: 220V/110V
  • Rated Duty Cycle (%): 60
  • Efficiency (%): 85
  • Function: 3 in 1 MIG/TIG/MMA
