Hot sale Ble low-cost nRF52840 USB Dongle with external antenna
5.0 (1 votes) | 19 orders
Price:
US $51.34
Discount Price:
US $
49.82
-3%

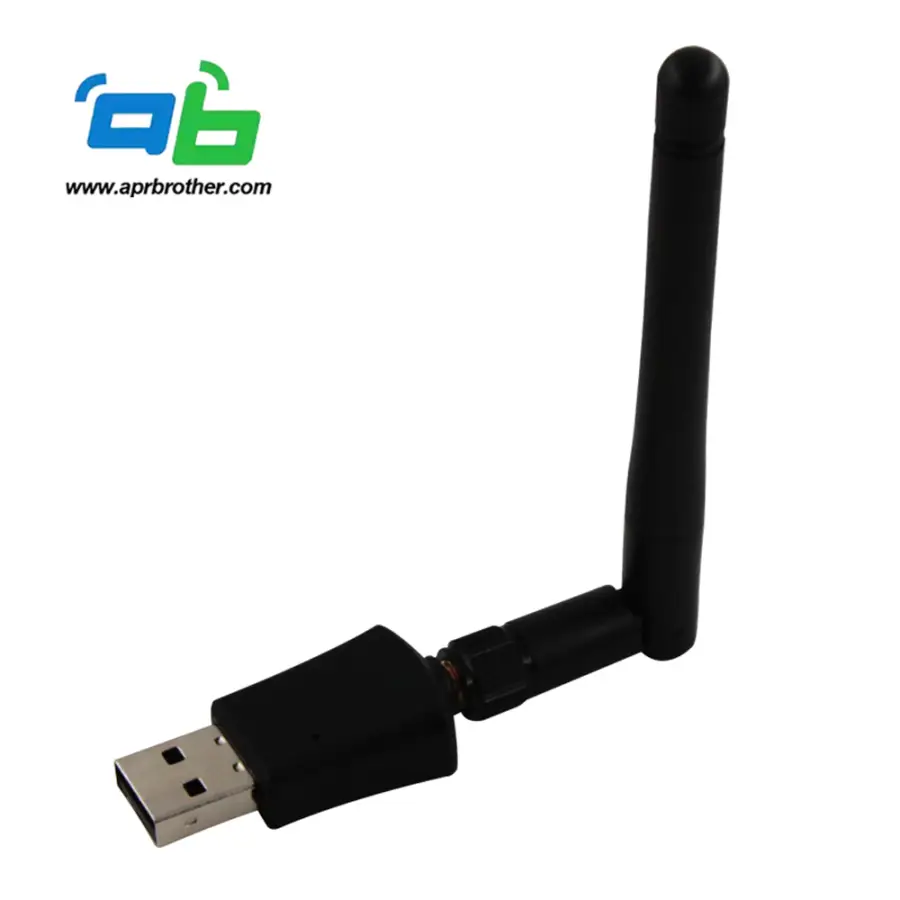

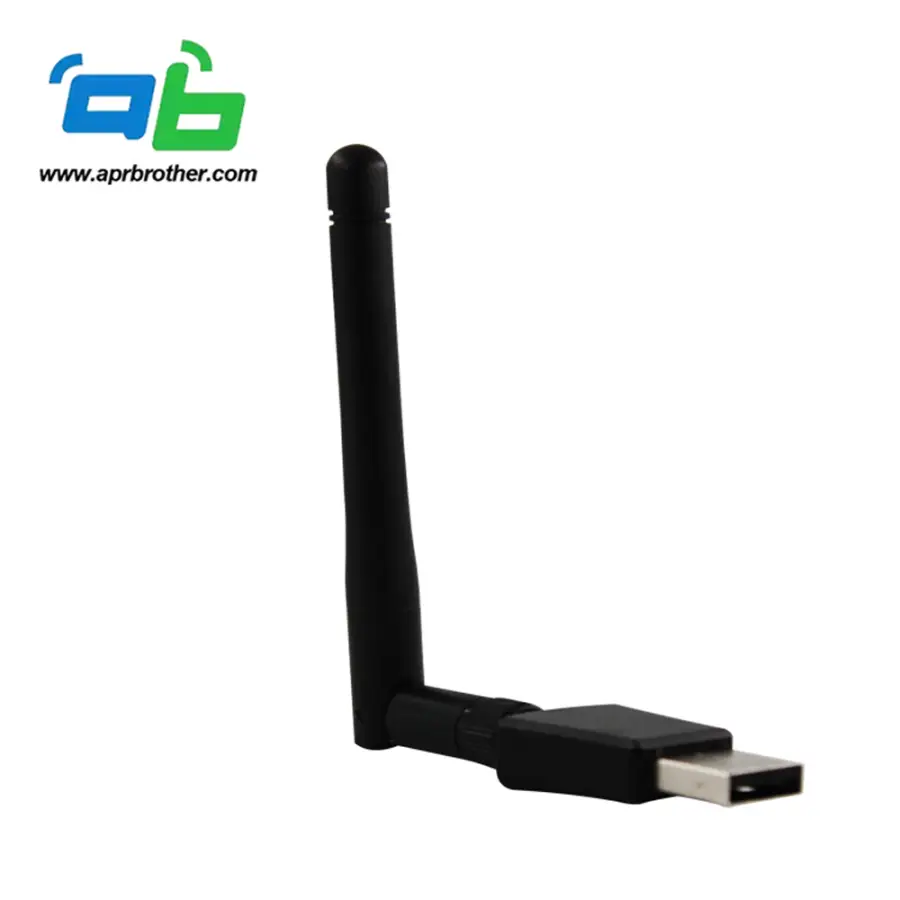

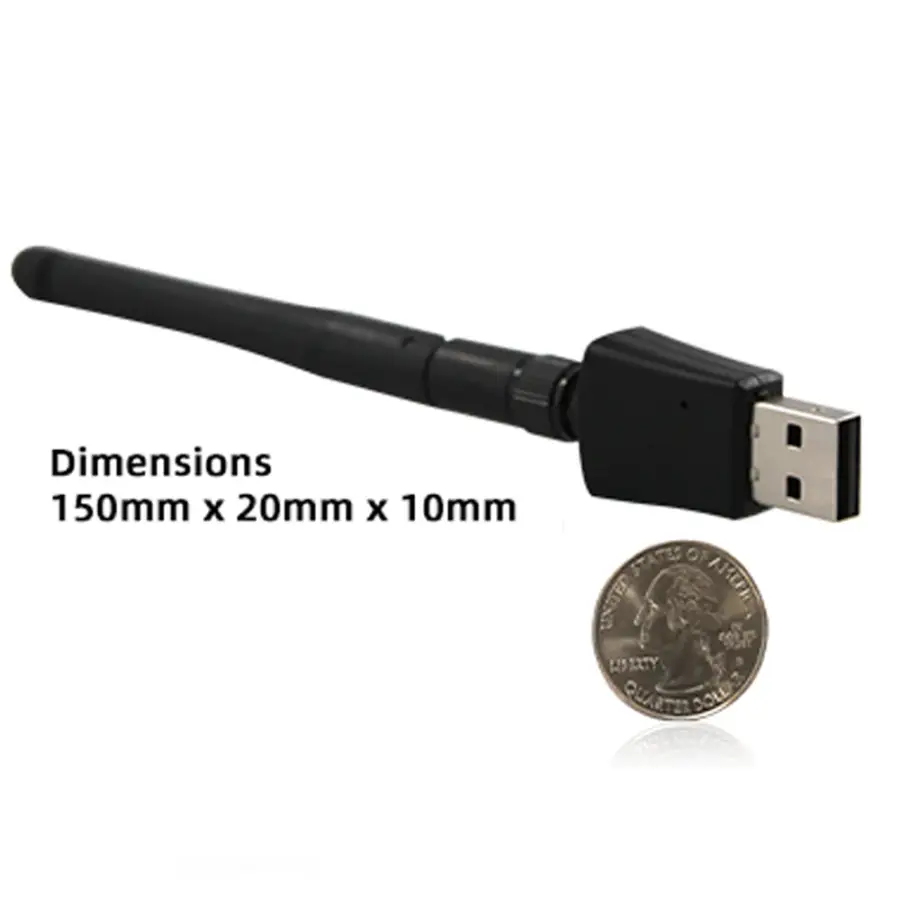

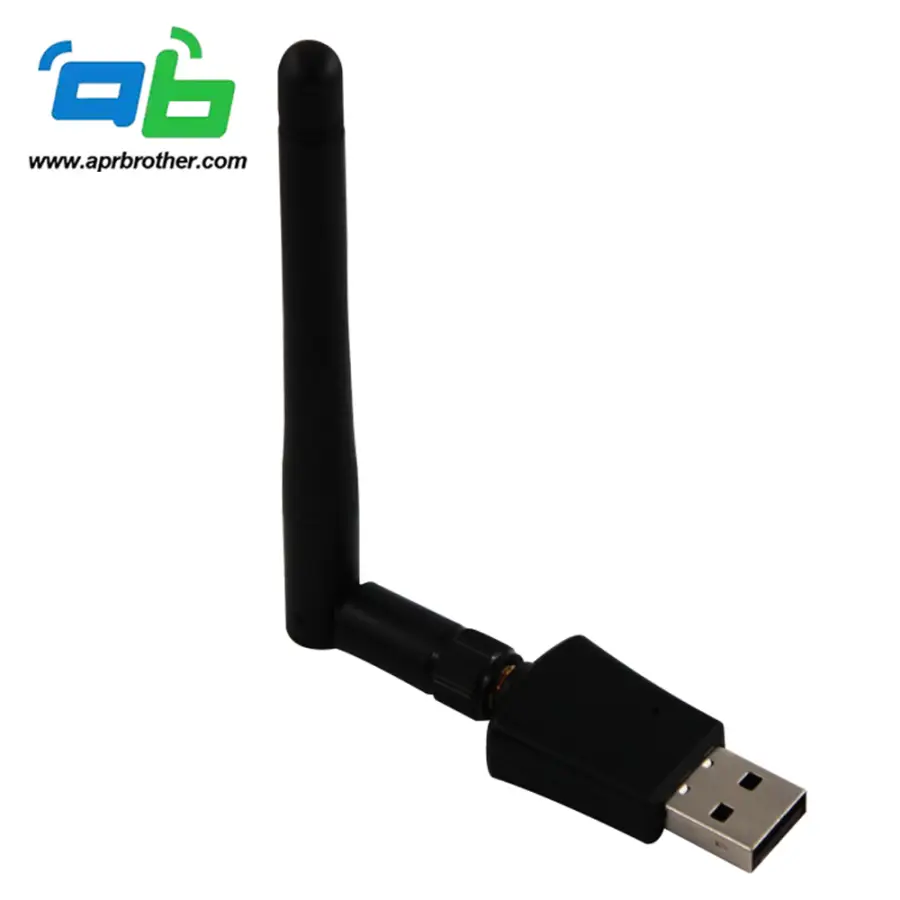

A small and low-cost nRF52840 USB Dongle Form Factor with external antenna
Firmware For Dongle 52840
The USB dongle nRF52840 is flashed with firmware nRF Sniffer for BLE from Nordic.
Note: Please contact us if you want to pre-flash the LOGITacker firmware.
Key Features For Dongle 52840
nRF52840 flash-based ANT/ANT+™, BLE SoC solution
Button and LEDs for user interaction
Super Small Form Factor
Onboard USB bootloader with buttonless support (Adafruit nRF52 Bootloader)
Onboard external antenna
USB support
Hardware Description For Dongle 52840
The nRF52840 Dongle can be used as a development platform for the nRF52840 SoC. It features user configurable LEDs and a button. In addition to radio communication, the nRF52840 SoC can communicate with a computer through USB.
The USB dongle is very similar with Nordic's USB dongle PCA10059. But it has less pinouts and button.
Buttons And LEDs For Dongle 52840
The nRF528540 Dongle is equipped with a LED (LED1), a multicolor RGB LED (LED2), a user configurable button (SW1)
The LEDs and button are connected to dedicated I/Os on the nRF52840 SoC.
SW1 - P1.06
LED1 - P0.06
LED2
Red - P0.08
Green - P1.09
Blue - P0.12
SWD Interface For Dongle 52840
On the front side of the nRF52840 Dongle, there are connection hole for the SWD interface.
Pinouts P1 (from square soldering hole)
GND
VCC
SWDIO
SWDCLK
Packaging Details
- Unit Type:
- Package Weight: 0.080
- Package Size: 18x4x14
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: nRF52840
