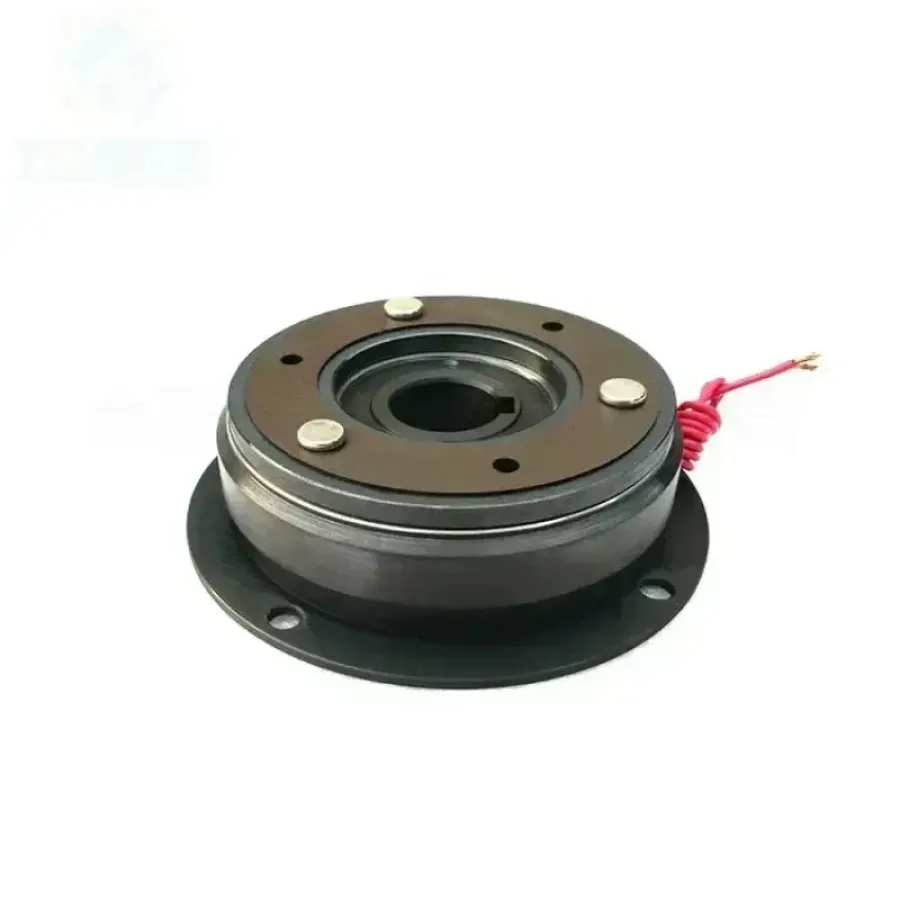

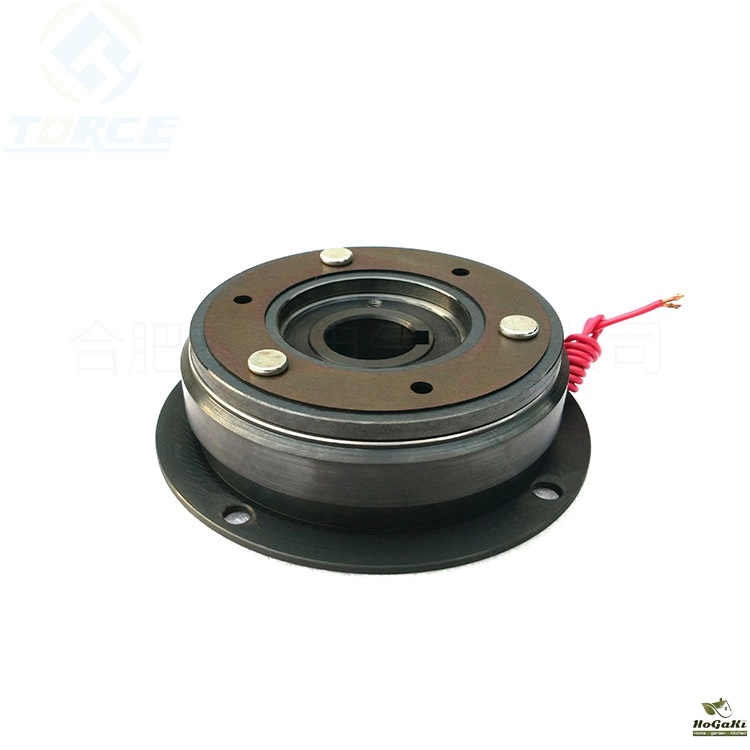

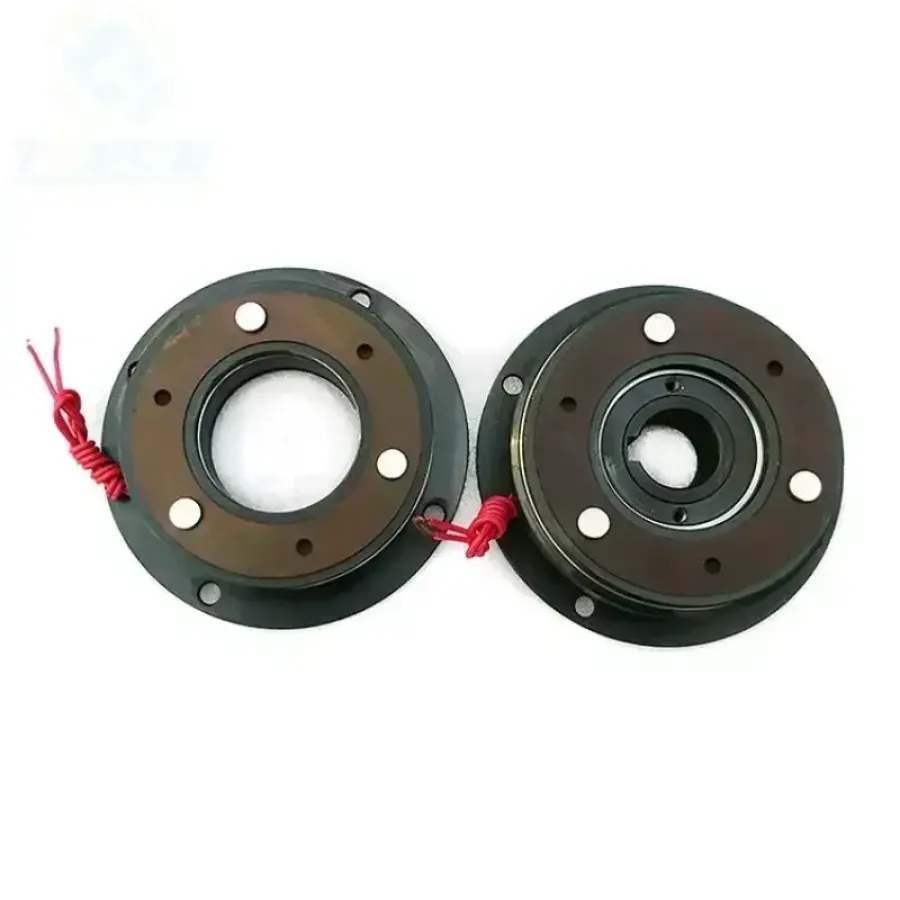

DLD5-10/24VDC/10N.m Single piece dry energized electromagnetic clutch small plate flange installation

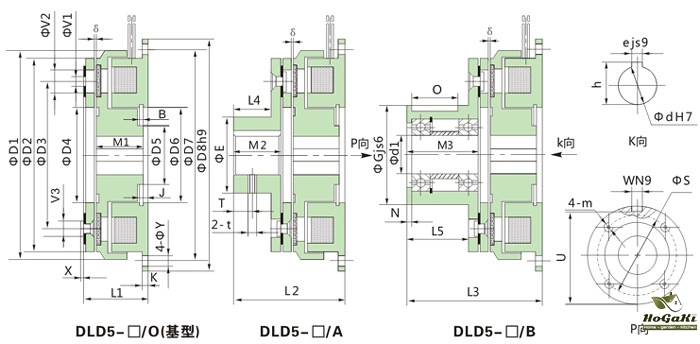

Outer 100/flange installation center distance 90mm/height 31mm/shaft bore 15&20mm/24VDC
The size and voltage can be customized for you,if you have any question,please let us know.
Many thanks!

Purpose

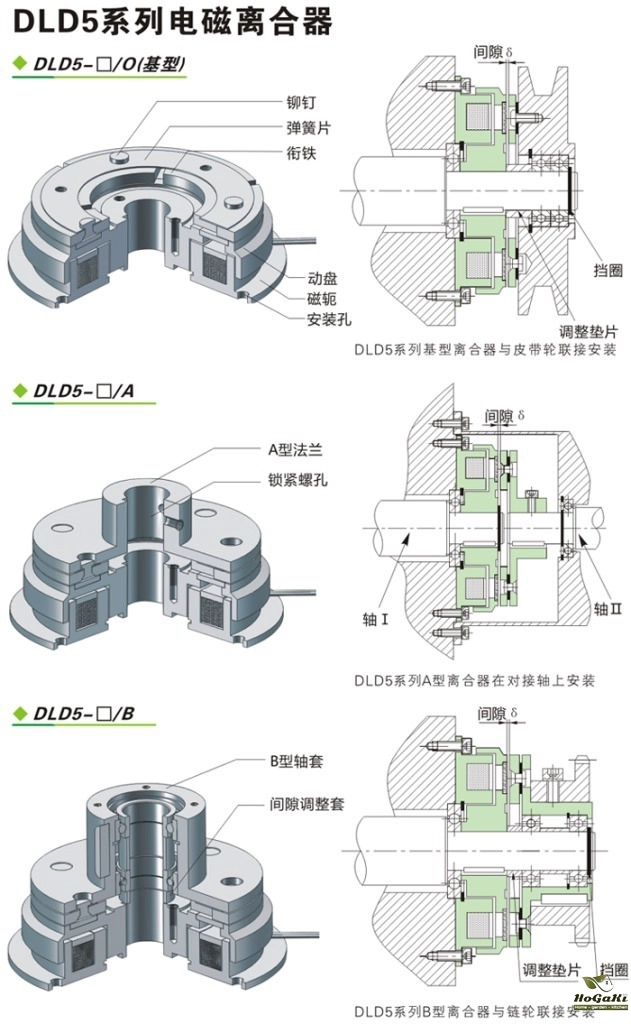

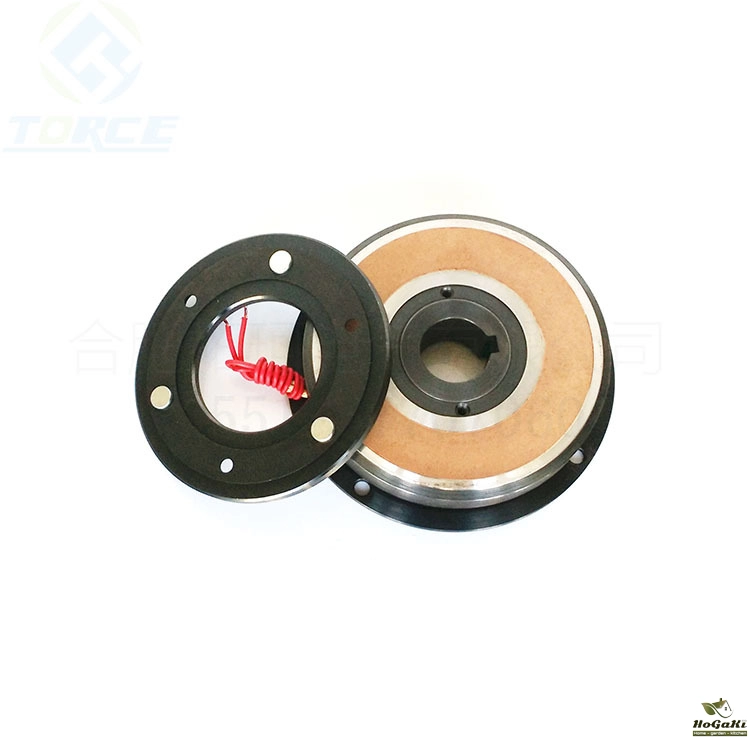

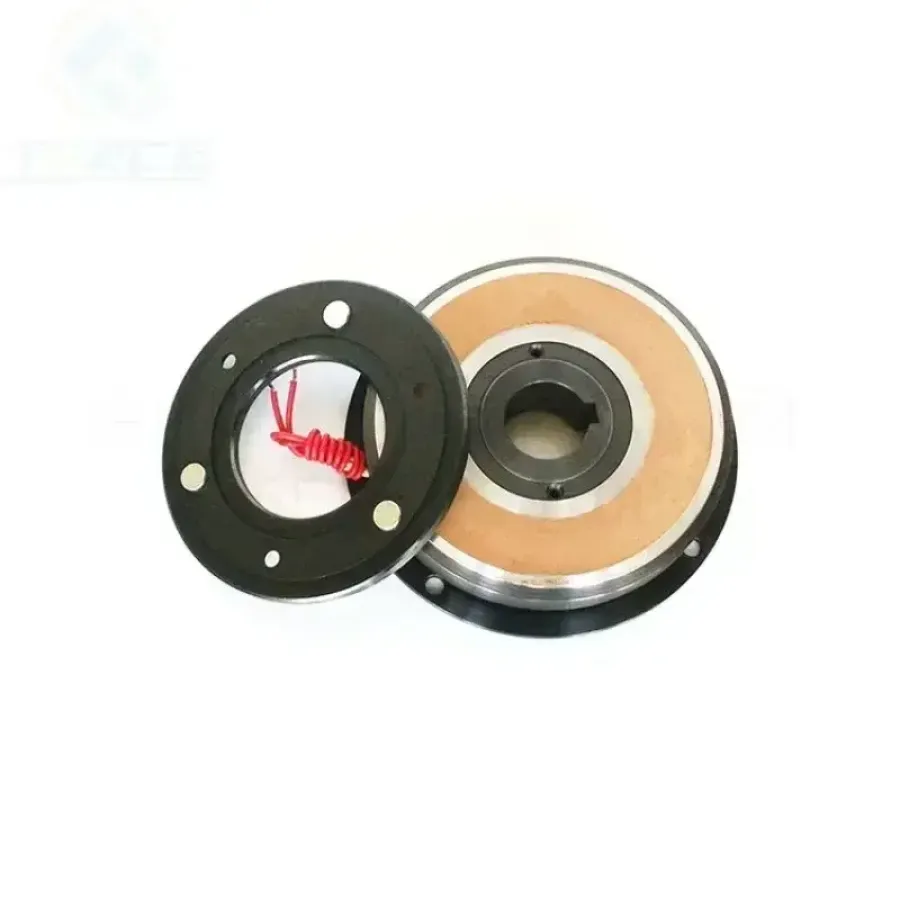

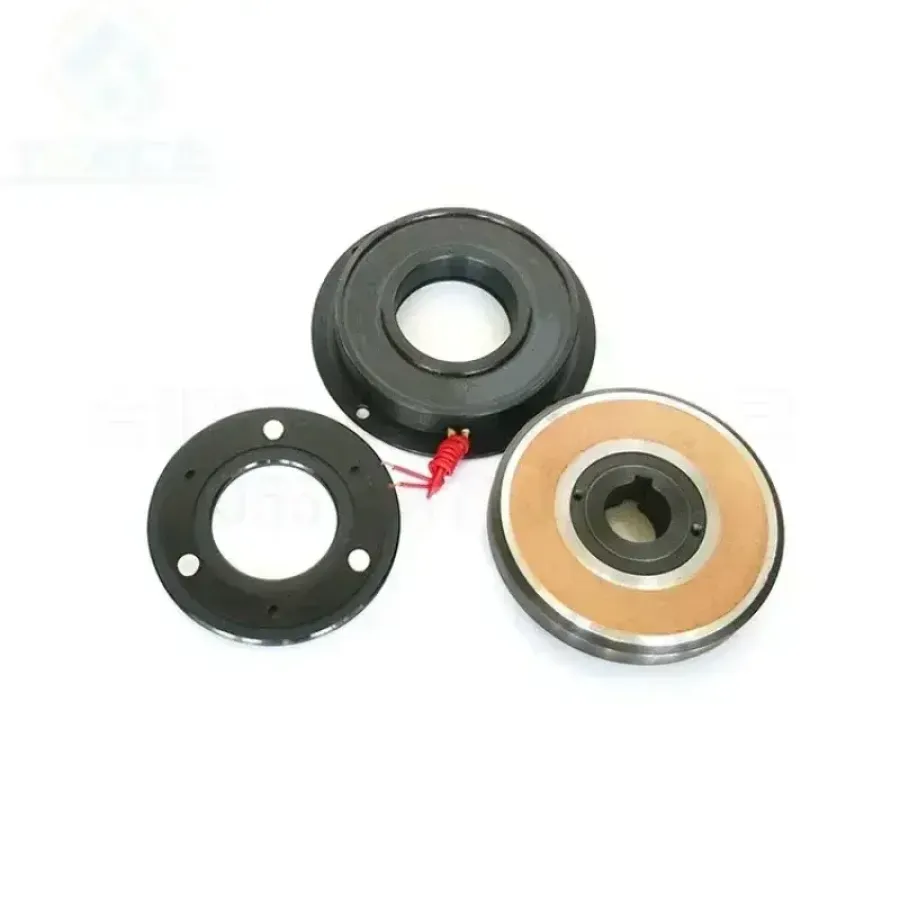

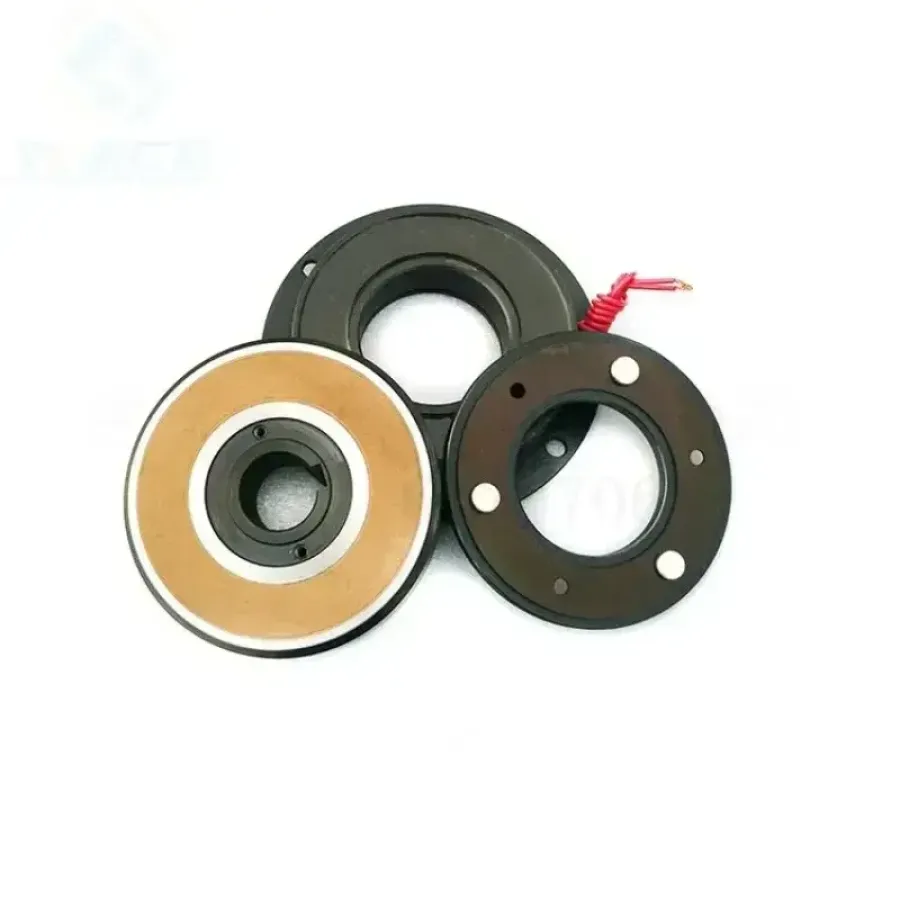

Dry single plate electromagnetic clutch mainly consists of magnetic yoke, armature, spring plate, rotor, flange, etc. The magnetic yoke coil is energized to generate a magnetic field, which attracts the armature and generates frictional torque, causing the driven part to engage or brake, and is reset with a specially formed spring plate. The product has a simple structure, short braking delay time, and high braking torque. Suitable for situations in mechanical transmission systems that require timed coupling or brake positioning requirements. Like precision machine tools. Clutch and positioning in transmission systems of printing machinery, packaging machinery, experimental equipment, and office machinery.

Usage conditions

This series of clutches can work reliably under the following conditions

1. Working under dry conditions;

2. There is no explosion hazard in the surrounding medium, and there are no gases or conductive dust that are sufficient to corrode metals and damage insulation;

3. The working environment temperature is -40~+150 ℃, and the surface of the friction plate and armature must not have oil stains and must be kept clean;

4. The insulation level is B, the protection level is IP23, and the voltage fluctuation range does not exceed+5% and -15%;

5. The working air gap shall not exceed the maximum working air gap, and the main and driven sides of the brake shall be fixed, without axial displacement;

6. Installation method: Install horizontally in the axial direction and vertically in the axial direction. The installation of the clutch must ensure that the coaxiality is not greater than 0.1mm;

7. Working mode: intermittent work, continuous work.

Metal processing:extrusion machines, punching machines, welding machines, pipe making machinery, rolling machines, forging machines
Mechanical machine tools: lathes, milling machines, automatic CNC machines, specialized machines, etc
Handling machinery:cranes, conveyors, winches, etc
Textile equipment: cotton, linen and wool initial processing equipment, spinning machines, weaving equipment, printing and dyeing machinery, etc
Leather processing: embossing machine, layering machine, last carving machine, cutting machine, etc
Paper machinery:bag making machine, cardboard box machine, cutting machine, paper copying machine, binding machine, folding machine, sorting machine, etc
Agricultural machinery: edible oil processing equipment, slaughtering and meat initial processing equipment, feed processing equipment, grain processing equipment, etc
Food processing:fruit and vegetable processing equipment, beverage production equipment, meat product processing equipment, cake making machinery, bottling equipment, noodle making machinery, etc
Injection molding machinery:plastic rolling machines, hollow blow molding machines, other plastic machinery, etc
Packaging equipment: filling machinery, filling machinery, sealing machinery, wrapping machinery, packaging machines, bundling machines, packaging machines, bundling machinery, etc
Printing machinery: rotary machines, feed in printing machines, etc
Office machinery: electronic copying machines, fax machines, printers, copper plate counting machines, etc
Other machinery:reducers, physical and chemical machinery, resin processing machinery, etc
