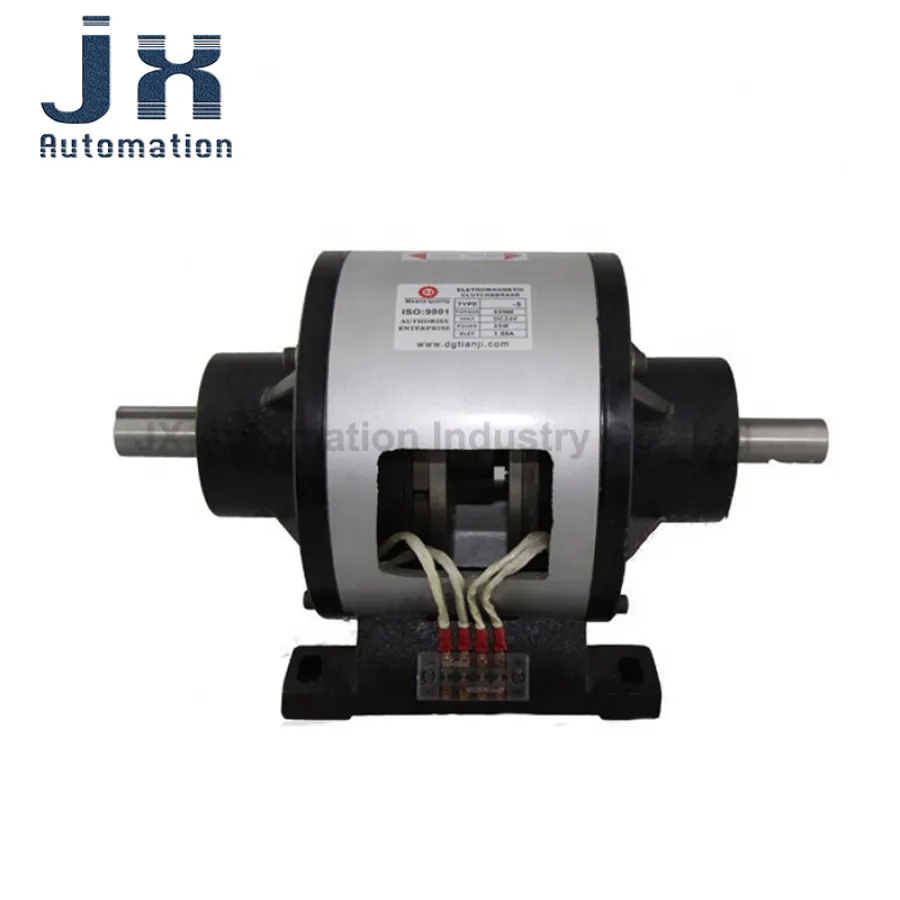

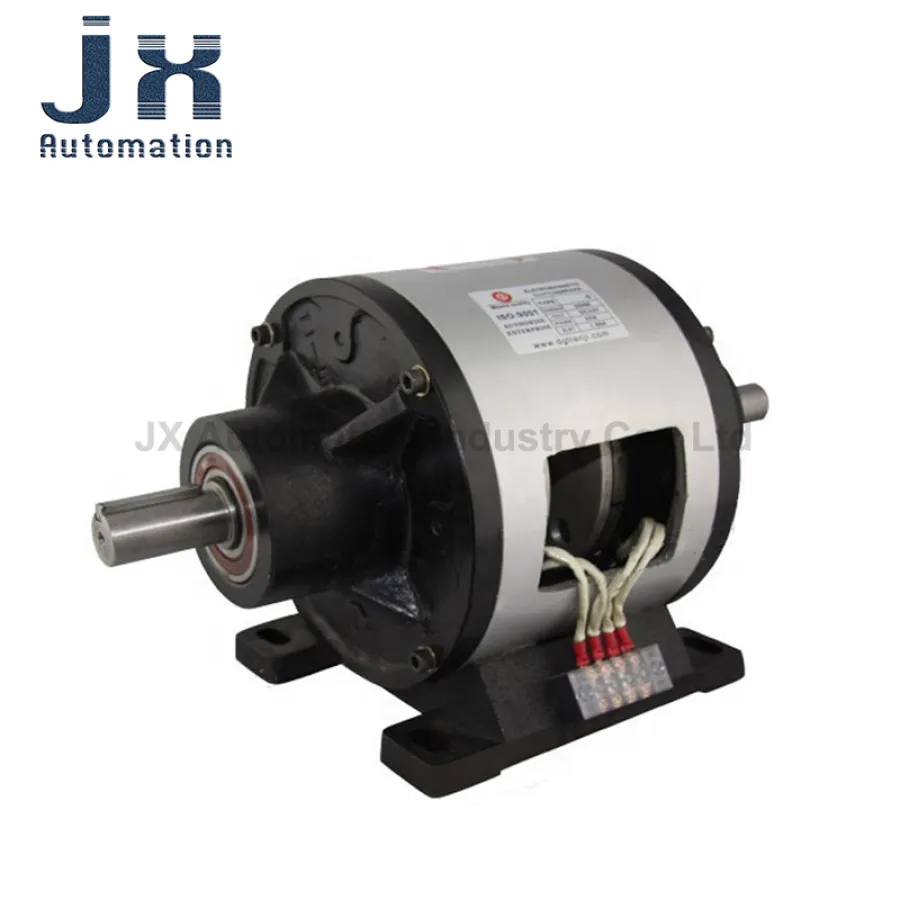

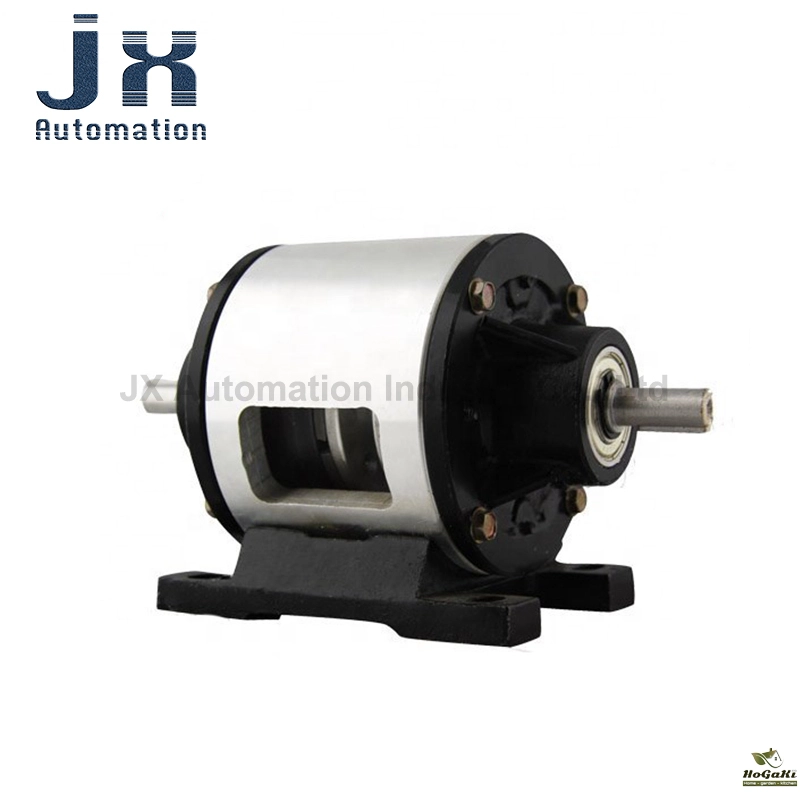

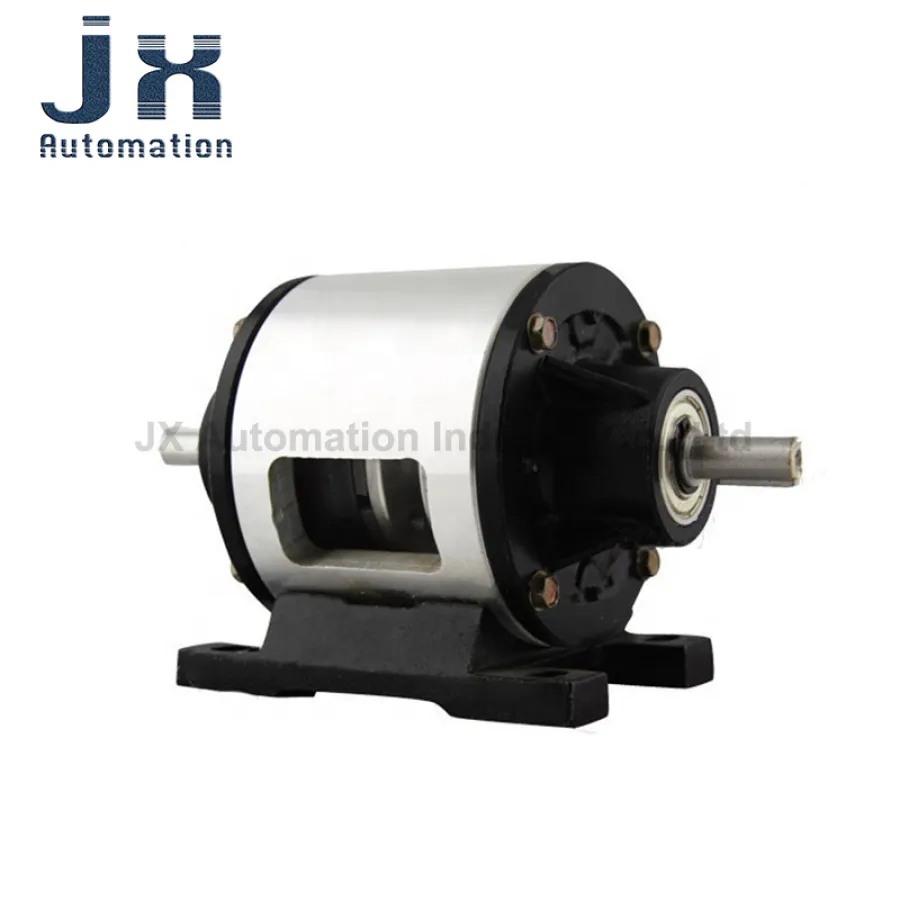

Built-in Electromagnetic Clutch Brake Combination POA-10 Food Packaging Machine Electromagnetic Brake

Brand: Taiwan

Model: TJ-POA-10

Type: Built-in electromagnetic clutch

Material: copper wire, iron, aluminum, bearing, etc.

Torque: 90Nm

Packing: carton + foam

Weight: 22KG

Scope of application: folding machine, steamed bun machine, wrapping paper winding zipper machine, automatic baler, corner sticking machine, corner punching machine, corner wrapping machine, air jet loom, printing machine, warping machine, etc.

The composition of the electromagnetic clutch brake group:

The electromagnetic brake clutch group is called the electromagnetic clutch brake assembly, and is mainly composed of an integrated assembly of a TJ-A type electromagnetic clutch and a TJ-B2 type electromagnetic brake. It is roughly divided into exposed, built-in, double electromagnetic clutch sets, double/single flange electromagnetic clutch brake sets and other series. The internal and external devices of each of the above electromagnetic clutch brake sets are slightly different, but they all have the same characteristics: wide application, simple structure, high frequency operation, and safe use. Taiwan Tianji Electromagnetic Clutch Brake Group is one of the most common equipments in packaging machinery, moon cake machinery, bread machinery, wire and cable equipment, textile machinery, food machinery, electronic equipment, ultrasonic machinery and other mechanical fields.

Features:

The main functions of the electromagnetic clutch brake assembly are start, stop, and inching positioning.

1. The structure is simple and compact, easy to operate, and can ensure accurate combination in a very short time. Moreover, the connection is reliable, the brake is flexible, and the automatic control of the working mechanism and the long-distance operation can be realized.

2. Since the armature fixed to the input shaft is used, the electromagnetic coil can be fixed on the end cover, which overcomes the disadvantage that the ordinary electromagnetic clutch needs to be provided with the wiring slip ring on the outer circumference of the rotating coil, and the wear is greatly reduced. Guaranteed power to the coil

By time. The control power is small and the service life is long.

3, the spring seat, the pin, the spring with the friction plate, the axially movable device, and replace the spline sleeve in the electromagnetic clutch currently widely used, the device for axial sliding, so that the processing is relatively simple, the installation Maintenance is also simple. The spring seat is made of aluminum alloy, which reduces the influence of residual magnetism on the clutch effect. When designing the combination of the electromagnetic clutch and the brake, it is only necessary to perform the shear calculation of the pin and the calculation of the bending stress.
