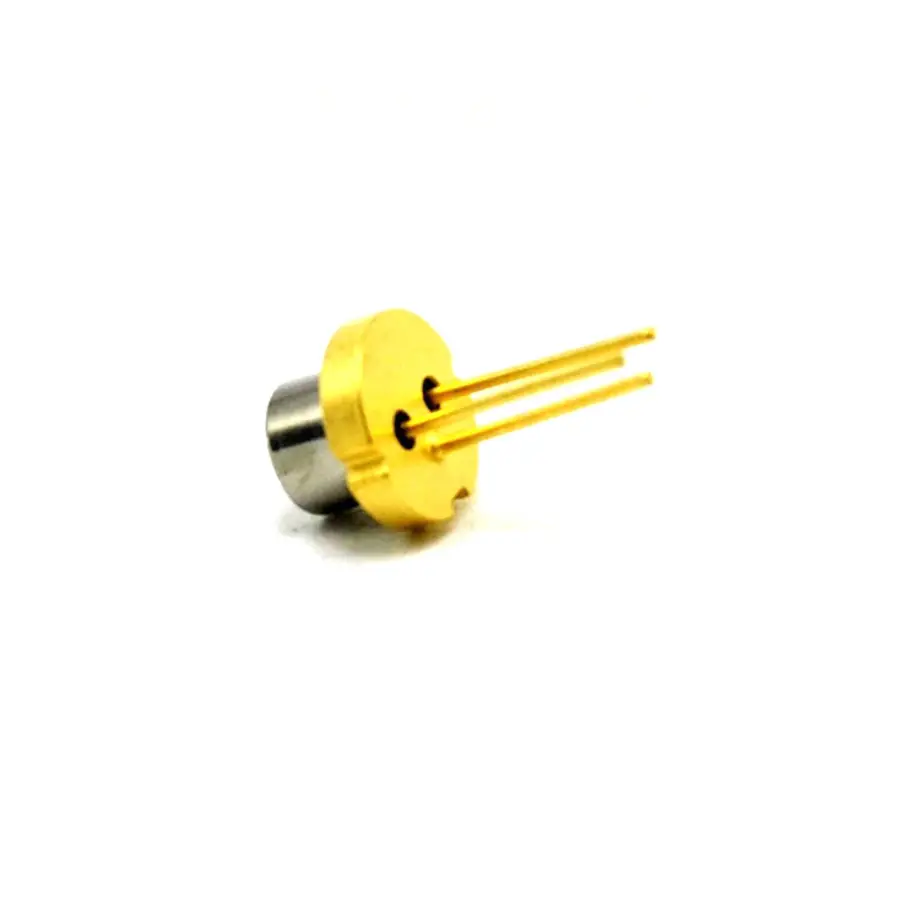

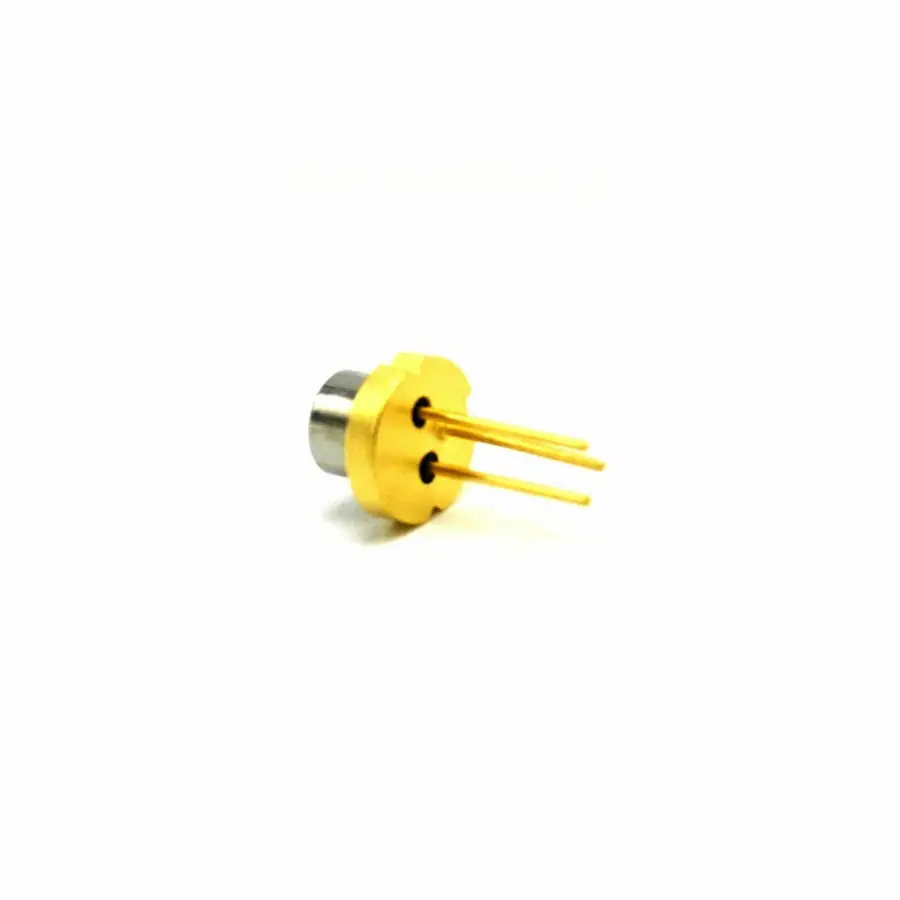

488nm 55mw 5.6mm Cyan Light GH04850B2G TO-18 Φ5.6mm Laser Diode
0.0 ( votes) | 4 orders
Price:
US $104.62
Discount Price:
US $
83.47
-20%
Specifications:
Wavelength: 487nm
Light Output: 55mW CW W

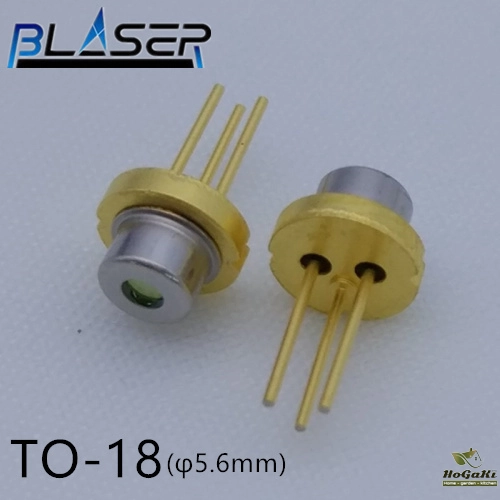

Package Type: TO-18(Φ5.6mm)

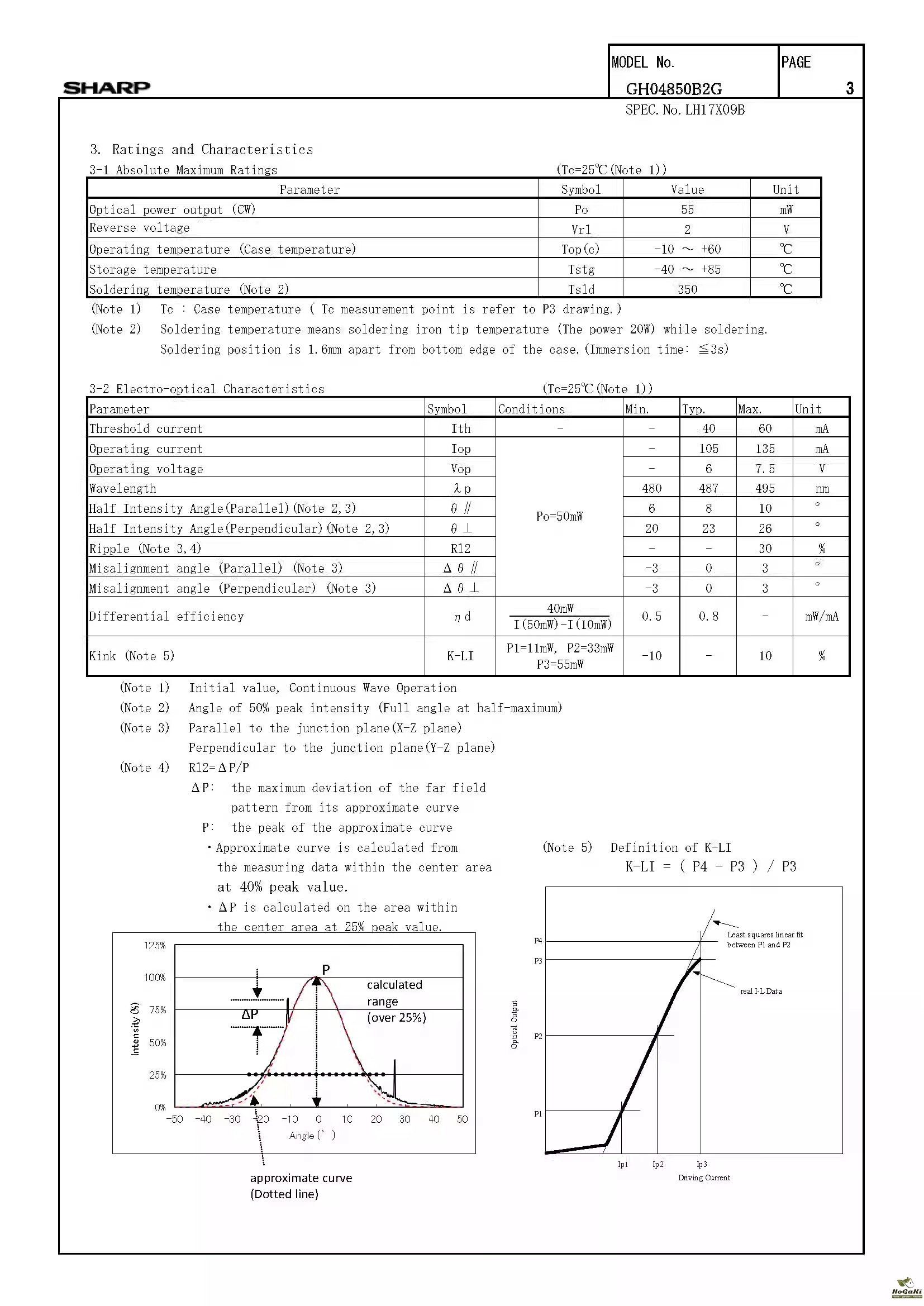

Absolute Maximum Ratings(Tc=25℃)
Parameter | Symbols | Ratings | Units |
Optical Output（功率） | Po | 55 | mW |
Reverse Voltage（电压） | Vr | 2 | V |
Photo diode | Vr(PD) | 20 | V |
Operating Temperature（工作温度） | Top | - 10 ～ 60 | ℃ |
Storage Temperature（储存温度） | Tstg | - 20 ～ 85 | ℃ |
Electrical and Optical Characteristics(Tc=25℃)
Parameter | Symbols | Min | Typ. | Max | Unit. |
Threshold Current（阈值电流） | Ith | 40 | 60 | mA | |
Operating Current（工作电流） | Iop | 105 | 135 | A | |
Operating Voltage（工作电压） | Vop | 6 | 7 | Volt | |
Slope Efficiency（斜率效率） | η | 0.8 | W/A | ||
Monitor Current（峰值电流） | Im | - | mA | ||
Beam Divergence（水平方向） | θ// | 6 | 8 | 10 | deg. |
(FWHM) （垂直方向） | θ⊥ | 20 | 23 | 26 | deg. |
Central wavelength（中心波长） | λ | 480 | 487 | 495 | ±10nm |
and θ⊥ are defined as the angle within which the intensity is 50% of the peak value.

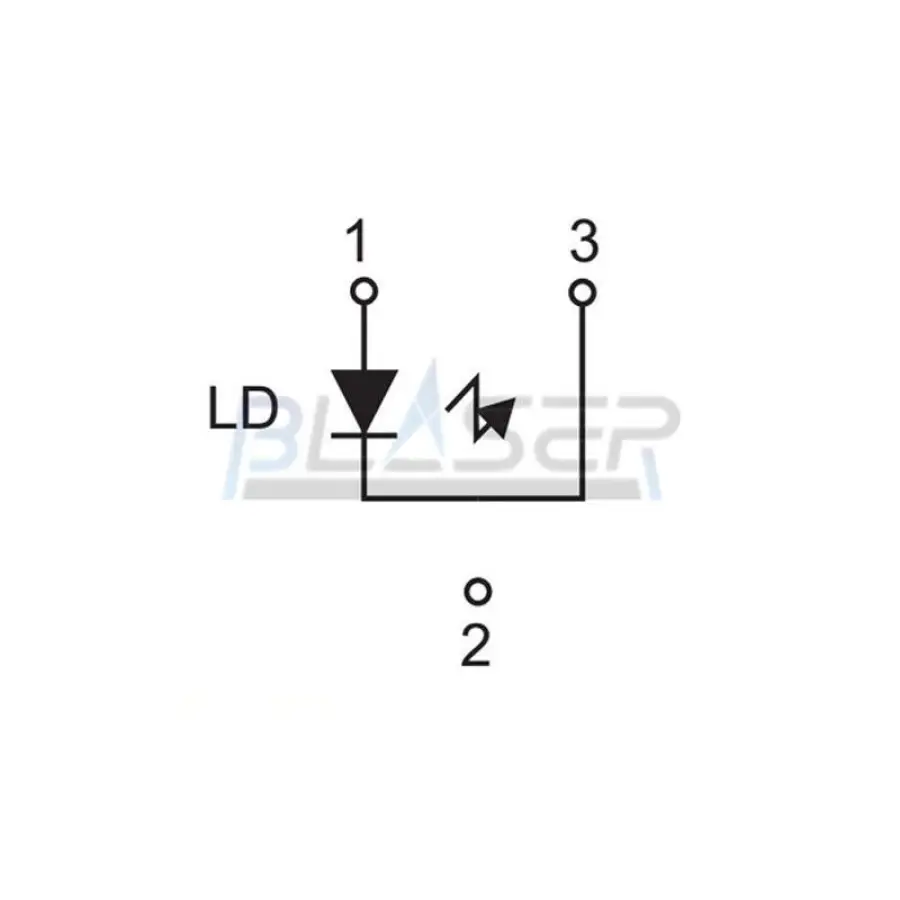

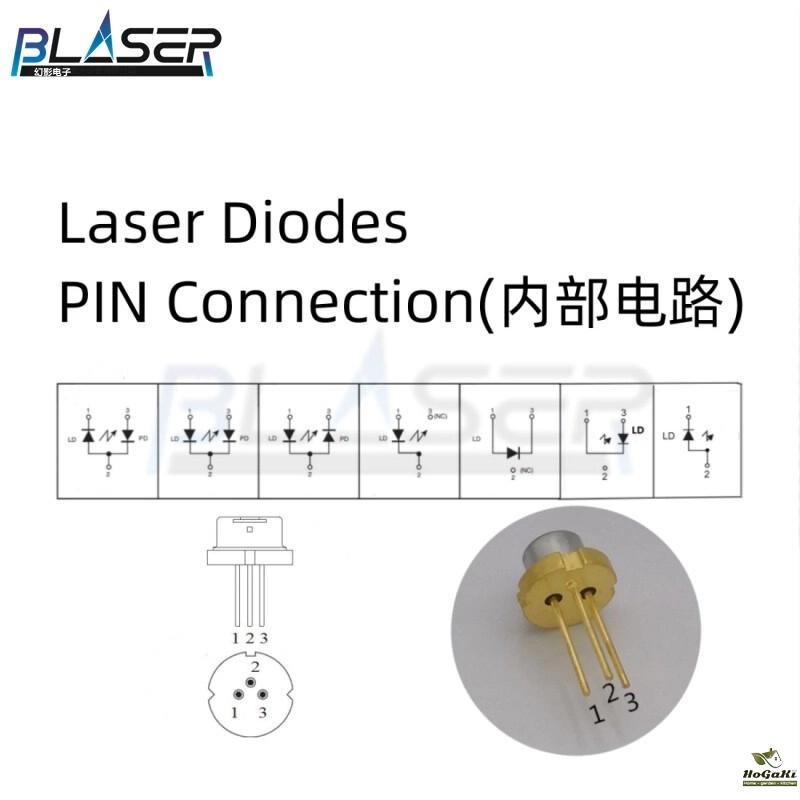

参考尺寸及图片如下：
Package:
1pc x488nm 50mw 5.6mm Cyan Light GH04850B2G TO-18 Φ5.6mm Laser Diode
Packaging Details
- Unit Type:
- Package Weight: 0.050
- Package Size: 9x7x11
- Brand Name: Q-LINE
- Origin: Mainland China
- Hign-concerned Chemical: None
- Power Source: Solar
- Luminous Flux: <60
- Is Bulbs Included: No
- Item Type: laser flashlight
