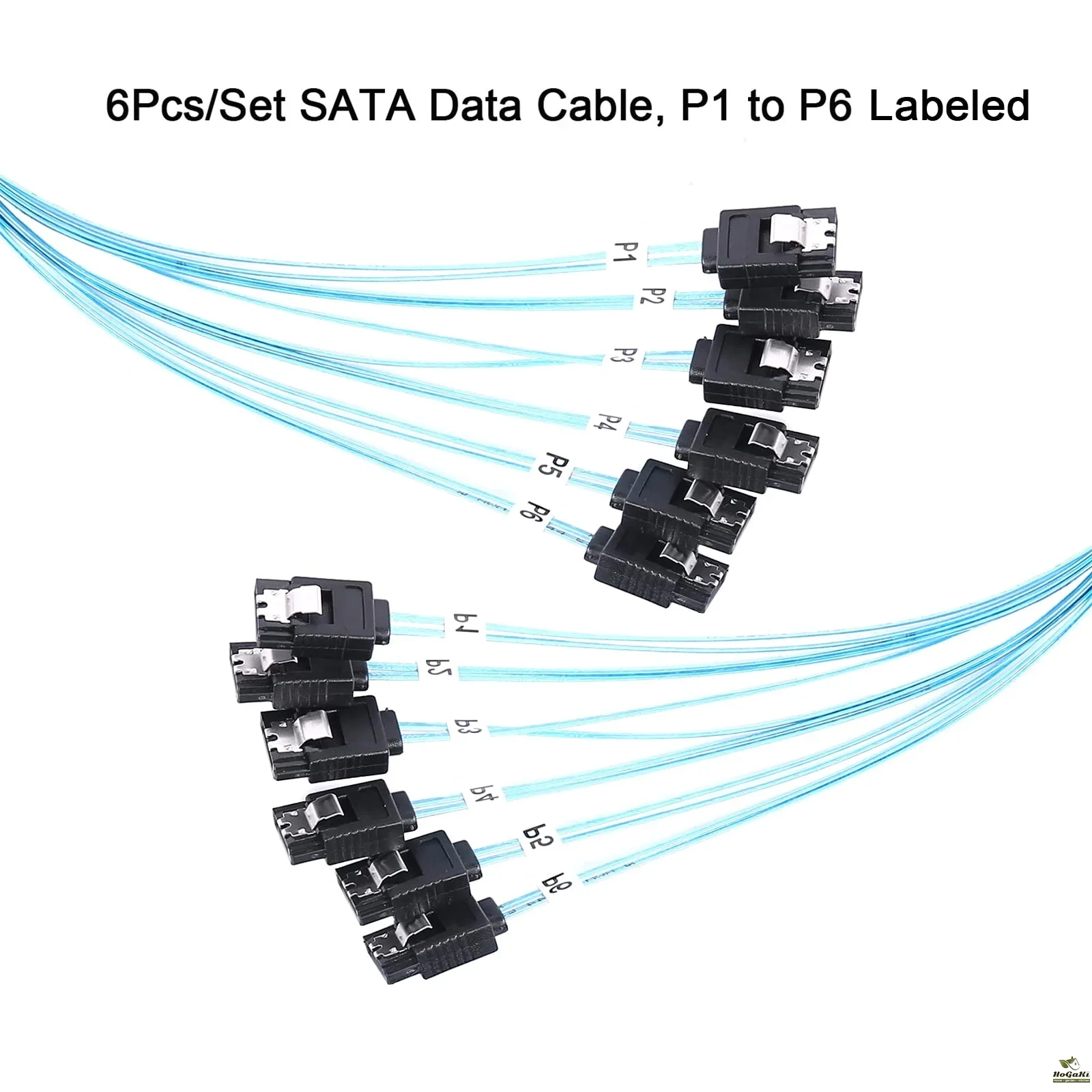

4/6/8 pcs/set Sata To Sata Cable 6 Ports/Set SATA 3.0 Date Cable 7 Pin to 7 Pin Sas Cord 12Gbps HDD Cable For Server NAS PC
5.0 (56 votes) | 421 orders
Price:
US $40.79 - 89.06
Discount Price:
US $
15.66 -
31.75
-62%

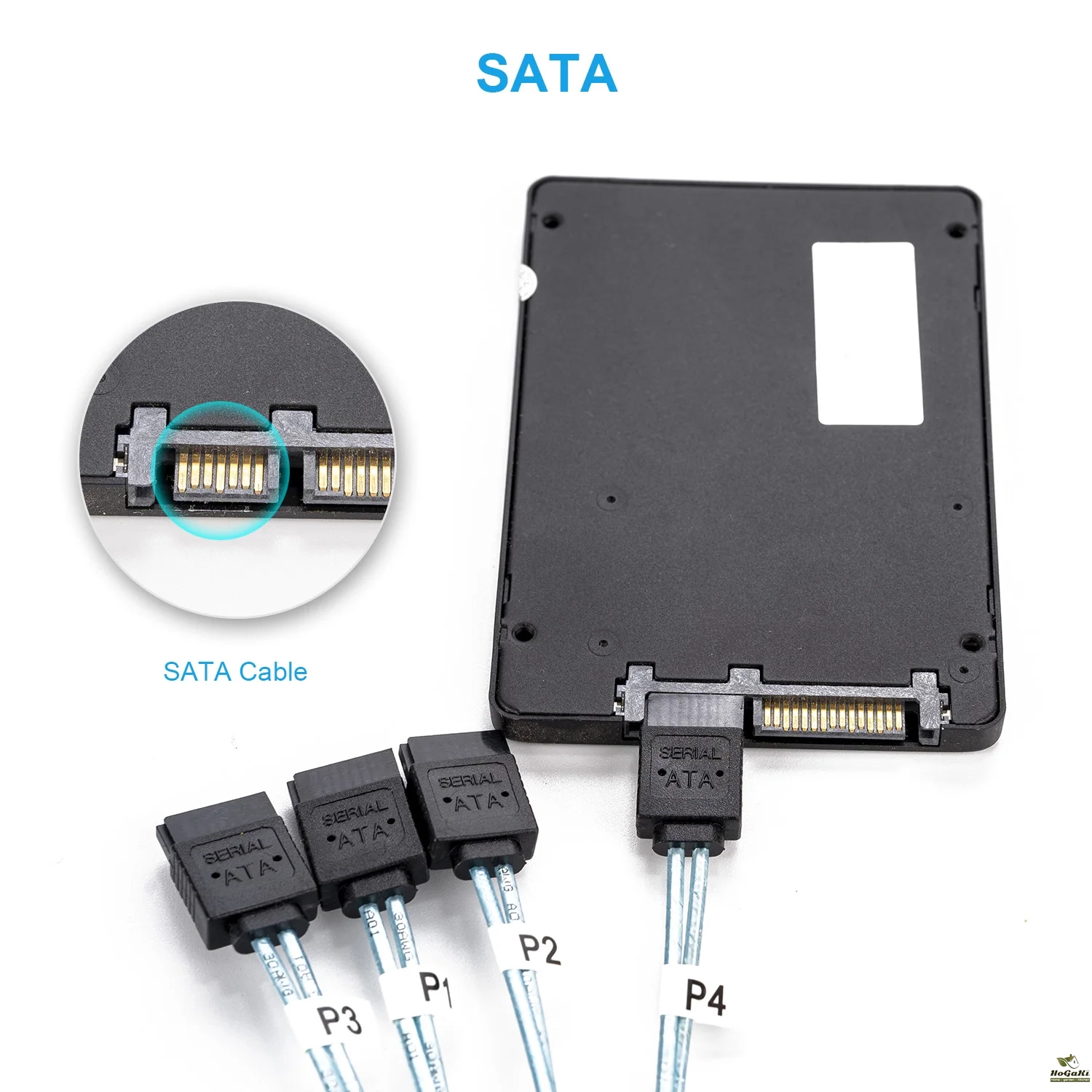

4/6/8 pcs/set Sata To Sata Cable 6 Ports/Set SATA 3.0 Date Cable 7 Pin to 7 Pin Sas Cord 12Gbps HDD Cable For Server NAS PC
Series: SATA

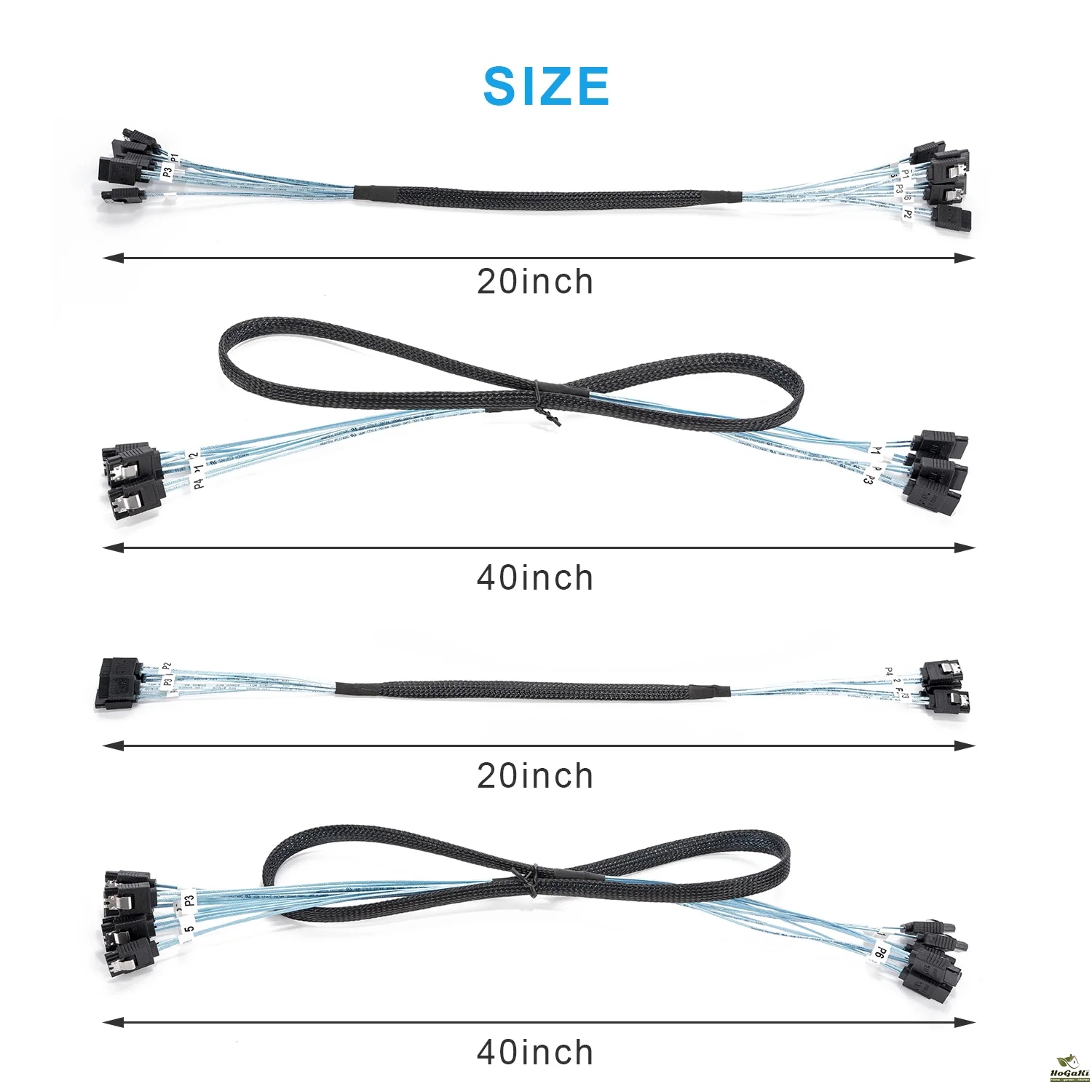

Cable Length: 0.5M
Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM

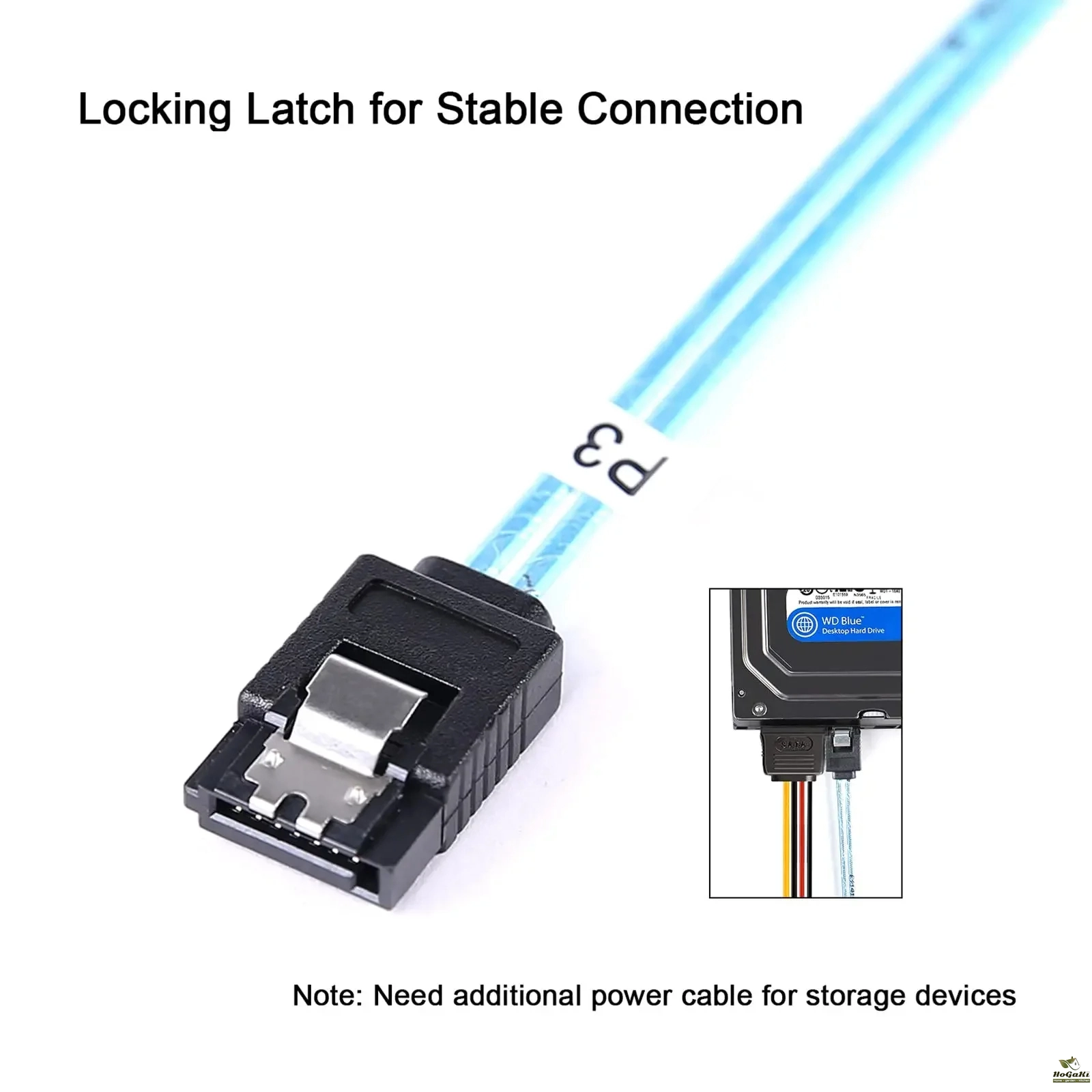

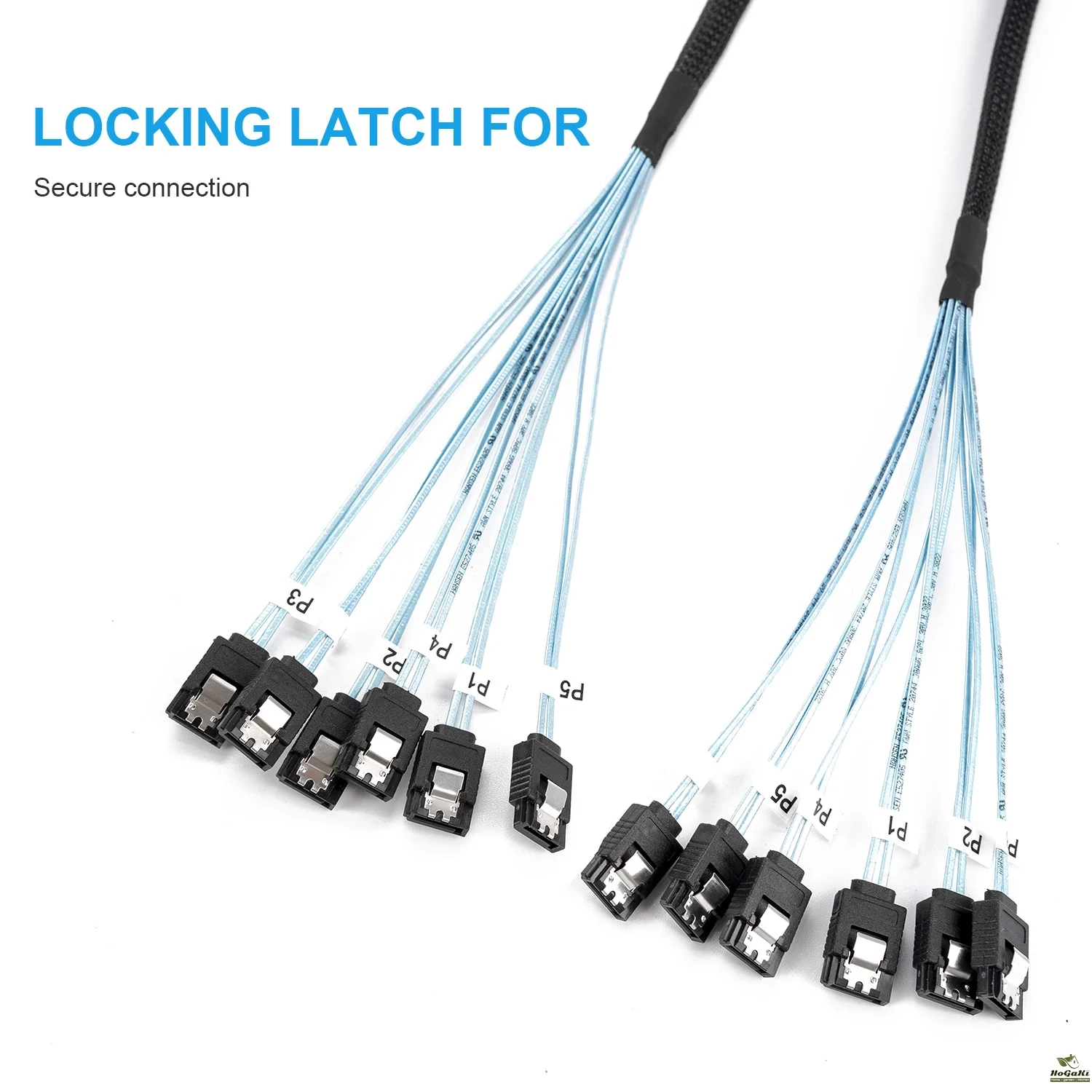

Lock to Mating Part: With Latch
Plating: Au 15u' min over Ni 100u' min
Color: Cable white, Over mold Black
Environmental Compliance: ROHS
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0

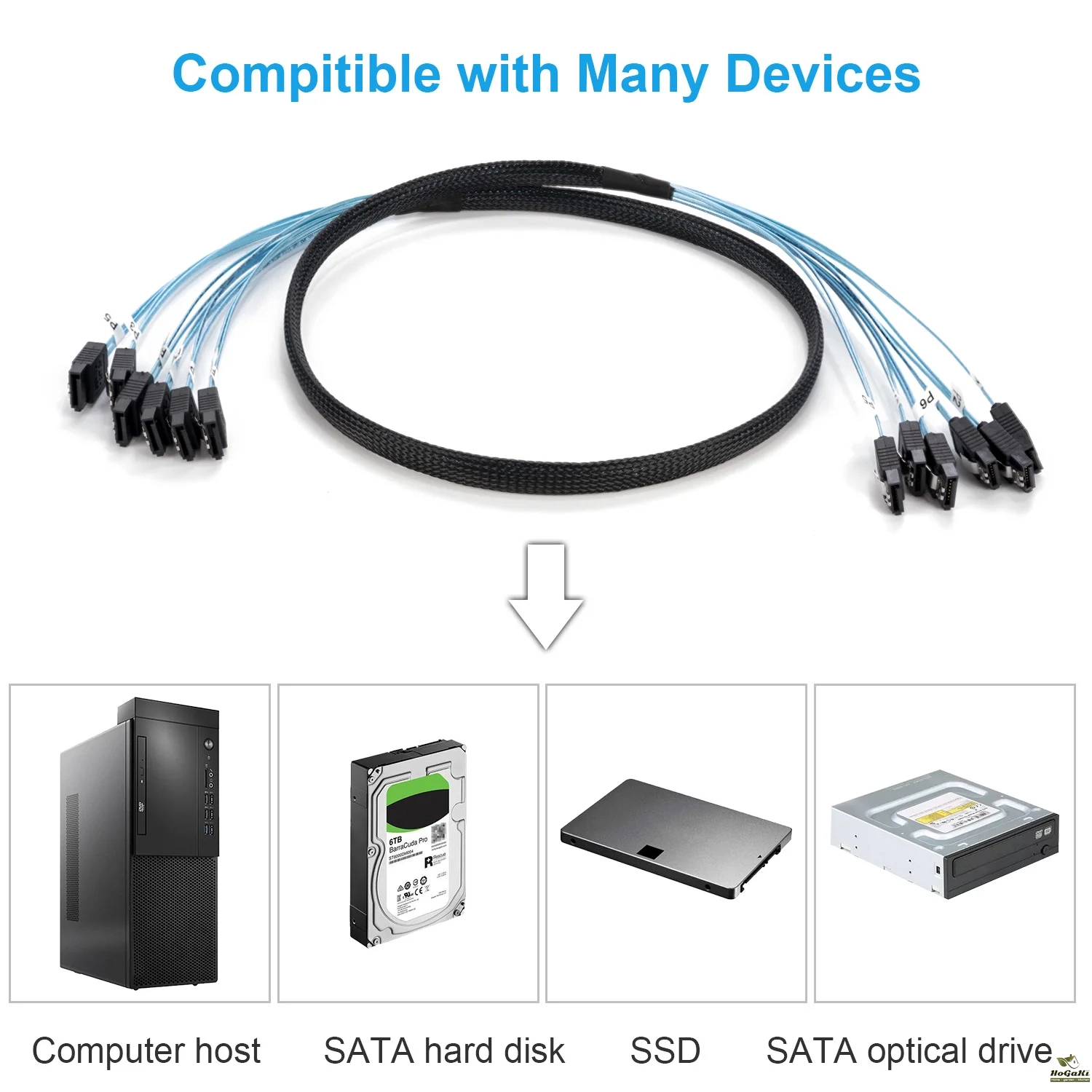

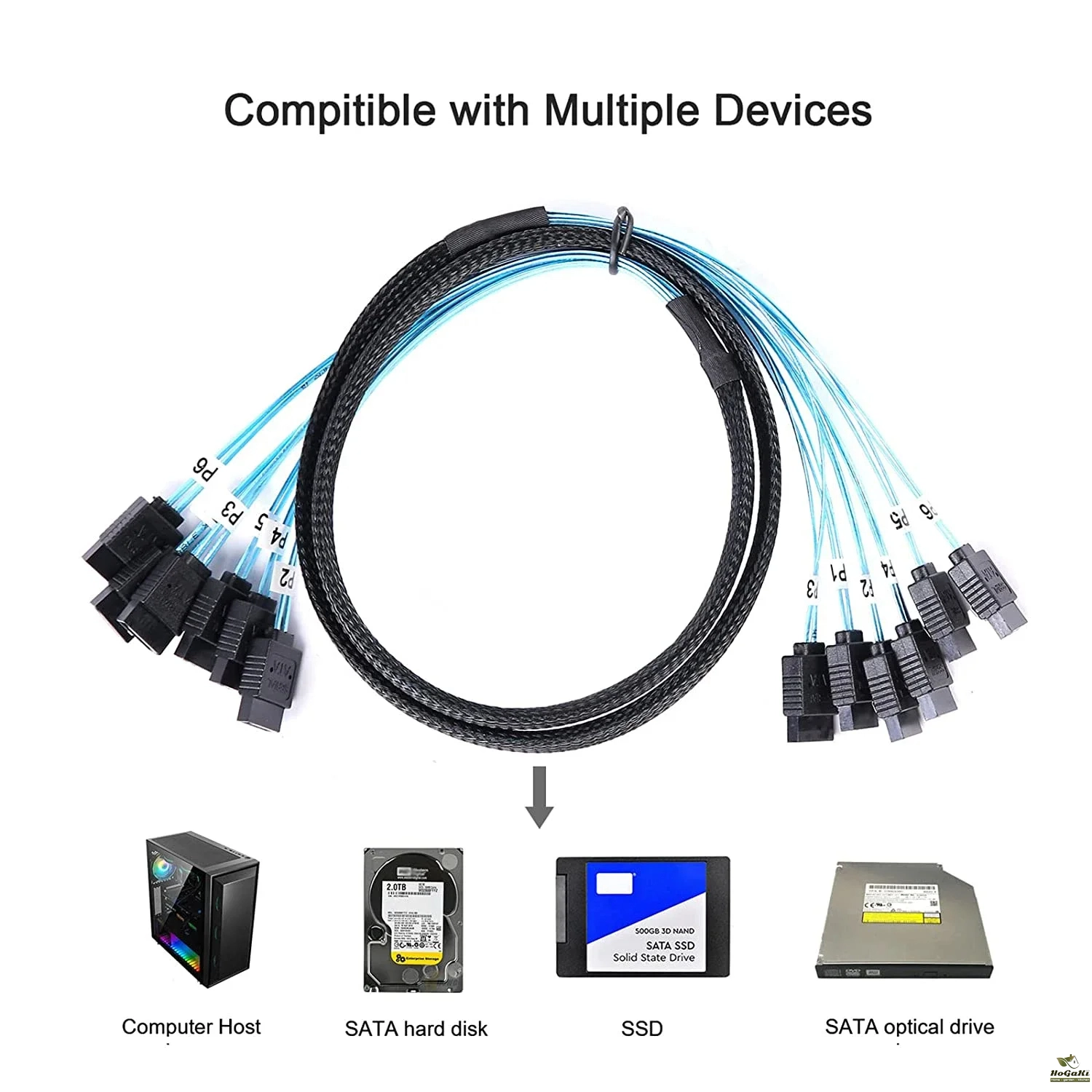

Applications
Data/Communications
1.RAID (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 12Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum for Mini SAS.
Unmating Force: 49 N maximum for Mini SAS.
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector.
Electrical Performance
1.Contact Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 ohm±15%
2. Cable Absolute Impedance: 100 ohm±10%
3. Cable Pair Matching: ±5 ohm
4. Common Mode Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dB up to 6Ghz;
Product Environmental Compliance
RoHS2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed

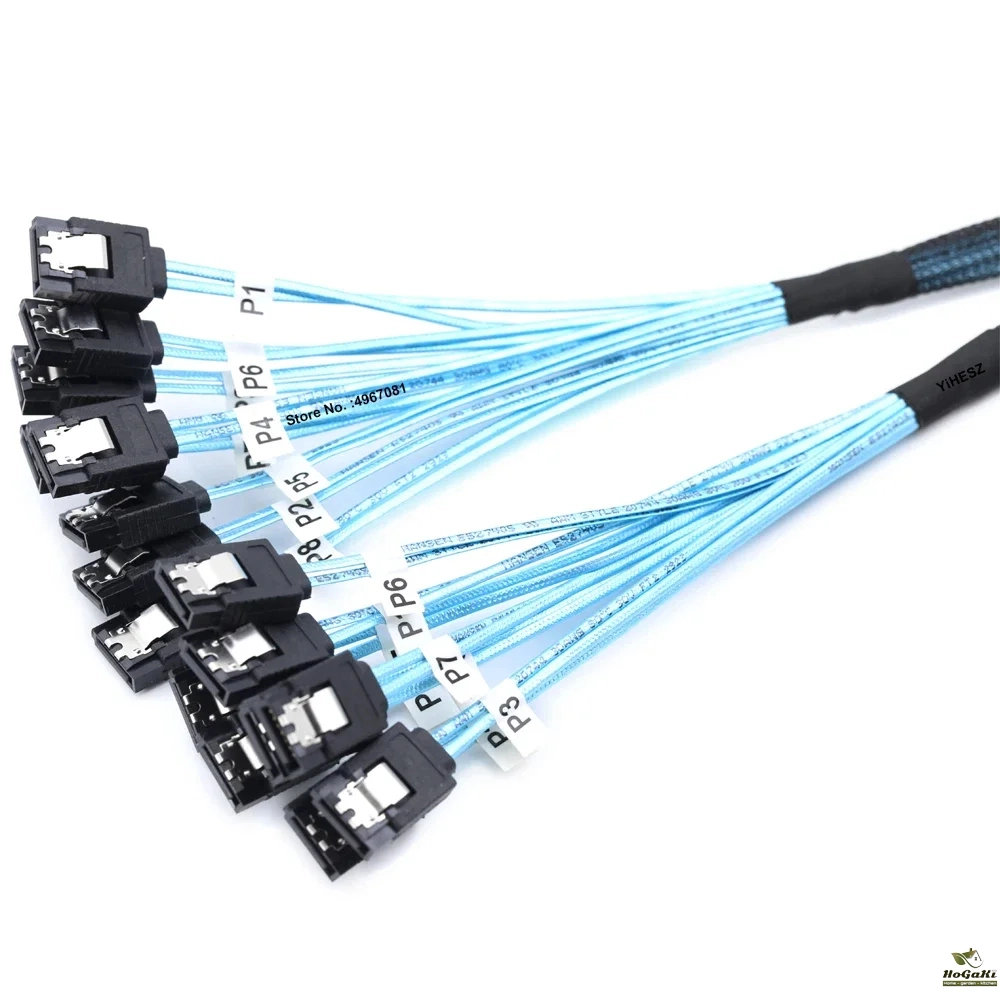

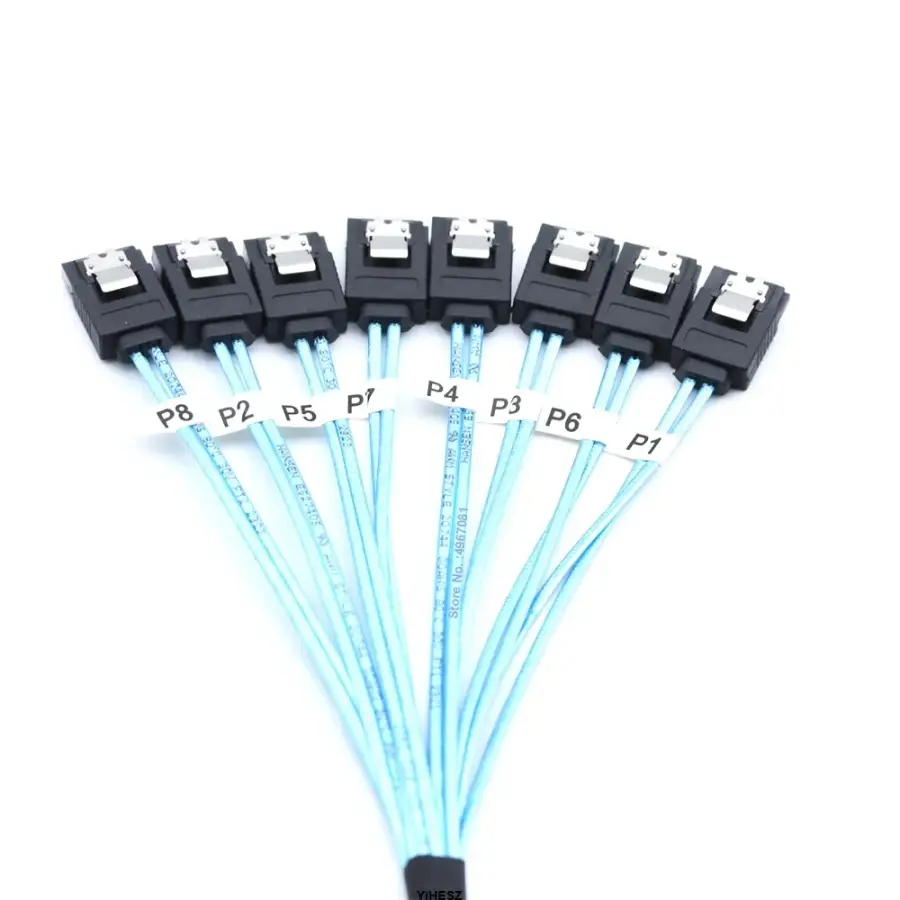

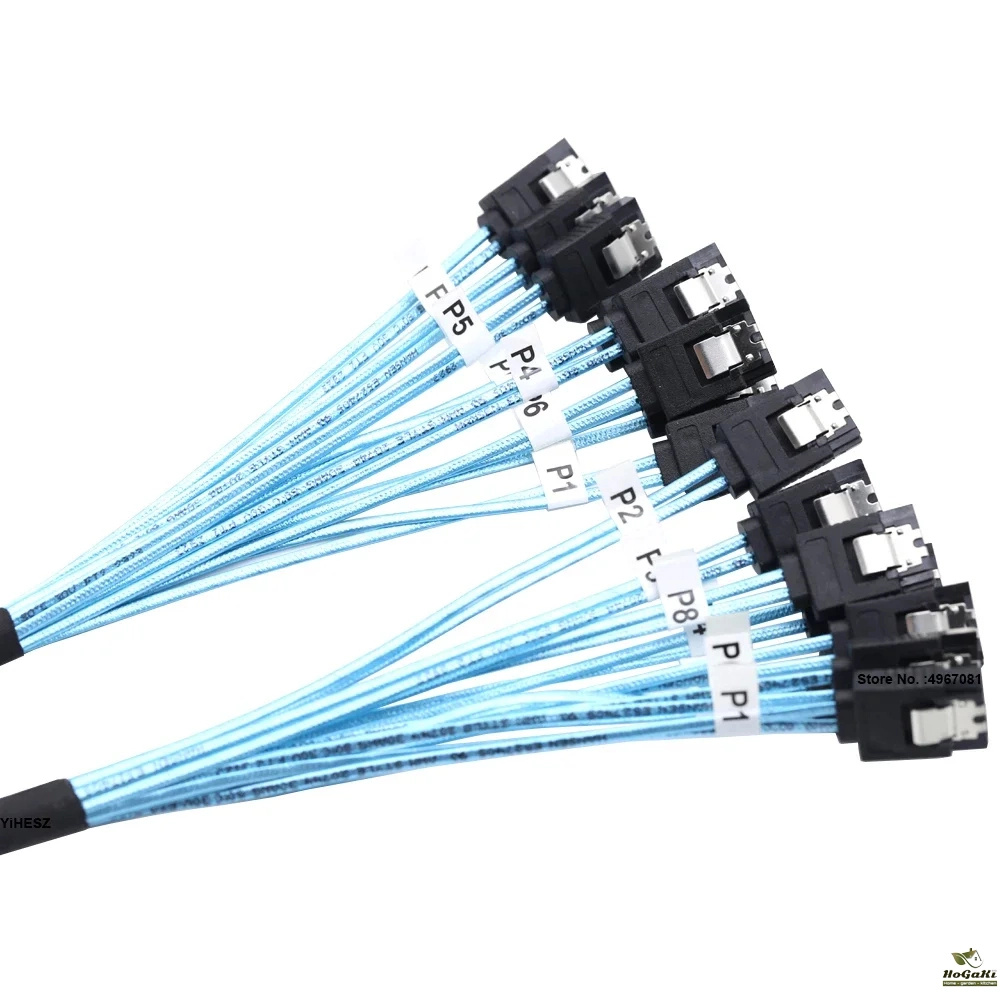

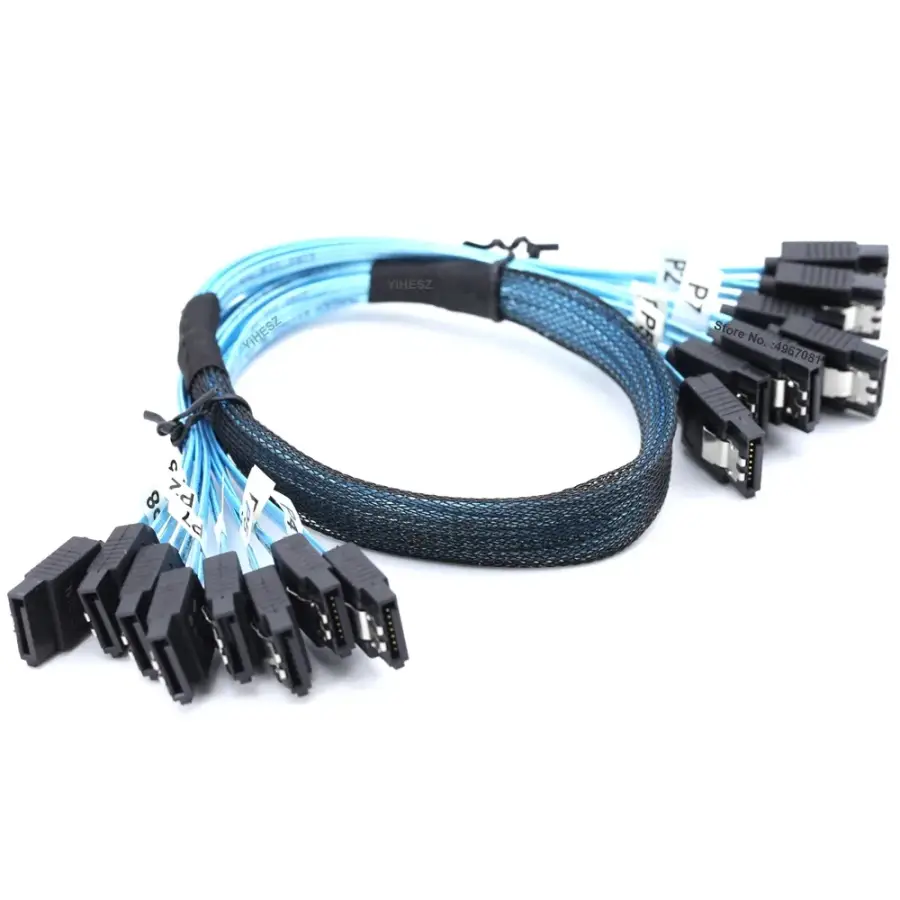

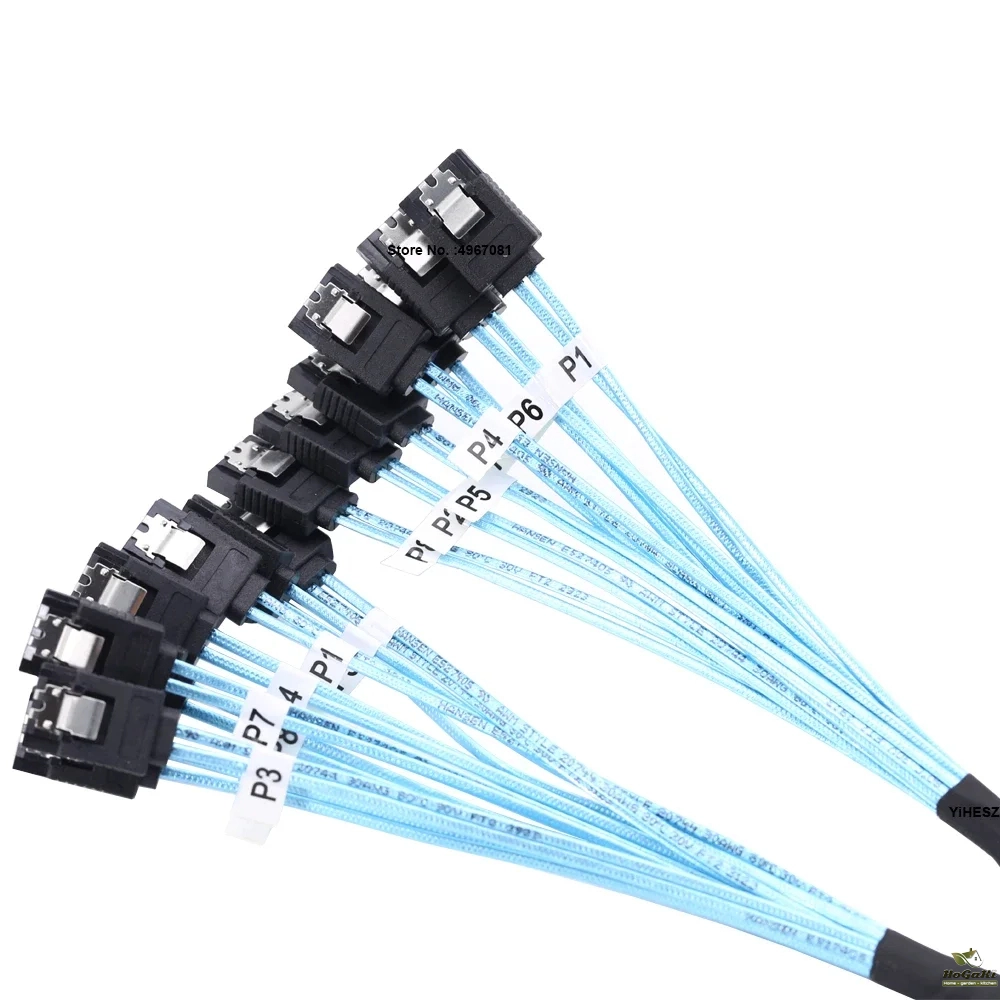

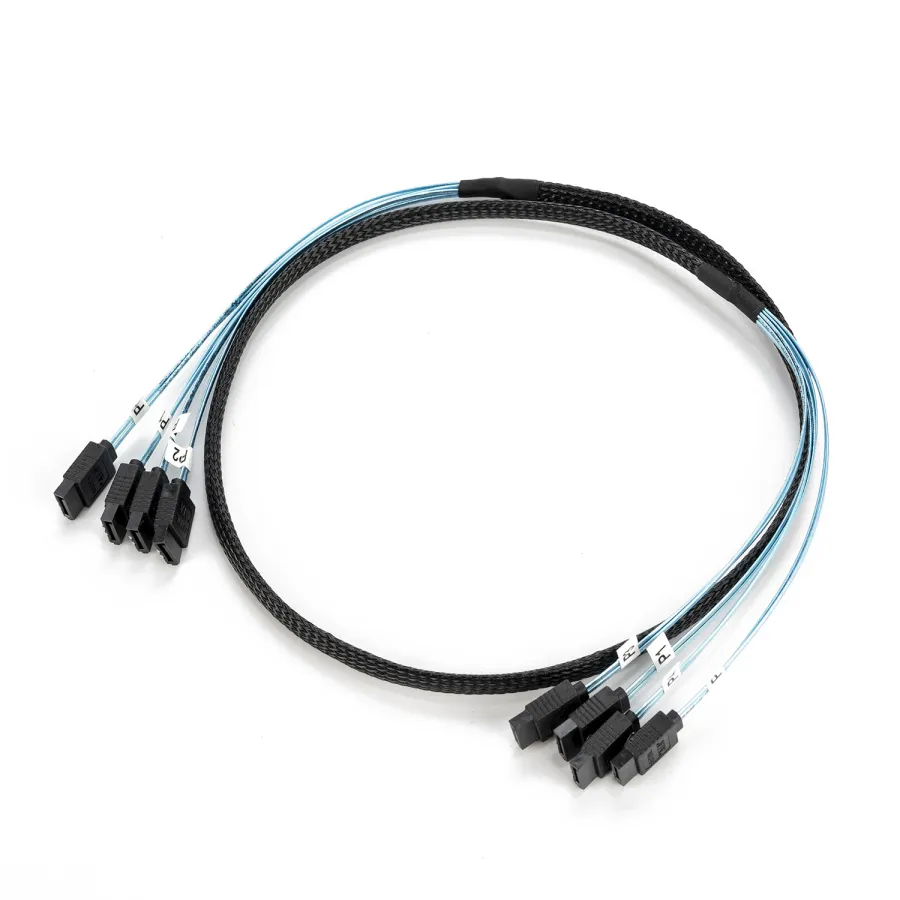

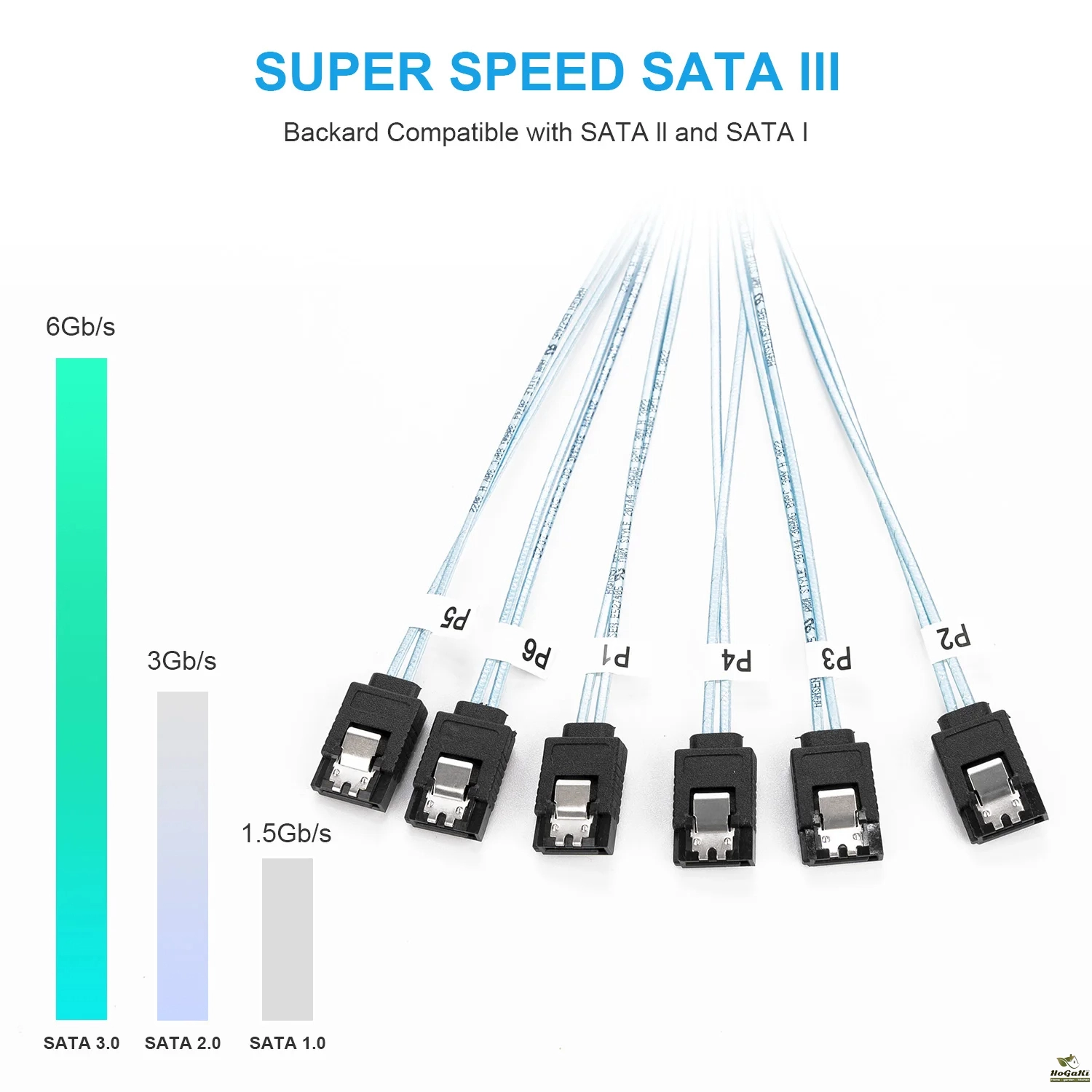

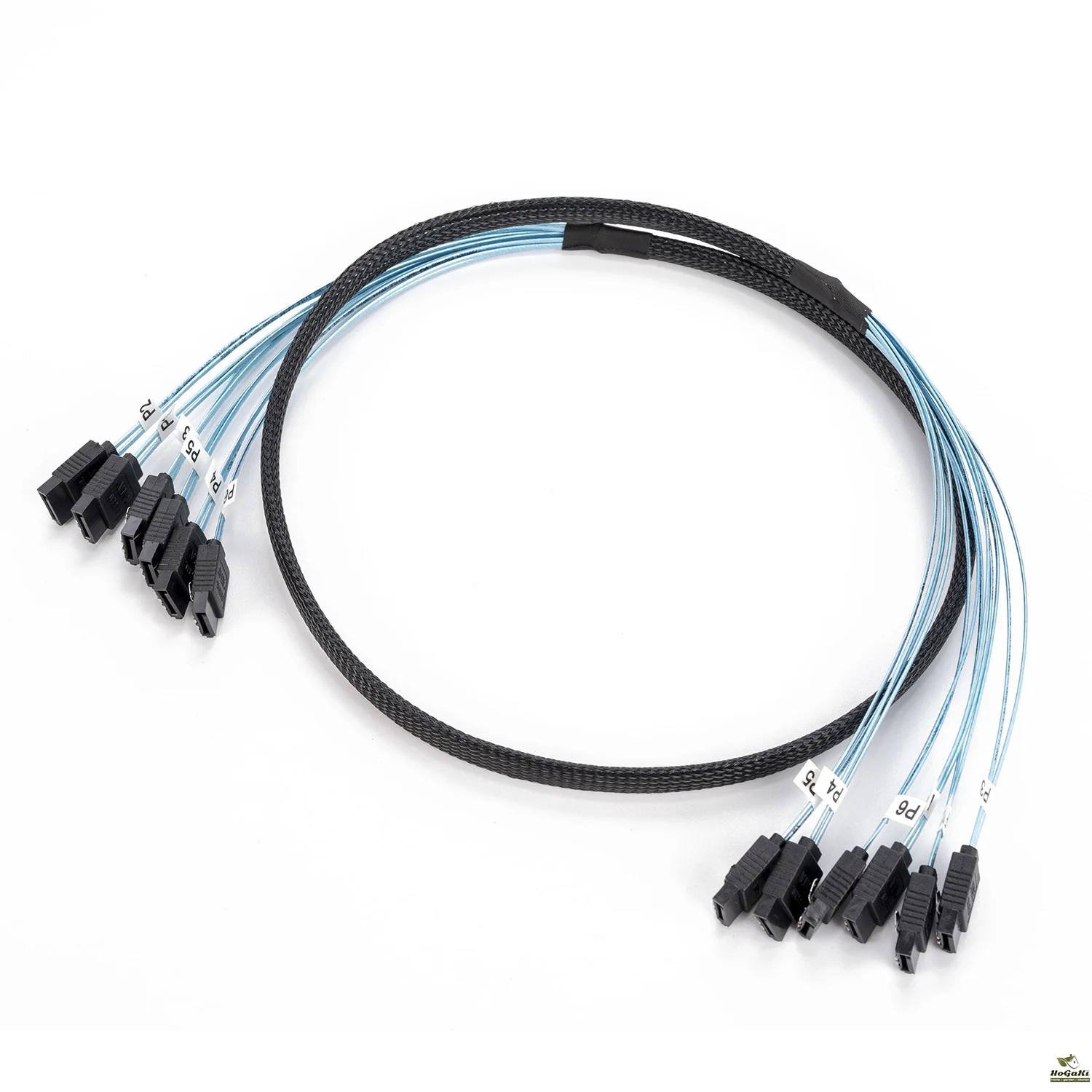

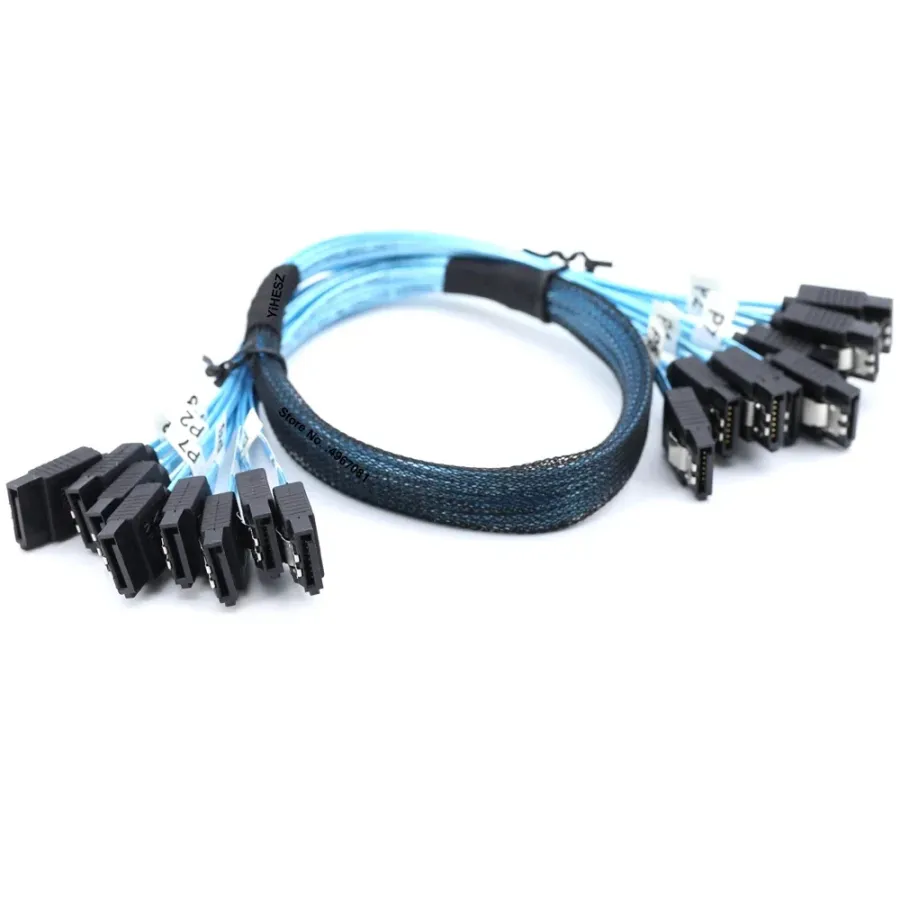

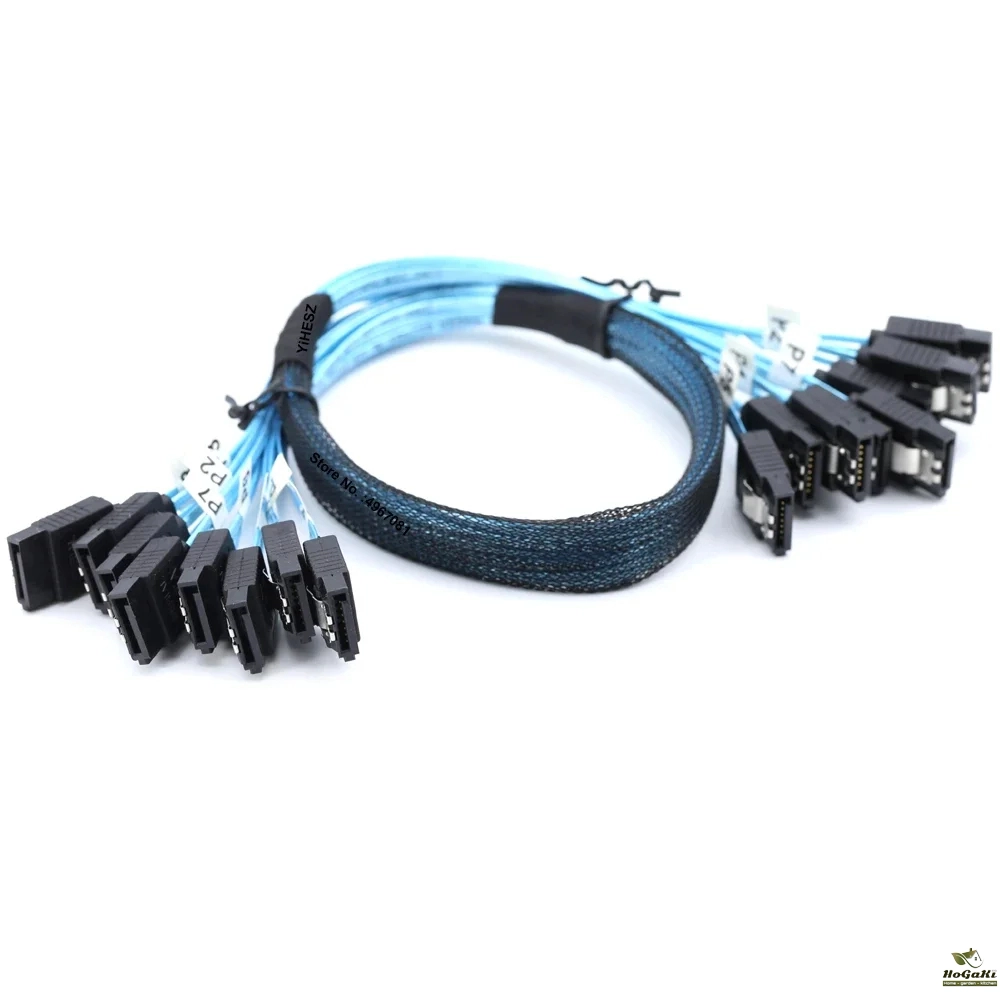

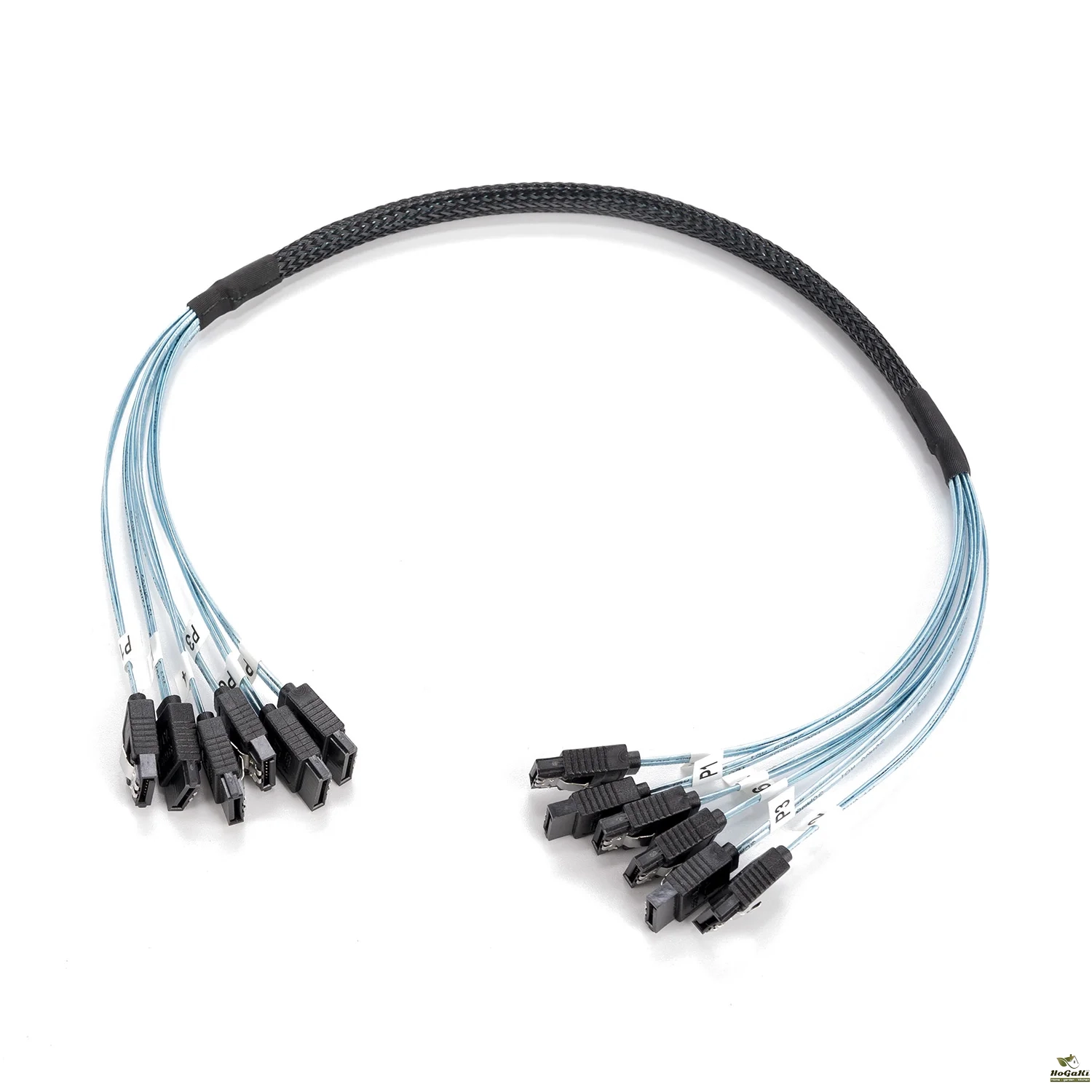

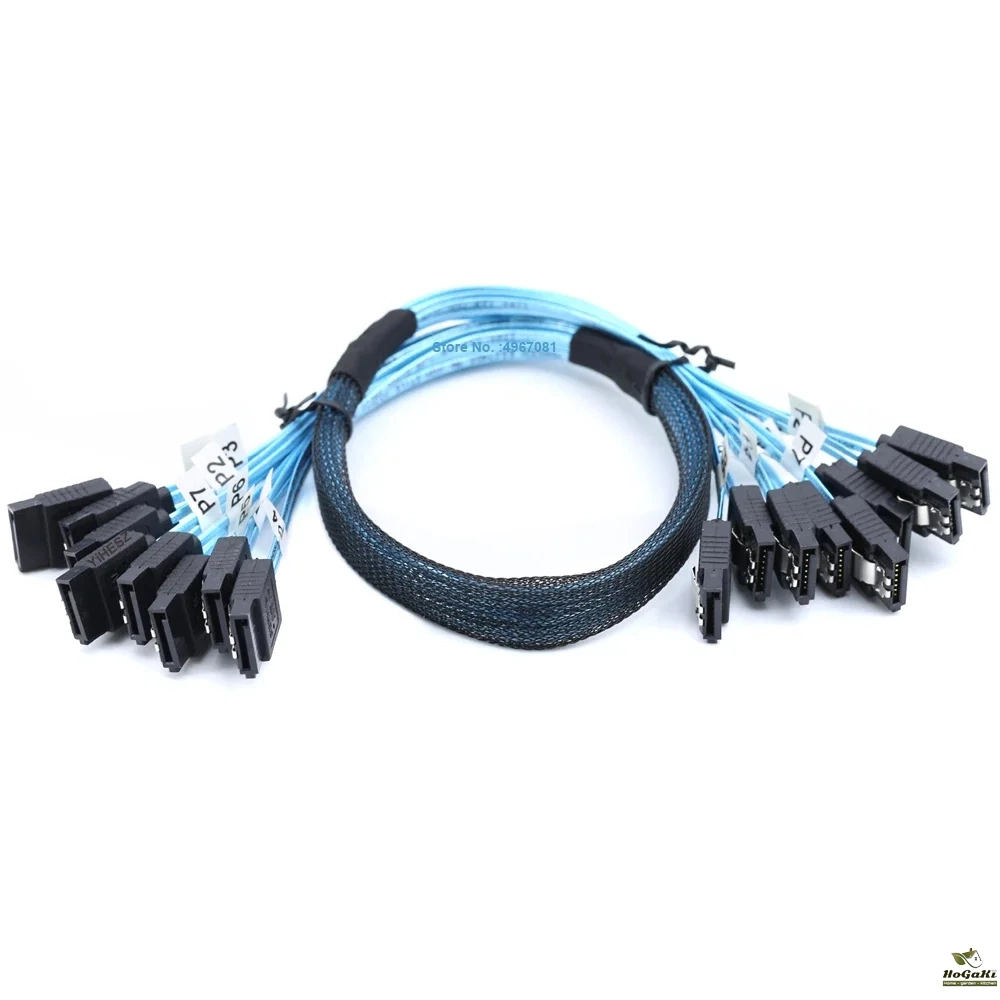

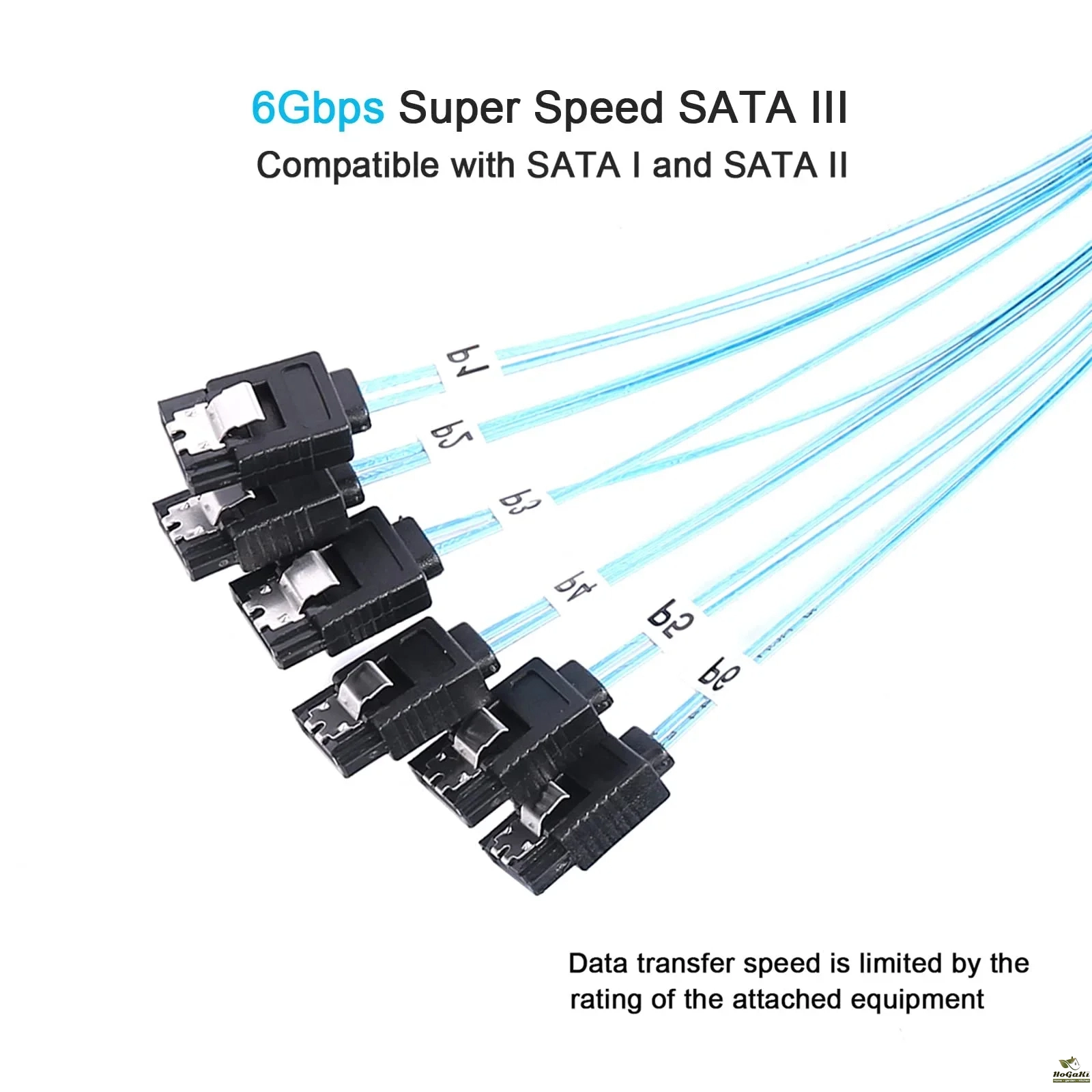

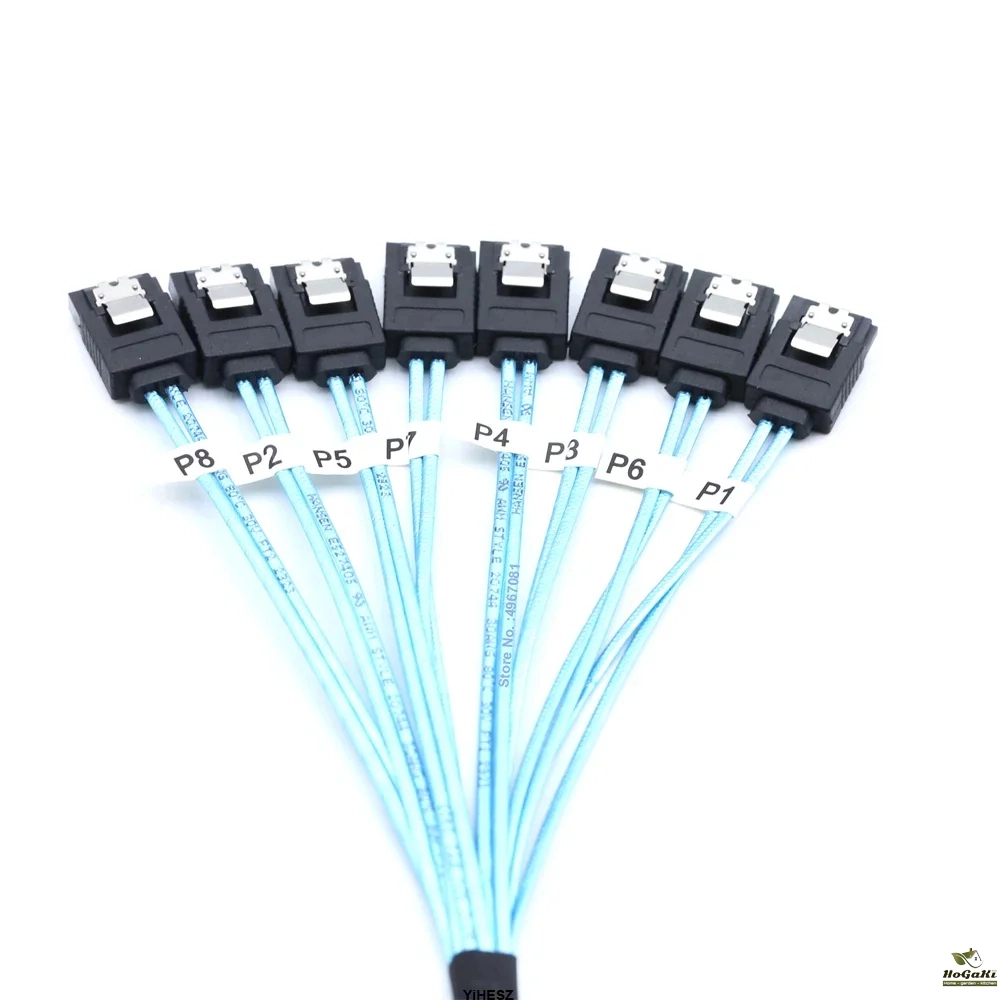

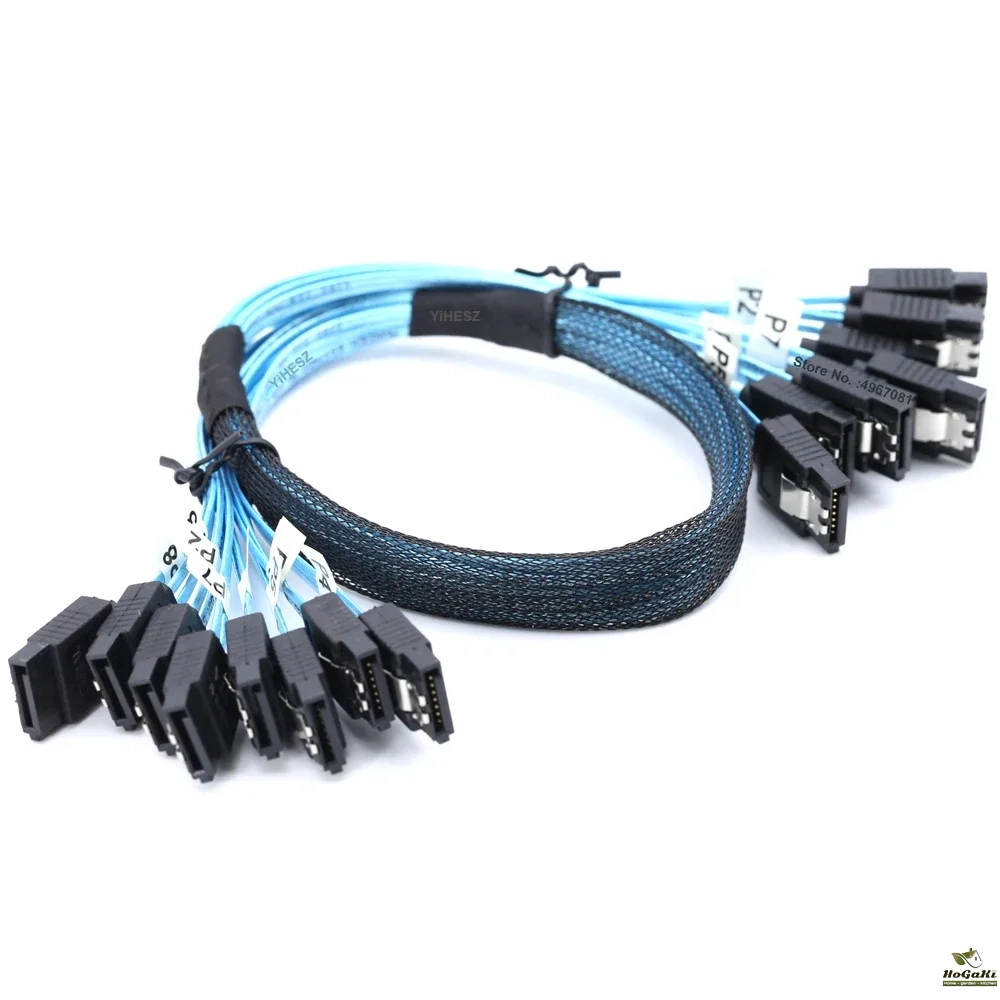

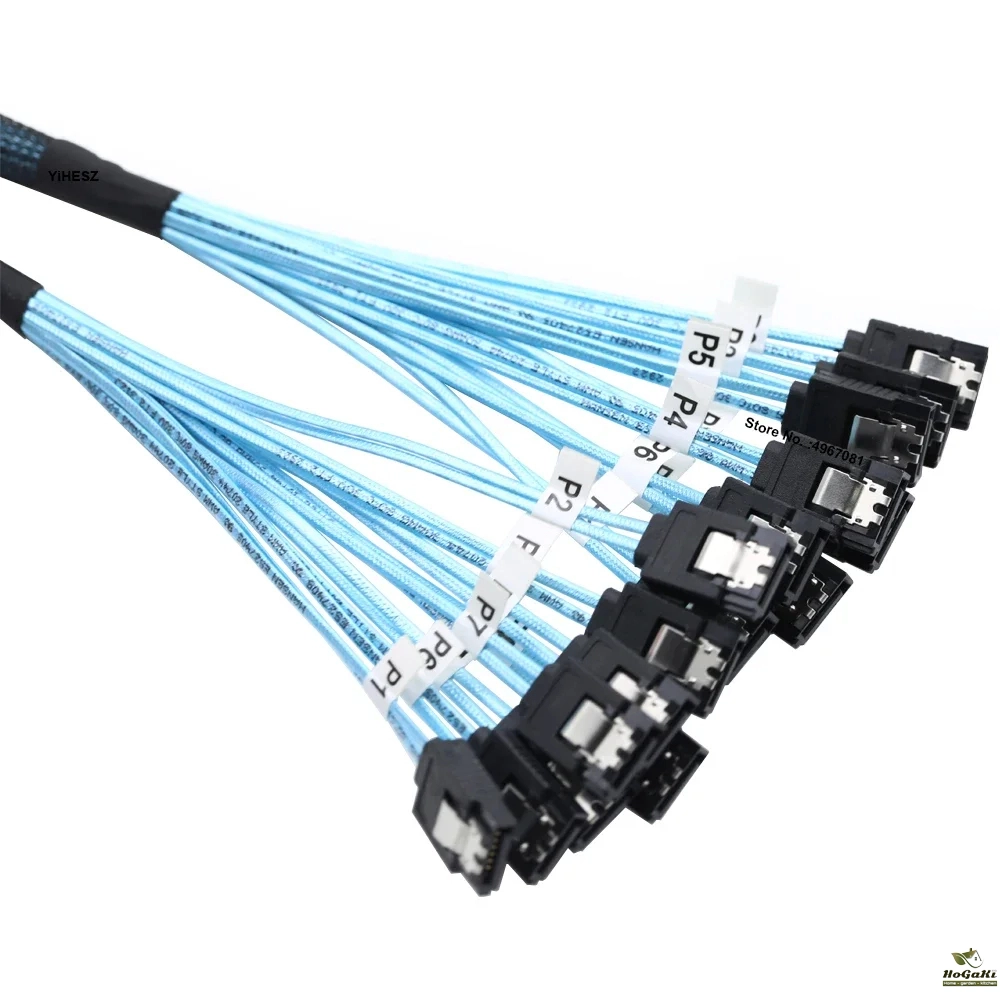

The Product photo
Packaging Details
- Unit Type:
- Package Weight: 0.038
- Package Size: 11x4x15
- Brand Name: NoEnName_Null
- Size: 0.5
- Plug Type: None
- Hign-concerned Chemical: None
- Certification: None
- Origin: Mainland China
- Choice: yes
