Built-in Electromagnetic Clutch Brake Combination POA-10 Food Packaging Machine Electromagnetic Brake
2,561.44 $
ID: 154603
Quantity

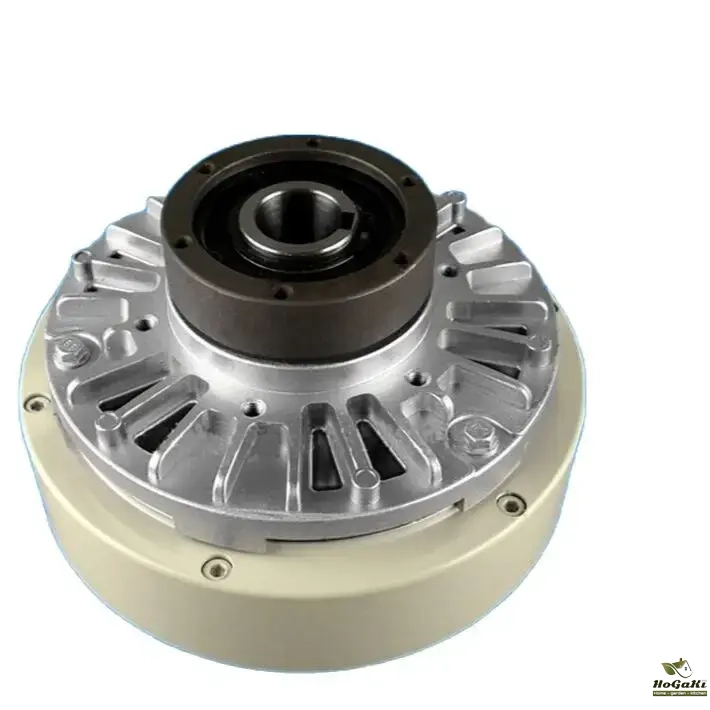

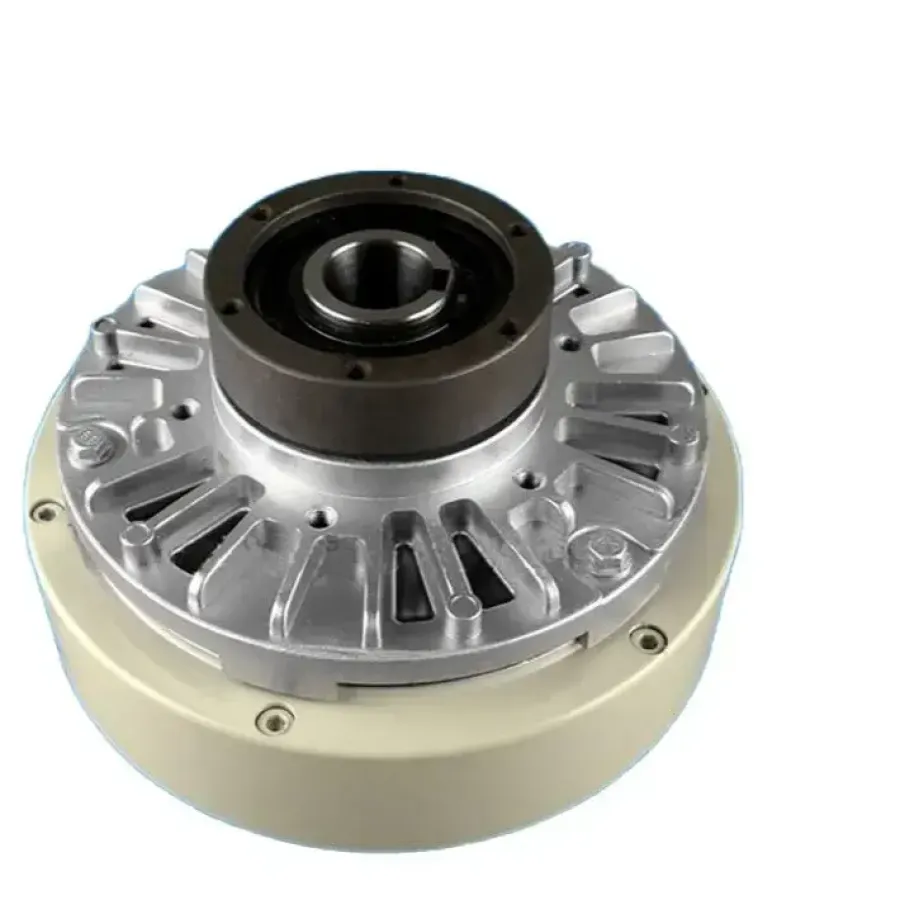

25Nm 2.5kg DC24V Magnetic Powder Clutch Hollow Shaft Winding Brake for Tension Control Bagging Printing Packaging Dyeing Machine
0.0 ( votes) | 1 orders
Price:
US $
475.61

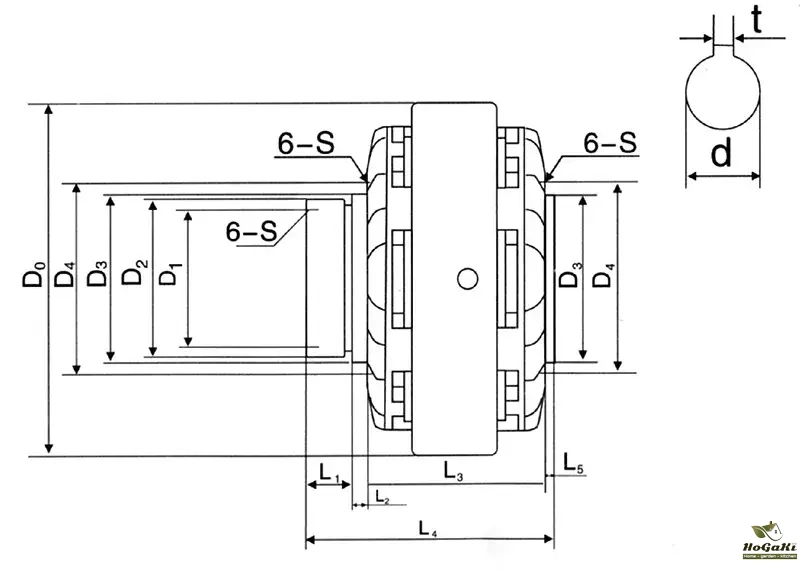

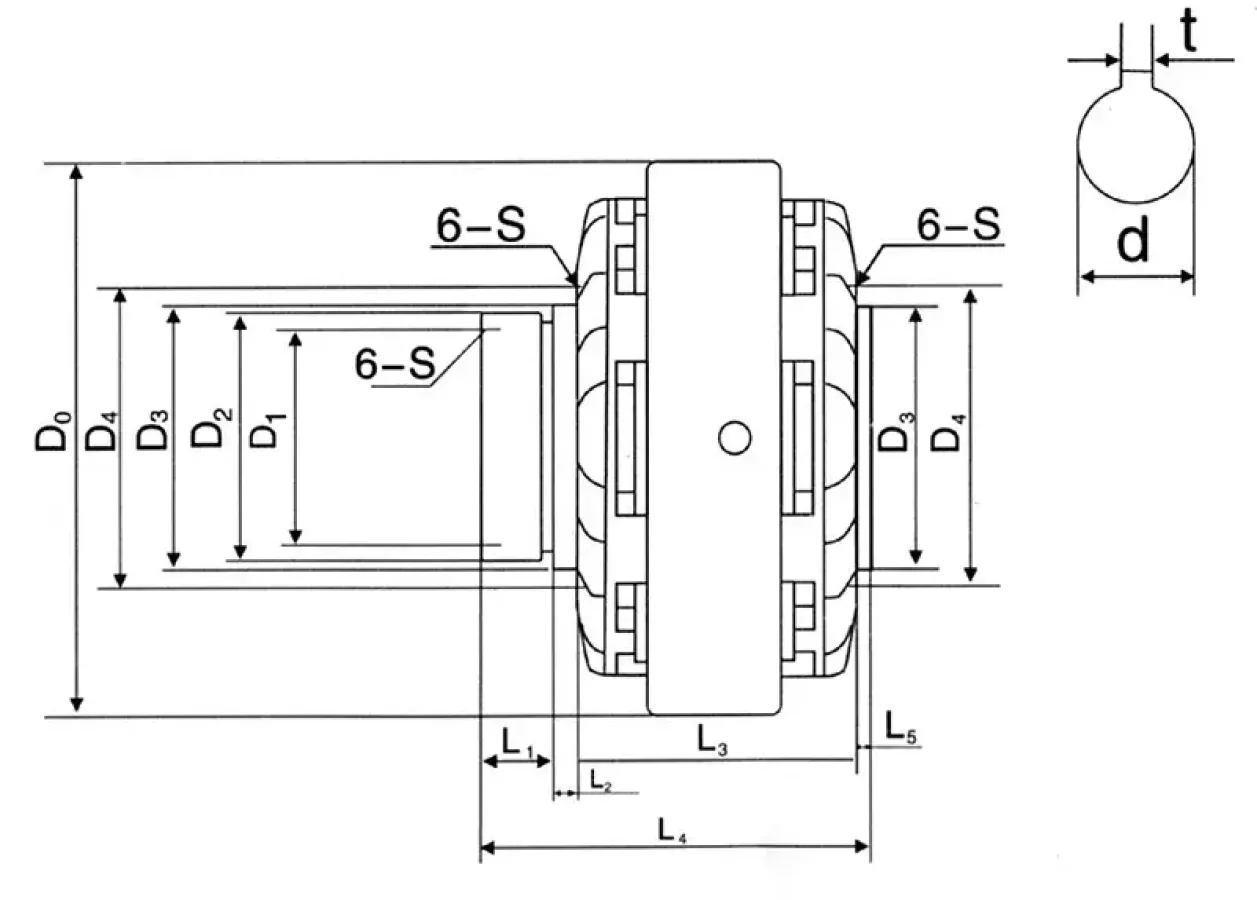

model | The main technical parameters | Dimensions | Net weight(Kg) | ||||||||||||||
torque | Voltage | Rotating speed | Maximum current A | D 0 | D 1 | D 2 XL 1 | D 3 XL 2 | D 4 | L 3 | L 4 | L 5 | d | t | 6-S 2 | 6-S 1 | ||
FL6B-1 | 6 | 24 | 1400 | 0.8 | 130 | 50 | 60x16 | 62x6 | 70 | 64 | 91 | 3 | 16 | 5 | M4 | M5 | 3 |
FL12B-1 | 12 | 1 | 157 | 63 | 70x18 | 72x7 | 80 | 77 | 107 | 3 | 20 | 6 | M4 | M5 | 6 | ||
FL25B-1 | 25 | 1.5 | 182 | 71 | 80x21 | 82x10 | 97 | 88 | 125 | 4 | 25 | 8 | M5 | M6 | 9 | ||
FL50B-1 | 50 | 1.8 | 219 | 85 | 95x22 | 97x11 | 110 | 103 | 144 | 4 | 30 | 8 | M6 | M6 | 14.5 | ||
FL100B-1 | 100 | 1000 | 2 | 290 | 105 | 125x24 | 128x14 | 145 | 137 | 183 | 5 | 35 | 10 | M8 | M8 | 33 | |
FL200B-1 | 200 | 3 | 335 | 125 | 140x28 | 145x17 | 165 | 145 | 200 | 5 | 45 | 14 | M8 | M10 | 48 | ||
FL400B-1 | 400 | 4 | 398 | 160 | 180x30 | 190x20 | 210 | 193 | 251 | 5 | 60 | 18 | M10 | M12 | 75 | ||
Rated voltage: DC24V
Packaging Details
- Unit Type:
- Package Weight: 10.000
- Package Size: 11x11x11
- Brand Name: ZHIXIANSEXIEJI
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: CE
- Voltage: 24V
- Model Number: FL
