ID: 27942

Best Price 10M 15M Minco Heat 12k 33Ohm Fluoroplastic Carbon Fiber Heating Cable Floor Electric Warm Wire, Room heater Hotline

4.7 (134 votes) | 297 orders
Price: US $685.78 - 867.92 / Meter
Discount Price:
US $ 517.20 - 670.12 / Meter
-25%
Color
Quantity



Best Price 10M 15M  Minco Heat 12k 33Ohm Fluoroplastic
Carbon Fiber Heating Cable Floor Electric Warm Wire, Room heater Hotline

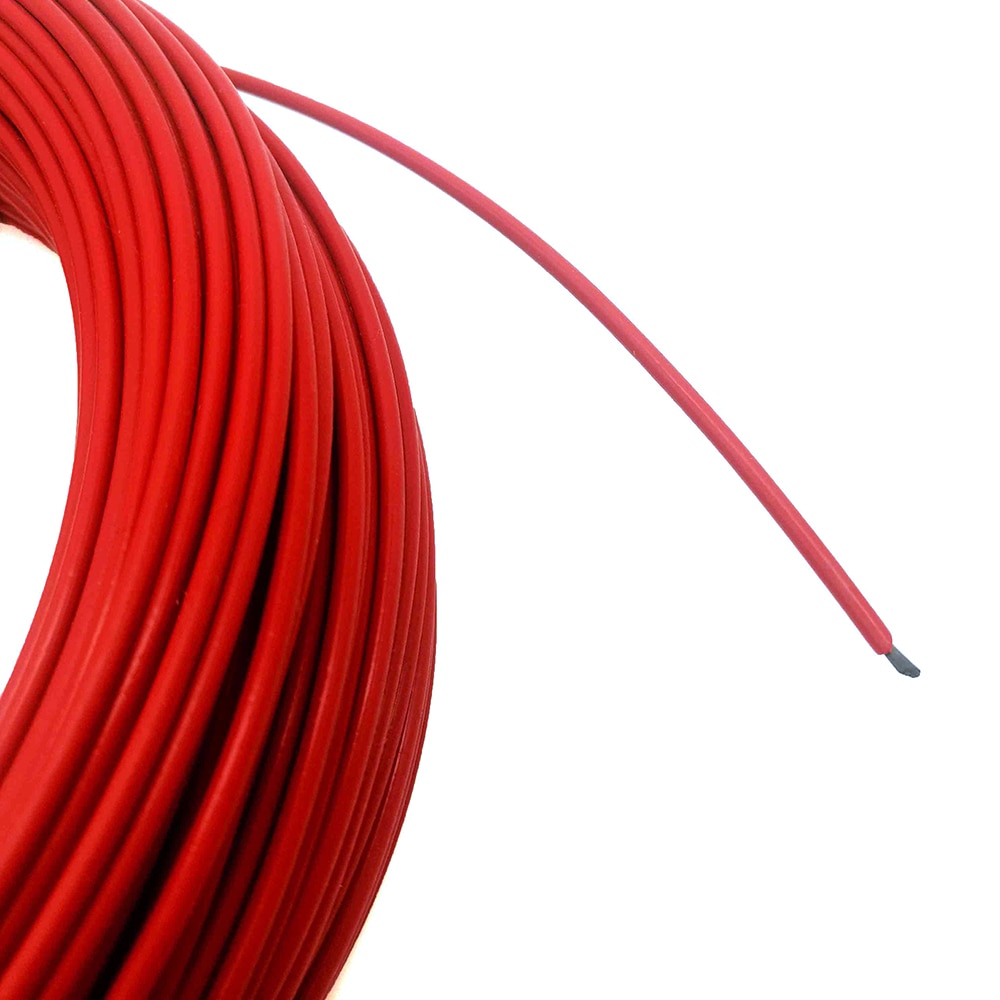

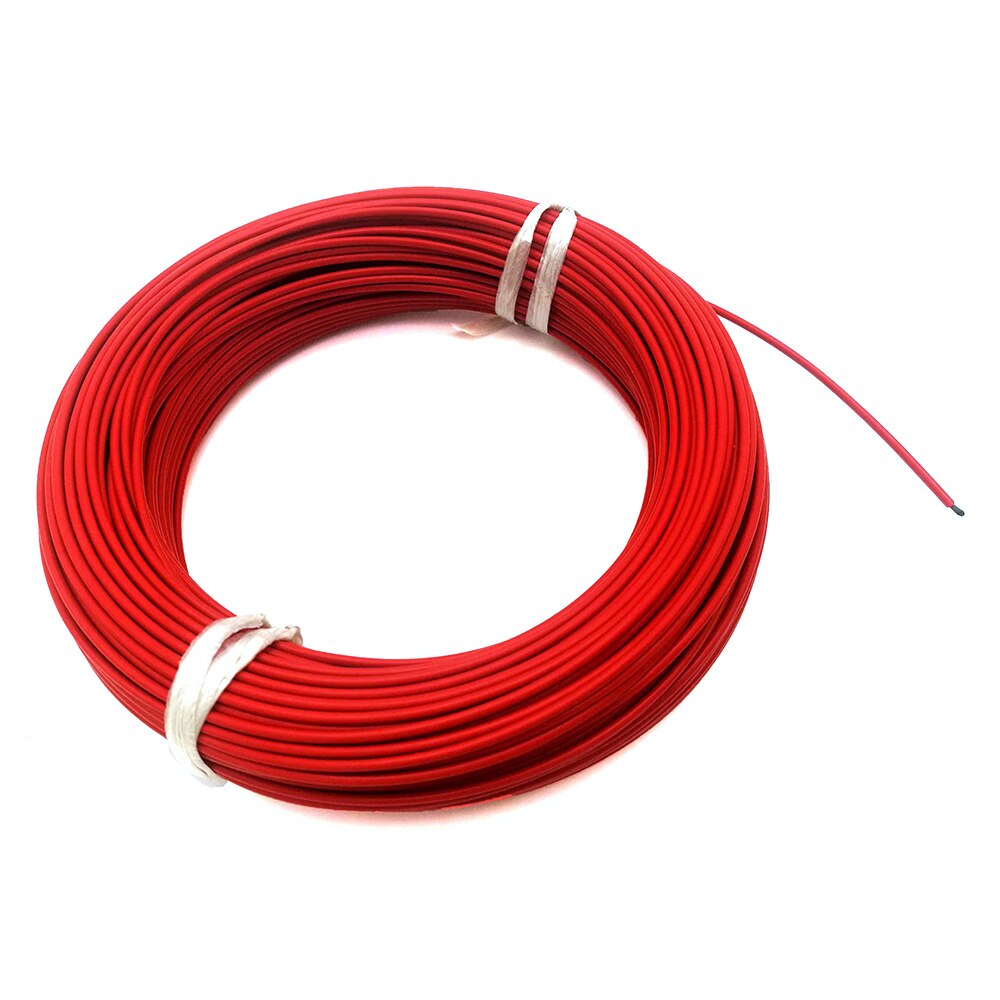

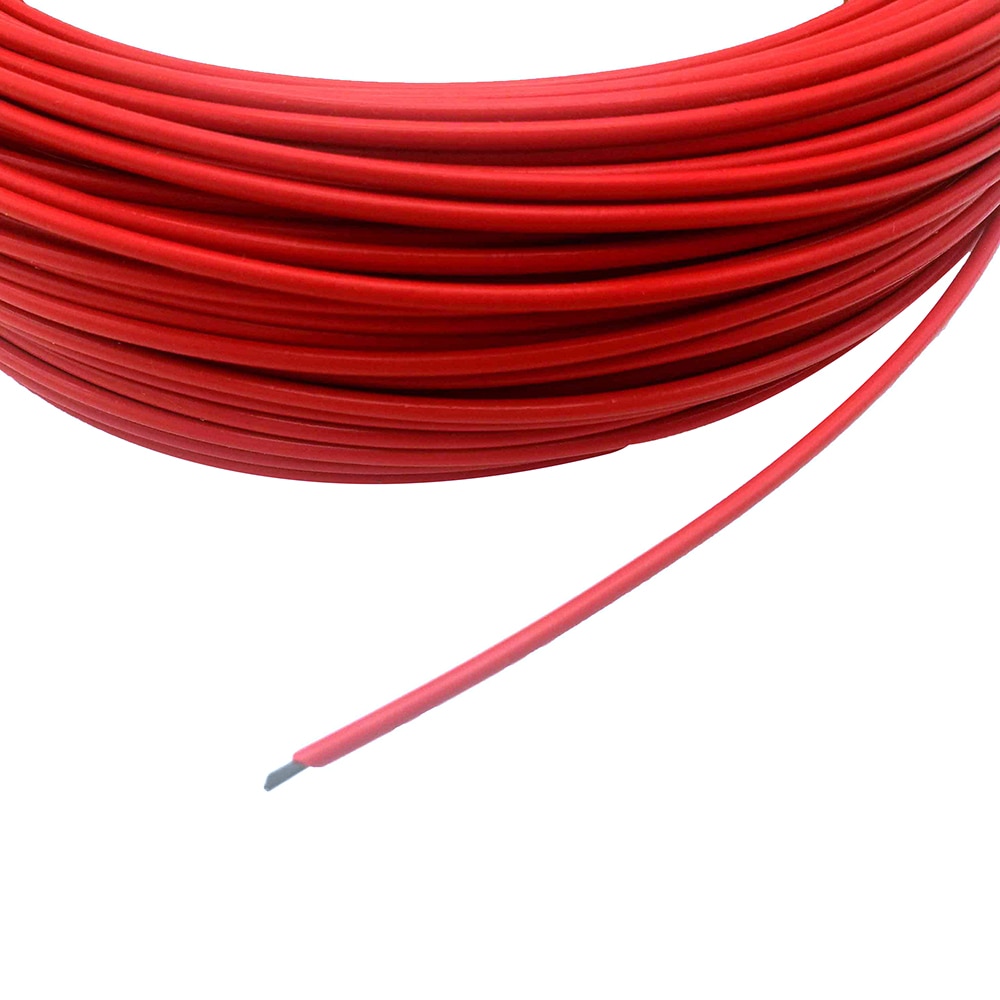

Product Name:  Carbon fiber heating wire

Outer jacket:Fluoroplastic

Temperature: 200 degrees celsius limit

Heating conductor: 12K

High voltage test: 3000V

Leakage current: 0.05mA/m

The product can withstand the power of power: 25W/M

Diameter: 1.9mm-2.1mm

Optional colors: Red

Infrared wavelength: 8UM-18UM

Conductor resistance: 33 Ω / M (+-10%)



Product Power Calculation:

Voltage * voltage / total resistance = power

For example: 12K carbon fiber, length of 10 meters

220V × 220V / (10 m x 33 Ohm) =150 watts

For example: 12K carbon fiber length of 15 meters

220V × 220V / (15 m x 33 Ohm) =100 watts

The data shows that the longer heating wire you use and the smaller output power. (The min length of 12K carbon fiber heating wire is 10 meters)



Product Advantages:

1.High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.

2.Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.

3.Easy to install: The carbon fiber heating wire cost a little, and has a long life span,  an investment, life-long benefit, low maintenance costs.

And etc...

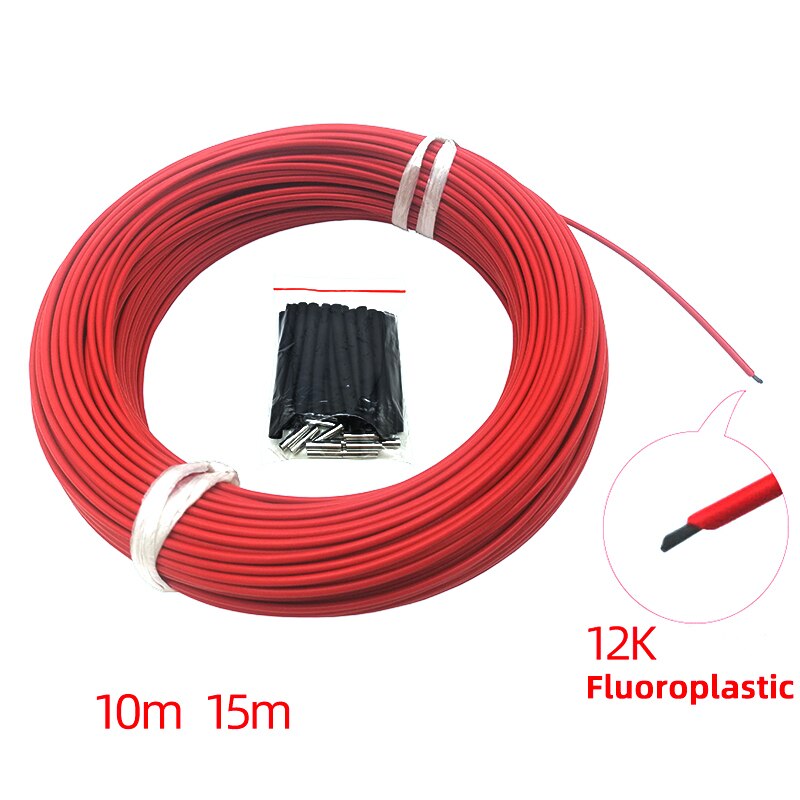

1 roll x 10m or 15m 12k fluoroplastic electric heating cable

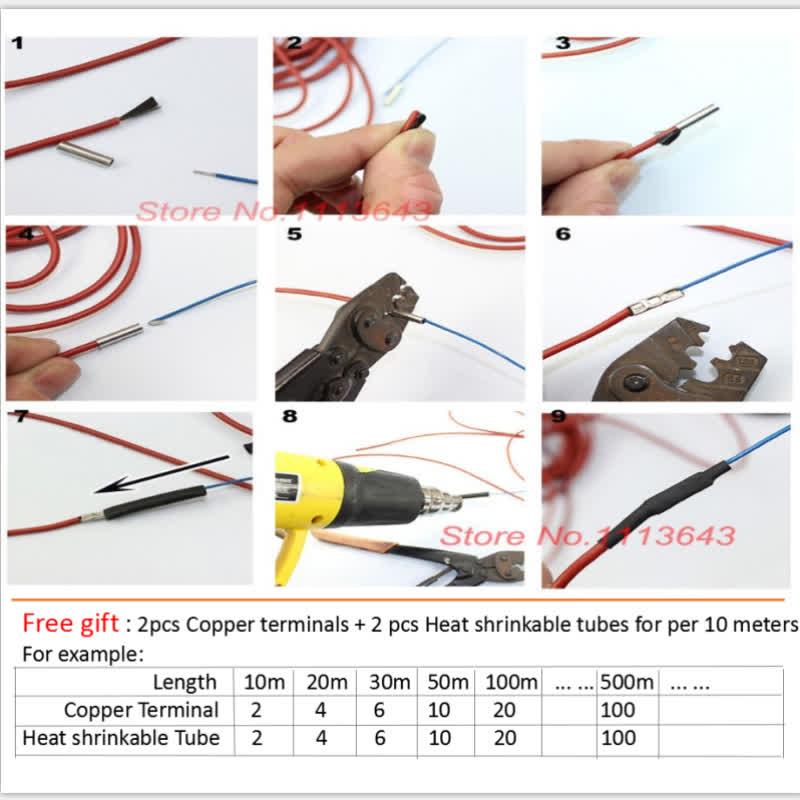

Gift: 2pcs copper terminals and 2pcs heat shrinkable tubes for per 10meters.


If you are in Russia,to choose to ship from Russia, we will ship from Moscow warehouse.

We also have heating cable(cold wire connected) and other lengths(20m,30m,50m,100m) cable, please click the picture below to buy(customize lengthplease contact me):

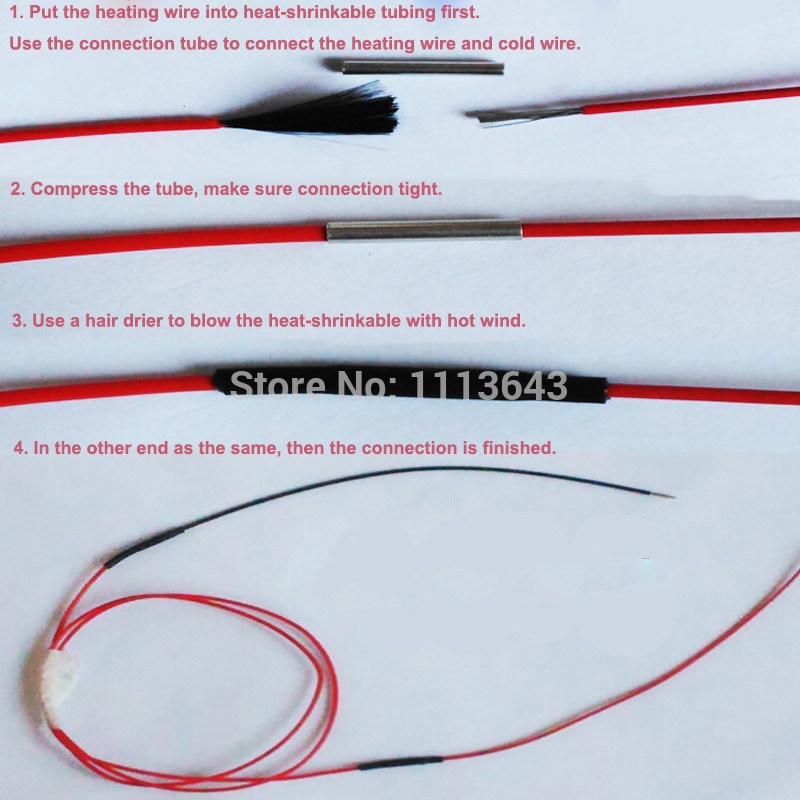

How to wiring?




1. Floor heating for Home and office: Homes, villas, hotels, office buildings, hospitals, shopping malls

2. Floor heating for public areas: Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten

3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways

4. Floor heating for professional field: Botanical garden, greenhouse, laboratory

And other heating applications..etc...



The marched thermostats:

Click the below picture to have more choose about thermostat


















  • Floor Heating Part Type: Floor Heating Cables
  • Model Number: CF-12-F
  • Type: Floor Heating Parts
  • Material: Fluoroplastic
  • Brand Name: MINCO HEAT
  • Origin: Mainland China
  • Certification: NONE
  • Application: Heating
  • Type: Insulated
  • is_customized: Yes
  • Conductor Type: Stranded
  • Conductor Material: 12K carbon fiber
  • Product name: 12K Fluoroplastic carbon fiber heating cable
  • Working voltage: 7~300V
  • Diameter: 1.9mm-2.1mm
  • Resistance: 33 Ohm/m +-10%
